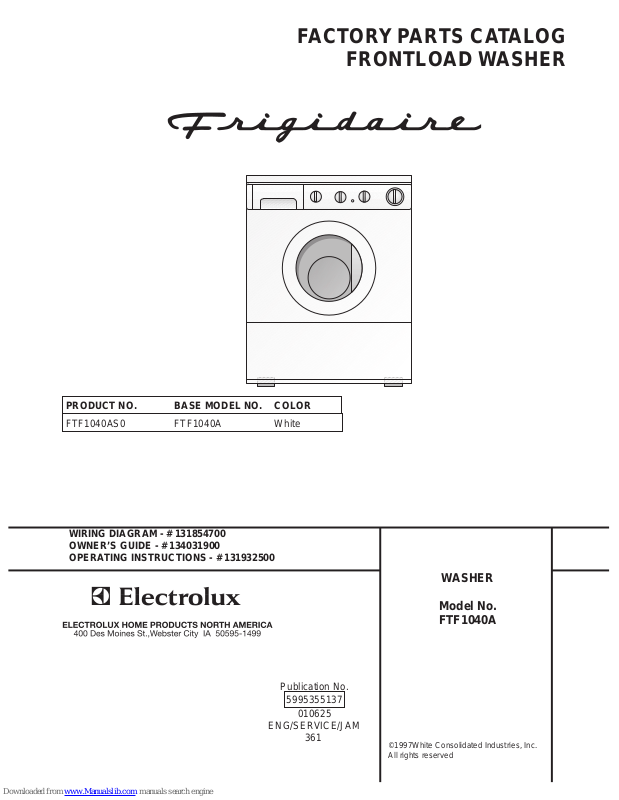

FACTORY PARTS CATALOG
FRONTLOAD WASHER
PRODUCT NO. BASE MODEL NO. COLOR
FTF1040AS0 FTF1040A White
WIRING DIAGRAM - # 131854700
OWNER’S GUIDE - # 134031900
OPERATING INSTRUCTIONS - # 131932500
Publication No.
5995355137
010625
ENG/SERVICE/JAM
361
WASHER
Model No.
FTF1040A
©1997White Consolidated Industries, Inc.
All rights reserved
Publication No. FTF1040AS0
5995355137
CONTROL PANEL
06/2001 2
FTF1040AS0 Publication No.
CONTROL PANEL
POS. NO PART NO DESCRIPTION
1 131272100 Cover-bleach
2 131272000 Cover-softener
3 131271900 Drawer-dispenser
6 131374500 Latch-handle
7 131427500 Spring
8 131373800 Magnet
9 131691244 Asmy-disp drwr handle/trim
12 131505901 Switch-reed
13 131729000 Switch-water temp
14 131724500 Buzzer
15 131243200 Switch-extra rinse/speed
16 131724700 Light-pilot
17 # 131273700 Switch-pressure
18 131802100 Timer-washer Mallory FHP
19 131243800 Screw-brkt top, pan hd locking,
8-32CA x 0.375, cr/sq drive
21 131243700 Screw, pan head, 8-18AB x 0.375,
cr/sq drive
26 131823400 Scr 8-18 x 2.000
27 131887282 Asmy-cons frame/trim
29 131761704 Knob-rotary
30 131853500 Knob-timer
31 131853900 Pointer-timer wht/drk gray ind
32 131786100 Hose-dispenser
33 131306215 Clamp
36 131974700 Asmy-disp valve/seal
37 131271600 Hose-tub
38 131803700 Asmy-detergent dispenser
39 131863300 Siphon
42 131168200 Screw, 8-18 x 0.31
43 131749200 Gasket-seal
44 131786000 Hose-dispenser
45 5303321107 Bushing
46 131810012 Panel-cont mtg-wing bend
52 131306242 Clamp
53 131724800 Lens-pilot light
69 131907500 Harness-dispenser
70 5303015671 Screw, 8-18 x .375
5995355137
* 134041600 Harness-Sole/Mallory
* 131307900 Clamp-siphon to bellows
* 131931201 Vibration dampener
# = Functional Part 3 06/2001
* = Non-Illustrated Part
Publication No. FTF1040AS0
5995355137
CABINET,DOOR &TOP
06/2001 4
FTF1040AS0 Publication No.
CABINET,DOOR &TOP
POS. NO PART NO DESCRIPTION
1 131279602 Asmy-Inlet Hose Cold
2 131168200 Screw, 8-18 x 0.31
3 131279603 Asmy-Inlet Hose-Hot
4 131770700 Speed cont-Mallory/Sole motor
7 131205300 Screw, 10-16 x .75
8 131763200 Door lock/switch USCC
9 131303300 Screw-lock, ph ab, 10-16 x .50
10 131278700 Door-outer
11 131278800 Glass-door
12 131278900 Door-inner
13 131302901 Screw, 10-16 x .75
14 131763300 Catch, door/lock sw, intr door frame
15 131269300 Hinge-door
16 131696300 Screw 10-16 x .312 quad pn hd
17 131346400 Pin-locating
18 131279300 Panel-service, white
19 131358400 Screw-panel, hwhd ab, 8-18 x 1.125
20 131460900 Bracket-top front
21 131243700 Screw, pan head, 8-18AB x 0.375,
cr/sq drive
22 131279500 Retainer-spring
23 131243800 Screw-brkt top, pan hd locking,
8-32CA x 0.375, cr/sq drive
24 131677308 Panel-top
25 131668200 Bracket-top pnl
26 131311900 Screw, quadrex ph ab, 8-18 x 1/2
28 131978500 Panel-back
30 131859600 Shield-overflow
31 5303208765 Cord-service
32 5303209428 Bushing-cord
33 # 5303207418 Valve-water
35 131732901 Reinforcement brkt
36 131003900 Leg, pad/nut
37 131304200 Roller Assy
44 131707800 Ring-drain hose
45 # 131461200 Hose-drain, 90 inch
5995355137
# = Functional Part 5 06/2001
* = Non-Illustrated Part
* 131453001 Bushing-top panel
* 131883101 Base-mounting-SCU
Publication No. FTF1040AS0
5995355137
TUB & MOTOR
06/2001 6
FTF1040AS0 Publication No.
TUB & MOTOR
POS. NO PART NO DESCRIPTION
3 131793302 Bolt-carriage 1/4-20 x 4.0
6 131975300 One piece counterweight
7 131277300 Spring-boot
8 131277100 Bellows
10 131304700 Nut
11 131276900 Washer-spring
12 131793500 Plate-weight
13 131618600 Shell-front tub
14 131663600 Spring/sleeve
15 131303900 Screw, hxwhd a, 1/4-10 x 2.165
16 131618500 Tub-spin
17 131274600 Vane
18 131302800 Screw-vane, quad ph ab, 10-16 x .375
19 131770600 Motor-Sole
20 131303500 Screw-motor, hwhd ab, 12-14 x 1.50
21 131275900 Seal-shell
22 131462800 Shell-rear/bearing
23 131709300 Weight-upper back
25 # 131276300 Belt
26 131883400 Pulley-drum-reinforced
27 131304400 Washer .41 x 1.500 x .120
28 131304500 Washer-lock, 3/8
29 131303700 Screw-pulley, m10 x .92
30 131268200 Level-shock
31 131268300 Pin-level
32 131268100 Bracket-shock
33 131303100 Screw, hwhd ab, 10-16 x .625
34 131304300 Washer .21 x .71 x .06
35 131889800 Pump-drain H axis wshr 40MM
41 131784700 Hose-coin trap-tub to pump
42 131333101 Clamp
43 131277500 Chamber-air
44 131277600 Tube-pressure
45 131306202 Clamp
48 131306234 Clamp-pump
5995355137
* 131560000 Sleeve-lower spring, tub
* 131592200 Sleeve-upper spring, tub
# = Functional Part 7 06/2001
* = Non-Illustrated Part
Publication No. FTF1040AS0
5995355137
WIRING DIAGRAM
06/2001 8
