Congratulations on your purchase of a new refrigerator! We
here at Electrolux Home Products are very proud of our
product and we are completely committed to providing you
with the best service possible. Your satisfaction is our #1
priority.
Please read this Use & Care Manual very carefully . It contains
valuable information on how to properly maintain your new
refrigerator.
We know you’ll enjoy your new refrigerator and Thank Y ou
for choosing our product. We hope you consider us for future
purchases.
PLEASE READ AND SAVE THESE INSTRUCTIONS
This Use & Care Manual provides specific operating
instructions for your model. Use your refrigerator only as
instructed in this manual. These instructions are not meant
to cover every possible condition and situation that may
occur. Common sense and caution must be practiced when
installing, operating and maintaining any appliance.
Please record your model and serial numbers below for
future reference. This information is found on the serial
plate located inside the refrigerator compartment.
Questions?
1-800-944-9044
(United States)
1-866-213-9397
(Canada)
or visit our web site at www.frigidaire.com
Extend Y our Warranty Protection
With An
Extended Service Contract
CALL 1-800-944-9044
To Enjoy These Benefits:
•Total freedom from repair bills so
unexpected repairs won’t upset your
budget.
NOTE: Use only soap and water to clean serial plate.
Model Number:
Serial Number:
Purchase Date:
•Fast, convenient toll-free service is just
a phone call away .
•Top-quality repairs by factory-trained
experts.
•Quick access to genuine replacement
parts so you can rest assured your
refrigerator is repaired with the proper
components.
Please attach sales receipt
here for future reference.
Please complete and mail in the ProductRegistration Card included with your
refrigerator.
2
Important Safety Instructions
Please Read All Instructions Before Using This Refrigerator.
FOR YOUR SAFETY
•Do not store or use gasoline, or other flammable liquids
in the vicinity of this or any other appliance. Read
product labels for warnings regarding flammability and
other hazards.
•Do not operate the refrigerator in the presence of
explosive fumes.
•Avoid contact with any moving parts of automatic ice
maker.
•Remove all staples from the carton. Staples can cause
severe cuts, and also destroy finishes if they come in
contact with other appliances or furniture.
CHILD SAFETY
Destroy or recycle the carton, plastic bags, and any exterior
wrapping material immediately after the refrigerator is
unpacked. Children should NEVER use these items to play
with. Cartons covered with rugs, bedspreads, plastic sheets
or stretch wrap may become airtight chambers, and can
quickly cause suffocation.
These Guidelines Must Be Followed T o Ensure That Safety Mechanisms In This Refrigerator
Will Operate Properly .
PROPER DISPOSAL OF YOUR REFRIGERATOR
OR FREEZER
Risk of child entrapment
Child entrapment and suffocation
are not problems of the past.
Junked or abandoned refrigerators
or freezers are still dangerous –
even if they will sit for “just a few
days.” If you are getting rid of your
old refrigerator or freezer, please
follow the instructions below to
help prevent accidents.
Before you throw away your old refrigerator/ freezer:
•Remove doors.
•Leave shelves in place so children may not easily climb
inside.
•Have refrigerant removed by a qualified service
technician.
ELECTRICAL INFORMATION
•The refrigerator must be plugged into its own
dedicated 115 V olt, 60 Hz., AC only electric outlet.
The power cord of the appliance is equipped with a
three-prong grounding plug for your protection against
electrical shock hazards. It must be plugged directly
into a properly grounded three-prong receptacle. The
receptacle must be installed in accordance with local
codes and ordinances. Consult a qualified electrician.
Do not use an extension cord or adapter plug.
•If the power cord is damaged, it should be replaced by the
manufacturer, service technician or a qualified person to
prevent any risk.
•Never unplug the refrigerator by pulling on the power
cord. Always grip the plug firmly, and pull straight out
from the receptacle to prevent damaging the power cord.
•Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock.
•Performance may be affected if the voltage varies by
10% or more. Operating the refrigerator with insufficient
power can damage the compressor. Such damage is
not covered under your warranty .
•Do not plug the unit into an outlet controlled by a wall
switch or pull cord to prevent the refrigerator from being
turned off accidentally.
•Avoid connecting refrigerator to a Ground Fault Interruptor
(GFI) circuit.
IMPORTANT: Pressing the On/Off button on the
control panel (at the top of the fresh food compartment)
disables your refrigerator’s cooling system but does
not disconnect power to lights and other electrical
components. To turn off power to your refrigerator you
must unplug the power cord from the wall outlet.
3
Installation
This Owner’s Guide provides specific operating instructions
for your model. Use the refrigerator only as instructed in this
Use & Care Manual. Before starting the refrigerator , follow
these important first steps.
LOCATION
•Choose a place that is near a grounded electrical outlet.
Do Not use an extension cord or an adapter plug.
•If possible, place the refrigerator out of direct sunlight
and away from the range, dishwasher or other heat
sources.
•The refrigerator must be installed on a floor that is level
and strong enough to support a fully loaded refrigerator.
•Consider water supply availability for models equipped
with an automatic ice maker.
INSTALLATION
Do Not install the refrigerator where
the temperature will drop below 55°F (13°C) or rise
above 110°F (43°C). The compressor will not be able
to maintain proper temperatures inside the
refrigerator.
Do Not block the toe grille on the
lower front of your refrigerator. Sufficient air circulation
is essential for the proper operation of your
refrigerator.
Installation Clearances
•Allow the following clearances for ease of installation,
proper air circulation, and plumbing and electrical
connections:
Sides & T o p --------------- 3/8”
Back------------------------ 1”
DOOR OPENING
NOTE: If your refrigerator is placed with the door hinge
side against a wall, you may have to allow additional
space so the door can be opened wider .
Y our refrigerator should be positioned to allow easy access to
a counter when removing food. For best use of drawers and
freezer baskets, the refrigerator should be in a position where
both the refrigerator and freezer doors can be fully opened.
TOE GRILLE INSTALLATION / REMOVAL
To Remove Toe Grille:
1. Open freezer and fresh food compartment doors.
2. Working from left side of toe grille, slip your fingers
between top of toe grille and cabinet. Gently pull
forward until first set of tabs are free. Slide your hand
down past the free tabs and pull forward again until the
second set of tabs are free. Continue this process until
all tabs are free and the toe grille can be removed. (See
graphic at top of page in right column.)
To Install Toe Grille:
1. Open freezer and
fresh food
compartment doors.
2. Line up toe grille at
base of refrigerator,
making sure the four
bottom tabs are
resting through holes
at base of cabinet.
3. Starting from left side
of toe grille, press in on first top tab using your thumb
and push toe grille forward until it snaps in place. Continue
this process until all tabs aresnapped in place and toe
grille is secured to refrigerator.
LEVELING
All four corners of your refrigerator must rest firmly on a solid floor.
Your refrigerator is equipped with adjustable front rollers to help
level your unit. T o ensure proper door seal and assist door closing,
the refrigerator should be tilted 1/4” (6 mm), front to back.
To Level Your Refrigerator:
1.Remove toe grille. (See “T o Remove Toe Grille” .)
2.Use flat-blade screwdriver or 3/8” socket wrench to adjust
front rollers.
NOTE: The refrigerator doors are designed to shut by
themselves within a 20 degree opening.
3.Check both doors to be sure seals touch cabinet on all four
sides.
4
Installation - Connecting Ice Maker To Water Supply
T o avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator
from electrical power before connecting a water supply line to the refrigerator.
T o Avoid Property Damage:
•Copper tubing is recommended for the water supply line. Water supply tubing made of ¼” plastic is not
recommended since it greatly increases the potential for water leaks. Manufacturer will not be responsible
for any damage if plastic tubing is used for supply line.
•DO NOT install water supply tubing in areas where temperatures fall below freezing.
•Chemicals from a malfunctioning softener can damage the ice maker. If the ice maker is connected to sof t
water, ensure that the sof tener is maintained and working properly .
IMPORT ANT: Ensure that your water supply line connections comply with all local plumbing codes.
Before Installing The Water Supply Line, Y ou Will Need
•Basic Tools: adjustable wrench, flat-blade screwdriver , and Phillips
•Access to a household cold water line with water pressure between 20 and 100 psi.
•A water supply line made of ¼ inch (6.4 mm) OD, copper tubing. To determine the length of copper tubing needed,
you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water
pipe. Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out for cleaning (as shown).
•A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type
shutoff valve.
•A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inlet valve.
TM
screwdriver
NOTE: W ater line kit number 5303917950, available from your appliance dealer at additional cost, contains 25 feet (7.6
meters) of ¼ inch OD copper tubing, a saddle type shutoff valve (nonpiercing), (2) ¼ inch brass compression nuts, (2)
ferrules/sleeves, and instructions for installing a water supply line.
To Connect Water Supply Line T o Ice Maker Inlet Valve
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket. Turn ON water supply
and flush supply line until water is clear. Turn OFF water supply at shut
off valve.
3. Unscrew plastic cap from water valve inlet and discard cap.
4. Slide brass compression nut, then ferrule (sleeve) onto water supply line,
as shown.
5. Push water supply line into water valve inlet as far as it will go (¼ inch).
Slide ferrule (sleeve) into valve inlet and finger tighten compression nut
onto valve. Tighten another half turn with a wrench; DO NOT over tighten.
6. With steel clamp and screw, secure water supply line to rear p anel of
refrigerator as shown.
7. Coil excess water supply line (about 2½ turns) behind refrigerator as shown
an darrange coils so they do not vibrate or wear against any other surface.
8. Turn ON water supply at shutoff valve and tighten any connections that
leak.
9. Reconnect refrigerator to electrical power source.
10. Make sure ice maker power switch is turned On (See page 14 for location of
power switch).
IMPORTANT: It takes approximately 24 hours for the ice maker to begin producing ice. Air in new plumbing lines may
cause ice maker to cycle two or three times before making a full tray of ice. New plumbing may cause ice to be
discolored or have poor flavor. Discard ice made during the first 24 hours.
5
Door Removal Instructions
DOOR REMOVAL INSTRUCTIONS:
If it is necessary to move the refrigerator through narrow doorways, follow
these steps to remove the doors.
IMPORT ANT: Before you begin, remove electrical power cord from wall
outlet. Remove any food from door shelves.
1. Disconnect electrical supply .
2. Open both doors, then remove toe grille (see page 4 to learn how).
3. Close doors.
To Remove Refrigerator Door:
1 .Remove top hinge cover screw on refrigerator door and remove cover.
2. Trace around hinge with soft lead pencil. This will make it easier to realign
doors when they are replaced.
3. Remove top hinge and lift refrigerator door off bottom hinge pin. Set door
aside.
4. Remove bottom hinge, if necessary .
5. Reverse this procedure to reinstall refrigerator door.
To Remove Freezer Door:
1. Disconnect water line coming from lower hinge of freezer door at connection
located under front of freezer: Press outer ring against face of fitting, then pull
to remove tube.
2. Remove top hinge cover screw on freezer door and remove cover.
3. Disconnect wiring harness connector plug at top hinge: place your thumbs on
flat sides of each connector and bend both parts back and forth, then with
firm grasp, pull both pieces apart.
4. Trace around hinge with soft lead pencil. This will make it easier to realign
doors when they are replaced.
5. Remove top hinge, al lowi ng wiring harness to pull through hinge and lift freezer
door off of bottom hinge pin. Lay door down flat to avoid kinking water line.
6. Remove bottom hinge, if necessary .
7. Reverse this procedure to reinstall freezer door.
When both doors have been reinstalled,connect water line by inserting tube and
pushing until mark touches face of fitting, replace toe grille and plug in electrical
power cord.
6
Features At A Glance
Features may vary according to model
7
Temperature Controls
COOL DOWN PERIOD
T o ensure safe food storage, allow the refrigerator to operate with the doors closed for at least 6 hours before loading it
with food.
REFRIGERATOR & FREEZER CONTROLS
NOTE: When changing control settings, wait 24 hours before making additional adjustments.
Temperature Control Range
Freezer Fresh Food
Warmer
Factory Setting
Colder
Warmest
Midpoint
Coldest
Fahrenheit Centigrade Fahrenheit Centigrade
6°-14°
0°-18°
-6° -21°
47° 8°
37° 3°
33° 1°
TEMPERATURE ADJUSTMENT
After 24 hours, adjust the controls as
needed. Make your adjustments small and
gradual; allowing time for temperatures to
change and stabilize. Refer to the adjacent
guidelines for temperature settings.
To adjust the temperature to a higher or
lower setting, press the Up or Down button
closest to the display. The first time you
press the button, the display shows the last
setting you entered. Each press of the
button after that increments the setting by
one degree.
Temperature Adjustment Guide
If Fresh Food compartment is too warm
If Fresh Food compartment is too cold
If Freezer compartment is too warm
If Freezer compartment is too cold
Adjust Fresh Food control one degree
colder by pressing Down Arrow button.
Adjust Fresh Food control one degree
warmer by pressing the Up Arrow button.
Adjust Freezer control one degree colder
by pressing Down Arrow butt o n.
Adjust Freezer control one degree warmer
by pressing the Up Arrow button.
The display shows your new setting
momentarily, then changes back to the
current temperature.
IF TEMPERATURE DISPLAYS
FLASH...
If ever you see both temperature displays
continously flashing, it may indicate that
the control system has detetcted a
performance problem. Call your Frigidaire
service representative, who can interpret
the flashing message.
T o maintain temperatures, a fan circulates
air in the refrigerator and freezer
compartments. For good circulation, do not
block cold air vents with food items.
8
Temperature Controls
OTHER CONTROL FEATURES

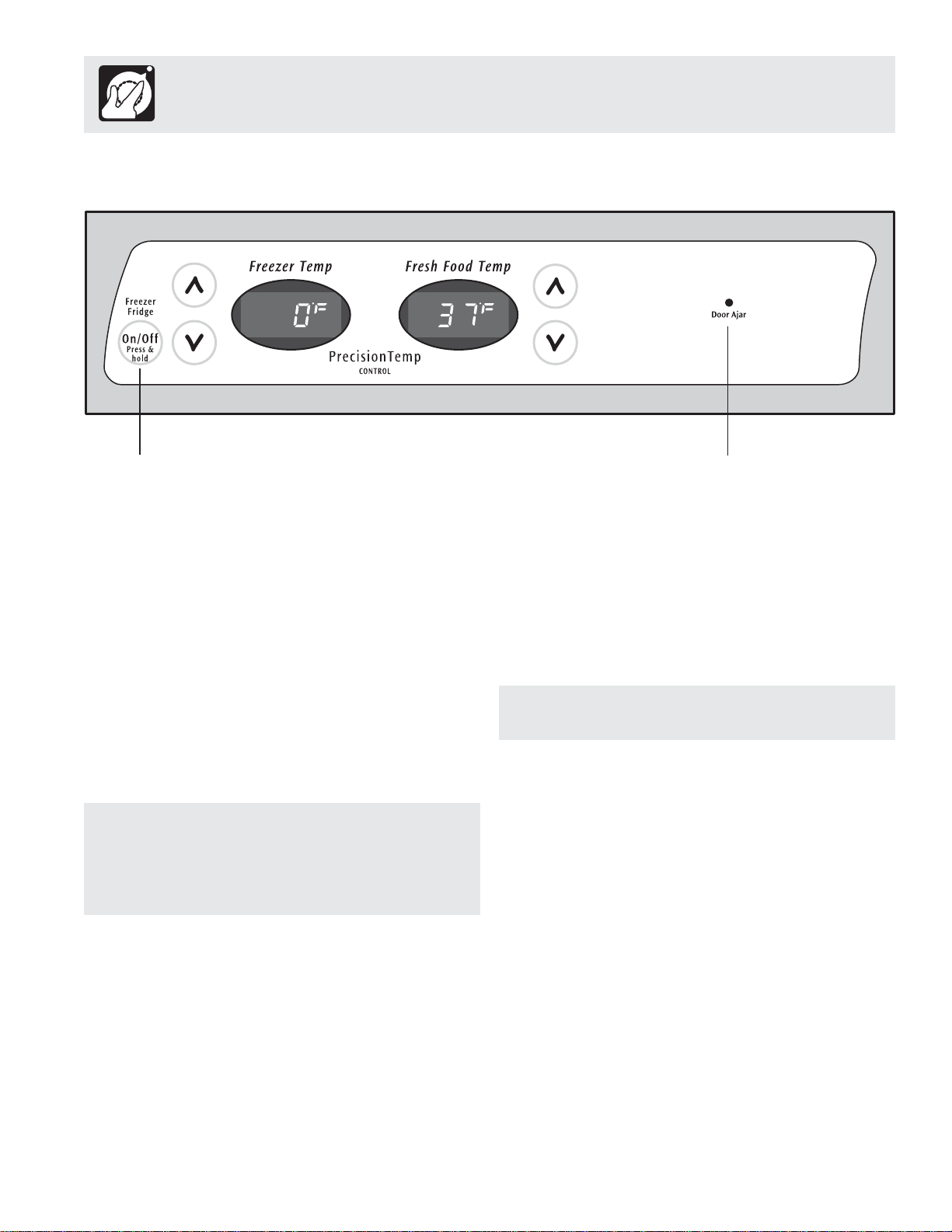

Cooling System On/Off ButtonDoor Ajar Indicator
TURNING THE COOLING SYSTEM ON AND OFF
Y ou can disable the cooling system in your refrigerator
by pressing the On/Off button located on the left side of
the temperature control panel.
To ensure that you do not accidentally turn off the
cooling system, the button does not work unless you
press and hold it for three seconds.
Once you disable the cooling system, all refrigeration to
the freezer and fresh food compartments stops.
To turn the cooling system back on, you must again
press and hold the On/Off button for three more
seconds.
IMPORT ANT: Pressing the On/Off button on the control
panel disables your refrigerator’s cooling system but does
not disconnect power to lights and other electrical
components. To turn off power to your refrigerator you
must unplug the power cord from the wall outlet.
DOOR AJAR INDICATOR
This light flashes green when either the freezer or fresh
food door has been left open for over five minutes.
An audible tone will also call your attention to this
condition.
Close the door to disable and reset the alarm.
NOTE: Each time you make settings on the control
panel, a single audible tone acknowledges your input.
9
Looking Inside
ICE CREAM SHELF (SOME MODELS)
This shelf attaches to the top of the ice dispenser container . It allows storage
of both round and rectangular cartons of your favorite ice cream.
T o avoid personal injury or property damage, handle
tempered glass shelves carefully . Shelves may break suddenly if
nicked, scratched, or exposed to sudden temperature change.

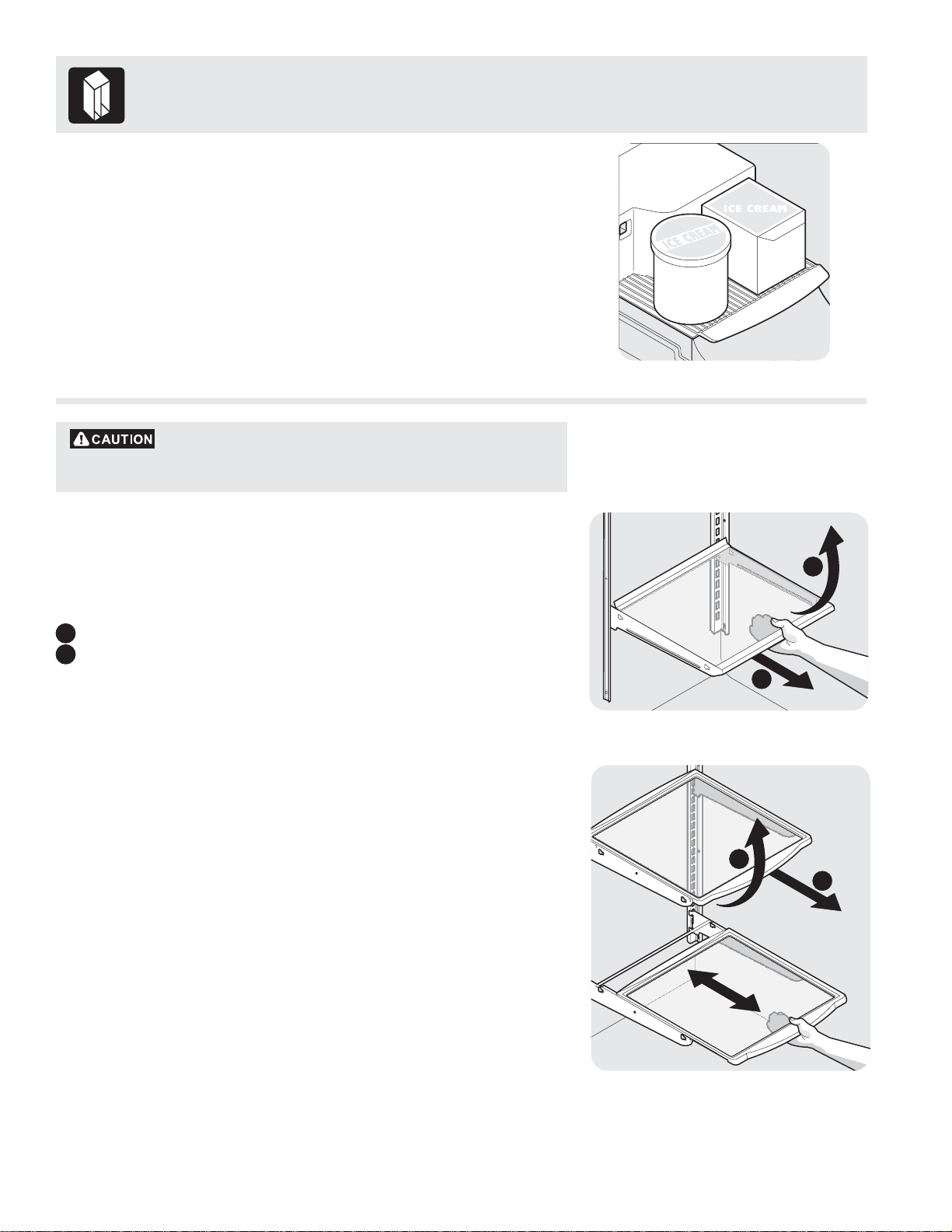

CANTILEVER SHELF ADJUSTMENT
Refrigerator shelves are easily adjusted to suit individual needs. Before
adjusting the shelves, remove all food. Cantilever shelves are supported at
the back of the refrigerator.
Ice Cream Shelf
1
To adjust cantilever shelves:
1 Lift front edge up.
2 Pull shelf out.
Replace the shelf by inserting the hooks at rear of the shelf into the wall
bracket. Lower the shelf into the desired slots and lock into position.
* SpillSafeTM glass shelves (some models) catch and hold accidental spills.
In some models, the * SpillSafeTM shelves slide out for easy access to
food and for fast cleaning. The shelves slide out independently of their
mounting brackets. Just pull the front of the shelf forward. Shelves can be
extended as far as the stopper will allow but are not removable from their
mounting brackets.
2
Cantilever Glass Shelf
1
2
* WhiteWestinghouse - S pillFree
Cantilever Sliding Glass Shelf
TM
10
Looking Inside (continued)
DOOR STORAGE
Door bins and shelves are provided for convenient storage
of jars, bottles, and cans. Frequently used items can be
quickly selected.
Some models have door bins that can accommodate gallonsized plastic drink containers and economy-sized jars and
containers. Some bins are adjustable for maximum storage
capacity.
The dairy compartment, which is warmer than the general
food storage section, is intended for short term storage of
cheese, spreads, or butter.

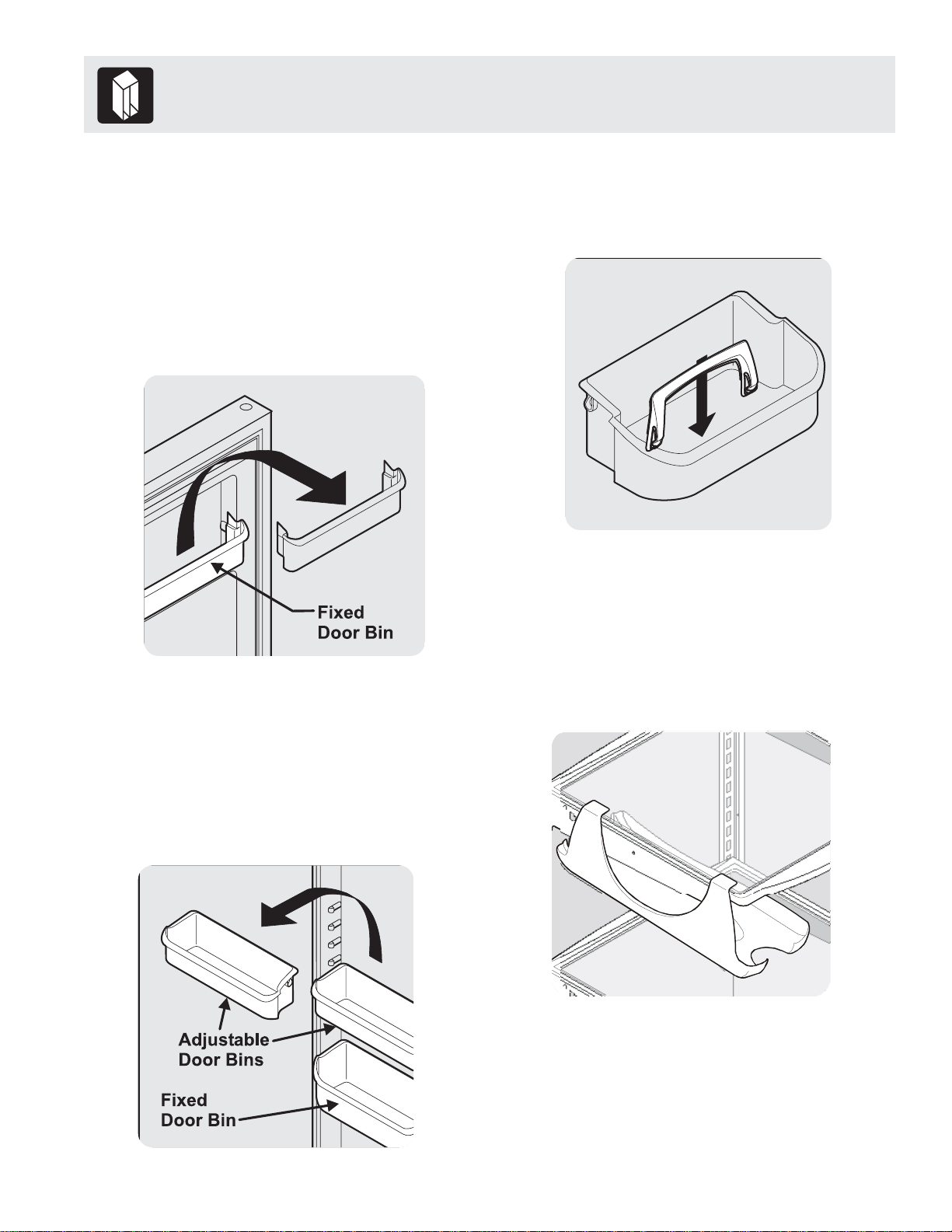

ADJUSTABLE DOOR BINS
Some models have adjustable door bins that can be moved
to suit individual needs.
T o move door bins
1. Lift bin straight up.
2. Remove bin.
3. Place bin in desired position.
4. Lower bin onto supports until locked in place.
TALL BOTTLE RETAINER (SOME MODELS)
The T all Bottle Ret ainer keeps tall containers in the bin from
falling forward when opening or closing the refrigerator door.
To install, hold the retainer at the top, and slide it over the
outside wall of the bin, as shown in the diagram.
Tall Bottle Retainer
SPECIAL ITEM RACK (SOME MODELS)
The innovative design of the Special Item Rack allows you
to store a six-pack of 12 ounce drink cans, a bottle of wine,
a two-liter soft drink bottle, or a carton of eggs. The S pecial
Item Rack mounts on the left side of your refrigerator. To
install, just slide the Special Item Rack onto any shelf as
shown in the drawing.
Adjustable Door Bin
Special Item Rack
11
Looking Inside - Special Storage Areas

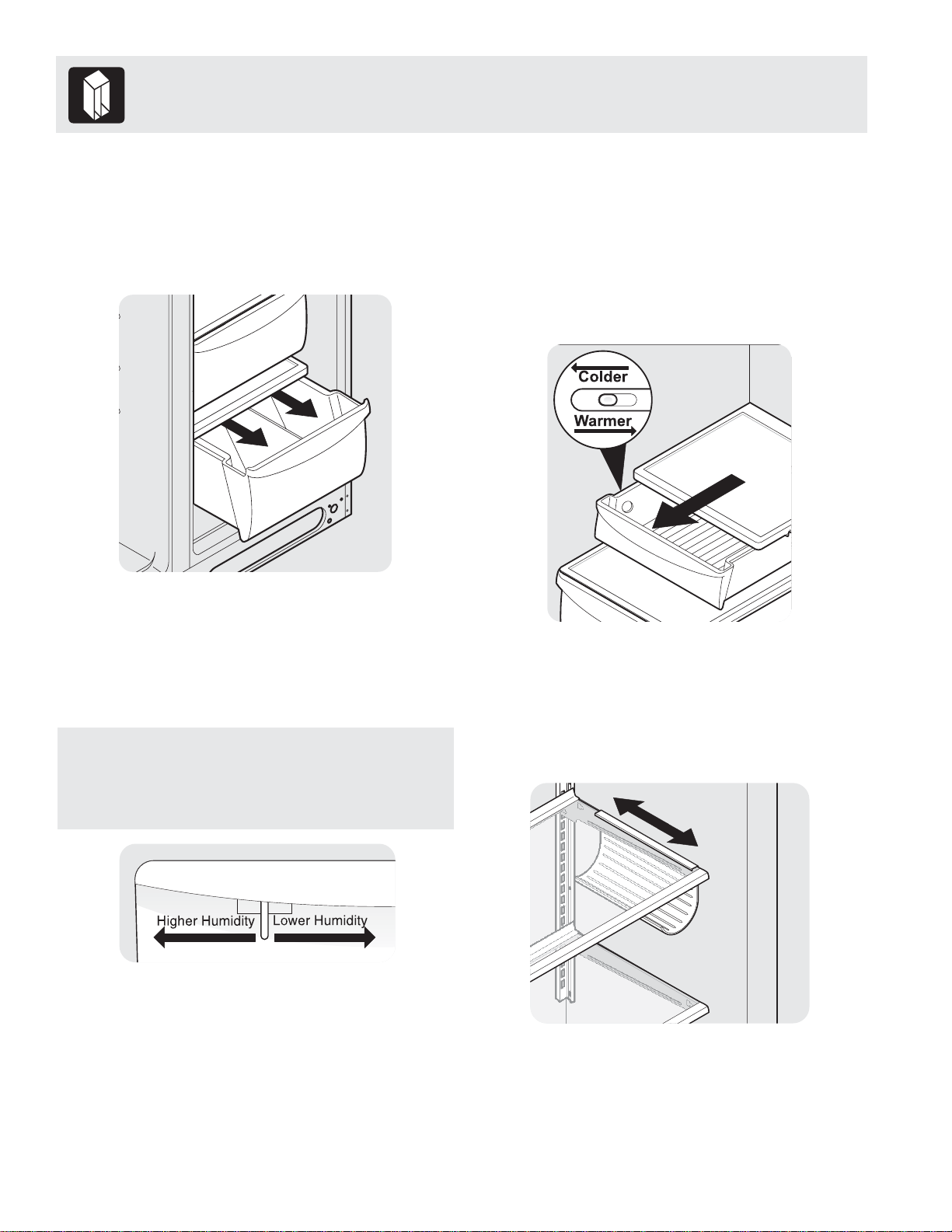

CRISPERS (SOME MODELS)
The crispers, located under the bottom refrigerator shelf,
are designed for storing fruits, vegetables, and other fresh
produce. Wash items in clear water and remove excess water
before placing them in the crispers. Items with strong odors
or high moisture content should be wrapped before storing.
Crisper Drawer
MEAT KEEPER
Some models are equipped with a Meat Keeper. Meat Keeper
temperatures can be adjusted by sliding the Meat Keeper
T emperature Control in either direction. Use this pan for short
term storage of bulk meat items. If meats are to be kept
longer than one or two days, they should be frozen. The
Meat Keeper is fixed and cannot be moved up or down. If
fruits or vegetables are to be stored in the Meat Keeper , set
the Meat Keeper T emperature Control to a warmer setting to
prevent freezing.
HUMIDITY CONTROL (SOME MODELS)
The Humidity Control, present on some models with crisper
drawers, allows you to adjust the humidity within the crisper.
This can extend the life of fresh vegetables that keep best
in high humidity .
NOTE: Leafy vegetables keep best when stored with
the Humidity Control set on Higher Humidity, or in a
drawer without a Humidity Control. This keeps incoming
air to a minimum and maintains maximum moisture
content.
Crisper Humidity Control
Meat Keeper with Temperature Control
WINE RACK (SOME MODELS)
The wine rack stores bottles of wine, or single two-liter plastic
bottles of juice or soda pop. To install, slide the Wine Rack
onto the shelf with the curve facing in. To remove, slide the
Wine Rack out. Install on either side of shelf.
Wine Rack
12

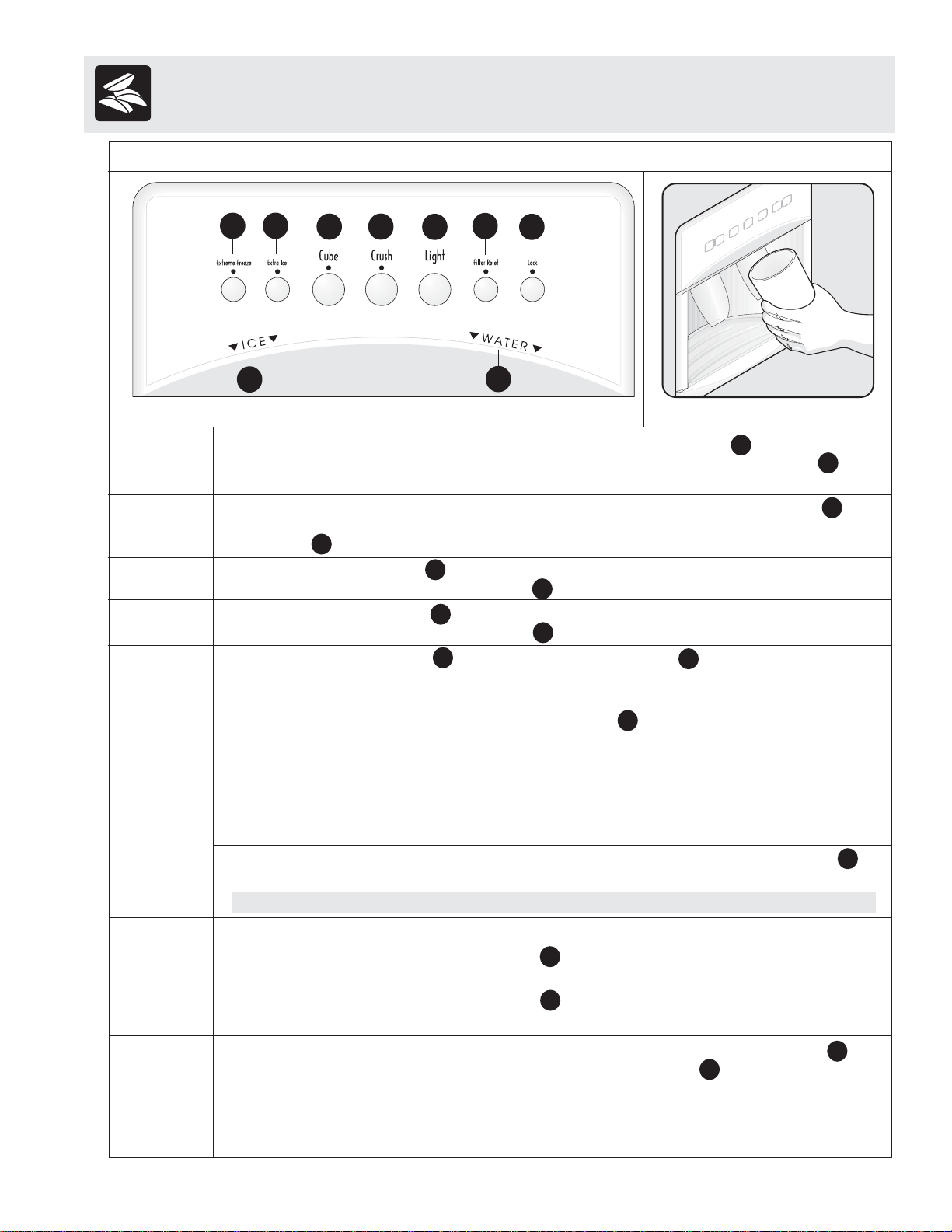

Automatic Ice and Water Dispenser
AUTOMATIC ICE & WATER DISPENSER OPERATING INSTRUCTIONS
12
34
5
8
Features may vary according to model.
EXTREMET o freeze food at a faster rate to preserve freshness, push the Touch Pad for 3-5 seconds to
FREEZEactivatethis feature. A green light will appear above the T ouch Pad. Push the Touch Pad again
for 3-5 seconds to deactivate.
EXTRATo increase ice production for special occasions, such as parties, push the Touch Pad for
ICE3-5 seconds to activate this feature. A green light will appear above the Touch Pad. Push the
Touch Pad again for 3-5 seconds to deactivate.
CUBEPress the CUBE Touch Pad to get cubed ice. A green light will appear above the Touch Pad.
Press glass against ICE dispensing paddle as far up as possible to catch all ice.
CRUSHPress the CRUSH Touch Pad to get crushed ice. A green light will appear above the Touch Pad.
Press glass against ICE dispensing paddle as far up as possible to catch all ice.
LIGHTPress the LIGHT Touch Pad to turn on dispenser light. Press again to turn the light off.
The light also turns on automatically when ice and/or water is dispensed. Replace light bulb with
an appliance bulb of the same wattage.
FILTERThe FIL TER ST A TUS indicator light above the Touch Pad will light up each time the dispenser
ST ATUSis used. The following filter light indications are:
Green The filter is still operating within its specified life cycle.
Amber The filter has reached approximately 80% of its useful life. This is the recommended time
RedThe filter is 100% used up. Change the filter as soon as possible.
After the filter cartridge has been changed, press and hold the FIL TER RESET Touch Pad for
10-15 seconds.
NOTE: The Green, Red and Amber lights will flash when reset is completed.
2
3
to purchase a replacement filter.
6
7
9
1
1
2
8
4
8
5
6
5
6
LOCKThe Ice & Water Dispenser can be locked out to prevent unwanted use.
T o Lock OutPress the LOCK Touch Pad for 3-5 seconds. A Red light will appear above
the T ouch Pad.
T o UnlockPress the LOCK Touch Pad for 3-5 seconds until the Red light above the
T ouch Pad goes out.
W ATERT o operate the water dispenser , press a glass against the W A TER dispensing p addle . To
stop dispensing water, pull the glass away from the dispensing p addle . Dispensed water is not
cold. For colder water, add crushed ice or cubes before dispensing water . A drip tray located at
the base of the dispenser catches small spills and allows them to evaporate. This drip tray is
removable and dishwasher safe. Do not pour water and excess ice in this area because there
is no drain.
13
7
7
9
9
Automatic Ice and Water Dispenser
ICE AND WATER DISPENSER FEATURES
The ice and water dispenser conveniently dispenses chilled water, and ice cubes or crushed ice, depending on the model.
T o operate the ice dispenser , select the ice option desired using the touchpad. Press a glass against the dispensing paddle
as far up as possible to catch all ice. To stop dispensing ice, pull glass away from dispensing paddle. Do not remove the
glass until the ice has completely dispensed. (Complete instructions for the dispenser operation are attached to the inside
of the freezer door.)
How the Water Dispenser Works
The water tank, located behind the refrigerator compartment, automatically fills as water is dispensed. For proper dispenser
operation, the recommended supply water pressure should fall between 20 psi and 100 psi.
Water pressure must not exceed 100 lbs. Excessive pressure may cause water filter to malfunction.
After the refrigerator is connected to the water supply , fill the water tank by drawing one glass of water . It may take about
1½ minutes after activating the dispenser paddle before water begins to fill this first glass. Continue flushing the system
for 3 minutes to rid the tank and plumbing connections of any impurities. The water dispenser has a built in shutoff device
that will stop the water flow after 3 minutes of continuous use. Simply release the dispenser paddle to reset the shutoff
mechanism.
Chemicals from a malfunctioning softener can damage the ice maker . If the ice maker is connected
to soft water , ensure that the softener is maint ained and working properly.
How the Ice Dispenser Works
The ice maker and container are located in the top of the freezer compartment. After the
refrigerator is installed properly and has cooled for several hours, the ice maker can begin
making ice within 24 hours. Air in new plumbing lines may cause the ice maker to cycle two
or three times before making a full tray of ice. Ice production is controlled by the ice
maker’s On/Off power switch. Press the switch to the “O” position to turn it Off and press it
to the “I” position to turn it On. With no usage it will take approximately 2 days to fill the ice
container . The ice maker also has a built-in wire signal arm,which automatically stops ice
production when the ice bin is full. This signal arm should not be used to manually stop the
ice maker.
Because of new plumbing connections, the first production of ice cubes may be discolored
or have an odd flavor. These should be discarded until the cubes made are free of discoloration and taste.
ICE DISPENSER TIPS
•Ice cubes stored too long may develop an odd flavor. Empty the ice container and ensure that the ice maker’s On/Off
power switch is turned On (set to the “I” position). The ice maker will then produce more ice.
•Occasionally shake the ice container to keep ice separated.
•Keep the ice maker’s On/Off power switch turned Off (set to the “O” position) until the refrigerator is connected to the water
supply or whenever the water supply is turned off.
IMPORTANT: The ice maker is turned On at the factory so it can work as soon as you install your refrigerator. If you
cannot connect a water supply , turn the On/Of f switch to the Of f (“O”) position. Otherwise, the ice maker’s valve
may be noisy when it attempts to operate without water .
If the dispensing paddle is pushed for more than 4 minutes, the dispenser motor may overload
and stop. The overload protector will reset automatically after 3 or 4 minutes.
•If a large quantity of ice is needed at one time, it is best to remove cubes directly from the ice container.
•The following sounds are normal when the ice maker is operating:
•Motor running
•Ice dropping into ice container
•Water valve opening or closing
•Turn Off the ice maker when cleaning the freezer and during vacations.
•If the ice maker will be turned off for a long period of time, you should also turn off the water supply valve.
•Ice loosening from tray
•Running water
14
Automatic Ice and Water Dispenser

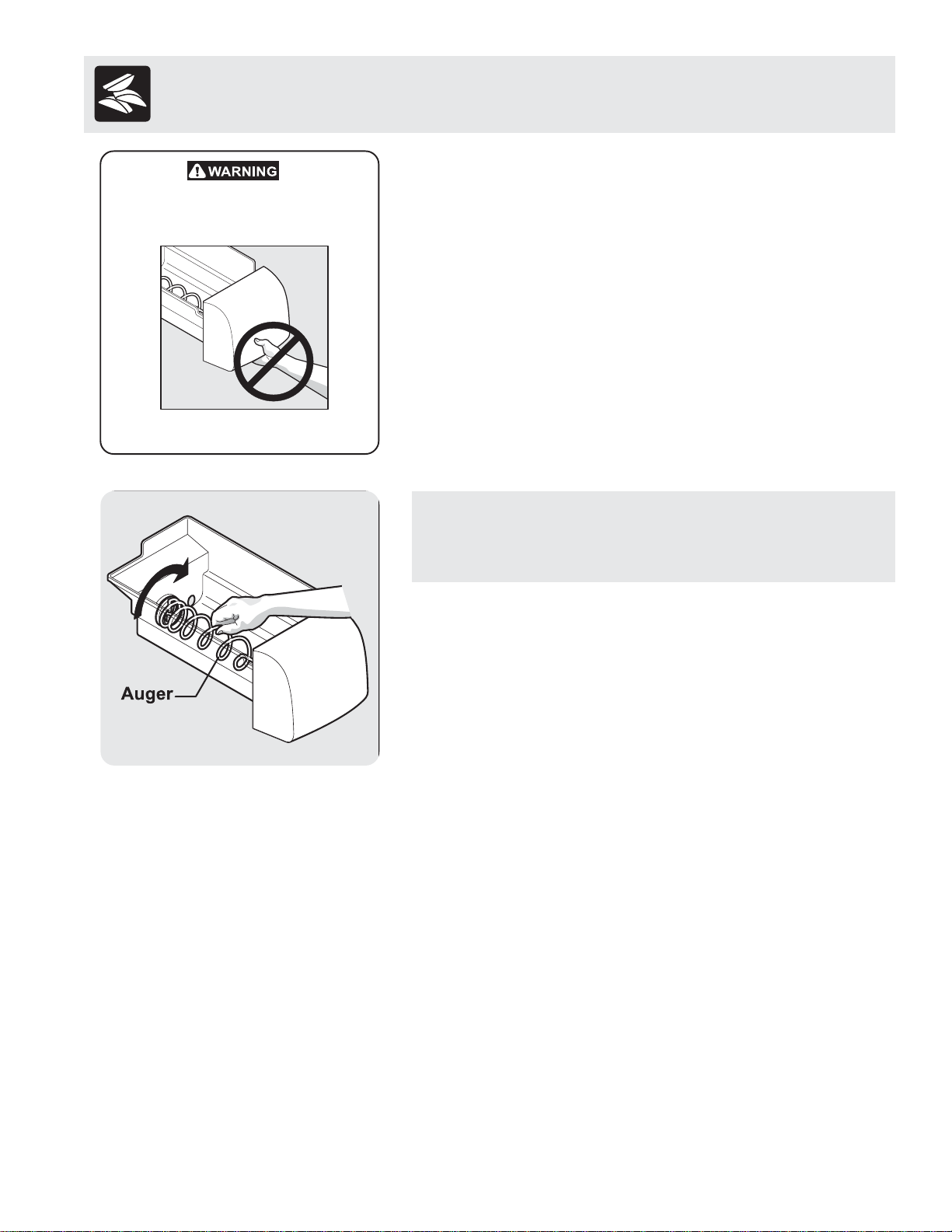

Do not use the ice chute as a handle when
removing or replacing the ice storage bin.
Surfaces there may be sharp.
Do not put fingers up ice chute. Surfaces
there may be sharp.
CLEANING THE ICE DISPENSER
Clean the dispenser and ice container at regular intervals, particularly
before you take a vacation or move, or if the ice dispenser sticks.

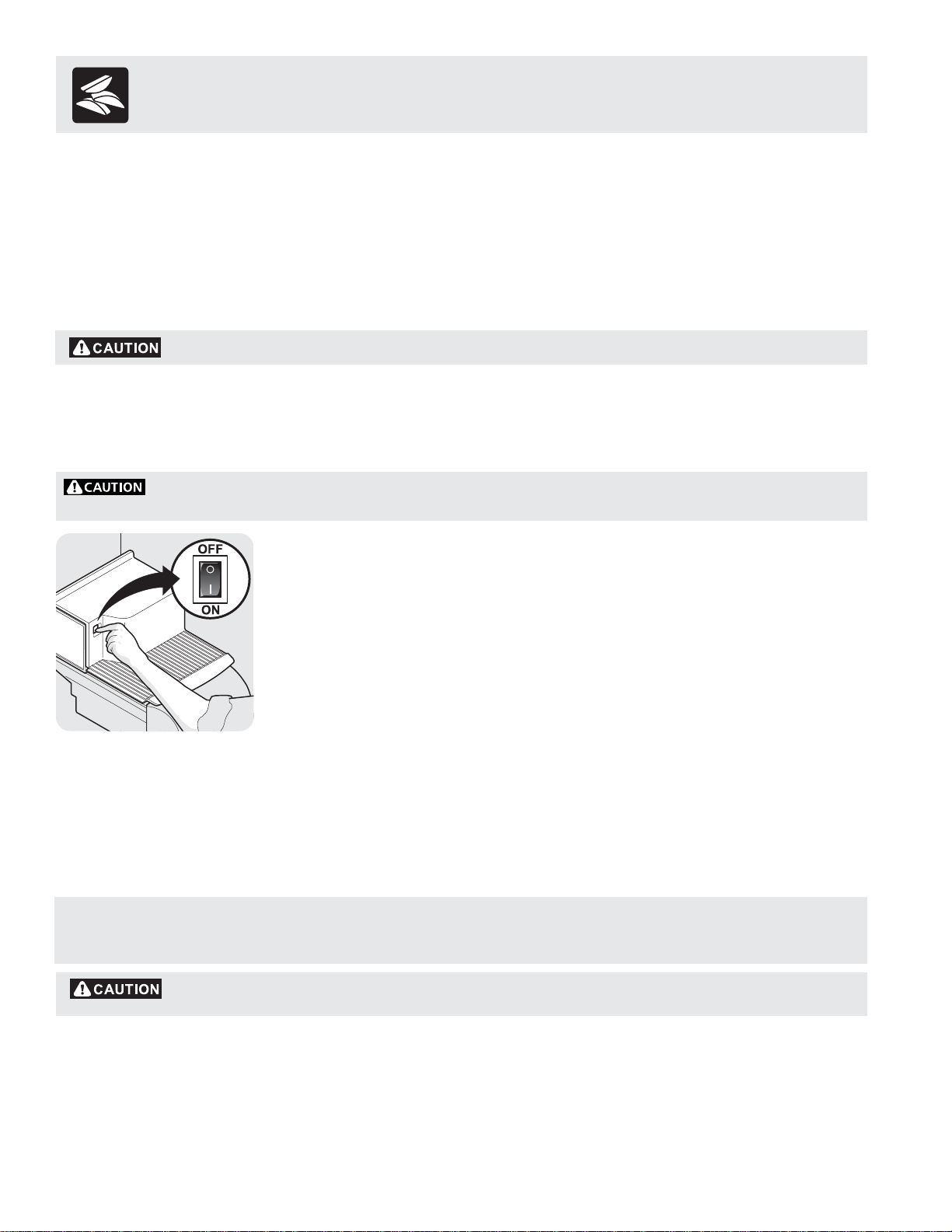

1. Turn of f ice production by pressing the ice maker’s On/Off switch.
2 .Remove ice container by lifting up and out. Empty and carefully clean
the container with mild detergent. Rinse with clear water . Do not use
harsh or abrasive cleaners. Allow ice container to dry completely before
replacing in the freezer.
3 .Remove ice chips and clean the shelf and chute that supports the ice
container.
4. Replace the ice container. Press the ice maker’s On/Off switch to
resume ice production.
IMPORTANT: When removing or replacing the ice bin, do not
rotate the auger in the ice bin. If the auger is accidentally turned,
you must realign the auger by turning it in 90° turns until the ice bin
fits into place with the drive mechanism.
Remove and empty the ice storage bin if:
1 .An extended power failure (one hour or longer) causes ice cubes in
the ice storage bin to melt and freeze together and jam the dispenser
mechanism.
2 .The ice dispenser is not used frequently. Ice cubes will freeze together
in the bin and jam the dispenser mechanism. Remove the ice storage
bin and shake to loosen the cubes.
NEVER use an ice pick or similar sharp instrument to break up the ice.
This could damage the ice storage bin and dispenser mechanism.
15
Automatic Ice and Water Dispenser
PureSource TM * Ice and Water Filter (some models)
NOTE: If you purchased a refrigerator with a PureSource
and care information.
This ice and water filter system filters water to your ice maker and water dispenser. It is
located in the upper right back corner of the fresh food compartment.
System Startup:
Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter. The filter
cartridge has already been installed in the filter housing at the factory. Refer to the How The Water Dispenser Works section
to properly fill the system with water.
Changing the Filter:
Water conditions vary throughout the world, but changing the water filter every
6 - 9 months normally will ensure the highest possible water quality. The Filter
Status light will turn red after 400 gallons of water has flowed through the ice
and water dispenser (some models). Also, if the filter has been in a refrigerator
that has not been in use for awhile (during moving for example), change the
filter before reinstalling the refrigerator . The dispenser system will also operate
without filtration (with filter cartridge removed).
To change filter:
It is not necessary to turn the water supply off to change the filter.
1. Open freezer door and leave open until filter change is complete.
2. Turn the ice maker’s power switch to the Off (“O”) position (See illustration
on page 14).

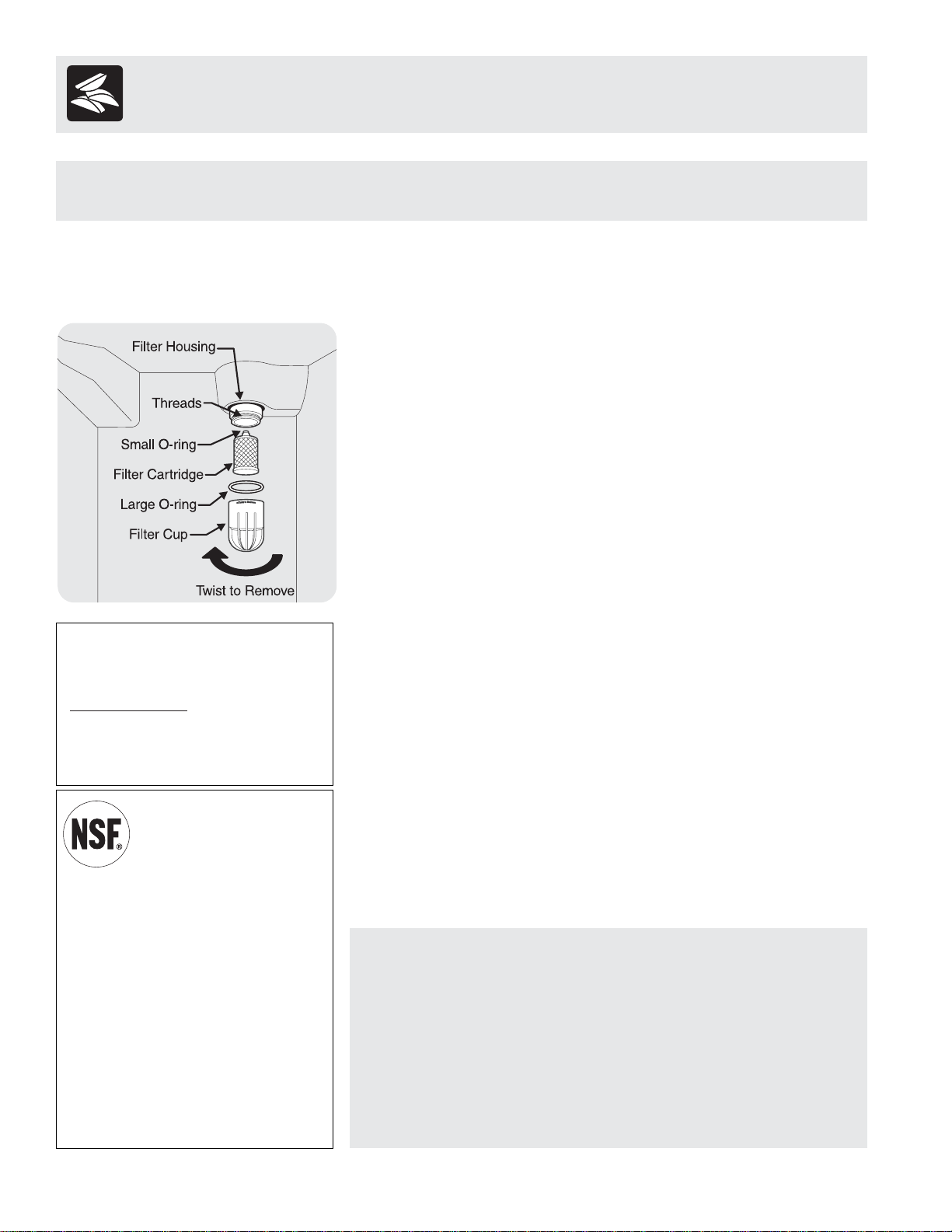

3. Hold filter cup firmly, and unscrew towards left (Some water could
leak out as you remove cup. This is normal.). Filter cartridge should come
down with cup. If cartridge remains in housing, pull down gently, while
twisting filter back and forth.
4. Rinse out cup under running water.
5. The large o-ring that seals the filter system sets in the o-ring groove
down inside the cup. Should the o-ring fall out during filter cartridge
replacement, simply place it back in the groove prior to screwing the cup
Order new filter cartridges through the
dealer where you bought the refrigerator,
contact the Customer Care Center at
1-800-944-9044, or go to our web site at
www.frigidaire.com. It might be good to
order some filter cartridges when you first
install your refrigerator . Be sure to ask for
the RG-100 PureSource™* replacement
cartridge.
back in place. If the o-ring becomes damaged, you will need to order one
from the Customer Care Center.
6. Discard old filter cartridge.
7. Remove new filter cartridge from packaging and place in cup. The end
with the small o-ring should be up, out of the cup.
8. Screw cup, with filter, back onto housing. Do Not Use Wrench T o Reinst allCup. Filter cartridge will self-align as cup is tightened. Be sure cup is
completely tightened with PureSource™ logo facing outward. Do Not
Tighten Past Stop.
9. Turn the ice maker’s power switch to the On (“I”) position.
The PureSource™ * NGRG2000 Ice and Water Filter
System with the RG-100
cartridge is tested and
certified by NSF International,
the nationally recognized and respected,
not for profit, certification organization for
public health safety. The PureSource™*
system is tested and certified to ANSI/NSF
Standard 42. See performance data sheet
for specifications. This system should not
be used on water that is microbiologically
unsafe or with water of unknown quality
unless the water has been adequately
disinfected before or after traveling through
the filtration system.
• Rated Capacity - 400 gallons
• Rated service flow - .5 GPM
• Maximum Rated Pressure - 100 PSI
• Maximum Operating Temp. - 100° F
* White Westinghouse uses the name CrystalClear instead of PureSource, but they are the same filter
10. Check for leaks. Open refrigerator door. Wipe any water droplets from the
filter cup. Fill a glass with water. If there is a leak, unscrew filter cup, and
reinsert the filter cartridge. Check placement of large O-ring. Reinstall
filter cup, making certain it is tightened completely.
11. To condition filter system and purge air from water line, fill a glass with
water. Continue flushing the system for approximately 3 minutes to assure
that the purest water possible is stored in the water tank.
IMPORT ANT : Resetting The Filter Status Light (some models)
After replacing the filter cartridge, it will be necessary to press the Filter
Status reset button located on the ice and water dispenser. This will reset
the Filter Status light. Push the reset button until the green, red and amber
lights flash (10-15 seconds). Please refer to the complete dispenser
operating instructions attached to the inside of the freezer door.
On models without a Filter Status reset button, there is a set of
Reminder Stickers included in the envelope that the Use & Care Manual
came in. Choose a dated sticker that indicates 6 - 9 months (depending
on your water quality and usage) from the date of installation. Place the
sticker on the front of the filter cup to remind you when it is time to
change the filter.
TM
* Ice and Water filter, please read the following use
16

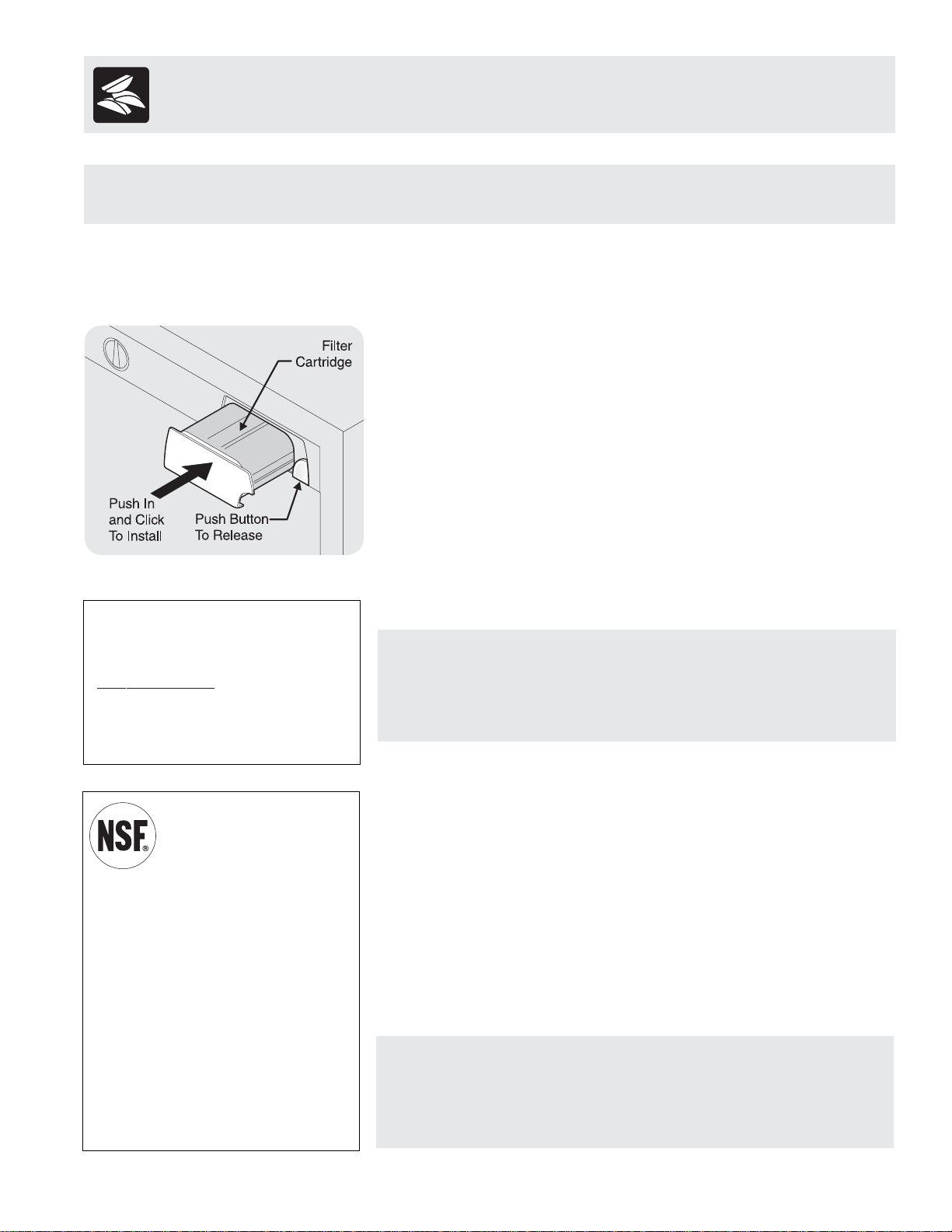

Automatic Ice and Water Dispenser
PureSource2
NOTE: If you purchased a refrigerator with a PureSource2
TM
* Ice and Water Front Filter (some models)
TM *
Ice and Water front filter , please read the following
use and care information. This ice and water filter system filters water to your ice maker and water dispenser . It is
located in the upper right front corner of the fresh food compartment.
System Startup:
Water supply does not need to be turned off, however , do not use ice and water dispenser while inst alling filter .
The filter cartridge has already been installed in the filter housing at the factory. Refer to the How The Water Dispenser
Works section to properly fill the system with water.
Changing the Filter:
Water conditions vary throughout the world, but changing the water filter every
6 - 9 months normally will ensure the highest possible water quality . The Filter
Status light will turn red after approximately 400 gallons of water has flowed
through the ice and water dispenser. Also, if the filter has been in a refrigerator
that has not been in use for awhile (during moving for example), change the
filter before reinstalling the refrigerator. The dispenser system will also operate
without filtration (with filter cartridge removed and bypass installed).
To change filter:
It is not necessary to turn the water supply off to change the filter .
1. Turn the ice maker’s power switch to the Off (“O”) position (See illustration
on page 14).
2 . Push the Filter Release Button, located to the right of the filter cartridge,
to release the filter from the housing. To minimize the possibility of the
filter falling out of the housing during removal, it would be best to hold the
Order new filter cartridges through the
dealer where you bought the refrigerator,
contact the Customer Care Center at
1-800-944-9044, or go to our web site at
www.frigidaire.com. It might be good to
order some filter cartridges when you first
install your refrigerator . Be sure to ask for
the FC-100 PureSource™* replacement
cartridge.
The PureSource2
Water Filter System NGFC
2000 with the PureSource2
cartridge FC 100 is tested and
certified by NSF International,
the nationally recognized and respected,
not for profit, certification organization for
public health safety. The PureSource2
Filter system is tested and certified to ANSI/
NSF Standards 42 and 53. See
performance data sheet for specifications.
This system should not be used on water
that is microbiologically unsafe or with water
of unknown quality unless the water has
been adequately disinfected before or after
traveling through the filtration system.
• Rated Capacity - 400 gallons
• Rated service flow - .5 GPM
• Maximum Rated Pressure - 100 PSI
• Maximum Operating Temp. - 100° F
* White Westinghouse uses the name CrystalClear instead of PureSource, but they are the same filter.
TM*
Ice and
TM*
TM*
filter as it moves out toward you.
NOTE: A small amount of water may be released during this operation.
Y ou should have a p aper towel or dish cloth handy to wipe up any water
that may drip out of the filter or housing. T wo small holes near the back of
the housing have been added for any excess water to escape. It would be
best to clear away any food near this area on the top shelf in advance of
removing the filter.
3. Pull the old filter cartridge straight out of the housing.
4. Discard the old filter.
5. Remove the new filter cartridge from the packaging and insert into the
filter housing the same way the old one came out.
6. When the cartridge is almost in, you will feel it stop against the clip assembly
in the back of the housing. The clip assembly holds the filter cartridge
firmly in place. At this point, you will need to push firmly until the cartridge
snaps fully in place. When completely in place, the front of the filter cartridge
will be flush with the front of the housing.
7. Turn the ice maker’s power switch to the On (“I”) position.
8. Fill a glass with water. As you are doing this, check for leaks at the filter
housing. There will be noticeable spurts and sputters as the system pushes
the air out through the system and out the dispenser nozzle. This is normal.
9. After you have run one glass of water , continue to flush the system for
approximately 3 minutes to assure that the purest water possible is stored
in the water storage tank.
IMPORTANT: Resetting The Filter Status Light (some models)
After replacing the filter cartridge, it will be necessary to press the Filter
Reset button located on the ice and water dispenser. This will reset the
Filter Status light. Push the reset button until the green, red and amber
lights flash (10-15 seconds). Please refer to the complete dispenser
operating instructions attached to the inside of the freezer door .
17
Food Storage & Energy Saving Ideas
FOOD STORAGE IDEAS
Fresh Food Storage
•The fresh food compartment should be kept between 34° F and 40° F with an optimum temperature of 37° F .
•Avoid overcrowding the refrigerator shelves. This reduces the circulation of air around the food and results in uneven
cooling.
Fruits and Vegetables
•Storage in the crisper drawers traps moisture to help preserve the fruit and vegetable quality for longer time periods.
Meat
•Raw meat and poultry should be wrapped securely so leakage and contamination of other foods or surfaces does not
occur.
Frozen Food Storage
•The freezer compartment should be kept at 0° F or lower.
•A freezer operates most efficiently when it is at least 2/3 full.
Packaging Foods for Freezing
•T o minimize dehydration and quality deterioration, use aluminum foil, freezer wrap, freezer bags or airtight containers.
Force as much air out of the packages as possible and seal them tightly . Trapped air can cause food to dry out,
change color, and develop an of f-flavor (freezer burn).
•Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.
•Do not refreeze meat that has completely thawed.
Loading the Freezer
•Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing,
and can raise the temperature of frozen foods.
•Leave a space between the packages, so cold air can circulate freely, allowing food to freeze as quickly as possible.
•Avoid storing hard-to-freeze foods such as ice cream and orange juice on the freezer door shelves. These foods are
best stored in the freezer interior where the temperature varies less.
ENERGY SAVING IDEAS
•Locate the refrigerator in the coolest part of the room, out of direct sunlight,
and away from heating ducts or registers. Do not place the refrigerator
next to heat-producing appliances such as a range, oven, or dishwasher.
If this is not possible, a section of cabinetry or an added layer of insulation
between the two appliances will help the refrigerator operate more
efficiently.
•Level the refrigerator so that the doors close tightly.
•Refer to this Use & Care Manual for the suggested temperature control
settings.
•Do not overcrowd the refrigerator or block cold air vents. Doing so causes
the refrigerator to run longer and use more energy .
•Cover foods and wipe containers dry before placing them in the
refrigerator. This cuts down on moisture build-up inside the unit.
•Organize the refrigerator to reduce door openings. Remove as many
items as needed at one time and close the door as soon as possible.
18
Normal Operating Sounds & Sights

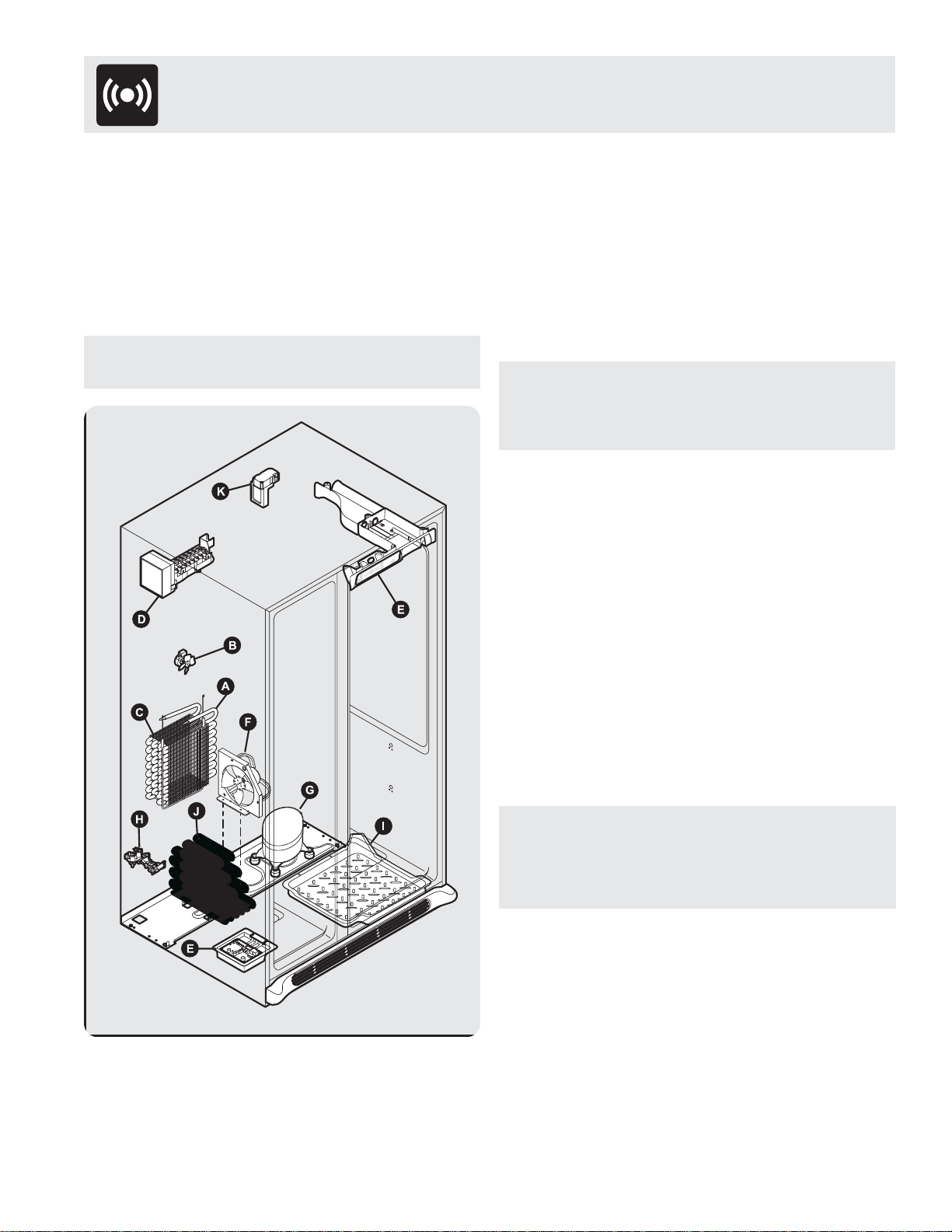

UNDERST ANDING THE SOUNDS YOU MA Y HEAR
Your new high-efficiency refrigerator may make unfamiliar
sounds. Most often, these are all normal sounds that soon
will become familiar to you. They also indicate your refrigerator
is operating as designed. Hard surfaces, such as vinyl or
wood floors, walls, and kitchen cabinets may make sounds
more noticeable. Listed below are descriptions of some of
the most common sounds you may hear, and what is causing
them.
NOTE: Rigid foam insulation is very energy efficient,
but is not a sound insulator.
A. Evaporator
The flow of refrigerant through the evaporator may
create a boiling or gurgling sound.
B. Evaporator Fan
Y ou may hear air being forced through the refrigerator
by the evaporator fan.
C. Defrost Heater
During defrost cycles, water dripping onto the defrost
heater may cause a hissing or sizzling sound. Af ter
defrosting, a popping sound may occur.
IMPORTANT: During the automatic defrost cycle, you
may notice a red glow in the vents on the back wall of
your freezer compartment. This is normal during the
defrost cycle.
D. Automatic Ice Maker
If your refrigerator is equipped with an automatic ice
maker, you will hear ice cubes falling into the ice bin.
E. Cold Control & Automatic Defrost Control
May create minimal mechanical sounds.
F. Condenser Fan
Y ou may hear air being forced through the condenser
by the condenser fan.
G. Compressor
Modern, high-efficiency compressors operate much
faster than older models. The compressor may have a
high-pitched hum or pulsating sound.
H. Water Valve
If your refrigerator is equipped with an automatic ice
maker, you will hear a buzzing sound as the water
valve opens to fill the ice maker during each cycle.
IMPORT ANT: Y our ice maker is turned On at the factory
so it can work as soon as you install your refrigerator .
T o ensure proper function of your ice maker , connect a
water supply immediately or turn the On/Off switch to
the Off (“O”) position.
I. Drain Pan (not removable)
Y ou may hear water running into the drain pan during
the defrost cycle.
J. Condenser
May create minimal sounds from forced air.
K. Motorized Damper
May produce a light humming or clicking during
operation.
19
Care & Cleaning
Keep your refrigerator and freezer clean to prevent odor build-up. Wipe up any spills immediately and clean both sections at
least twice a year. Never use metallic scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any
surface. Do not wash any removable parts in a dishwasher. Always unplug the electrical power cord from the wall
outlet before cleaning.
•When moving the refrigerator , pull straight out. Do not shif t the refrigerator from side to side as this may
damage the floor. Be careful not to move the refrigerator beyond the plumbing connections.
•Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.
NOTES:
•If you set your temperature controls to turn off cooling, power to lights and other electrical components continues
until you unplug the power cord from the wall outlet.
•Do not use razor blades or other sharp instruments which can scratch the appliance surface when removing
adhesive labels. Any glue left from tape or labels can be removed with a mixture of warm water and mild
detergent, or, touch the glue residue with the sticky side of tape you have already removed. Do not remove the
serial plate.
Care & Cleaning Chart
Part Cleaning Agents Tips and Precautions
Interior/Door
Liner
Door Gaskets
Drawers/Bins
Glass
Shelves
Toe Grille
Exterior and
Handles
Exterior and
Handles
(Stainless
Steel Models
Only)
Soap and water
•
Baking soda and
•
water
Soap and water
•
Soap and water
•
Soap and water
•
Glass cleaner
•
Mild liquid sprays
•
Soap and water
•
Mild liquid sprays
•
Vacuum attachment
•
Soap and water
•
Non Abrasive Glass
•
Cleaner
Soap and water
•
Ammonia
•
Stainless Steel
•
Cleaners
Use 2 tablespoons of baking soda in 1 quart of warm water. Be
sure to wring excess water out of sponge or cloth before
cleaning around controls, light bulb or any electrical part.
Wipe gaskets with a clean soft cloth.
Do not wash any removable items (bins, drawers, etc.) in
dishwasher.
Allow glass to warm to room temperature before immersing in
warm water.
Vacuum dust from front of toe grille. Remove toe grille (See
illustration on page 4). Vacuum backside and wipe with sudsy
cloth or sponge. Rinse and dry.
Do not use commercial household cleaners, ammonia, or alcohol
to clean handles. Use a soft cloth to clean smooth handles. Do
Not use a dry cloth to c lean smooth doors.
Clean stainless steel front and handles with non-abrasive soapy
water and a dishcloth. Rinse with clean water and a soft cloth.
Wipe stubborn spots with an ammonia-soaked paper towel, and
rinse. Use a non-abrasive stainless steelcleaner. These cleaners
can be purchased at most home improvement or major
department stores. Always follow manufacturer's instruction.
NOTE: Always, clean, wipe and dry with the grain to prevent
cross-grain scratching. Wash the rest of the cabinet with warm
water and mild liquid detergent. Rinse well, and wipe dry with a
clean soft cloth.
20
Care & Cleaning (continued)
Wear gloves when replacing light
bulbs to avoid getting cut.

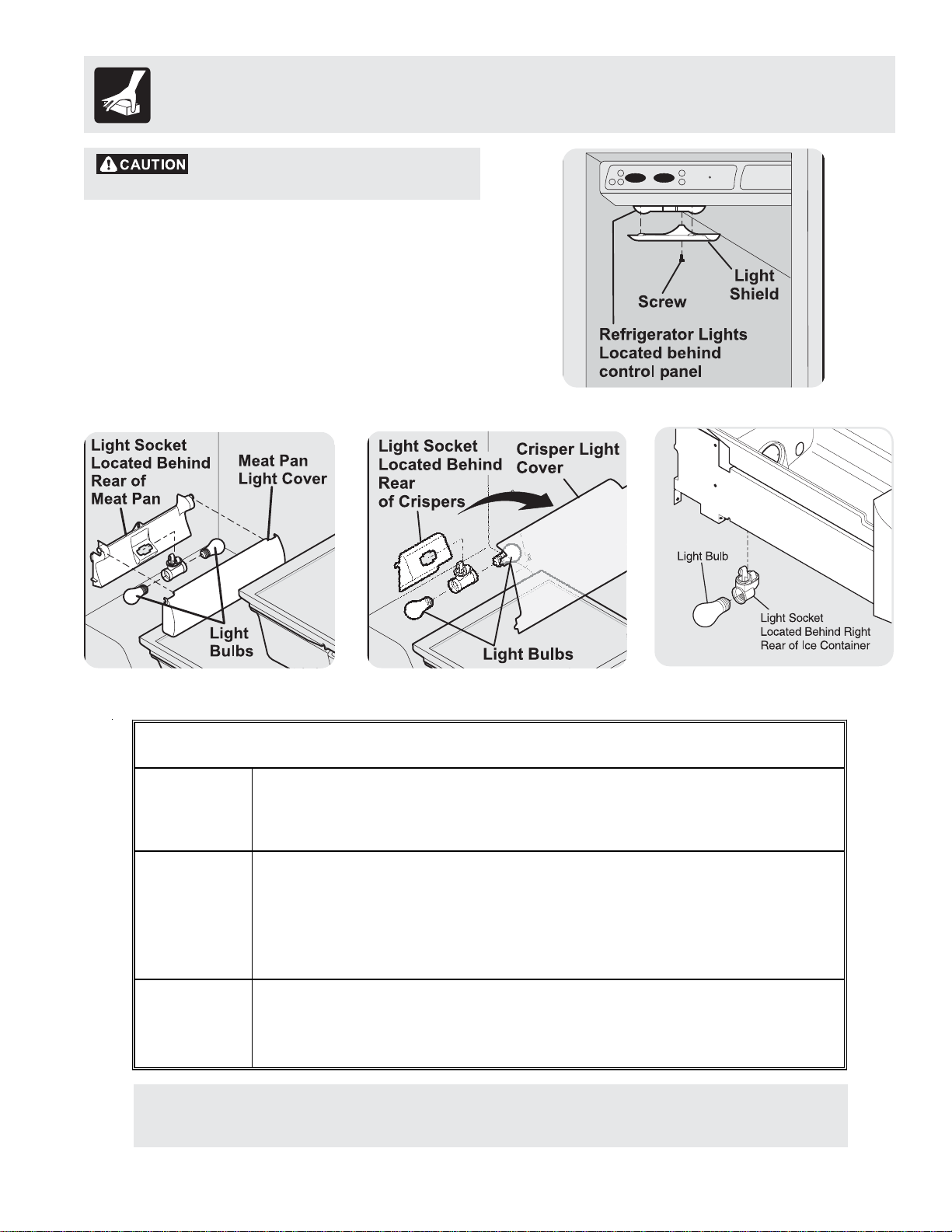

REPLACING LIGHT BULBS
1. Unplug refrigerator.
2. Wear gloves as protection against possible broken
glass and heat.
3 . Remove light cover, if necessary .
4. Unscrew and replace old bulb with an appliance bulb
of the same type and wattage.
5. Replace light cover, if necessary.
6. Remember to plug the refrigerator back in.
or
Refrigerator Light Replacement
Crisper Light Replacement (Models may vary)
Freezer Light Replacement
Vacation and Moving T ips
• Leave refrigerator operating during vacations of 3 wee k s or less.
Short
Vacations
Long
Vacations
Moving
IMPORT ANT: If the refrigerator is going to be stored or moved in freezing temperatures, the water in
the ice and water system must be drained completely . Failure to do so could result in water leaks when
the refrigerator is put back into service. Contact a service representative to perform this operation.
• Use all perishable items from refrigerator compartment.
• Turn automatic ice m ak er off and empty ice bucket, even if you will only be
gone for a few days.
• Remove all food and ice if you will be gone one month or more.
• Turn the cooling system of f (see page 9 f or On/O f f button pos ition) and
disconnect power.
• Turn off automatic ice m aker and turn w ater supply valve to closed position.
• Clean interior thoroughly.
• Leave both doors open to prevent odors and mold build-up. Block doors open if
necessary.
• Remove all food and ice.
• If using handcart, load from side.
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surfac e.
21
Warranty Information
REFRIGERA TOR W ARRANTY
Your refrigerator is protected by this warranty
FULL ONE-YEAR
WARRANTY
LIMITED 2ND-5TH
YEAR WARRANTY
(Cabinet Liner and
Sealed System)
LIMITED
WARRANTY
(Applicable to the
State of Alaska)
WARRANTY
PERIOD
One year fr om or ig i nal
purchase date
Second through fifth
years from original
purchase date
Time periods listed
above.
THROUGH OUR AUTHORIZED SERVICERS,
Pay all c osts for repai r ing or re placing any parts of thi s
applia nce whi ch prov e to b e defec tive in mat erial s or
workmanship. Excludes original and replacement Ice
& Water filter cartridges (if equipped). Original and
replacement cartridges are warranted for 30 days
(parts only).
Repair or replace any parts in the cabinet liner or
Sealed Refrigeration System (compressor, condenser,
evaporator, drier and tubing) which prove to be
defective in materials or workmanship.
All of the provisions of the full warranties above and
the exclusions listed below apply.
WE WILL:
THE CONSUMER WILL BE RESPONSIBLE FOR:
Costs of service calls that are listed under
RESPONSIBILITIES OF THE CONSUMER. *
Costs for pick up and delivery of the appliance required because
of service. Costs for labor, parts and transportati on other than
with respect to the cabinet liner or Sealed Refrigeration System.
Costs of the technician's travel to the home and any costs for
pick up and delivery of the appliance required because of
service.
NORMAL
In the U.S.A., your appliance is warranted by Electrolux Home Products, Inc. We authorize no person to change or add to any of our
obligations under this warranty. Our obligations for service and parts under this warranty must be performed by us or an authorized
Electrolux Home Products, Inc. servicer. In Canada, your appliance is warranted by Electrolux Canada Corp.
*NORMAL
RESPONSIBILITIES
OF THE CONSUMER
This warranty applies only to products in ordinary household use, and the consumer is responsible for the
items listed below:
1.Proper use of the appliance in accordance with instructions provided with the product.
2.Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in
accordance with all local plumbing, electrical and/or gas codes.
3.Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.
4.Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,etc.,
which are not a part of the appliance when it was shipped from the factory.
5.Damages to finish after installation.
6.Replacement of light bulbs and/or fluorescent tubes (on models with these features).
EXCLUSIONS
This warranty does not cover the following:
1.CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
limitation or exclusion may not apply to you.
2.Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in
ordinary household use. The consumer shall pay for such service calls.
3.Damages caused by services performed by servicers other than Electrolux Home Products, Inc., Electrolux
Canada Corp. or its authorized servicers; use of parts other than genuine Electrolux Home Products, Inc. parts;
obtained from persons other than such servicers; or external causes such as abuse, misuse, inadequate power
supply or acts of God.
4.Products with original serial numbers that have been removed or altered and cannot be readily determined.
IF YOU NEED
SERVICE
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the
warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all
receipts. This written warranty gives you specific legal rights. You may also have other rights that vary from state to
state. Service under this warranty must be obtained by contacting Electrolux Home Products, Inc. or Electrolux
Canada Corp.
This warranty only applies in the 50 States of the U.S.A., in Puerto Rico, and in Canada. Product features or specifications as described or
illustrated are subject to change without notice. All warranties are made by Electrolux Home Products, Inc. In Canada, your appliance is
warranted by Electrolux Canada Corp.
01-U-RE-02 (Rev. 01/2002)
USA
800•944•9044
Electrolux Home Products, Inc
P.O. Box 212378
Augusta, GA 30917
disconnected for a period of
time.
Automatic ice maker is
•
operating.
Doors are opened too
•
frequently or too long.
Refrigerator/freezer door may
•
be slightly open.
Freezer control is set too c old
•
(control found in refrigerator
section).
Refrigerator/freezer gasket is
•
dirty, worn, cracked, or poorly
fitted.
Electronic control system
•
keeps the refrigerator at a
constant temperature .
Electronic control system ha s
•
detected a performance
problem.
TEMPERA TU R ES AR E T O O C O L D
Freezer temperature too
cold. Refrigerator
temperatu re is satisfac t ory.
Refrig erator temperature
too cold. Freeze r
temperatu re is satisfac t ory.
Food stored in drawers
freezes.
Food stored in Meat
Keeper freezes (some
models).
Freezer control is set too c old.
•
Refrigerator control is set too
•
cold.
Refrigerator control is set too
•
cold.
Meat Keeper Tempe rature
•
Control set too cold.
Turn cool ing system On. See
•
section.
This is normal for a fully a utom atic d efros t refrigerator.
•
The defrost cycle occurs periodically, lasting about 30
minutes.
Ensure plug is tightly pushed into outlet.
•
Check/replace fuse with a 15 amp time-delay fuse.
•
Reset circuit breake r.
Check hous e ligh ts. Call loc al Ele ctric C o mp an y.
•
It’s normal for the refrigerator to work longer under
•
these conditions.
It takes 8-12 hours for the refrigerator to cool down
•
completely.
Ice maker operation ca us es refrigerato r to run sligh tly
•
more.
Warm air entering th e refrigerato r cau ses it to run
•
more. Open doors les s often.
Ensure refrigerator is level. Ke ep food an d c on taine rs
•
from blocking door. See
OPENING/CLOSING OF DOORS/DRAWERS
Set refrigerator control to warmer setting until
•
refrigerator temperature is satisfa cto ry. Allow 2 4 ho urs
for temperature to stabilize.
Clean or change ga sket. Le ak s in doo r sea l will cau se
•
refrigerator to run longer in order to ma intain d es ired
temperatures.
This is normal. Refrige rator go es on a nd off to keep
•
temperature constant.
Call your Frigidaire service representative, who can
•
interpret any messages or number codes flashing on
the digital displays.
Set freezer control to a w arme r setting . Allow 2 4 ho urs
•
for temperature to stabilize.
Set refrigerator control to a wa rm er se tting. Allow 24
•
hours for temperature to sta bilize .
See solution above.
•
Adjust Meat Keeper Temperature Control to a lower
•
setting. (Meat should be stored at a temperature just
below the freezing point for maximum fresh storage
time. It is normal for ice crystals to form d ue to the
moisture conten t of me at.)
Temperature Controls
PROBLEM
section
.
23
Before You Call (continued)
PROBLEM CAUSE CORRECTION
TEMPERATURES ARE TOO WARM
Freezer/Refrigerator
temperature is too warm.
Freezer temperature is t oo
warm. Refrigerator
temperature is satisfac t or y.
Refrigerator temperature is
too warm. Freezer
temperature is satisfac t or y.
Temperature in the Meat
Keeper is too warm (some
models).
•
•
•
•
•
Doors are opened too
frequently or too long.
Door is slightly open.
Freezer control is set too
warm.
Refrigerator control is set too
warm.
Meat Keeper Temperature
Control is set too warm.
WATER/MOISTURE/FROST INSIDE REFRIGERATOR
Moisture collects on in si de
of refrigerator walls.
Water collects on bottom
side of drawer cover.
Water collects in bottom of
drawer.
Weather is hot and humid.
•
Door is slightly open.
•
Door is opened too often or too
•
long.
Open containers.
•
Vegetables contain and give
•
off moisture.
Washed vegetables and fruit
•
drain while in the drawer.
Warm air enters the refrigerator whenever the door is
•
opened. Open the door less often.
See
•
•
•
•
•
•
•
•
•
•
•
PROBLEM
DOORS/DRAWERS
Set freezer control to a colder setting. Allow 24 hours
for temperature to stabilize.
Set refrigerator control to a colder setting . Allow 2 4
hours for temperature to stabilize.
Adjust Meat Keeper Temperature Control to a colder
setting.
The rate of frost buildup and internal sweating
increases.
See
PROBLEM
DOORS/DRAWERS
Open door less often.
Keep containers covered.
It is not unusual to have moisture on the bott om side of
the cover.
Move humidity control (some models) to lower setting.
Dry items before putting them in the dra we r. Water
collecting in bottom of drawer is normal.
section
.
section
.
OPENING/CLOSING OF
OPENING/CLOSING OF
WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR
Moisture collects on
outside of refrigerat or or
between doors.
AUTOMATIC ICE MAKER
Ice maker is not making
any ice.
Weather is humid.
•
Door is slightly open, causing
•
cold air from inside refrigerator
to meet warm air from outside.
Ice maker power switch is
•
Household water line valve is
•
not open.
Freezer is not cold enough.
•
Saddle valve on cold water
•
pipe is clogged or restricted by
foreign material.
Check to see if the water
•
dispenser is dispensing water.
Water filter is not completely
•
seated (models with filter
beside temperature control
panel).
Off
24
This is normal in humid weather. When humidity is
•
lower, the moisture should disappear.
See
•
.
•
•
•
•
•
•
PROBLEM
DOORS/DRAWERS
Turn power switch to On (“I”) position.
Turn on household water line valve.
See
PROBLEM
.
WARM
Turn off household water line valve. Remove valve.
Ensure that valve is not a self-piercing saddle valve.
Clean valve. Replace valve if necessary.
If not, the ice & water filter cartridge is clogged or
restricted by foreign material, and must be replaced.
Push firmly until the water filter snaps into p la c e .
section
.
section
OPENING/CLOSING OF
TEMPERATURES ARE TOO
Before You Call ( continued)
PROBLEM CAUSE CORRECTION
AUTOMATIC ICE MAKER (CONTINUED)
Ice maker is not making
enough ice.
Ice maker will not stop
making ice.
Ice maker is not separating
the ice cubes.
Ice has bad odor and taste.
•Ice maker is producing less ice
than you expect.
• Freezer is not cold enough.
• Household water line valve is
not completely open.
•Check to see if water
dispenser is dispensing slower
than normal.
•Ice maker wire signal arm is
being held down by some item
in the freezer.
•Ice cubes are not being used
frequently enough.
•Ice cubes are hollow or smaller
than normal.
•Ice has picked up odor or
flavor from strong food stored
in refrigerator or freezer.
•Water running to ice maker
has poor taste or odor.
• Ice not used frequently enough.
• Ice maker should produce approximately 4 – 5 pounds
of ice every 24 hours. Extra Ice should produce up to 6
pounds of ice every 24 hours.
• See PROBLEM section TEMPERATURES ARE TOO
WARM.
• Turn on household water line valve.
• If it is, replace the ice & water filter cartridge.
• Move item and release wire signal arm. Remove any
ice cubes that are frozen together over the wire signal
arm.
• Remove and shake ice container to separate cubes.
• The ice & water filter cartridge may be clogged.
Replace filter cartridge.
•Cover foods tightly. Discard stale ice. Ice maker will
produce fresh supply.
•Add filter to water supply line. Consult a water
purifying company.
•Discard stale ice.
ICE DISPENSER
Dispenser will not dispense
ice.
Ice dispenser is jammed.
• Ice storage container is empty.
• Freezer temperature is set too
warm.
•Household water line valve is
not open.
• Freezer door is not closed.
• Ice dispensing arm has been
held in for more than 4-5
minutes.
•Ice has melted and frozen
around auger due to infrequent
use, temperature fluctuations,
and/or power outages.
•Ice cubes are jammed
between ice maker and back
of ice container.
• Ice cubes are frozen together.
• Ice cubes are hollow or smaller
than normal.
•When the first supply of ice is dropped into the
container, the dispenser should operate.
•Turn freezer control to a higher setting so that ice
cubes will be made. When first supply of ice is made,
dispenser should operate.
•Open household water line valve. Allow sufficient time
for the ice to be made. When ice is made, the
dispenser should operate.
• Ensure freezer door is closed.
• Motor is overloaded. Motor overload protector will
reset in approximately 3 minutes. Ice can then be
dispensed.
•Remove ice container, thaw, and empty the contents.
Clean container, wipe dry, and replace in proper
position. When new ice is made, dispenser should
operate.
• Remove ice cubes that are jamming the dispenser.
• Use the dispenser often so that cubes do not freeze
together.
•The ice & water filter cartridge could be clogged.
Replace the filter cartridge. Dispensing system
operates best at 20 – 100 psi water pressure. Well
water pressures should fall within this range.
25
Before Y ou Call (continued)
PROBLEM CAUSE CORRECTION
WATER DISPENSER
Dispenser will not
dispense water.
Water has an odd taste
and/or odor.
Water pressure is
extremely low.
OD ORS IN R E FRIGER ATO R
Interior is dirty.
OPENING/CLOSING OF DOORS/DRAWERS
Door(s) will not close.
Drawers are difficult to
move.
LIGHT BULB IS NOT ON
Light bulb is not on.
Household water line valve is
•
not open.
Freezer door is not closed.
•
Ice & water filter cartridge is
•
clogged.
Front filter not fully installed, if
•
equipped
Water has been in the tank for
•
a period of time.
Unit not properly connected to
•
cold wa te r line .
Tubing used in the household
•
water supply and installation
may affect water taste and
odor.
Water has a high mineral
•
content.
Cut-off and cut-on pressures
•
are too low (well systems
only).
Reverse osmosis system is in
•
regenerative phase.
Interior needs to be cleaned.
•
Food with strong odors is in
•
refrigerator.
Door was closed too hard,
•
causing other door to open
slightly.
Refrigerator is not level. It
•
rocks on the floor when moved
slightly.
Refrigerator is touching a wall
•
or cabinet.
Food is touching shelf on top
•
of drawer.
Track that drawers slide on is
•
dirty.
Light bulb is burned out.
•
Light switch is stuck.
•
No electric current is reaching
•
refrigerator.
Control system has disabled
•
lights because magnet switch
trigger has been removed.
Control system has disabled
•
lights because one or both
doors were left open too long.
Open household water line valve. See
•
section ICE MAKER IS NOT MAKING ANY ICE.
Ensure that freezer door is closed.
•
Replace filter cartridge.
•
Push filter in until you hear a “click”. Filter should be
•
flush with cabinet.
Draw and discard 10 – 12 glasses of water to freshen
•
the supply and completely rinse out the tank.
Connect unit to cold water line that supplies water to
•
the kitchen faucet.
For best results, use copper tubing for water
•
connections.
Contact water treatment plant for help.
•
Have someone turn up the cut-off and cut-on pressure
•
on the water pump system (well systems only).
It is normal for a reverse osmosis system to be below
•
20 psi during the regenerative phase.
See Care & Cleaning Chart in Care and Cleaning
•
section.
Cover food tightly.
•
Close both doors gently.
•
Ensure floor is level and solid, and can adequately
•
support the refrigerator. Contact a carpenter to correct
a sagging or sloping floor.
Ensure floor is level and solid, and can adequately
•
support the refrigerator. Contact a carpenter to correct
a sagging or sloping floor.
Keep less food in drawer.
•
Clean drawer, rollers, and track. See Care & Cleaning
•
Chart in Care and Cleaning section.
See Replacing Light Bulbs in Care and Cleaning
•
section.
Release light switch located inside freezer
•
compartment.
See PROBLEM section RUNNING OF
•
REFRIGERATOR.
Reinstall magnet behind dairy compartment in fresh
•
food doo r.
Close and reopen door(s) to enable lights.
•
PROBLEM
26
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
