Use & Care Manual
Refrigerator
Record Serial/Model Numbers 2
Safety Instructions
First Steps
Energy Saving Tips
Setting
the Temperature Control
Refrigerator Features
Care and Cleaning
Warranty
2-3
3-4
4
4
4-5
5
6
READ AND SAVE THESE INSTRUCTIONS
Troubleshooting Guide
P/N 216961200 (Mar 2004)
7-8
SERIAL / MODEL NUMBERS
READ AND SAVE THESE INSTRUCTIONS
This Owner’s Guide provides specific operating instructions
for your model. Use your refrigerator only as instructed in
this guide. These instructions are not meant to cover every
possible condition and situation that may occur. Common
sense and caution must be practiced when installing,
operating, and maintaining any appliance.
Record Your Model and Serial Numbers
Record the model and serial numbers in the space provided
below. The serial plate is located on the upper left wall
inside the refrigerator.
Model Number:
Serial Number:
CHILD SAFETY
• Destroy carton, plastic bags, and any exterior wrapping
material immediately after the refrigerator is unpacked.
Children should never use these items to play. Cartons
covered with rugs, bedspreads, plastic sheets or
stretch wrap may become airtight chambers, and can
quickly cause suffocation.
• Remove all staples from the carton. Staples can cause
severe cuts, and destroy finishes if they come in
contact with other appliances or furniture.
• An empty, discarded ice box, refrigerator, or freezer is a
very dangerous attraction to children.
• Remove and discard any spacers used to secure the
shelves during shipping. Small objects are a choke
hazard to children.
Purchase Date:
Versión en español
Si desea obtener una copia en español de este Manual del
Usuario, sívase escribir a la dirección que se incluye a
continuación. Solicite la P/N 216961300.
Spanish Owner’s Guides
Electrolux Home Products
P.O. Box 212378
Augusta, GA 30917
Remove the door(s) of any appliance that is not in use,
even if it is being discarded.
Proper Disposal of Your
Refrigerator/Freezer
Risk of child entrapment.
Child entrapment and suffocation are not
problems of the past. Junked or
abandoned refrigerators or freezers are
still dangerous — even if they will sit for
"just a few days." If you are getting rid of
your old refrigerator or freezer, please
follow the instructions below to help
prevent accidents.
BEFORE YOU THROW AWAY YOUR
OLD REFRIGERATOR/FREEZER:
• Remove doors.
• Leave shelves in place
so children may not
easily climb inside.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING
THIS REFRIGERATOR.
FOR YOUR SAFETY
Do not store or use gasoline, or other flammable vapors and
liquids in the vicinity of this or any other appliance. Read
product labels for flammability and other warnings.
ELECTRICAL INFORMATION
These guidelines must be followed to ensure that safety
mechanisms in the design of this refrigerator will
operate properly.
• Refrigerator must be plugged into its own 115 Volt,
60 Hz., AC only electric outlet. The power cord of the
appliance is equipped with a three-prong grounding
plug for your protection against shock hazards. It must
be plugged directly into a properly grounded threeprong receptacle. The receptacle must be installed in
accordance with local codes and ordinances. Consult a
qualified electrician. Do not use an extension cord or
adapter plug.
2
Avoid fire hazard or
electric shock. Do not use an extension
cord or an adapter plug. Do not remove
any prong from the power cord.
3
CLEANING
• Wash any removable parts of the refrigerator interior, and
exterior with mild detergent and warm water. Wipe dry.
Do not use harsh cleaners on these surfaces.
• Do not use razor blades or other sharp instruments,
which can scratch the appliance surface when removing
adhesive labels. Any glue left from the tape can be
removed with a mixture of warm water and mild detergent, or touch the residue with the sticky side of tape
already removed. Do not remove the serial plate.
• Cover foods and wipe containers dry before placing
them in the refrigerator. This cuts down on moisture
build-up inside the unit.
• Organize the refrigerator to reduce door openings.
Remove as many items as needed at one time and
close the door as soon as possible.
SETTING THE TEMPERATURE CONTROL
COOL DOWN PERIOD
For safe food storage, allow 4 hours for the refrigerator to
cool down completely. The refrigerator will run continuously
for the first several hours.
TEMPERATURE CONTROL
The temperature control is located inside the refrigerator. The
temperature is factory preset to provide satisfactory food
storage temperatures. However, the temperature control is
adjustable to provide a range of temperatures for your
personal satisfaction. If a colder temperature is desired, turn
the temperature control knob toward COLDEST and allow
several hours for temperatures to stabilize between adjustments.
DOOR REMOVAL
If door must be removed :
1. Gently lay refrigerator on its back, on a rug or blanket.
2. Remove two base screws and base panel. Remove wire
clips on bottom of cabinet.
3. Remove bottom hinge screws.
4. Remove plastic top hinge cover.
5. Remove screws from top hinge.
6. Remove top hinge from cabinet.
7. Remove door and bottom hinge from cabinet.
8. To replace door, reverse the above order and securely
tighten all screws to prevent hinge slippage.
ENERGY SAVING TIPS
• Install the refrigerator in the coolest
part of the room, out of direct sunlight
and away from heating ducts or
registers. Do not place the refrigerator
next to heat- producing appliances
such as a range, oven or dishwasher.
• Level the refrigerator so the door
close tightly.
• Do not overcrowd the refrigerator or block cold air
vents. Doing so causes the refrigerator to run longer
and use more energy. Shelves should not be lined with
aluminum foil, wax paper or paper toweling. Liners
interfere with cold air circulation, making the refrigerator
less efficient, which could cause food spoilage.
Cold Control
REFRIGERATOR FEATURES

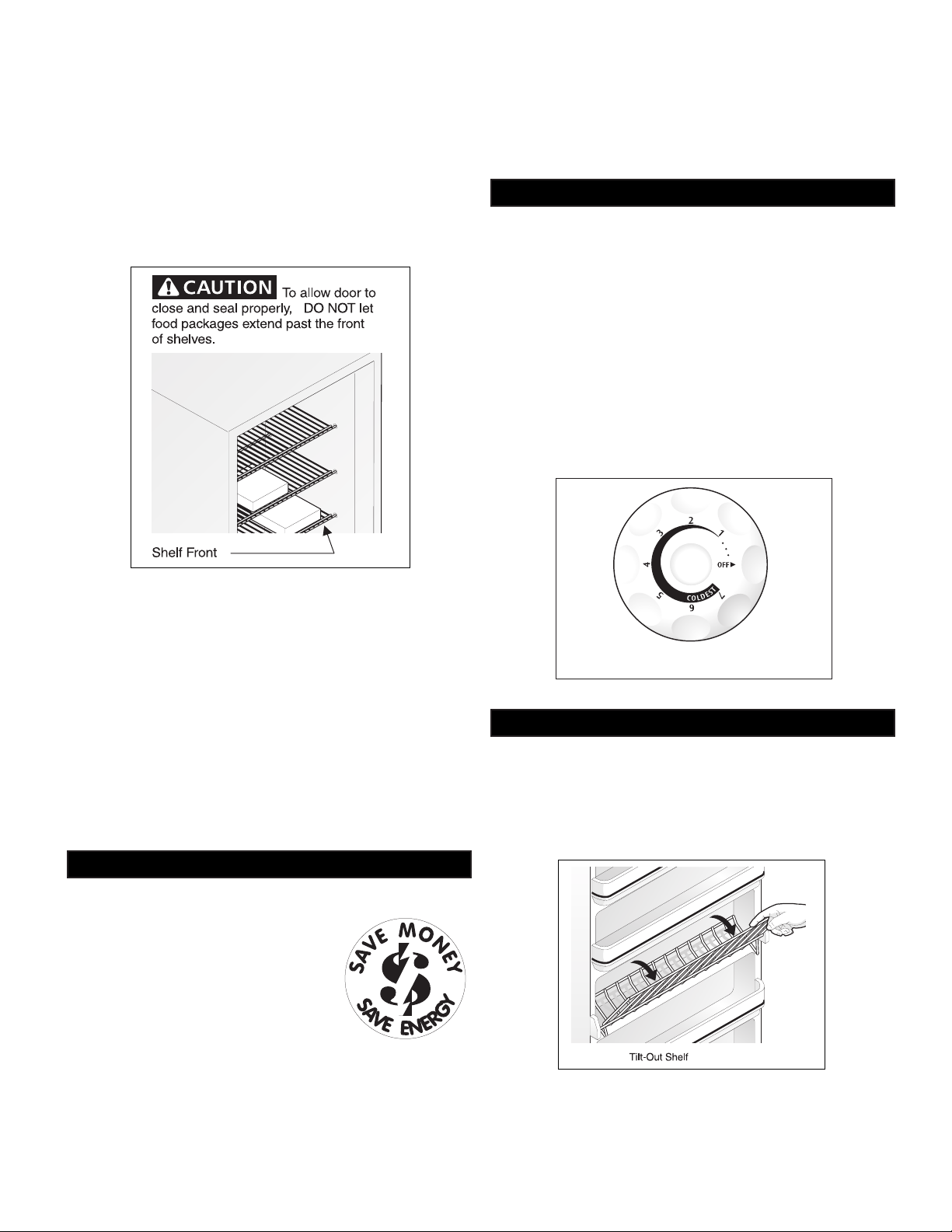

TILT-OUT SHELF
This shelf is located inside on the refrigerator door and
provides additional storage space. To access an item, tilt
top of “basket” shelf down.
4
ADJUSTABLE INTERIOR SHELVES
Multi-position adjustable interior shelves can be moved to
any position for larger or smaller packages. The shipping
spacers that stabilize the shelves for shipping should be
removed and discarded.
Adjustable Interior Shelves
SLIDE-OUT BASKET
A Slide-Out Basket (some models) located at the bottom of
the refrigerator, provides separate storage space for items
that are difficult to store on refrigerator shelves. To remove
the basket, pull out and lift up.
AUTOMATIC FREEZE CONTROL
The Freeze Control Feature will maintain proper interior
refrigerator temperature even when the refrigerator is
placed in an area where the surrounding temperature drops
down to 10° F (-12° C).
INTERIOR LIGHT
The light comes on automatically when the door is opened.
To replace the light bulb, turn the temperature control to
OFF and unplug the electrical cord. Replace the old bulb
with a bulb of the same wattage.
5
REFRIGERATOR WARRANTY
Your refrigerator is protected by this warranty
WARRANTY
PERIOD
FULL ONE-YEAR
WARRANTY
LIMITED 2ND-5
YEAR WARRANTY
(Cabinet Liner and
Sealed System)
LIMITED
WARRANTY
(Applicable to the
State of Alaska)
One year from original
purchase date
TH
Second through fifth
years from original
purchase date
Time periods listed
above.
In the U.S.A., your appliance is warranted by Electrolux Home Products, Inc. We authorize no person to change or add to any of our obligations
under this warranty. Our obligations for service and parts under this warranty must be performed by us or an authorized Electrolux Home Products,
Inc. servicer. In Canada, your appliance is warranted by Electrolux Canada Corp.
THROUGH OUR AUTHORIZED SERVICERS,
Pay all costs for repairing or replacing any parts of this
appliance which prove to be defective in materials or
workmanship. Excludes original and replacement Ice
& Water filter cartridges (if equipped). Original and
replacement cartridges are warranted for 30 days
(parts only).
Repair or replace any parts in the cabinet liner or
Sealed Refrigeration System (compressor, condenser,
evaporator, drier and tubing) which prove to be
defective in materials or workmanship.
All of the provisions of the full warranties above and
the exclusions listed below apply.
WE WILL:
THE CONSUMER WILL BE RESPONSIBLE FOR:
Costs of service calls that are listed under
RESPONSIBILITIES OF THE CONSUMER. *
Costs for pick up and delivery of the appliance required because
of service. Costs for labor, parts and transportation other than
with respect to the cabinet liner or Sealed Refrigeration System.
Costs of the technician's travel to the home and any costs for
pick up and delivery of the appliance required because of
service.
NORMAL
*NORMAL
RESPONSIBILITIES
OF THE CONSUMER
This warranty applies only to products in ordinary household use, and the consumer is responsible for the
items listed below:
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in
accordance with all local plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,etc.,
which are not a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation.
6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE:
Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
limitation or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in
ordinary household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by servicers other than Electrolux Home Products, Inc. or its authorized
servicers; use of parts other than genuine Electrolux Home Products, Inc. parts; obtained from persons other
than such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.
IF YOU NEED
SERVICE
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the
warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all
receipts. This written warranty gives you specific legal rights. You may also have other rights that vary from state to
state. Service under this warranty must be obtained by contacting Electrolux Home Products, Inc.:
This warranty only applies in the 50 states of the U.S.A., Puerto Rico, and Canada. Product features or specifications as described or illustrated
are subject to change without notice. All warranties are made by Electrolux Home Products, Inc. In Canada, your appliance is warranted by
Electrolux Canada Corp.
01-U-FR-02 (Rev. 01/2002)
USA
800•944•9044
Electrolux Home Products, Inc.
P.O. Box 212378
Augusta, GA 30917
Canada
866•213•9397
Electrolux Canada Corp.
6150 McLaughlin Road
Mississauga, Ontario
L5R 4C2
6
GNITOOHSELBUORT
EDIUG
MELBORPESUACNOITCERROC
NOITAREPOROTAREGIRFER
.ecnailppasihtnislairetam
tsilsihT.esnepxednaemituoyevasyamtI.tsilsihtweiver,ecivresrofgnillacerofeB
ropihsnamkrowevitcefedfotluserehttoneratahtsecnerucconommocsedulcni
.nurtonseodrotaregirfeR
.tpurretni
.noitisopFFO
•rotaregirfeRdeggulpebtonyam
.rekaerbtiucric
.egatuorewoP•
rohcumootsnurrotaregirfeR
.gnoloot
•rotaregirfeRneebyltnecersah
.emit
graL•
.gnolootro
•rotaregirfeRylthgilsebyamrood
po
.ne
.wol
•rotaregirfeR,ytridsiteksag
aotnideggulpsirotaregirfeR•
tluafdnuorgasahtahttiucric
ehtnisilortnocerutarepmeT•
.esoolebyamgulpro,ni
deppirtronwolbesufesuoH•
.tohsirehtaewedistuoromooR•
fodoireparofdetcennocsid
tohromrawfostnuomae
.yltnecerderotsneebevahdoof
yltneuqerfootdenepoerasrooD•
oottessilortnoCerutarepmeT•
.dettifylroopro,dekcarc,nrow
eeS•
tiucric
tI•rotaregirfeesehtrednuredrahkrowot
eeS•
•sruohlareveswollA.gnittesremrawaotbonklortnocnruT
.rekaerb
rehtroflamrons'
.snoitidnoc
ehtrofsruoh4sekattI•taregirfernwodloocotro
.yletelpmoc
lliwdoofmraW•rotaregirferehtlitnueromnurot
esuac
ehtgniretneriamraW•rotaregirfer.ero
.netfosselsroodnepO
rotaregirferderisedniatniamotredroniregnolnurot
.erutarepmet
"SMELBORPROOD"
.naicinhcetdeifitrecaybdekcehcti
lortnoCerutarepmeTehtgnitteS
.teltuootnidehsupylthgitsigulperusnE•
.dehcaersierutarepmetderised
noitceS
.
.ezilibatsoterutarepmetehtrof
kaeL.teksagegnahcronaelC•
.noitceS
.ynapmoCcirtcelElacolllaC.sthgilesuohkcehC•
eva
h,teltuoehttuobaerusnuerauoyfI.tiucricrehtonaesU•
teseR.esufyaled-emitpma51ahtiwesufecalper/kcehC•
mnurottisesuac
esuaclliwlaesroodehtnis
erutarepmetrotaregirferroiretnI
.dlocootsi
.wol
erutarepmetrotaregirferroiretnI
.mrawootsi
.mraw
reporp
.yl
.yltnecer
etcennocsid
.emit
ecafruslanretxerotaregirfeR
.mrawsierutarepmet
oottessilortnoCerutarepmeT•
etehtrof
oottessilortnoCerutarepmeT•
sirognolootnepotpeksirooD•
.yltneuqerfootdenepo
gnitaesebtonyamrooD•
tohromrawfostnuomaegraL•
derotsneebevahyamdoof
neebyltnecersahrotaregirfeR•
fodoireparofd
sllawrotaregirferlanretxeehT•
remrawF°03sahcumsaebnac
.erutarepmetmoornaht
eeS•
.erutarepmetdetceles
.ezilibatsoterutarepm
.ezilibatsoterutarepmet
mityreverotaregirferehtsretneriamraW•
.netfosselroodehtnepO.denepo
"SMELBORPROOD"
h4seriuqerrotaregirfeR•
.noitceS
.tenibacrotaregirferehtedisnimorftaeh
sruohlareveswollA.gnittesremrawaotlortnocehtnruT•
ehtrofsruohlareveswollA.gnittesredlocaotlortnocnruT•
siroodehte
stihcaerotecnahcadahsahrotaregirferehtlitnutiaW•
.yletelpmocnwodloocotsruo
refsnartotskrowrosserpmocehtelihwlamronsisihT•
ESIONDNADNUOS
revenehwsleveldnuosreduoL
.nosirotaregirfer
rosserpmoc
.
nehwsleveldnuosregnoL
.nosemocrosserpmoc
.elcycNO
evahsrotaregirfernredoM•
dnayticapacegarotsdesaercni
yehT.serutarepmetelbatserom
ycneiciffehgihaeriuqer
rehgihtasetareporotaregirfeR•
ehtfotratsehtgnirudserusserp
muoy
.roiretni
.nurotseunitnocrotaregirfer
,wolsilevelesiongnidnuorrusehtnehW.lamronsisihT•
ehtslooctielihwgninnurrosserpmocehtraehthgi
saraeppasidroffolevellliwdnuoS.lamronsisihT•
7
MELBORPESUACNOITCERROC
(ESIONDNADNUOS
).tnoC
moornehwsnurnaF
.F°54wolebsierutarepmet
dnuosgnikcarcrognippoP
.nosemocrosserpmocnehw
.sepip
,dnuosgnilgrugrognilbbuB
.gniliobretawekil
.esiongnilttarrognitarbiV
.ylthgils
.dnuoSgnippanS
sahtatsomrehtroiretxE•
.nafdnaretaehehtdetavitca
noisnapxeogrednustraplateM•
retawtohnisa,noitcartnocdna
loocotdesu(tnaregirfeR•
gnitalucricsi)rotaregirfer
.metsysehttuohguorht
skcortI.leveltonsirotaregirfeR•
devomsitinehwroolfehtno
.llawehtgnihcuotsirotaregirfeR•
ehtgninrutlortnoCdloC•
.ffodnanorotaregirfer
.lamronsisihT•
saraeppasidroffolevellliwdnuoS.lamronsisihT•
.nurotseunitnocrotaregirfer
.lamronsisihT•
ehtni"gnileveL"otrefeR.tinuehtleveL•
.noitceS
ehtni"gnileveL"ot
.lamronsisihT•
spetStsriF
.noitceS
spetStsriF
refeR.ylthgilsrotaregirferevomrorotaregirferehtleveleR•
ROTAREGIRFEREDISNITSORF/ERUTSIOM/RETAW
foedisninosmroferutsioM
.sllawrotaregirfer
.ylreporp
.dimuhdnatohsirehtaeW•
gnitaesebtonyamrooD•
siro,gnolootnepotpeksirooD•
.yltneuqerfootdenepo
"eeS•
.lamronsisihT•
SMELBORPROOD
.netfosselroodehtnepO•
.noitceS"
ROTAREGIRFEREDISTUOTSORF/ERUTSIOM/RETAW
foedistuonosmroferutsioM
.rotaregirfer
.edistuo
gnitaesebtonyamrooD•
riadlocehtgnisuac,ylreporp
otrotaregirferehtedisnimorf
morfriatsiommrawteem
"eeS•
SMELBORPROOD
.noitceS"
ROTAREGIRFERNIRODO
.rotaregirfernisrodO
.rotaregirfereht
.denaelcebotsdeenroiretnI•
nierasrodognortshtiwsdooF•
.ylthgitdoofehtrevoC•
.adosgnikabdna,retawmraw,egnopshtiwroiretninaelC•
SMELBORPROOD
.esolctonlliwrooD
.ylthgils
skcortI.leveltonsirotaregirfeR•
devomsitinehwroolfehtno
.noitceS
ehtni"gnileveL"otrefeR.roodehtngilasim
dnaerauqsfotuotenibacehtecrofnacnoitidnocsihT•
spetStsriF
NOTONSIBLUBTHGIL
.notonsiblubthgiL
.rotaregirfereht
.tuodenrubsiblubthgiL•
serutaeF
gnihcaersitnerruccirtceleoN•
"eeS•
.noitceS
ehtni"thgiLroiretnI"rednusnoitceridwolloF•
NOITAREPOROTAREGIRFER
.noitceS"
rotaregirfeR
8
Loading...
