FACTORY
PARTS CATALO
PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRT21LR7AB5 FRT21LR7A R134a black 115
G
FRT21LR7AQ5 FRT21LR7A R134a bisque 115
FRT21LR7AW5 FRT21LR7A R134a white 115
MARKET
North America

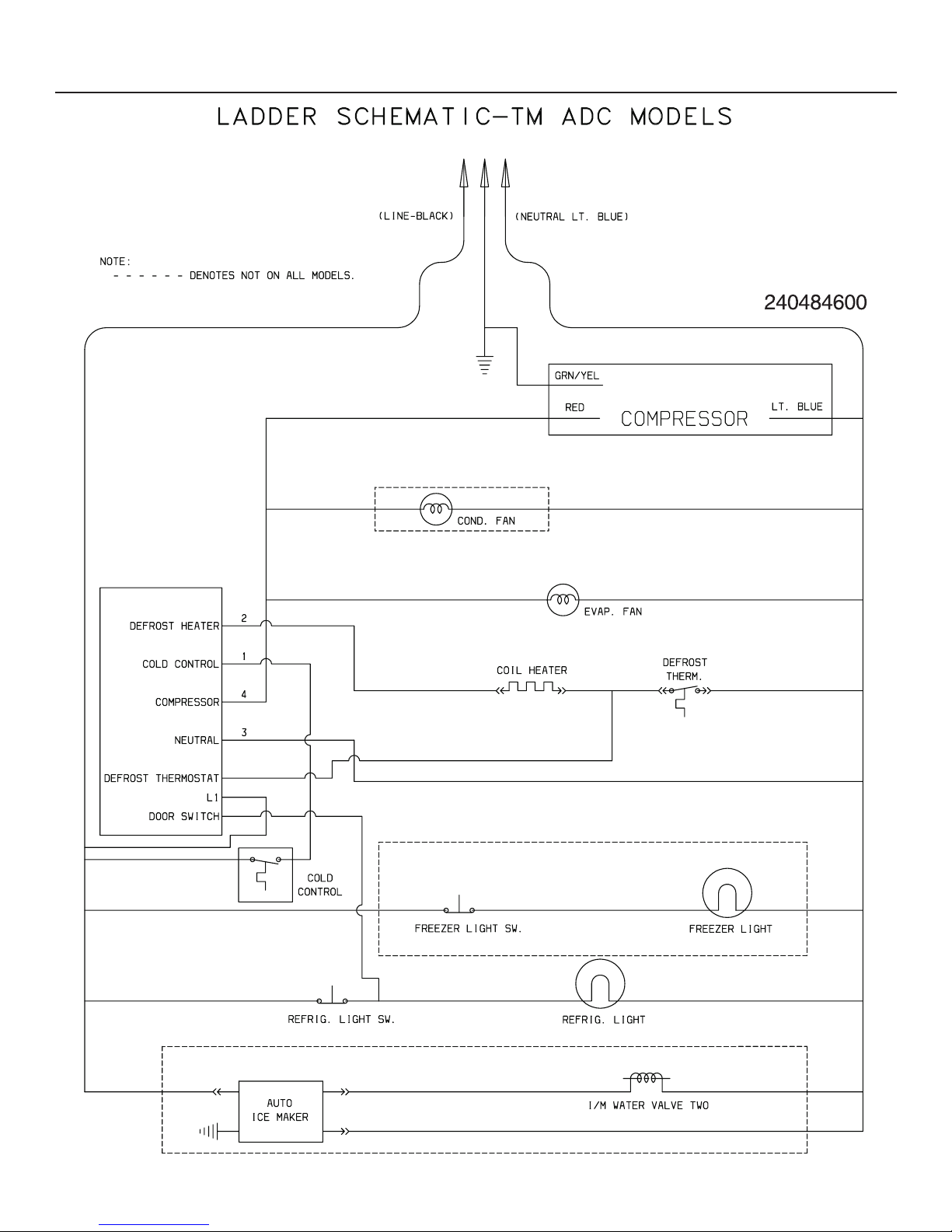

WIRING DIAGRAM - 240379009
OWNER’S GUIDE - 240400105
SERVICE DATA SHEET - 240379009
TOP MOUNT
REFRIGERATOR
Model No.
P.O. Box 212378, Augusta, GA 30917
FRT21LR7A
Publication No.
5995366613
020221
-EN/SERVICE /ECL
924
All rights reserved
Publication No. FRT21LR7A
5995366613
DOOR
02/02 2
A = FRT21LR7A (FRT21LR7AB5)
B = FRT21LR7A (FRT21LR7AQ5)
C = FRT21LR7A (FRT21LR7AW5)
POS. NO PART NO DESCRIPTION
1 # 240514611 A - - Gasket-frzr door,black ,magnetic
1 # 240514607 - B C Gasket-frzr door,white ,magnetic
2 # 240514612 A - - Gasket-refr door,black ,magnetic
2 # 240514608 - B C Gasket-refr door,white ,magnetic
7 240338303 A B C Door,dairy ,clear
10 240381303 A - - Plug-button,black ,hinge brg hole
10 240381302 - B - Plug-button,bisque ,hinge brg hole ,(2)
10 240381301 - - C Plug-button,white ,hinge brg hole ,(2)
11 240450312 A - - Panel-frzr door,black ,complete assy
11 240450306 - B - Panel-frzr door,bisque ,complete assy
11 240450302 - - C Panel-frzr door,white ,complete assy
12 240416304 A - - Label-nameplate,black
12 240416303 - B - Label-nameplate,bisque
12 240416301 - - C Label-nameplate,white
13 240312405 A - - Door Stop,black ,ref
13 240312407 - B - Door Stop,bisque ,ref
13 240312403 - - C Door Stop,white ,ref
13A 240312406 A - - Door Stop,black ,frzr
13A 240312408 - B - Door Stop,bisque ,frzr
13A 240312404 - - C Door Stop,white ,frzr
14 240494003 A - - Plug-button,black
14 240494002 - B - Plug-button,bisque
14 240494001 - - C Plug-button,white
14B 240383603 A - - Plug-button,black ,door handle
14B 240383602 - B - Plug-button,bisque ,door handle
14B 240383601 - - C Plug-button,white ,door handle
15 240450421 A - - Panel-refr door,black ,complete assy
15 240450418 - B - Panel-refr door,bisque ,complete assy
15 240450417 - - C Panel-refr door,white ,complete assy
18 240339203 A - - Handle-door,black
18 240339204 - B - Handle-door,bisque
18 240339201 - - C Handle-door,white
18A 240339208 A - - Handle-door,black
18A 240339209 - B - Handle-door,bisque
18A 240339206 - - C Handle-door,white
21 240383401 A B C Screw,truss hd quad ,#10-16 x .500
21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
22 240311202 A - - Bearing-hinge,black ,(8)
22 240311201 - B C Bearing-hinge,natural color ,(8)
48 240338101 A B C Bin-door,pseudo ,bottom
48A 240338201 A B C Bin-door,gallon
49 240495801 A B C Bin-door,pseudo ,frzr
96 240345506 A - - Plug,door foam hole ,black
96 240345505 - B C Plug,door foam hole ,white
FRT21LR7A Publication No.
5995366613
DOOR
# = Fast-moving Parts 3 02/02
* = Non-Illustrated Parts
Publication No. FRT21LR7A
5995366613
CABINET
02/02 4
A = FRT21LR7A (FRT21LR7AB5)
B = FRT21LR7A (FRT21LR7AQ5)
C = FRT21LR7A (FRT21LR7AW5)
POS. NO PART NO DESCRIPTION
1 240355402 A B C Cover-fan
2 240367001 A B C Knob-damper control
3 5303001028 A B C Nut,push-on
4 240367401 A B C Damper-fan cover
5 # 5308000010 A B C Fan Blade,red ,evaporator fan
8 5300157666 A B C Bushing-motor mtg,(2)
9 5303292396 A B C Bracket-motor mtg,front
10 240313606 A B C Cover-evap coil
10* 240371303 A B C Seal,insulation ,53.23 in. long ,foam ,coil cover
10*# 240385402 A B C Wiring Harness,freezer section
11 5303208309 A B C Plug-hole,factory test
13 # 240369701 A B C Motor-evap fan
13* 218931001 A B C Clamp-motor wiring,nylon ,w/adhesive tape
14 5303292397 A B C Bracket-motor mtg,rear
14* 240433201 A B C Screw,hex washer head ,8-18 x 0.375
18 240411901 A B C Support-evap cover,(2)
21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
22 215774918 A - - Plug-button,black ,upr hinge holes
22 215774919 - B - Plug-button,bisque ,upr hinge holes
22 215774901 - - C Plug-button,white ,upr hinge holes
28 240335501 A B C Bolt-roller adj,hex washer head ,1/4-20 x 4.020,(2) ,special
30 240314003 A - - Bracket-lower hinge,black
30 240314004 - B - Bracket-lower hinge,bisque
30 240314002 - - C Bracket-lower hinge,white
34 240311301 A B C Washer,hinge ,nylon ,(2)
35 240313803 A - - Bracket-ctr hinge,black
35 240313804 - B - Bracket-ctr hinge,bisque
35 240313802 - - C Bracket-ctr hinge,white
35A 240336801 A B C Spacer-hinge,center
36 240516401 A B C Pin-center hinge
37 240337603 A - - Trim-cabinet corner,black
37 240337604 - B - Trim-cabinet corner,bisque ,(2)
37 240337601 - - C Trim-cabinet corner,white ,(2)
38 240313701 A B C Bracket-upper hinge
40 240354404 A - - Cover-upper hinge,black
40 240354403 - B - Cover-upper hinge,bisque
40 240354401 - - C Cover-upper hinge,white
41 5303001609 A B C Grommet,shelf mtg ,0.69" ,RH
41* 5308009759 A B C Grommet,shelf mtg ,1.25" ,LH
42 240315301 A B C Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B C Roller Assy,front ,(2)
47 218233300 A B C Channel-shelf mtg,side ,(2)
48 5303292395 A B C Channel-shelf mtg,center
49 218362500 A B C Screw,hex washer head ,8-18AB x 1.250
56 240516501 A B C Pin-lower hinge
58 5303274237 A B C Screw,hex washer head ,8-32CA x 0.500 ,motor bracket
59 240442703 A - - Screw-#10-32 X 3/4,black
59 240442704 - B - Screw-#10-32 X 3/4,bisque
59 240442702 - - C Screw-#10-32 X 3/4,white
72 240368203 A - - Grille/Kickplate,black
72 240368202 - B - Grille/Kickplate,bisque
72 240368201 - - C Grille/Kickplate,white
81 5308016566 A B C Screw,hex washer head ,8-15A x 0.625 ,low profile
82 5304418225 A B C Roller,compressor base ,rear ,(2)
83 5303316859 A B C Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin
89 240326115 A B C Cover-access,with label
89* 241500301 A B C Screw,hex washer head ,8-18AB x 0.500
92 5303001479 A B C Screw-hinge mtg,hex hd ,1/4-20 x 0.875
FRT21LR7A Publication No.
5995366613
CABINET
* 218990901 A B C Clip-wire
* 5303305345 A - - Paint,touch-up ,black
* 5304414035 - B - Paint,touch-up ,bisque
* 5303305324 - - C Paint,touch-up ,white
# = Fast-moving Parts 5 02/02
* = Non-Illustrated Parts
Publication No. FRT21LR7A
5995366613

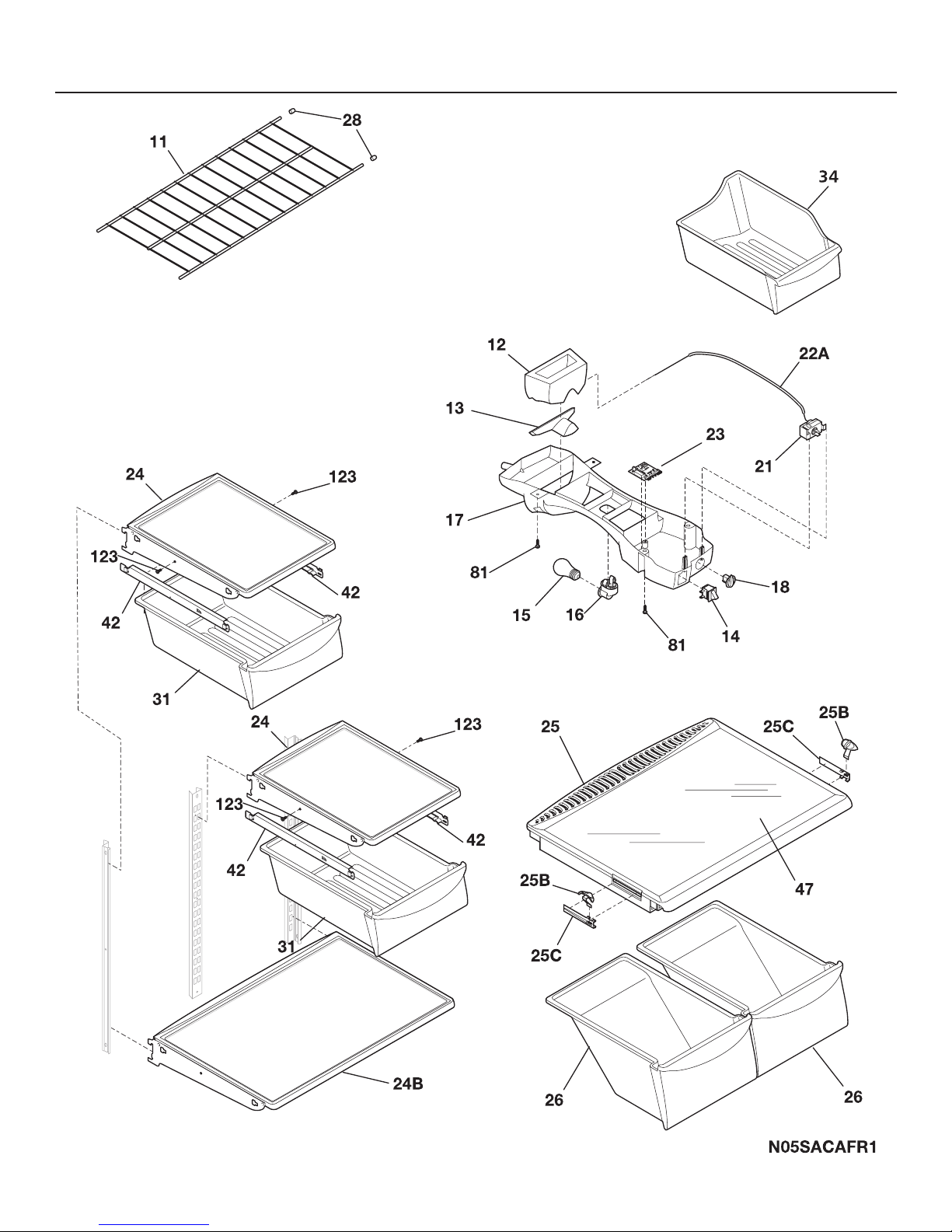

SHELVES
02/02 6
A = FRT21LR7A (FRT21LR7AB5)
B = FRT21LR7A (FRT21LR7AQ5)
C = FRT21LR7A (FRT21LR7AW5)
POS. NO PART NO DESCRIPTION
11 240358003 A B C Shelf-freezer
11* 5303299664 A B C Spacer-shelf
12 240380202 A B C Diffuser-air,top
13 240362601 A B C Diffuser-air,bottom
13* 240392601 A B C Seal-diffuser
14 # 240505801 A B C Switch,light/lamp
15 240436701 A B C Light Bulb/Lamp,A-15 ,40 W ,120 V ,miniature
16 241500701 A B C Socket-light/lamp
17 240368101 A B C Control Box
17*# 240375501 A B C Wiring Harness,control box
18 240360801 A B C Knob-control
21 # 5304421256 A B C Control-temperature
22A 240468201 A B C Tube,sensor sleeve ,31 inch ,plastic ,white
23 # 240375801 A B C Control-defrost,adaptive timer ,PC board
23* 5303001259 A B C Screw-timer mtg,pan hd ,6-20 x 0.438 ,(2)
24 240355214 A B C Shelf-"Spill-Safe",fixed
24B 240408903 A B C Shelf-"Spill-Safe",cantilever fixe
25 240364718 A B C Cover-crisper pan
25B 240361201 A B C Control-humidity
25C 240361301 A B C Damper-humidity control
26 240343803 A B C Pan-crisper,(2)
28 3201150 A B C End Cap,freezer shelf ,protector
31 240530803 A B C Pan-meat,w/o graphics ,clear
34 240385201 A B C Container-ice
42 240356501 A B C Hanger-meat pan,RH
42 240365401 A B C Hanger-meat pan,LH
47 240350654 A B C Insert-pan cover,glass
81 5308016566 A B C Screw,hex washer head ,8-15A x 0.625 ,low profile
123 215005100 A B C Screw-roller/hanger,8-10 x 0.438
FRT21LR7A Publication No.
5995366613
SHELVES
* 3205266 A B C Edge Protector,wiring harness
# = Fast-moving Parts 7 02/02
* = Non-Illustrated Parts
Publication No. FRT21LR7A
5995366613

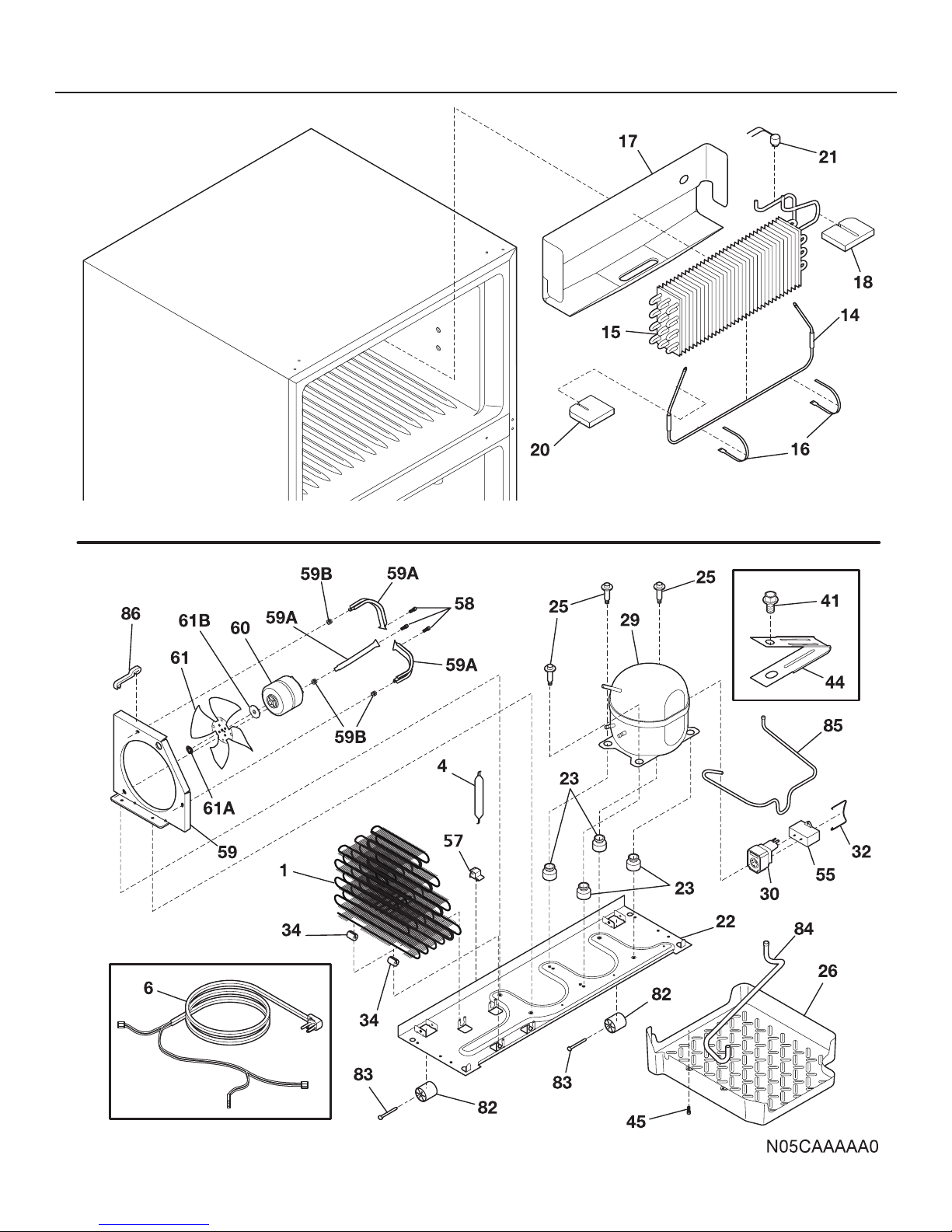

SYSTEM
02/02 8
A = FRT21LR7A (FRT21LR7AB5)
B = FRT21LR7A (FRT21LR7AQ5)
C = FRT21LR7A (FRT21LR7AW5)
POS. NO PART NO DESCRIPTION
1 # 240444401 A B C Condenser,dynamic
4 # 218944001 A B C Drier-filter,R134a System
6 # 240496101 A B C Wiring Harness,machine compt ,w/electric cord
6* # 240385402 A B C Wiring Harness,freezer section
6* # 240375501 A B C Wiring Harness,control box
14 # 5303918247 A B C Defrost Heater Kit
15 # 5303918250 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater,aluminum ,(2)
17 240434002 A B C Trough-drain
18 240362301 A B C Insulation Block,RH
20 240362401 A B C Insulation Block,LH
21 # 5303918202 A B C Thermostat-defrost,kit
22 240330006 A B C Plate-compr mtg
22* 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 A B C Grommet-compr mtg,(4)
25 240491501 A B C Screw-compressor mtg, 1/4-28 x 1.16,shoulder,typ CF
26 240332602 A B C Pan-defrost drain
29 # 5303918265 A B C Compressor,w/electricals
30 # 218721120 A B C Starter-PTC
32 240493301 A B C Clamp,elec cont mtg ,compressor ,bale wire
34 240405201 A B C Grommet,rubber ,black ,cond tube/wire
41 218897001 A B C Screw,hex washer head ,8-32 x 1/4
41* 5308000039 A B C Screw,hex washer head ,8-32CA x 0.500 ,serrated head
44 5303001199 A B C Clamp-wiring harness,strain relief ,galv steel
45 5308016566 A B C Screw,hex washer head ,8-15A x 0.625 ,low profile
55 # 218909901 A B C Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B C Clip-wiring harness
58 215004600 A B C Screw,hx serr wshr hd ,8-36 x 7/16 ,cond fan motor,(2)
59 240315501 A B C Shroud-cond fan
59* 240346701 A B C Tape-foam seal,shroud
59* 240359401 A B C Screw-fan shroud,(2)
59A 240346501 A B C Bracket-support,cond mtr ,(3)
59B 240346601 A B C Grommet-bracket,(3)
60 # 240334001 A B C Motor,condenser fan
61 # 240315401 A B C Fan Blade,galv steel ,condenser fan
61A 215004700 A B C Nut,speed
61B 215004800 A B C Grommet-silencer
82 5304418225 A B C Roller,compressor base ,rear ,(2)
83 215164200 A B C Pin-roller,(2)
83 5303316859 A B C Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin
84 240500801 A B C Tube-drain,lower
85 240493101 A B C Tube-connector,suction
86 240409302 A B C Spacer-cond tube,black
FRT21LR7A Publication No.
5995366613
SYSTEM
* 218843800 A B C Screw,hex wshr hd ,8-15A x 0.500
* 240396801 A B C Clamp,tube/wiring ,nylon ,black/natural
* 5304421289 A B C Hot Tube Repair Kit,Service
* # 5303918210 A B C Heat Exchanger Kit,suction line
# = Fast-moving Parts 9 02/02
* = Non-Illustrated Parts
Publication No. FRT21LR7A
5995366613

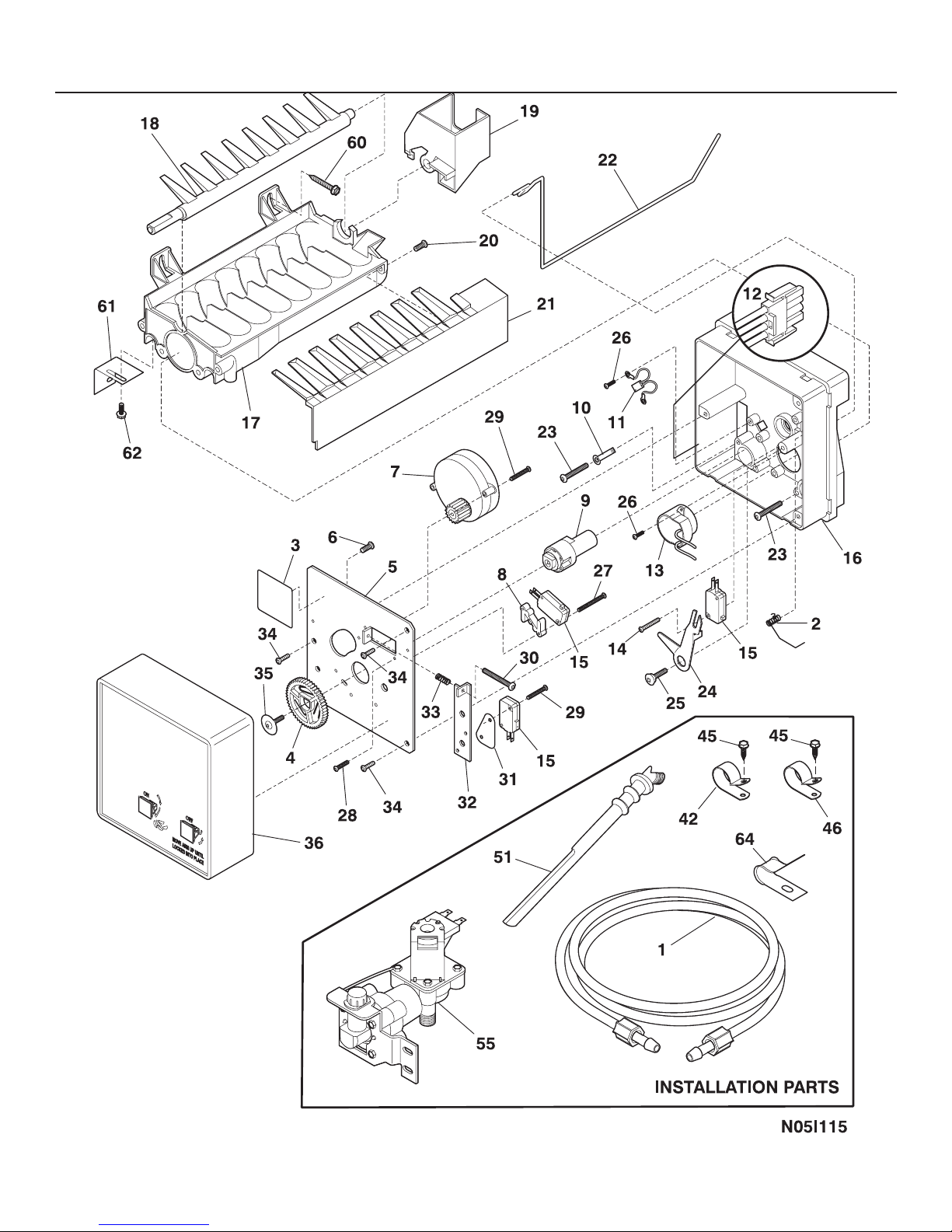

ICE MAKER
02/02 10
A = FRT21LR7A (FRT21LR7AB5)
B = FRT21LR7A (FRT21LR7AQ5)
C = FRT21LR7A (FRT21LR7AW5)
POS. NO PART NO DESCRIPTION
1* 218976901 A B C Tube-water inlet,inlet valve ,to ice maker
2 5304420650 A B C Spring,shut-off arm
3 3206299 A B C Label,ID plate
4 3206301 A B C Gear
5 3206303 A B C Plate-mounting
6 3206305 A B C Screw-ground wire,8-32 x 0.250
7 # 3206306 A B C Motor-ice maker
8 3206312 A B C Spacer-hold switch
9 3206313 A B C Cam
10 3206315 A B C Clamp
11 # 3206319 A B C Thermal Cutoff,ice maker ,complete assy
12 # 5304420651 A B C Wiring Harness,ice maker ,internal ,with plug
13 # 3206322 A B C Thermostat Assy,ice maker
14 5304420652 A B C Screw,4 x 0.750 ,switch mtg.
15 # 3206324 A B C Switch,(3)
16 5304420653 A B C Support,phenolic
17 # 5303320545 A B C Mold-ice maker,Radius Cube ,with heater
18 3206328 A B C Ejector-ice
19 3206330 A B C Bearing & Inlet
20 5304408581 A B C Screw,8-32 x 0.375
21 3206332 A B C Ice Stripper
22 3206333 A B C Shut-off Arm
23 5304408582 A B C Screw,8-32 x 0.875 ,mold-to-support ,(3)
24 3206335 A B C Lever Arm
25 3206336 A B C Screw,8-18 x 0.562 ,lever arm/sprt
26 5304420654 A B C Screw-thermo/sprt,4-24 x 0.375 ,(4)
27 3206338 A B C Screw,4-40 x 1.000 ,hold switch mtg ,(2)
28 3206339 A B C Screw-timing stop,4-40 x 0.375
29 3206323 A B C Screw,4-24 x 0.750 ,(6)
30 3206341 A B C Screw-timing adj,8-32 x 1.000
31 3206342 A B C Insulator
32 3206343 A B C Plate-valve switch
33 5304408583 A B C Spring-timing adj
34 5304420655 A B C Screw,plazscrew ,8-10 ,(3)
35 5304408585 A B C Screw
36 3206347 A B C Cover-ice maker
42 5303001199 A B C Clamp-wiring harness,strain relief ,galv steel
45 5308016566 A B C Screw,hex washer head ,8-15A x 0.625 ,low profile
46 5308000133 A B C Clamp,nylon ,.625 ID
51 240387101 A B C Tube-water,ice mold fill ,extension
55 # 240380301 A B C Valve-water,single solenoid ,50/60 Hz ,105/120 V
60 218362500 A B C Screw,hex washer head ,8-18AB x 1.250
61 218721500 A B C Bracket-leveling,ice maker
62 218737900 A B C Screw-IM brkt mtg,hex washer head ,8-32D x 0.375
64 5303001549 A B C Clamp,0.31 ID ,steel ,copper wtr line
FRT21LR7A Publication No.
5995366613
ICE MAKER
* 218888001 A B C Adapter-water supply,nut & sleeve ,compression ftg
* 240352403 A B C Ice Maker,Radius Cube ,115 V ,no instl parts
# = Fast-moving Parts 11 02/02
* = Non-Illustrated Parts
Publication No. FRT21LR7A
5995366613
WIRING SCHEMATIC
02/02 12
FRT21LR7A Publication No.
5995366613

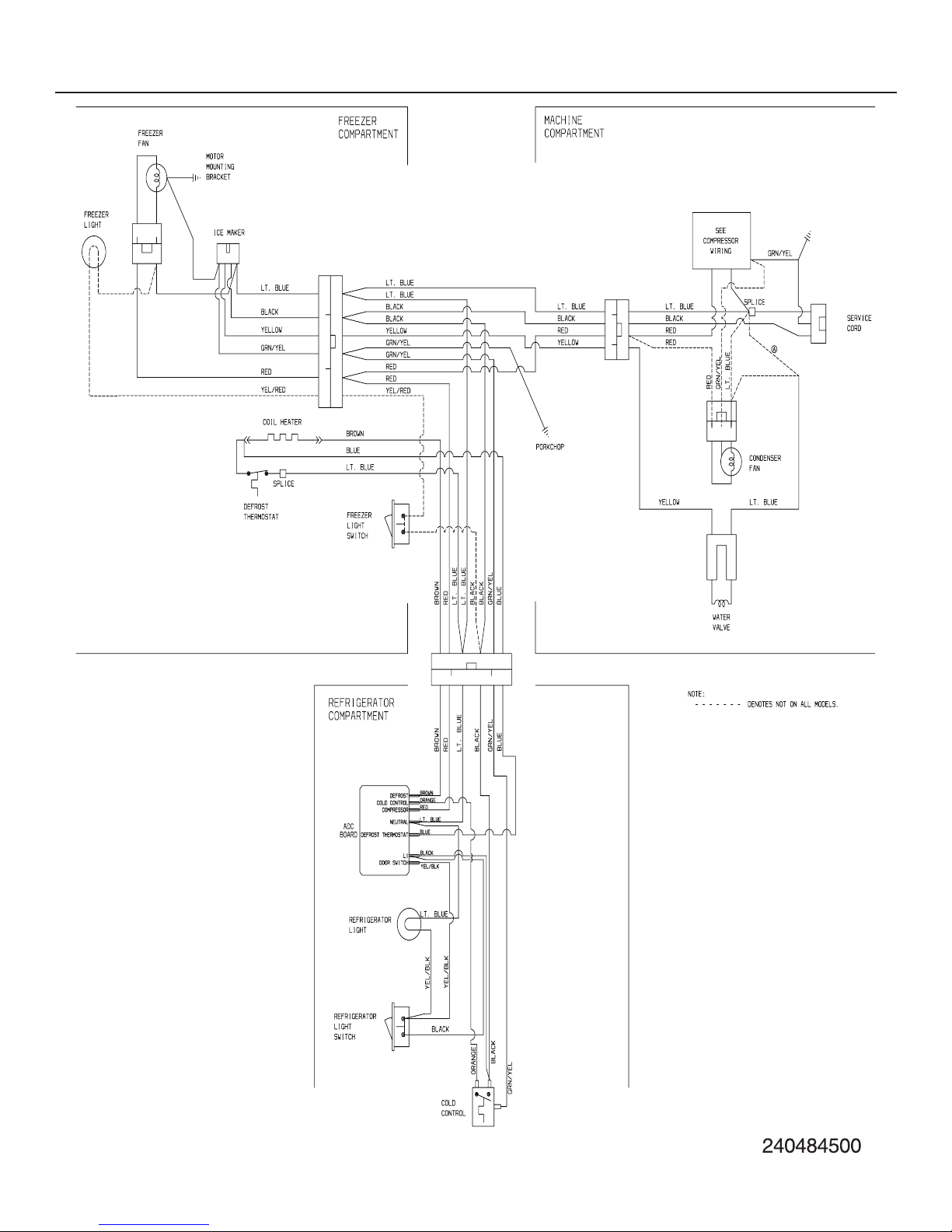

WIRING DIAGRAM
# = Fast-moving Parts 13 02/02
* = Non-Illustrated Parts
Loading...
