FACTORY
PARTS CATALO
G
PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRT21HBBSB0 FRT21HBBS R134a stainless/black 115
MARKET
North America
ENERGY GUIDE - 240465041
OWNER’S GUIDE - 240400105
SERVICE DATA SHEET - 240379009
TOP MOUNT
REFRIGERATOR
Model No.
ELECTROLUX HOME PRODUCTS, INC
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995371597
020507
-EN/SERVICE /KC
357
FRT21HBBS
©2002 Electrolux home Products, Inc.
All rights reserved
Publication No. FRT21HBBSB0
5995371597
DOOR
05/02 2
FRT21HBBSB0 Publication No.
DOOR
POS. NO PART NO DESCRIPTION
1 # 240514611 Gasket,frzr door seal ,black ,magnetic
2 # 240514612 Gasket,refr door seal ,black ,magnetic
7 240338303 Door,dairy ,clear
11 240450331 Door,frzr ,stainless steel
12 240416304 Nameplate,black
13 240312405 Door Stop,black ,ref
13A 240312406 Door Stop,black ,frzr
14B 240383603 Plug-button,black ,door handle
15 240450440 Door,refr ,stainless steel
18 240339203 Handle-door,black
18A 240339208 Handle-door,black
21 240383401 Screw,truss hd quad ,#10-16 x .500
22 240311202 Bearing-hinge,black ,(8)
22* 218252200 Screw,#8 truss hd ,10-32CA x 0.500
48 240338101 Bin-door,pseudo ,bottom
48A 240338201 Bin-door,gallon
49 240495801 Bin-door,pseudo ,frzr
96 240345506 Plug,door foam hole ,black
* 218490900 Cleaner,stainless steel
5995371597
# = Fast-moving Parts 3 05/02
* = Non-Illustrated Parts
Publication No. FRT21HBBSB0
5995371597
CABINET
05/02 4
FRT21HBBSB0 Publication No.
5995371597
CABINET
POS. NO PART NO DESCRIPTION
1 240355404 Cover-fan
* 240433201 Screw,hex washer head ,8-18 x 0.375
5 # 5308000010 Fan Blade,red ,evaporator fan
8 5300157666 Bushing-motor mtg,(2)
9 5303292396 Bracket-motor mtg,front
10 240313606 Cover-evap coil
10* 240371303 Seal,insulation ,53.23 in. long ,foam ,coil cover
10*# 240385402 Wiring Harness,freezer section
11 5303208309 Plug-hole,factory test
12 240366801 Plug-ice maker harness,rectangular
* 218843800 Screw,hex wshr hd ,8-15A x 0.500
12A 240374401 Plug-wtr inlet tube,round ,1"
13 # 240369701 Motor-evap fan
13* 218931001 Clamp-motor wiring,nylon ,w/adhesive tape
14 5303292397 Bracket-motor mtg,rear
* 5303274237 Screw,hex washer head ,8-32CA x 0.500 ,motor bracket
18 240411901 Support-evap cover,(2)
21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500
22 215774918 Plug-button,black ,upr hinge holes
28 240335501 Bolt-roller adj,hex washer head ,1/4-20 x 4.020,(2) ,special
30 240314003 Bracket-lower hinge,black
34 240311301 Washer,hinge ,nylon ,(2)
35 240313803 Bracket-ctr hinge,black
35A 240336801 Spacer-hinge,center
36 240516401 Pin-center hinge
37 240337603 Trim-cabinet corner,black
38 240313701 Bracket-upper hinge
40 240354404 Cover-upper hinge,black
41 5303001609 Grommet,shelf mtg ,0.69" ,RH
41 5308009759 Grommet,shelf mtg ,1.25" ,LH
42 240315301 Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 Roller Assy,front ,(2)
47 218233300 Channel-shelf mtg,side ,(2)
48 5303292395 Channel-shelf mtg,center
49 218362500 Screw,hex washer head ,8-18AB x 1.250
56 240516501 Pin-lower hinge
58 5303001343 Screw,hex washer head ,8-15A x 0.500
59 240442703 Screw-#10-32 X 3/4,black
72 240368203 Grille/Kickplate,black
81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile
82 5304418225 Roller,compressor base ,rear ,(2)
83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin
89 240326115 Cover-access,with label
89* 241500301 Screw,hex washer head ,8-18AB x 0.500
92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875
* 240479601 Plug,button ,cab liner holes
* 5303305345 Paint,touch-up ,black
# = Fast-moving Parts 5 05/02
* = Non-Illustrated Parts
Publication No. FRT21HBBSB0
5995371597

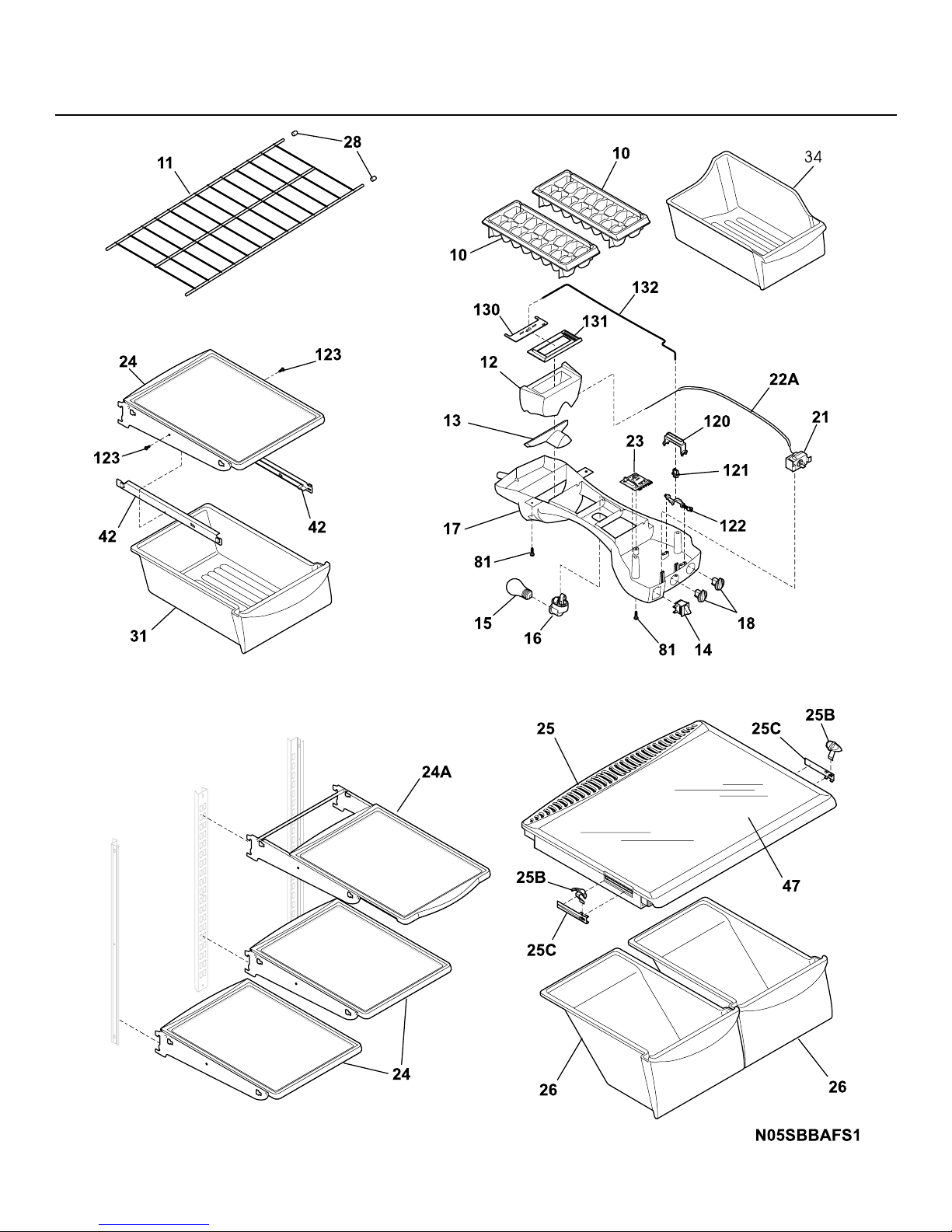

SHELVES
05/02 6
FRT21HBBSB0 Publication No.
SHELVES
POS. NO PART NO DESCRIPTION
10 215667501 Tray,ice cube ,plastic
11 240358003 Shelf,freezer ,full-width ,wire
11* 5303299664 Spacer,shelf
12 240417802 Diffuser-air,top
13 240362601 Diffuser,air ,bottom
14 # 240413601 Switch,light/lamp ,rocker
15 240436702 Light Bulb/Lamp,A-15 ,40 W ,120 V ,miniature
16 # 241500701 Socket-light/lamp
17 240407301 Control Box
* # 240375501 Wiring Harness,control box
18 240360801 Knob,temp control
21 # 5304421256 Control,temperature
22A 240468201 Tube,sensor sleeve ,31 inch ,plastic ,white
23 # 240375801 Control-defrost,adaptive timer ,PC board
23* 5303001259 Screw-timer mtg,pan hd ,6-20 x 0.438 ,(2)
24 240355214 Shelf-"Spill-Safe",cantilever ,fixed
24A 240350125 Shelf-"Spill-Safe",cantilever ,half width,sliding
25 240364718 Cover-crisper pan
25B 240361201 Control-humidity
25C 240361301 Damper,humidity cont.
26 240343803 Pan,crisper ,(2)
28 3201150 End Cap,freezer shelf ,protector
31 240530903 Pan-meat,w/o graphics ,clear
34 240385201 Container,ice bin
42 240356501 Hanger-meat pan,RH
42 240365401 Hanger-meat pan,LH
47 240350654 Insert-pan cover,glass
81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile
120 240366401 Guide-follower,cam follower
121 240366602 Cam Follower
122 240366501 Cam-damper,damper
123 215005100 Screw,hanger/rlr mtg ,8-10 x 0.438
130 240366101 Damper-control box
130* 218249806 Seal,insulation ,foam ,damper
131 240366201 Retainer-damper,damper
132 240366302 Control Rod,damper
5995371597
* 240465041 Energy Guide,tag
# = Fast-moving Parts 7 05/02
* = Non-Illustrated Parts
Publication No. FRT21HBBSB0
5995371597
SYSTEM
05/02 8
FRT21HBBSB0 Publication No.
5995371597

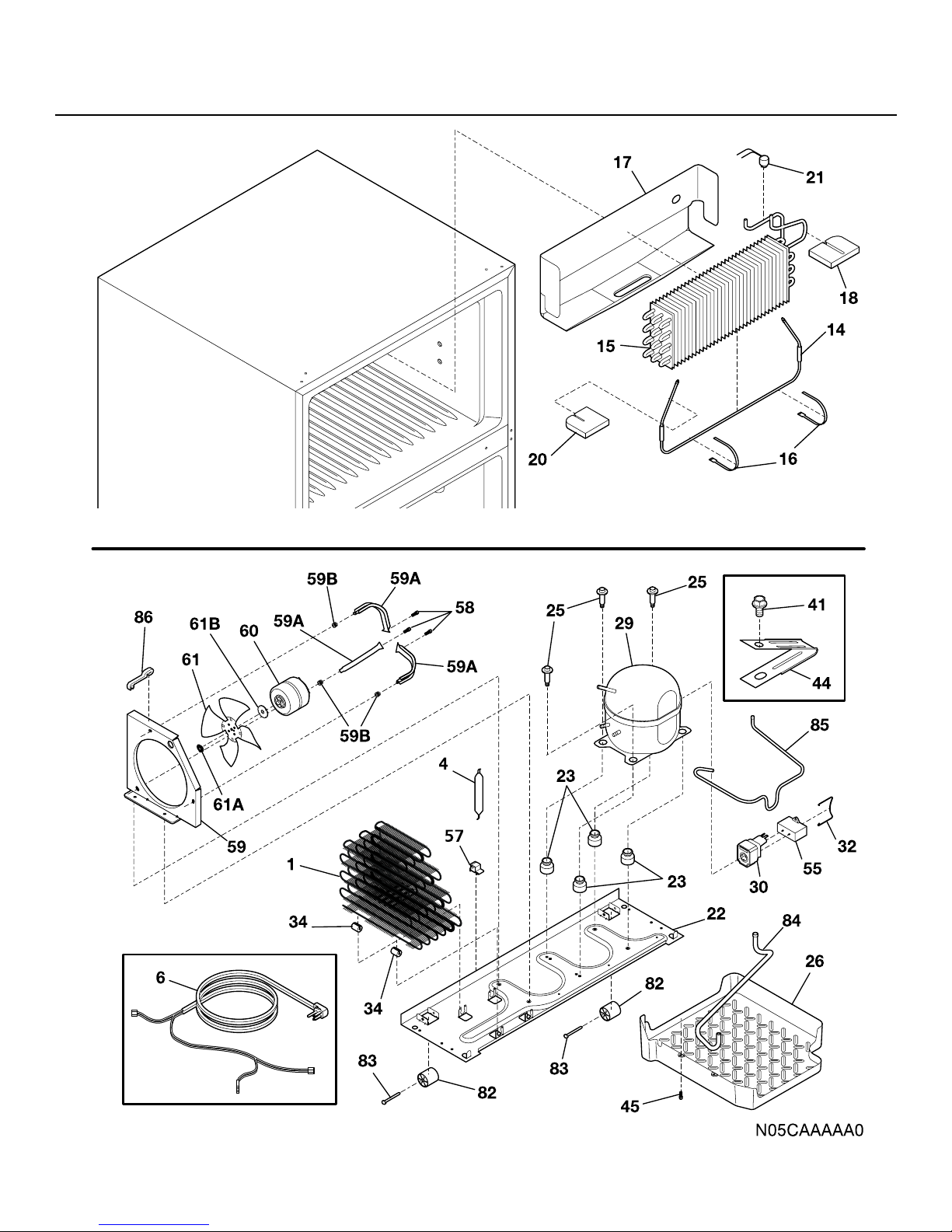

SYSTEM
POS. NO PART NO DESCRIPTION
1 240444401 Condenser,dynamic
4 # 218944001 Drier-filter,R134a System
6 # 240496101 Wiring Harness,machine compt ,w/electric cord
6* # 240375501 Wiring Harness,control box
6* # 240385402 Wiring Harness,freezer section
* 240396801 Clamp,tube/wiring ,nylon ,black/natural
* 5308000039 Screw,hex washer head ,8-32CA x 0.500 ,serrated head
14 # 5303918247 Defrost Heater Kit
15 # 5303918274 Evaporator Kit
16 5308000110 Strap-evap/heater,aluminum ,(2)
17 240434002 Trough-drain
18 240362301 Insulation Block,RH
20 240362401 Insulation Block,LH
21 # 5303918202 Thermostat-defrost,kit
22 240330006 Plate-compr mtg
22* 218252200 Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 Grommet-compr mtg,(4)
25 240491501 Screw-compressor mtg, 1/4-28 x 1.16,shoulder,typ CF
26 240332602 Pan-defrost drain
29 # 5303918251 Compressor,w/electricals
30 # 218721119 Starter,PTC
32 218973501 Clamp,elec cont mtg ,compressor
34 240405201 Grommet,rubber ,black ,cond tube/wire
41 218897001 Screw,hex washer head ,8-32 x 1/4
44 215174700 Clamp-service cord,strain relief ,galv steel
45 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile
55 # 216787800 Capacitor-run
57 240403601 Clip-wiring harness
57* 218709100 Screw,hex head ,10-32 x 0.500
58 215004600 Screw,hx serr wshr hd ,8-36 x 7/16 ,cond fan motor,(2)
59 240315501 Shroud-cond fan
59* 240346701 Tape-foam seal,shroud
59* 240359401 Screw-fan shroud,(2)
59A 240346501 Bracket-support,cond mtr ,(3)
59B 240346601 Grommet-bracket,(3)
60 # 240334001 Motor,condenser fan
61 # 240315401 Fan Blade,galv steel ,condenser fan
61A 215004700 Nut,speed
61B 215004800 Grommet-silencer
82 5304418225 Roller,compressor base ,rear ,(2)
83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin
84 240500801 Tube-drain,lower
85 240346201 Tube-connector,suction
86 240409302 Spacer-cond tube,black
* # 5303918210 Heat Exchanger Kit,suction line
* # 5304421289 Hot Tube Repair Kit,Service
# = Fast-moving Parts 9 05/02
* = Non-Illustrated Parts
Publication No. FRT21HBBSB0
5995371597

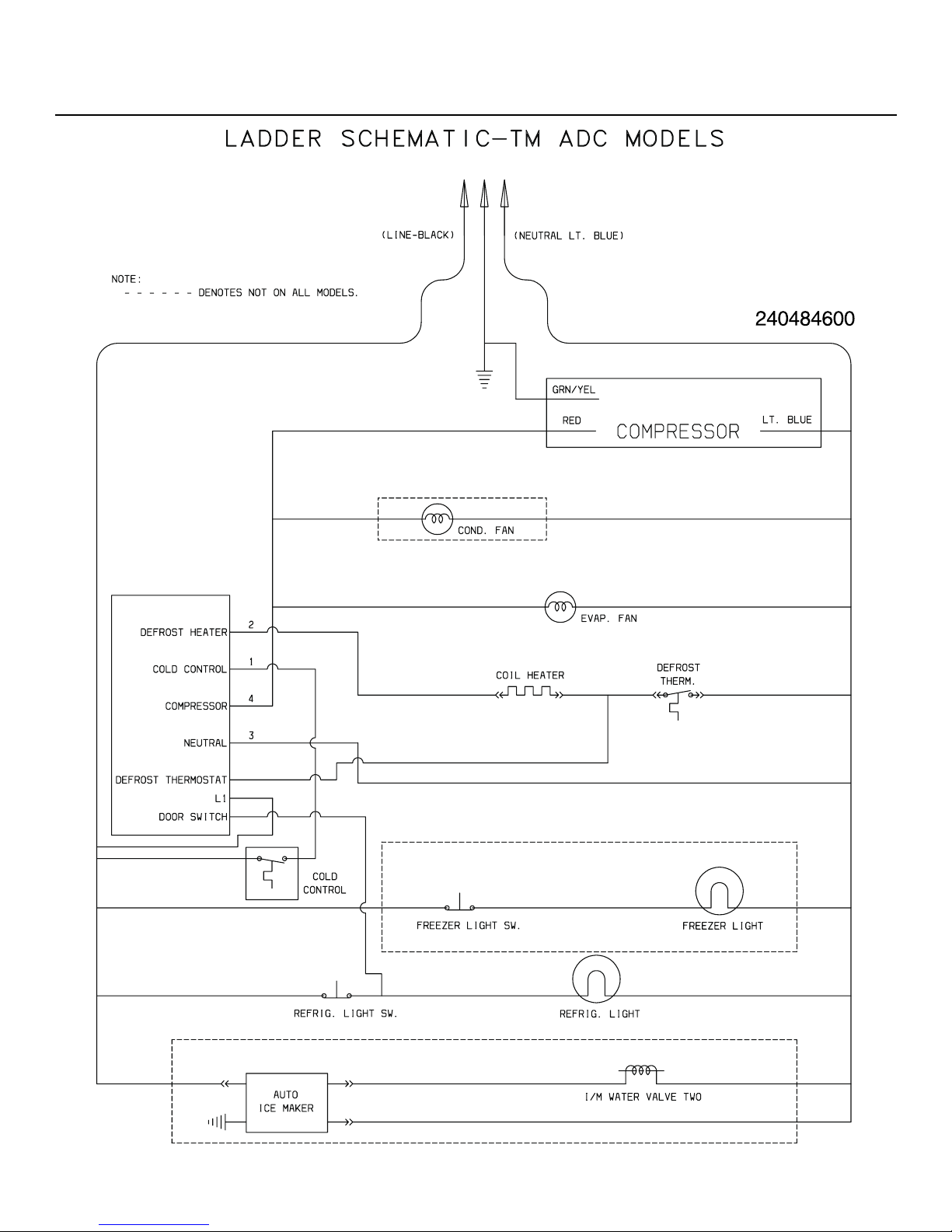

WIRING SCHEMATIC
05/02 10
FRT21HBBSB0 Publication No.
5995371597

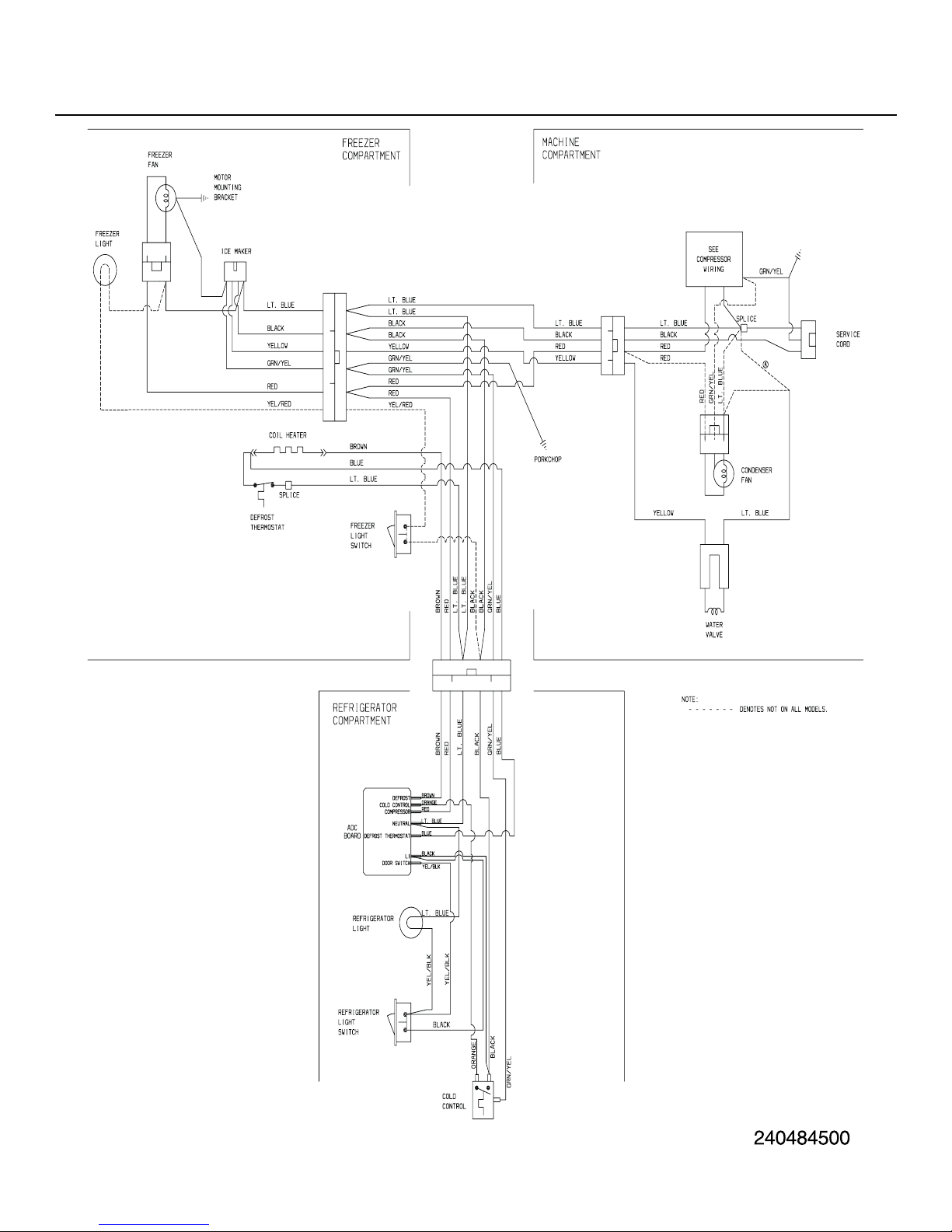

WIRING DIAGRAM
# = Fast-moving Parts 11 05/02
* = Non-Illustrated Parts
