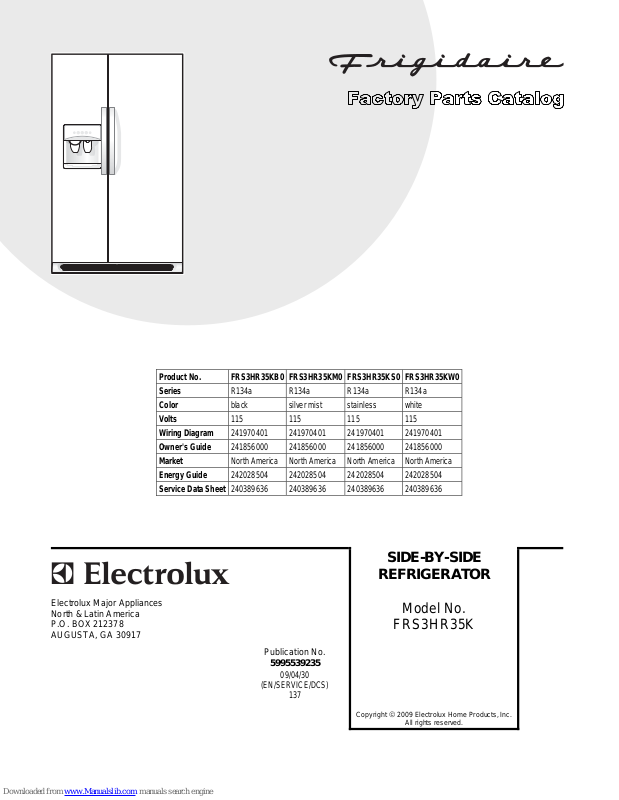

Frigidaire FRS3HR35KB - 23 Cu Ft Refrigerator, FRS3HR35KB0, FRS3HR35KM0, FRS3HR35KS0, FRS3HR35KW0 Service Data Sheet
...
Product No. FRS3HR35KB0 FRS3HR35KM0 FRS3HR35KS0 FRS3HR35KW0
Series R134a R134a R134a R134a
Color black silver mist stainless white
Volts 115 115 115 115

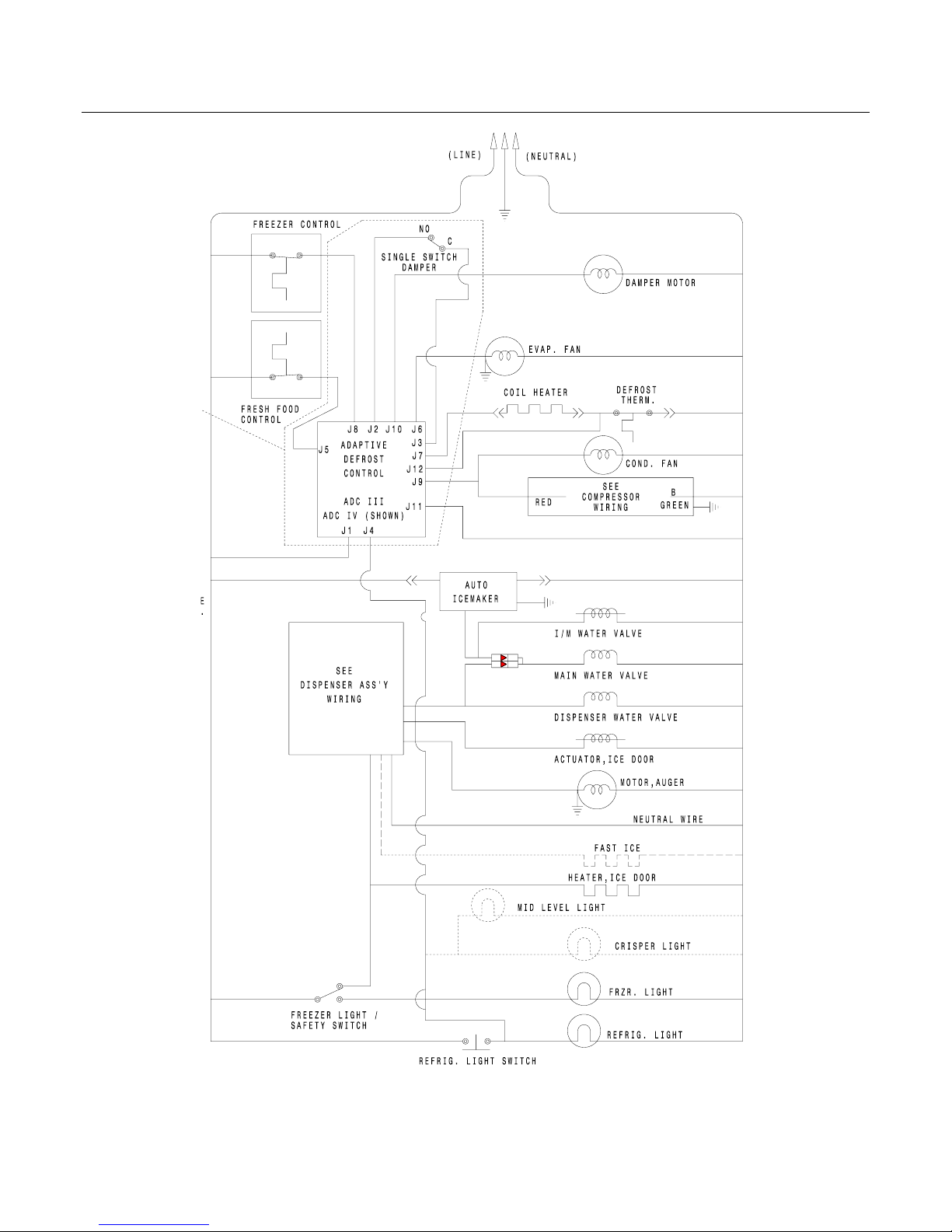

Wiring Diagram 241970401 241970401 241970401 241970401
Owner's Guide 241856000 241856000 241856000 241856000
Market North America North America North America North America
Energy Guide 242028504 242028504 242028504 242028504
Service Data Sheet 240389636 240389636 240389636 240389636
N58L00002.eps N58FAAAAB4.eps N58RAAABB4.eps N58BAAAAA0.eps
N58SJCAFB2.eps N58TAAAAA7.eps N58CAAAAC14.eps N58XDAAAA1.eps
N58YBAAAA5.eps N58I1151-1.eps W241970401.eps S241970401.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995539235
09/04/30
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS3HR35K
Copyright © 2009 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995539235 FRS3HR35K
FREEZER DOOR
04/09 2
FRS3HR35K Publication No: 5995539235
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 241786008 A B C - Gasket-frzr door, black, magnetic
1 241786004 - - - D Gasket-frzr door, white, magnetic
4A 240367301 A B C D Bin-door, frzr-upper
4B 240359001 A B C D Bin-door
11 241837135 A - - - Door-frzr, black, complete assy
11 242026409 - B - - Door-frzr, silver mist, complete assy
11 242026410 - - C - Door-frzr, stainless, complete assy
11 241668103 - - - D Door-frzr, white, complete assy
13A 240581906 A B C - Door Stop, black, frzr
13A 240581902 - - - D Door Stop, white, frzr
18 218762703 A B C - Handle-door, black
18 218762701 - - - D Handle-door, white
21A 240598402 A B C D Screw, 10-32 x 1/2
21C 218781101 A B C D Screw, pan head, 8-18 x 0.625
22A 242000502 A B C - Bearing-hinge, black, lower
22A 242000501 - - - D Bearing-hinge, natural, lower
22C 240328404 A B C - Bearing-hinge, black, upper
22C 240328402 - - - D Bearing-hinge, natural, upper
37A 215870636 A B C - Trim-handle, 2.47", black, w/satin AL band
37A 215870629 - - - D Trim-handle, 2.47", white, w/satin AL band
68 241525101 A B C D Chute-ice
* 240451503 A B C D Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* 240552101 A B C D Harness-wiring, door
* 241806601 A B C D Connector-water, straight
* 5303918256 A B C D Dispenser heater kit
Model Index: A FRS3HR35K (FRS3HR35KB0)
B FRS3HR35K (FRS3HR35KM0)
C FRS3HR35K (FRS3HR35KS0)
D FRS3HR35K (FRS3HR35KW0)
# Functional Parts
3 04/09
* Non-Illustrated Parts
Publication No: 5995539235 FRS3HR35K
REFRIGERATOR DOOR
04/09 4
FRS3HR35K Publication No: 5995539235
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 241786007 A B C - Gasket-refr door, black, magnetic
2 241786003 - - - D Gasket-refr door, white, magnetic
4 240363701 A B C D Bin-door, 2-liter
7 240338303 A B C D Door, dairy, clear
13 240581905 A B C - Door Stop, black, ref
13 240581901 - - - D Door Stop, white, refr
15 241837227 A - - - Door-refr, black, complete assy
15 241837295 - B - - Door-refr, silver mist, complete assy
15 242038807 - - C - Door-refr, stainless, complete assy
15 240451911 - - - D Door-refr, white, complete assy
18 218762703 A B C - Handle-door, black
18 218762701 - - - D Handle-door, white
21A 240598402 A B C D Screw, 10-32 x 1/2
21C 218781101 A B C D Screw, pan head, 8-18 x 0.625
22 240328206 A B C - Bearing-hinge, black, closer
22 240328205 - - - D Bearing-hinge(ref), closer
22B 240328404 A B C - Bearing-hinge, black, upper
22B 240328402 - - - D Bearing-hinge, natural, upper
37A 215870636 A B C - Trim-handle, 2.47", black, w/satin AL band
37A 215870629 - - - D Trim-handle, 2.47", white, w/satin AL band
49 240324501 A B C D Bin-door, gallon
Model Index: A FRS3HR35K (FRS3HR35KB0)
B FRS3HR35K (FRS3HR35KM0)
C FRS3HR35K (FRS3HR35KS0)
D FRS3HR35K (FRS3HR35KW0)
# Functional Parts
5 04/09
* Non-Illustrated Parts
Publication No: 5995539235 FRS3HR35K
CABINET
04/09 6
FRS3HR35K Publication No: 5995539235
CABINET
POS. NO PART NO. DESCRIPTION
10 240435911 A B C D Cover-air duct
10A 241719710 A B C D Cover-evap coil, lower
11 5303208309 A B C D Plug-hole, factory test
14 # 240505801 A B C D Switch, light/lamp
14A 241547901 A B C D Switch-light/lamp, frzr door
21C 218252201 A B C D Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A B C - Plate-door closer
22 240457701 - - - D Plate-door closer
23 240402702 A B C D Screw-#10-32 x 1/4 flat hd
28 240335502 A B C D Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 A B C D Bracket-lower hinge, ref
30A 241603704 A B C D Bracket-lower hinge
37 240337610 A B C - Trim-cabinet corner, black, (2)
37 240337608 - - - D Trim-cabinet corner, white, (2)
38 240327207 A B C D Bracket-upper hinge
40 240327007 A B C - Cover-upper hinge, black
40 240327005 - - - D Cover-upper hinge, white
41 241550801 A B C D Grommet-shelf mtg, 1.40" long
41* 241550701 A B C D Grommet-shelf mtg, .96" long
42 240578902 A B C D Screw, hex head, 1/4-20 x 5/8
43 240335006 A B C D Roller Assy, front, (2)
45 241500303 A B C D Screw, hex washer head, 8-18AB x 0.500
47 218659500 A B C D Channel-shelf mtg, side, (2)
58 218781101 A B C D Screw, pan head, 8-18 x 0.625
66B 240374301 A B C D Diffuser-air
66B* 240518802 A B C D Pin-push, push-in, plastic
72 240324405 A B C - Grille/Kickplate, black
72 240324401 - - - D Grille/Kickplate, white
81 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C D Roller, compressor base, rear, (2)
83 5304455655 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733901 A B C D Cover-access, w/label
90 218249807 A B C D Seal-coil cover
91 240380101 A B C D Duct-ice maker
92 241710601 A B C D Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B C D Support, crisper cover, front, (4)
100* 240350802 A B C D Support, crisper cover, rear, (4)
150 240 368 70 1 A B C D Guide-control bulb
* 240396801 A B C D Clamp, tube/wiring, nylon, black/natural
* 240479601 A B C D Plug, button, cab liner holes
* 5303321321 A B C - Paint, touch-up, black
* 5303321319 - - - D Paint, touch-up, white
Model Index: A FRS3HR35K (FRS3HR35KB0)
B FRS3HR35K (FRS3HR35KM0)
C FRS3HR35K (FRS3HR35KS0)
D FRS3HR35K (FRS3HR35KW0)
# Functional Parts
7 04/09
* Non-Illustrated Parts
Publication No: 5995539235 FRS3HR35K

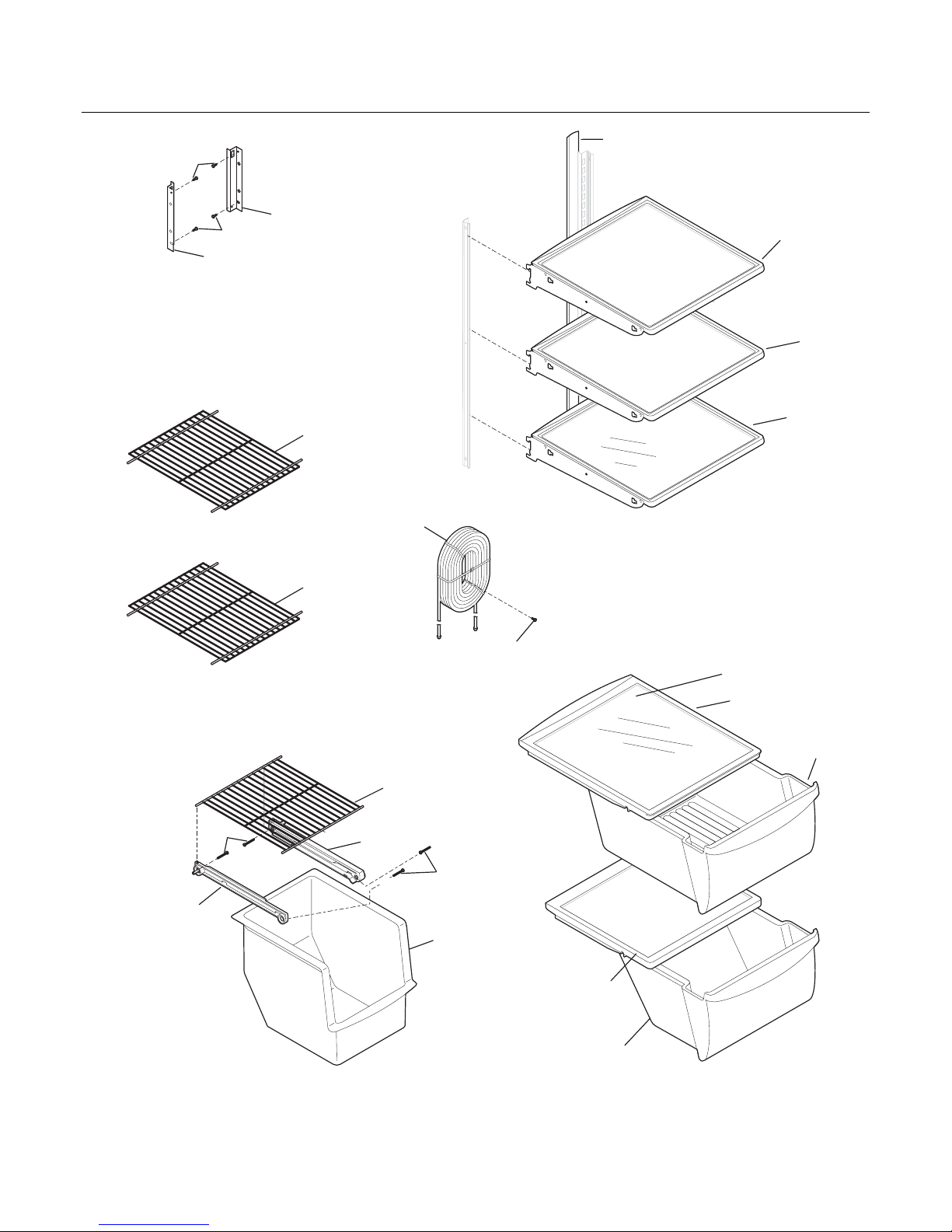

SHELVES
81
126
81
126
140
24
24
101
11B
24
97
11A
21
47
25
26
11
51
52
04/09 8
101
49
25A
27
N58SJCAFB2
FRS3HR35K Publication No: 5995539235
SHELVES
POS. NO PART NO. DESCRIPTION
11 241657601 A B C D Shelf, flip up, wire
11A 241657501 A B C D Shelf, fixed, freezer
11B 241657503 A B C D Shelf, fixed upper, freezer
21 5304455658 A B C D Screw, hx wshr hd sems, 8-15A x 0.625
24 240355211 A B C D Shelf-"Spill-Safe", fixed
25 240354502 A B C D Cover-crisper pan, upper
25A 240354602 A B C D Cover-crisper pan, lower
26 240354706 A B C D Pan-crisper, upper
27 240354806 A B C D Pan-crisper, lower
47 240350631 A B C D Insert-pan cover, glass
49 240564301 A B C D Basket-sliding
51 240343002 A B C D Hanger-basket, RH
52 240343102 A B C D Hanger-basket, LH
81 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
97 240545308 A B C D Water Tank
101 218493101 A B C D Screw, hex washer head, 8-18AB x 1-3/4
126 241 674 40 1 A B C D Channel, auger mtg, LH
126 241 674 40 2 A B C D Channel, auger mtg, RH
140 240 430 50 1 A B C D Channel, wtr tube cover
* 242028504 A B C D Energy Guide
Model Index: A FRS3HR35K (FRS3HR35KB0)
B FRS3HR35K (FRS3HR35KM0)
C FRS3HR35K (FRS3HR35KS0)
D FRS3HR35K (FRS3HR35KW0)
# Functional Parts
9 04/09
* Non-Illustrated Parts
Publication No: 5995539235 FRS3HR35K

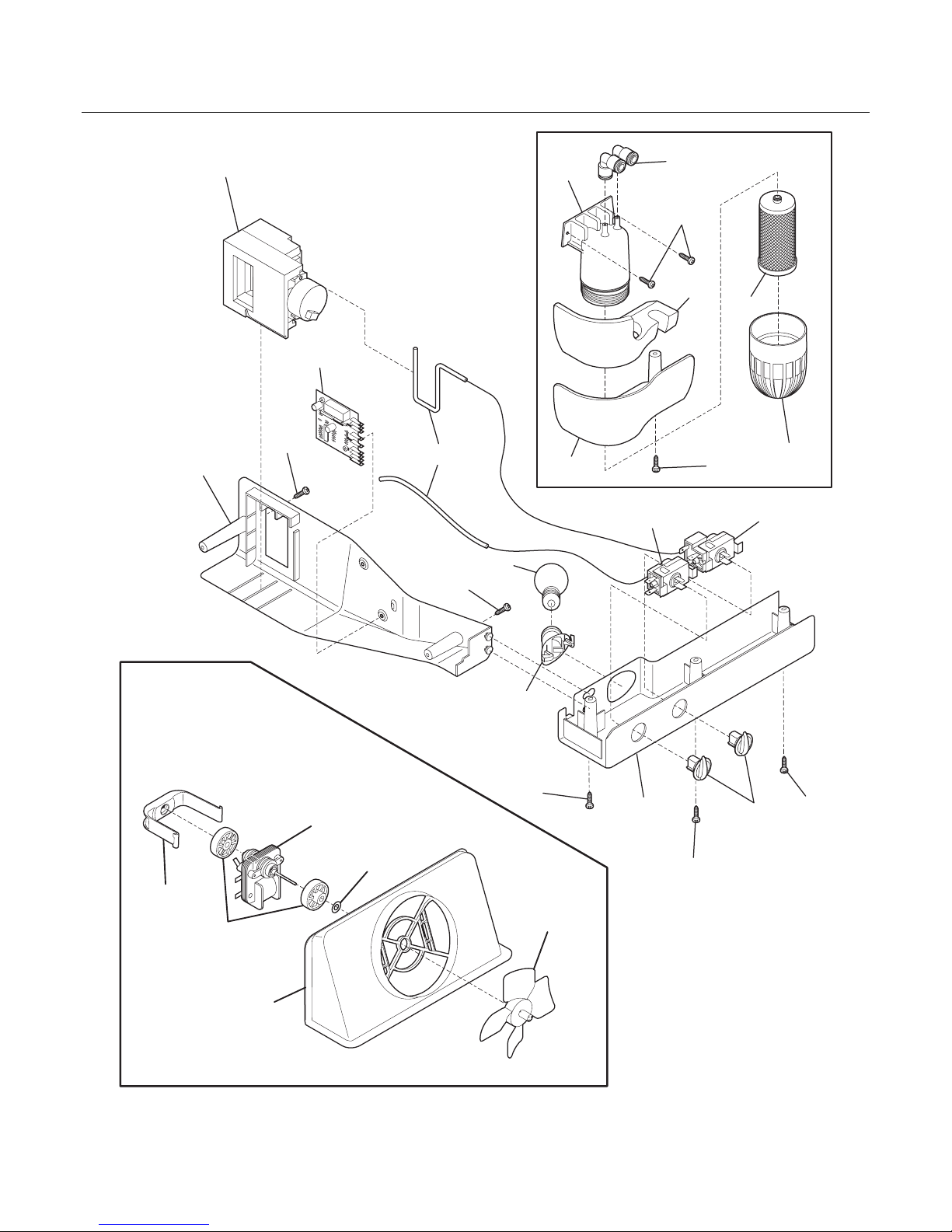

CONTROLS
53
115
101
23
22
81
15
139
151
21A
140
45
150
81
137
138
21
16
81
13
17
8
81
18
81
14
9
5
149
N58TAAAAA7
04/09 10
FRS3HR35K Publication No: 5995539235
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B C D Fan Blade, red, evaporator fan
8 215474201 A B C D Washer, "slinger", nylon, evap fan shaft
9 241563601 A B C D Bushing-motor mtg
13 241854601 A B C D Motor-evap fan
14 241517701 A B C D Clip, evap fan motor
15 241555401 A B C D Light Bulb
16 # 241513901 A B C D Socket-light
17 240374006 A B C D Box-control, front
17* 241537804 A B C D Harness-wiring, control box
18 240360801 A B C D Knob, temp control
21 # 241586501 A B C D Control-temperature
21A# 5304421067 A B C D Control-temperature, frzr section
22 218660704 A B C D Tube, insulator, plastic
23 # 241508001 A B C D Control-defrost, adaptive timer, PC board
23* 5304455649 A B C D Screw, pan hd, 6-20 x 0.438
45 241500303 A B C D Screw, hex washer head, 8-18AB x 0.500
53 240369501 A B C D Box-control
81 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 A B C D Screw, #8AB x 1 3/4"
115 241600902 A B C D Damper Assy, w/seal
137# 240389102 A B C D Filter, water, carbon canister, rear, with o'rings
137* 218710300 A B C D Wrench-filter
138 240 434 40 1 A B C D Cup-water filter
138* 218904301 A B C D O-ring, wtr filter cup
139 240 434 30 1 A B C D Housing-water filtr
140 240 545 20 1 A B C D Elbow-water tube
149 241 563 40 1 A B C D Shroud-fan orfice
149* 241528305 A B C D Seal, shroud
150 240 394 10 2 A B C D Insulation-water filter cover
151 240 376 00 2 A B C D Cover-water filter
Model Index: A FRS3HR35K (FRS3HR35KB0)
B FRS3HR35K (FRS3HR35KM0)
C FRS3HR35K (FRS3HR35KS0)
D FRS3HR35K (FRS3HR35KW0)
# Functional Parts
11 04/09
* Non-Illustrated Parts
Publication No: 5995539235 FRS3HR35K

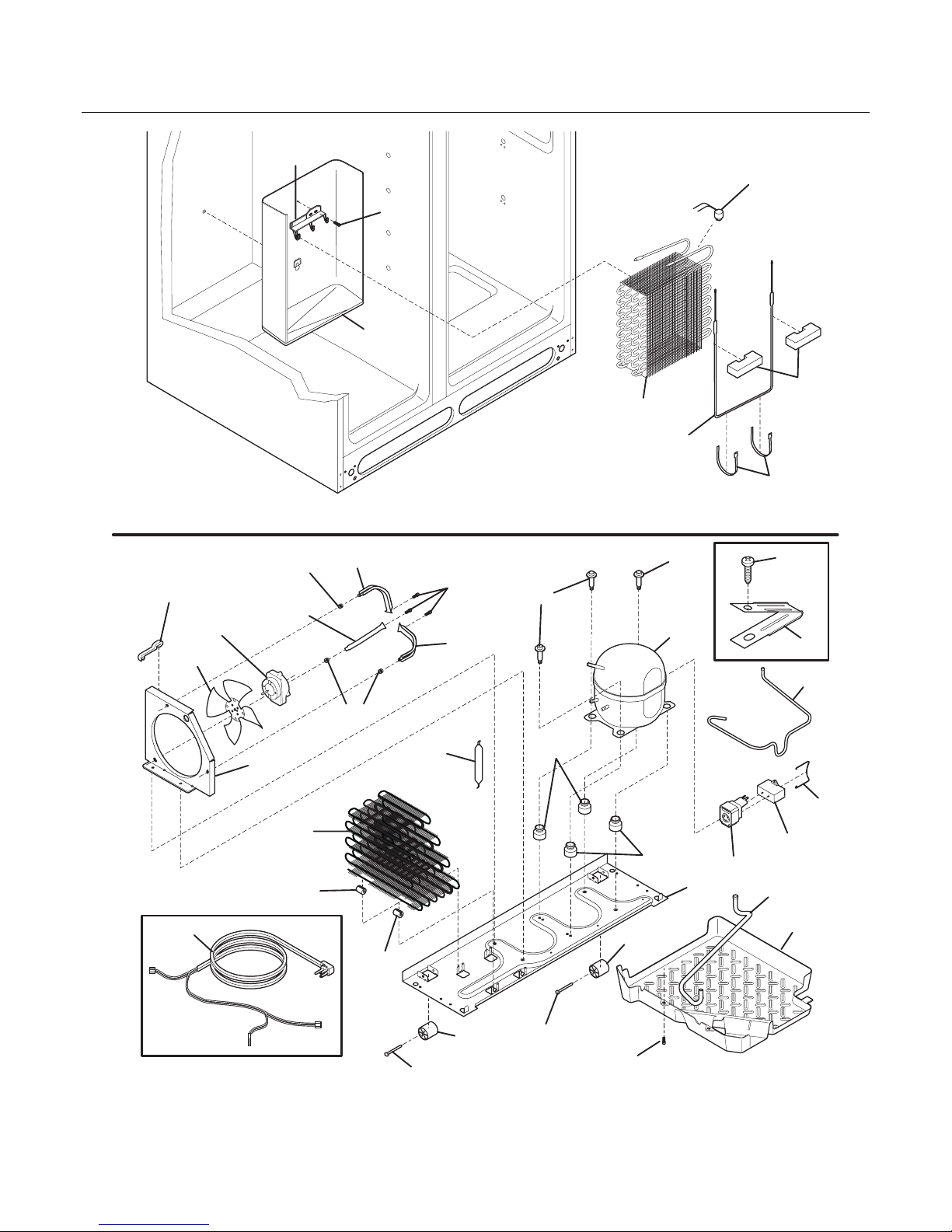

SYSTEM
70
45
62
21
3
15
14
16
86
61
6
60
59
59B
59A
1
34
59A
59B
34
25
41
58
25
59A
29
44
85
4
23
32
55
23
30
22
84
26
82
04/09 12
83
82
83
45
N58CAAAAC14
FRS3HR35K Publication No: 5995539235
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333602 A B C D Condenser
3 218679606 A B C D Block-evap coil, styrofoam, (2)
4 # 218944001 A B C D Drier-filter, R134a System
6 # 241586801 A B C D Harness-wiring, machine compt
6* # 241537804 A B C D Harness-wiring, control box
14 # 240316107 A B C D Heater-defrost
15 # 5303918286 A B C D Evaporator Kit
16 5308000110 A B C D Strap-evap/heater, aluminum, (2)
21 5303918214 A B C D Thermostat-defrost, kit
22 240330010 A B C D Base-compressor
22* 218252201 A B C D Screw, #8 truss hd, 10-32CA x 0.500
23 241659701 A B C D Grommet, compressor
25 240491503 A B C D Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697601 A B C D Pan-defrost
29 # 5303918359 A B C D Compressor, w/o electricals
30 # 241707712 A B C D Starter, PTC
32 241650901 A B C D Clamp, elec cont mtg, compressor
34 240405201 A B C D Grommet, rubber, black, cond tube/wire
41 240555002 A B C D Screw-#8-32 X 3/8
44 215174700 A B C D Clamp-service cord, strain relief, galv steel
45 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 A B C D Capacitor, run, 220 VAC, 15 microfarad
58 240433203 A B C D Screw, hex washer head, 8-18 x 3/8
59 240315502 A B C D Shroud-cond fan
59* 240346701 A B C D Tape-foam seal, shroud
59* 240359403 A B C D Screw-fan shroud, (2)
59A 240346501 A B C D Bracket-support, cond mtr, (3)
59B 240346601 A B C D Grommet-bracket, (3)
60 241584301 A B C D Motor-condenser fan
61 241639501 A B C D Blade-condenser fan
62 240429401 A B C D Trough-drain
70 218990801 A B C D Bracket-evap/cvr mtg
82 5304418225 A B C D Roller, compressor base, rear, (2)
83 5304455655 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 241957901 A B C D Tube-drain, lower
85 241844801 A B C D Tube-connector, suction
86 240409302 A B C D Spacer-cond tube, black
* 5303918222 A B C D Hot Tube Repair Kit, service
* # 5303918328 A B C D Heat Exchanger Kit, suction line, service
Model Index: A FRS3HR35K (FRS3HR35KB0)
B FRS3HR35K (FRS3HR35KM0)
C FRS3HR35K (FRS3HR35KS0)
D FRS3HR35K (FRS3HR35KW0)
# Functional Parts
13 04/09
* Non-Illustrated Parts
Publication No: 5995539235 FRS3HR35K

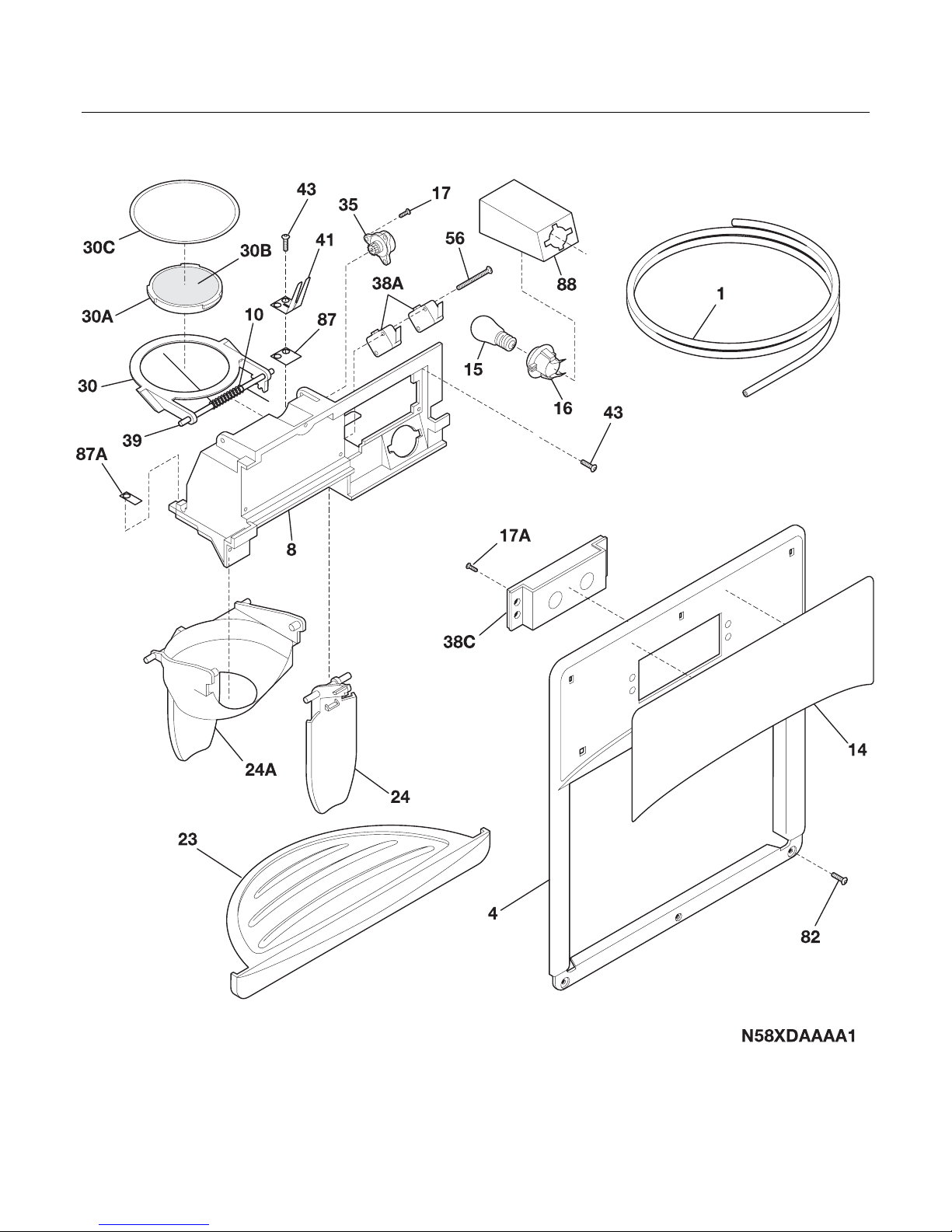

ICE & WATER DISPENSER
04/09 14
FRS3HR35K Publication No: 5995539235
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 A B C D Tube, water, door
1* 218976419 A B C D Tube-water inlet, valve to door
1* 218976420 A B C D Tube-water inlet, inlet valve, to filter
1* 218976915 A B C D Tube-water inlet, inlet valve, to filter
1* 240561701 A B C D Seal-water inlet, inlet valve, to ice maker
4 241679003 A B C - Cover-module, black
4 241679001 - - - D Cover-module, white
8 241680507 A B C - Module-dispenser
8 241680505 - - - D Module-dispenser
10 241688901 A B C D Spring-torsion
14 240570206 A B C - Label-module cover, black
14 240570204 - - - D Label-module cover, white
15 241689401 A B C D Light Bulb
16 240548901 A B C D Socket-light
17 241679801 A B C D Screw
17A 241679901 A B C D Screw, switch mtg.
23 241649003 A B C - Drip Tray, black
23 241649001 - - - D Drip Tray, white
24 241682003 A B C - Actuator-water, black
24 241682001 - - - D Actuator-water, white
24A 241681903 A B C - Actuator-ice, black
24A 241681901 - - - D Actuator-ice, white
30 241688401 A B C D Door Assy-ice chute
30A 241688501 A B C D Door center
30B 241688601 A B C D Insulation-door
30C 241688701 A B C D Door seal
35 241689301 A B C D Damper-rotary
38A# 241689101 A B C D Switch-micro, single pole, double throw
38A* 241679201 A B C D Harness-wiring
38C# 241679101 A B C D Switch
38C* 241686001 A B C D Harness-wiring
39 241688801 A B C D Pin-hinge
41 241689001 A B C D Spring-actuator
43 215296301 A B C D Screw, plask h/l, #6 x 3/8
56 241689201 A B C D Screw-micro switch, pan head
82 240363402 A B C D Screw-#8-18 X 1/2, #6 hd plask
87 241688302 A B C D Bearing Plate
87A 241688301 A B C D Bearing Plate
88 241686101 A B C D Shield-light
* 218515403 A B C D Clip-grille
* 5303918256 A B C D Dispenser heater kit
Model Index: A FRS3HR35K (FRS3HR35KB0)
B FRS3HR35K (FRS3HR35KM0)
C FRS3HR35K (FRS3HR35KS0)
D FRS3HR35K (FRS3HR35KW0)
# Functional Parts
15 04/09
* Non-Illustrated Parts
Publication No: 5995539235 FRS3HR35K

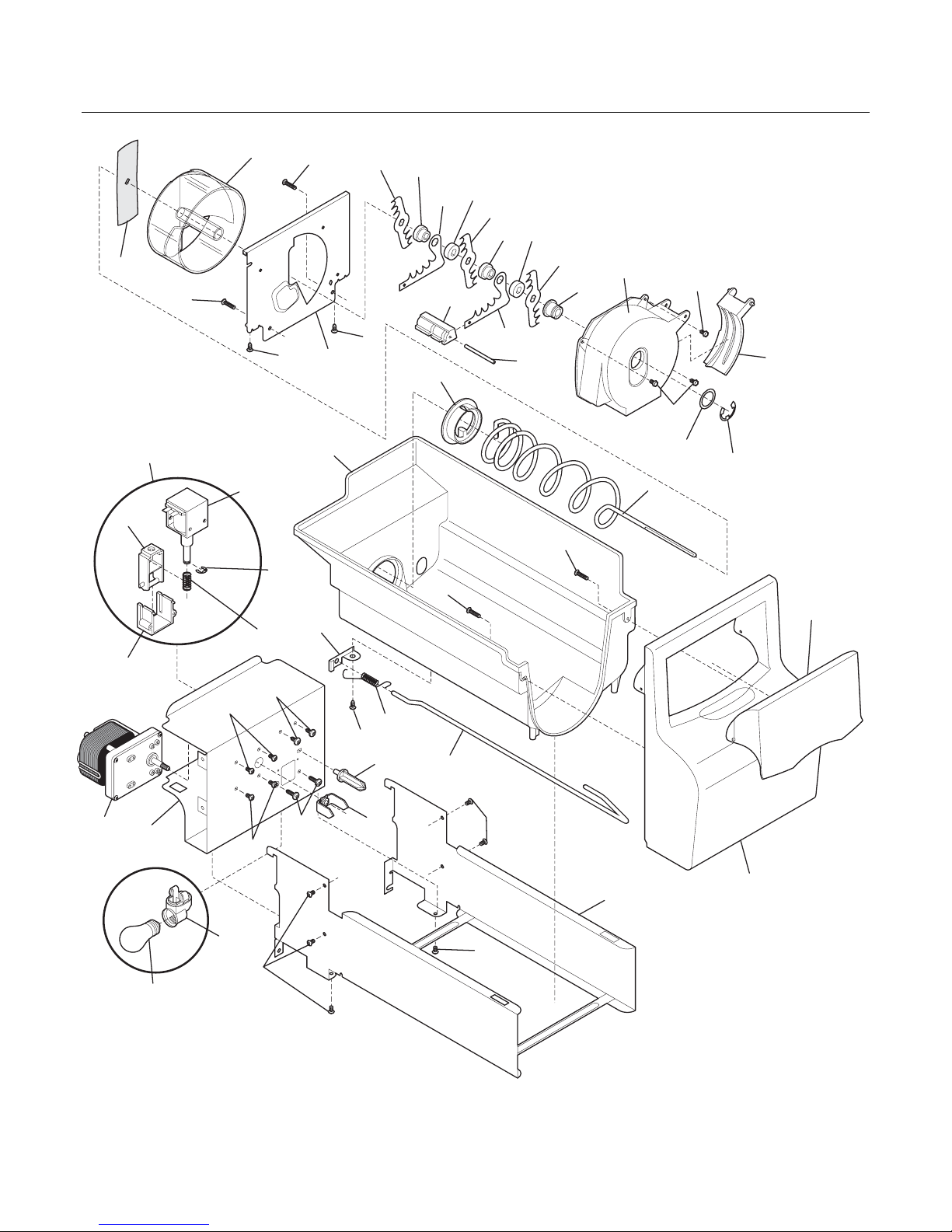

ICE CONTAINER
17
45C
45
26
6
45D
45A
39
45B
48
26
23
4
37A
39
34
35A
3
26
52
33
37B
34
35B
53
33
37C
26
54
41
25
13
25
55
56
2
57
18
50
20
15
44
16
44
43
43
26
39
10
47
51
46
43
43
49
7
N58YBAAAA5
04/09 16
FRS3HR35K Publication No: 5995539235
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 241716101 A B C D Auger-ice
3 241685201 A B C D Cam-drive
4 241734001 A B C D Container-ice, bucket only
6 241685101 A B C D Drum-ice disp
7 241734201 A B C D Front-ice container
10 241726501 A B C D Bar-drive
13 241685301 A B C D Gate
15 241555401 A B C D Light Bulb
16 241559801 A B C D Socket-light
17 241684501 A B C D Drive Blade
18 241676201 A B C D Motor-auger
18*# 241578401 A B C D Wiring Harness, auger motor
20 241734802 A B C D Cover-motor
23 241684001 A B C D Plate-front
25 241690701 A B C D Screw, hex washer head, 8-32T x 0.375
26 215503203 A B C D Screw, cr pan hd, 10-16 x 0.500
33 241684801 A B C D Spacer
34 241689801 A B C D Spacer
35A 241684301 A B C D Fixed Blade, round
35B 241684201 A B C D Fixed Blade, square
37A 241684101 A B C D Blade, crusher #1
37B 241684102 A B C D Blade, crusher #2
37C 241684103 A B C D Blade, crusher #3
39 241690501 A B C D Screw
41 241685601 A B C D Housing-crusher
43 218359202 A B C D Screw, pan head, 8-32 x 0.250
44 241842101 A B C D Screw, 8-32 x 1/4
45 # 241675701 A B C D Solenoid Assy, 115V
45A 241675901 A B C D Spring-solenoid
45B 241676001 A B C D E-Ring-solenoid
45C 241676101 A B C D Actuator-solenoid
45D# 241675801 A B C D Solenoid, 115V
46 241716002 A B C D Control Rod
47 241731801 A B C D Spring-control rod
48 241684602 A B C D Bracket-control rod
49 241734401 A B C D Rail Assy
50 241675601 A B C D Guide-solenoid
51 241676301 A B C D Rotation Stop
52 241684901 A B C D Spacer-fixed blades
53 241690402 A B C D Pin-spiral, fixed blades
54 241685001 A B C D Nut-auger
55 241690306 A B C D Washer
56 241690201 A B C D E-ring
57 241734101 A B C D Door-access
* 240507202 A B C D Deflector-ice container
* 241860803 A B C D Ice Container Assy, w/moving parts
Model Index: A FRS3HR35K (FRS3HR35KB0)
B FRS3HR35K (FRS3HR35KM0)
C FRS3HR35K (FRS3HR35KS0)
D FRS3HR35K (FRS3HR35KW0)
# Functional Parts
17 04/09
* Non-Illustrated Parts
Publication No: 5995539235 FRS3HR35K

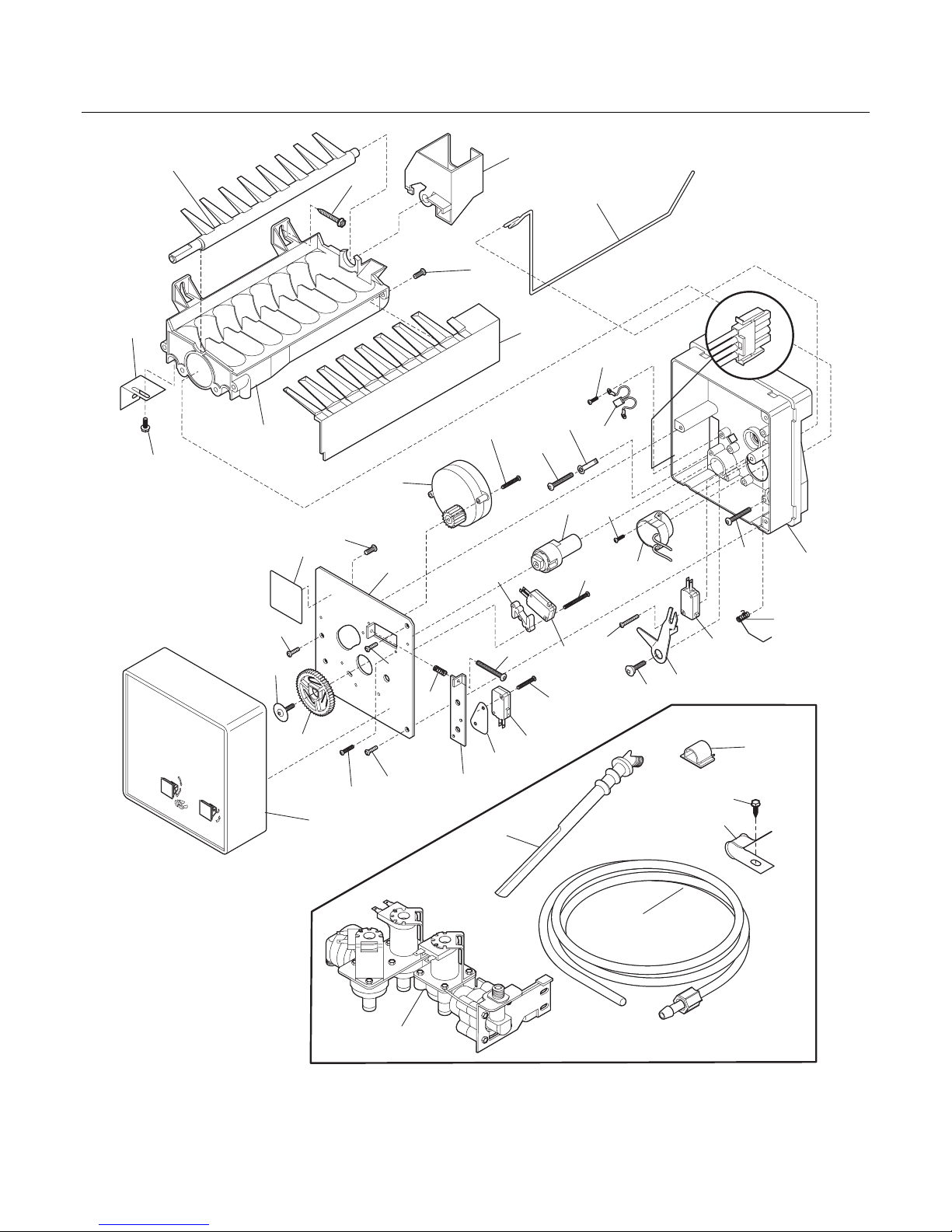

ICE MAKER
61
62
18
17
19
60
22
20
21
12
26
29
23
10
11
7
9
26
6
3
5
8
27
13
23
16
34
15
29
14
25
35
34
33
30
4
ON
OFF
MOVE ARM UP UNTIL
MOVE ARM UP UNTIL
LOCKED INTO PLACE
LOCKED INTO
PLACE
36
28
34
32
15
31
51
15
24
45
64
2
42
1
55
INSTALLATION PARTS
04/09 18
N58I1151-1
FRS3HR35K Publication No: 5995539235
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 A B C D Tube, water, door
1* 218976419 A B C D Tube-water inlet, valve to door
1* 218976420 A B C D Tube-water inlet, inlet valve, to filter
1* 218976915 A B C D Tube-water inlet, inlet valve, to filter
1* 240561701 A B C D Seal-water inlet, inlet valve, to ice maker
2 5304456650 A B C D Spring-shutoff arm, ice maker
3 5304456657 A B C D Nameplate
4 5304456658 A B C D Gear
5 5304456659 A B C D Plate-mounting
6 5304456691 A B C D Screw, M 3x20 #3, valve plate
7 # 5304445222 A B C D Motor-ice maker Svo
7* 5304445223 A B C D Spring Beam
8 5304456661 A B C D Spacer-hold switch
9 5304456662 A B C D Cam
10 5304456689 A B C D Washer, nylon
11 # 5304456663 A B C D Thermal Cutoff, ice maker, complete assy
12 5304456664 A B C D Harness-wiring
13 5304456665 A B C D Thermostat, ice maker
14 5304455676 A B C D Screw, plask, 4x14x3/4
15 # 5304456667 A B C D Switch-micro, (3)
16 5304456668 A B C D Support
17 5304456669 A B C D Mold-ice maker, w/therm cut off
18 # 5304456670 A B C D Ejector-ice
18* 241578401 A B C D Wiring Harness, auger motor
19 5304456671 A B C D Bearing & Inlet, fill cup
20 5304455677 A B C D Screw, 8-32 x 3/8
21 5304456672 A B C D Ice Stripper
22 5304456673 A B C D Shut-off Arm
23 5304456674 A B C D Screw, M 4x25 #2, mold-to-support, (2)
24 5304456675 A B C D Lever Arm
25 5304456676 A B C D Screw, M 4x12.8 #2, lever arm/sprt
26 5304455680 A B C D Screw, plask, 4-14 x 3/8
27 5304456677 A B C D Screw, M 3x25 #3, hold switch mtg, (2)
28 5304456660 A B C D Screw, M 4x6 #2
29 5304456678 A B C D Screw, M 3x12 #3, (2)
30 5304456679 A B C D Screw-timing adj, M 4x25 #3
31 5304456680 A B C D Insulator
32 5304456681 A B C D Plate-valve switch
33 5304456682 A B C D Spring, timing adjust
34 5304456683 A B C D Screw, M 4x12 #2, (3)
35 5304456684 A B C D Screw
36 5304456685 A B C D Cover-ice maker
36* 5304456690 A B C D Label, ID plate
42 218515403 A B C D Clip-grille
45 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
51 241796401 A B C D Tube-water fill, extension
55 # 241734301 A B C D Valve-water, triple solenoid
Model Index: A FRS3HR35K (FRS3HR35KB0)
B FRS3HR35K (FRS3HR35KM0)
C FRS3HR35K (FRS3HR35KS0)
D FRS3HR35K (FRS3HR35KW0)
# Functional Parts
19 04/09
* Non-Illustrated Parts
Publication No: 5995539235 FRS3HR35K
ICE MAKER
61
62
18
17
19
60
22
20
21
12
26
29
23
10
11
7
9
26
6
3
5
8
27
13
23
16
34
15
29
14
25
35
34
33
30
4
ON
OFF
MOVE ARM UP UNTIL
MOVE ARM UP UNTIL
LOCKED INTO PLACE
LOCKED INTO
PLACE
36
28
34
32
15
31
51
15
24
45
64
2
42
1
55
INSTALLATION PARTS
04/09 20
N58I1151-1
FRS3HR35K Publication No: 5995539235
ICE MAKER
POS. NO PART NO. DESCRIPTION
55* 218709101 A B C D Screw, hex head, 10-32 x 0.500
55* 240363602 A B C D Screw-shoulder
55* 240542901 A B C D Cap-water valve
60 5303207328 A B C D Screw, hex washer head, 8-15A x 1.000, (2)
61 5304456686 A B C D Bracket-leveling, ice maker
62 5304456687 A B C D Screw-IM brkt mtg, pan hd phillips, 8-32T x 0.375
64 5303001549 A B C D Clamp, 0.31 ID, steel, copper wtr line
* 241642501 A B C D Ice Maker, radius cube, 115 V, Svce
* 241806601 A B C D Connector-water, straight
* 5304456666 A B C D Screw, M 3x20 #2, (6)
* 5304456688 A B C D Terminal
* 5304456692 A B C D Washer
* 5304456693 A B C D Nut, M 3.5
* 5304456737 A B C D Washer
* 241642601 A B C D Harness-wiring Svo
Model Index: A FRS3HR35K (FRS3HR35KB0)
B FRS3HR35K (FRS3HR35KM0)
C FRS3HR35K (FRS3HR35KS0)
D FRS3HR35K (FRS3HR35KW0)
# Functional Parts
21 04/09
* Non-Illustrated Parts
Publication No: 5995539235 FRS3HR35K
WIRING SCHEMATIC
04/09 22
FRS3HR35K Publication No: 5995539235
WIRING DIAGRAM
# Functional Parts
23 04/09
* Non-Illustrated Parts
Loading...
