Frigidaire FRS18PYW2 User Manual

All about the

Installation

of your

Split Type Room Air Conditioner

Model(indoor/outdoor):

FRS09PYW1/FRS09PYC1
FRS12PYW1/FRS12PYC1
FRS184YW2/FRS184YC2
FRS18PYW2/FRS18PYC2
FRS224YW2/FRS224YC2
FRS22PYW2/FRS22PYC2

ac.eriadigirf.www moc.eriadigirf.www

7651-249-668-1adanaC7651-249-668-1ASU

Safety precautions

This appliance must be installed by a qualified licensed HVAC
technician in accordance with all applicable codes. All electrical
connections should be performed by a licensed electrician.

DANGER! Avoid Serious Injury
or Death

1. Do not attempt to install the split air
conditioner by yourself.

2. This air conditioner contains no

user-serviceable parts. Always call

an authorized Electrolux servicer for
repairs.

3. When moving the air conditioner,

always call an authorized Electrolux

servicer for disconnection and
re-installation.

4. Do not insert or place fingers or
objects into the air discharge area in
the front of the indoor unit.

5. Do not insert or place fingers or
objects into the air discharge area
in the outdoor unit.

6. Do not start or stop the air conditioner
by unplugging the power cord or
turning off the power at the electrical
box.

7. Do not cut or damage the power cord.

8. If the power cord is damaged it should
only be replaced by an authorized
Electrolux servicer.

9. In the event of a malfunction (sparks,
burning smell, etc.) immediately stop

the operation, disconnect the power

cord, and call an authorized Electrolux
servicer.

10.Do not operate the air conditioners
with wet hands

11.Do not pull on the power cord.

12.Do not drink any water that is drained
from the air conditioners.

CAUTION! Avoid Injury or
damage to the unit or other
property

1. Provide occasional ventilation
during use. Do not direct airflow at
fireplaces or other heat related
sources as this could cause flare ups
or make units run excessively.

2. Do not climb on or place objects on
the outdoor unit.

3. Do not hang objects off the indoor

unit.

4. Do not place containers containing
water on the indoor and/or outdoor

units.

5. Turn off the air conditioner at the
power source when it will not be

used for an extended period of time.

6. Periodically check the condition of
the outdoor unit’s installation base
for any damage.

7. Do not apply heavy pressure to the
radiator fins of the indoor and/or
outdoor units.

8. Operate the indoor unit with air
filters in place.

9. Do not block or cover the intake

grille, discharge area and outlet

ports.

10.Ensure that any electrical/electronic
equipment is one yard away from
the indoor unit and outdoor unit.

11.Do not use or store flammable

gases near the indoor and/or

outdoor units.

Safety precautions

04

To prevent injury to the user or other people and property damage, the
following instructions must be followed.

Incorrect operation due to ignoring of instructions may cause harm or
damage. The seriousness is classified by the following indications.

1. Connect with the power properly.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.

2. Always ensure effective grounding.
No grounding may cause electric
shock.

3. Disconnect the power if strange
sounds, smell, or smoke comes
from it. It may cause fire and
electric shock.

4. Do not operate or stop the unit by
switching on or off the power. It
may cause electric shock or fire due
to heat generation.

5. Do not operate with wet hands or in
damp environment. It may cause
electric shock.

6. Do not allow water to run into
electric parts. It may cause failure of
machine, electric shock or fire.

7. Do not use the power cord near
flammable gas or combustibles,
such as gasoline, benzene, thinner,
etc. It may cause an explosion or fire.

8. Do not use the power cord close to
heating appliances. It may cause
fire and electric shock.

9.Do not damage or use an
unspecified power cord. It may
cause electric shock or fire.

10.Do not place heavy object on the
power cord and ensure that the
cord will not be compressed. There
is danger of fire or electric shock.

05

Safety precautions

11.Do not open the unit during
operation. It may cause electric
shock or injury.

12.Do not drink water drained

from air conditioner. It contains
contaminants and could make

you sick.

13.Do not disassemble or modify unit.
It may cause failure of appliance
and electric shock.

14.When the air filter is to be
removed, do not touch the metal
parts of the unit. It may cause an
injury.

15.When the unit is to be cleaned,
switch off, and turn off the circuit
breaker. Do not clean unit when
power is on as it may cause fire,
electric shock or injury.

16.Avoid direct exposure of occupants
to air flow.

17.Turn off the main power switch when
not using the unit for a long time.

18.The air conditioner may be dusted

with an oil free cloth, or washed
with a cloth dampened in a solution
of warm water and mild dishwashing
detergent. Rinse thoroughly and wipe
dry. Wring excess water from cloth
before wiping around controls.

19.Ensure that the installation bracket of
the outdoor unit will not damage
due to prolonged exposure. If
bracket damages, there will be
concern of damage due to falling
of unit.

20.Always insert the filters securely.
Clean filter once every two weeks.
Operation without filters may
cause failure.

21.Always install circuit breaker and a
dedicated power circuit. No
installation may cause fire and
electric shock.

22.Do not place obstacles around air­inlets or inside of air-outlet. It may
cause failure of appliance or
accident.

Safety precautions

06

Choosing the installation site

Installation Warnings

1. Carefully read the installation manual before beginning.

2. Follow each step as shown.

3. Observe all local, state and national electric codes. This appliance must be
installed by a qualified licensed HVAC technician in accordance with all
applicable codes. All electrical connections should be performed by a licensed
electrician.

4. Pay attention to danger and safety notices

Precautions for Installation

Installation at the following sites may cause problems. If you must inevitably install
the unit at one of these sites, please consult your local distributor beforehand:

1. Sites with machine oil.

2. Sites with a high concentration of salinity, such as coastal areas.

3. Sites with sulfuric gas, such as hot water springs.

4. Sites with high frequency equipment, such as wireless equipment, welding
machines and medical installations.

5. Sites with flammable gases or volatile material.

6. Sites with special environmental conditions.

7. Laundry rooms.

07

Choosing the installation site

06

Indoor Unit

1. The unit must be installed at a site
that does not obstruct the flow of
air.

2. The site must support the weight of
the indoor unit.

3. The site must be easily accessible
for maintenance and replacement
of the air filter.

4. The site must allow for the
necessary space around the indoor
unit, as shown in the sideward
figure.

5. There should be at least 3 feet (1
meter) between the unit and radio
or television devices. It is ideal
that the unit be installed at the
center.

6. It must be far from fire, smoke or
flammable gases.

7.

We recommend the indoor unit to be

inside wall, always leaving a space of

at least 6" between the top of the

indoor unit and the ceiling.

8. The site must allow for the easy
removal of the connector pipe and
drain hose.

9. The unit must be installed at a site
protected from direct sunlight.

More
than 6"

More
than 6"

More
than 6"

installed as high up as possible on the

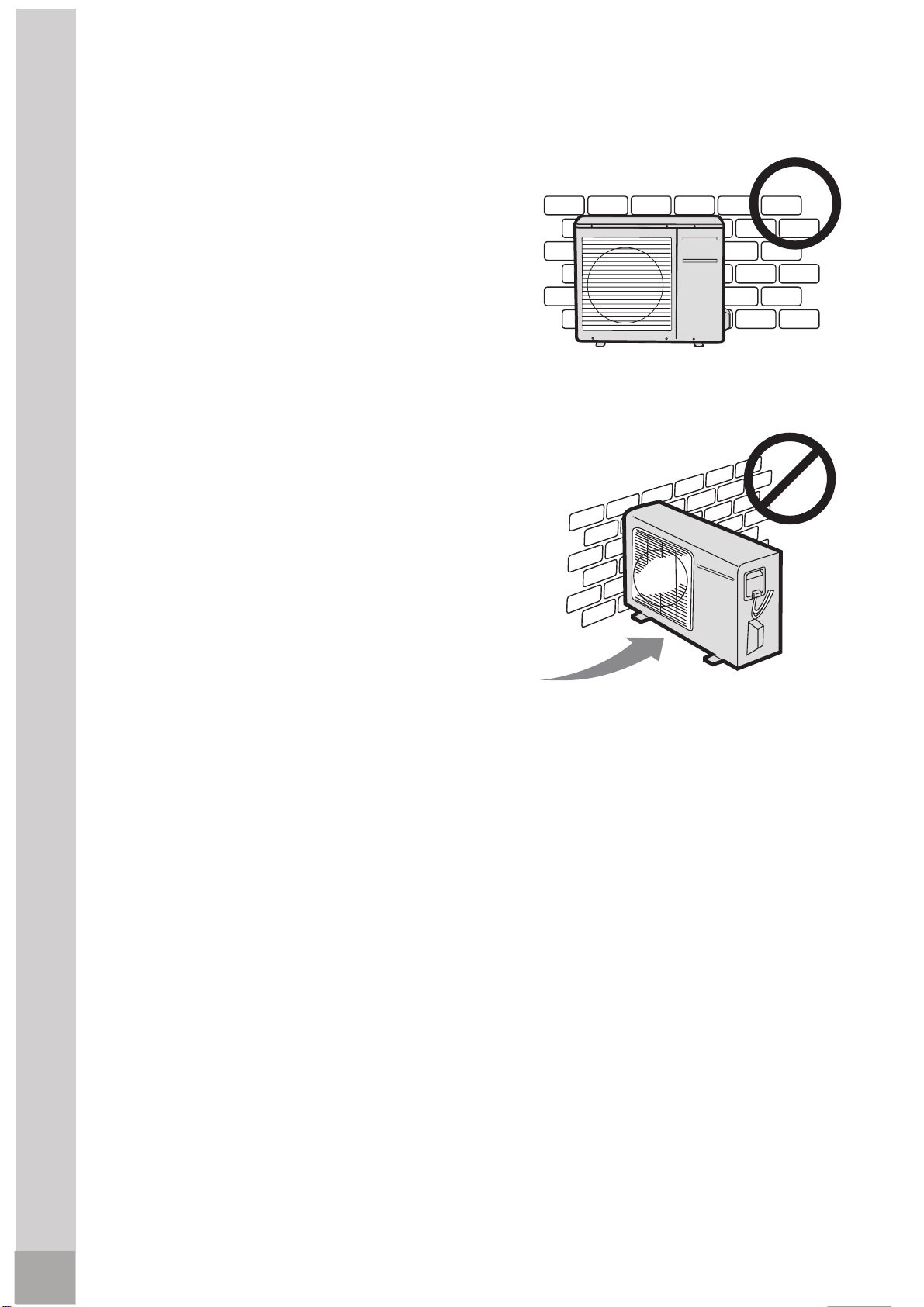

Outdoor Unit

1. The outdoor unit must be
installed at a convenient site
that is not exposed to strong
winds. The site should be dry
and well ventilated.

2. The site must support the weight
of the outdoor unit and allow
for vertical installation.

3. There must not be the possibility
of increased noise and vibration
at the site.

4. The unit must be installed at a
site where the noise produced
by its operation and air
discharge does not disturb the
neighbors or animals.

5. The site cannot have any
leakage of flammable gases.

More
than 1'

More
than 1.65'

More
than 1'

06

More
than 6.6'

6. The site must provide enough
space around the unit, as shown
in the figure.

7. Children must not be able to
access the installation site.

More
than 1.65'

Choosing the installation site

08

Indoor unit

More than 6"

1

More than 6"

3

6

More than 6"

4

8

7

Air filter

More than 1'

6

A

B

More than 6.6'

5

More than 1.65'

More
than 1.65'

C

Outdoor

unit

2

Attention

1. This illustration is for explanation purposes only.

2. Copper tubes must be insulated independently

Parts list

10

Indoor unit installation

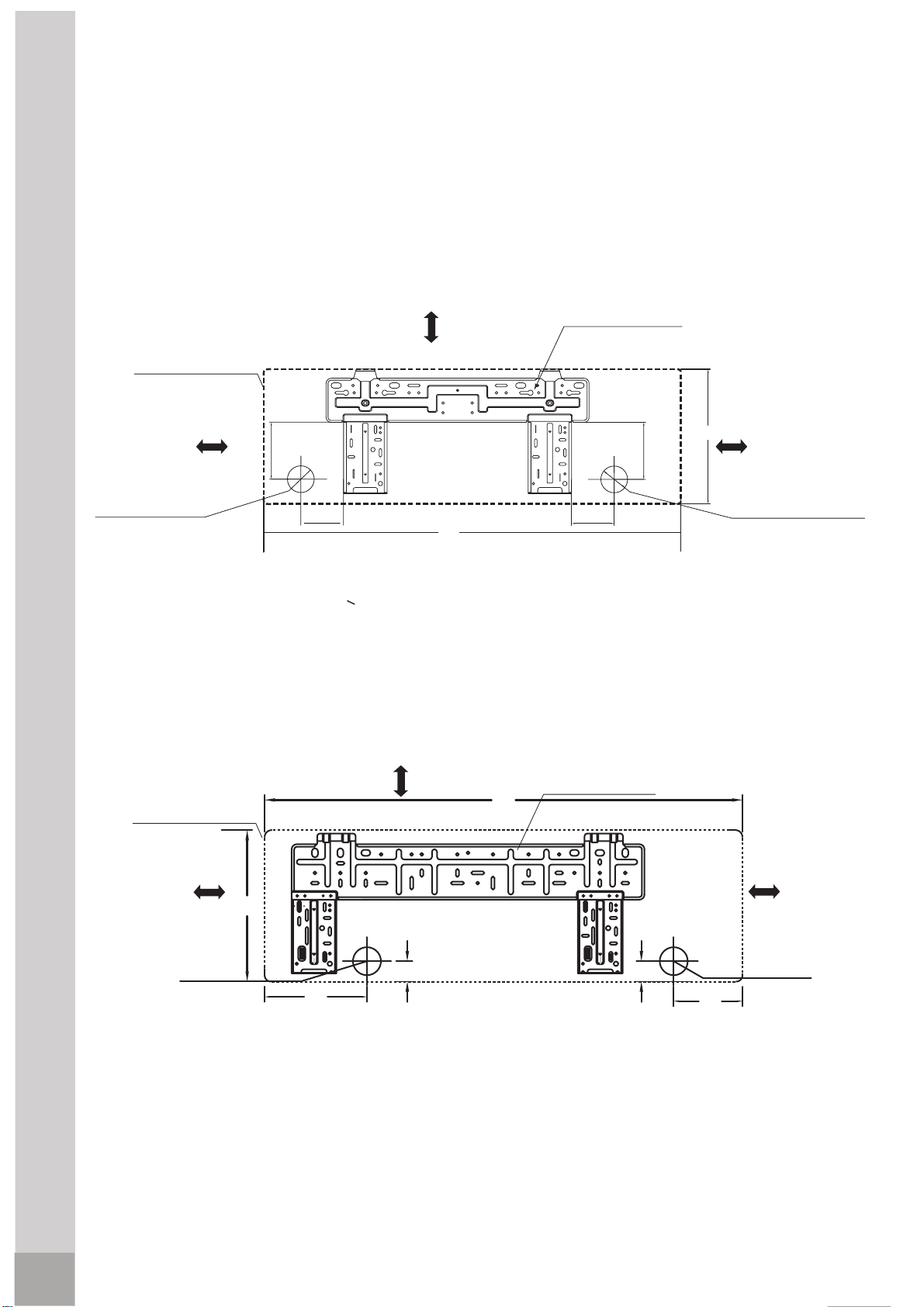

Installation plates and dimensions

Indoor unit outline

6" or more
from the wall

Refrigerant pipe
hole (right) Ø 2.56"

6" or more fr
the ceiling

4.21"

3.39"

om

Installation plate

3.39"

6" or more
from the wall

B

4.21"

Refrigerant pipe
hole (right) Ø 2.56"

A

<

12000 Btu's

(A:33.31" B:10.83")

Indoor unit outline

6" or more
from the wall

Refrigerant pipe
hole (right) Ø 2.56"

6" or more fr
the ceiling

om

Installation plate

A

6" or more
from the wall

B

Refrigerant pipe
hole (right) Ø 2.56"

7.91''

=18000 Btu's

1.58''

1.58''

5.31''

(A:36.97" B:11.73")

11

Indoor unit installation

Indoor unit outline

6" or more
from the wall

6" or more fr
the ceiling

om

Installation plate

A

6" or more
from the wall

B

1.97''

Refrigerant pipe
hole (right) Ø 2.56"

3.94'' 4.88''

=21500 Btu's

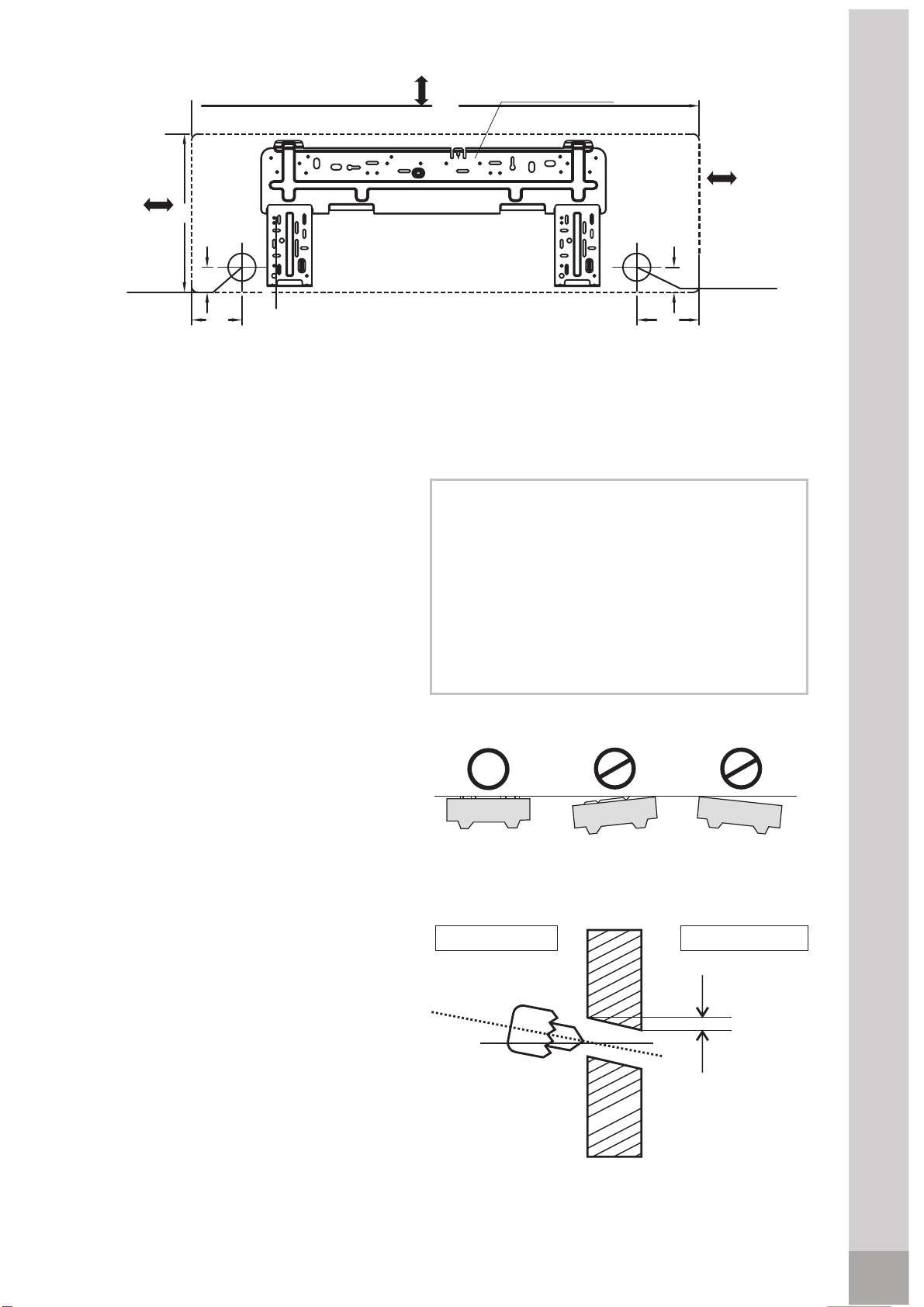

Fixing the Installation Plate

1. Install the installation plate
horizontally over the structural
parts on the wall using the spaces
indicated on the plate, as shown

in the figures above.

2. In the case of tiled, concrete or

similar walls, create 0.2"

diameter holes. Place anchorage
supports for the appropriate
assembly screws.

3. Fix the installation plate to the

A type screws.wall with eight

1.97''

(A:39.69" B:12.40")

Attention

Fit the Installation Plate and drill holes
in the wall according to the wall
structure and corresponding mounting
points on the installation plate
(Dimensions are in “mm” unless
otherwise stated).

Installation plate

Refrigerant pipe
hole (right) Ø 2.56"

4. At all times securing to the wall
studs is recommended.

Drilling the Hole

1. Determine the position of the

hole for the pipes using the

installation plate and drill the

pipe hole so that it is tilted slightly

downward.

2. Always use a pipe cover with an

opening when drilling.

Indoor unit

Wall

Outdoor unit

28"

0.2"-0.

Indoor unit installation

12

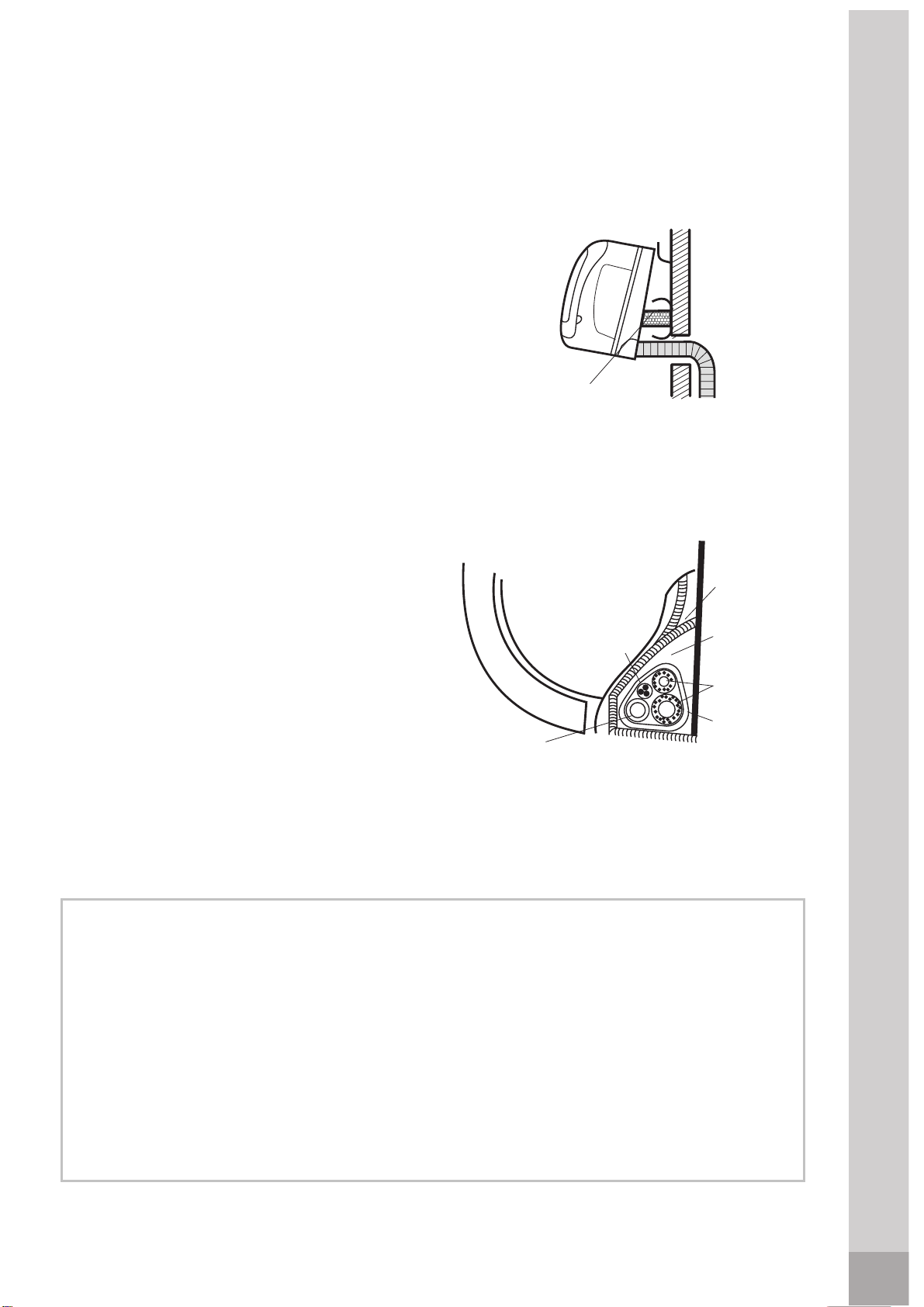

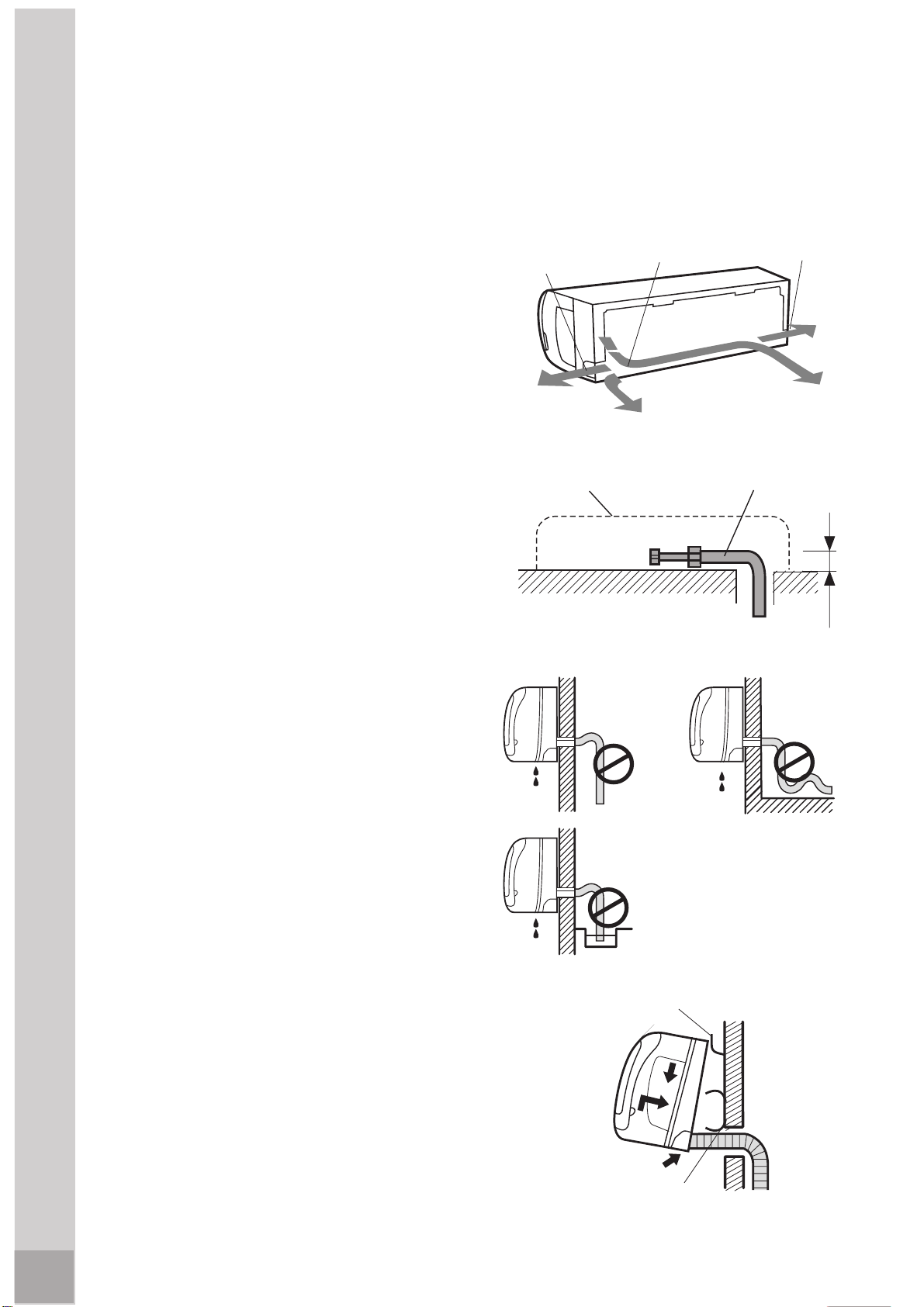

Connective pipe and drainage installation

Connective pipe

1. For the left-hand and right-hand
piping, remove the pipe cover from
the side panel.

must be kept as it may

when relocating

The pipe cover

be used

the air

conditioner

to any other place.

2. For the rear-right-hand and rear-left­hand piping, install the piping as
shown in the sideward figure. Bend

the connective pipe to

be laid at

a height of 1.69" or less from

the wall.

Fix the end of the

connective pipe.

Pipe cover
(right)

Right piping

Indoor unit
outline

Pipe
holder

Rear right
piping

Connective
pipe

Pipe cover
(left)

Left piping

Rear left
piping

.69"

1

Drainage

1. Run the drain hose sloping
downward. Do not install the drain
hose as illustrated sideward.

2. When connecting extension drain
hose, insulate the connecting part
of extension drain hose with a
shield pipe, do not let the drain
hose slack.

Fastening the Indoor Unit

1. Pass the piping through the hole in
the wall.

2. Put the upper claw at the back of
the indoor unit on the upper hook of
the installation plate, move the
indoor unit from side to side to see
that it is securely hooked.

Do not block
water flow
by a rise.

Do not put the end
of drain hose into water.

Upper hook

Lower hook

Do not block
water flow
by a rise.

13

Indoor unit installation

3. Piping can easily be made by
lifting the indoor unit with a
cushioning material between the
indoor unit and the wall. Get it
out after finish piping.

4. Push the lower part of the indoor
unit up on the wall, Then move
the indoor unit from side to side,
up and down to check if it is
hooked securely.

Cushioning
material

Piping and wrapping

1. Bundle the tubing, connecting
cable, and drain hose with tape
securely and evenly as shown
in the sideward figure.

2. Because the condensed water
from rear of the indoor unit is

Indoor unit

Cable
connection

Ponding
box

Pipe room

Connective
pipe

gathered in ponding box and is
piped out of room, do not put

Drain hose

Wrapping
belt

anything else in the box.

Attention

1. Connect the indoor unit first, then the outdoor unit.

2. Do not allow the piping to let out from the back of the indoor unit.

3. Be careful not to let the drain hose slack.

4. Both of the auxiliary piping should be heat insulation.

5. Be sure that the drain hose is located at the lowest side of the bundle. Locating

at the upper side may cause drain pan to overflow inside the unit.

6. Never intercross nor intertwist the power wire with any other wiring.

7. Run the drain hose sloped downward to drain out the condensed water

smoothly.

Indoor unit installation

14

Outdoor unit installation

1. Install the outdoor part of the unit
on a rigid surface to avoid excess
noise and vibration.

2. Direct the air vent toward an area
without obstacles.

3. Install the unit at the site where it is
exposed

especially in areas where it is
frequently windy.

4. If the installation site is exposed to
heavy winds, such as in coastal
areas, place the unit along the
widest part of the wall or use
protective plates.

to as little wind as possible,

5. Be sure there is no obstacle which
blocks radiating air, including
schrubs or bushes.

Strong wind

15

Outdoor unit installation

$

Settlement of outdoor unit
Anchor the outdoor unit tightly and
horizontally on a concrete or rigid
mount with a bolt and nut 0.39" or 

%

0.32" diameter (Purchased separately).

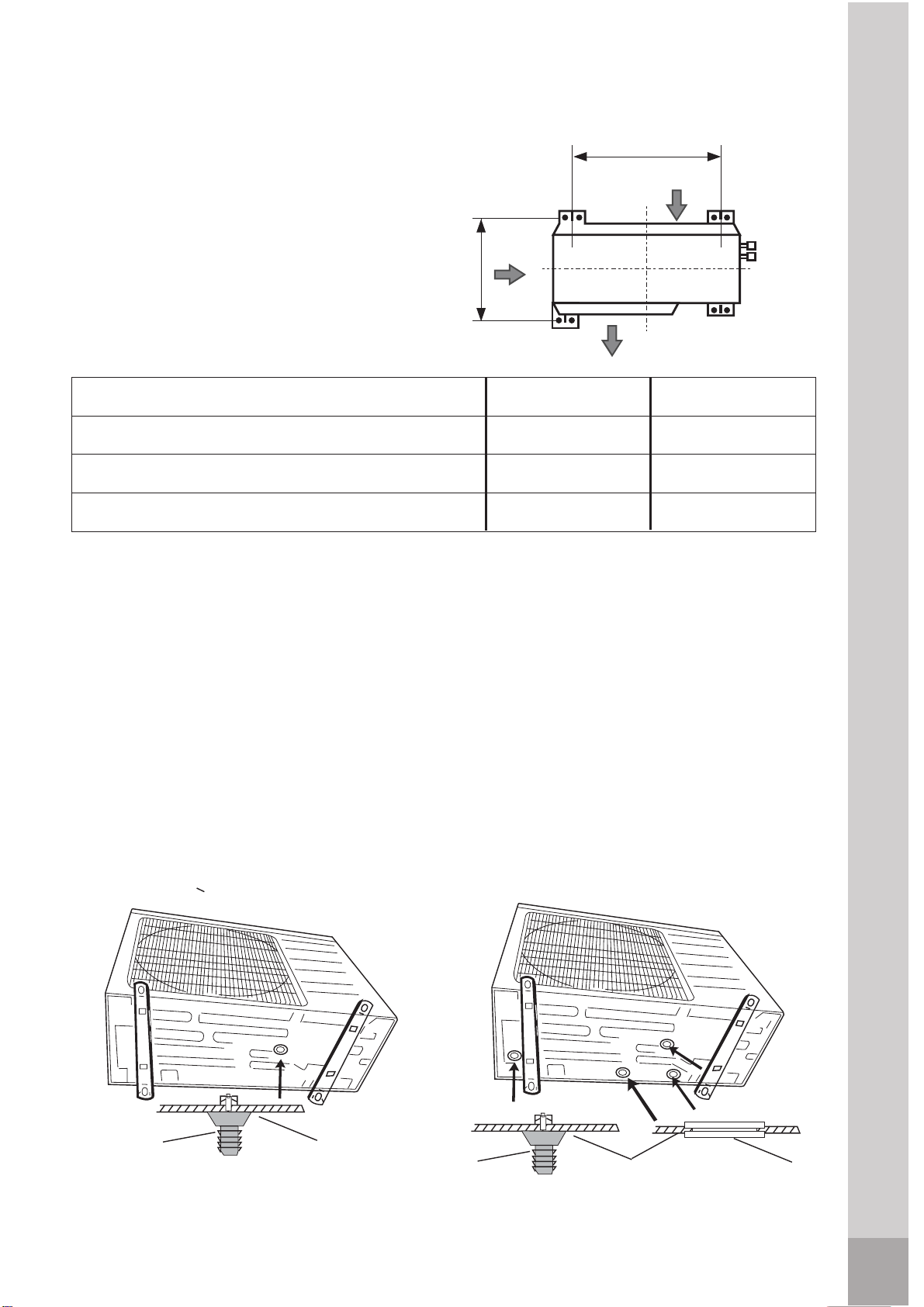

Outdoor unit dimension ft(WxHxD)

[[

[[

[[

Air

inlet

Air inlet

Air outlet

Aft) B( ft)

1'









'

Condensate drainage of outdoor unit
(no for cooling only)

The condensate and defrosting water formd during heating
in the outdoor unit can be properly discharged by drainage
pipe .

Installation method:Insert the drain connection into one of the

Ø

25 holes of the chassis and then connect drainage pipe with
drain nozzle. Insert drainage plugs into the other holes

(Only for 12000Btu's).



<

12000 Btu's

%WXV

Drain
connection

Chassis

Drain
connection

Outdoor unit installation

Chassis

Drainage
Plug

16

Refrigerant piping connection

Unit comes with 16.4' tubing bundle. It is not recommended to cut. If too long,
loop for excess.

Note: Keep original bend so not kinking of the tube occurs.

Flaring work

Main cause for refrigerant leakage is
due to defect in the flaring work.

Carry out correct flaring work using the
following procedure:

1. Cut the pipes and the cable.

Pipe

A) Use the piping kit accessory or

pipes purchased locally.

B) Measure the distance between the

indoor and the outdoor unit.

C) Cut the pipes a little longer than the

measured distance.

D) Cut the cable 4.9ft longer than the

pipe length.

2. Burr removal
A) Completely remove all burrs from

the cut cross section of pipe/tube.

B) Put the end of the copper

tube/pipe in a downward direction
as you remove burrs in order to
avoid dropping burrs into the
tubing.

3. Put nut on.

Correct

Point
down

Wrong

Oblique Roughness Burr

Pipe

Reamer

Flare nut

17

Remove flare nuts attached to

indoor and outdoor unit, then put
them on pipe/tube having
completed burr removal.(It is not
possible to put them on after flaring
work)

Refrigerant piping connection

Cooper tube

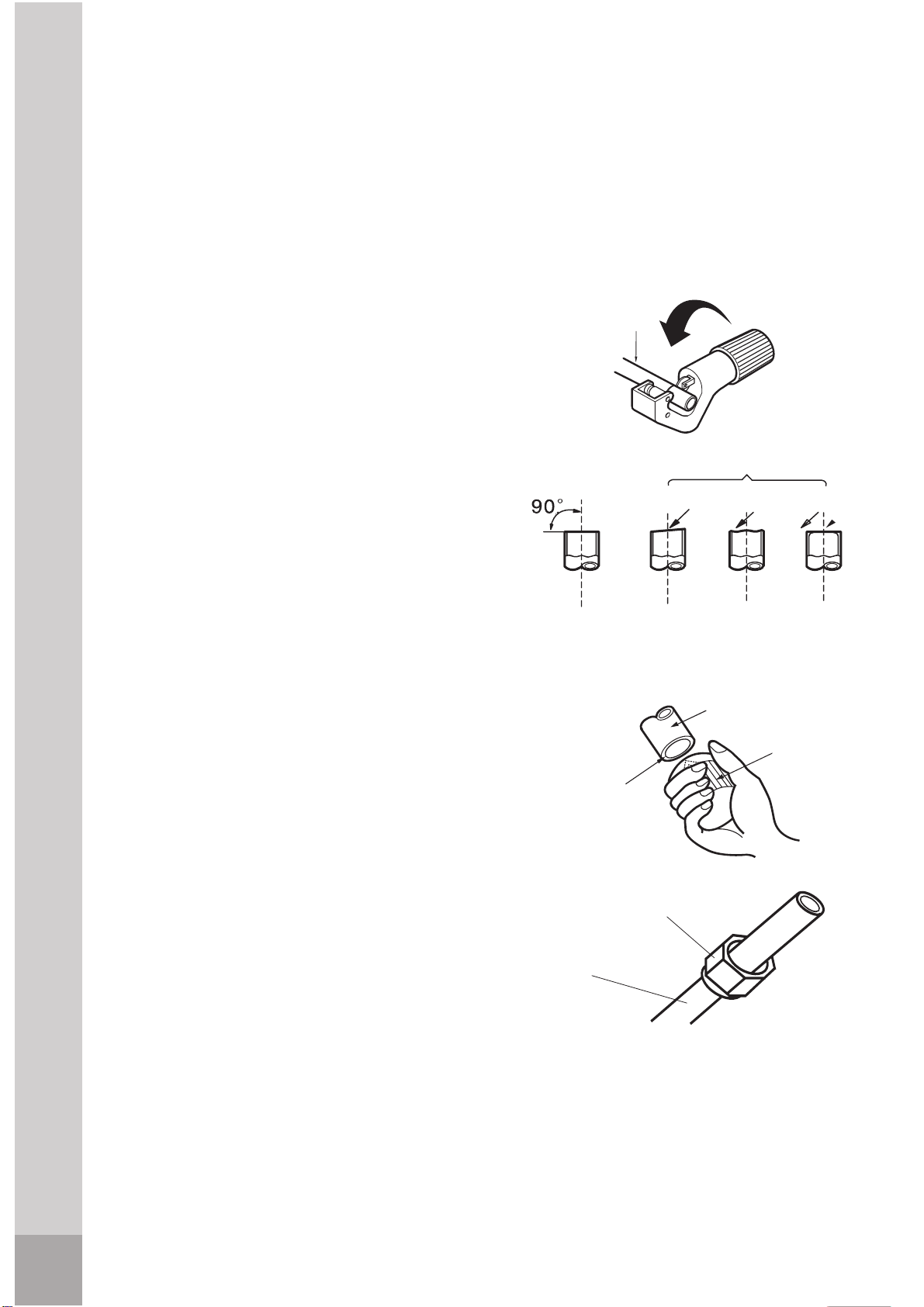

4. Flaring work.

Firmly hold copper pipe in a

die in the dimension shown in
the table below.

Max.

0.051

0.063

0.071

0.095

A (inch)

Min.

0.028

0.039

0.039

0.087

OUTER

DIAMETER (inch)

1/4

3/8

1/2

5/8

Connection Adjustment

1. Align the pipes to be connected.

2. Screw the flare nut with your
fingers, and then tighten it with
a spanner and torque wrench,
as shown in the following figure.

Bar

Copper
pipe

Handle

Yoke

Red arrow mark

Clamp
handle

Caution: Excessive twisting may
break the nut, depending on the
installation conditions.

Indoor unit
tubing

OUTER TIGHTENING

DIAMETER (inch)

1/4

3/8

1/2

5/8

Flare

nut

Pipings

Refrigerant piping connection

ADDITIONAL TIGHTENING

TORQUETORQUE (lbf.in)

139 174

260 304

434 477

651 694

(lbf.in)

18

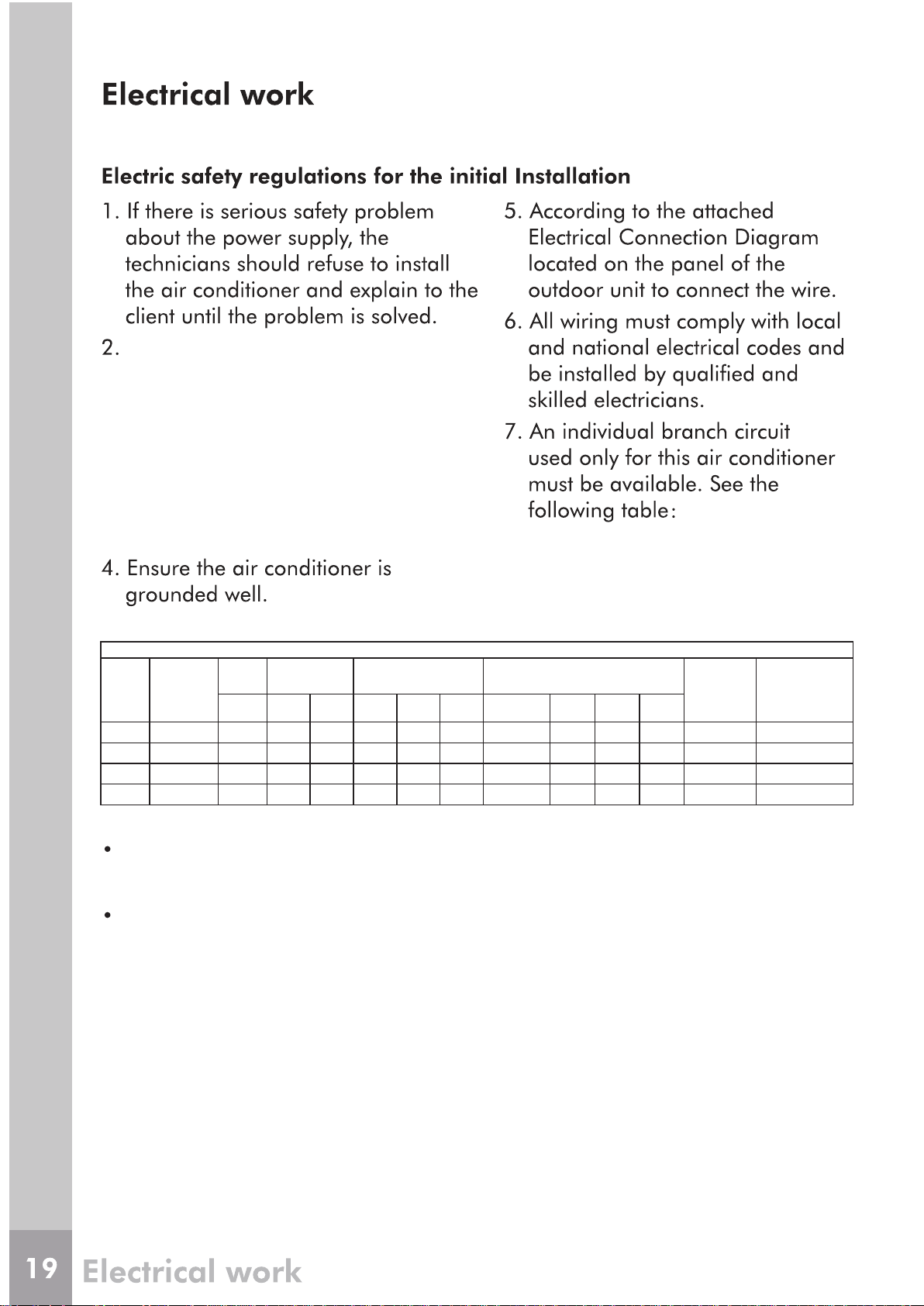

Power voltage should meet the
requirements in the following
table.

3. Over current protection and circuit
disconnect should meet the
requirements in the following table
and the applicable local and national
electrical codes.

Electrical Data Table

Capacity

(BTU)

9K 115-1-60ǂ103/127 16.03 26 0.17 0.04 30 115V-AC 0.38 0.03 20 22

12K 115-1-60

18K 208/230-1-60ǂ187/253 11.54 41 0.62 0.08 60

21.5K 208/230-1-60

System
Voltage

Volts-Ph.-

Freq

Operating

Voltage

(Min/Max)

ǂ

103/127 17.53 26 0.17 0.04 30 115V-AC 0.38 0.03 20 23

ǂ

187/253

RLA LRA FLA HP

11.71 41 0.9 0.12 90 0.45 0.05 35 16

Output

Watts

Volts FLA HP

208/230V-AC

208/230V-AC

naFroodnInaFroodtuOrosserpmoC

Output

Watts

0.25 0.03 20 16

MIN. Circuit

Ampacity

(MCA)

Max. Fuse/Circuit

Breaker

Amps(MOCP)

35

40

25

25

Connecting (Power and Control Cable)

The main power is supplied to the outdoor unit. The field supplied connecting cable from the outdoor unit to indoor unit consists of four

wires and provides the power for the indoor unit as well as the communication signal and ground between the outdoor and indoor unit.

Two wires are high voltage AC power, one is low voltage DC signal and one is a ground wire.

Consult local building codes, NEC (National Electrical Code) or CEC (Canadian Electrical Code) for special requirements.

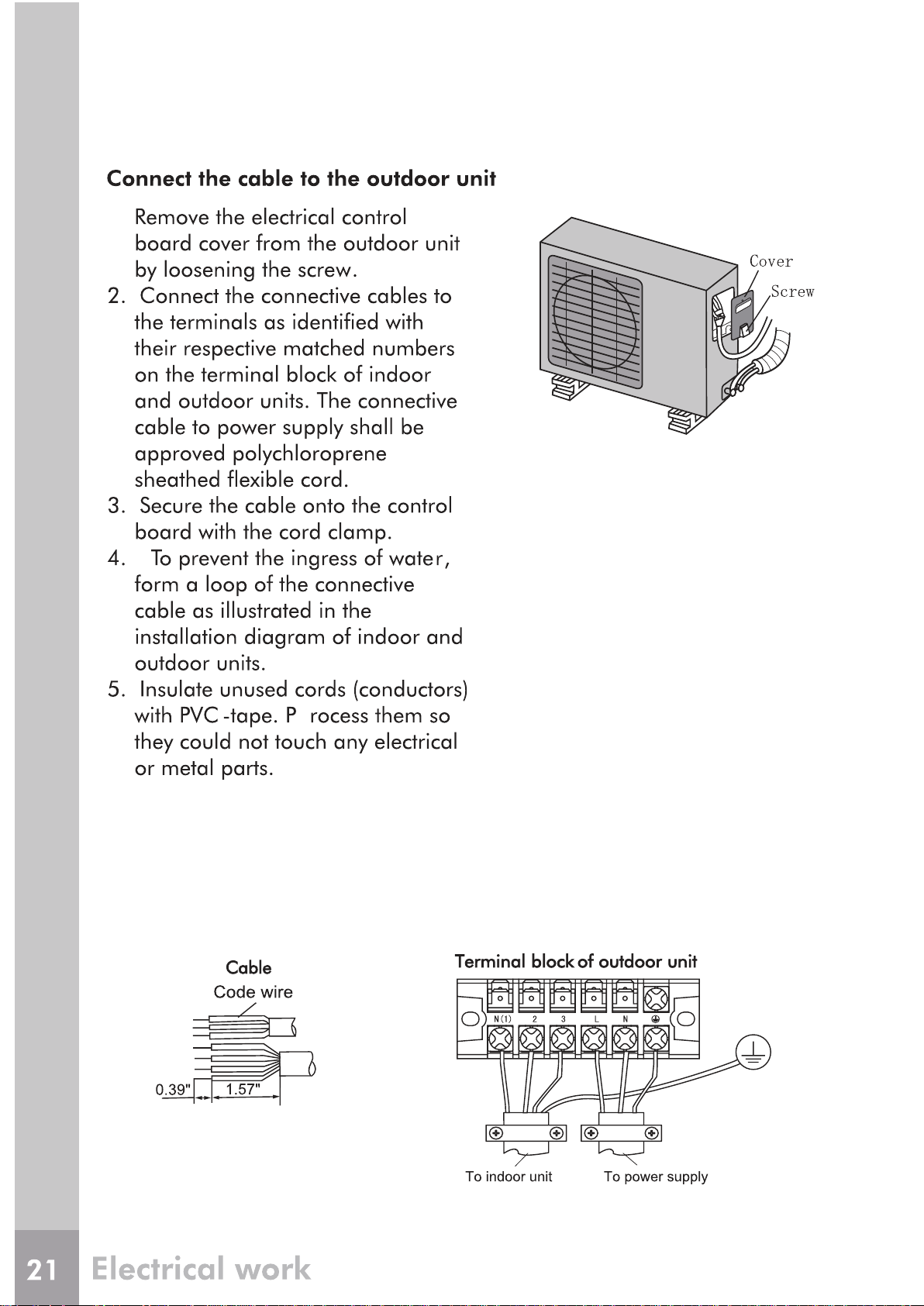

Connect the cable to the indoor unit

Terminal block of indoor unit

Cable

1. The inside and outside connecting
cable can be connected without
removing the front grille.

2. Connecting cable between indoor
unit and outdoor unit shall be
approved polychloroprene
sheathed flexible cord, type
designation 16AWG or heavier
cord.

3. Lift the indoor unit panel up,
remove the electrical box cover by
loosening the screw.

4. Ensure the colour of wires of
outdoor unit and the terminal Nos.
are the same to the indoors
respectively.

5. Wrap those cables not connected
with terminals with insulation
tapes, so that they will not touch
any electrical components. Secure
the cable onto the control board
with the cord clamp.

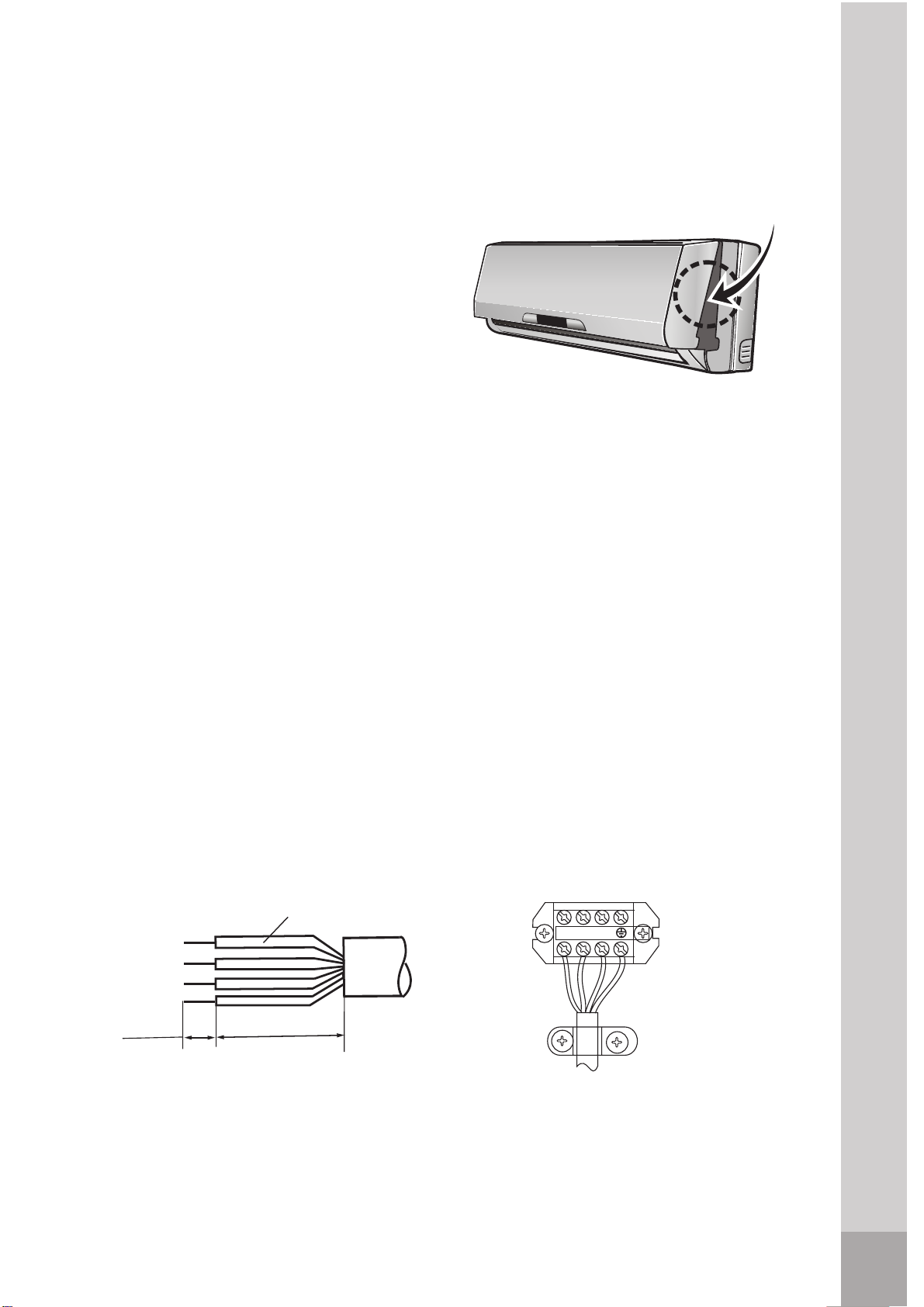

Electrical box

cover

0.39"

Code wire

1.57"

N(1) 2 3

To Outdoor Unit

Electrical work

20

1.

Caution

After the confirmation of the above conditions, prepare the wiring as follows:

1. Never fail to have an individual power circuit specifically for the air
conditioner. As for the method of wiring, be guided by the circuit diagram
posted on the inside of control cover.

2. The screws which fasten the wiring in the casing of electrical fittings are
liable to come loose from vibrations to which the unit is subjected during
the course of transportation. Check them and make sure that they are all
tightly fastened. (If they are loose, it could cause burn-out of the wires.)

3. Specification of power source.

4. Confirm that electrical capacity is sufficient.

5. See to that the starting voltage is maintained at more than 90 percent of
the rated voltage marked on the name plate.

6. Confirm that the cable thickness is as specified in the power source
specification.

7. Always install an earth leakage circuit breaker in a wet or moist area.

8. The following would be caused by voltage drop: vibration of a magnetic
switch, which will damage the contact point, fuse breaking, disturbance of
the normal function of the overload protector.

9. The means for disconnection from a power supply shall be incorporated
in the fixed wiring and have an air gap contact separation of at least
in each active (phase) conductors.

1/8 inch

Air purging

Air and moisture in the refrigeration system have undesirable effects as indicated
below:

1. Pressure in the system rises.

2. Operating current rises.

3. Cooling or heating(only for

models with heating function)
efficiency drops.

4. Moisture in the refrigerant circuit
may freeze and block capillary
tubing.

5. Water may lead to corrosion of
parts in the refrigeration system.

Therefore, the indoor unit and tubing
between the indoor and outdoor unit
must apply leakage test and be evacuated
to remove any noncondensables and
moisture from the system.

Electrical work and air purging

22

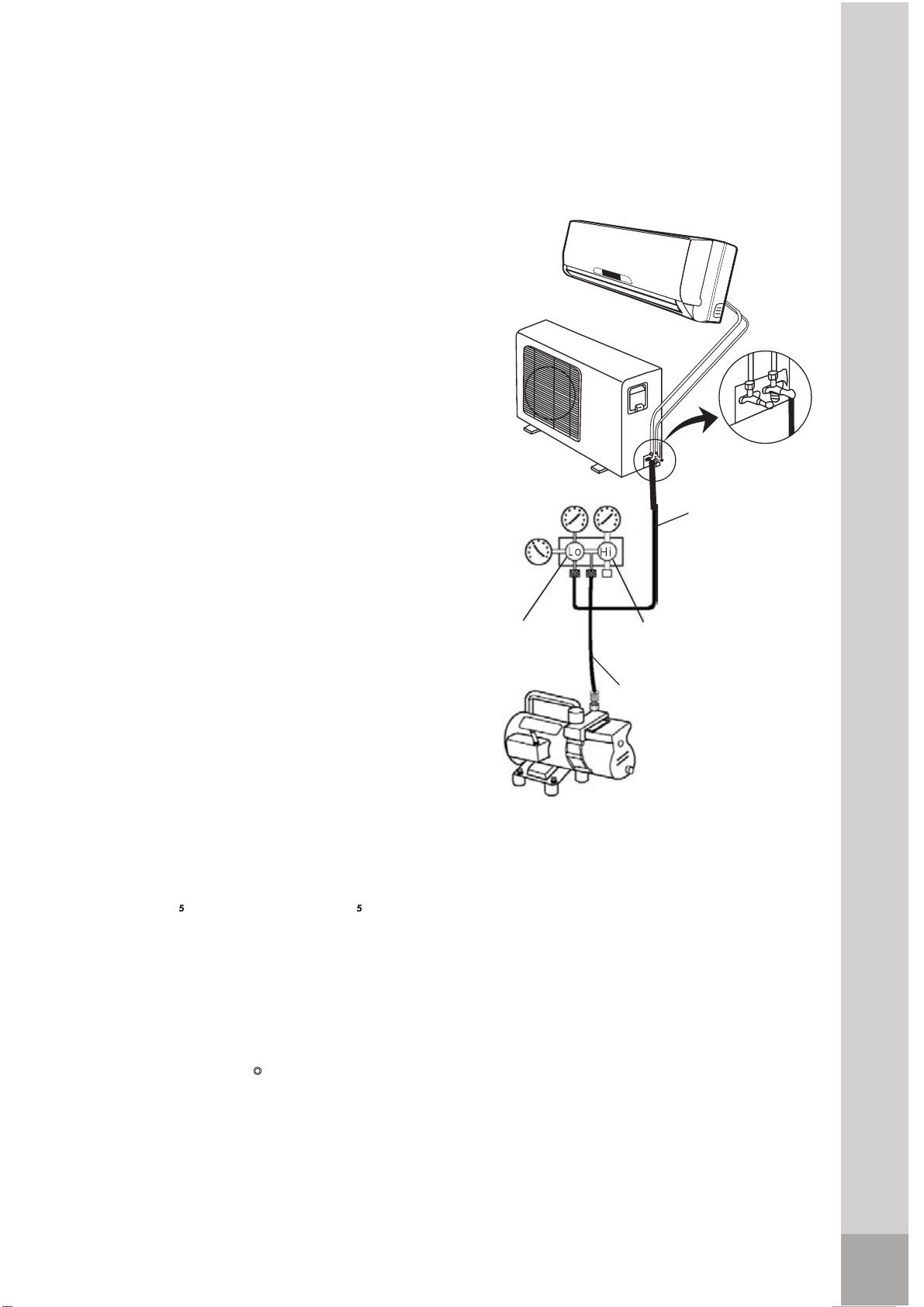

Air purging with vacuum pump

1. Check that each tube(both liquid and gas side tubes) between the indoor and
outdoor units have been properly connected and all wiring for the test run has
been completed. Remove the service valve caps from both the gas and the
liquid side on the outdoor unit. Note that both the liquid and the gas side
service valves on the outdoor unit are kept closed at this stage.

2. When relocating the unit to another place, perform evacuation using vacuum
pump.

3. Pipe length and refrigerant amount:

Connective
pipe length

Less than 25'

'

25'~98.4 '

Air

purging

Use vacuum pump.

Use vacuum pump.25'~65.6

Use vacuum pump.

R410a: 0.32ozs/ft (Pipe length-25')

R410a: 0.22ozs/ft (Pipe length-25')

R410a: 0.32ozs/ft (Pipe length-25')

Additional amount of

refrigerant to be charged

<

( 12000Btu's)

(=18000Btu's)

(=21500Btu's)

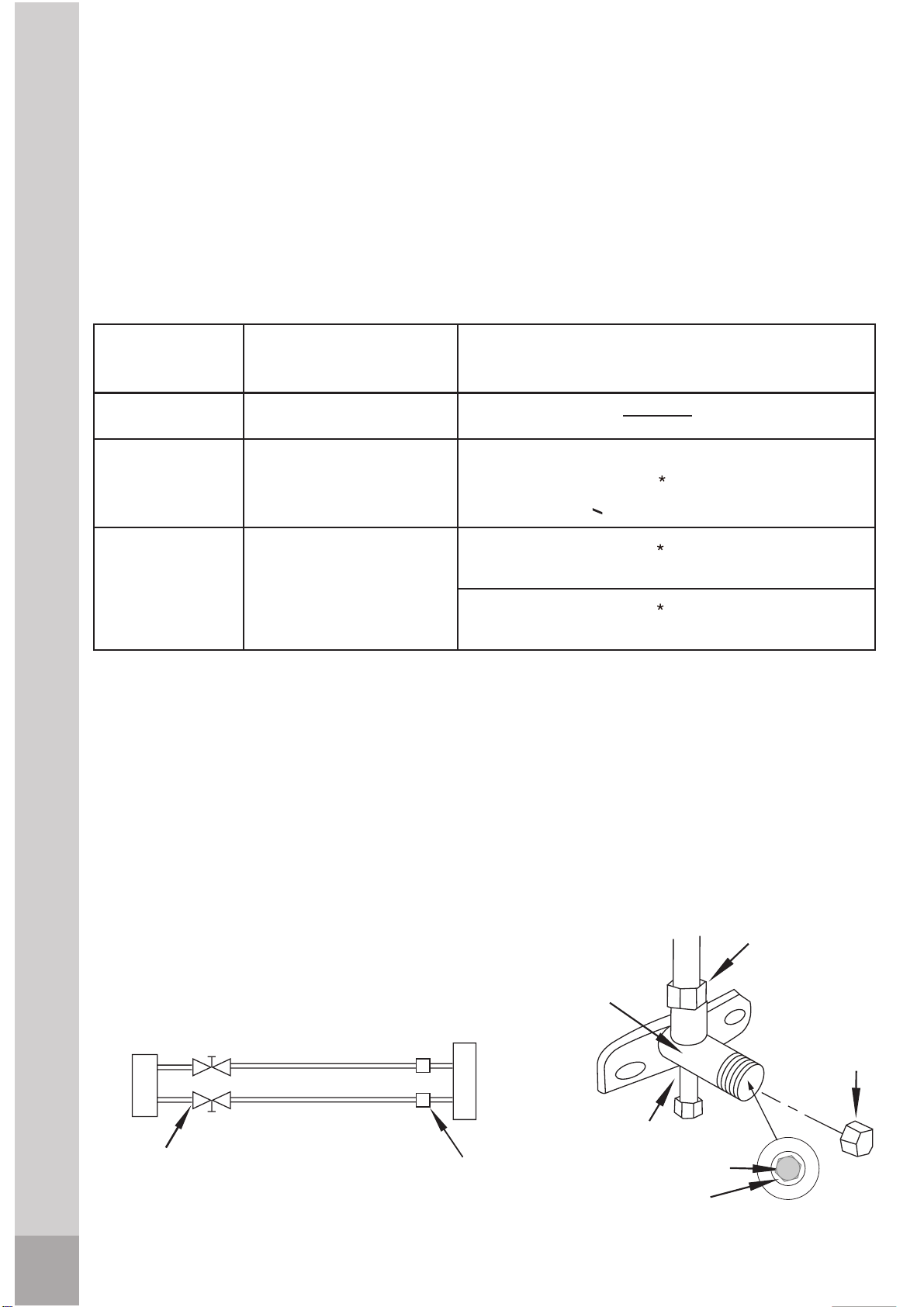

Caution in handling the packed valve integrated in the outlets of
outdoor unit.

1. Operation of opening packed valve: Open the valve stem until it hits against

the stopper. Do not try to open it further.

2. Operation of closing packed valve: Securely tighten the valve stem with a special
tool. Then securely tighten the valve stem cap with a spanner or the like. Refer to

for valve stem cap tightening torque tightening torque table in page 17

Note: There is a charging port integrated in the low side outlet, but not in the
high side outlet. The low side outlet is shown in the sketch map below.

Flare nut

A

B

Packed valve

Refrigerant

Indoor unitOutdoor unit

Gas

C

D

Half union

Valve body

Cap

Charge port

Valve stem

Stopper

23

Air purging

When using the vacuum pump

For method of using a manifold valve, refer to its operation manual.

1. Completely tighten the flare nuts at
connection point A, B, C and D.
Connect valve core removal tool to
the charging port, then connect
vacuum hose to valve core tool.
Open the schrader valve.
Note: The schrader valve is inside
the charging port.

2. Connect the other charge hose of
manifold valve to the vacuum pump.

3. Fully open the handle Lo of the
manifold valve.

4. Operate the vacuum pump to
evacuate. After starting evacuation,
slightly loose the flare nut of the
Lo valve on the gas pipe side and
check if the air is entering (Operation
noise of the vacuum pump changes
and a compound meter indicates
0 instead of minus), then tighten
the flare nut. The procedure verifies
if there are blocks inside the tubes.

Outdoor unit

Manifold valve

-76cm/Hg

Handle Lo

Vacuum pump

Indoor unit

Charge
hose

Handle Hi

Charge hose

5. Make evacuation for 15 minutes
or more and check that the
compound meter indicates

-7.6 x 10 MicronsHg (-1x10 Pa).

5

After the evacuation is completed,
fully close the handle Lo of the
manifold valve and stop the
operation of the vacuum pump.

6. Turn the stem of the packed
valve B about 45

o

counterclockwise for 6~7
seconds after the gas comes
out, then tighten the flare nut
again. Make sure the pressure

display in the pressure indicator is
a little higher than the atmosphere
pressure. This procedure verifies if
the refrigerant goes through the
tubes correctly.

7. Close the schrader valve, then
remove the valve core tool.

Replace the charging port cap.

8. Fully open the packed valve

stems B and A.

9. Securely tighten the cap of the

packed valve.

Air purging

24

Electrical safety

Perform the electric safety check after completing installation:

1. Insulated resistance: The insulated resistance must be more than 2M .

2. Grounding work: After finishing grounding work, measure the grounding
resistance by visual detection and grounding resistance tester. Make sure the
grounding resistance is less than 4 .

3. Electrical leakage check (performing during test running): During test operation
after finishing installation, the serviceman can use the electric probe and
multimeter to perform the electrical leakage check. Turn off the unit
immediately if electrical leakage happens. Check and find out the solution
ways till the unit operates properly.

Gas leak check

Soap water method

Apply a soap water or a liquid neutral
detergent on the indoor unit
connection or outdoor unit connections
by a soft brush to check for leakage of
the connecting points of the piping. If
bubbles come out, the pipes have
leakage point.

Leak detector

Use the leak detector to check for
leakage.

Caution

indoor unit
check point

Cover

Outdoor unit
check point

25

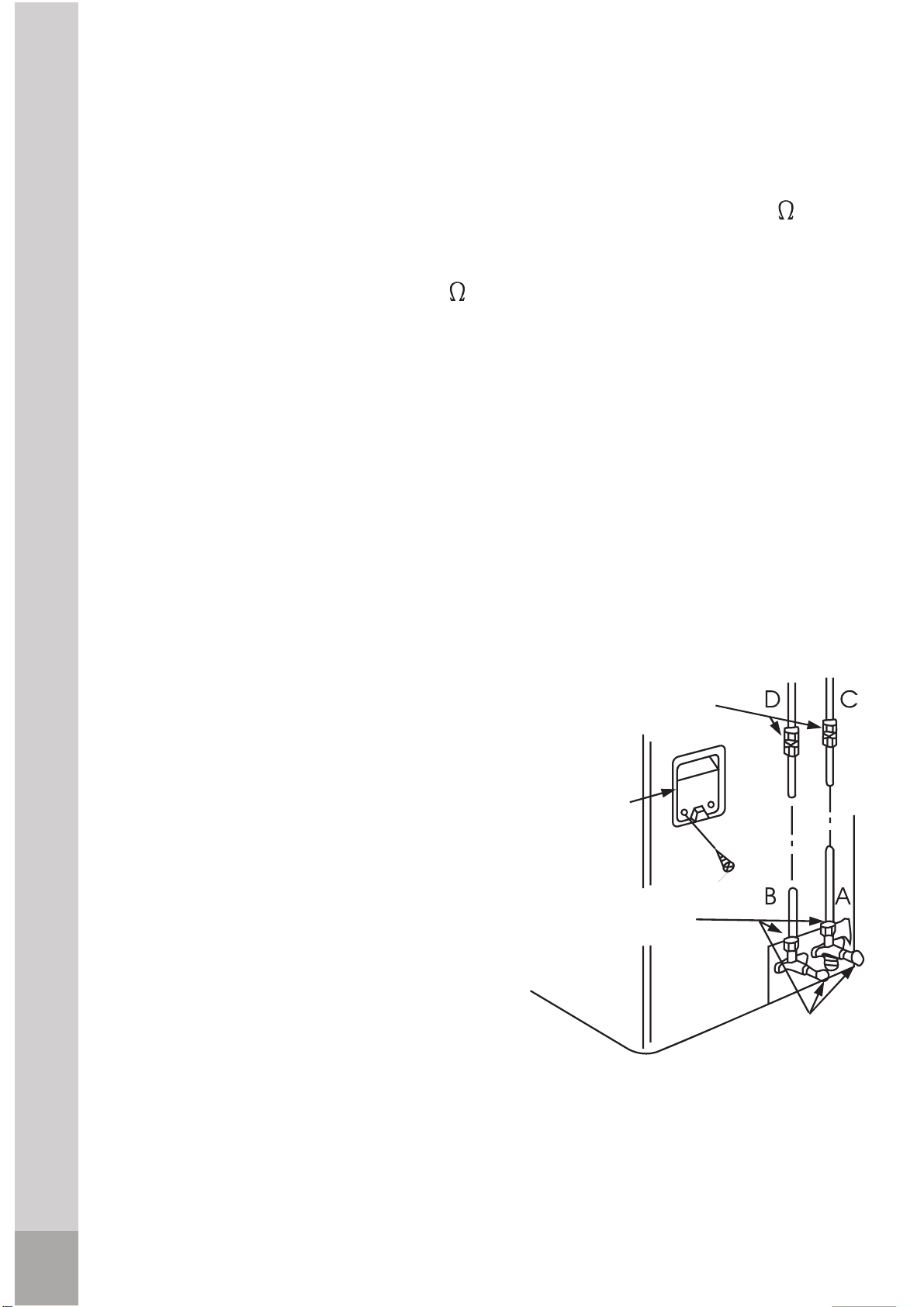

A: Lo packed valve, B: Hi packed valve
C and D are ends of indoor unit
connection.

Electrical safety and gas leak check

Test running

o

Perform test operation after completing gas leak check at the flare nut
connections and electrical safety check.

1. Connect the power, press the ON/OFF button on the remote controller to
turn the unit on.

2. Use the MODE button to select COOL, HEAT(Only for models with heating
function), AUTO and FAN to check if all the functions work well.

F), the unit 3. When the ambient temperature is too low(lower than 63

cannot be controlled by the remote controller to run in cooling mode,
manual operation can be taken. Manual operation is used only when the
remote controller is disable or maintenance necessary.

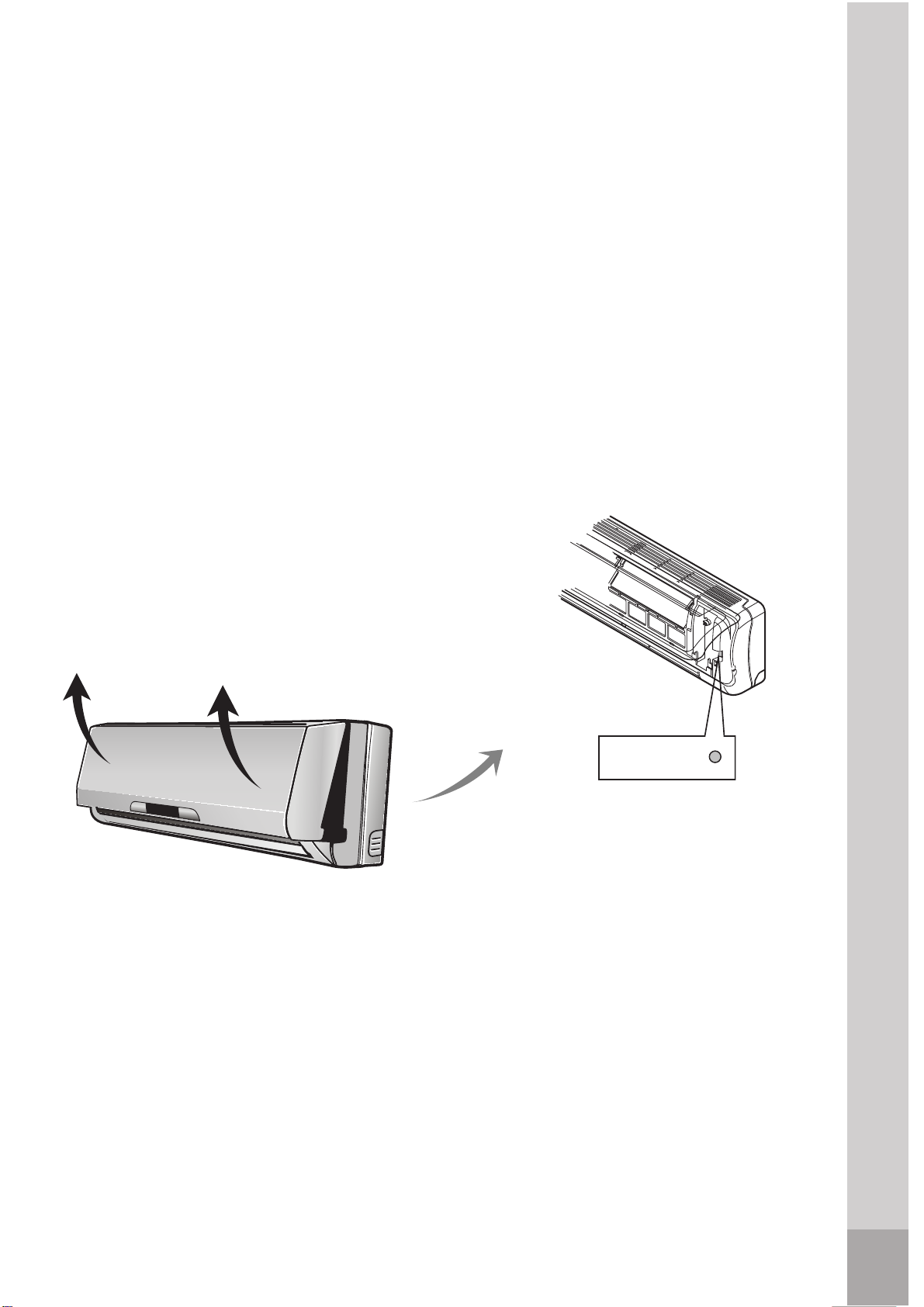

Auto/OFF

Manual control button

Test running

26

Preparing the device for operation

1. Contact a specialist to install the device.

2. Guarantee that the unit is appropriately fastened and complies with all of
the aforementioned safety norms.

3. Before operating the air conditioner, ensure that the air filter is installed
correctly.

4. If the unit has been out of use for a long period of time, it is recommended
that the air filter be cleaned before use. During continuous use, clean the air
filter every two weeks.

5. This air conditioner was designed for use under the following conditions:

MODE

Cool

Temperature Temperature Temperature

Indoor Indoor Outdoor Indoor Outdoor

61°F~86°F 41°F~115°F 61°F~86°F 61°F~86°F 41°F~115°F5°F~75°F

only for models with heating function

*

Outdoor

Heat

*

Dehumidifier

Attention

If air conditioner is used outside of the above conditions, certain safety protection
features may come into operation and cause the unit to function abnormally.
Room relative humidity should be less than 80%. If the air conditioner operates in
excess of this figure, the surface of the air conditioner may attract condensation.
Please set the horizontal louver to its maximum angle (vertically to the floor), and
set HIGH fan mode.
Optimum performance will be achieved within these operating temperature.

27

Preparing the device for operation
