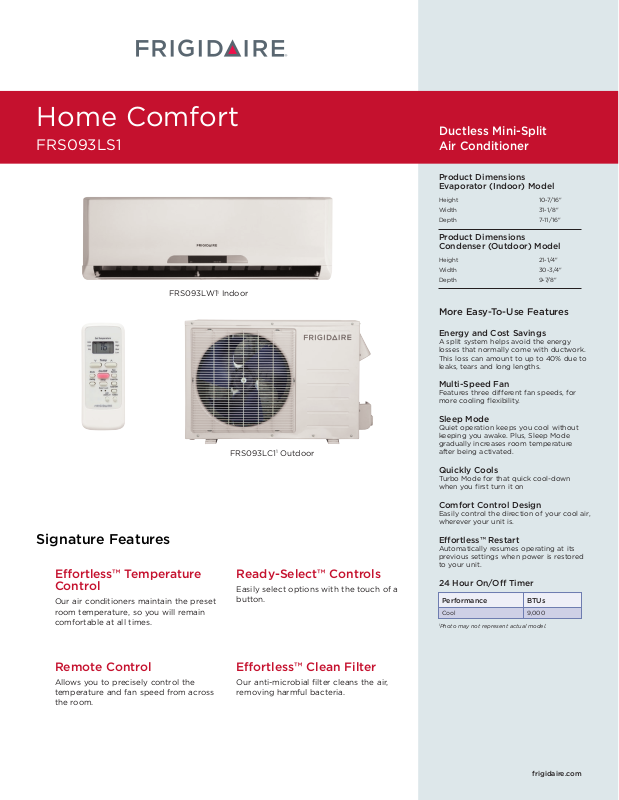

Home Comfort
FRS093LS1
1
FRS093LW1
Indoor
Ductless Mini-Split
Air Conditioner
Product Dimensions
Evaporator (Indoor) Model
Height 10-7/16"
Width 31-1/8"
Depth 7-11/16"
Product Dimensions
Condenser (Outdoor) Model
Height 21-1/4"
Width 30-3/4"
Depth 9-7/8"
More Easy-To-Use Features
Energy and Cost Savings
A split system helps avoid the energy
losses that normally come with ductwork.
This loss can amount to up to 40% due to
leaks, tears and long lengths.
Multi-Speed Fan
Features three different fan speeds, for
more cooling flexibility.
Signature Features
Eortless™ Temperature
Control
Our air conditioners maintain the preset
room temperature, so you will remain
comfortable at all times.
Remote Control
Allows you to precisely control the
temperature and fan speed from across
the room.
FRS093LC11 Outdoor
Ready-Select™ Controls
Easily select options with the touch of a
button.
Eortless™ Clean Filter
Our anti-microbial filter cleans the air,
removing harmful bacteria.
Sleep Mode
Quiet operation keeps you cool without
keeping you awake. Plus, Sleep Mode
gradually increases room temperature
after being activated.
Quickly Cools
Turbo Mode for that quick cool-down
when you first turn it on
Comfort Control Design
Easily control the direction of your cool air,
wherever your unit is.
Eortless™ Restart
Automatically resumes operating at its
previous settings when power is restored
to your unit.
24 Hour On/O Timer
Performance
Cool
1
Photo may not represent actual model.
BTUs
9,000
frigidaire.com
Page 2
B
A
C
A
B
C
Model Numbers
System Model Number
Indoor Unit Part Number
Outdoor Unit Part Number
1
Performance
BTU (Cool)
Cooling Area (Sq. Ft.)
SEER (Air Conditioner)
Inverter Technology
Electrical
Volts
Amps (Cool) Indoor/Outdoor
Watts (Cool) Indoor/Outdoor
Fuse (Amps) Indoor/Outdoor
Features
Controls
Fan Speeds (Cool/Fan)
Low Voltage Start-Up
Turbo Fan
Auto Fan
Energy Saver
Sleep Mode
24 Hour On/O Timer
Remote Control
Air CFM (High/Med/Low) Indoor
Air Direction Control (Vert. / Horz.)
Air Discharge (Full-Width)
Filter Type
Filter Access
Air Direction Control - Horizontal
Air Direction Control - Vertical
dB (Indoor) (High/Med/Low)
dB (Outdoor)
2
Warranty
Included Accessories
Drain Kit (Outdoor Unit)
Installation Plate (Indoor Unit)
Line Set (Indoor Unit)
Remote Holder (Indoor Unit)
Certifications
ENERGY STAR®
Performance
Specifications
Refrigerant
Shipping Weight (Approx.)
1
Includes 16.4 ft. line set.
2
Warranty 5 year sealed system / 1 year full parts and labor.
FRS093LS1
FRS093LW1
FRS093LC1
9,000
425
13
DC 35V
0.7 / 7.6
20 / 780
13.5 / 15
Ready-Select™ Controls
3 / 3
Yes
Yes
Yes
Yes
Yes
Yes
Full-Function
341 / 270 / 217
Yes / Yes
Bottom
Antimicrobial Mesh
Slide-Out
Manual
Swing
42 / 36 / 29
55
Yes
Yes
Yes
Yes
Yes
ARI
R410a
77
Home Comfort
FRS093LS1 Ductless Mini-Split Air Conditioner
FRS093LW1
FRS093LC11 Outdoor
NOTE: For planning purposes only. Always consult local and
national electric codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
Indoor –
A - Height
B - Width
C - Depth
Max. Wall Thickness
Outdoor –
A - Height
B - Width
C - Depth
1
Illustration may not represent actual model.
All refrigeration and electrical work must be performed by a certified and licensed
refrigeration technician for full parts and labor warranty validation. Insulated line sets
and control wires are required and available for Frigidaire split systems in 16.4 ft.
length. Each line set is equipped with flare nuts on both ends. Each system requires
one line set for each indoor unit installed.
1
Indoor
10-7/16"
31-1/8"
7-11/16"
18"
21-1/4"
30-3/4"
9-7/8"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FRS093LS1 07/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Page 3
Ductless Mini-Split System Air Conditioners
A
B
C
FRS093LC1 Outdoor
B
A
C
FRS093LW1 Indoor
Servicer Technical Data Sheet
FRS093LS1
POWER
Circuit Amps
Maximum Fuse Size
CAPACITIES
Cooling
Amps
Watts
Min/Max Cooling
SEER
EER
Low Ambient Temperature
Voltage/Frequency/Phase
Dehumidification
INDOOR UNIT
Sound Rating
Net Weight
Shipping Weight
Dimensions (H x W x D)
Full Loaded Amps
Number of Fan Speeds
Fan Type
RPM at High Speed)
Motor Watts
Full Loaded Amps
Coil Type
Fin Type
Pipe Type
Fin Rows (FPI)
Tube Diameter
Drain Connection Size
FEATURES
Controls
Remote Control
Temperature Control
Timer
Air Louvers
Horizontal
Vertical
Low Voltage Restart
Self-Diagnosis
Quiet Operation
Air Filter
COMPRESSOR
Controls
Remote Control
Temperature Control
13.6 A
15 A
9,000 Btu
7.3 A
780 W
n/a
13.0
14.8422
17° C-43° C (62° F~109° F)
115V/60Hz/1P
2.0 PT/H
42/36/29 dB(A)
17 lb
22 lb
10.43" x 31.1" x 7.68"
0.7 A
3
cross flow
1250 rpm
20 W
0.7 A
aluminum fin & copper pipe
Hydrophilic aluminium
innergroove copper pipe
2
¢ 7 mm (9/32")
¢ 15.4 mm (3/5")
electronic
lcd wireless
17-30° C
24 hr
1 pieces
manual
swing
yes
yes
yes
washable, anti-mold
EA108X1C-1FZDU1
rotary
7.46
40.3
REFRIGERANT SYSTEM
Refrigerant
Ounces
Control
Lineset
Maximum Height
Maximum Line length
Discharge Vapor Line (od)
Suction (od)
OUTDOOR UNIT
Sound rating
Net Weight
Shipping Weight
Dimensions (H x W x D)
Recommended Fuse
Minimum Amps
Running Current
Fan Type
Fan Diameter/Number of Speeds
Drive Type
Motor Watts
Number of Poles and RPM
CFM (High)
Coil Type
Fin Type
Pipe Type
Fin Rows (FPI)
Tube Size
OPERATING RANGE
Cooling
Heating
Cooling
Heating
HEATING
Total Capacity (BTU)
HSPF
Amps
Max Amps
Power Inputs
Back Up Strip Heater
Outdoor Sound Rating
R410A
37.04
capillary
16.4 ft
26 ft
65.6 ft
F
8 mm (5/16")
F
12.7 mm (1/2")
£ 55 dB (A)
67 lbs
72 lbs
21.26" x 30.71" x 9.84"
15 A
0.7 A
7.3 A
Axial
15.79"-1
asynchronous
77 W
6-880 rpm
1058
aluminum fin & copper pipe
Unhydrophilic aluminium
innergroove copper pipe
2
¢ 7 mm (9/32")
Indoor Air
intake temp
32.2° C db/wb
22.8° C db/wb
21° C db/wb
15° C db/wb
Outdoor Air
intake temp
43.3° C db/wb
25.6° C db/wb
18° C db/wb
12° C db/wb
?? Btu
??
??
?? A
?? W
??
£ 55 dB (A)
PRODUCT DIMENSIONS
Indoor –
A - Height
B - Width
C - Depth
Max. Wall Thickness
Outdoor –
A - Height
B - Width
C - Depth
10-7/16"
31-1/8"
7-11/16"
18"
21-1/4"
30-3/4"
9-7/8"
TS-FRS093LS1-07/10-1
Page 4
A
B
C
FRS093LC1 Outdoor
B
A
C
FRS093LW1 Indoor
Ductless Mini-Split System Air Conditioners
Submittal Sheet
FRS093LS1
Job: ______________________________
Location: __________________________
Engineer: __________________________
Submitted to: ______________________
POWER
Circuit Amps
Maximum Fuse Size
13.6 A
15 A
CAPACITIES
Cooling
Amps
Watts
Min/Max Cooling
SEER
EER
Low Ambient Temperature
Voltage/Frequency/Phase
Dehumidification
9,000 Btu
7.3 A
780 W
n/a
13.0
14.8422
17° C-43° C (62° F~109° F)
115V/60Hz/1P
2.0 PT/H
INDOOR UNIT
Sound Rating
Net Weight
Shipping Weight
Dimensions (H x W x D)
Full Loaded Amps
Number of Fan Speeds
Fan Type
Motor Watts
Full Loaded Amps
COMPRESSOR
Type
Amps
Locked Rotor Amps
42/36/29 dB (A)
17 lb
22 lb
10.43" x 31.1" x 7.68"
0.7 A
3
cross flow
20 W
0.7 A
EA108X1C-1FZDU1
rotary
7.46 A
40.3 A
Reference: _________________________
Approval: _________________________
Date: _____________________________
Submitted by: ______________________
OUTDOOR UNIT
Sound Rating
Net Weight
Shipping Weight
Dimensions (H x W x D)
Recommended Fuse
Minimum Amps
Running Current
Drive Type
Motor Watts
CFM (high)
FEATURES
Controls
Remote Control
Temperature control
Timer
Air Louvers
Horizontal
Vertical
Low Voltage Restart
Self-Diagnosis
Quiet Operation
Air Filter
REFRIGERANT SYSTEM
Refrigerant
Ounces
Lineset
Maximum Height
Maximum Line length
Discharge Vapor Line (od)
Suction (od)
Construction: ______________________
Unit Number: ______________________
Drawing Number: ___________________
£ 55 dB (A)
67 lb
72 lb
21.26" x 30.71" x 9.84"
15 A
0.7 A
7.3 A
asynchronous
77 W
1058
electronic
lcd wireless
17-30° C
24 hr
1 pieces
manual
swing
yes
yes
yes
washable, anti-mold
R410A
37.04
16.4 ft
26 ft
65.6 ft
F
8 mm (5/16")
F
12.7 mm (1/2")
PRODUCT DIMENSIONS
Indoor –
A - Height
B - Width
C - Depth
Max. Wall Thickness
Outdoor –
A - Height
B - Width
C - Depth
10-7/16"
31-1/8"
7-11/16"
18"
21-1/4"
30-3/4"
9-7/8"
SS-FRS093LS1-07/10-1
