Product No.
FGEH3047VDB
FGEH3047VFB
Series
30" FSFC elec
30" FSFC elec
Color
black stainless
stainless
Market
North America
North America
Owner's Guide
A13080701
A13080701
Installation Instructions
809127105
809127105
Service Data Sheet
808532646
808532646
Frigidaire
P.O. BOX 8020
CHARLOTTE, NC 28262
Publication No.
5995719530
20/01/02
(EN/SERVICE/)
369
30-INCH FREE-
STANDING ELECTRIC
RANGE
Model No.
FGEH3047V
Publication No: 5995719530 FGEH3047V
BACKGUARD
01/20 2
FGEH3047V Publication No: 5995719530
BACKGUARD
POS. NO PART NO. DESCRIPTION
14 # 316022500 A B Light/Lamp, indicator, black, 125 V
19 5304518015 A - Control Panel, front, black stainless
19 5304521013 - B Control Panel, front, stainless
* 316021109 A B Screw, 8-18 x 0.5, chrome
20 # 5304523364 A B Controller, electronic, black, ES501E
20* 5304521041 A B Insulator, controller, w/adhesv tape
21 5304521020 A B Seal, control panel
22 5304521042 A - Bumper Guard, assembly, magnetic
36 5304521005 A - Knob, infinite switch, black stainless, single
36 5304521003 - B Knob, infinite switch, stainless, single
36A 5304521006 A - Knob, infinite switch, black stainless, dual
36A 5304521004 - B Knob, infinite switch, stainless, dual
36B 5304521008 A - Knob, infinite switch, black stainless, triple
36B 5304521007 - B Knob, infinite switch, stainless, triple
46 316557300 A B Lens-light/lamp, indicator, clear
54 # 316436000 A B Switch, infinite, small element
54A# 807004702 A B Switch, triple, infinite
54B# 5304522918 A B Switch, infinite, Radiant dual
69 5303288565 A B Screw, truss sqdr, 8-32 x 3/16, switch mtg
97 # 5304516862 A B Board, pc, oven relay
97* 5303289910 A B Screw, truss sqdr, 8A x 1", 62*
* # 5304522933 A B Harness, wiring, backsplash
* 5304520393 A B Spacer, foam block, 2" x 1", w/adhesive
Model Index: A FGEH3047V (FGEH3047VDB)
B FGEH3047V (FGEH3047VFB)
# Functional Parts 3 01/20
* Non-Illustrated Parts
Publication No: 5995719530 FGEH3047V
BODY
01/20 4
FGEH3047V Publication No: 5995719530
BODY
POS. NO PART NO. DESCRIPTION
1 5304514161 A B Back, main
3 316400136 A B Panel, bodyside, black, RH
3 316400137 A B Panel, bodyside, black, LH
4 5304514136 A B Plate, oven vent
4* 297174300 A B Screw, self pierce, #8, 18x.63
5 316272900 A B Screw, leveling, plastic, rear, (2)
5A 5304509869 A B Leveling Leg Assy, metal, front, (2), bracket & leg
* 316021132 A B Screw, 8-18 X 11/16, black, (3)
6 316498003 A B Rack, oven
8 316505601 A B Panel, oven bottom
8* 316064600 A B Support, oven bottom
8A 316505701 A B Base, bake element
8C 316505801 A B Support, element
9 5304494997 A B Broil Pan Kit, pan & insert, slate blue, Optional, accessory
12 # 316445501 A B Switch, oven light, door frame
14 # 316116400 A B Receptacle, oven light
15 316538904 A B Lamp, oven light
16 318406100 A B Lens, oven light, glass
17 316087500 A B Retainer, lens
18 # 316405800 A B Latch Assembly, oven door
* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black, 44*
21 316408000 A B Clip, bodyside
22 5304514125 A B Bracket, support, body side, (2)
22* 316279600 A B Screw, bracket, stiffener, (4)
27 316604100 A B Shield, warmer side, RH
27A 316604101 A B Shield, warmer side, LH
37 # 316490000 A B Probe, oven temp
40 316602600 A B Shield, warmer drawer
42 316601600 A B Shield, chassis, lower
43 3131732 A B Screw, 8-18 x 1.438, oven bottom
44 316517600 A B Bumper, front, main
55 5304514171 A B Duct, inlet air, front
56 5304514172 A B Duct, inlet air, rear
57 316283600 A B Cover, access
58 316403804 A B Insulation, oven sump
58A 316403700 A B Insulation, oven wrapper
58B 316403600 A B Insulation, oven back
58D 316509700 A B Insulation, oven bottom
59 5304514160 A B Tube, oven vent, upper
60 5304522591 A B Duct Assembly, cooling, toggle lock
62 # 5303935271 A B Terminal Block Kit
62* 316001003 A B Screw, ground wire
62* 316205500 A B Nut, hex flange, 3/8 10-32
62* 316542203 A B Insulator
63 316542600 A B Plate, grounding strap
66 # 316203301 A B Element, broil
67 # 316505500 A B Element, bake, 3000W
68 316429100 A B Support, element, broil
71 5304514174 A B Shield, wire, rear
Model Index: A FGEH3047V (FGEH3047VDB)
B FGEH3047V (FGEH3047VFB)
# Functional Parts 5 01/20
* Non-Illustrated Parts
Publication No: 5995719530 FGEH3047V
BODY
01/20 6
FGEH3047V Publication No: 5995719530
BODY
POS. NO PART NO. DESCRIPTION
72 5304514177 A B Spacer, wire shield, (2)
77 316456700 A B Glide, warmer drawer, outer/RH & LH, (2)
86 316508600 A B Receptacle, hinge, (2)
* 316418900 A B Screw, sims lp, #8-32 x 5/16", black
87 316081200 A B Bracket, cable mtg
88 316232702 A B Rod, auto latch
89 # 316464300 A B Motor-latch
106 316404100 A B Bracket, motor mtg.
107 316026701 A B Cover, fan
* 5303271648 A B Screw, wafer hd sq dr, 8-18AB x 0.5
108# 5304514166 A B Fan Assembly, cooling
109 318398302 A B Fan Blade
111 316136600 A B Nut, fan retainer
119# 318578506 A B Thermostat, safety, 105C
125# 316256100 A B Motor-fan
* 5303289910 A B Screw, truss sqdr, 8A x 1", 62*
151A 5304521158 A B Shield, bodyside
161# 5304518014 A B Element, convection, 900W
170 316112005 A B Anti Tip Kit, assy, w/template
170* 316107200 A B Bracket, anti-tip
170* 316116000 A B Screw, concrete, 1.75", anti-tip brkt
170* 316541700 A B Template, anti-tip
* # 5304518020 A B Harness, wiring, main
* # 5304518021 A B Harness, wiring, low voltage
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021109 A B Screw, 8-18 x 0.5, chrome
* 316089500 A B Screw, 10-16 x .486
* 5303288566 A B Screw, TR HD SQD AB, 8-18 x 0.25, (8)
Model Index: A FGEH3047V (FGEH3047VDB)
B FGEH3047V (FGEH3047VFB)
# Functional Parts 7 01/20
* Non-Illustrated Parts
Publication No: 5995719530 FGEH3047V

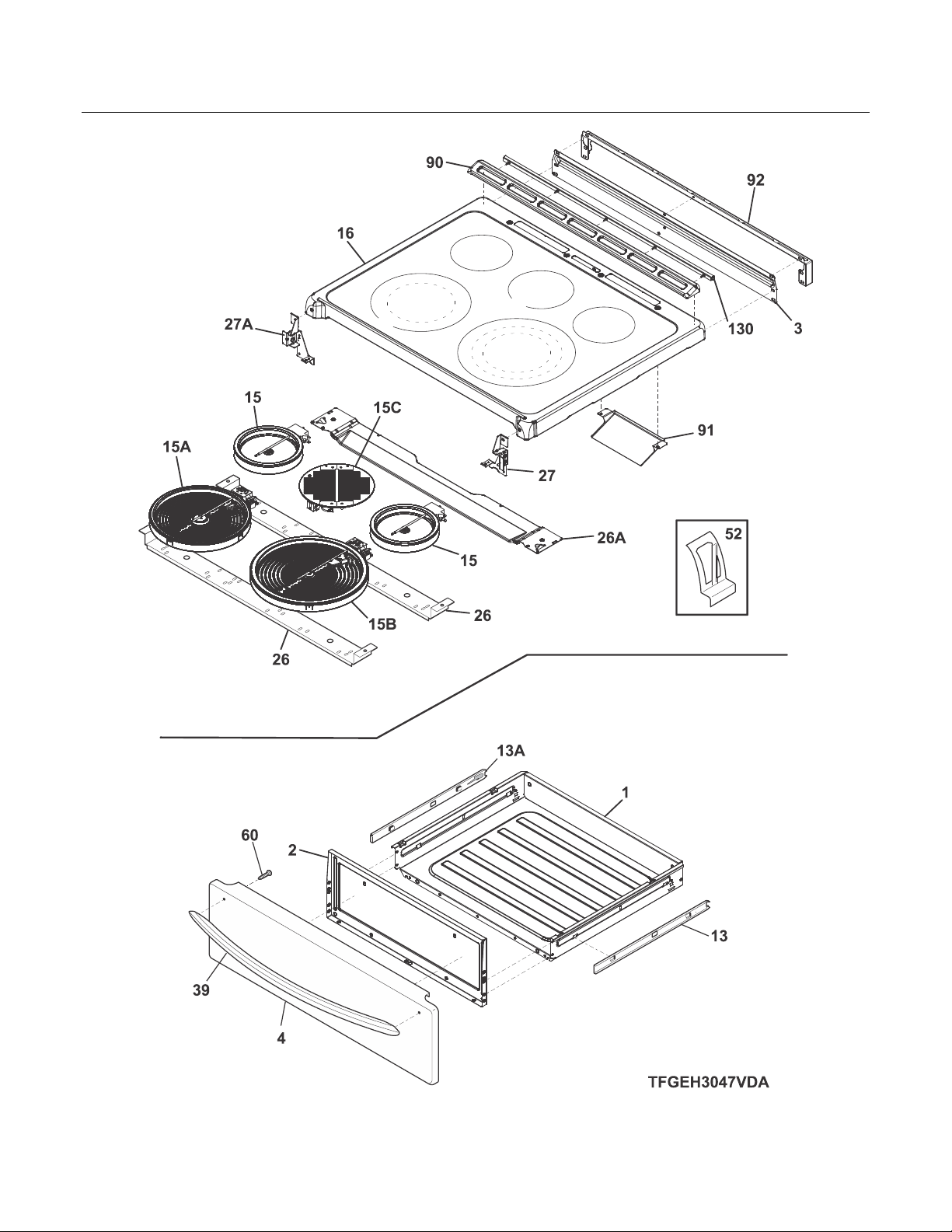

TOP/DRAWER
01/20 8
FGEH3047V Publication No: 5995719530
TOP/DRAWER
POS. NO PART NO. DESCRIPTION
1 807108405 A B Drawer, warmer
* 316089500 A B Screw, 10-16 x .486
2 5304518924 A B Liner, warmer
3 5304514133 A B Shield, rear wall, upper
4 5304517133 A - Panel, drawer, black stainless
4 5304517477 - B Panel, drawer, stainless
13 316415000 A B Glide, warmer, inner RH
13A 316415001 A B Glide, warmer, inner LH
15 # 318178110 A B Element, surface, 6", 1200, (2), radiant
15A# 5304516844 A B Element, dual, 9/6", surface, 1400/3200W
15B# 318297810 A B Element, triple, 1200/2000/3000W, 6"/9"/12"
15C# 5304521951 A B Element, warmer, 100 W
16 5304516852 A B Smoothtop, assembly, glass/steel, black
26 5304512926 A B Channel, element support
26A 5304514126 A B Bracket, support, rear, chassis
27 5304514123 A B Bracket, mounting, RH, cooktop
27A 5304514124 A B Bracket, mounting, LH, cooktop
* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black, 44*
39 5304518030 A - Handle, door/drawer, black stainless
39 5304518029 - B Handle, door/drawer, stainless
52 316461700 A B Clip, element mtg
52* 5308014215 A B Screw, 6-20 x 0.312
60 5303288572 A B Screw-handle mtg
90 5304514157 A B Trim, vent, black, rear
91 5304514181 A B Deflector, moisture, (2)
92 5304520261 A B Rear Filler Kit, FCFS range, black
130 808931802 A B Seal, maintop, silicone, rear
* # 5304516837 A B Harness, wiring, surface
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021109 A B Screw, 8-18 x 0.5, chrome
Model Index: A FGEH3047V (FGEH3047VDB)
B FGEH3047V (FGEH3047VFB)
# Functional Parts 9 01/20
* Non-Illustrated Parts
Publication No: 5995719530 FGEH3047V
DOOR
01/20 10
FGEH3047V Publication No: 5995719530
DOOR
POS. NO PART NO. DESCRIPTION
3 5303935378 A B Trim kit-door, 3 sided, black, w/tape
4 316355501 A B Glass Assembly, door, black, outer, w/foil
6 316402315 A B Shield, wool
7 316403900 A B Insulation, oven door
7A 5304518033 A B Insulation, door liner, top
8 316117506 A B Glass, oven door, inner
9 316423814 A B Liner, oven door
10 316513301 A B Screw, handle mtg, 10-24 x 2.188, (2)
12 5304498835 A B Seal, oven door
17 5304504811 A B Spacer, glass
20 316353004 A B Spacer, door, RH
20A 316353005 A B Spacer, door, LH
23 5304521043 A B Hinge, door, orange, dual spring
23* 316418900 A B Screw, sims lp, #8-32 x 5/16", black
39 5304518030 A - Handle, door/drawer, black stainless
39 5304518029 - B Handle, door/drawer, stainless
51 316355300 A B Insulation, door, top cap
52 5304518017 A - Door Cap, assembly, black stainless, insul & spacers
52 5304518016 - B Door Cap, assembly, stainless, insul & spacers
60B 316021109 A B Screw, 8-18 x 0.5, chrome
* 316483102 A B Label, anti-tip
Model Index: A FGEH3047V (FGEH3047VDB)
B FGEH3047V (FGEH3047VFB)
# Functional Parts 11 01/20
* Non-Illustrated Parts
