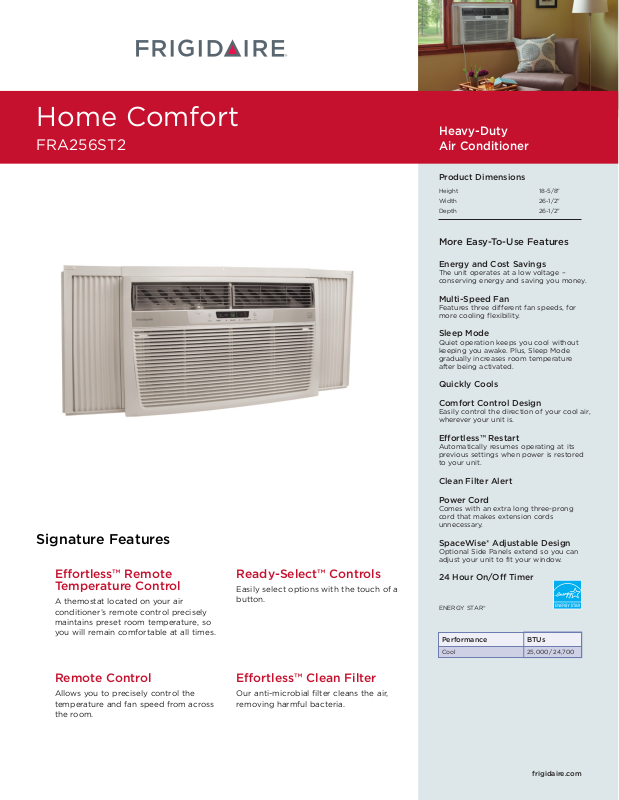

Frigidaire FRA256ST2 User Manual
Home Comfort
FRA256ST2
Signature Features
Effortless™ Remote
Temperature Control
A themostat located on your air conditioner’s remote control precisely maintains preset room temperature, so you will remain comfortable at all times.
Ready-Select™ Controls
Easily select options with the touch of a button.
Remote Control |
Effortless™ Clean Filter |
Allows you to precisely control the |
Our anti-microbial filter cleans the air, |
temperature and fan speed from across |
removing harmful bacteria. |
the room. |
|
Heavy-Duty
Air Conditioner
Product Dimensions
Height |
18-5/8" |
Width |
26-1/2" |
Depth |
26-1/2" |
|
|
More Easy-To-Use Features
Energy and Cost Savings
The unit operates at a low voltage – conserving energy and saving you money.
Multi-Speed Fan
Features three different fan speeds, for more cooling flexibility.
Sleep Mode
Quiet operation keeps you cool without keeping you awake. Plus, Sleep Mode gradually increases room temperature after being activated.
Quickly Cools
Comfort Control Design
Easily control the direction of your cool air, wherever your unit is.
Effortless™ Restart
Automatically resumes operating at its previous settings when power is restored to your unit.
Clean Filter Alert
Power Cord
Comes with an extra long three-prong cord that makes extension cords unnecessary.
SpaceWise® Adjustable Design
Optional Side Panels extend so you can adjust your unit to fit your window.
24 Hour On/Off Timer
ENERGY STAR®
Performance |
BTUs |
Cool |
25,000 / 24,700 |
|
|
frigidaire.com
Home Comfort
FRA256ST2 Heavy-Duty Air Conditioner
Performance |
|
|
|
|
BTU (Cool) |
25,000 / 24,700 |
|
|
|
Dehumidification (Pints / Hour) |
8.0 |
|
|
|
Cool Area (Sq. Ft.) |
1,672 |
|
|
|
Energy Efficiency Ratio |
9.4 |
|
|
|
Electrical |
|
|
|
|
Volts |
230 / 208 |
|
|
|
Amps (Cool) |
12.0 / 13.0 |
|
|
|
Watts (Cool) |
2,660 / 2,630 |
|
E |
|
Length of Power Cord (Min. / Max.) |
5' / 6' |
|
||
Plug Type (NEMA)* |
LCDI (C) |
|
|
|
Features |
|
|
|
|
Electronic Controls |
Ready-Select™ Controls |
|
|
|
Fan Speeds (Cool / Fan) |
3 / 3 |
|
|
|
Low Voltage Start-Up |
Yes |
|
|
|
Auto Cool Function |
Yes |
|
|
|
Energy Save |
Yes |
D |
|
|
Sleep Mode |
Yes |
A |
||
|
||||
Filter Check |
Yes |
|
|
|
24 Hour On / Off Timer |
Yes |
|
|
|
Clean Air Ionizer |
Yes |
|
|
|
Remote Control |
Full-Function Remote T’Stat |
|
|
|
Air CFM (High / Med / Low) |
523 / 482 / 438 |
|
|
|
Air Direction Control |
Auger Multi-Direction |
|
|
|
Fresh Air / Exhaust Vent / Closed |
Yes / Yes / Yes |
|
B |
|
Filter Type |
Antimicrobial Mesh |
|
||
|
C |
|||
Filter Access |
Tilt-Out |
|
||
|
|
|||
Slide-Out Chassis |
Yes |
F |
|
|
Cabinet Louvers |
Yes |
|
|
|
Rear Grille |
Yes |
|
|
|
Window Mounting Kit (Included) |
Pleated Quick Mount |
|
|
|
Certifications |
|
|
|
|
ENERGY STAR® |
Yes |
|
|
|
Performance |
AHAM |
|
|
|
Specifications |
|
|
|
|
Refrigerant |
R410a |
|
|
|
Shipping Weight (Approx.) |
138 Lbs. |
|
|
*Plug Type (NEMA)
(C) 6-20P
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions |
|
A - Height |
18-5/8" |
B - Width |
26-1/2" |
C - Depth |
26-1/2" |
|
|
Window Dimensions |
|
D - Height (Min.) |
19-1/2" |
E - Width (Min. / Max.) |
31" / 42" |
Wall Cutout Dimensions |
|
F - Max. Wall Thickness |
10" |
Height |
18-5/16" |
Width |
26-3/4" |
|
|
Accessories information available on the web at frigidaire.com
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com |
Specifications |
|
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca |
||
subject to change. |
FRA256ST2 10/10 |
© 2010 Electrolux Home Products, Inc. |
Printed in the U.S.A. |
