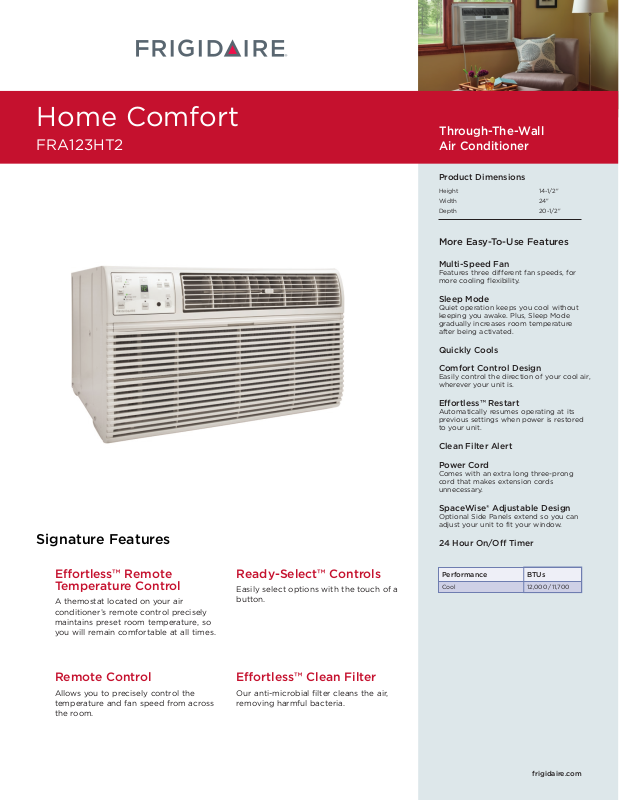

Frigidaire FRA123HT2 DATASHEET
Home Comfort
FRA123HT2
Through-The-Wall
Air Conditioner
Product Dimensions
Height 14-1/2"
Width 24"
Depth 20-1/2"
More Easy-To-Use Features
Multi-Speed Fan
Features three different fan speeds, for
more cooling flexibility.
Sleep Mode
Quiet operation keeps you cool without
keeping you awake. Plus, Sleep Mode
gradually increases room temperature
after being activated.
Quickly Cools
Comfort Control Design
Easily control the direction of your cool air,
wherever your unit is.
Eortless™ Restart
Automatically resumes operating at its
previous settings when power is restored
to your unit.
Signature Features
Eortless™ Remote
Temperature Control
A themostat located on your air
conditioner’s remote control precisely
maintains preset room temperature, so
you will remain comfortable at all times.
Remote Control
Allows you to precisely control the
temperature and fan speed from across
the room.
Ready-Select™ Controls
Easily select options with the touch of a
button.
Eortless™ Clean Filter
Our anti-microbial filter cleans the air,
removing harmful bacteria.
Clean Filter Alert
Power Cord
Comes with an extra long three-prong
cord that makes extension cords
unnecessary.
SpaceWise® Adjustable Design
Optional Side Panels extend so you can
adjust your unit to fit your window.
24 Hour On/O Timer
Performance
Cool
BTUs
12,000 / 11,700
frigidaire.com
D
A
C
B
Lock Clip
Sleeve-to-Unit Seal
Building Construction Support
Outside
Closure
Panel
Adjustable
Mounting
Brackets
Inside
Closure
Panel
Performance
*Plug Type (NEMA)
(B) 6-15P
BTU (Cool)
Dehumidification (Pints / Hour)
Cool Area (Sq. Ft.)
Energy Eciency Ratio
Electrical
Volts
Amps (Cool)
Watts (Cool)
Length of Power Cord
Plug Type (NEMA)*
Features
Electronic Controls
Fan Speeds (Cool / Fan)
Low Voltage Start-Up
Auto Cool Function
Energy Save
Sleep Mode
Filter Check
24 Hour On / O Timer
Clean Air Ionizer
Remote Control
Air CFM (High / Med / Low)
Air Direction Control
Fresh Air / Exhaust Vent / Closed
Filter Type
Filter Access
Slide-Out Chassis
Cabinet Louvers
Rear Grille
Window Mounting Kit
Optional Accessories
Window Mount Kit
Outside Grille
Certifications
Performance
Specifications
Refrigerant
Shipping Weight (Approx.)
12,000 / 11,700
3.5
640
9.0
230 / 208
5.9 / 6.6
1,335 / 1,300
6'
LCDI (B)
Ready-Select™ Controls
3 / 3
Yes
Yes
Yes
Yes
Yes
Yes
Full-Function Remote T’Stat
305 / 279 / 255
4-Way
No / No / Yes
Antimicrobial Mesh
Slide-Out
Yes
Universal Trim Kit
EA102T
EA109T
AHAM
R410a
82 Lbs.
Home Comfort
FRA123HT2 Through-The-Wall Air Conditioner
Sleeve Kit EA102T
•
USA
CANADA
FRA123HT2 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
10200 David Taylor Drive
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
D - Max. Wall Thickness
•
frigidaire.com
•
frigidaire.ca
14-1/2"
24"
20-1/2"
18"
Wall Cutout Dimensions
Height
Width
Accessories information available
on the web at frigidaire.com
15-1/4"
25-1/2"
Specifications
subject to change.
