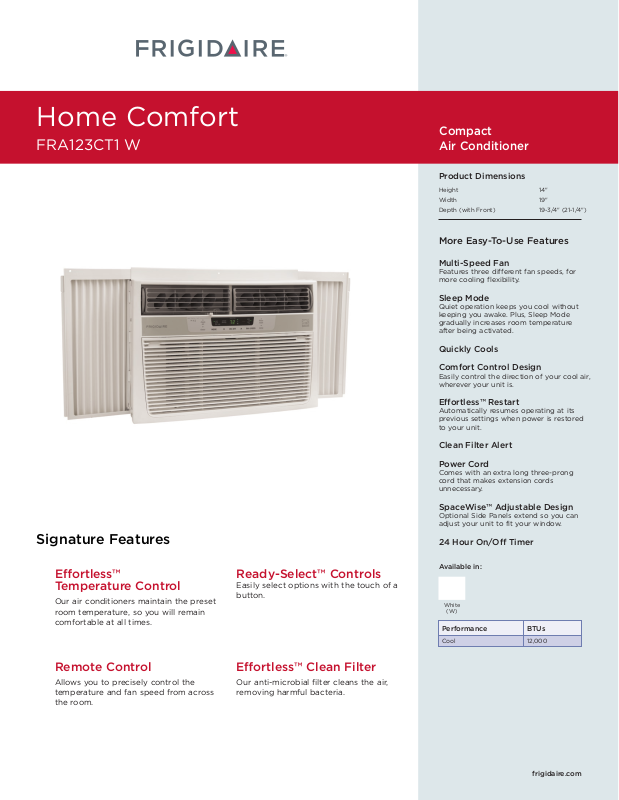

Frigidaire FRA123CT1 W DATASHEET
Home Comfort
FRA123CT1 W
Compact
Air Conditioner
Product Dimensions
Height 14"
Width 19"
Depth (with Front) 19-3/4" (21-1/4")
More Easy-To-Use Features
Multi-Speed Fan
Features three different fan speeds, for
more cooling flexibility.
Sleep Mode
Quiet operation keeps you cool without
keeping you awake. Plus, Sleep Mode
gradually increases room temperature
after being activated.
Quickly Cools
Comfort Control Design
Easily control the direction of your cool air,
wherever your unit is.
Eortless™ Restart
Automatically resumes operating at its
previous settings when power is restored
to your unit.
Signature Features
Eortless™
Temperature Control
Our air conditioners maintain the preset
room temperature, so you will remain
comfortable at all times.
Remote Control
Allows you to precisely control the
temperature and fan speed from across
the room.
Ready-Select™ Controls
Easily select options with the touch of a
button.
Eortless™ Clean Filter
Our anti-microbial filter cleans the air,
removing harmful bacteria.
Clean Filter Alert
Power Cord
Comes with an extra long three-prong
cord that makes extension cords
unnecessary.
SpaceWise™ Adjustable Design
Optional Side Panels extend so you can
adjust your unit to fit your window.
24 Hour On/O Timer
Available in:
White
(W)
Performance
Cool
BTUs
12,000
frigidaire.com
C
B
A
E
D
*Plug Type (NEMA)
(A) 5-15P
Features
BTU (Cool)
Dehumidification (Pints / Hour)
Cool Area (Sq. Ft.)
Energy Eciency Ratio
Electrical
Volts
Amps (Cool)
Watts (Cool)
Length of Power Cord (Min. / Max.)
Plug Type (NEMA)*
Features
Electronic Controls
Fan Speeds (Cool / Fan)
Low Voltage Start-Up
Auto Cool Function
Energy Save
Sleep Mode
Filter Check
24 Hour On / O Timer
Clean Air Ionizer
Remote Control
Air CFM (High / Med / Low)
Air Direction Control
Fresh Air / Exhaust Vent / Closed
Filter Type
Filter Access
Slide-Out Chassis
Cabinet Louvers
Rear Grille
Window Mounting Kit (Included)
Certifications
Performance
Specifications
Refrigeration
Shipping Weight (Approx.)
Home Comfort
FRA123CT1 W Compact Air Conditioner
12,000
3.8
640
9.8
115
11.0
1,220
6' / 6.5'
LCDI (A)
Ready-Select™ Controls
3 / 3
Yes
Yes
Yes
Yes
Yes
Yes
Full-Function
264 / 242 / 200
8-Way
Yes / Yes / Yes
Antimicrobial Mesh
Tilt-Out
Yes
Pleated Quick Mount
AHAM
R410a
74 Lbs.
•
USA
CANADA
FRA123CT1 03/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
250 Bobby Jones Expressway
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE
•
1-800-265-8352
NOTE: Always consult local and national electric codes. Refer to Product Installation
Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth (with Front)
•
frigidaire.com
•
frigidaire.ca
14"
19"
19-3/4" (21-1/4")
Window Dimensions
D -Height (Min.)
E -Width (Min. / Max.)
15-1/2"
23" / 36"
Specifications
subject to change.
