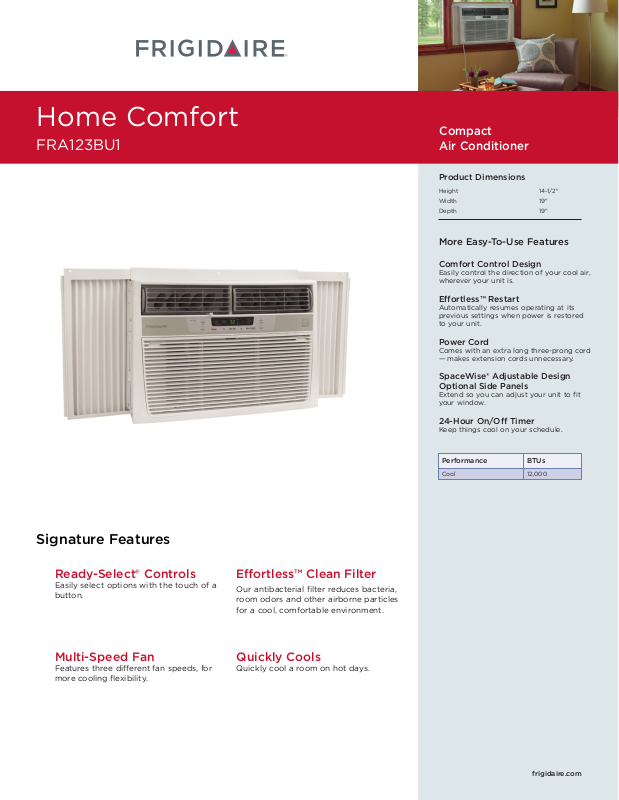

Frigidaire FRA123BU1 User Manual
Home Comfort
FRA123BU1
Compact
Air Conditioner
Product Dimensions
Height 14-1/2"
Width 19"
Depth 19"
More Easy-To-Use Features
Comfort Control Design
Easily control the direction of your cool air,
wherever your unit is.
Eortless™ Restart
Automatically resumes operating at its
previous settings when power is restored
to your unit.
Power Cord
Comes with an extra long three-prong cord
— makes extension cords unnecessary.
SpaceWise® Adjustable Design
Optional Side Panels
Extend so you can adjust your unit to fit
your window.
Signature Features
Ready-Select® Controls
Easily select options with the touch of a
button.
Multi-Speed Fan
Features three different fan speeds, for
more cooling flexibility.
Eortless™ Clean Filter
Our antibacterial filter reduces bacteria,
room odors and other airborne particles
for a cool, comfortable environment.
Quickly Cools
Quickly cool a room on hot days.
24-Hour On/O Timer
Keep things cool on your schedule.
Performance
Cool
BTUs
12,000
frigidaire.com
C
B
A
E
D
Plug Type (NEMA)
5-15P
Performance
BTU (Cool)
Dehumidification (Pints / Hour)
Cool Area (Sq. Ft.)
Energy Eciency Ratio
12,000
3.8
640
9.8
Electrical
Volts
Amps (Cool)
Watts (Cool)
Length of Power Cord (Min. / Max.)
Plug Type (NEMA)
115
11.0
1,220
6' / 6.5'
LCDI (5-15P)
Features
Electronic Controls
Fan Speeds (Cool / Fan)
Low Voltage Start-Up
Auto Cool Function
Energy Save
Sleep Mode
Filter Check
24-Hour On / O Timer
Clean Air Ionizer
Remote Control
Air CFM (High / Med / Low)
Air Direction Control
Fresh Air / Exhaust Vent / Closed
Filter Type
Filter Access
Slide-Out Chassis
Window Mounting Kit (Included)
1
Warranty
Ready-Select® Controls
3 / 3
Yes
Yes
264 / 242 / 202
8-Way
Yes / Yes / Yes
Antibacterial Mesh
Tilt-Out
Pleated Quick Mount
Yes
Certifications
Performance
AHAM
Specifications
Refrigerant
Shipping Weight (Approx.)
1
Warranty 5 year sealed system / 1 year full parts and labor.
R410a
74 Lbs.
Home Comfort
FRA123BU1 Compact Air Conditioner
USA
CANADA
FRA123BU1 04/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
•
10200 David Taylor Drive
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
•
frigidaire.com
•
frigidaire.ca
14-1/2"
19"
19"
Window Dimensions
D -Height (Min.)
E -Width (Min. / Max.)
Accessories information available
on the web at frigidaire.com
15-1/2"
23" / 36"
Specifications
subject to change.
