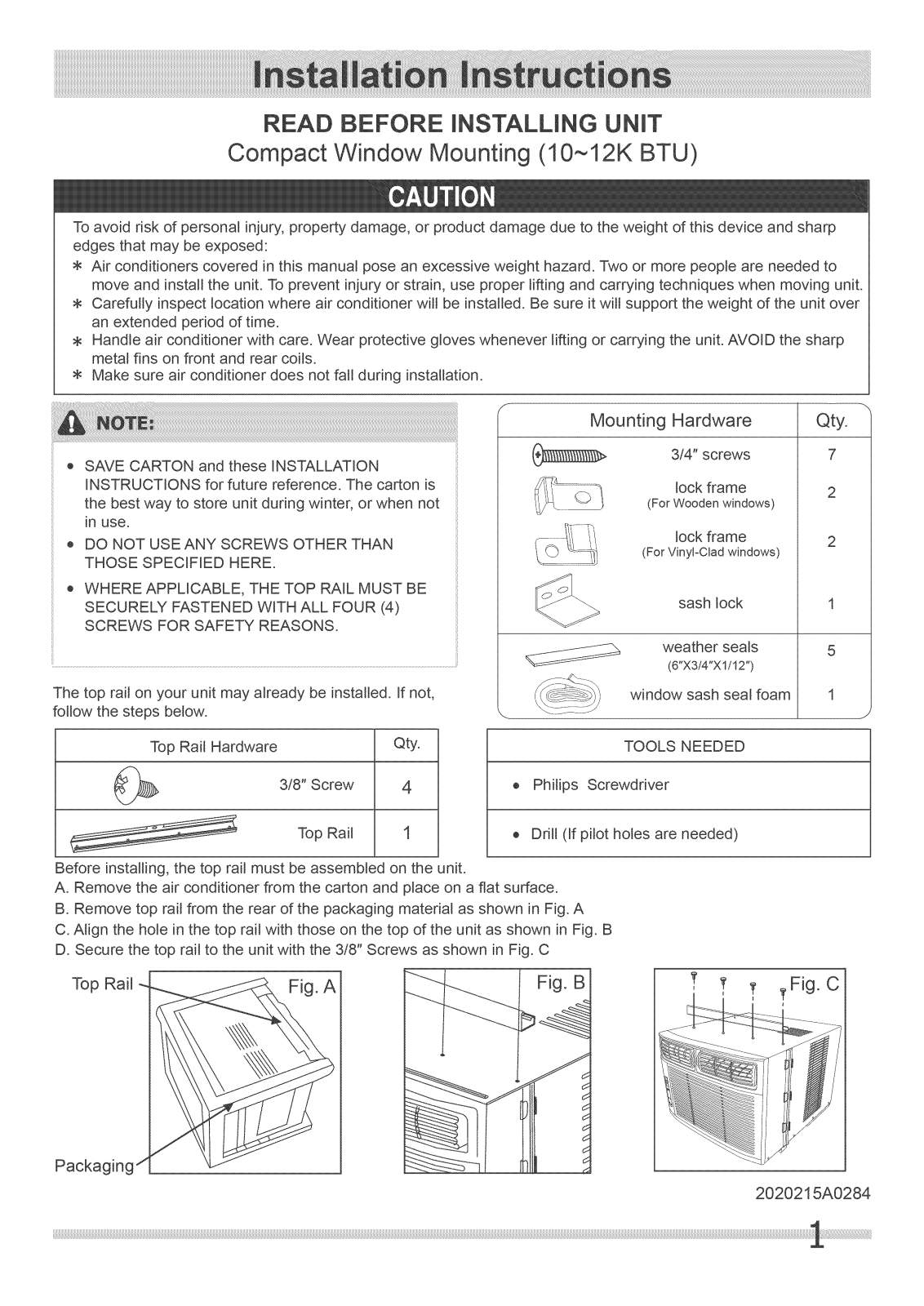

Frigidaire FRA122CT13, LRA107CT10, LRA107CT11, LRA107CT12, LRA107CT13 Installation Guide

READ BEFORE INSTALLING UNIT

Compact Window Mounting (10~I2K BTU)

To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp
edges that may be exposed:

Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to
move and install the unit. To prevent injury or strain, use proper lifting and carrying techniques when moving unit.
Carefully inspect _ocation where air conditioner will be installed. Be sure it will support the weight of the unit over
an extended period of time.
Handle air conditioner with care. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp

metal fins on front and rear coils.
Make sure air conditioner does not fall during installation.

Mounting Hardware

o SAVE CARTON and these INSTALLATION

INSTRUCTIONS for future reference. The carton is

the best way to store unit during winter, or when not

in use.

® DO NOT USE ANY SCREWS OTHER THAN

THOSE SPECIFIED HERE.
WHERE APPLICABLE, THE TOP RAIL MUST BE

SECURELY FASTENED WITH ALL FOUR (4)
SCREWS FOR SAFETY REASONS.

The top rai_on your unit may already be installed. If not,
follow the steps below.

Top Rail Hardware Qty.

3/8" Screw

Top Rail 1

Before instaIHng, the top rai_ must be assembled on the unit.

A. Remove the air conditioner from the carton and place on a flat surface.

B. Remove top rail from the rear of the packaging material as shown in Fig. A

C. Align the hole in the top raiJwith those on the top of the unit as shown in Fig. B

D. Secure the top rail to the unit with the 3/8" Screws as shown in Fig. C

4

® PNips Screwdriver

o Drill (If pilot holes are needed)

3/4" screws

lock frame

(For Wooden windows)

lock frame

(For Vinyl-Clad windows)

sashlock

weather seals

(6"X314"XlI12")

window sash seal foam

TOOLS NEEDED

Qty.

7

2

2

5

Top Rail Fig. A _--_-_ Fig. B

Packaginc

2020215A0284

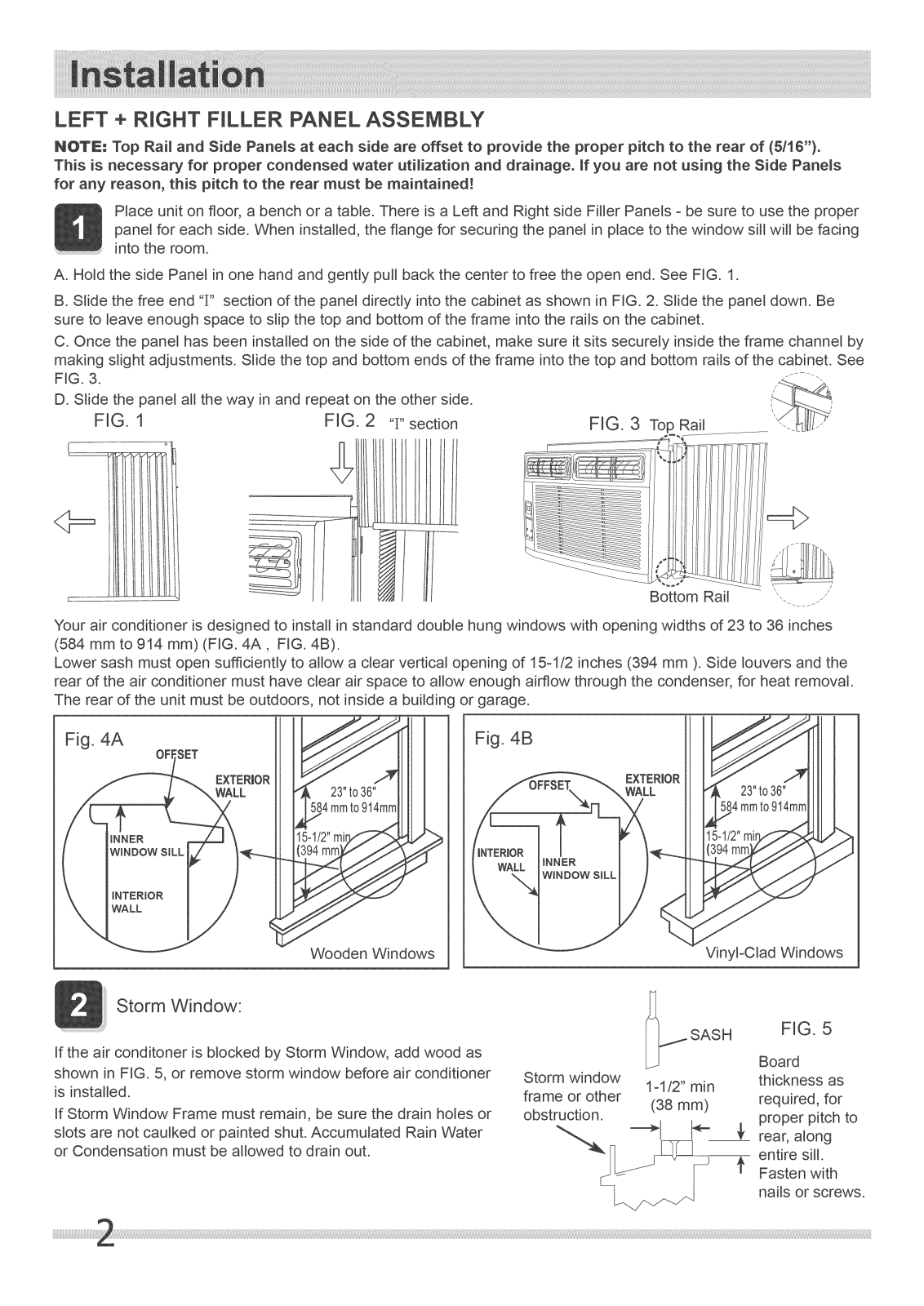

LEFT + RIGHT FILLER PANEL ASSEMBLY

NOTE; Top Rail and Side Pane_s at each side are offset to provide the proper pitch to the rear of (5/16").
This is necessary for proper condensed water utilization and drainage. If you are not using the Side Panels

for any reason, this pitch to the rear must be maintained!

Place unit on floor, a bench or a table. There is a Left and Right side Filler Panels - be sure to use the proper
panel for each side. When installed, the flange for securing the pane_ in place to the window sill will be facing

into the room.

A. Hold the side Pane_ in one hand and gently pull back the center to free the open end. See FIG. 1.

B. Slide the free end "]" section of the pane_ directly into the cabinet as shown in FIG. 2. Slide the pane_ down. Be
sure to leave enough space to s_ipthe top and bottom of the frame into the rails on the cabinet.

C. Once the panel has been installed on the side of the cabinet, make sure it sits securely inside the frame channe_ by
making slight adjustments. Slide the top and bottom ends of the frame into the top and bottom rails of the cabinet. See

FIG. 3.
D. Slide the panel aHthe way in and repeat on the other side.

FIG° 1 FIG. 2 ,,][,,section

FIG. 3 Top Rail

Your air conditioner is designed to install in standard double hung windows with opening widths of 23 to 36 inches
(584 mm to 914 mm) (FIG. 4A _ FIG. 4B).
Lower sash must open sufficiently to allow a c_ear vertical opening of 15o1/2 inches (394 mm ). Side louvers and the
rear of the air conditioner must have dear air space to allow enough airflow through the condenser, for heat removal
The rear of the unit must be outdoors, not inside a building or garage.

Fig. 4A _[[11 I Fig. 4B

OFI

EXTERIOR

EXTERIOR

WALL 23"t036" IIII I

WALL

Wooden Windows

Vinyl-Clad Windows

Storm Window:

FIG. 5

If the air conditoner is blocked by Storm Window, add wood as
shown in FIG. 5, or remove storm window before air conditioner

is installed.
If Storm Window Frame must remain, be sure the drain holes or

slots are not caulked or painted shut. Accumulated Rain Water
or Condensation must be allowed to drain out.

Storm window
frame or other
obstruction.

!_._ SASH

1-1/2" min

(38 mm)

Board

thickness as

required, for
proper pitch to

rear, along

entire sill.

'_ Fasten with

nails or screws.
