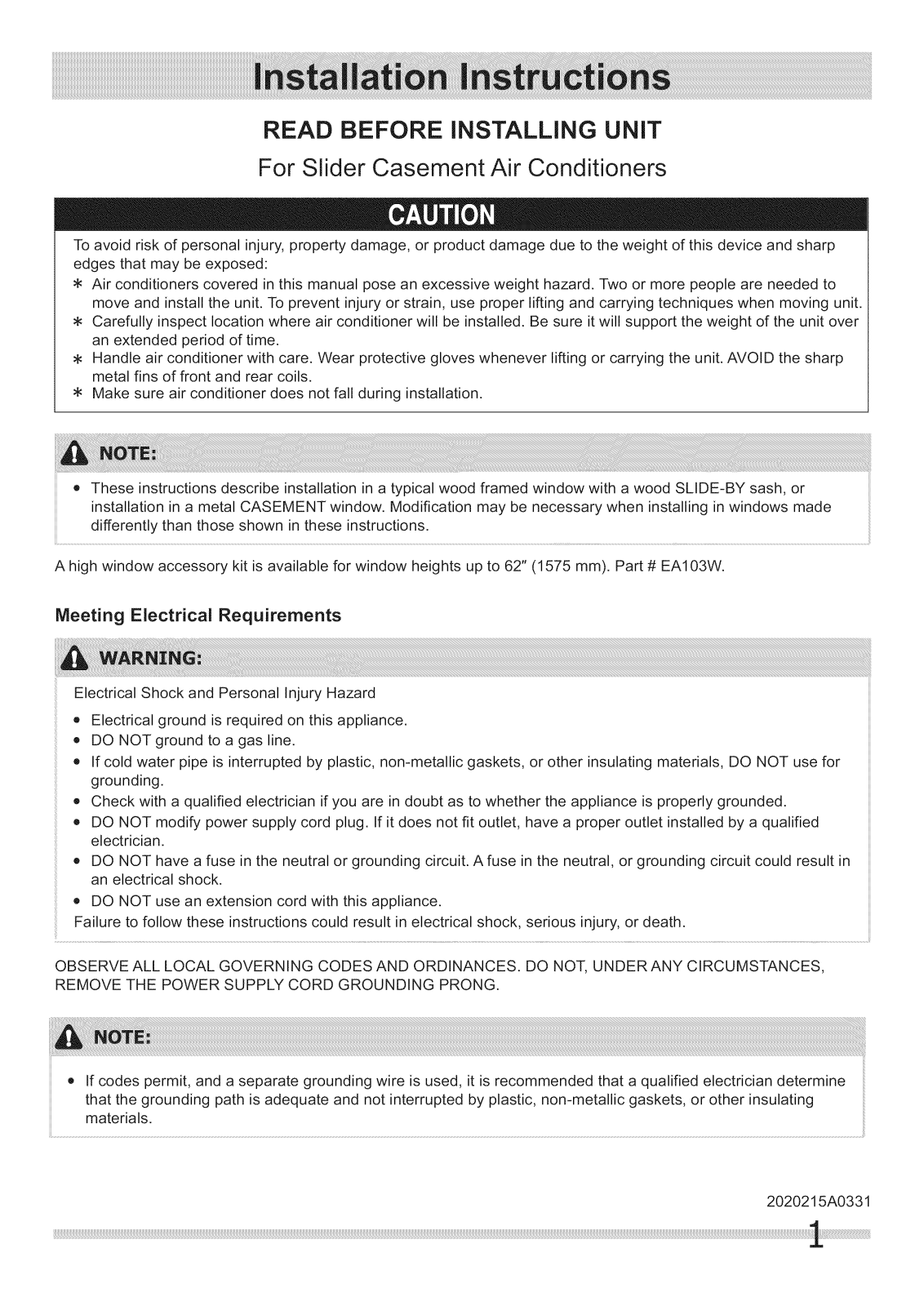

Frigidaire FAK085T7V0, FAK085T7V1, FAK104T1V0, FAK104T1V1, FAK124T1V0 Installation Guide

...

READ BEFORE iNSTALLiNG UNiT

For Slider Casement Air Conditioners

To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp edges that may be exposed:

Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to

move and install the unit. To prevent injury or strain, use proper lifting and carrying techniques when moving unit. Carefully inspect location where air conditioner will be installed. Be sure it will support the weight of the unit over an extended period of time.

Handle air conditioner with care. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp

metal fins of front and rear coils.

Make sure air conditioner does not fall during installation.

• These instructions describe installation in a typical wood framed window with a wood SLIDE-BY sash, or installation in a metal CASEMENT window. Modification may be necessary when installing in windows made

differently than those shown in these instructions.

A high window accessory kit is available for window heights up to 62" (1575 mm). Part # EA103W.

Meeting Electrical Requirements

Electrical Shock and Personal Injury Hazard

• Electrical ground is required on this appliance.

o DO NOT ground to a gas line.

• If cold water pipe is interrupted by plastic, non-metallic gaskets, or other insulating materials, DO NOT use for

grounding.

• Check with a qualified electrician if you are in doubt as to whether the appliance is properly grounded.

• DO NOT modify power supply cord plug. If it does not fit outlet, have a proper outlet installed by a qualified electrician.

o DO NOT have a fuse in the neutral or grounding circuit. Afuse in the neutral, or grounding circuit could result in

an electrical shock.

• DO NOT use an extension cord with this appliance.

Failure to follow these instructions could result in electrical shock, serious injury, or death.

OBSERVE ALL LOCAL GOVERNING CODES AND ORDINANCES. DO NOT, UNDERANY CIRCUMSTANCES,

REMOVE THE POWER SUPPLY CORD GROUNDING PRONG.

• If codes permit, and a separate grounding wire is used, it is recommended that a qualified electrician determine that the grounding path is adequate and not interrupted by plastic, non-metallic gaskets, or other insulating

materials.

2020215A0331

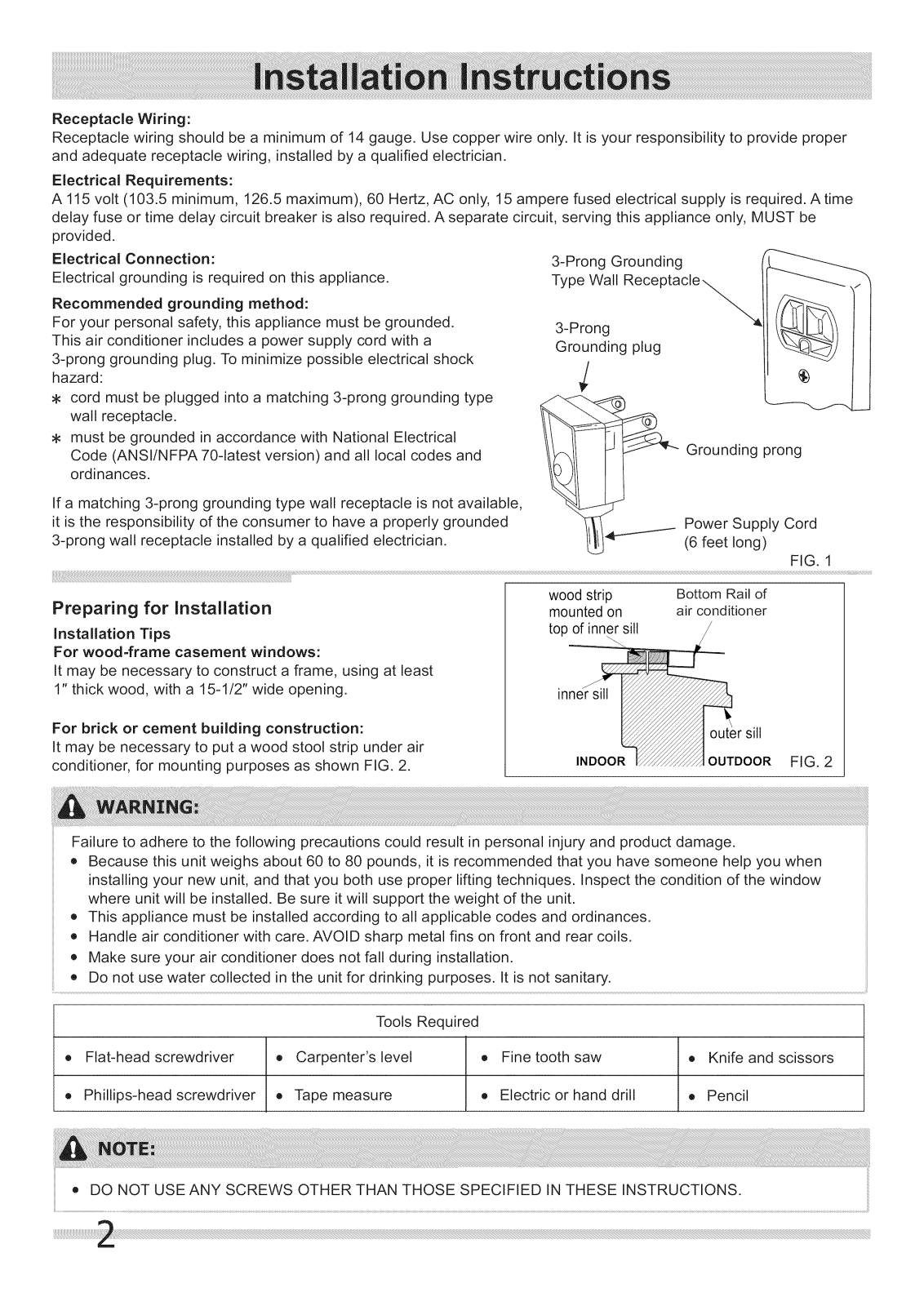

ReceptacleWiring: Receptaclewiringshouldbea minimumof14gauge.Usecopperwireonly.Itisyourresponsibilitytoprovideproper

andadequatereceptaclewiring,installedbya qualifiedelectrician.

ElectricalRequirements: A115volt(103.5minimum,126.5maximum),60Hertz,AConly,15amperefusedelectricalsupplyisrequired.Atime delayfuseortimedelaycircuitbreakerisalsorequired.Aseparatecircuit,servingthisapplianceonly,MUSTbe

provided.

ElectricalConnection:

3-ProngGrounding

Electricalgroundingisrequiredonthisappliance.

Recommendedgroundingmethod:

Foryourpersonalsafety,thisappliancemustbegrounded. Thisairconditionerincludesapowersupplycordwitha

TypeWallReceptacle_

3-Prong Grounding plug

3-pronggroundingplug.Tominimizepossibleelectricalshock

hazard:

cordmustbepluggedintoa matching3-pronggroundingtype wallreceptacle.

mustbegroundedinaccordancewithNationalElectrical Code(ANSI/NFPA70-latestversion)andalllocalcodesand ordinances.

Grounding prong

Ifamatching3-pronggroundingtypewallreceptacleisnotavailable, itistheresponsibilityoftheconsumertohavea properlygrounded

3-prongwallreceptacleinstalledbyaqualifiedelectrician.

Power Supply Cord (6 feet long)

FIG. 1

wood strip Bottom Rail of

Preparing for Installation

Installation Tips

For wood=frame casement windows: It may be necessary to construct a frame, using at least

1" thick wood, with a 15-1/2" wide opening.

For brick or cement building construction: It may be necessary to put a wood stool strip under air

conditioner, for mounting purposes as shown FIG. 2.

Failure to adhere to the following precautions could result in personal injury and product damage.

• Because this unit weighs about 60 to 80 pounds, it is recommended that you have someone help you when

installing your new unit, and that you both use proper lifting techniques. Inspect the condition of the window where unit will be installed. Be sure it will support the weight of the unit. This appliance must be installed according to all applicable codes and ordinances. Handle air conditioner with care. AVOID sharp metal fins on front and rear coils.

Make sure your air conditioner does not fall during installation. Do not use water collected in the unit for drinking purposes. It is not sanitary.

Tools Required

mounted on air conditioner

top of inner sill

inner sl

;r silt

INDOOR

OUTDOOR FIG. 2

Flat-head screwdriver • Carpenter's level • Fine tooth saw • Knife and scissors

Phillips-head screwdriver ® Tape measure • Electric or hand drill • Pencil

® DO NOT USE ANY SCREWS OTHER THAN THOSE SPECIFIED IN THESE INSTRUCTIONS.

O Make sure you have all the necessary parts.

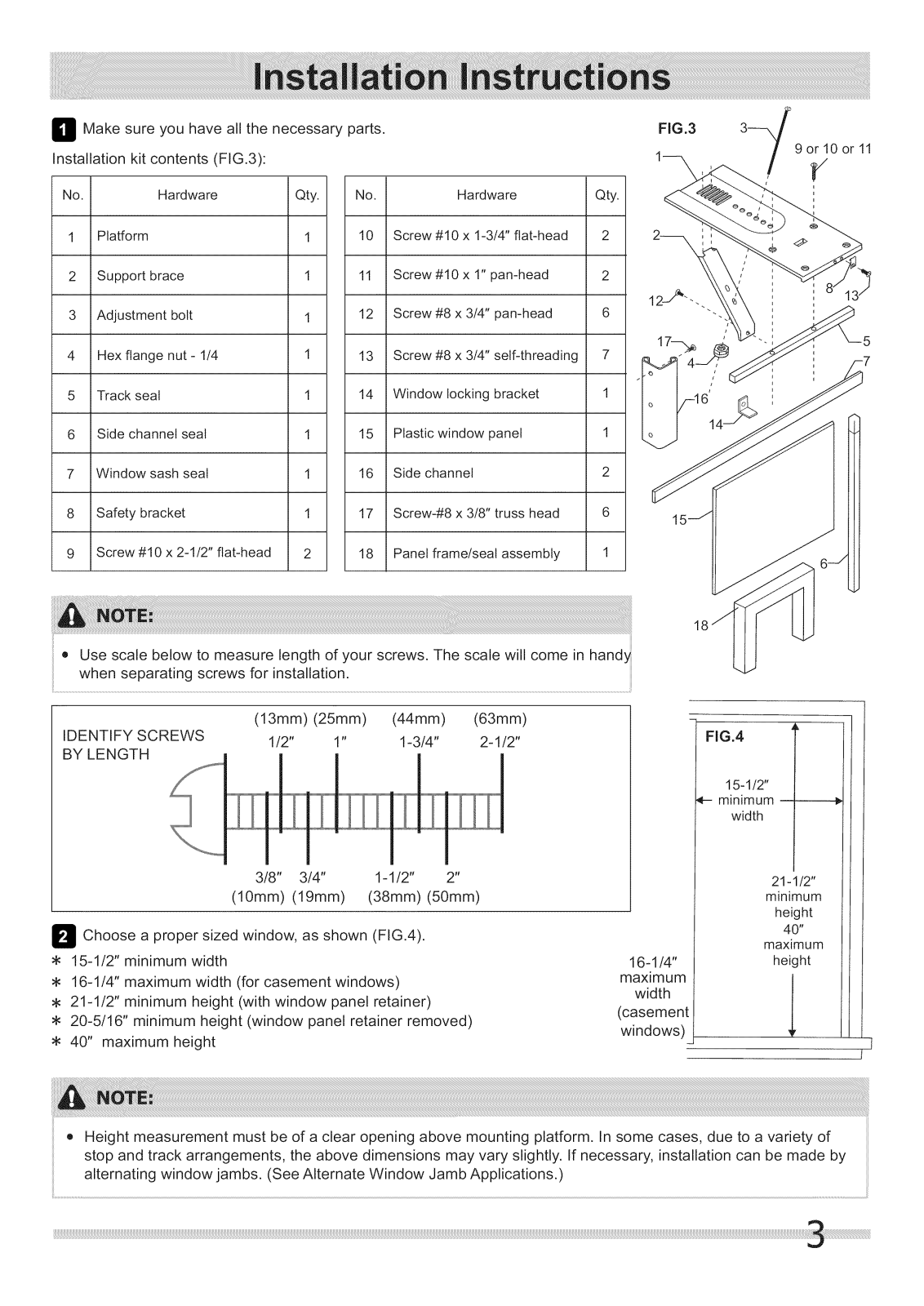

Installation kit contents (FIG.3):

No. Hardware

Qty. No.

Hardware

FIG.3

9 or 10 or 11

Qty.

1 Platform

2 Support brace

3 Adjustment bolt

4 Hex flange nut- 1/4

5 Track seat

6 Side channel seat

7 Window sash seat

8 Safety bracket

9 Screw #10 x 2-1/2" flat-head

• Use scale below to measure length of your screws. The scale will come in handy when separating screws for installation.

1 10

1 11

1 12

1 13

1 14

1 15

1 16

1 17

2 18

Screw #10 x 1-3/4" flat-head

Screw #10 x 1" pan-head

Screw #8 x 3/4" pan-head

Screw #8 x 3/4" self-threading

Window locking bracket

Plastic window panel

Side channel

Screw-#8 x 3/8" truss head

Panel frame/seal assembly

(13mm) (25mm) (44mm) (63mm)

IDENTIFY SCREWS

BY LENGTH

_ Choose a sized window, as shown

15-1/2" minimum width 16-1/4" maximum width (for casement windows)

21-1/2" minimum height (with window panel retainer) 20-5/16" minimum height (window panel retainer removed)

40" maximum height

• Height measurement must be of a clear opening above mounting platform. In some cases, due to a variety of stop and track arrangements, the above dimensions may vary slightly. If necessary, installation can be made by alternating window jambs. (See Alternate Window Jamb Applications.)

proper (FIG.4).

1/2" 1" 1-3/4" 2-1/2"

3/8" 3/4" 1-1/2" 2"

(10mm) (19mm) (38mm) (50mm)

16-1/4"

maximum

width

(casement

windows)

FIG.4

15-1/2"

,e- minimum -

width

21-1/2"

minimum

height

40"

maximum

height
