Frigidaire FRA08EHTI User Manual
Home Comfort
FRA08EHT1
Through-The-Wall
Air Conditioner / Heater
Product Dimensions
Height 14-1/2"
Width 24"
Depth 20-1/2"
More Easy-To-Use Features
Eortless™ Clean Filter
Our antibacterial filter reduces bacteria,
room odors and other airborne particles
for a cool, comfortable environment.
Multi-Speed Fan
Features three different fan speeds, for
more cooling flexibility.
Sleep Mode
Quiet operation keeps you cool without
keeping you awake. Plus, Sleep Mode
gradually increases room temperature
after being activated.
Quickly Cools
Quickly cool a room on hot days.
Signature Features
Eortless™ Temperature
Control
Our air conditioners maintain the preset
room temperature, so you will remain
comfortable at all times.
Supplemental Heat Only
Our versatile unit offers a supplemental
heating capability, providing you with an
additional heat source when needed.
Ready-Select® Controls
Easily select options with the touch of a
button.
Remote Control
Allows you to precisely control the
temperature and fan speed from across
the room.
Comfort Control Design
Easily control the direction of your cool air,
wherever your unit is.
Eortless™ Restart
Automatically resumes operating at its
previous settings when power is restored
to your unit.
Clean Filter Alert
Notifies you when your filter needs to be
cleaned.
Power Cord
Comes with an extra long three-prong
cord that makes extension cords
unnecessary.
SpaceWise® Adjustable Design
Optional Side Panels
Extend so you can adjust your unit to fit
your window.
24-Hour On/O Timer
Keep things cool on your schedule.
Performance
Cool
Heat
BTUs
8,000
4,200
frigidaire.com
Performance
D
A
C
B
Plug Type (NEMA)
5-15P
BTU (Cool)
BTU (Heat)
Dehumidification (Pints / Hour)
Cool Area (Sq. Ft.)
Energy Eciency Ratio
8,000
4,200
1.8
350
9.4
Electrical
Volts
Amps (Cool)
Amps (Heat)
Watts (Cool)
Watts (Heat)
Length of Power Cord
Plug Type (NEMA)
115
7.4
11.5
850
1,250
6'
LCDI (5-15P)
Features
Electronic Controls
Fan Speeds (Cool / Fan / Heat)
Low Voltage Start-Up
Auto Cool Function
Energy Save
Sleep Mode
Filter Check
24-Hour On / O Timer
Clean Air Ionizer
Remote Control
Air CFM (High / Med / Low)
Air Direction Control
Fresh Air / Exhaust Vent / Closed
Filter Type
Filter Access
Slide-Out Chassis
1
Warranty
Ready-Select® Controls
3 / 3 / 3
Yes
Yes
Yes
Yes
Yes
Yes
Full-Function with Heat
273 / 223 / 206
4-Way
No / No / Yes
Antibacterial Mesh
Slide-Out
Yes
Optional Accessories
Through-The-Wall 18" Sleeve Kit
Trim Kit (for larger existing sleeve)
Architectural-Style
Exterior Louvered Grille
PN # EA108T
PN # EA120T
PN # EA109T
Certifications
Performance
AHAM
Specifications
Refrigerant
Shipping Weight (Approx.)
1
Warranty 5 year sealed system / 1 year full parts and labor.
R410a
73 Lbs.
Home Comfort
FRA08EHT1 Through-The-Wall Air Conditioner / Heater
USA
CANADA
FRA08EHT1 04/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
•
10200 David Taylor Drive
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

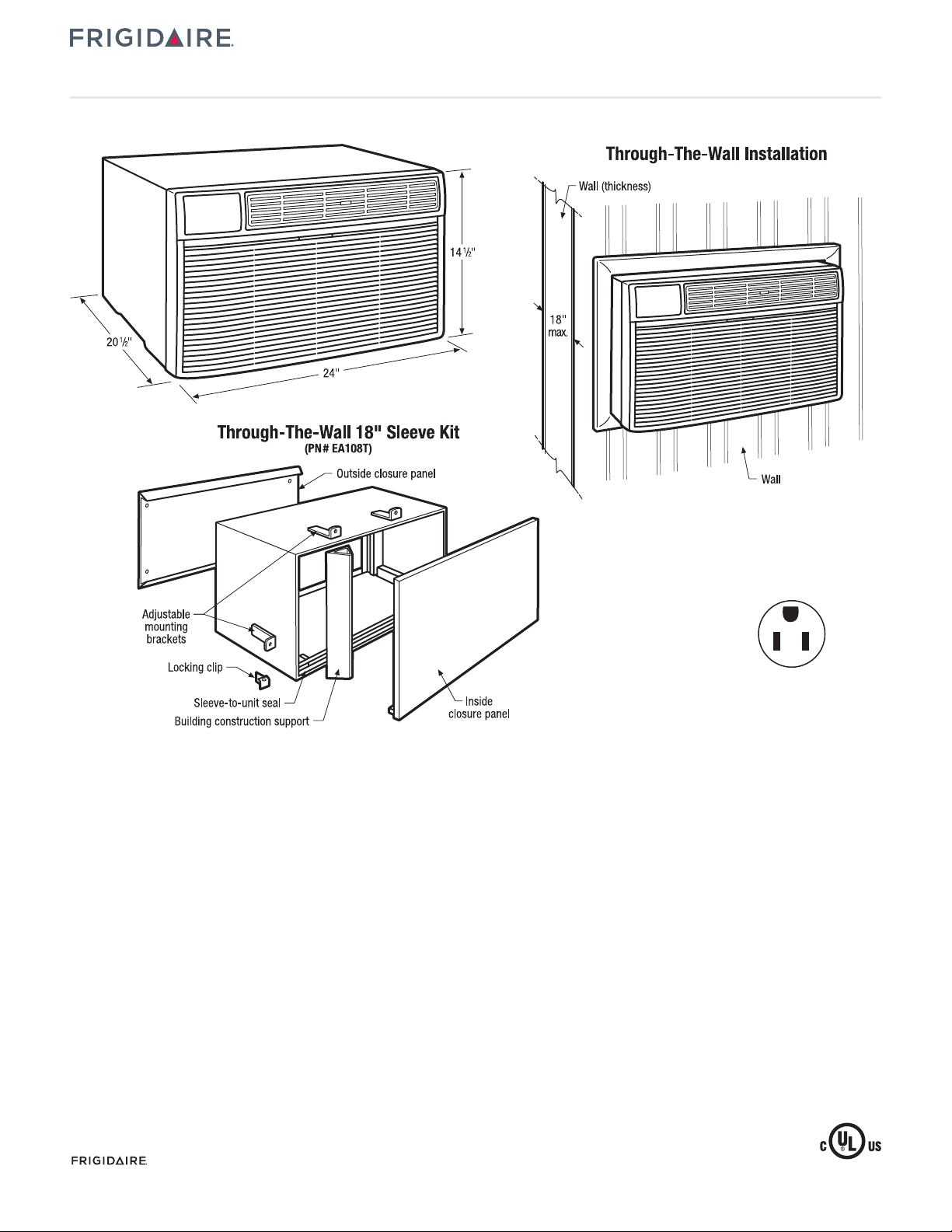

Product Dimensions
A - Height
B - Width
C - Depth
D - Max. Wall Thickness
•
frigidaire.com
•
frigidaire.ca
14-1/2"
24"
20-1/2"
18"
Wall Cutout Dimensions
Height
Width
Accessories information available
on the web at frigidaire.com
15-1/4"
25-1/2"
Specifications
subject to change.
