FRIGIDAIRE FRA086HT1 User Manual
Home Comfort
FRA086HT1
Through-The-Wall
Air Conditioner
Product Dimensions
Height 14-1/2"
Width 24"
Depth 20-1/2"
More Easy-To-Use Features
Energy and Cost Savings
The unit operates at a low voltage —
conserving energy and saving you money.
Multi-Speed Fan
Features three different fan speeds, for
more cooling flexibility.
Sleep Mode
Quiet operation keeps you cool without
keeping you awake. Plus, Sleep Mode
gradually increases room temperature
after being activated.
Quickly Cools
Quickly cool a room on hot days.
Comfort Control Design
Easily control the direction of your cool air,
wherever your unit is.
Signature Features
Eortless™ Remote
Temperature Control
A thermostat located on your air
conditioner’s remote control precisely
maintains preset room temperature, so
you will remain comfortable at all times.
Remote Control
Allows you to precisely control the
temperature and fan speed from across
the room.
Ready-Select® Controls
Easily select options with the touch of
a button.
Eortless™ Clean Filter
Our antibacterial filter reduces bacteria,
room odors and other airborne particles
for a cool, comfortable environment.
Eortless™ Restart
Automatically resumes operating at its
previous settings when power is restored
to your unit.
Clean Filter Alert
Notifies you when your filter needs to be
cleaned.
Power Cord
Comes with an extra long three-prong
cord that makes extension cords
unnecessary.
24-Hour On/O Timer
Keep things cool on your schedule.
Performance
Cool
BTUs
8,000
frigidaire.com
D
A
C
B
Plug Type (NEMA)
5-15P
Performance
BTU (Cool)
Dehumidification (Pints / Hour)
Cool Area (Sq. Ft.)
Energy Eciency Ratio
8,000
1.8
350
9.4
Electrical
Volts
Amps (Cool)
Watts (Cool)
Length of Power Cord
Plug Type (NEMA)
115
8.0
850
6'
LCDI (5-15P)
Features
Electronic Controls
Fan Speeds (Cool / Fan)
Low Voltage Start-Up
Auto Cool Function
Energy Save
Sleep Mode
Filter Check
24-Hour On / O Timer
Clean Air Ionizer
Remote Control
Air CFM (High / Med / Low)
Air Direction Control
Fresh Air / Exhaust Vent / Closed
Filter Type
Filter Access
Slide-Out Chassis
1
Warranty
Ready-Select® Controls
3 / 3
Yes
Yes
Yes
Yes
Yes
Yes
Full-Function Remote T’Stat
273 / 223 / 206
4-Wa y
No / No / Yes
Antibacterial Mesh
Slide-Out
Yes
Optional Accessories
Through-The-Wall 18" Sleeve Kit
Trim Kit (for larger existing sleeve)
Architectural-Style
Exterior Louvered Grille
PN # EA108T
PN # EA120T
PN # EA109T
Certifications
ENERGY STAR®
Performance
AHAM
Specifications
Refrigerant
Shipping Weight (Approx.)
1
Warranty 5 year sealed system / 1 year full parts and labor.
R410a
69 Lbs.
Home Comfort
FRA086HT1 Through-The-Wall Air Conditioner
USA
CANADA
FRA086HT1 10/13 © 2013 Electrolux Home Products, Inc.
•
10200 David Taylor Drive
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

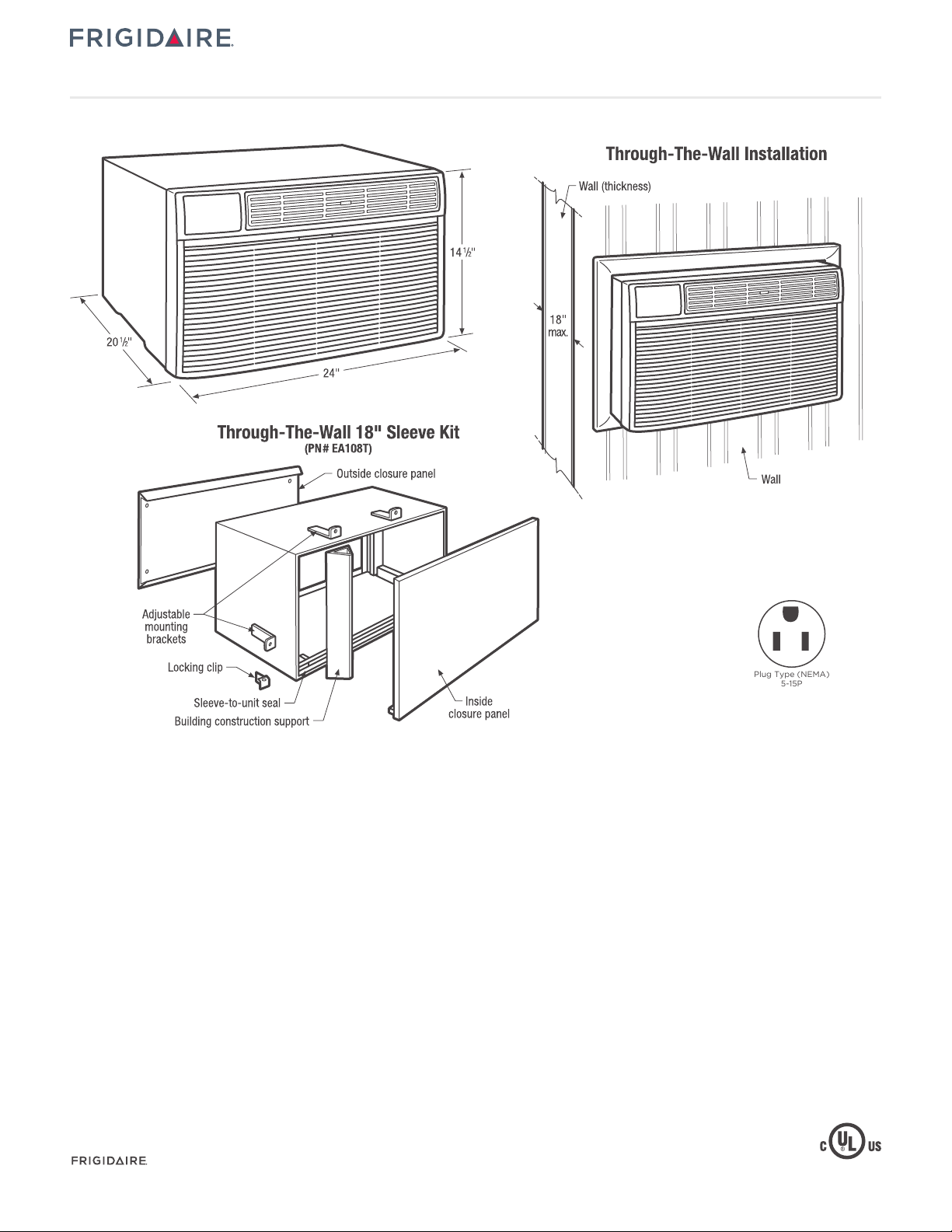

Product Dimensions
A - Height
B - Width
C - Depth
D - Max. Wall Thickness
•
frigidaire.com
•
frigidaire.ca
14-1/2"
24"
20-1/2"
18"
Sleeve Cutout Dimensions
Height
Width
Accessories information available
on the web at frigidaire.com
15-5/8"
25-15/16"
Specifications
subject to change.
