Frigidaire FPPWFU01 Performance Data Sheet

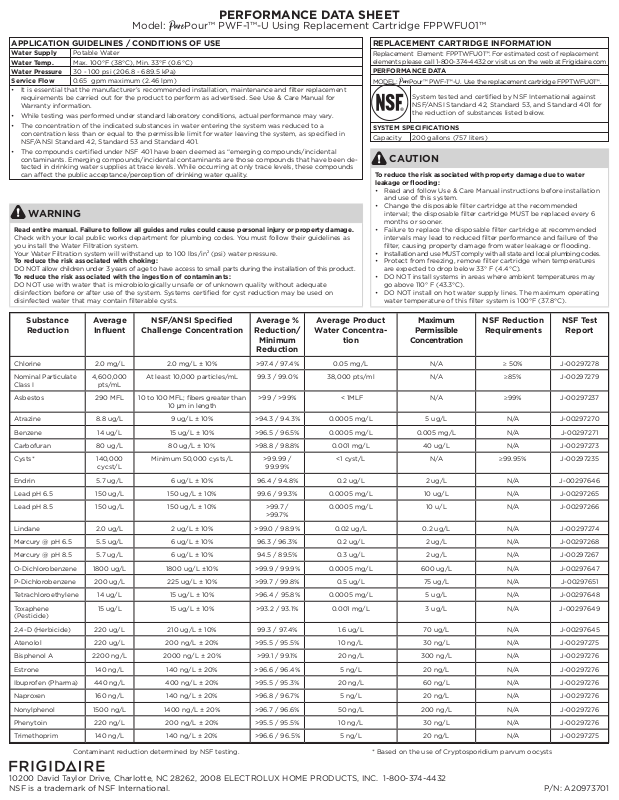

PERFORMANCE DATA SHEET
Model:
APPLICATION GUIDELINES / CONDITIONS OF USE
Water Supply Potable Water
Water Temp. Max. 100°F (38°C), Min. 33°F (0.6°C)
Water Pressure 30 - 100 psi (206.8 - 689.5 kPa)
Service Flow 0.65 gpm maximum (2.46 lpm)
• It is essential that the manufacturer’s recommended installation, maintenance and filter replacement
requirements be carried out for the product to perform as advertised. See Use & Care Manual for
Warranty information.
• While testing was performed under standard laboratory conditions, actual performance may vary.
• The concentration of the indicated substances in water entering the system was reduced to a
concentration less than or equal to the permissible limit for water leaving the system, as specified in
NSF/ANSI Standard 42, Standard 53 and Standard 401.
• The compounds certified under NSF 401 have been deemed as “emerging compounds/incidental
contaminants. Emerging compounds/incidental contaminants are those compounds that have been detected in drinking water supplies at trace levels. While occurring at only trace levels, these compounds
can aect the public acceptance/perception of drinking water quality.
WARNING
Read entire manual. Failure to follow all guides and rules could cause personal injury or property damage.
Check with your local public works department for plumbing codes. You must follow their guidelines as
you install the Water Filtration system.
Your Water Filtration system will withstand up to 100 lbs/in2 (psi) water pressure.
To reduce the risk associated with choking:
DO NOT allow children under 3 years of age to have access to small parts during the installation of this product.
To reduce the risk associated with the ingestion of contaminants:
DO NOT use with water that is microbiologically unsafe or of unknown quality without adequate
disinfection before or after use of the system. Systems certified for cyst reduction may be used on
disinfected water that may contain filterable cysts.
Pour™ PWF-1™-U Using Replacement Cartridge FPPWFU01™
Pure
REPLACEMENT CARTRIDGE INFORMATION
Replacement Element: FPPTWFU01™. For estimated cost of replacement
elements please call 1-800-374-4432 or visit us on the web at Frigidaire.com
PERFORMANCE DATA
MODEL:
SYSTEM SPECIFICATIONS
Capacity 200 gallons (757 liters)
Pour™ PWF-1™-U. Use the replacement cartridge FPPTWFU01™.
Pure
System tested and certified by NSF International against
NSF/ANSI Standard 42, Standard 53, and Standard 401 for
the reduction of substances listed below.
CAUTION
To reduce the risk associated with property damage due to water
leakage or flooding:
• Read and follow Use & Care Manual instructions before installation
and use of this system.
• Change the disposable filter cartridge at the recommended
interval; the disposable filter cartridge MUST be replaced every 6
months or sooner.
• Failure to replace the disposable filter cartridge at recommended
intervals may lead to reduced filter performance and failure of the
filter, causing property damage from water leakage or flooding.
• Installation and use MUST comply with all state and local plumbing codes.
• Protect from freezing, remove filter cartridge when temperatures
are expected to drop below 33° F (4.4°C).
• DO NOT install systems in areas where ambient temperatures may
go above 110° F (43.3°C).
• DO NOT install on hot water supply lines. The maximum operating
water temperature of this filter system is 100°F (37.8°C).
Substance
Reduction
Average
Influent
NSF/ANSI Specified
Challenge Concentration
Average %
Reduction/
Minimum
Average Product
Water Concentra-
tion
Maximum
Permissible
Concentration
NSF Reduction
Requirements
NSF Test
Report
Reduction
Chlorine 2.0 mg/L 2.0 mg/L ± 10% >97.4 / 97.4% 0.05 mg/L N/A ≥ 50% J-00297278
Nominal Particulate
Class I
Asbestos 290 MFL 10 to 100 MFL; fibers greater than
Atrazine 8.8 ug/L 9 ug/L ± 10% >94.3 / 94.3% 0.0005 mg/L 5 ug/L N/A J-00297270
Benzene 14 ug/L 15 ug/L ± 10% >96.5 / 96.5% 0.0005 mg/L 0.005 mg/L N/A J-00297271
Carbofuran 80 ug/L 80 ug/L ± 10% >98.8 / 98.8% 0.001 mg/L 40 ug/L N/A J-00297273
Cysts* 140,000
Endrin 5.7 ug/L 6 ug/L ± 10% 96.4 / 94.8% 0.2 ug/L 2 ug/L N/A J-00297646
Lead pH 6.5 150 ug/L 150 ug/L ± 10% 99.6 / 99.3% 0.0005 mg/L 10 ug/L N/A J-00297265
Lead pH 8.5 150 ug/L 150 ug/L ± 10% >99.7 /
Lindane 2.0 ug/L 2 ug/L ± 10% >99.0 / 98.9% 0.02 ug/L 0.2 ug/L N /A J-00297274
Mercury @ pH 6.5 5.5 ug/L 6 ug/L ± 10% 96.3 / 96.3% 0.2 ug/L 2 ug/L N/A J-00297268
Mercury @ pH 8.5 5.7 ug/L 6 ug/L ± 10% 94.5 / 89.5% 0.3 ug/L 2 ug/L N /A J-00297267
O-Dichlorobenzene 1800 ug/L 1800 ug/L ±10% >99.9 / 99.9% 0.0005 mg/L 600 ug/L N /A J-00297647
P-Dichlorobenzene 200 ug/L 225 ug/L ± 10% >99.7 / 99.8% 0.5 ug/L 75 ug/L N /A J-00297651
Tetrachloroethylene 14 ug/L 15 ug/L ± 10% >96.4 / 95.8% 0.0005 mg/L 5 ug/L N /A J-00297648
Toxaphene
(Pesticide)
2,4-D (Herbicide) 220 ug/L 210 ug/L ± 10% 99.3 / 97.4% 1.6 ug/L 70 ug/L N/A J-00297645
Atenolol 220 ug/L 200 ng/L ± 20% >95.5 / 95.5% 10 ng/L 30 ng/L N/A J-00297275
Bisphenol A 2200 ng/L 2000 ng/L ± 20% >99.1 / 99.1% 20 ng/L 300 ng/L N /A J-00297276
Estrone 140 ng/L 140 ng/L ± 20% >96.6 / 96.4% 5 ng/L 20 ng/L N/A J-00297276
Ibuprofen (Pharma) 440 ng/L 400 ng/L ± 20% >95.5 / 95.3% 20 ng/L 60 ng/L N/A J-00297276
Naproxen 160 ng/L 140 ng/L ± 20% >96.8 / 96.7% 5 ng/L 20 ng/L N /A J-00297276
Nonylphenol 1500 ng/L 1400 ng/L ± 20% >96.7 / 96.6% 50 ng/L 200 ng/L N/A J-00297276
Phenytoin 220 ng/L 200 ng/L ± 20% >95.5 / 95.5% 10 ng/L 30 ng/L N/A J-00297276
Trimethoprim 140 ng/L 140 ng/L ± 20% >96.6 / 96.5% 5 ng/L 20 ng/L N/A J-00297275
4,600,000
pts/mL
cycst/L
15 ug/L 15 ug/L ± 10% >93.2 / 93.1% 0.001 mg/L 3 ug/L N /A J-00297649
At least 10,000 particles/mL 99.3 / 99.0% 38,000 pts/ml N/A ≥85% J-00297279
10 µm in length
Minimum 50,000 cysts/L >99.99 /
>99 / >99% < 1MLF N/A ≥99% J-00297237
99.99%
>99.7%
<1 cyst/L N/A ≥99.95% J-00297235
0.0005 mg/L 10 u/L N/A J-00297266
* Based on the use of Cryptosporidium parvum oocystsContaminant reduction determined by NSF testing.
10200 David Taylor Drive, Charlotte, NC 28262, 2008 ELECTROLUX HOME PRODUCTS, INC. 1-800-374-4432
NSF is a trademark of NSF International.
P/N: A20973701
PERFORMANCE DATA SHEET
Model:
APPLICATION GUIDELINES / CONDITIONS OF USE
Water Supply Potable Water
Water Temp. Max. 100°F (38°C), Min. 33°F (0.6°C)
Water Pressure 30 - 100 psi (206.8 - 689.5 kPa)
Service Flow 0.65 gpm maximum (2.46 lpm)
• It is essential that the manufacturer’s recommended installation, maintenance and filter replacement
requirements be carried out for the product to perform as advertised. See Use & Care Manual for
Warranty information.
• While testing was performed under standard laboratory conditions, actual performance may vary.
• The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/
ANSI Standard 42, Standard 53 and Standard 401.
• The compounds certified under NSF 401 have been deemed as emerging compounds/incidental
contaminants. Emerging compounds/incidental contaminants are those compounds that have been detected in drinking water supplies at trace levels. While occurring at only trace levels, these compounds
can aect the public acceptance/perception of drinking water quality.
WARNING
Read entire manual. Failure to follow all guides and rules could cause personal injury or property damage.
Check with your local public works department for plumbing codes. You must follow their guidelines as
you install the Water Filtration system.
Your Water Filtration system will withstand up to 100 lbs/in2 (psi) water pressure.
To reduce the risk associated with choking:
DO NOT allow children under 3 years of age to have access to small parts during the installation of this product.
To reduce the risk associated with the ingestion of contaminants:
DO NOT use with water that is microbiologically unsafe or of unknown quality without adequate
disinfection before or after use of the system. Systems certified for cyst reduction may be used on
disinfected water that may contain filterable cysts.
Pour™ PWF-1™-M Using Replacement Cartridge FPPWFU01™
Pure
REPLACEMENT CARTRIDGE INFORMATION
Replacement Element: FPPWFU01™. For estimated cost of replacement
elements please call 1-800-374-4432 or visit us on the web at Frigidaire.com.
PERFORMANCE DATA
MODEL:
SYSTEM SPECIFICATIONS
Capacity 125 gallons (473 liters)
Pour™ PWF-1™-M. Use the replacement cartridge FPPWFU01™.
Pure
System tested and certified by NSF International against
NSF/ANSI Standard 42, Standard 53, and Standard 401 for
the reduction of substances listed below.
CAUTION
To reduce the risk associated with property damage due to water
leakage or flooding:
• Read and follow the Use and Care Manual before installation and use
of this system.
• Change the disposable filter cartridge at the recommended interval; You
MUST replace the disposable filter cartridge every 6 months or sooner.
• Failure to replace the disposable filter cartridge at recommended
intervals may lead to reduced filter performance and failure of the
filter, causing property damage from water leakage or flooding.
• Installation and use MUST comply with all state and local plumbing codes.
• Protect from freezing, remove filter cartridge when temperatures are
expected to drop below 33°F (4.4°C).
• DO NOT install systems in areas where ambient temperatures may go
above 110°F (43.3°C).
• DO NOT install on hot water supply lines. The maximum operating
water temperature of this filter system is 100°F (37.8°C).
Substance
Reduction
Average
Influent
NSF/ANSI Specified
Challenge
Concentration
Average %
Reduction/
Minimum
Average Product
Water
Concentration
Maximum Permissible
Concentration
NSF Reduction
Requirements
NSF Test
Report
Reduction
Chlorine 2.0 mg/L 2.0 mg/L ± 10% >97.4 / 97.4% 0.05 mg/L N/A ≥ 50% J-00297278
Nominal Particulate
Class I
Asbestos 290 MFL 10 to 100 MFL; fibers greater
Atrazine 8.8 ug/L 9 ug/L ± 10% >94.3 / 94.3% 0.5 ug/L 3 ug/L N/A J-00297270
Benzene 14 ug/L 15 ug/L ± 10% >96.5 / 96.5% 0.5 ug/L 5 ug/L N /A J-00297271
Carbofuran 80 ug/L 80 ug/L ± 10% >98.8 / 98.8% 1 ug/L 40 ug/L N/A J-00297273
Cysts* 140,000
Endrin 5.7 ug/L 6 ug/L ± 10% 96.4 / 94.8% 0.2 ug/L 2 ug/L N/A J-00297646
Lead pH 6.5 150 ug/l 150 ug/L ± 10% 99.6 / 99.3% 0.5 ug/L 10 ug/L N/A J-00297265
Lead pH 8.5 150 ug/l 150 ug/L ± 10% >99.7 /
Lindane 2.0 ug/L 2 ug/L ± 10% >99.0 / 98.9% 0.02 ug/L 0.2 ug/L N /A J-00297274
Mercury pH 6.5 5.5 ug/L 6 ug/L ± 10% 96.3 / 96.3% 0.2 ug/L 2 ug/L N /A J-00297268
Mercury pH 8.5 5.7 ug/L 6 ug/L ± 10% 94.5 / 89.5% 0.3 ug/L 2 ug/L N /A J-00297267
O-Dichlorobenzene 1800 ug/L 1800 ug/L ±10% >99.9 / 99.9% 0.5 ug/L 600 ug/L N /A J-00297647
P-Dichlorobenzene 200 ug/l 225 ug/L ± 10% >99.7 / 99.8% 0.5 ug/L 75 ug/L N /A J-00297651
Tetrachloroethylene 14 ug/L 15 ug/L ± 10% >96.4 / 95.8% 0.5 ug/L 5 ug/L N /A J-00297648
Toxaphene (Pesticide)
2,4-D (Herbicide) 220 ug/L 210 ug/L ± 10% 99.3 / 97.4% 1.6 ug/L 70 ug/L N /A J-00297645
Atenolol 220 ug/L 200 ng/L ± 20% >95.5 / 95.5% 10 ng/L 30 ng/L N /A J-00297275
Bisphenol A 2200 ng/L 2000 ng/L ± 20% >99.1 / 99.1% 20 ng/L 300 ng/L N /A J-00297276
Estrone 140 ng/L 140 ng/L ± 20% >96.6 / 96.4% 5 ng/L 20 ng/L N /A J-00297276
Ibuprofen (Pharma) 440 ng/L 400 ng/L ± 20% >95.5 / 95.3% 20 ng/L 60 ng/L N /A J-00297276
Naproxen 160 ng/L 140 ng/L ± 20% >96.8 / 96.7% 5 ng/L 20 ng/L N /A J-00297276
Nonylphenol 1500 ng/L 1400 ng/L ± 20% >96.7 / 96.6% 50 ng/L 200 ng/L N /A J-00297276
Phenytoin 220 ng/L 200 ng/L ± 20% >95.5 / 95.5% 10 ng/L 30 ng/L N/A J-00297276
Trimethoprim 140 ng/L 140 ng/L ± 20% >96.6 / 96.5% 5 ng/L 20 ng/L N /A J-00297275
VOC 300 ug/L 300 ug/L ± 10% 99.8/99.2% 2.3 ug/L 15 ng/L ≥95% J-00297650
4,600,000
pts/mL
cycst/L
15 ug/L 15 ug/L ± 10% >93.2 / 93.1% 1 ug/L 3 ug/L N/A J-00297649
At least 10,000 particles/mL 99.3 / 99.0% 38,000 pts/ml N /A ≥85% J-00297279
than 10 µm in length
Minimum 50,000 cysts/L >99.99 /
>99 / >99% < 1MLF N/A ≥99% J-00297237
99.99%
>99.7%
<1 cyst/L N/A ≥99.95% J-00297235
0.5 ug/L 10 ug/L N /A J-00297266
* Based on the use of Cryptosporidium parvum oocystsContaminant reduction determined by NSF testing.
10200 David Taylor Drive, Charlotte, NC 28262, 2008 ELECTROLUX HOME PRODUCTS, INC. 1-800-374-4432
NSF is a trademark of NSF International.
