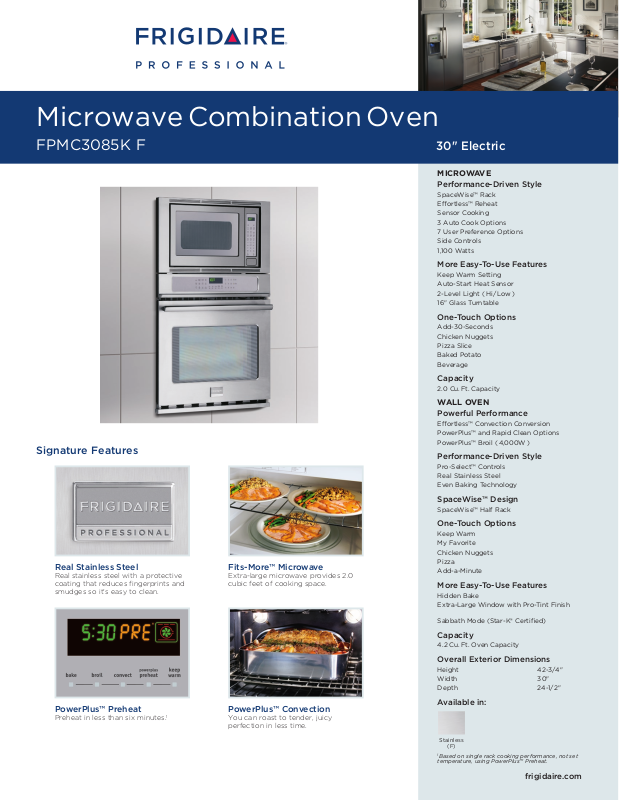

Microwave Combination Oven
FPMC3085K F
Signature Features
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it's easy to clean.
PowerPlus™ Preheat
Preheat in less than six minutes.
30" Electric
MICROWAVE
Performance-Driven Style
SpaceWise™ Rack
Eortless™ Reheat
Sensor Cooking
3 Auto Cook Options
7 User Preference Options
Side Controls
1,100 Watts
More Easy-To-Use Features
Keep Warm Setting
Auto-Start Heat Sensor
2-Level Light ( Hi / Low )
16" Glass Turntable
One-Touch Options
Add-30-Seconds
Chicken Nuggets
Pizza Slice
Baked Potato
Beverage
Capacity
2.0 Cu. Ft. Capacity
WALL OVEN
Powerful Performance
Eortless™ Convection Conversion
PowerPlus™ and Rapid Clean Options
PowerPlus™ Broil ( 4,000W )
Performance-Driven Style
Pro-Select™ Controls
Real Stainless Steel
Even Baking Technology
SpaceWise™ Design
SpaceWise™ Half Rack
One-Touch Options
Keep Warm
My Favorite
Chicken Nuggets
Fits-More™ Microwave
Extra-large microwave provides 2.0
cubic feet of cooking space.
1
PowerPlus™ Convection
You can roast to tender, juicy
perfection in less time.
Pizza
Add-a-Minute
More Easy-To-Use Features
Hidden Bake
Extra-Large Window with Pro-Tint Finish
Sabbath Mode (Star-K® Certified)
Capacity
4.2 Cu. Ft. Oven Capacity
Overall Exterior Dimensions
Height 42-3/4"
Width 30"
Depth 24-1/2"
Available in:
Stainless
(F)
1
Based on single rack cooking performance, not set
temperature, using PowerPlus™ Preheat.
frigidaire.com
Microwave Combination Oven
30" Microwave / Wall Oven Combination
Professional
FPMC3085K F 30" Electric
Microwave Combination Oven Specifications
•
Product Shipping Weight (approx.) – 250 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 7.4 / 5.6 kW
•
Amps @ 240 / 208 Volts = 31 / 27 Amps
•
Recommended Circuit Breaker – 30 Amps
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Suggested distance from floor is 11-1/2". Minimum required distance
is 4-1/2".
•
To adapt Microwave Combination Oven to fit cutout height greater
than 41-11/16", add one 2"-wide wood shim of appropriate height
to each side of opening under oven side rails. Lifting oven will hide
larger cutout opening at top and oven’s 1"-high bottom trim will hide
shims at bottom. (Standard 1"-High Bottom Trim included.)
•
To adapt Microwave Combination Oven to fit cutout height greater
than 42-3/16", optional 3"-High Bottom Trim available.
•
Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•
Full oven base of solid plywood or similar material required,
capable of supporting 265 Lbs.
•
Base must be level and cabinet front must be square.
•
Microwave Combination Oven is NOT approved to be
used in stackable or side-by-side installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
3"-High Stainless Steel Bottom Trim – (PN # 318258707).
FRIGIDAIRE®
USA • 250 Bobby Jones Expressway • Martinez, GA 30907 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FPMC3085K 06/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
Specifications
subject to change.
