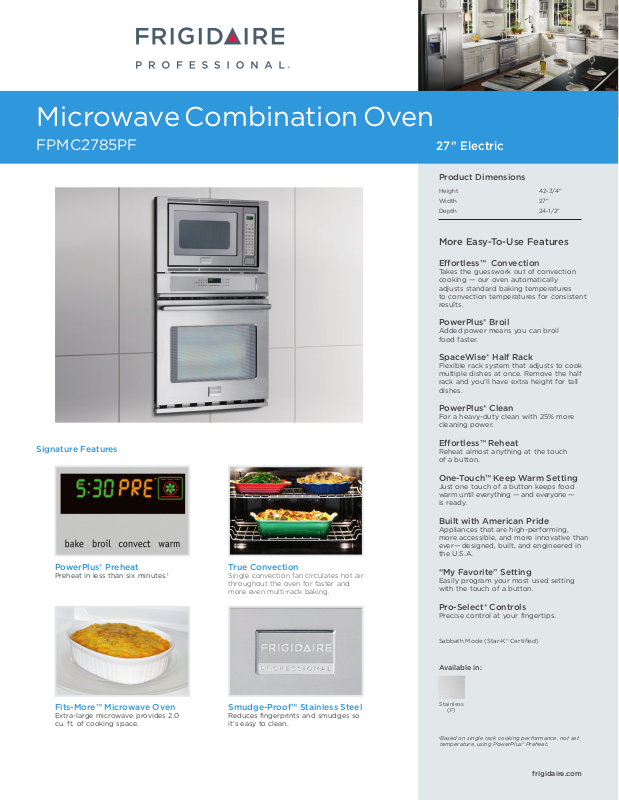

Frigidaire FPMC2785PF Specification
Microwave Combination Oven
FPMC2785PF
27" Electric
Product Dimensions
Height 42-3/4"
Width 27"
Depth 24-1/2"
More Easy-To-Use Features
Eortless™ Convection
Takes the guesswork out of convection
cooking — our oven automatically
adjusts standard baking temperatures
to convection temperatures for consistent
results.
PowerPlus® Broil
Added power means you can broil
food faster.
SpaceWise® Half Rack
Flexible rack system that adjusts to cook
multiple dishes at once. Remove the half
rack and you'll have extra height for tall
dishes.
PowerPlus® Clean
For a heavy-duty clean with 25% more
cleaning power.
Signature Features
PowerPlus® Preheat
Preheat in less than six minutes.
Fits-More™ Microwave Oven
Extra-large microwave provides 2.0
cu. ft. of cooking space.
Eortless™ Reheat
Reheat almost anything at the touch
of a button.
One-Touch™ Keep Warm Setting
Just one touch of a button keeps food
warm until everything — and everyone —
is ready.
Built with American Pride
Appliances that are high-performing,
more accessible, and more innovative than
ever — designed, built, and engineered in
the U.S.A.
1
True Convection
Single convection fan circulates hot air
throughout the oven for faster and
more even multi-rack baking.
“My Favorite” Setting
Easily program your most used setting
with the touch of a button.
Pro-Select® Controls
Precise control at your fingertips.
Sabbath Mode (Star-K® Certified)
Available in:
Smudge-Proof™ Stainless Steel
Reduces fingerprints and smudges so
it’s easy to clean.
Stainless
(F)
1
Based on single rack cooking performance, not set
temperature, using PowerPlus® Preheat.
frigidaire.com
Features
Control / Timing System
Exterior Door Finish
Handle Design
Microwave Features
Microwave Capacity (Cu. Ft.)
Watts (IEC-705 Test Procedure)
Window
Interior Light
Interior Color
Turntable Diameter
Turntable On / O
Control Lock / Clock
Touch Pad Buttons / Power Levels
Microwave Control Options
Popcorn Button
Chicken Nugget Button
Baked Potato Button
Reheat Button / Snack Button
Auto Melt / Soften Options
Auto Reheat Options
Snack Menu Options
Auto Cook Options
Auto Defrost Options
Keep Warm / Add-30-Seconds
Sensor Cooking Options
Vegetable Cook Sensor
Delay Start / User Preferences
Oven Features
Oven Capacity (Cu. Ft.)
Oven Window
Oven Lights
Hidden Bake Element
Convection System
Baking System
Broiling System
PowerPlus® Preheat
Bake / Broil Element (Watts)
Oven Rack Configuration
Oven Cleaning System
Oven Controls
Convection Conversion
My Favorite / Slow Cook
Eortless™ Temperature Probe
Chicken Nugget Button / Pizza Button
Keep Warm / Add-a-Minute
Optional Accessories
3"-High Bottom Trim – Stainless Steel
10'-Long Armored Power Cable
Certifications
Sabbath Mode (Star-K® Certified)
Specifications
Microwave Oven Interior ( H x W x D )
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
Pro-Select®
Smudge-Proof™
Stainless Steel
Stainless Steel
2.0
1,200
Large
Yes
White
16"
Yes / Yes
28 / 10
Yes
Yes
Yes
Yes / Yes
4
3
3
3
6
Yes / Yes
5
Yes
Yes / Yes
3.8
Extra-Large with
Pro-Tint Finish
2 Halogen
Yes
PowerPlus® Convection
Even Baking Technology
PowerPlus® Broil
Yes
1,450 / 3,400
1 Heavy Duty, 1 SpaceWise®
Half Rack, 1 Oset Rack
Self Clean / Steam Clean
Eortless™
Yes / Yes
Yes
Yes / No
PN # 903114-901S
903056-9010
Yes
10-1/2" x 17-3/8" x 18-5/8"
17" x 20-1/2" x 18-3/4"
Left Bottom Rear
240V / 208V / 60Hz
6.9 /5.2
28.8/ 25
30
220 Lbs.
Microwave Combination Oven
FPMC2785PF 27" Electric
B
A
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web
at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
D - Height (Wrapper)
E - Width (Wrapper)
Depth with Door Open 90˚
1
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt,
60 Hertz AC only electrical supply with ground required on
separate circuit fused on both sides of line.
42-3/4"
27"
24-1/2"
40-15/16"
24-5/8"
45-1/2"
Cutout Dimensions
Height (Min.) / (Max.)
Width (Min.) / (Max.)
Depth (Min.)
E
Spacer
C
D
41-1/8" / 41-1/4"
24-7/8" / 25-1/4"
23-1/2"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FPMC2785P 09/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Microwave Combination Oven
27" Microwave / Wall Oven Combination
Professional
FPMC2785PF 27" Electric
Microwave Combination Oven Specifications
•
Product Shipping Weight (approx.) – 220 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 6.9 / 5.2 kW
•
Amps @ 240 / 208 Volts = 28.8 / 25 Amps
•
Recommended Circuit Breaker – 30 Amps
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Suggested distance from floor is 11-1/2". Minimum required distance
is 4-1/2".
•
To adapt Microwave Combination Oven to fit cutout height greater
than 41-11/16", add one 2"-wide wood shim of appropriate height
to each side of opening under oven side rails. Lifting oven will hide
larger cutout opening at top and oven's 1"-high bottom trim will hide
shims at bottom. (Standard 1"-High Bottom Trim included.)
•
USA
10200 David Taylor Drive
•
CANADA
FPMC2785P 09/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
•
To adapt Microwave Combination Oven to fit cutout height greater
than 42-3/16", optional 3"-High Bottom Trim available.
•
Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven's faceplate will fit flush against
cabinet front.
•
Full oven base of solid plywood or similar material required,
capable of supporting 225 Lbs.
•
Base must be level and cabinet front must be square.
•
Microwave Combination Oven is NOT approved to be used
in stackable or side-by-side installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
3"-High Stainless Steel Bottom Trim – (PN # 903114-901S).
•
10'-Long Armored Power Cable – (PN # 903056-9010).
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
