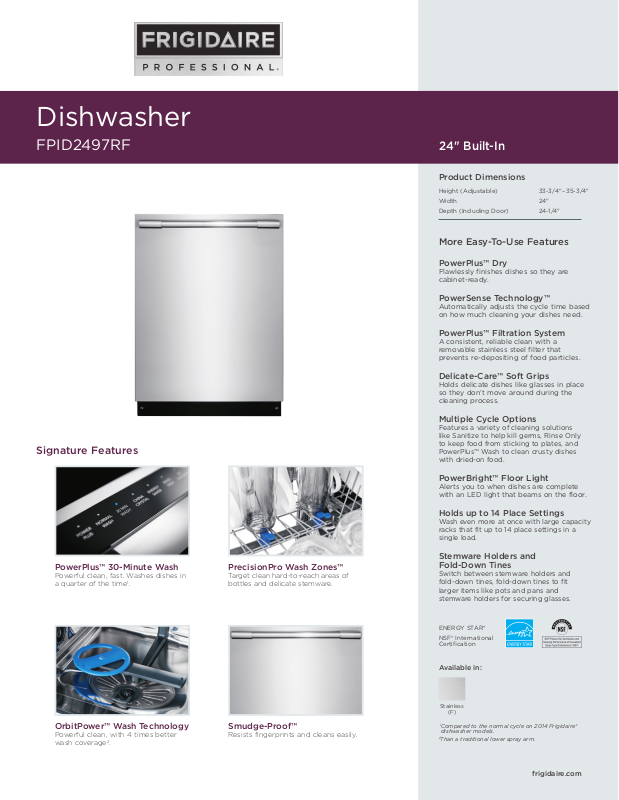

Dishwasher
FPID2497RF
Signature Features
24" Built-In
Product Dimensions
Height (Adjustable) 33-3/4" – 35-3/4"
Width 24"
Depth (Including Door) 24-1/4"
More Easy-To-Use Features
PowerPlus™ Dry
Flawlessly finishes dishes so they are
cabinet-ready.
PowerSense Technology™
Automatically adjusts the cycle time based
on how much cleaning your dishes need.
PowerPlus™ Filtration System
A consistent, reliable clean with a
removable stainless steel filter that
prevents re-depositing of food particles.
Delicate-Care™ Soft Grips
Holds delicate dishes like glasses in place
so they don’t move around during the
cleaning process.
Multiple Cycle Options
Features a variety of cleaning solutions
like Sanitize to help kill germs, Rinse Only
to keep food from sticking to plates, and
PowerPlus™ Wash to clean crusty dishes
with dried-on food.
PowerPlus™ 30-Minute Wash
Powerful clean, fast. Washes dishes in
a quarter of the time
1
.
OrbitPower™ Wash Technology
Powerful clean, with 4times better
wash coverage
2
.
PrecisionPro Wash Zones™
Target clean hard-to-reach areas of
bottles and delicate stemware.
Smudge-Proof™
Resists fingerprints and cleans easily.
PowerBright™ Floor Light
Alerts you to when dishes are complete
with an LED light that beams on the floor.
Holds up to 14 Place Settings
Wash even more at once with large capacity
racks that fit up to 14 place settings in a
single load.
Stemware Holders and
Fold-Down Tines
Switch between stemware holders and
fold-down tines, fold-down tines to fit
larger items like pots and pans and
stemware holders for securing glasses.
ENERGY STAR®
NSF® International
Certification
Available in:
Stainless
(F)
1
Compared to the normal cycle on 2014 Frigidaire®
dishwasher models.
2
Than a traditional lower spray arm.
frigidaire.com
B
A
D
C
Features
Control Design
Digital Display
Door Latch / Stay-Put Door Hinge Design
Low Rinse-Aid Indicator Light
Interior Design / Interior Color
Wash System
Wash Arm
Wash Levels / Wash Speeds
PowerSense Technology™
AquaSurge™ Technology
Sound Package
Filter / Filter Trap
Soft Food Disposer
dB Level
Drying System
Fully-Integrated
Pro-Select®
Yes
Yes / Yes
Yes
Tall Tub / Stainless Steel
Direct Feed
OrbitPower™
5 / Variable
Yes
Yes
SilentDesign™
S. Steel / Removable
47
PowerPlus™ Dry
Cycles
Number of Cycles
PowerPlus™ (Heavy)
Normal
Light
Quick Wash (30-Min.)
Favorite
China Crystal
Rinse Only
Energy Saver Plus
Upper Rack Wash Only
Cycle Indicator Light / Control Lock
Cycle Complete Floor Beam Indicator
7
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes / Yes
LED
Options
Heat / No Heat Dry
Hi-Temp Wash
NSF® Certified Sanitize Rinse
Delay Start
Yes
Yes
Yes
1–24 Hour
Rack System
Rack Design
Rack Coating
SpaceWise® Upper Rack –
Rack Handles
Delicate-Care™ Soft Grips
Fold-Down Tines
Cup Shelves / Stemware Grips
Versa-Tray™
Adjustable Rack Height
Lower Rack –
SpaceWise® Silverware Basket
Fold-Down Tines
Small Items Cover
Deluxe
Nylon TufRacks™
Yes
Yes
Yes
2 / 6
Yes
3-Piece Split
2 Full Rows
3
Certifications
ENERGY STAR®
NSF® International Certification
Yes
Yes
Specifications
Water Inlet Location
Water Usage (Gallons)
Water Pressure (PSI)
Integral Air Gap on Supply
Leveling Legs
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
Bottom Left
4.0 – 8.0
20 – 90
Yes
3
Right Bottom Front
120V / 60 Hz / 15A
1
1.44
15
75 Lbs.
Dishwasher
FPID2497RF 24" Built-In
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Adjustable)
B - Width
C - Depth (Including Door)
D - Depth (To Tub Flange)
Depth with Door Open 90°
33-3/4" – 35-3/4"
24"
24-1/4"
22-1/2"
50-1/4"
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Depth (Min.)
Accessories information available
on the web at frigidaire.com
Meets requirements
of ASSE 1006
34"
35-3/4"
24"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FPID2497R 06/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
*Height only adjustable to 35
3/4" max. when installed in 35
3/4" max.
standard cabinetry cutout. (Dimensions do NOT include insulation –
insulation blanket may be compressed during installation.)
33
3/4"
Adjustable
to 35
3/4"
*
Front
23
3/4"
Left
24
1/4"
Power supply & water inlet location
(bottom rear)
50
1/4"
Right
Door in 90°
open position
27
3
/4"
22
1/2"
3
1/2" min. to
4
1/2" max.
1"
2
1
/4"21/4"
**
NOTE: 35
3/4"
max.
height for standard
cabinetry cutout.
(5/16" min. clearance
required from unit to
underside of countertop.)
3"
18"
24"
min.
Electrical, water,
and drain
lines
must be confined
to shaded
area
11/4"
24"
3
"
90°
90°
Preferred
drain areas
3
"
34"
min. to
35
3/4"
max.
**
Dishwasher
FPID2497RF 24" Built-In
Dishwasher Specifications
•
Product Shipping Weight (approx.) – 75 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if
connected with disposer)
•
Connected Load (kW Rating) @ 120 Volts = 1.44 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120V = 15 Amps
•
Always consult local and national electric & plumbing codes.
Meets requirements of ASSE 1006 — integral air gap on supply.
•
Water Pressure – Hot water line to dishwasher must provide
between 20 and 90 pounds per square inch (psi) with at least 120° F
hot water temperature.
•
Make sure location has correct drain, water and electrical outlets
to make connections — MUST be confined to shaded areas.
•
Electrical and water supplies should enter cabinet opening on floor,
or through back or side walls, as shown in shaded areas.
•
If connecting drain hose to sink trap, local code may require
installation of Air Gap Kit (not included).
•
Leveling legs supplied to adjust height. (Note: Height only adjustable
to 35-3/4" max. when installed in 35-3/4" max. standard cabinetry
cutout. 5/16" min. clearance required from top of unit to underside
of countertop. Dimensions do NOT include insulation — insulation
blanket may be compressed during installation.)
•
When installing adjacent to wall, cabinet or other obstruction that
extends beyond front edge of unit, allow 2" minimum clearance
between opened door and obstruction.
•
Floor should be flat and free of obstructions with carpet removed
to provide motor clearance.
•
When installing at end of cabinet line, sides and back must be
fully enclosed.
•
Do not install unit under a cooktop, damage will occur.
•
Recommended to seal cabinets, enclosing all sides of dishwasher,
including underside of countertop, with oil-based paint or moistureproof polyurethane to prevent possible steam/moisture damage.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
•
USA
10200 David Taylor Drive
•
CANADA
FPID2497R 06/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Meets
requirements of
ASSE 1006
Specifications
subject to change.
