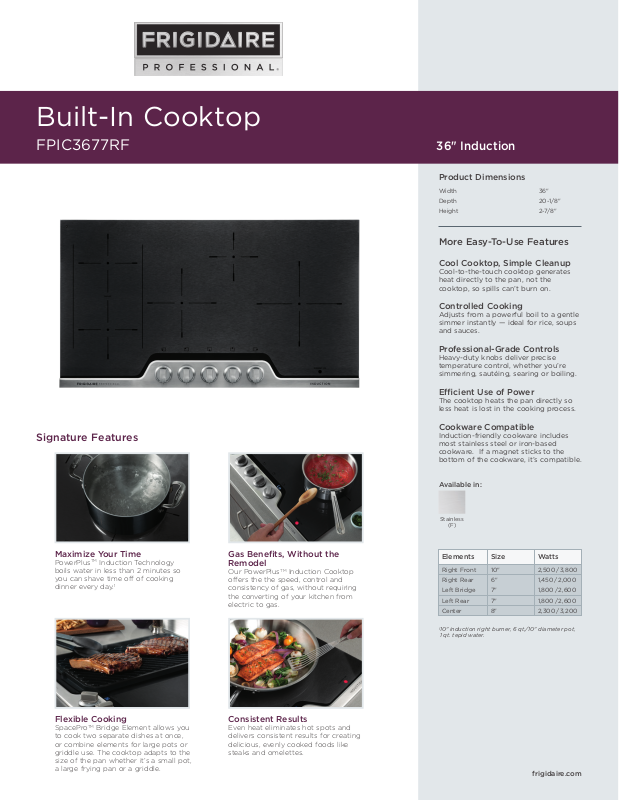

Built-In Cooktop
FPIC3677RF
Signature Features
36" Induction
Product Dimensions
Width 36"
Depth 20-1/8"
Height 2-7/8"
More Easy-To-Use Features
Cool Cooktop, Simple Cleanup
Cool-to-the-touch cooktop generates
heat directly to the pan, not the
cooktop, so spills can’t burn on.
Controlled Cooking
Adjusts from a powerful boil to a gentle
simmer instantly — ideal for rice, soups
and sauces.
Professional-Grade Controls
Heavy-duty knobs deliver precise
temperature control, whether you’re
simmering, sautéing, searing or boiling.
Ecient Use of Power
The cooktop heats the pan directly so
less heat is lost in the cooking process.
Cookware Compatible
Induction-friendly cookware includes
most stainless steel or iron-based
cookware. If a magnet sticks to the
bottom of the cookware, it’s compatible.
Maximize Your Time
PowerPlusTM Induction Technology
boils water in less than 2 minutes so
you can shave time off of cooking
dinner every day.
1
Flexible Cooking
SpaceProTM Bridge Element allows you
to cook two separate dishes at once,
or combine elements for large pots or
griddle use. The cooktop adapts to the
size of the pan whether it’s a small pot,
a large frying pan or a griddle.
Gas Benefits, Without the
Remodel
Our PowerPlusTM Induction Cooktop
offers the the speed, control and
consistency of gas, without requiring
the converting of your kitchen from
electric to gas.
Consistent Results
Even heat eliminates hot spots and
delivers consistent results for creating
delicious, evenly cooked foods like
steaks and omelettes.
Available in:
Stainless
(F)
Elements
Right Front
Right Rear
Left Bridge
Left Rear
Center
1
10" induction right burner, 6 qt./10" diameter pot,
1 qt. tepid water.
Size
10"
6"
7"
7"
8"
Watts
2,500 / 3,800
1,450 / 2,000
1,800 / 2,600
1,800 / 2,600
2,300 / 3,200
frigidaire.com
A
B
C
Features
Controls
Surface Type
Right Front Element (Watts)
Right Rear Element (Watts)
Left Bridge Element (Watts)
Left Rear Element (Watts)
Center (Watts)
Hot Surface Indicators
Control Location
Knob Color
Knob Type
Pro-Select® Controls
Black Ceramic Glass
10” - 2,500 / 3,800
6” - 1,450 / 2,000
7” - 1,800 / 2,600
7” - 1,800 / 2,600
8" - 2,300 / 3,200
Yes
Center Front
Stainless
Cast Metal
Certifications
A.D.A. Compliant
1
Yes
Specifications
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
2
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Approved for Electric Single
Wall Oven Combination Installation
Shipping Weight (Approx.)
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
3
Cooktops are approved for installation above any of our Electric Single
Wall Ovens.
Right Rear
240V /208V / 60Hz
12.0 / 10.4
50 / 50
40
Yes
3
53 Lbs.
Built-In Cooktop
FPIC3677RF 36" Induction
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web
at frigidaire.com.
Product Dimensions
A - Width
B - Depth
C - Height
36"
20-1/8"
2-7/8"
Cutout Dimensions
Width (Min.) / (Max.)
Depth (Min.) / (Max.)
Height
33-7/8" / 34"
19-1/8" / 19-1/4"
3-5/8"
Granite Countertop
Installation Kit available.
•
USA
10200 David Taylor Drive
•
CANADA
FPIC3677R 01/16 © 2016 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Drop-In Induction / Electric Cooktops
(Callouts MUST be charted per individual model).
Professional / Gallery / Baseline
13"
max.
cabinet
depth
18"
min.
30"min.
for
unprotected
cabinet
24" min.
for
protected
cabinet
K
A
B
C
* Includes clearance needed
beneath cooktop to allow for
armored cable and installation
of junction box on back wall
(
J
) min. from
edge of cutout to front
edge of countertop
25"
min.
24"
E
Plywood base
(optional)
F *
( G ) min. between rear edge of cutout
and nearest combustible surface
(or backsplash) above countertop
4"x 8" opening to route armored
cable if base is present
D
( H )
min.
from left edge
of cooktop to nearest
combustible wall
H
(
I
)
min.
from right
edge of
cooktop to
nearest
combustible
wall
I
Built-In Cooktop
FPIC3677RF 36” Induction
A - Width B - Depth C - Height G (min.) H (min.) I (min.) J (min.)
36" 20-1/8" 2-7/8" 2" 2" 2" 2-1/2"
D - Width (min. - max.) E - Depth (min. - max.) F - Height (min.)* Power Supply
33-7/8" - 34" 19-1/8" - 19-1/4"
Built-In Cooktop Specifications
•
Product Shipping Weight (approx.) – 53 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 12.0 / 10.4 kW
•
Amps @ 240 / 208 Volts = 50 / 50 Amps
•
Recommended Circuit Breaker – 40 Amps
•
Always consult local and national electric codes.
•
Cooktop cutout height includes clearance needed beneath cooktop to
allow for armored cable and installation of junction box on back wall.
Position center of junction box 10" inward from right side of cooktop
cutout, and 12" down from underside of countertop.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than 36".
•
Allow 30" minimum clearance between top of cooktop platform
and bottom of unprotected wood or metal overhead cabinet; or 24"
minimum clearance when bottom of wood or metal overhead cabinet
is protected by not less than 1/8" flame-retardant millboard covered
with not less than No. 28 MGS sheet steel, 0.015" stainless steel,
0.024" aluminum or 0.020" copper.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
CANADA
FPIC3677R 01/16 © 2016 Electrolux Home Products, Inc.
•
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
Product Dimensions
Product Cutout Dimensions
3-5/8" 36" Right Rear
•
Allow 2" minimum clearance between rear edge of cutout and
nearest combustible surface (or backsplash) above countertop.
•
Allow 2" minimum required clearance from left edge of cooktop to
nearest combustible wall and 2" minimum from right edge of cooktop
to nearest combustible wall.
•
Installation of drawer not recommended beneath cooktop.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•
Electric Built-In Cooktop model FPIC3677R is approved to be used
over any Frigidaire® Electric Single Wall Oven. (Refer to Electric
Cooktop Installation Over 30" / 27" Electric Single Wall Oven
Specifications page on web.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Granite Countertop Installation Kit – (PN # 903061-9010).
Required Clearances
K - Cabinet Opening Width
(min.)
Accessories information available
on the web at frigidaire.com
Utility Connection Locations
Specifications
subject to change.
