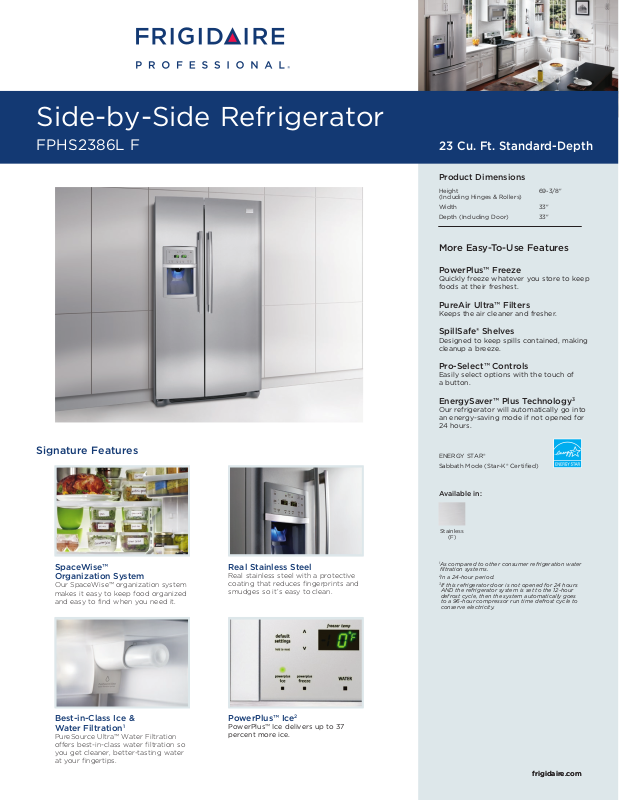

Frigidaire FPHS2386L DATASHEET
Side-by-Side Refrigerator
FPHS2386L F
23 Cu. Ft. Standard-Depth
Product Dimensions
Height 69-3/8"
(Including Hinges & Rollers)
Width 33"
Depth (Including Door) 33"
More Easy-To-Use Features
PowerPlus™ Freeze
Quickly freeze whatever you store to keep
foods at their freshest.
PureAir Ultra™ Filters
Keeps the air cleaner and fresher.
SpillSafe® Shelves
Designed to keep spills contained, making
cleanup a breeze.
Pro-Select™ Controls
Easily select options with the touch of
a button.
EnergySaver™ Plus Technology
Our refrigerator will automatically go into
an energy-saving mode if not opened for
24 hours.
3
Signature Features
SpaceWise™
Organization System
Our SpaceWise™ organization system
makes it easy to keep food organized
and easy to find when you need it.
Best-in-Class Ice &
Water Filtration
PureSource Ultra™ Water Filtration
offers best-in-class water filtration so
you get cleaner, better-tasting water
at your fingertips.
1
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it’s easy to clean.
PowerPlus™ Ice
PowerPlus™ Ice delivers up to 37
percent more ice.
2
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
1
As compared to other consumer refrigeration water
filtration systems.
2
In a 24-hour period.
3
If this refrigerator door is not opened for 24 hours
AND the refrigerator system is set to the 12-hour
defrost cycle, then the system automatically goes
to a 96-hour compressor run time defrost cycle to
conserve electricity.
frigidaire.com
frigidaire.com
Features
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
EnergySaver™ Plus Technology
Water Filter Location
Sound Package
Soft-Arc
Stainless
Grey
Yes / Yes
Hidden
Adjustable / Yes
Yes
Top Right Rear-Side
Quiet Pack
Dispenser
Controls
Dispenser Design
Number of Dispenser Buttons
Crushed Ice / Cube Ice / Chilled Water
Ice Option
Freeze Option
Display On / O Option
Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
Pro-Select™
Tall, Single Paddle
11
Yes / Yes / Yes
PowerPlus™ Ice
PowerPlus™ Freeze
Yes / Yes
Yes
Yes
Refrigerator Features
Interior Lighting
Water Filter Type
Air Filter Type
Fixed Shelves
Sliding Shelves
Cool Zone™ Drawer
Wine / Can Rack
Upper Crisper / Lower Crisper
Humidity Controls
Dairy Compartment
Fixed Door Bins
Adjustable Door Bins
Non-Slip Bin Liner / Bottle Retainers
Condiment Bin
Standard
PureSource Ultra™
PureAir Ultra™
3 SpillSafe®
1 Stacked
1 Clear / 1 Clear
2
1 Clear
2 Two-Liter Clear
2 One-Gallon Clear
Yes / No
Freezer Features
Door Bins / Tilt-Out Wire Door Bins
Fixed Shelves
Full Extension Baskets
Full Freezer Baskets
Half Freezer Baskets
Ice Cream Shelf / Pizza Shelf
SpaceSaver™ Shelf
Lighting
2 White / 2
1 Flip-Out / 1 Wire
1 Plastic / 1 Wire
Yes / No
Yes
Certifications
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Yes
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.
22.6
14.2
8.3
Right Bottom Rear
Left Bottom Rear
120V / 60Hz / 15 or 20A
1.02
8.5
15
285 Lbs.
Side-by-Side Refrigerator
FPHS2386L F 23 Cu. Ft. Standard-Depth
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Overall Exterior Dimensions
A - Height (Incl. Hinges and Rollers)
B - Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
69-3/8"
33"
33"
49-7/8"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FPHS2386L 08/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
