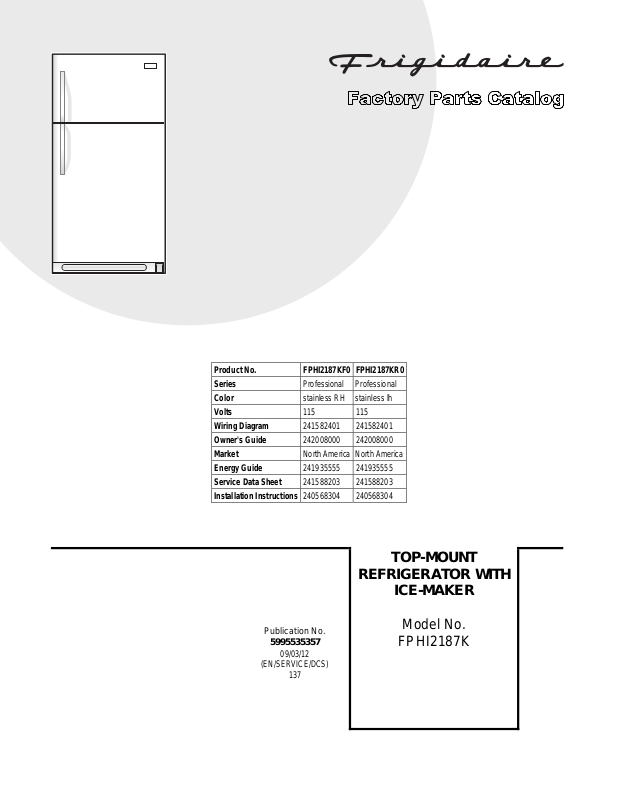

Product No. FPHI2187KF0 FPHI2187KR0
Series Professional Professional
Color stainless RH stainless lh
Volts 115 115

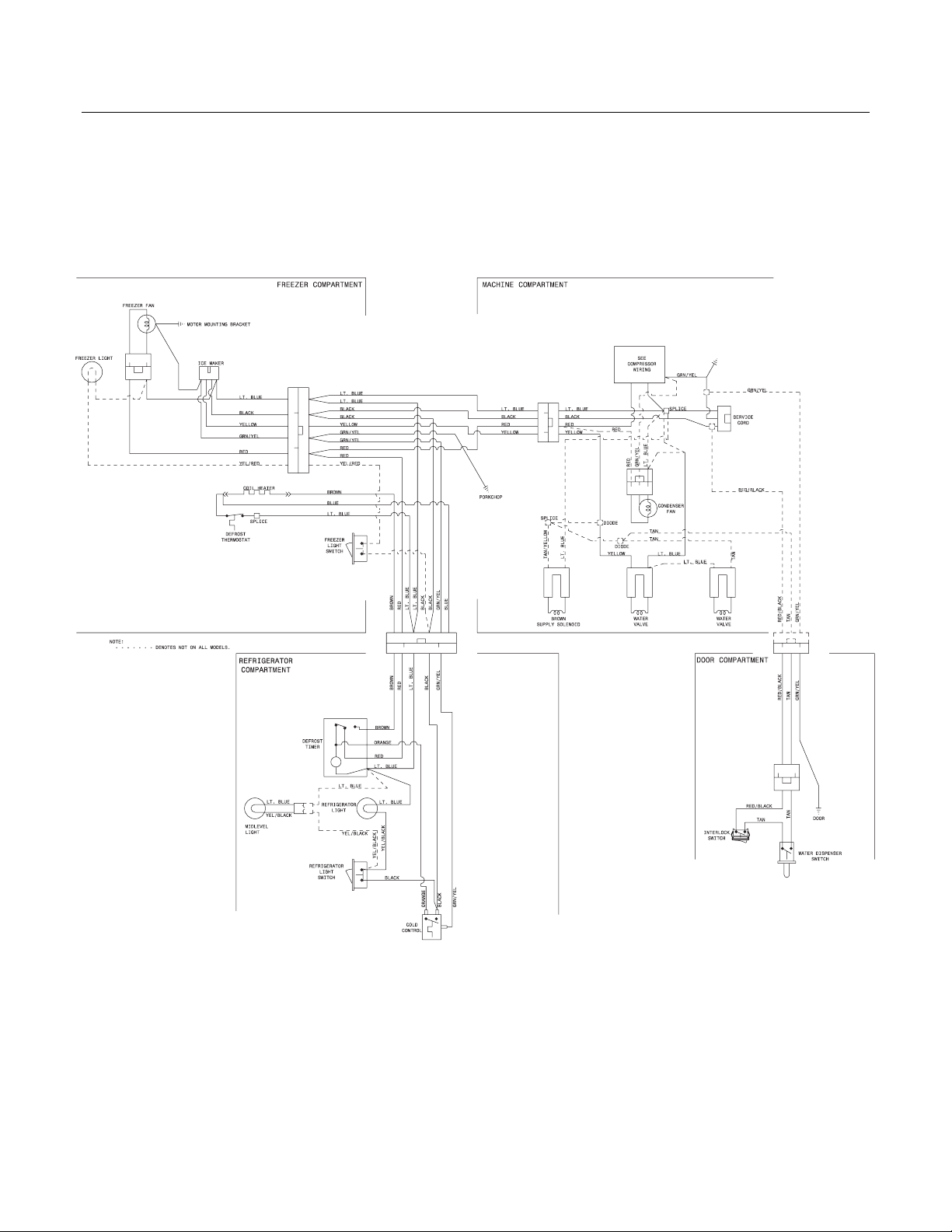

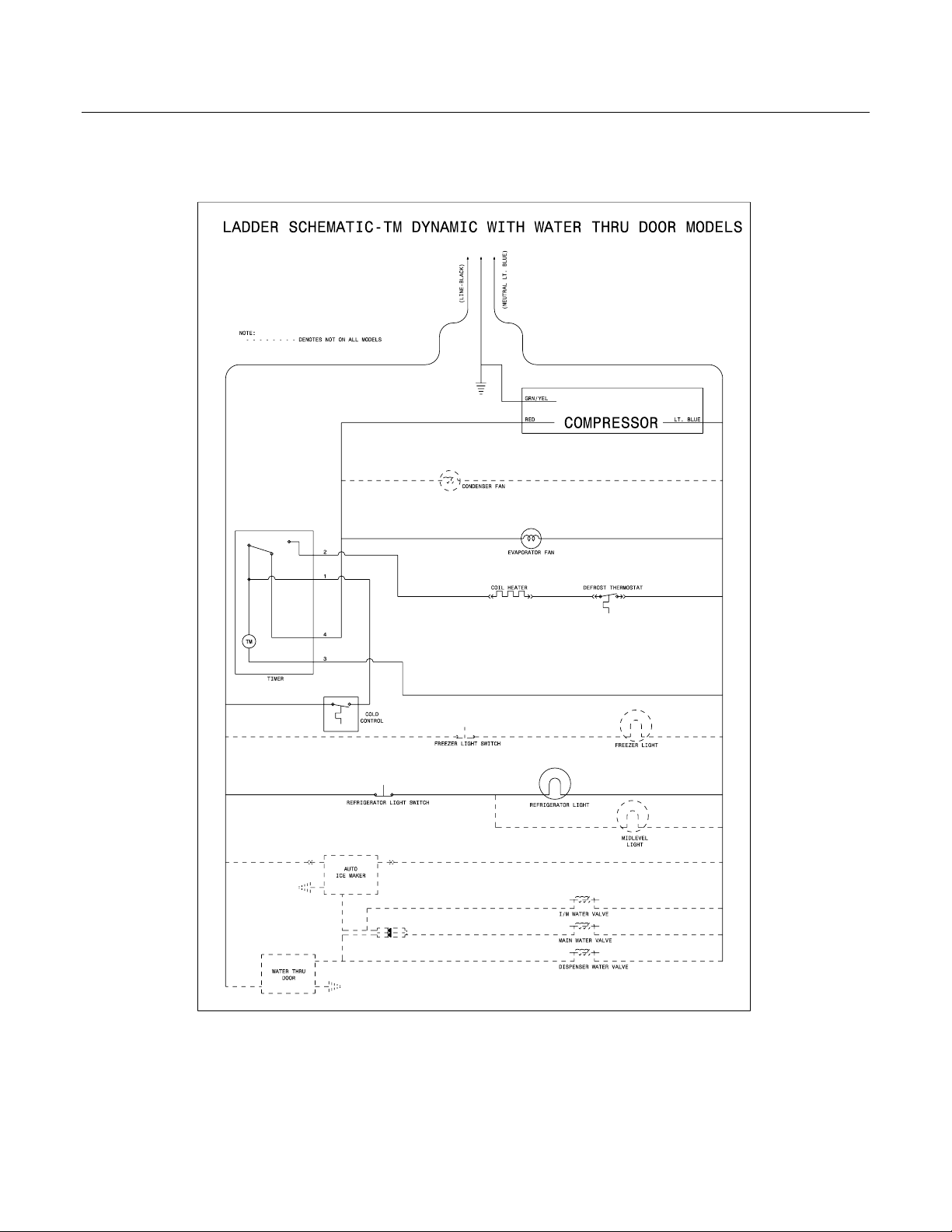

Wiring Diagram 241582401 241582401
Owner's Guide 242008000 242008000
Market North America North America
Energy Guide 241935555 241935555
Service Data Sheet 241588203 241588203
Installation Instructions 240568304 240568304
N05L00017.eps N05DPDDBA0.eps N05BAAAAC2.eps N05SACAFL12.eps
N05CAAAAC9.eps 1151-1Flurida.eps W241582401.eps S241582801.eps
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995535357
09/03/12
(EN/SERVICE/DCS)
137
TOP-MOUNT
REFRIGERATOR WITH
ICE-MAKER
Model No.
FPHI2187K
Copyright ©All rights reserved.
Publication No: 5995535357 FPHI2187K
DOOR
22
12
11
494949A
7
1
79
80
18
22
13A
21
21C
22
21
18A
2
80
79
48A
48A
15
22
13
48A
21C
48
N05DPDDBA0
03/09 2
FPHI2187K Publication No: 5995535357
DOOR
POS. NO PART NO. DESCRIPTION
1 241872505 A B Gasket-frzr door, white, magnetic
2 # 241872513 A B Gasket, refr door seal, white, magnetic
7 240338303 A B Door, dairy, clear
11 240450394 A - Door-frzr, stainless, complete assy
11 240450393 - B Door-frzr, stainless, complete assy
12 242015101 A B Label-nameplate
13 240312405 A B Door Stop, black, refr
13A 240312406 A B Door Stop, black, frzr
15 241837285 A - Door-refr, stainless, complete assy
15 241837284 - B Door-refr, stainless, complete assy
18 241977601 A B Handle-door, refr-LH/frzr-RH
18* 241601001 A B Wrench, allen
18* 241701901 A B Screw Driver
18A 241977602 A B Handle-door, refr-RH/frzr-LH
21 240383406 A B Screw, truss hd quad, #10-16 x .500, zinc
21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
22 240527102 A B Bearing-hinge, black
48 240338101 A B Bin-door, pseudo, bottom
48A 241808227 A B Bin-door, gallon
48A* 241779603 A B Liner, bin
49 240495805 A B Bin-door, pseudo, frzr
49A 241801401 A B Bin-tilt out, tilt-out
79 218755401 A B Screw-set, 10-32 x 0.375
80 218755504 A B Screw-shoulder, #10 AB, handle mounting
Model Index: A FPHI2187K (FPHI2187KF0)
B FPHI2187K (FPHI2187KR0)
# Functional Parts
3 03/09
* Non-Illustrated Parts
Publication No: 5995535357 FPHI2187K
CABINET
03/09 4
2
FPHI2187K Publication No: 5995535357
CABINET
POS. NO PART NO. DESCRIPTION
1 240355402 A B Cover-fan
2 240367001 A B Knob-damper control
3 5303212803 A B Nut
4 240367401 A B Damper-fan cover
5 5308000010 A B Fan Blade, red, evaporator fan
8 5300157666 A B Bushing-motor mtg, (2)
9 5303292396 A B Bracket-motor mtg, front
10 240313611 A B Cover-evap coil, w/light
10* 240568606 A B Seal-coil cover
11 5303208309 A B Plug-hole, factory test
13 # 241854501 A B Motor-evap fan
13* 215474201 A B Washer, "slinger", nylon, evap fan sh aft
14 5303292397 A B Bracket-motor mtg, rear
14* 240433204 A B Screw, hex washer head, 8-18 x 5/16
15 241560701 A B Light Bulb
16 241513901 A B Socket-light
21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
22 215774920 A B Plug button, silver mist
28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240314003 A B Bracket-lower hinge, black
34 240311303 A B Washer, hinge, nylon, (2)
35 240313802 A B Bracket-ctr hinge, white
35A 240336802 A B Spacer-hinge, center
36 240516402 A B Pin-center hinge
37 240337614 A B Trim-cabinet corner, silver mist, (2)
38 240313701 A B Bracket-upper hinge
40 240354405 A B Cover-upper hinge, silver mist
41 5308009759 A B Grommet, shelf mtg, 1.25", LH, (4)
42 240578902 A B Screw, hex head, 1/4-20 x 5/8
43 240335006 A B Roller Assy, front, (2)
47 218233301 A B Channel-shelf mtg, side, (2)
48 241566901 A B Channel-shelf mtg, center (mll)
49 218362501 A B Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
56 240516502 A B Pin-lower hinge
58 5304456287 A B Screw, hex washer head, 8-15A x 0.500
59 240442708 A B Screw-#10-32 X 3/4, white
72 241839411 A B Grille/Kickplate, silver metallic
74 240354302 A B Shield-light, frzr
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733907 A B Cover-access, with label
89* 241500303 A B Screw, hex washer head, 8-18AB x 0.500
92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg
114# 240505801 A B Switch, light/lamp
Model Index: A FPHI2187K (FPHI2187KF0)
B FPHI2187K (FPHI2187KR0)
# Functional Parts
5 03/09
* Non-Illustrated Parts
Publication No: 5995535357 FPHI2187K

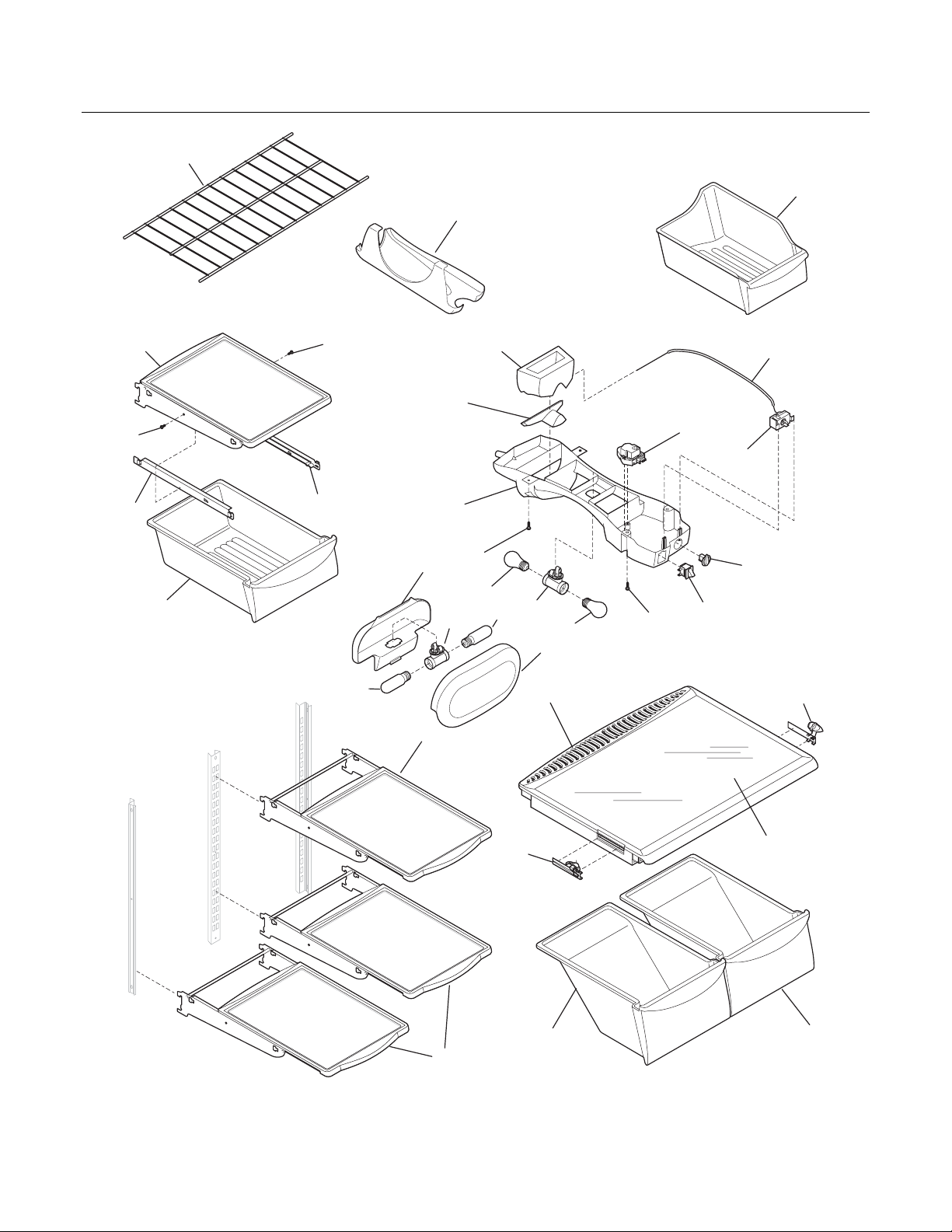

SHELVES
11
136
34
123
42
24A
31
123
42
15A
141
24
13
17
16A
81
15
12
15A
16
142
25
15
81
22A
23
21
18
14
25B
25C
26
47
26
24
N05SACAFL12
03/09 6
FPHI2187K Publication No: 5995535357
SHELVES
POS. NO PART NO. DESCRIPTION
11 240358006 A B Shelf, freezer, full-width, wire
12 240545901 A B Diffuser-air, top
13 240362601 A B Diffuser, air, bottom
14 # 241554901 A B Switch-light/lamp
15 241555401 A B Light Bulb
15A 241552802 A B Light Bulb
16 240364201 A B Socket-light/lamp, dual
16A 241507803 A B Socket-light
16A* 241593901 A B Harness-wiring
17 240368101 A B Control Box
17* 241566801 A B Harness-wiring, c/box M/Level
18 240360801 A B Knob, temp control
21 # 5304445058 A B Control-temperature
22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white
23 # 215846606 A B Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min
23* 5304455649 A B Screw, pan hd, 6-20 x 0.438
24 240350143 A B Shelf-"Spill-Safe", cantilever, sliding
24A 240355261 A B Shelf-"Spill-Safe", fixed
25 240364790 A B Cover-crisper pan
25B 241613501 A B Control-humidity, RH
25C 241613502 A B Control-humidity, LH
26 240343803 A B Pan, crisper, (2)
31 240530803 A B Pan-meat, w/o graphics, clear
34 240385201 A B Container, ice bin
42 240356501 A B Track, meat pan hanger, RH
42 240365401 A B Track, meat pan hanger, LH
47 240350609 A B Insert-pan cover, glass
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
123 215 005 101 A B Screw, hanger/rlr mtg, 8-10 x 7/16
136 241 657 701 A B Dispenser-can, white
141 241 562101 A B Shield-heat, Mid Level
142 241 562202 A B Shield-light Mid Level
* 241935555 A B Energy Guide
Model Index: A FPHI2187K (FPHI2187KF0)
B FPHI2187K (FPHI2187KR0)
# Functional Parts
7 03/09
* Non-Illustrated Parts
Publication No: 5995535357 FPHI2187K

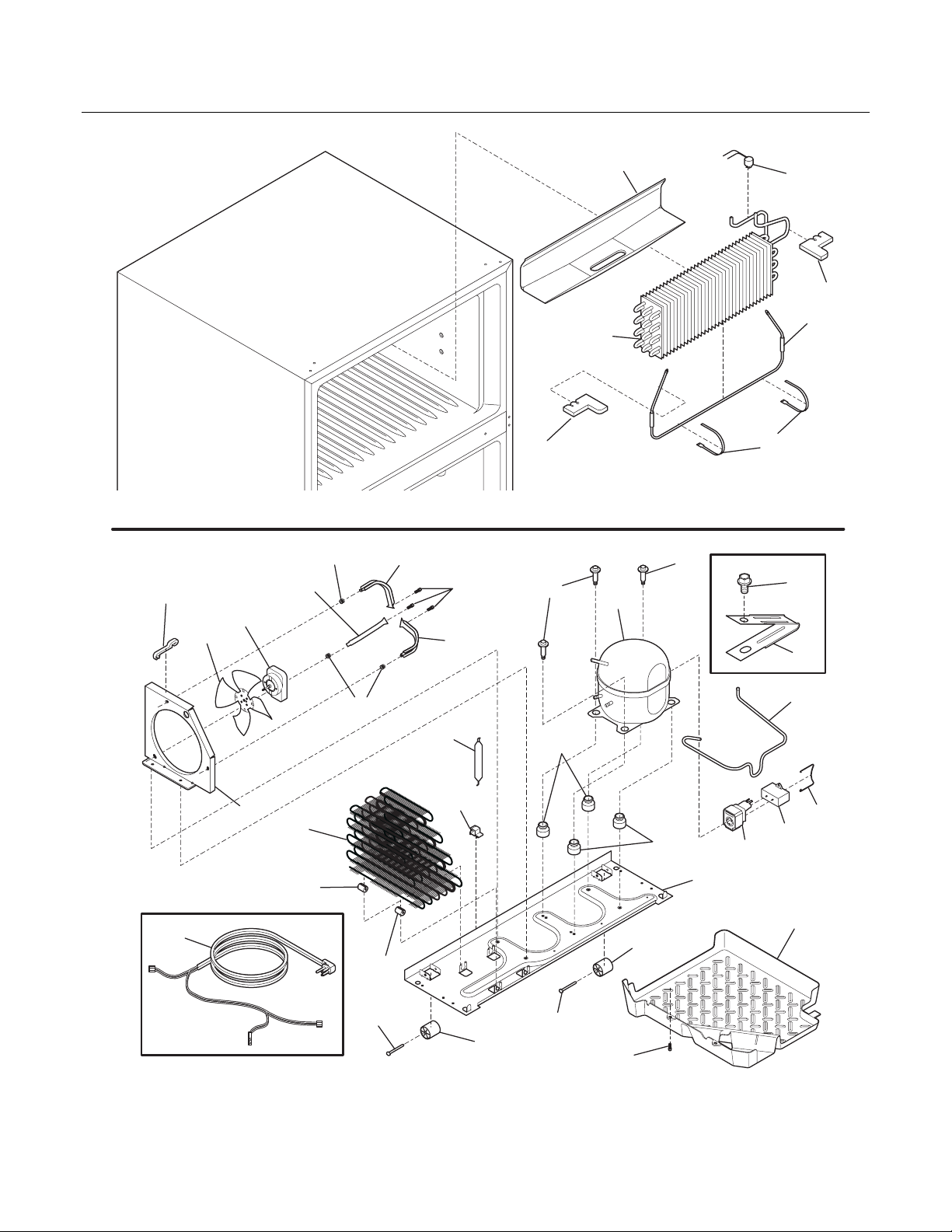

SYSTEM
86
61
60
59B
59A
59A
58
59A
20
25
17
21
20
14
15
16
25
41
29
44
85
32
55
59
1
34
59B
4
57
23
23
30
22
26
6
82
34
83
83
82
45
N05CAAAAC9
03/09 8
FPHI2187K Publication No: 5995535357
SYSTEM
POS. NO PART NO. DESCRIPTION
1 241965001 A B Condenser, dynamic
4 # 218944001 A B Drier-filter, R134a System
6 # 241607001 A B Harness-wiring, machine compt
6* # 241566801 A B Harness-wiring, c/box M/Level
14 # 241940103 A B Heater-defrost
15 # 5303918274 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater, aluminum, (2)
17 241801301 A B Trough-drain
20 241551902 A B Insulation Block
21 # 5303918202 A B Thermostat-defrost, kit
22 241602010 A B Base-compressor
22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
22* 218709101 A B Screw, hex head, 10-32 x 0.500
23 241659701 A B Grommet, compressor
25 240491503 A B Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241637401 A B Pan-defrost
29 # 5303918359 A B Compressor, w/o electricals
30 # 241707701 A B Starter, PTC
32 241650901 A B Clamp, elec cont mtg, compressor
34 240405201 A B Grommet, rubber, black, cond tube/wire
41 240555002 A B Screw-#8-32 X 3/8
44 215174700 A B Clamp-service cord, strain relief, galv steel
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 A B Capacitor, run, 220 VAC, 15 microfarad
57 240542601 A B Clip-wiring harness
58 240433203 A B Screw, hex washer head, 8-18 x 3/8
59 240315502 A B Shroud-cond fan
59* 240346701 A B Tape-foam seal, shroud
59* 240359403 A B Screw-fan shroud, (2)
59A 240346501 A B Bracket-support, cond mtr, (3)
59B 240346601 A B Grommet-bracket, (3)
60 241584301 A B Motor-condenser fan
61 241639501 A B Blade-condenser fan
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
85 241844801 A B Tube-connector, suction
86 240409302 A B Spacer-cond tube, black
* 240396801 A B Clamp, tube/wiring, nylon, black/natural
* # 5303918330 A B Heat Exchanger Kit, suction line, service
* # 5304421289 A B Hot Tube Repair Kit, service
Model Index: A FPHI2187K (FPHI2187KF0)
B FPHI2187K (FPHI2187KR0)
# Functional Parts
9 03/09
* Non-Illustrated Parts
Publication No: 5995535357 FPHI2187K

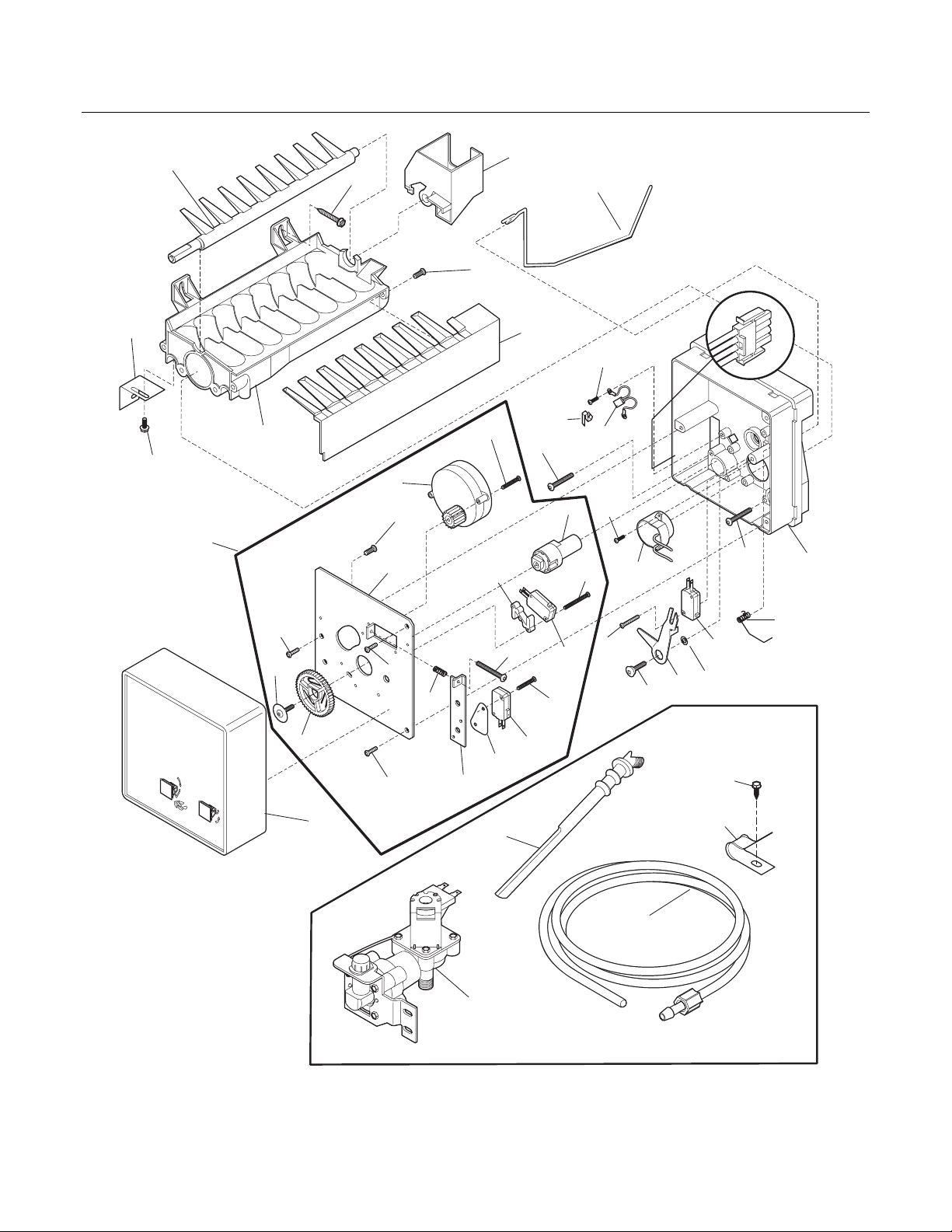

ICE MAKER
18
60
20
19
22
61
62
21
12
26
17
29
23
39
11
7
9
28
26
68
5
8
27
13
23
34
15A
29A
14
25
35
34
33
30
4
ON
OFF
MOVE ARM UP UNTIL
MOVE ARM UP UNTIL
LOCKED INTO PLACE
LOCKED
INTO
PLACE
36
34
32
15
31
51
24
15
41
45
64
16
2
1
55
INSTALLATION PARTS
N05I1151-1Flurida
03/09 10
FPHI2187K Publication No: 5995535357
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976915 A B Tube-water inlet, inlet valve, to filter
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
2 5304469396 A B Spring-shutoff arm, ice maker
4 5304469403 A B Gear
5 5304469399 A B Mounting Plate
7 # 5304469407 A B Motor-ice maker Svo
8 5304469404 A B Spacer-hold switch
9 5304469402 A B Cam
11 5304455695 A B Thermal Cutoff, ice maker, complete assy
12 # 5304469390 A B Harness-wiring
13 5304469387 A B Thermostat Assy, ice maker
14 5304469394 A B Screw
15 # 5304469388 A B Switch-micro, 2
15A# 5304469405 A B Switch-micro
16 5304469379 A B Housing, control
17 # 5304469413 A B Mold-ice maker, with heater
18 5304469384 A B Ejector-ice
19 5304469386 A B Bearing & Inlet, fill cup
20 5304469391 A B Screw, 8-32 x 3/8
21 5304469378 A B Ice Stripper
22 5304469377 A B Shut-off Arm
23 5304469392 A B Screw, mold-to-support, (2)
24 5304469382 A B Lever Arm
25 5304469397 A B Screw, lever arm/sprt
26 5304469393 A B Screw
27 5304469410 A B Screw, hold switch mtg, (2)
27* 5304469406 A B Insulator
28 5304469414 A B Screw
29 5304469409 A B Screw
29A 5304469412 A B Screw
30 5304469408 A B Screw-timing adj
31 5304469389 A B Spacer-switch
32 5304469400 A B Plate-valve switch
33 5304469401 A B Spring, timing adjust
34 5304469380 A B Screw, #8-10*1/2
35 5304469411 A B Screw
36 5304469385 A B Cover-ice maker
39 5304469383 A B Clamp
41 5304469381 A B Washer, flat
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
51 241796401 A B Tube-water fill, extension
55 # 241803701 A B Valve-water, single solenoid, 60 Hz, 105/120 V
55* 218709101 A B Screw, hex head, 10-32 x 0.500
60 218362501 A B Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
61 5304469376 A B Bracket-leveling, ice maker
62 5304469395 A B Screw
64 5304455846 A B Clamp, .31 ID, steel, water tube
68 5304469398 A B Mounting Plate, assy
* 241798201 A B Ice Maker, radius cube, 115 V, Svce
Model Index: A FPHI2187K (FPHI2187KF0)
B FPHI2187K (FPHI2187KR0)
# Functional Parts
11 03/09
* Non-Illustrated Parts
Publication No: 5995535357 FPHI2187K
WIRING SCHEMATIC
03/09 12
FPHI2187K Publication No: 5995535357
WIRING DIAGRAM
# Functional Parts
13 03/09
* Non-Illustrated Parts
Loading...
