iNSTALLATION AND SERVICE MUST BE PERFORMED BY A
QUALIFIED iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTIONS FOR FUTURE REFERENCE.
if the information in this manual is not followed
exactly, a fire or explosion may result causing property damage,
personal injury or death.
FOR YOUR SAFETY:
m Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
WHAT TO DO iF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
• if you cannot reach your gas supplier, call the fire department.
= installation and service must be performed by a qualified
installer, service agency or the gas supplier.
Appliances installed
in the state of
Massachusetts:
This Appliance can only
be installed in the state
of Massachusetts by a
Massachusetts licensed
plumber or gas fitter.
This appliance must be
installed with a three (3)
foot / 36 in. long flexible
gas connector. A"T"
handle type manual gas
valve must be installed
in the gas supply line to
this appliance.

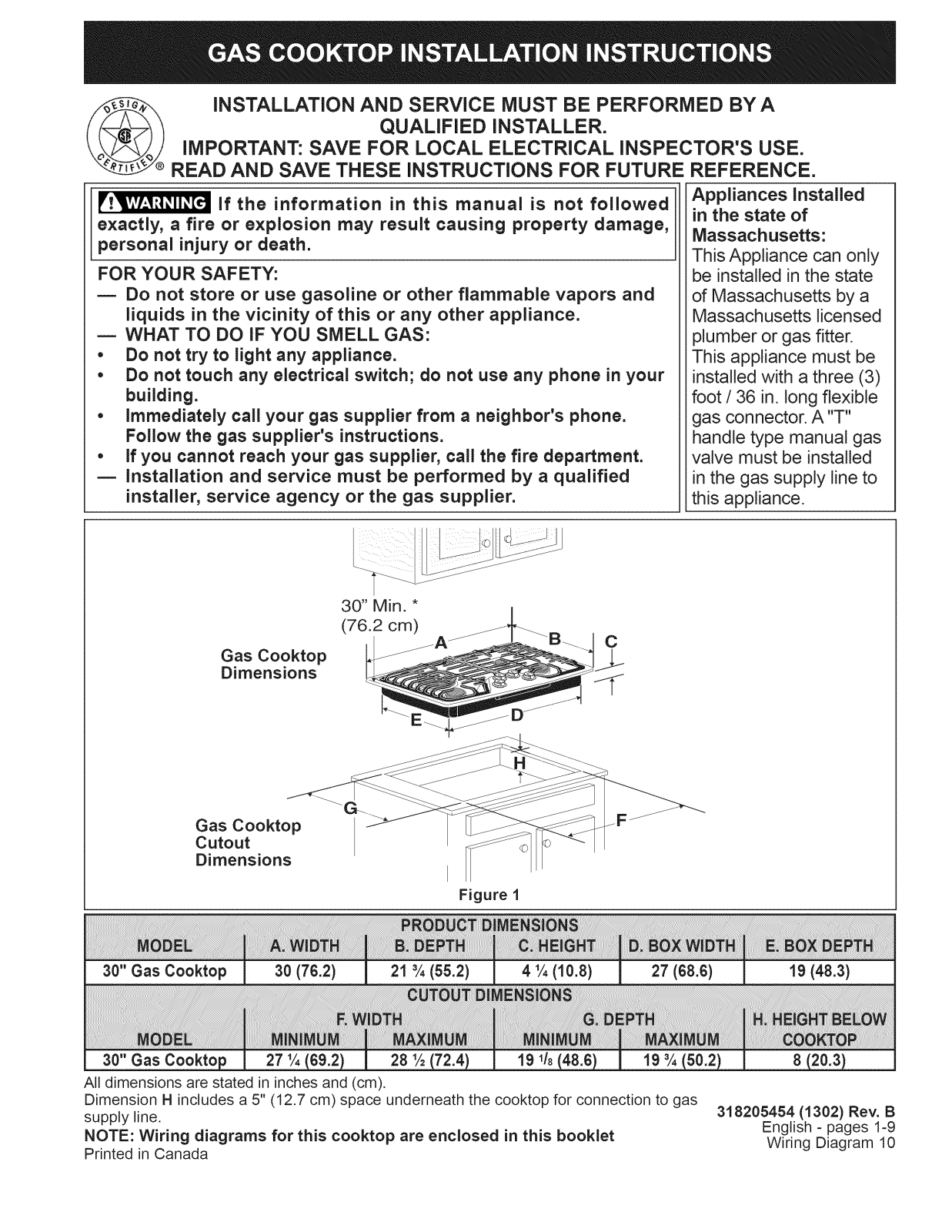

Gas Cooktop
Dimensions
Gas Cooktop
Cutout
Dimensions
30" Min. *
(76.2 cm)
JA C
Figure 1
30" Cookto 28 1/= 19 1/8
All dimensions are stated in inches and (cm).
Dimension H includes a 5" (12.7 cm) space underneath the cooktop for connection to gas
supply line,

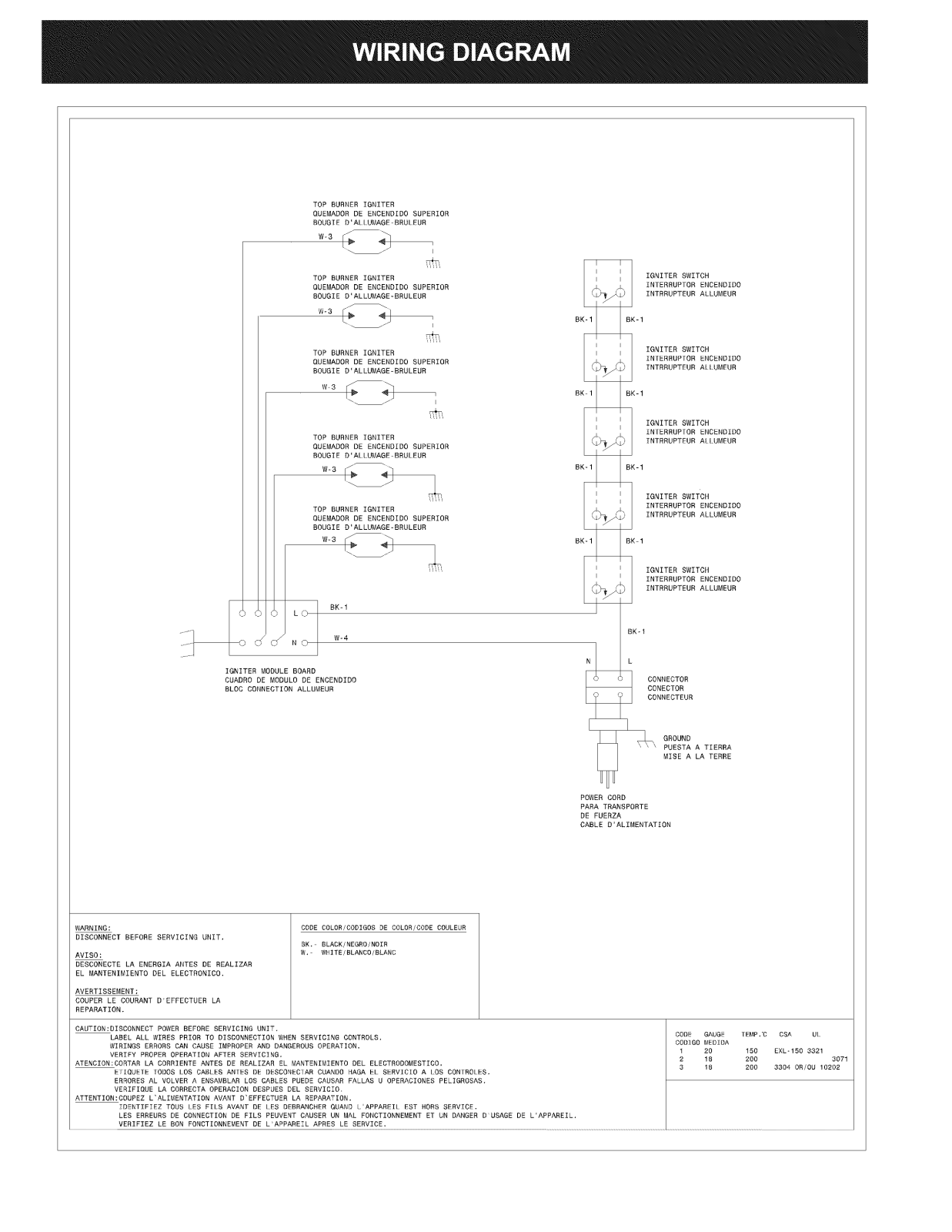

NOTE: Wiring diagrams for this cooktop are enclosed in this booklet
Printed in Canada
8
318205454 (1302) Rev, B
English - pages 1-9
Wiring Diagram 10

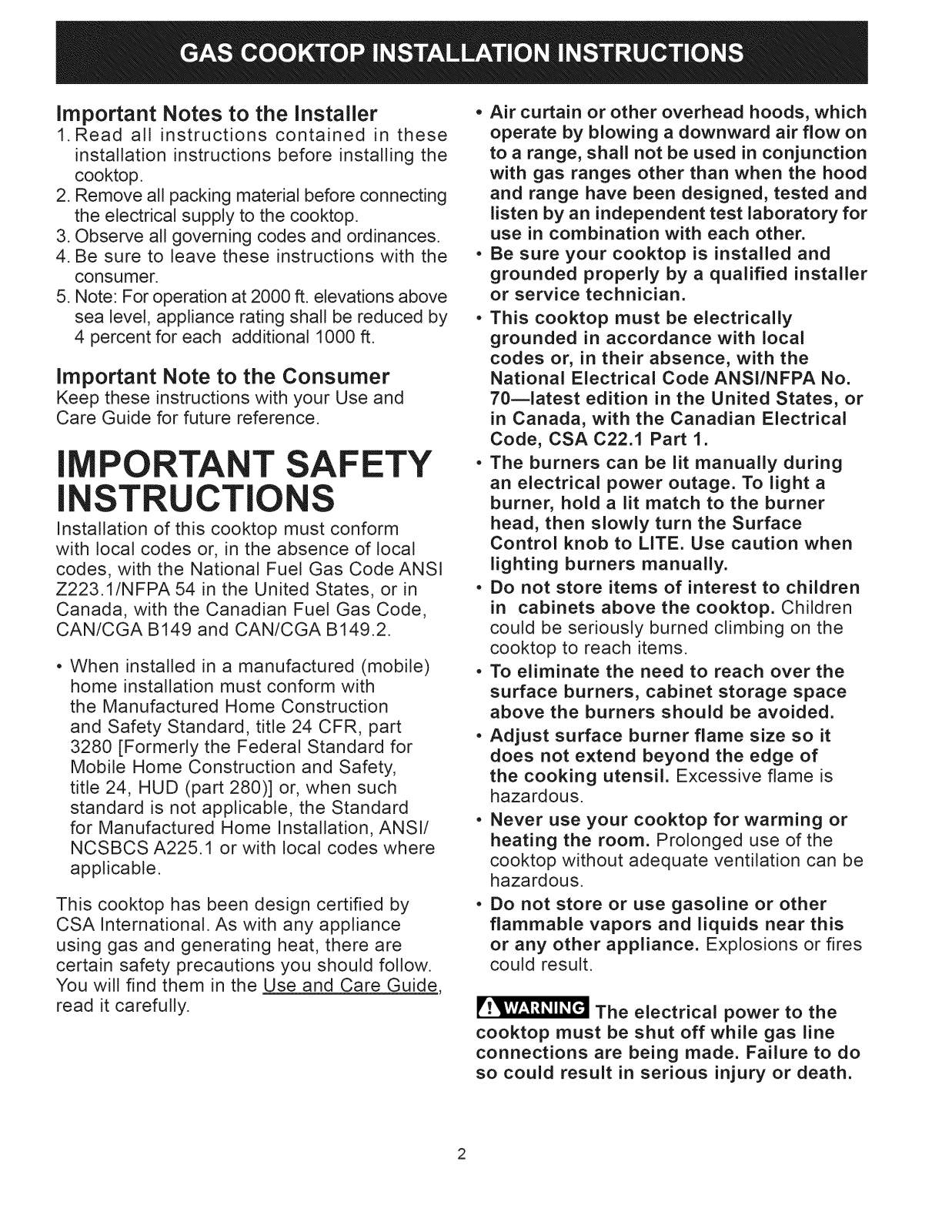

important Notes to the Installer
1. Read all instructions contained in these
installation instructions before installing the
cooktop.
2. Remove all packing material before connecting
the electrical supply to the cooktop.
3. Observe all governing codes and ordinances.
4. Be sure to leave these instructions with the
consumer.
5. Note: For operation at 2000 ft. elevations above
sea level, appliance rating shall be reduced by
4 percent for each additional 1000 ft.
important Note to the Consumer
Keep these instructions with your Use and
Care Guide for future reference.
I PORTANT SAFETY
INST UCTIO
Installation of this cooktop must conform
with local codes or, in the absence of local
codes, with the National Fuel Gas Code ANSI
Z223.1/NFPA 54 in the United States, or in
Canada, with the Canadian Fuel Gas Code,
CAN/CGA B149 and CAN/CGA B149.2.
• When installed in a manufactured (mobile)
home installation must conform with
the Manufactured Home Construction
and Safety Standard, title 24 CFR, part
3280 [Formerly the Federal Standard for
Mobile Home Construction and Safety,
title 24, HUD (part 280)] or, when such
standard is not applicable, the Standard
for Manufactured Home Installation, ANSI/
NCSBCS A225.1 or with local codes where
applicable.
This cooktop has been design certified by
CSA International. As with any appliance
using gas and generating heat, there are
certain safety precautions you should follow.
You will find them in the Use and Care Guide,
read it carefully.
. Air curtain or other overhead hoods, which
operate by blowing a downward air flow on
to a range, shall not be used in conjunction
with gas ranges other than when the hood
and range have been designed, tested and
listen by an independent test laboratory for
use in combination with each other.
• Be sure your cooktop is installed and
grounded properly by a qualified installer
or service technician.
• This cooktop must be electrically
grounded in accordance with local
codes or, in their absence, with the
National Electrical Code ANSI/NFPA No.
70mlatest edition in the United States, or
in Canada, with the Canadian Electrical
Code, CSA C22.1 Part 1.
• The burners can be lit manually during
an electrical power outage. To light a
burner, hold a lit match to the burner
head, then slowly turn the Surface
Control knob to LITE. Use caution when
lighting burners manually.
• Do not store items of interest to children
in cabinets above the cooktop. Children
could be seriously burned climbing on the
cooktop to reach items.
• To eliminate the need to reach over the
surface burners, cabinet storage space
above the burners should be avoided.
• Adjust surface burner flame size so it
does not extend beyond the edge of
the cooking utensil. Excessive flame is
hazardous.
• Never use your cooktop for warming or
heating the room. Prolonged use of the
cooktop without adequate ventilation can be
hazardous.
• Do not store or use gasoline or other
flammable vapors and liquids near this
or any other appliance. Explosions or fires
could result.
The electrical power to the
cooktop must be shut off while gas line
connections are being made. Failure to do
so could result in serious injury or death.

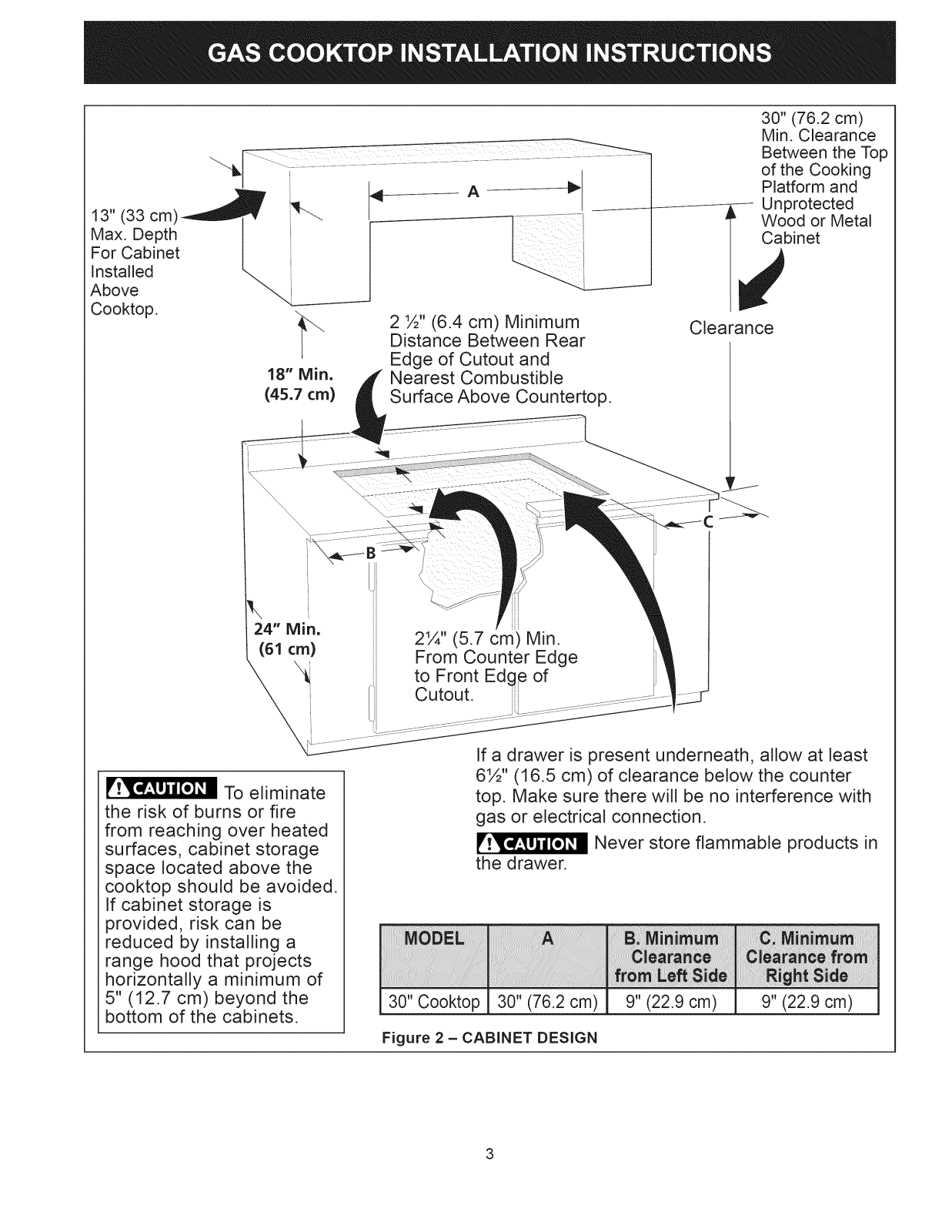

13" (33 cm)
Max. Depth
For Cabinet
Installed
Above
Cooktop.
18" Min.
(45.7 cm)
\ .................
2 ½" (6.4 cm) Minimum
Distance Between Rear
Edge of Cutout and
Nearest Combustible
Surface Above Countertop.
30" (76.2 cm)
Min. Clearance
Between the Top
of the Cooking
Platform and
_;_i Unpr°tected
dne_rMetal
Clearance
To eliminate
the risk of burns or fire
from reaching over heated
surfaces, cabinet storage
space located above the
cooktop should be avoided.
If cabinet storage is
provided, risk can be
reduced by installing a
range hood that projects
horizontally a minimum of
5" (12.7 cm) beyond the
bottom of the cabinets.
If a drawer is present underneath, allow at least
6½" (16.5 cm) of clearance below the counter
top. Make sure there will be no interference with
gas or electrical connection.
Never store flammable products in
the drawer.
30" Cooktop 30" (76.2 cm) 9" (22.9 cm) 9" (22.9 cm)
Figure 2 - CABINET DESIGN
3

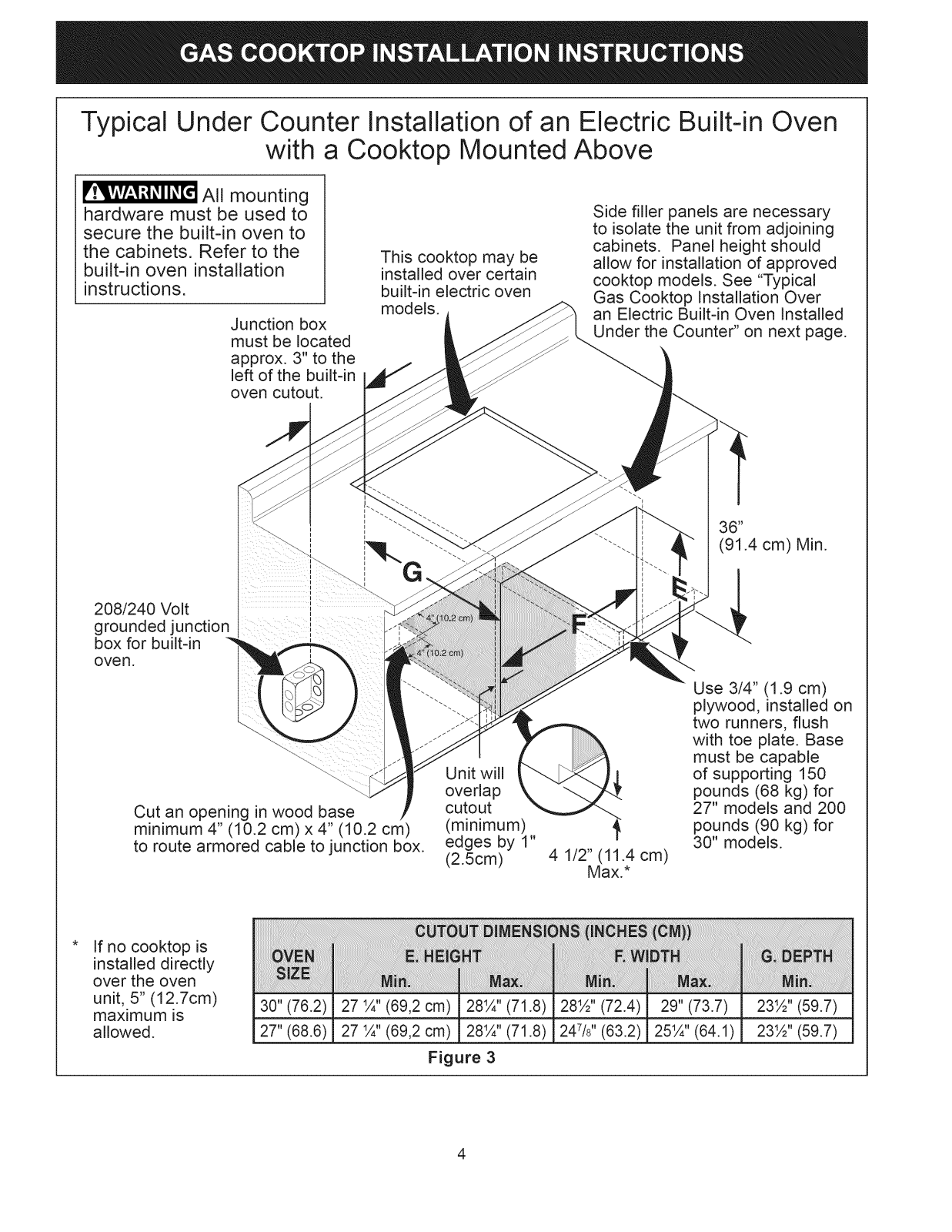

Typical Under Counter Installation of an Electric Built-in Oven
with a Cooktop Mounted Above
All mounting
hardware must be used to
secure the built-in oven to
the cabinets. Refer to the
built-in oven installation
instructions.
Junction box
must be located
approx. 3" to the
left of the built-in
oven cutout.
This cooktop may be
installed over certain
built-in electric oven
models.
Side filler panels are necessary
to isolate the unit from adjoining
cabinets. Panel height should
allow for installation of approved
cooktop models. See "Typical
Gas Cooktop Installation Over
an Electric Built-in Oven Installed
Under the Counter" on next page.
36"
(91.4 cm) Min.
208/240 Volt
grounded junction
box for built-in
oven.
Cut an opening in wood base
minimum 4" (10.2 cm) x 4" (10.2 cm)
to route armored cable to junction box.
If no cooktop is
installed directly
over the oven
unit, 5" (12.7cm)
maximum is
allowed.
30" (76.2)
27" (68.6)
Unit will
overlap
cutout
(minimum)
edges by 1"
(2.5cm)
27 _A"(69,2 cm) 281A'' (71.8)
27 1A"(69,2 cm) 28_A'' (71.8)
Figure 3
Use 3/4" (1.9 cm)
plywood, installed on
two runners, flush
with toe plate. Base
must be capable
of supporting 150
pounds (68 kg) for
27" models and 200
pounds (90 kg) for
30" models.
4 1/2" (11.4 cm)
Max.*
28½" (72.4) 29" (73.7) 23½" (59.7)
247/s'' (63.2) 25%" (64.1) 23½" (59.7)

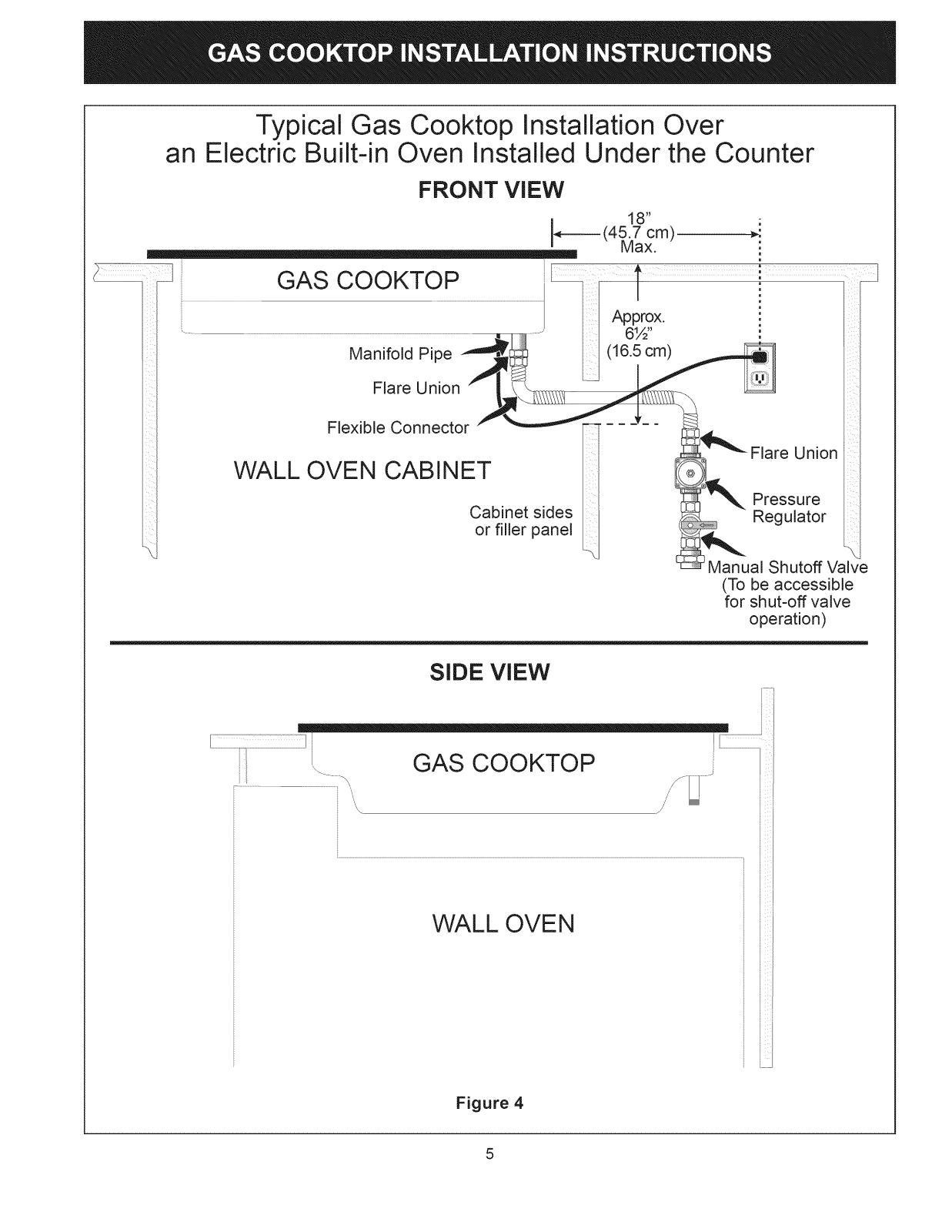

Typical Gas Cooktop Installation Over
an Electric Built-in Oven Installed Under the Counter
FRONT VIEW
1 8"
_--- (45.7 cm) _,:
I
GAS COOKTOP
...... 6½" _ /
Manifold Pipe-__ (16.5 c /
Flexible Connector _
Flare Union " I \,_1_- Z...................................................._=_1__ _
WALL OVEN CABINET _
Cabinet sides /
or filler panel
Max.
Approx. /
_ _Flare Union
_!!_ Pressure
Manual Shutoff Valv_e_-/
(To be accessible
for shut-off valve
operation)
SIDE VIEW
...... GAS COOKTOP ....[::::::::::
WALL
Figure 4
OVEN : :
5

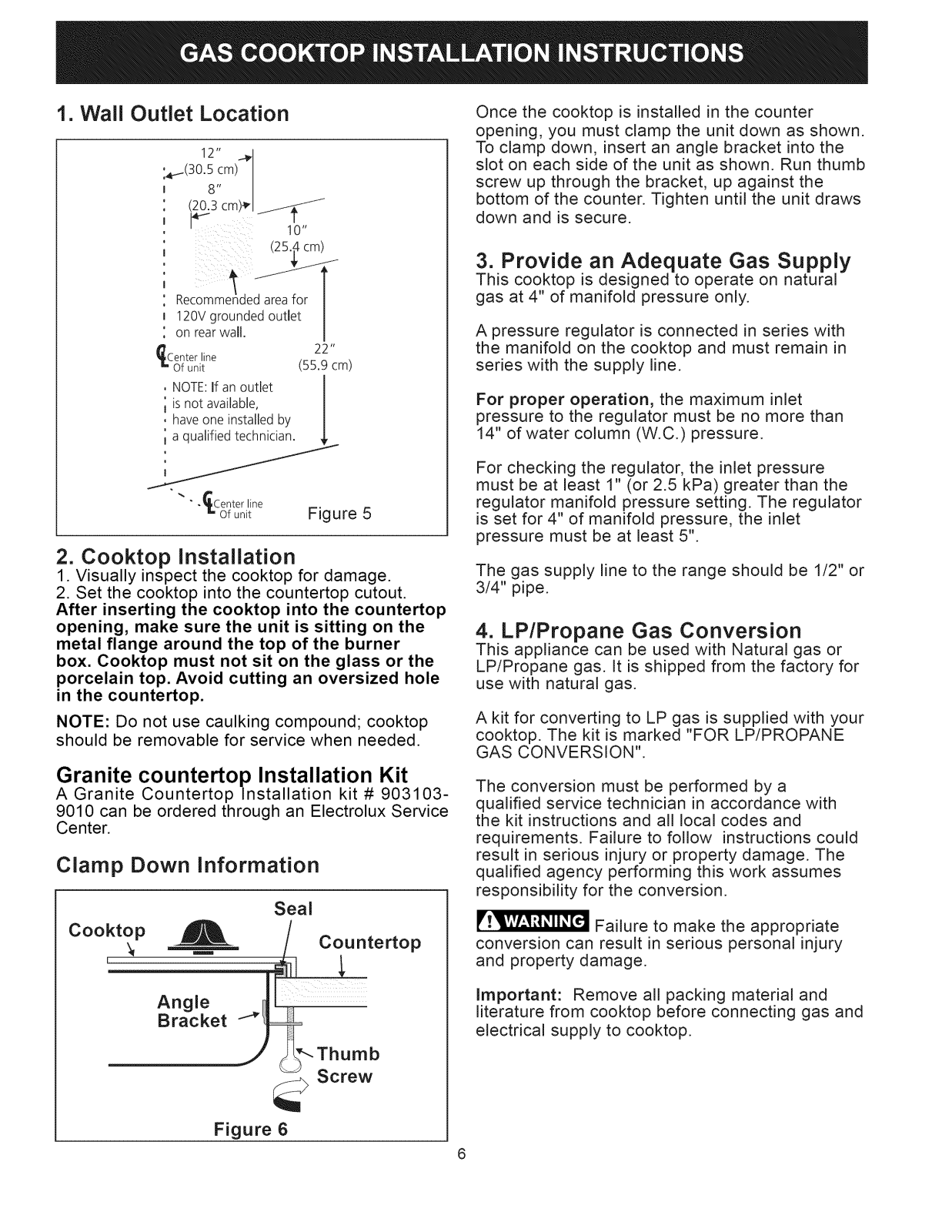

1. Wall Outlet Location
12" _1
'_...(30.5 cm) I
'l 8"
', (20.3 cm)_" //
10"
, <25._cm>
I 120V grounded outlet
' on rear wall.
_Center line 22"
Of unit (55.9 cm)
, NOTE:If anoutlet
't is not available, [
, have one installed by |
'l aqualified technician.
" " ._Center line
Of unit Figure 5
2. Cooktop Installation
1. Visually inspect the cooktop for damage.
2. Set the cooktop into the countertop cutout.
After inserting the cooktop into the countertop
opening, make sure the unit is sitting on the
metal flange around the top of the burner
box. Cooktop must not sit on the glass or the
porcelain top. Avoid cutting an oversized hole
in the countertop.
NOTE: Do not use caulking compound; cooktop
should be removable for service when needed.
Granite countertop Installation Kit
A Granite Countertop Installation kit # 903103-
9010 can be ordered through an Electrolux Service
Center.
Clamp Down Information
Seal
Cooktop _, Countertop
_, =..
I
Once the cooktop is installed in the counter
opening, you must clamp the unit down as shown.
To clamp down, insert an angle bracket into the
slot on each side of the unit as shown. Run thumb
screw up through the bracket, up against the
bottom of the counter. Tighten until the unit draws
down and is secure.
3. Provide an Adequate Gas Supply
This cooktop is designed to operate on natural
gas at 4" of manifold pressure only.
A pressure regulator is connected in series with
the manifold on the cooktop and must remain in
series with the supply line.
For proper operation, the maximum inlet
pressure to the regulator must be no more than
14" of water column (W.C.) pressure.
For checking the regulator, the inlet pressure
must be at least 1" (or 2.5 kPa) greater than the
regulator manifold pressure setting. The regulator
is set for 4" of manifold pressure, the inlet
pressure must be at least 5".
The gas supply line to the range should be 1/2" or
3/4" pipe.
4. LP/Propane Gas Conversion
This appliance can be used with Natural gas or
LP/Propane gas. It is shipped from the factory for
use with natural gas.
A kit for converting to LP gas is supplied with your
cooktop. The kit is marked "FOR LP/PROPANE
GAS CONVERSION".
The conversion must be performed by a
qualified service technician in accordance with
the kit instructions and all local codes and
requirements. Failure to follow instructions could
result in serious injury or property damage. The
qualified agency performing this work assumes
responsibility for the conversion.
Failure to make the appropriate
conversion can result in serious personal injury
and property damage.
Angle ._,
Bracket
Figure 6
Important: Remove all packing material and
literature from cooktop before connecting gas and
electrical supply to cooktop.
Thumb
> Screw

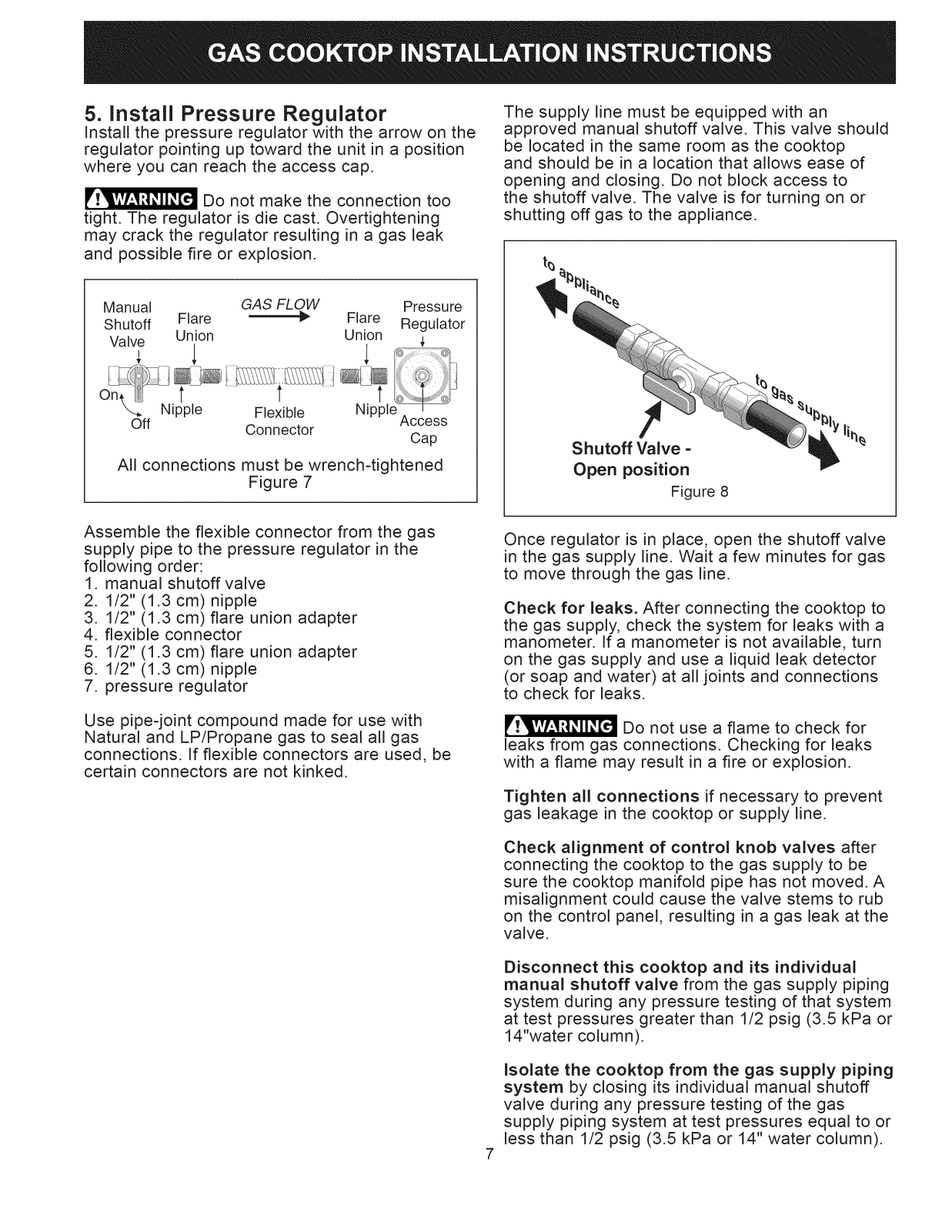

5. Install Pressure Regulator
Install the pressure regulator with the arrow on the
regulator pointing up toward the unit in a position
where you can reach the access cap.
Do not make the connection too
tight. The regulator is die cast. Overtightening
may crack the regulator resulting in a gas leak
and possible fire or explosion.
Manual GAS FLOW Pressure
Shutoff Flare _-t_ Flare Regulator
Valve Union Union
The supply line must be equipped with an
approved manual shutoff valve. This valve should
be located in the same room as the cooktop
and should be in a location that allows ease of
opening and closing. Do not block access to
the shutoff valve. The valve is for turning on or
shutting off gas to the appliance.
_ Nipple Flexible Nippl
Off Connector
Access
Cap
All connections must be wrench-tightened
Figure 7
Assemble the flexible connector from the gas
supply pipe to the pressure regulator in the
following order:
1. manual shutoff valve
2. 1/2" (1.3 cm) nipple
3. 1/2" (1.3 cm) flare union adapter
4. flexible connector
5. 1/2" (1.3 cm) flare union adapter
6. 1/2" (1.3 cm) nipple
7. pressure regulator
Use pipe-joint compound made for use with
Natural and LP/Propane gas to seal all gas
connections. If flexible connectors are used, be
certain connectors are not kinked.
Shutoff Valve -
Open position
Figure 8
Once regulator is in place, open the shutoff valve
in the gas supply line. Wait a few minutes for gas
to move through the gas line.
Check for leaks. After connecting the cooktop to
the gas supply, check the system for leaks with a
manometer. If a manometer is not available, turn
on the gas supply and use a liquid leak detector
(or soap and water) at all joints and connections
to check for leaks.
Do not use a flame to check for
leaks from gas connections. Checking for leaks
with a flame may result in a fire or explosion.
Tighten all connections if necessary to prevent
gas leakage in the cooktop or supply line.
Check alignment of control knob valves after
connecting the cooktop to the gas supply to be
sure the cooktop manifold pipe has not moved. A
misalignment could cause the valve stems to rub
on the control panel, resulting in a gas leak at the
valve.
Disconnect this cooktop and its individual
manual shutoff valve from the gas supply piping
system during any pressure testing of that system
at test pressures greater than 1/2 psig (3.5 kPa or
14"water column).
Isolate the cooktop from the gas supply piping
system by closing its individual manual shutoff
valve during any pressure testing of the gas
supply piping system at test pressures equal to or
less than 1/2 psig (3.5 kPa or 14" water column).
7

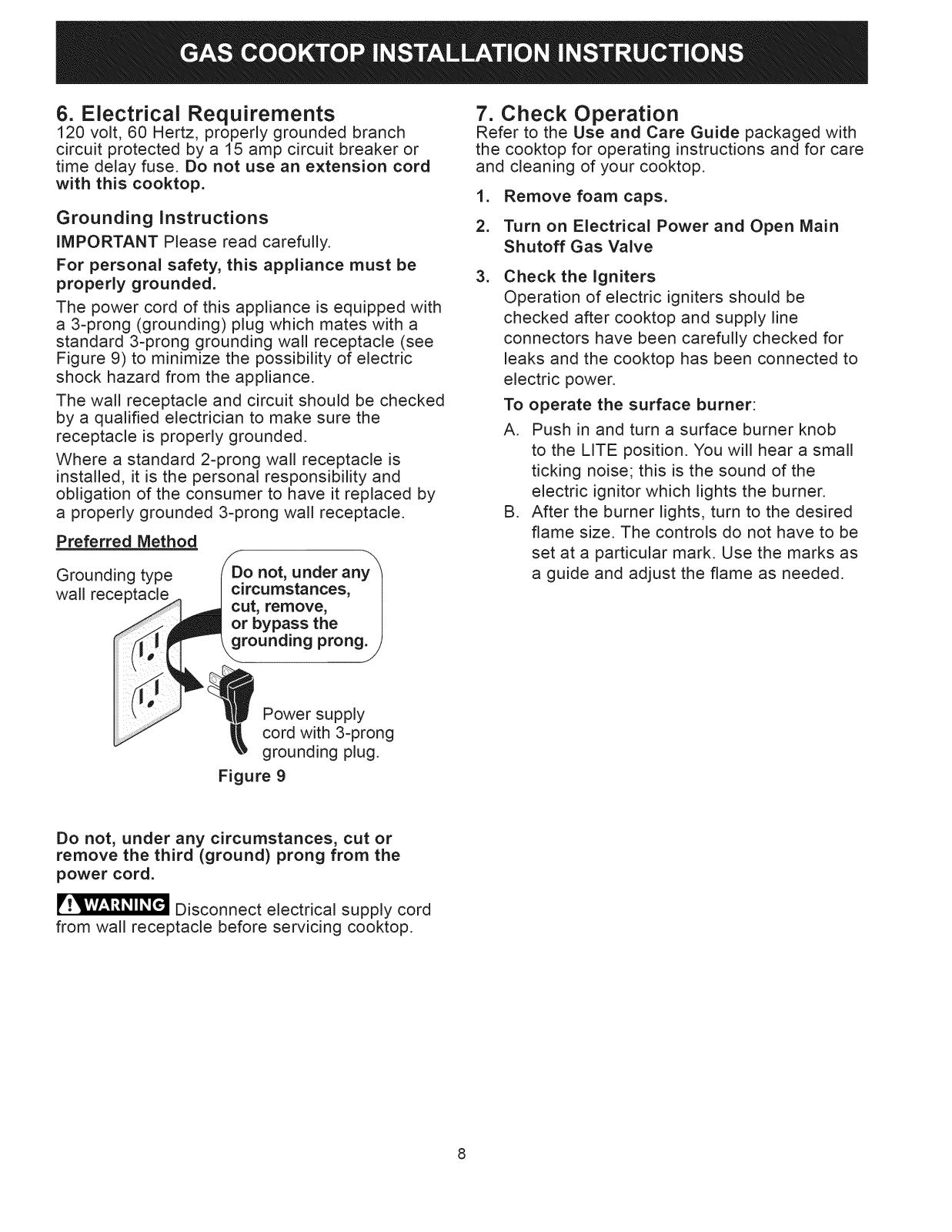

6. Electrical Requirements
120 volt, 60 Hertz, properly grounded branch
circuit protected by a 15 amp circuit breaker or
time delay fuse. Do not use an extension cord
with this cooktop.
Grounding instructions
iMPORTANT Please read carefully.
For personal safety, this appliance must be
properly grounded.
The power cord of this appliance is equipped with
a 3-prong (grounding) plug which mates with a
standard 3-prong grounding wall receptacle (see
Figure 9) to minimize the possibility of electric
shock hazard from the appliance.
The wall receptacle and circuit should be checked
by a qualified electrician to make sure the
receptacle is properly grounded.
Where a standard 2-prong wall receptacle is
installed, it is the personal responsibility and
obligation of the consumer to have it replaced by
a properly grounded 3-prong wall receptacle.
Preferred Method
Grounding type
wall receptacle
not, under any
circumstances,
cut, remove,
or bypass the
grounding prong.
7. Check Operation
Refer to the Use and Care Guide packaged with
the cooktop for operating instructions and for care
and cleaning of your cooktop.
1. Remove foam caps.
2. Turn on Electrical Power and Open Main
Shutoff Gas Valve
.
Check the igniters
Operation of electric igniters should be
checked after cooktop and supply line
connectors have been carefully checked for
leaks and the cooktop has been connected to
electric power.
To operate the surface burner:
A. Push in and turn a surface burner knob
to the LITE position. You will hear a small
ticking noise; this is the sound of the
electric ignitor which lights the burner.
B. After the burner lights, turn to the desired
flame size. The controls do not have to be
set at a particular mark. Use the marks as
a guide and adjust the flame as needed.
Power supply
cord with 3-prong
grounding plug.
Figure 9
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Disconnect electrical supply cord
from wall receptacle before servicing cooktop.

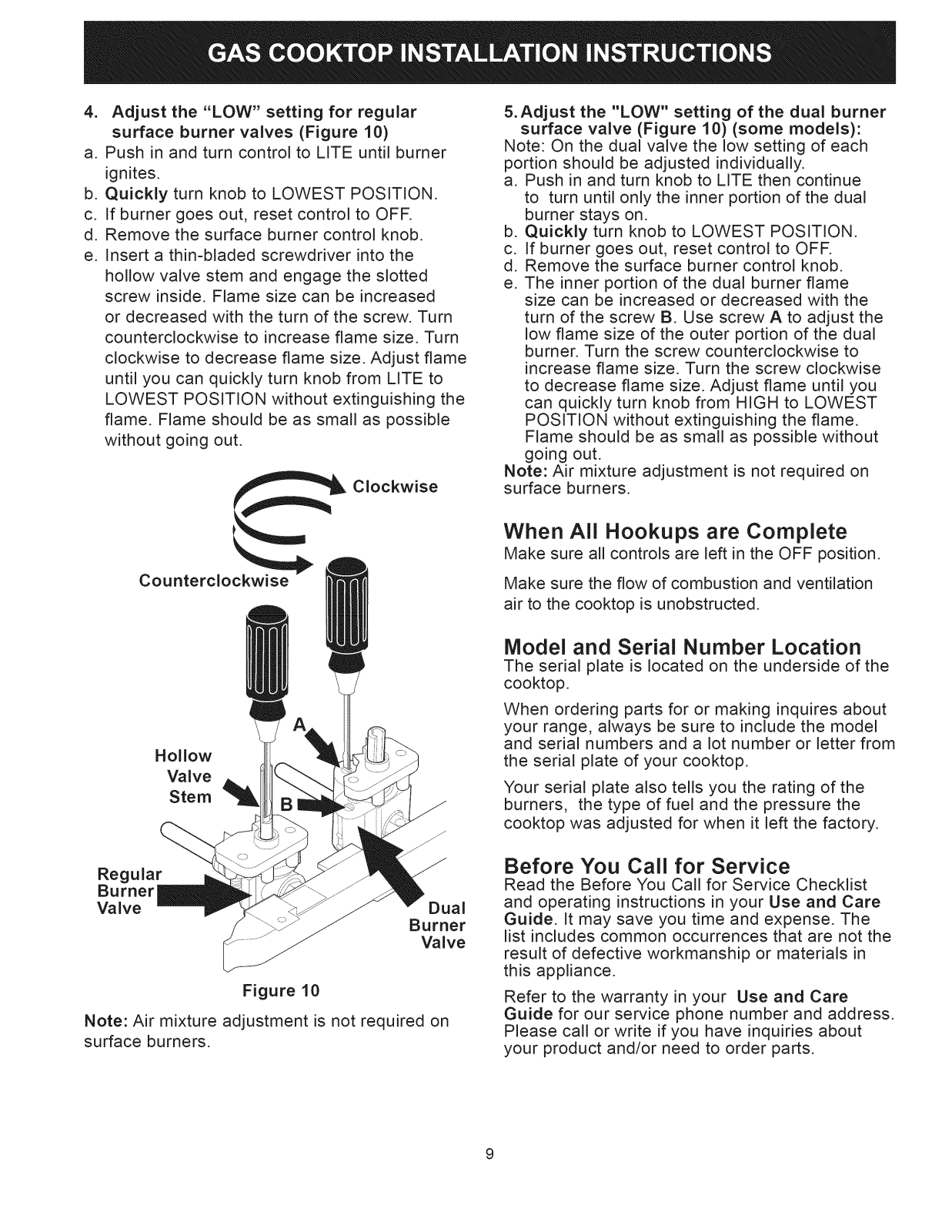

4. Adjust the "LOW" setting for regular
surface burner valves (Figure 10)
a. Push in and turn control to LITE until burner
ignites.
b. Quickly turn knob to LOWEST POSITION.
c. If burner goes out, reset control to OFF.
d. Remove the surface burner control knob.
e. Insert a thin-bladed screwdriver into the
hollow valve stem and engage the slotted
screw inside. Flame size can be increased
or decreased with the turn of the screw. Turn
counterclockwise to increase flame size. Turn
clockwise to decrease flame size. Adjust flame
until you can quickly turn knob from LITE to
LOWEST POSITION without extinguishing the
flame. Flame should be as small as possible
without going out.
Clockwise
Counterclockwise
5.Adjust the "LOW" setting of the dual burner
surface valve (Figure 10) (some models):
Note: On the dual valve the low setting of each
portion should be adjusted individually.
a. Push in and turn knob to LITE then continue
to turn until only the inner portion of the dual
burner stays on.
b. Quickly turn knob to LOWEST POSITION.
c. If burner goes out, reset control to OFF.
d. Remove the surface burner control knob.
e. The inner portion of the dual burner flame
size can be increased or decreased with the
turn of the screw B. Use screw A to adjust the
low flame size of the outer portion of the dual
burner. Turn the screw counterclockwise to
increase flame size. Turn the screw clockwise
to decrease flame size. Adjust flame until you
can quickly turn knob from HIGH to LOWEST
POSITION without extinguishing the flame.
Flame should be as small as possible without
going out.
Note: Air mixture adjustment is not required on
surface burners.
When All Hookups are Complete
Make sure all controls are left in the OFF position.
Make sure the flow of combustion and ventilation
air to the cooktop is unobstructed.
Hollow
Valve
Stem
Regular
Burner
Valve
Figure 10
Note: Air mixture adjustment is not requ
surface burners.
Dual
Burner
Valve
ired on
Model and Serial Number Location
The serial plate is located on the underside of the
cooktop.
When ordering parts for or making inquires about
your range, always be sure to include the model
and serial numbers and a lot number or letter from
the serial plate of your cooktop.
Your serial plate also tells you the rating of the
burners, the type of fuel and the pressure the
cooktop was adjusted for when it left the factory.
Before You Call for Service
Read the Before You Call for Service Checklist
and operating instructions in your Use and Care
Guide. It may save you time and expense. The
list includes common occurrences that are not the
result of defective workmanship or materials in
this appliance.
Refer to the warranty in your Use and Care
Guide for our service phone number and address.
Please call or write if you have inquiries about
your product and/or need to order parts.
9
TOP BURNER IGNITER
QUEMADOR DE ENCENOIDO SUPERIOR
BOOGIE O'AI IUMAGE BRUI EUR
TOP BURNER IGNITER
QUEMADOR DE ENCENDIDO SUPERIOR
BOUGIE D'ALLUMAGE-BRULEUR
TOP BURNER IGNITER
OUEMADBR DE BNCENDIDO SUPERIOR
BOUGIE D'ALLUMAGE-BRULEUR
TOP BURNER IGNITER
QUEMADOR DE ENCENDIDO SUPERIOR
BOUGIE D'AI IONAGE SRUI FUR
TOP BURNER IGNITER
QUEMADOR DE ENCENDIDO SUPERIOR
BOUGIE D'ALLUMAGE_BRULEUR
}
/
J N W-4
IGNITER MODULE BOARD
CUADRO DE MODULO DE ENCENDIDO
BLOC CONNECTION ALLUMEUR
BK-1
, ,,, ,, ,,
, ',, ,, ,,
,,, ,,,, ,,
BK-I_
BK 1_
BK- 1L
BK-I_
F I¸, /
INTERRUPTOR ENCENDtDO
t IGNITER SWITCH
INTRRUPTEUR ALLUMEUR
BK-1
IN[ERRUPTOR ENCBNDtDO
t IGNITER SWITCH
INTRRUPTEUR A[tGMEUR
BK-1
IN[ERRUPTOR ENCENDtDO
INTRRUPTEDR A[tUMEUR
t IGNITER SWITCH
BK-1
INTERRUPTOR ENCENDtOO
INTRRUPTEUR ALLUMEUR
t IGNITER SWITCtt
BK 1
INTERRUPTOR ENCENDtDO
INTRRUPTEUR ALLUMEUR
t IGNITER SWITCtt
BK_I
L
CONECTOR
CONNECTOR
CONNRCTEUR
WARNING:
DISCONNECT BEFORE SERVICING UNIT,
AVISO:
DEGCONECTE LA ENERGIA ANTES DE REALIZAR
EL MANTENIMIENTO DEL ELECTRONICO.
AVERTISSE_4ENT;
COOPER LE COURANT D'EFFECTUER LA
REPARATION.
CAUTION:DISCONNECT POWER BEFORE SERVICING UNIT.
LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICIN6 CONTROLS,
WIRINGS ERRORS CAN CAUSE IMPROPER AND DANGEROUS OPERATION.
VERIFY PROPER OPERATION AFTER SERVICING,
ATENCION;CORTAR LA CORRIENTE ANTES DE REALIZAR EL MANTENIMIENTO OEL ELEBTRODOMESTICO,
E_[QUE]E IODOS LOS GABLES AN[ES DE DESCONEO_AR OUANDO HAGA EL SERV]OIO A LOS CONTROIES.
ERRORES AL VOLVER A ENSAMBLAR LOS CABLES PUEDB CAUSAR PALLAS U OPERACIONES PELIGROSAS,
VERIFIQUE LA DORREDTA OPERACION DESPUES GEL SERVICIO,
ATTENTION:COUPEZ L'ALIMENTATION AVANT D'EFFECTMER LA REPARATION,
ZDENTIFIEZ TOGS LEG FILB AVANT DE LEG DEBRANCHER QUAND ['APPAREII EST HOBS SERVICE,
LES ERRENRS DE CONNECTION DE FILS PEUVENT CAUSER UN MAL FONCTIONNEMENT ET MN DANGER DUSABE DE L'APPAREIL.
VERIFIEZ LE BON FONOTIONNEMENT DE L'APPAREIL APRES LE SERVICE,
CODE COLOR/CODIGOS DE COLOR/CODE COULEUR
BK. BLACK/NEGRO/NOIR
W, WNITE/BLANCO/BLANC
POWER CORD
PARA TBANSPORTE
DE FUERZA
CABLE D'ALIMENTATZON
GROUND
\ _'\ PUESTA A TIERRA
MISE A LA TERRE
CODE GAUGE IEMP.'C CSA UI
CODIGO MEDIDA
1 20 150 EXL÷150 3321
2 18 2O0 3071
3 18 200 3304 OR/OG 10202
11
12
Loading...
