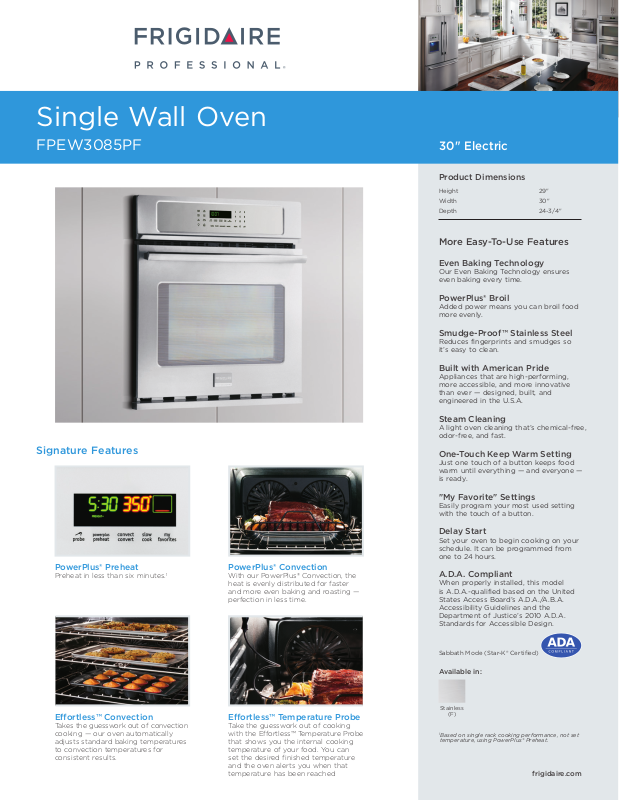

Frigidaire FPEW3085PF Specification
Single Wall Oven
FPEW3085PF
Signature Features
30" Electric
Product Dimensions
Height 29"
Width 30"
Depth 24-3/4"
More Easy-To-Use Features
Even Baking Technology
Our Even Baking Technology ensures
even baking every time.
PowerPlus® Broil
Added power means you can broil food
more evenly.
Smudge-Proof™ Stainless Steel
Reduces fingerprints and smudges so
it’s easy to clean.
Built with American Pride
Appliances that are high-performing,
more accessible, and more innovative
than ever — designed, built, and
engineered in the U.S.A.
Steam Cleaning
A light oven cleaning that’s chemical-free,
odor-free, and fast.
One-Touch Keep Warm Setting
Just one touch of a button keeps food
warm until everything — and everyone —
is ready.
PowerPlus® Preheat
Preheat in less than six minutes.
1
Eortless™ Convection
Takes the guesswork out of convection
cooking — our oven automatically
adjusts standard baking temperatures
to convection temperatures for
consistent results.
PowerPlus® Convection
With our PowerPlus® Convection, the
heat is evenly distributed for faster
and more even baking and roasting —
perfection in less time.
Eortless™ Temperature Probe
Take the guesswork out of cooking
with the Effortless™ Temperature Probe
that shows you the internal cooking
temperature of your food. You can
set the desired finished temperature
and the oven alerts you when that
temperature has been reached
"My Favorite" Settings
Easily program your most used setting
with the touch of a button.
Delay Start
Set your oven to begin cooking on your
schedule. It can be programmed from
one to 24 hours.
A.D.A. Compliant
When properly installed, this model
is A.D.A.-qualified based on the United
States Access Board’s A.D.A./A.B.A.
Accessibility Guidelines and the
Department of Justice’s 2010 A.D.A.
Standards for Accessible Design.
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
1
Based on single rack cooking performance, not set
temperature, using PowerPlus® Preheat.
frigidaire.com
Features
E
D
B
C
A
Spacer
Oven Control / Timing System
Window
Exterior Door Finish
Handle Design
Oven Cleaning System
Pro-Select®
Extra-Large with
Pro-Tint Finish
Smudge-Proof™
Stainless Steel
Stainless Steel
Self-Clean w/ Steam Clean
Option
Oven Controls
Bake / Broil
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
Oven Preheat
My Favorite
Slow Cook
Eortless™ Temperature Probe
Chicken Nugget Button
Pizza Button
Keep Warm
Add-a-Minute
Delay Start
Self-Clean / Clean Options
Steam Clean
Delay Clean
Kitchen Timer
Timed Cook Option
Control Lock
Auto Oven Shut-O
Oven Lock-Out
Yes / Variable (400 - 550 °F)
Yes
Yes / Yes / Yes
PowerPlus®
Yes
Yes
Yes
Yes
Yes
Yes / 2, 3, 4 Hours
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Oven Features
Capacity (Cu. Ft.)
Convection System
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake / Broil Element (Watts)
4.6
PowerPlus® Convection
2 Halogen
Yes
1 Heavy Duty, 1 SpaceWise®
Half Rack, 1 Oset Rack
Even Baking Technology
PowerPlus® Broil
2,000 / 4,000
Optional Accessories
3"-High Bottom Trim – Stainless Steel
10'-Long Armored Power Cable
(F) PN # 318259707
PN # 903056-9010
Certifications
A.D.A. Compliant
Sabbath Mode (Star-K® Certified)
1
Yes
Yes
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Approved for
Under-Counter Installation
Shipping Weight (Approx.)
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
2
17-1/2" x 24-1/8" x 18-3/4"
Left Bottom Rear
240V / 208V / 60Hz
4.5/3.4
18.8/16.4
20
Yes
146 Lbs.
Single Wall Oven
FPEW3085PF 30" Electric
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web
at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
D - Height (Wrapper)
E - Width (Wrapper)
Depth with Door Open 90˚
29"
30"
24-3/4"
27-3/16"
28-1/4"
45-3/4"
Cutout Dimensions
Height (Min.) / (Max.)
Width (Min.) / (Max.)
Depth (Min.)
27-1/4" / 28-5/8"
28-1/2" / 29"
23-1/2"
•
USA
10200 David Taylor Drive
•
CANADA
FPEW3085P 10/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
30" Single Electric Wall Oven
Professional
Single Wall Oven
FPEW3085PF 30" Electric
Single Wall Oven Specifications
•
Product Shipping Weight (approx.) – 146 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 4.5/3.4 kW
•
Amps @ 240 / 208 Volts = 18.8/16.4 Amps
•
Recommended Circuit Breaker – 20 Amps
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Suggested distance from floor is 31". Minimum required distance
is 4-1/2".
•
Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•
To adapt oven to fit cutout height greater than 28-1/8", add one
2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening
at top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"-High Bottom Trim included.)
•
To adapt oven to fit cutout height greater than 28-5/8", optional
3"-High Bottom Trim available.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FPEW3085P 10/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
•
Full oven base of solid plywood or similar material required,
capable of supporting 200 Lbs.
•
Base must be level and cabinet front must be square.
•
Single Wall Oven is NOT approved to be used in stackable or
side-by-side installation.
•
Single Wall Oven is approved to be used alone in under-counter
installation or beneath any approved Frigidaire® gas or electric
cooktop. (Refer to Gas or Electric Cooktop Installation Over 30" / 27"
Electric Single Wall Oven Specifications pages on web.)
•
Single Wall Oven is approved to be used in combination with any
Frigidaire® Warmer Drawer. (Refer to model-specific Warmer Drawer
product page for Combination Installation Specifications.)
•
Single Wall Oven is approved to be used in combination with
any Frigidaire® Built-In Microwave Oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
3"-High Stainless Steel Bottom Trim – (PN # 318259707).
•
10'-Long Armored Power Cable – (PN # 903056-9010).
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
