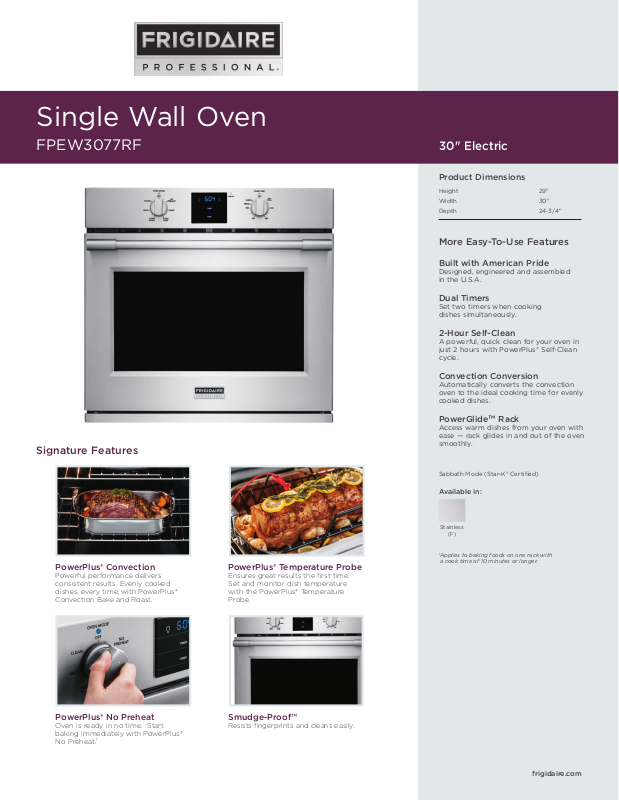

Frigidaire FPEW3077RF Specification Sheet
Single Wall Oven
FPEW3077RF
Signature Features
30" Electric
Product Dimensions
Height 29"
Width 30"
Depth 24-3/4"
More Easy-To-Use Features
Built with American Pride
Designed, engineered and assembled
in the U.S.A.
Dual Timers
Set two timers when cooking
dishes simultaneously.
2-Hour Self-Clean
A powerful, quick clean for your oven in
just 2 hours with PowerPlus® Self-Clean
cycle.
Convection Conversion
Automatically converts the convection
oven to the ideal cooking time for evenly
cooked dishes.
PowerGlideTM Rack
Access warm dishes from your oven with
ease — rack glides in and out of the oven
smoothly.
PowerPlus® Convection
Powerful performance delivers
consistent results. Evenly cooked
dishes, every time, with PowerPlus®
Convection Bake and Roast.
PowerPlus® No Preheat
Oven is ready in no time. Start
baking immediately with PowerPlus®
No Preheat.
1
PowerPlus® Temperature Probe
Ensures great results the first time.
Set and monitor dish temperature
with the PowerPlus® Temperature
Probe.
Smudge-Proof™
Resists fingerprints and cleans easily.
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
1
Applies to baking foods on one rack with
a cook time of 10 minutes or longer.
frigidaire.com
Features
Spacer
E
D
B
A
C
Oven Control / Timing System
Window
Exterior Door Finish
Handle Design
Oven Cleaning System
PrecisionPro™ Controls
Extra-Large
Smudge-Proof™
Stainless Steel
Stainless Steel
Self-Clean
Oven Controls
Bake / Broil
Convection Conversion
Convection Bake / Broil / Roast
Oven Preheat
PowerPlus® Temperature Probe
Keep Warm
Self-Clean / Clean Options
Delay Clean
Kitchen Timer
Control Lock
Auto Oven Shut-O
Oven Lock-Out
Yes / Variable (400 - 550 °F)
Yes
Yes / No / Yes
PowerPlus® No Preheat
Yes
Yes
Yes / 2, 3, 4 Hours
Yes
Yes
Yes
Yes
Yes
Oven Features
Capacity (Cu. Ft.)
Convection System
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake / Broil Element (Watts)
5.1
PowerPlus® Convection
2 Halogen
Yes
1 Glide, 1 Handle,
1 Oset Rack
Even Baking Technology
PowerPlus® Broil
2,200 / 4,000
Optional Accessories
3"-High Bottom Trim – Stainless Steel
10'-Long Armored Power Cable
PN # 318259707
PN # 903056-9010
Certifications
A.D.A. Compliant
Sabbath Mode (Star-K® Certified)
1
Yes
Yes
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Approved for
Under-Counter Installation
Shipping Weight (Approx.)
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
2
18-5/8" x 24-1/8" x 19-1/2"
Left Bottom Rear
240V / 208V / 60Hz
4.5/3.7
18.8/17.9
20
Yes
146 Lbs.
Single Wall Oven
FPEW3077RF 30" Electric
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web
at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
D - Height (Wrapper)
E - Width (Wrapper)
Depth with Door Open 90˚
29"
30"
24-3/4"
27-1/4"
28-1/4"
45-3/4"
Cutout Dimensions
Height (Min.) / (Max.)
Width (Min.) / (Max.)
Depth (Min.)
26-7/8" / 28"
28-1/2" / 29"
23-1/2"
•
USA
10200 David Taylor Drive
•
CANADA
FPEW3077R 10/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
