Frigidaire FPET2785K F User Manual
Double Wall Oven
FPET2785K F
27" Electric
Product Dimensions
Height 50-7/16"
Width 27"
Depth 24-1/2"
More Easy-To-Use Features
One-Touch Options
Our ovens feature easy-to-use one-touch
buttons so you can cook pizza or chicken
nuggets — or even add a minute to the
timer — with the touch of a button.
Smudge-Proof Stainless Steel
Protective coating reduces fingerprints
and smudges so it’s easy to clean.
Delay Start
Set your oven to begin cooking on your
schedule. It can be programmed from
one to 24 hours.
SpaceWise® Half Rack
Flexible rack system that adjusts to cook
multiple dishes at once. Remove the half
rack and you’ll have extra height for tall
dishes.
Signature Features
PowerPlus® Preheat
Preheat in less than six minutes.
Pro-Select® Controls
Precise control at your fingertips.
Eortless™ Convection
Takes the guesswork out of convection
cooking — our oven does the converting
for you.
“My Favorite” Setting
Easily program your most used setting
with the touch of a button.
Even Baking Technology
Our latest technology ensures even baking
every time.
Auto Oven Shut-O
1
True Convection
Multi-rack baking is faster and more
even with True Convection.
One-Touch Keep Warm Setting
Just one touch of a button keeps food
warm until everything — and everyone
— is ready.
As an extra safety measure, the oven will
automatically shut off after six hours.
PowerPlus® Broil
Added power means you can broil food
more evenly.
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
1
Based on single rack cooking performance, not set
temperature, using PowerPlus® Preheat.
frigidaire.com
Features
E
D
Spacers
B
C
A
Oven Control / Timing System
Windows
Exterior Door Finish
Handle Design
Oven Cleaning System
Oven Controls
Bake / Broil
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
Oven Preheat
My Favorite
Chicken Nugget Button
Pizza Button
Keep Warm
Add-a-Minute
Delay Start
Self-Clean / Clean Option
Delay Clean
Kitchen Timer / Timed Cook Option
Control Lock
Auto Oven Shut-O
Oven Lock-Out
Upper Oven Features
Capacity (Cu. Ft.)
Convection System
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake / Broil Element (Watts)
Lower Oven Features
Capacity (Cu. Ft.)
Convection System
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake / Broil Element (Watts)
Optional Accessories
3"-High Stainless Steel Bottom Trim
Certifications
A.D.A. Compliant
Sabbath Mode (Star-K® Certified)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Pro-Select®
Extra-Large with
Pro-Tint Finish
Smudge-Proof
Stainless Steel
Stainless Steel
Self Clean
Yes / Variable (400 - 500 °F)
Yes
Yes / Yes / Yes
PowerPlus®
Yes
Yes
Yes
Yes
Yes
Yes
Yes / Rapid
2, 3, 4 Hours
Yes
Yes
Yes
Yes
3.5
True Convection
2
Yes
1 Heavy Duty, 1 SpaceWise®
Half Rack, 1 Oset Rack
Even Baking Technology
PowerPlus® Broil
1,450 / 3,400
3.5
True Convection
2
Yes
1 Heavy Duty, 1 SpaceWise®
Half Rack, 1 Oset Rack
Even Baking Technology
PowerPlus® Broil
1,450 / 3,400
(F) PN # 903114-901S
Yes
16-1/2" x 20-1/2" x 18-1/32"
Left Bottom Rear
240V / 208V / 60Hz
8.2 / 6.2
34.2 / 29.8
40
265 Lbs.
Double Wall Oven
FPET2785K F 27" Electric

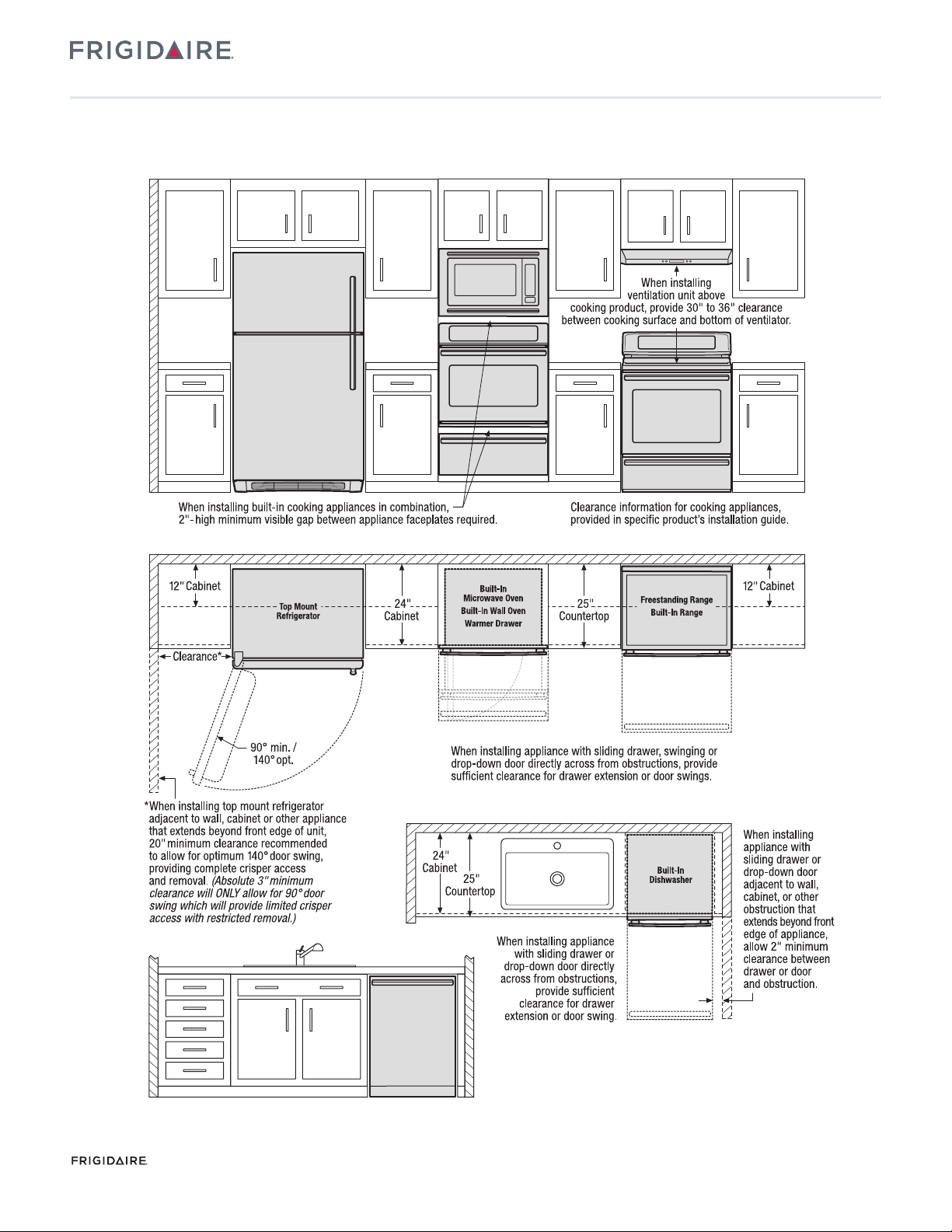

NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
D - Height (Wrapper)
E - Width (Wrapper)
Depth with Door Open 90˚
50-7/16"
27"
24-1/2"
48-5/8"
24-5/8"
44-1/2"
Cutout Dimensions
Height (Min.) / (Max.)
Width (Min.) / (Max.)
Depth (Min.)
48-7/8" / 49-7/8"
24-7/8" / 25-1/4"
23-1/2"
•
USA
10200 David Taylor Drive
•
CANADA
FPET2785K 02/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
