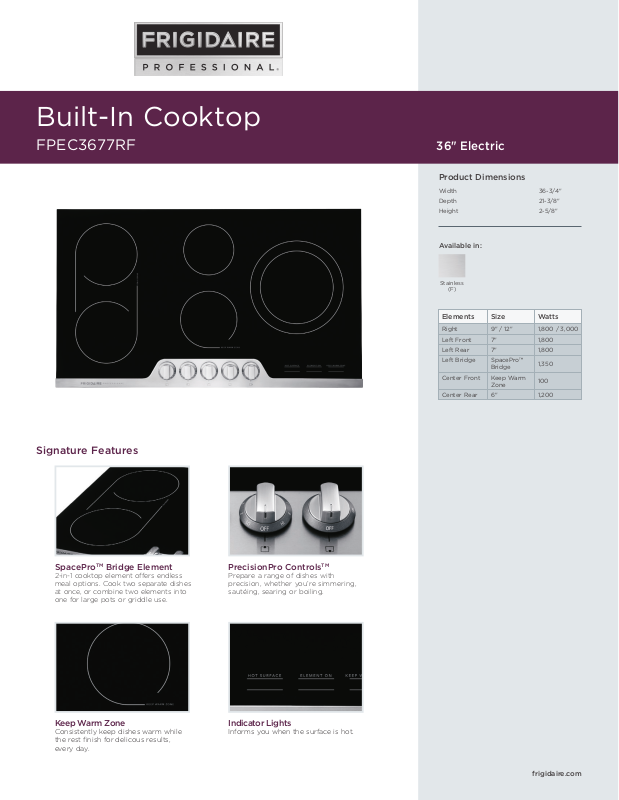

Built-In Cooktop
FPEC3677RF
36" Electric
Product Dimensions
Width 36-3/4"
Depth 21-3/8"
Height 2-5/8"
Available in:
Stainless
(F)
Elements
Right
Left Front
Left Rear
Left Bridge
Center Front
Center Rear
Size
9" / 12"
7"
7"
SpacePro™
Bridge
Keep Warm
Zone
6"
Watts
1,800 / 3,000
1,800
1,800
1,350
100
1,200
Signature Features
SpaceProTM Bridge Element
2-in-1 cooktop element offers endless
meal options. Cook two separate dishes
at once, or combine two elements into
one for large pots or griddle use.
Keep Warm Zone
Consistently keep dishes warm while
the rest finish for delicous results,
every day.
PrecisionPro Controls
Prepare a range of dishes with
precision, whether you’re simmering,
sautéing, searing or boiling.
TM
Indicator Lights
Informs you when the surface is hot.
frigidaire.com
A
B
C
Features
Controls
Surface Type
Right Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Left Bridge Element (Watts)
Center Front Element (Watts)
Center Rear Element (Watts)
Hot Surface Indicators
Control Location
Knob Color
Knob Type
PrecisionPro™
Black Ceramic Glass
9"/12" - 1,800 / 3,000
7" - 1,800
7" - 1,800
SpacePro™ Bridge - 1,350
Keep Warm Zone - 100
6" - 1,200
Yes
Center Front
Stainless
Cast Metal
Optional Accessories
Griddle
PN # 316432200
Certifications
A.D.A. Compliant
1
Yes
Specifications
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
2
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Approved for Electric Single
Wall Oven Combination Installation
Shipping Weight (Approx.)
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
3
Cooktops are approved for installation above any of our Electric Single
Wall Ovens.
Right Front
240V /208V / 60Hz
10.6 / 8.0
44.2 / 38.5
40
Yes
3
45 Lbs.
Built-In Cooktop
FPEC3677RF 36" Electric
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web
at frigidaire.com.
Product Dimensions
A - Width
B - Depth
C - Height
36-3/4"
21-3/8"
2-5/8"
Cutout Dimensions
Width (Min.) / (Max.)
Depth (Min.) / (Max.)
Height
35-5/8" / 36-1/8"
20-1/4" / 20-1/2"
5"
Granite Countertop
Installation Kit available.
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FPEC3677R 07/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Drop-In Induction / Electric Cooktops
(Callouts MUST be charted per individual model).
Professional / Gallery / Baseline
Built-In Cooktop
FPEC3677RF 36” Electric
A - Width B - Depth C - Height G (min.) H (min.) I (min.) J (min.)
36-3/4" 21-3/8" 2-5/8" 2" 7-1/2" 7-1/2" 2-1/2"
D - Width (min. - max.) E - Depth (min. - max.) F - Height (min.)* Power Supply
35-5/8" - 36-1/8" 20-1/4" - 20-1/2"
Built-In Cooktop Specifications
•
Product Shipping Weight (approx.) – 45 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 10.6 / 8.0 kW
•
Amps @ 240 / 208 Volts = 44.2 / 38.5 Amps
•
Recommended Circuit Breaker – 40 Amps
•
Always consult local and national electric codes.
•
Cooktop cutout height includes clearance needed beneath cooktop to
allow for armored cable and installation of junction box on back wall.
Position center of junction box 10" inward from right side of cooktop
cutout, and 12" down from underside of countertop.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than 36-3/4".
•
Allow 30" minimum clearance between top of cooktop platform
and bottom of unprotected wood or metal overhead cabinet; or 24"
minimum clearance when bottom of wood or metal overhead cabinet
is protected by not less than 1/8" flame-retardant millboard covered
with not less than No. 28 MGS sheet steel, 0.015" stainless steel,
0.024" aluminum or 0.020" copper.
•
Allow 2" minimum clearance between rear edge of cutout and nearest
combustible surface (or backsplash) above countertop.
Product Dimensions
Product Cutout Dimensions
5" 36-3/4" Right Front
•
Allow 7-1/2" minimum required clearance from left edge of cooktop
to nearest combustible wall and 7-1/2" minimum from right edge of
cooktop to nearest combustible wall.
•
Installation of drawer beneath cooktop requires 4" minimum
clearance beneath countertop surface, and assured clearance for
electrical installation.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•
Electric Built-In Cooktop model FPEC3677R is approved to be
used over any Frigidaire® Electric Single Wall Oven. (Refer to
Electric Cooktop Installation Over 30" / 27" Electric Single Wall Oven
Specifications page on web.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Granite Countertop Installation Kit – (PN # 903061-9010).
•
Griddle – (PN # 316432200).
Required Clearances
K - Cabinet Opening Width
(min.)
Utility Connection Locations
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FPEC3677R 07/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
