Frigidaire FPEC3085KS, FPEC3085K User Manual
Drop-In Cooktop
FPEC3085K S
30" Electric
More Easy-To-Use Features
Smoothtop Ceramic Glass Cooking Surface
Hot-Surface Indicators
Overall Exterior Dimensions
Height 4-5/8"
Width 30-3/4"
Depth 21-1/2"
Available in:
Stainless
(S)
Signature Features
PowerPlus™ Boil
Boil water fast with our
3,100-watt element.
SpaceWise™ Bridge Element
A flexible element lets you combine two
seven-inch elements into one to
fit larger cookware.
Pro-Select™ Controls
Precise control at your fingertips.
SpaceWise™ Expandable Elements
Elements expand from five to seven
inches to fit your cooking needs.
frigidaire.com
30"/36" Drop-In Electric Cooktops
(Callouts MUST be charted per individual model).
Professional, Gallery & Frigidaire
Drop-In Cooktop
FPEC3085K S 30" Electric
Overall Product Dimensions Product Cutout Dimensions
A – Width B - Depth C - Height D - Width E - Depth F - Height
30-3/4" 21-1/2" 4-5/8"
29-5/8" min.
29-3/4" max.
Drop-In Cooktop Specifications
•
Product Shipping Weight (approx.) – 60 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 9.4 /7.1 kW
•
Amps @ 240 / 208 Volts = 39.0 / 35.0 Amps
•
Recommended Circuit Breaker – 40 Amps
•
Always consult local and national electric codes.
•
Allow 2" space beneath cooktop or optional platform to clear electrical
cable and allow space for installation of junction box on wall at back
of cooktop. Position center of junction box 10" inward from right side
of cooktop cutout, and 12" down from underside of countertop.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Allow 30" minimum clearance between top of cooktop and bottom
of unprotected wood or metal overhead cabinetry.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than 30".
•
Allow 24" minimum clearance when bottom of wood or metal
overhead cabinet is protected by not less than 1/8" flame-retardant
millboard covered with not less than No. 28 MGS sheet steel, 0.015"
stainless steel, 0.024" aluminum or 0.020" copper.
•
Allow 2" minimum clearance between rear edge of cutout and nearest
combustible surface above countertop.
G - Cabinet
Opening
Width
20-1/4" min.
20-1/2" max.
•
Allow 7-1/2" minimum clearance from edge of cooktop to nearest
combustible wall on either side of unit.
•
Installation of drawers beneath cooktop requires minimum 8"
clearance beneath countertop surface and assured clearance for
electrical connection.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•
Electric Drop-In Cooktop model FPEC3085K is approved to be
used over any Frigidaire® Electric Single Wall Oven. (Refer to

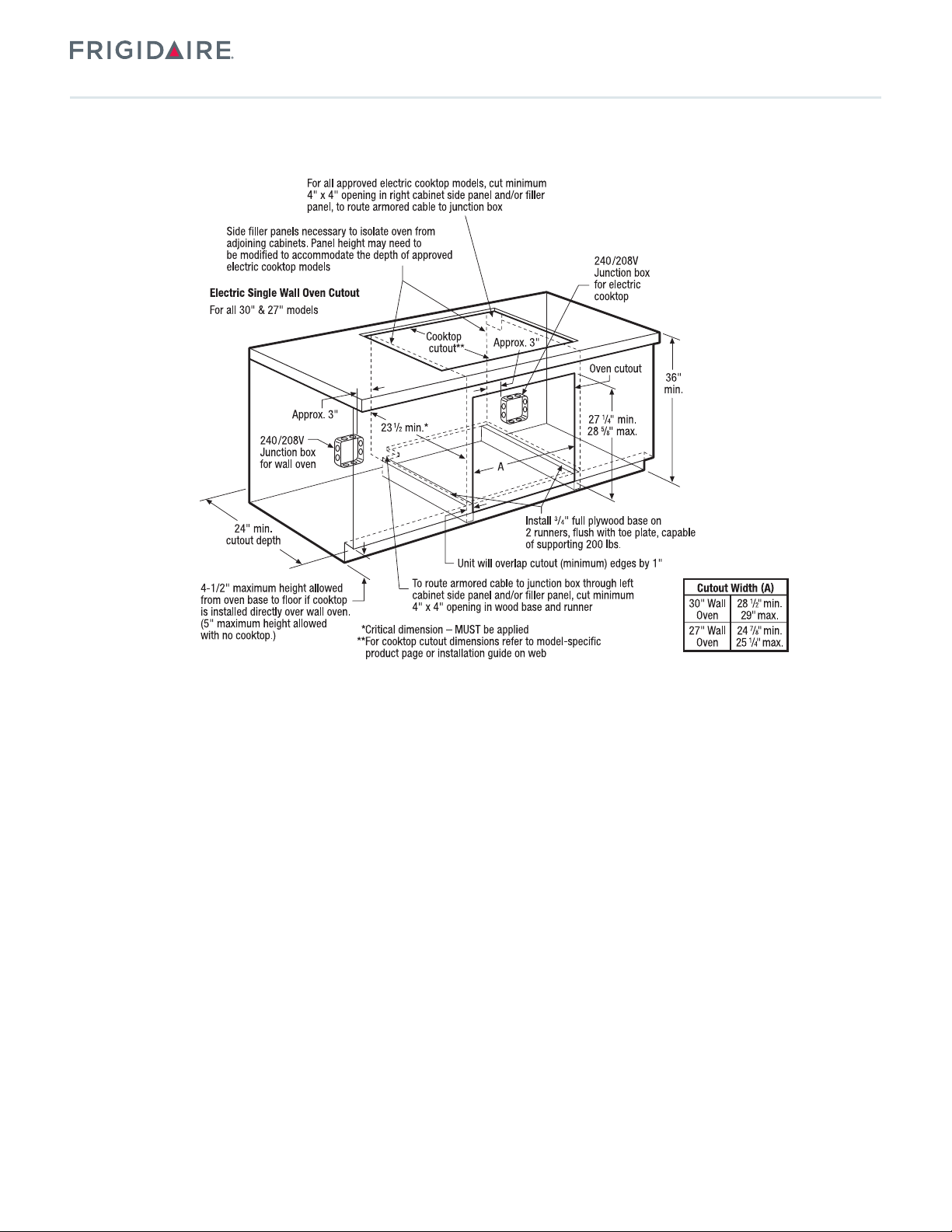

Electric Cooktop Installation Over 30" / 27" Electric Single Wall Oven
Specifications page on web.)
•
Electric Drop-In Cooktop model FPEC3085K is approved to be used
in combination with any Frigidaire® 30" Downdraft Vent. (Refer to
model-specific Downdraft Vent product page on web for detailed
countertop preparation specifications.)
Note: For planning purposes only. Refer to Product Installation Guide
6" min. 30" min. Right Front
on the web at frigidaire.com for detailed instructions.
Power Supply
Connection
Location
Optional Accessories
•
Granite Countertop Installation Kit – (PN # 903061-9010).
