Drop-In Cooktop

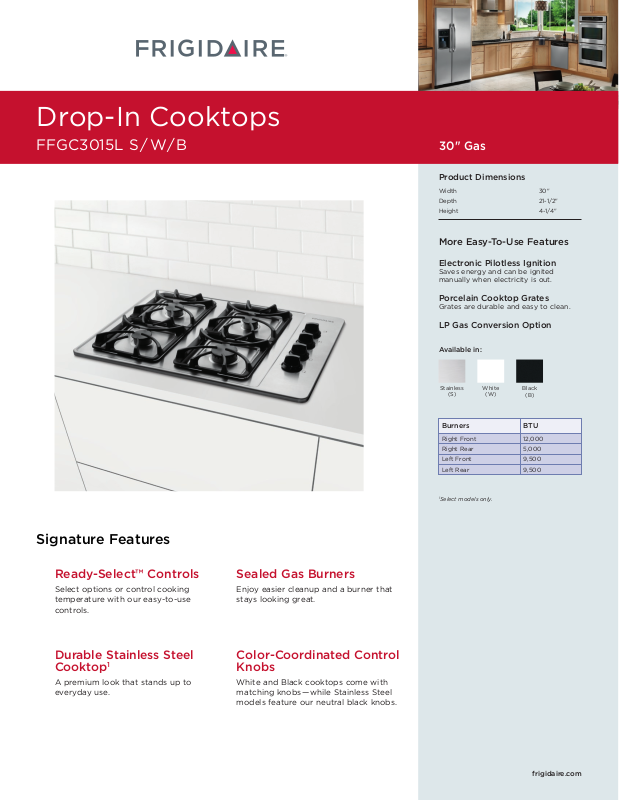

Drop-In Cooktops
FPEC3085K S
FFGC3015L S / W/ B
30" Electric
30" Gas
Product Dimensions
Width 30"
Depth 21-1/2"
Height 4-1/4"
More Easy-To-Use Features
Electronic Pilotless Ignition
Saves energy and can be ignited
manually when electricity is out.
Porcelain Cooktop Grates
Grates are durable and easy to clean.
LP Gas Conversion Option
Available in:
Stainless
(S)
Burners
Right Front
Right Rear
Left Front
Left Rear
White
(W)
Black
(B)
BTU
12,000
5,000
9,500
9,500
Signature Features
Ready-Select™ Controls
Select options or control cooking
temperature with our easy-to-use
controls.
Durable Stainless Steel
Cooktop
A premium look that stands up to
everyday use.
1
Sealed Gas Burners
Enjoy easier cleanup and a burner that
stays looking great.
Color-Coordinated Control
Knobs
White and Black cooktops come with
matching knobs — while Stainless Steel
models feature our neutral black knobs.
1
Select models only.
frigidaire.com
A
B
C
Drop-In Cooktops
FFGC3015L S / W/ B 30" Gas
Features
Controls
Surface Type
Sealed Gas Burners
Grates
Right Front Element (BTU)
Right Rear Element (BTU)
Left Front Element (BTU)
Left Rear Element (BTU)
Control Location
Knob Color
Knob Type
Bowl Type
Specifications
Power Supply Connection Location
Gas Supply Connection Location
LP Gas Conversion Kit
Voltage Rating
Connected Load
(kW Rating) @ 120 Volts
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Approved for Electric Single Wall Oven
Combination Installation
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.
1
Ready-Select™
Stainless Steel ( S ),
Color-Coordinated
Porcelain ( W/ B )
Yes
Cast Iron with Black
Matte Finish
12,000
5,000
9,500
9,500
Right Side
Black ( S ),
Color-Coordinated
( W/ B )
Plastic
Right Rear
Right Rear
Included
120V / 60V / 15A
.8
1.0
15
50 Lbs.
NOTE: Always consult local and national electric and gas codes. Refer to Product
Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Width
B - Depth
C - Height
30"
21-1/2"
4-1/4"
Cutout Dimensions
Width (Min.)
Width (Max.)
Depth (Min.)
Depth (Max.)
Height
26-5/8"
26-7/8"
19"
19-3/8"
5"
Granite Countertop
Installation Kit available.
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FFGC3015L 08/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
Specifications
subject to change.
