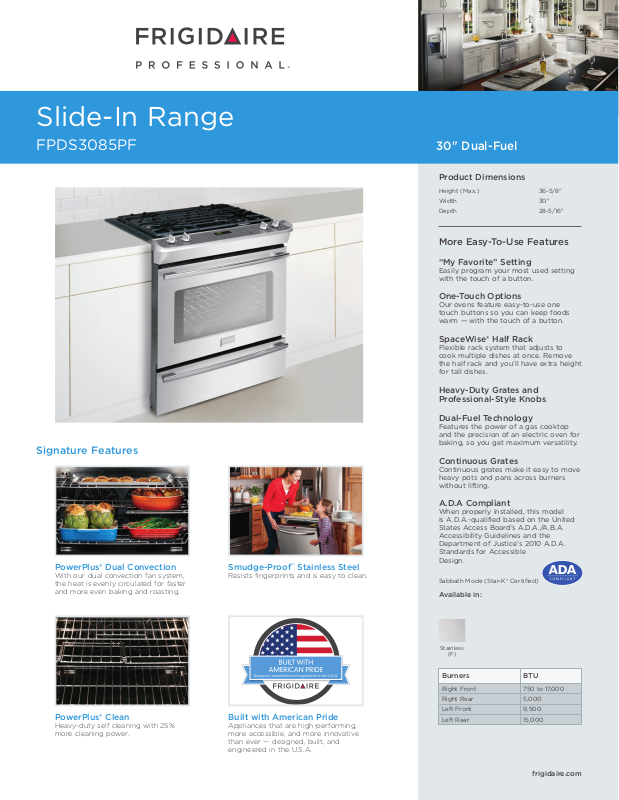

Frigidaire FPDS3085PF User Manual
Slide-In Range
FPDS3085PF
Signature Features
30" Dual-Fuel
Product Dimensions
Height (Max.) 36-5/8"
Width 30"
Depth 28-5/16"
More Easy-To-Use Features
“My Favorite” Setting
Easily program your most used setting
with the touch of a button.
One-Touch Options
Our ovens feature easy-to-use one
touch buttons so you can keep foods
warm — with the touch of a button.
SpaceWise® Half Rack
Flexible rack system that adjusts to
cook multiple dishes at once. Remove
the half rack and you’ll have extra height
for tall dishes.
Heavy-Duty Grates and
Professional-Style Knobs
Dual-Fuel Technology
Features the power of a gas cooktop
and the precision of an electric oven for
baking, so you get maximum versatility.
Continuous Grates
Continuous grates make it easy to move
heavy pots and pans across burners
without lifting.
PowerPlus® Dual Convection
With our dual convection fan system,
the heat is evenly circulated for faster
and more even baking and roasting.
PowerPlus® Clean
Heavy-duty self cleaning with 25%
more cleaning power.
Smudge-Proof™ Stainless Steel
Resists fingerprints and is easy to clean.
Built with American Pride
Appliances that are high-performing,
more accessible, and more innovative
than ever — designed, built, and
engineered in the U.S.A.
A.D.A Compliant
When properly installed, this model
is A.D.A.-qualified based on the United
States Access Board’s A.D.A./A.B.A.
Accessibility Guidelines and the
Department of Justice’s 2010 A.D.A.
Standards for Accessible
Design.
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
Burners
Right Front
Right Rear
Left Front
Left Rear
BTU
750 to 17,000
5,000
9,500
15,000
frigidaire.com
B
A
Extreme
protrusion
C
Features
Oven Control / Timing System
Surface Type
Sealed Gas Burners
Grates
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake / Broil
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
PowerPlus® Preheat
My Favorite
Chicken Nugget Button
Pizza Button
Keep Warm
Add-a-Minute
Delay Start
Self Clean / Clean Options
Steam Clean
Quick Clean Option
Delay Clean
Kitchen Timer / Timed Cook Option
Auto Oven Shut-O
Lower Drawer Control
Cooktop Features
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake Element / Broil Element (Watts)
Drawer Rack
Certifications
A.D.A. Compliant
Sabbath Mode (Star-K® Certified)
1
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
LP Gas Conversion Kit
Voltage Rating
Connected Load (kW Rating)
@ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Pro-Select®
Black Porcelain
Yes
Continuous Cast Iron
w/Black Matte Finish
Extra-Large with
Pro-Tint Finish
Smudge-Proof™
Stainless Steel
Stainless Steel
Black
PowerPlus® Dual
Convection
Self-Clean
Warmer
Yes /
Variable (400 – 550 °F)
Yes
Yes / Yes / Yes
Yes
Yes
Yes
Yes
Yes / 2, 3, 4 Hours
Yes
Yes
Yes
Yes / Yes
6 Hours
Warmer,
Low-Med-High
750 to 17,000
5,000
9,500
15,000
4.6
2
Yes
1 Heavy Duty, 1 SpaceWise®
Half Rack, 1 Eortless™
Even Baking Technology
Variable
2,500 / 4,000
1 SpaceWise® Half Rack
Yes
Yes
17-1/2" x 24-1/8" x 18-3/4"
Left Bottom Rear
Right Bottom Rear
Included
240V / 208V / 60 Hz
4.3 / 3.2
17.9 /15.4
30
250 Lbs.
Slide-In Range
FPDS3085PF 30" Dual-Fuel

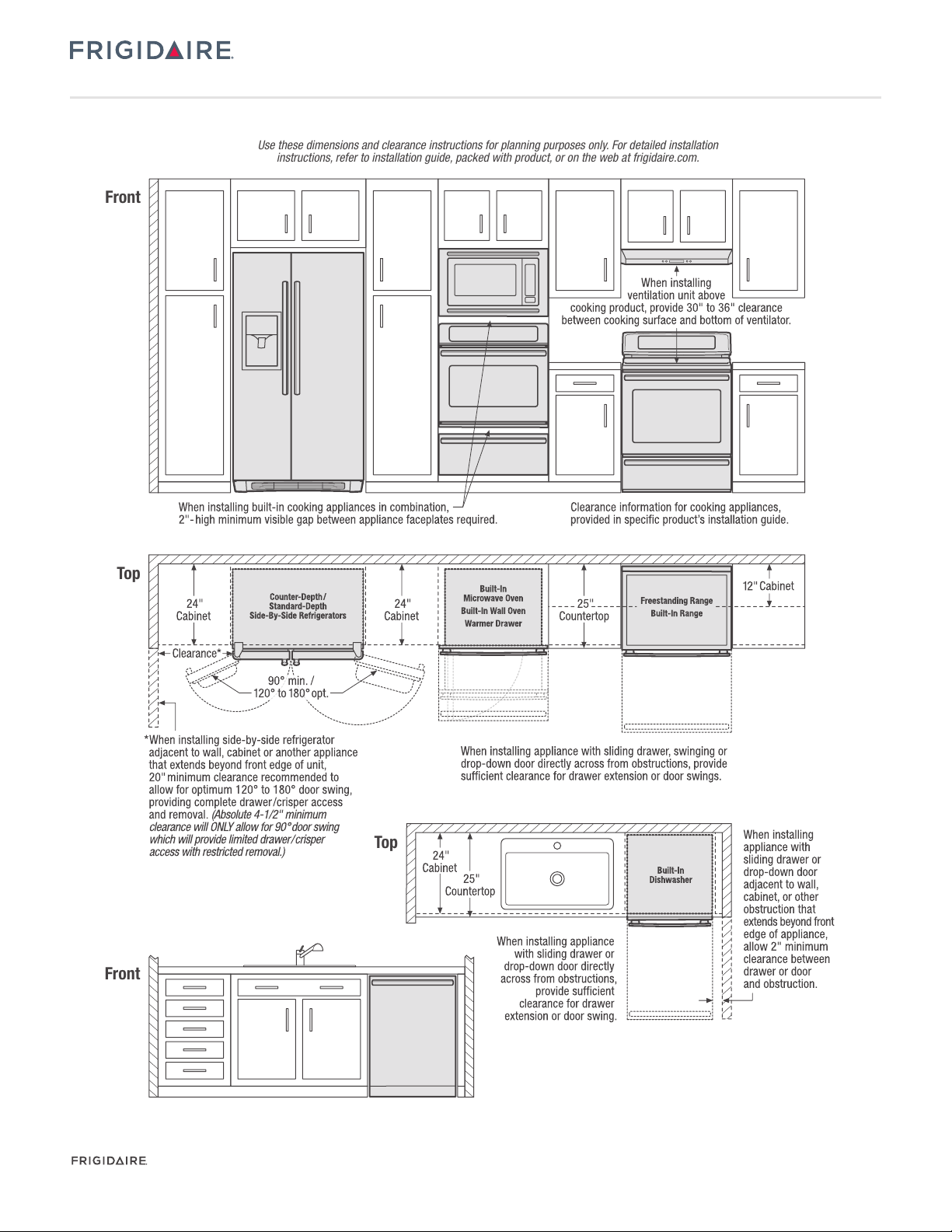

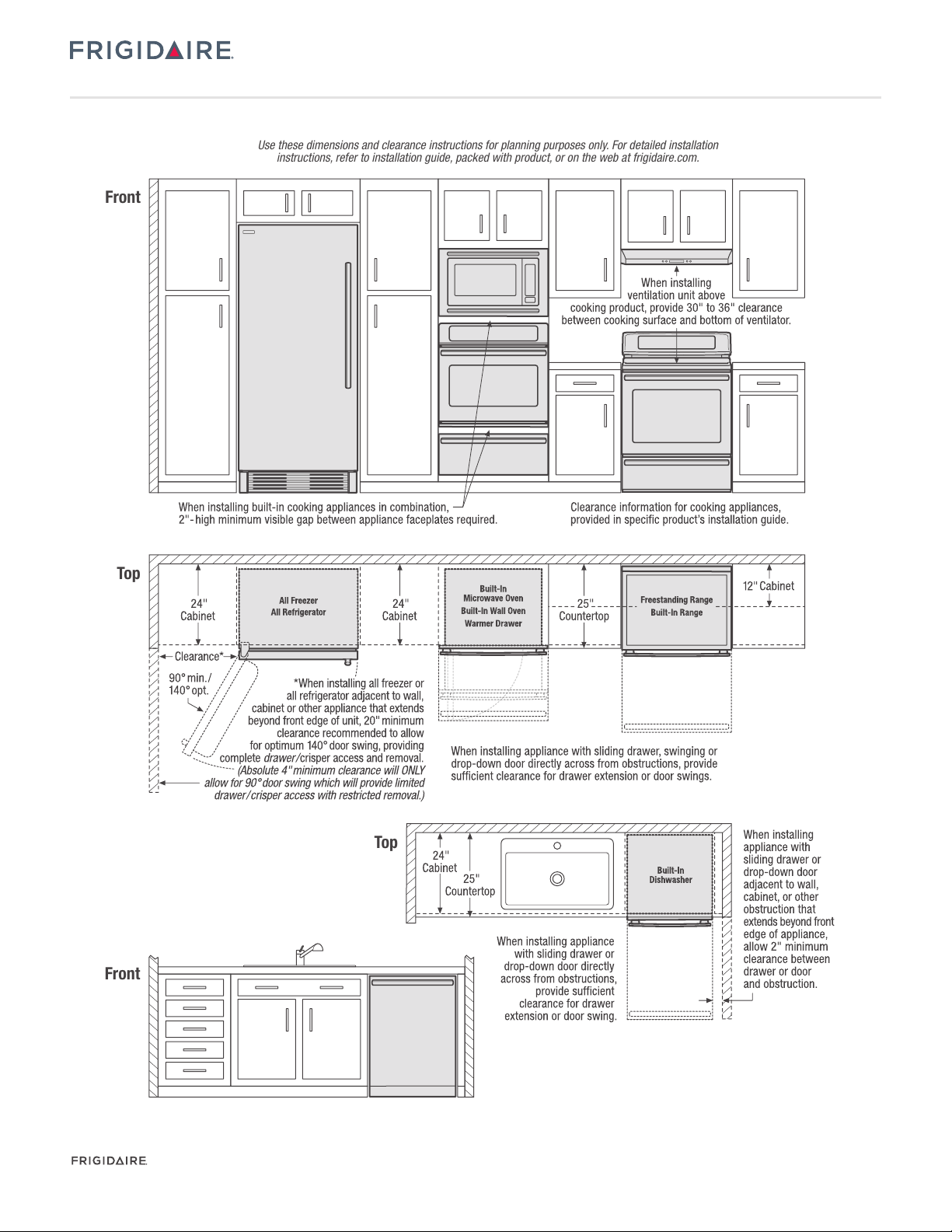

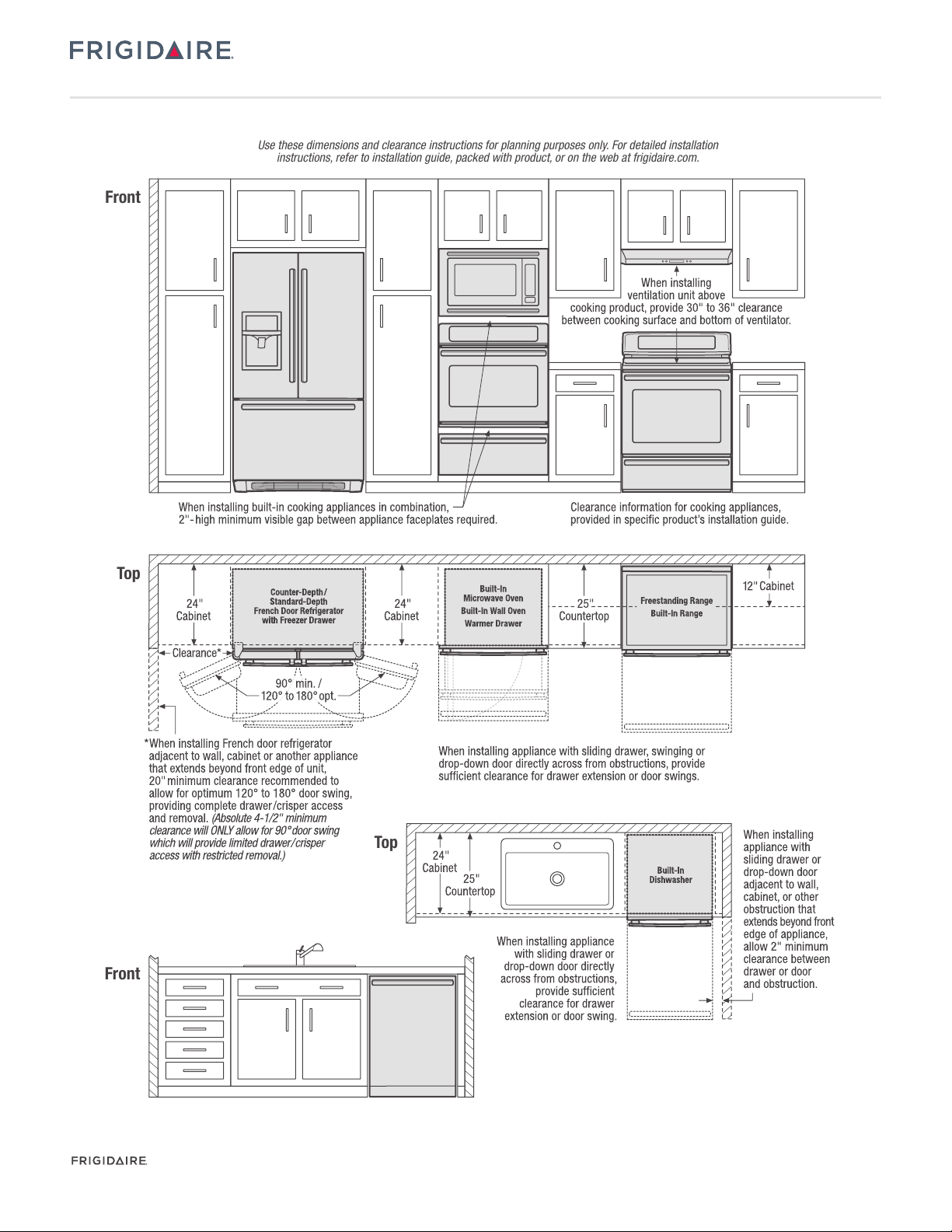

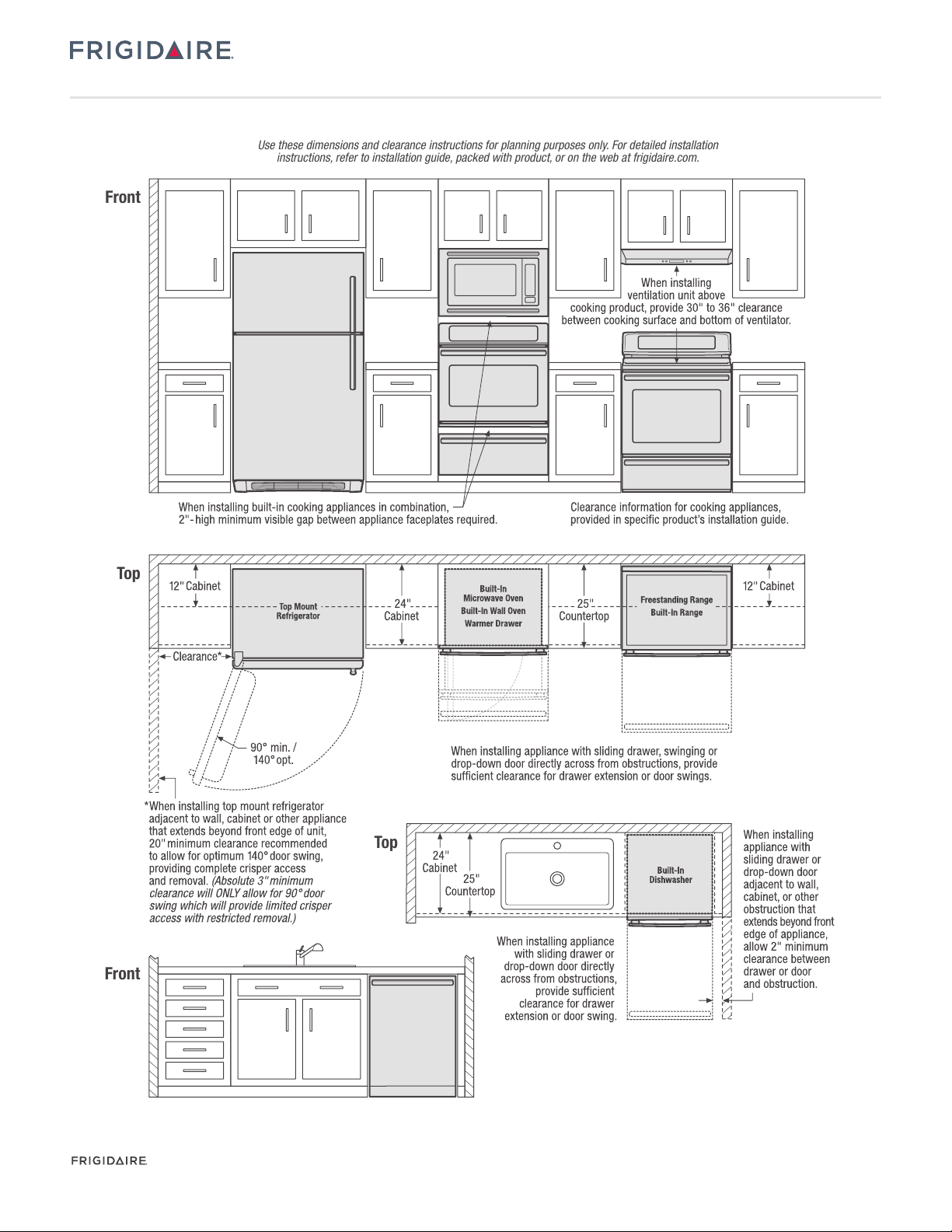

NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Max.)
B - Width
C - Depth
Depth with Door Open 90˚
36-5/8"
30"
28-5/16"
45-1/2"
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
Cutout Dimensions
Height (Min.) / (Max.)
Width (Min.) / (Max.)*
Depth (Min.) / (Max.)**
*Cutout and countertop cutout width should match.
**24" with optional backguard installed.
Accessories information available
on the web at frigidaire.com
35-7/8" / 36-5/8"
29-15/16" / 30-1/16"
21-3/4" / 22-1/8"
•
USA
10200 David Taylor Drive
•
CANADA
FPDS3085P 12/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
30" Dual-Fuel Slide-In Range
Professional
Slide-In Range
FPDS3085PF 30" Dual-Fuel
Slide-In Range Specifications
•
Product Shipping Weight (approx.) – 250 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt,
60 Hertz, fused on both sides of line with ground. (If local code
permits, range may be connected by hard-wiring or by means
of power supply cord kit.)
•
Connected Load (kW Rating) @ 240 / 208 Volts = 4.3 / 3.2 kW
•
Amps @ 240 / 208 Volts = 17.9 / 15.4 Amps
•
Always consult local and national electric and gas codes.
•
Make sure wall coverings around range can withstand heat generated
by range.
•
Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90° F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4"-thick plywood required between range and a carpeted floor.
•
Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of range. Range requires fresh air for
proper burner combustion.
•
Range ships with 3/4" factory regulator.
•
LP Gas Conversion Kit supplied.
•
Gas supply piping can be through back wall or floor. Optimum
location is between 1" and 8" from floor through back wall within
3" of center line; can also be through floor against back wall within
12" of center line. Supply line must be equipped with approved
manual shutoff valve, accessibly located in same room as range.
•
Countertop MUST be level in all directions and adjustable range
height at least 1/16" greater than tallest cabinet height, to ensure
metal rangetop flange will fit properly on countertop edge.
•
When installing optional Backguard Kit, cutout depth of 21-3/4"
minimum / 22-1/8" maximum needs increased to 24".
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Allow 24" minimum clearance between rangetop and bottom of cabinet
when bottom of wood or metal cabinet is protected by not less than
1/4" flame-retardant millboard covered with not less than No. 28 MSG
sheet steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper.
Allow 30" minimum clearance when cabinet is unprotected.
•
Allow 5" minimum clearance from edge of rangetop to nearest
combustible wall on either side of unit.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
Countertop Preparation
Rangetop’s side flanges overlap countertop cutout edges – for detailed
preparation instructions, refer to product installation guide on the web.
•
Flat Square-Finish Countertops – require no preparation since
rangetop’s flange lays directly on countertop edge.
•
Formed Front-Edged Countertops – require front molded edge to
be shaved flat 3/4" from each front corner of opening.
•
Tile Countertops – may need trim cut back 3/4" from each front
corner of opening and /or rounded edge flattened.
•
For existing cutout width greater than 30-1/16" reduce the 3/4"
overlap dimension; for cutout width of 29", replace actual side
trim panels with smaller side trim panels, available with optional
Side Trim Kit (refer to detailed kit installation instructions).
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Rear Filler Kit: Black – (PN # 901193-9010).
•
Side Panel Kit: Black – (PN # AO1529901).
•
Backguard Kit: Black – (PN # 903046-9010).
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FPDS3085P 12/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
