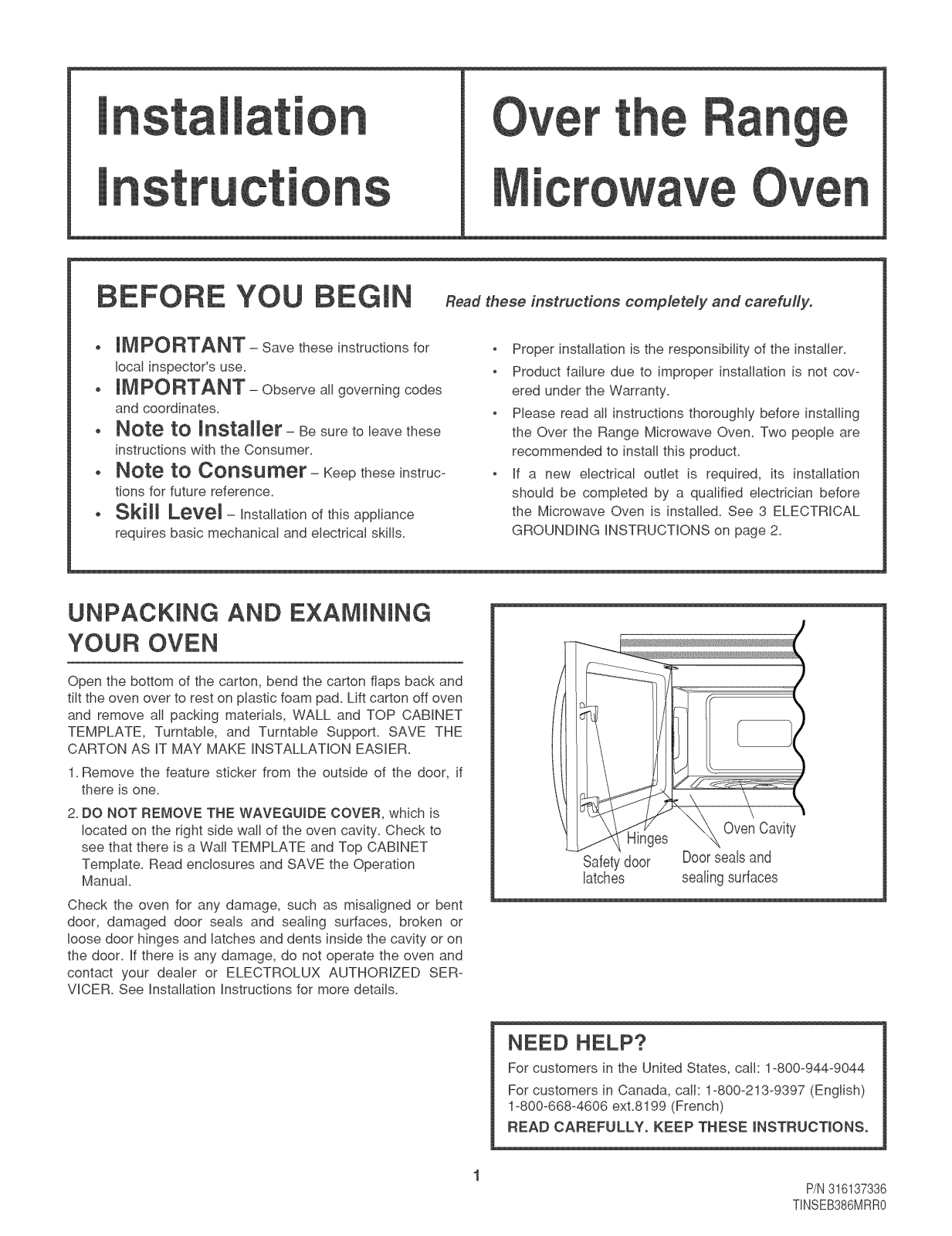

BEFORE YOU 8EGmN Roadthe.o,',.,r,,c.o,,.com ,tetely.r,dcoror,,.y.
® _IPOR'rANT- Save these instructions for
local inspector's use.
® _MPOR"rANT- Observe all governing codes
and coordinates.
. Note to installer- Be suretoleave these
instructions with the Consumer.
. Note to Consumer- Keep these instruc-
tions for future reference.
. Skitl LeveJ - Installation of this appliance
requires basic mechanical and electrical skills.
UNPACKING AND EXAMINING
YOUR OVEN
Open the bottom of the carton, bend the carton flaps back and
tilt the oven over to rest on plastic foam pad. Lift carton off oven
and remove all packing materials, WALL and TOP CABINET
TEMPLATE, Turntable, and Turntable Support. SAVE THE
CARTON AS IT MAY MAKE INSTALLATION EASIER.
1.Remove the feature sticker from the outside of the door, if
there is one.
2. DO NOT REMOVE THE WAVEGUIDE COVER, which is
located on the right side wall of the oven cavity. Check to
see that there is a Wall TEMPLATE and Top CABINET
Template. Read enclosures and SAVE the Operation
Manual.
Check the oven for any damage, such as misaligned or bent
door, damaged door seals and sealing surfaces, broken or
loose door hinges and Iatches and dents inside the cavity or on
the door. If there is any damage, do not operate the oven and
contact your dealer or ELECTROLUX AUTHORIZED SER-
VICER. See installation instructions for more details.
Proper installation is the responsibility of the instailer.
Product failure due to improper installation is not cov-
ered under the Warranty.
Please read atI instructions thoroughly before installing
the Over the Range Microwave Oven. Two people are
recommended to install this product.
If a new electrical outlet is required, its installation
should be completed by a qualified electrician before
the Microwave Oven is installed. See 3 ELECTRICAL
GROUNDING INSTRUCTIONS on page 2.
Hinges
OvenCavity
Safetydoor Doorseals and
latches sealingsurfaces
NEED HELP?
For customers in the United States, call: 1-800-944-9044
For customers in Canada, caII: 1-800-213-9397 (Engiish)
1-800-668-4606 ext.8199 (French)
READ CAREFULLY, KEEP THESE INSTRUCTIONS,
P/N316137336
TINSEB386MRR0
mnsta ation

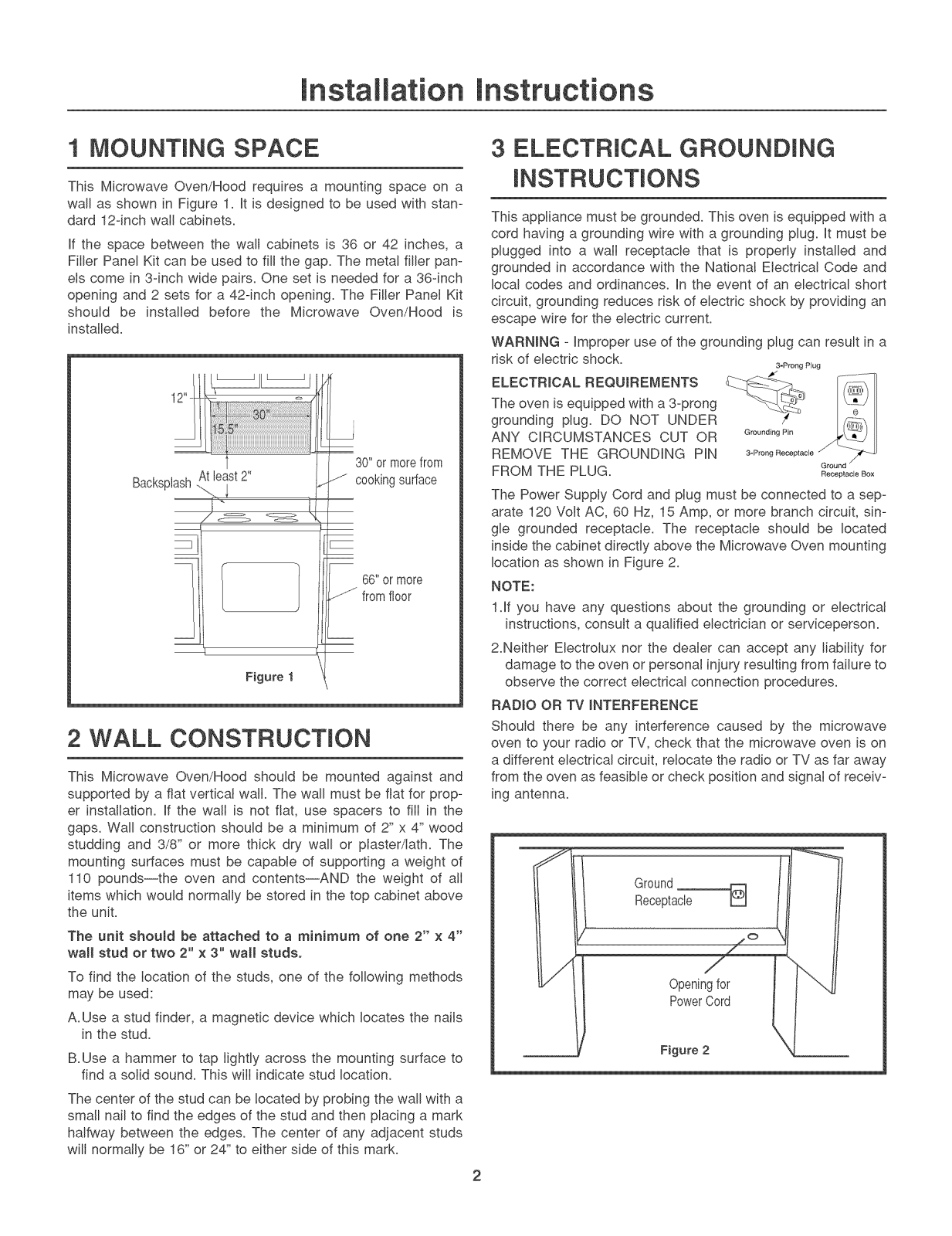

1 MOUNTING SPACE
This Microwave Oven/Hood requires a mounting space on a
wall as shown in Figure 1. It is designed to be used with stan-
dard 12-inch wail cabinets.
If the space between the wall cabinets is 36 or 42 inches, a
Filler Panel Kit can be used to fill the gap. The meta! filler pan-
els come in 3-inch wide pairs. One set is needed for a 36-inch
opening and 2 sets for a 42-inch opening. The Filler Panel Kit
should be installed before the Microwave Oven/Hood is
installed.
H iliiiii i i!iliiiiiiiil
_ IIf:!S!;i_,ilillillillillillillillillillillillillillillillilli_
30" or morefrom
BacksplashAt least2"
=
Figure I
2 WALL CONSTRUCTION
This Microwave Oven/Hood should be mounted against and
supported by a flat vertical wall. The wall must be flat for prop-
er installation. If the wall is not flat, use spacers to fill in the
gaps. Wall construction should be a minimum of 2" x 4" wood
studding and 3/8" or more thick dry wall or piaster/lath. The
mounting surfaces must be capable of supporting a weight of
110 poundslthe oven and contents--AND the weight of all
items which would normally be stored in the top cabinet above
the unit.
The unit shoumd be attached to a minimum of one 2" x 4"
wall stud or two 2" x 3"' wall studs.
To find the location of the studs, one of the following methods
may be used:
A.Use a stud finder, a magnetic device which locates the nails
in the stud.
B.Use a hammer to tap lightly across the mounting surface to
find a solid sound. This will indicate stud location.
The center of the stud can be !ocated by probing the wall with a
small nail to find the edges of the stud and then placing a mark
halfway between the edges. The center of any adjacent studs
will normally be 16" or 24" to either side of this mark.
J cookingsurface
66"or more
J fromfloor
3 ELECTRICAL GROUNDmNG
This appliance must be grounded. This oven is equipped with a
cord having a grounding wire with a grounding plug. It must be
plugged into a wail receptacle that is properly installed and
grounded in accordance with the National Electrical Code and
local codes and ordinances. In the event of an electrical short
circuit, grounding reduces risk of electric shock by providing an
escape wire for the electric current.
WARNING - Improper use of the grounding plug can result in a
risk of electric shock,
The oven is equipped with a 3-prong - _;_
ANY CIRCUMSTANCES CUT OR G,o_0diogp,_
grounding plug. DO NOT UNDER /...-r_
REMOVE THE GROUNDING PiN 3-ProngReceptacle /
FROM THE PLUG, Roc_p_loBo*
The Power Supply Cord and plug must be connected to a sep-
arate 120 Volt AC, 60 Hz, 15 Amp, or more branch circuit, sin-
gle grounded receptacle. The receptacle should be located
inside the cabinet directly above the Microwave Oven mounting
location as shown in Figure 2.
NOTE:
1.If you have any questions about the grounding or electrical
instructions, consult a qualified electrician or serviceperson.
2.Neither ElectroIux nor the dealer can accept any liability for
damage to the oven or personal iniury resulting from failure to
observe the correct electrical connection procedures.
RADIO OR TV _NTERFERENOE
Should there be any interference caused by the microwave
oven to your radio or TV, check that the microwave oven is on
a different electrical circuit, relocate the radio or TV as far away
from the oven as feasible or check position and signal of receiv-
ing antenna.
Ground
Receptacle
Openingfor
PowerCord
Figure 2
3-Prong Plug
Ground
mnsta ation

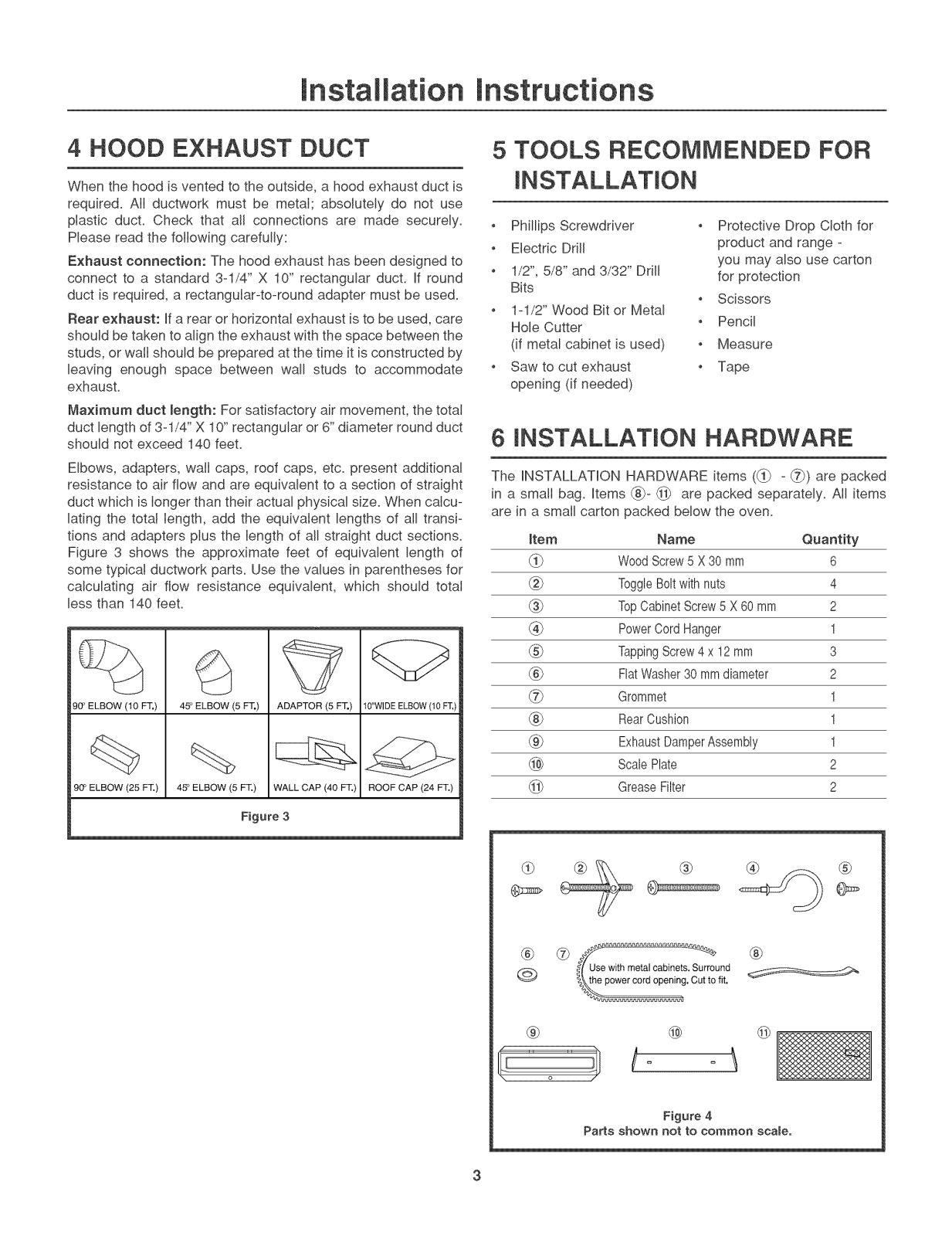

4 HOOD EXHAUST DUCT
When the hood is vented to the outside, a hood exhaust duct is
required. AII ductwork must be metaI; absolutely do not use
pIastic duct. Check that all connections are made securely.
Please read the foilowing carefully:
Exhaust sonneetiom The hood exhaust has been designed to
connect to a standard 3-1/4" X 10" rectangular duct. If round
duct is required, a rectanguIar-to-round adapter must be used.
Rear exhaust: If a rear or horizontal exhaust is to be used, care
should be taken to align the exhaust with the space between the
studs, or waII should be prepared at the time it is constructed by
leaving enough space between wall studs to accommodate
exhaust.
Maximum duet length: For satisfactory air movement, the total
duct length of 3-1/4" X 10" rectangular or 6" diameter round duct
should not exceed 140 feet.
Elbows, adapters, walI caps, roof caps, etc. present additional
resistance to air flow and are equivalent to a section of straight
duct which is Ionger than their actual physical size. When caIcu-
lating the total length, add the equivalent lengths of all transi-
tions and adapters plus the length of all straight duct sections.
Figure 3 shows the approximate feet of equivalent length of
some typical ductwork parts. Use the values in parentheses for
calculating air flow resistance equivalent, which should totaI
less than 140 feet.
90° ELBOW (10 FT,)
90° ELBOW (25 FT.)
45_ ELBOW (5 FT,)
45° ELBOW (5 FT.)
ADAPTOR (5 FT,)
WALL CAP (40 FT.)
10"WIDE ELBOW (t0 FT,)
ROOF CAP (24 FT.)
5 TOOLS RECOMMENDED FOR
Phillips Screwdriver • Protective Drop Cloth for
Electric Drill product and range -
1/2", 5/8" and 3/32" Drill for protection
Bits
1-1/2" Wood Bit or Metal
Hole Cutter • Pencil
(if metal cabinet is used) • Measure
Saw to cut exhaust • Tape
opening (if needed)
you may also use carton
• Scissors
6 INSTALLATION HARDWARE
The INSTALLATION HARDWARE items (_ - _) are packed
in a small bag. Items _- @ are packed separately. AII items
are in a small carton packed below the oven.
_tem Name Quantity
___ WoodScrew5X 30 mm 6
ToggleB01twithnuts 4
(_) SopCabinetScrew5 X60mm 2
PowerCord Hanger 1
TappingScrew4 x 12mm 3
FlatWasher30mm diameter 2
Grommet 1
RearCushion 1
ExhaustDamperAssembly 1
ScalePlate 2
GreaseFilter 2
Figure 3
_'_U_e with metal cabinets. Surround
®
@ _he power cord opening. Cut to fit.
® @ @
!o IIIItt
Figure 4
Parts shown not to common scale.
mnstallation

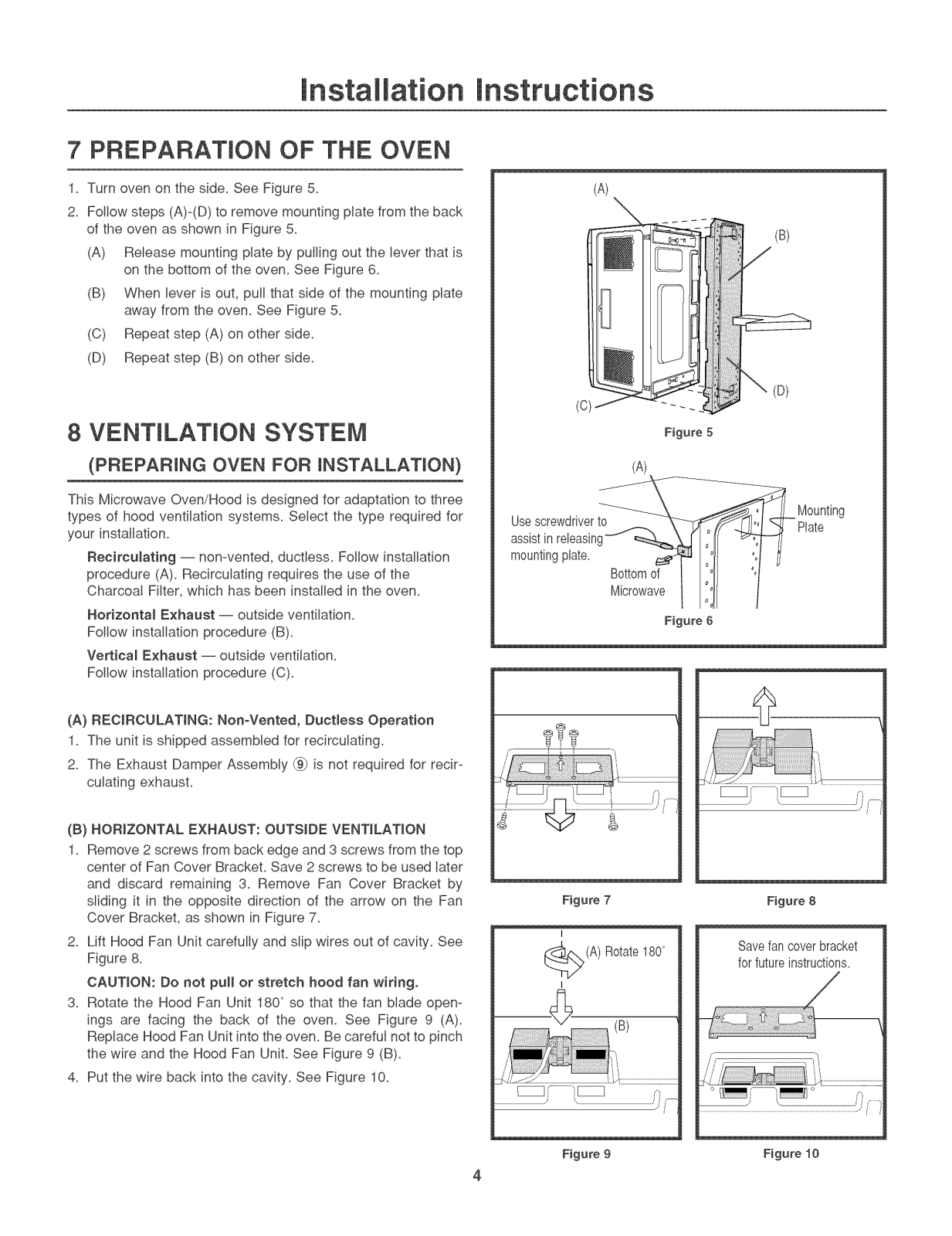

7 PREPARATION OF THE OVEN
1. Turn oven on the side. See Figure 5.
2. Follow steps (A)-(D) to remove mounting plate from the back
of the oven as shown in Figure 5.
(A) Release mounting plate by pulling out the lever that is
on the bottom of the oven. See Figure 6.
(B) When lever is out, pull that side of the mounting plate
away from the oven. See Figure 5.
(C) Repeat step (A) on other side.
(D) Repeat step (B) on other side.
8 VENTiLATiON SYSTEM
(D)
(PREPARING OVEN FOR iNSTALLATiON}
This Microwave Oven/Hood is designed for adaptation to three
types of hood ventilation systems. Select the type required for
your installation.
Recirculating -- non-vented, ductless. Follow installation
procedure (A). Recirculating requires the use of the
Charcoal Filter, which has been installed in the oven.
Horizontal Exhaust -- outside ventilation.
Follow installation procedure (B).
Vertical Exhaust -- outside ventilation.
Follow installation procedure (C).
(A} RECIRCULATtNG: Non-Vented, Ductmess Operation
1. The unit is shipped assembled for recirculating.
2. The Exhaust Damper Assembly _ is not required for recir-
culating exhaust.
(B} HORIZONTAL EXHAUST: OUTSIDE VENTILATION
1. Remove 2 screws from back edge and 3 screws from the top
center of Fan Cover Bracket. Save 2 screws to be used later
and discard remaining 3. Remove Fan Cover Bracket by
sliding it in the opposite direction of the arrow on the Fan
Cover Bracket, as shown in Figure 7.
2. Lift Hood Fan Unit carefully and slip wires out of cavity. See
Figure 8.
CAUTION: Do not pull or stretch hoed fan wiring.
3. Rotate the Hood Fan Unit 180°so that the fan blade open-
ings are facing the back of the oven. See Figure 9 (A).
Replace Hood Fan Unit into the oven. Be careful not to pinch
the wire and the Hood Fan Unit. See Figure 9 (B).
4. Put the wire back into the cavity. See Figure 10.
(A)
_Mounting
Usescrewdriverto _- _-_rq/, f _ Plate
assistin releasing_ _ ://
mountingplate. _3._ 0°ll :'I _
B0ttomof 0°J "'I
.,crower0°;I /
Fi ure 6
Figure 7
(A) Rotate180°
I
Figure 8
Savefancoverbracket
forfutureinstructions.
. {
ii...................................
2 . i _
i
Figure 9
4
Figure 10
mnsta ation

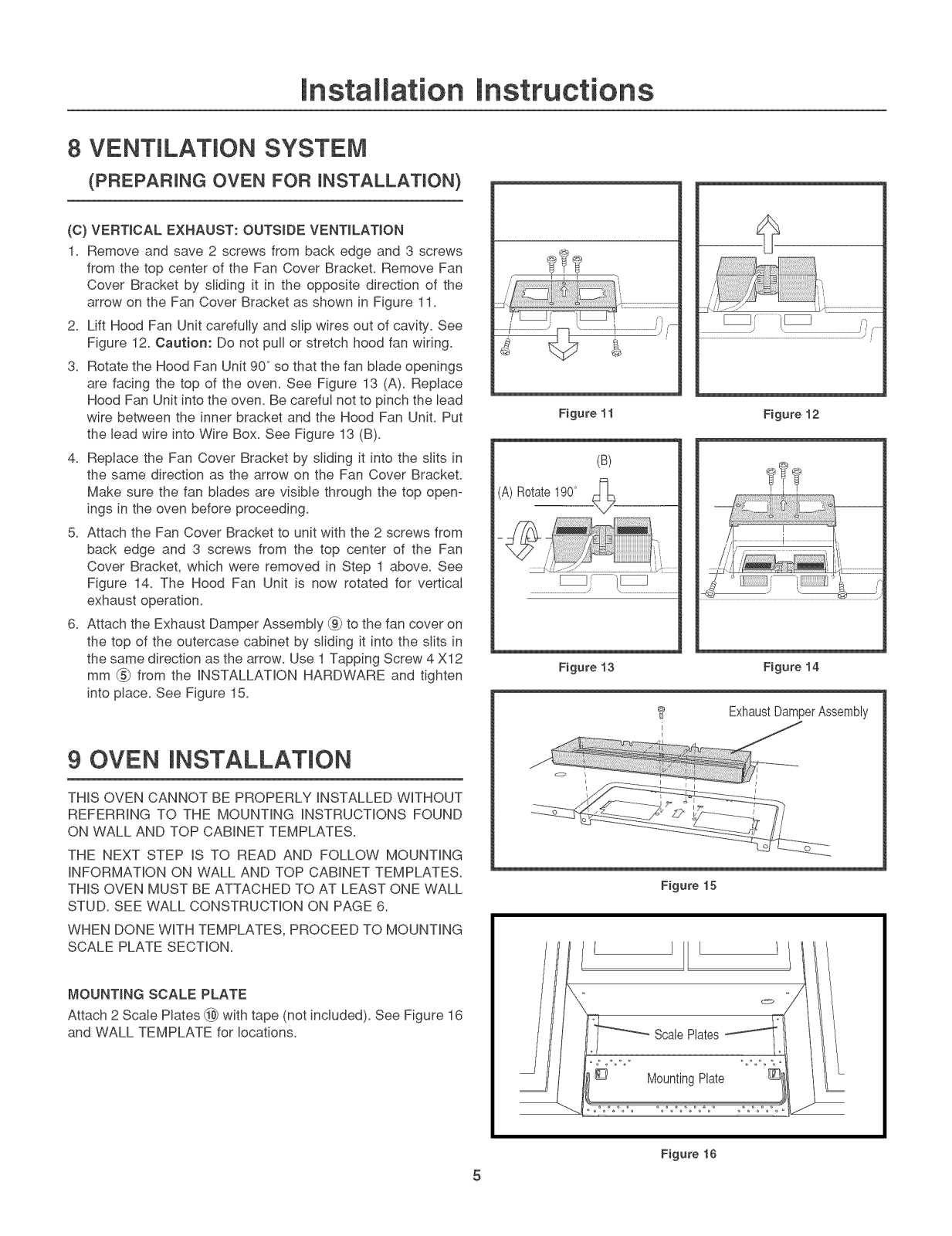

8 VENTiLATiON SYSTEM
(PREPARING OVEN FOR iNSTALLATiON)
(C) VERTICAL EXHAUST: OUTSIDE VENTiLATiON
1. Remove and save 2 screws from back edge and 3 screws
from the top center of the Fan Cover Bracket. Remove Fan
Cover Bracket by sliding it in the opposite direction of the
arrow on the Fan Cover Bracket as shown in Figure 11.
2. Lift Hood Fan Unit carefully and slip wires out of cavity. See
Figure 12. Caution: Do not pull or stretch hood fan wiring.
3. Rotate the Hood Fan Unit 90 ° so that the fan blade openings
are facing the top of the oven. See Figure 13 (A). Replace
Hood Fan Unit into the oven. Be careful not to pinch the lead
wire between the inner bracket and the Hood Fan Unit. Put
the lead wire into Wire Box. See Figure 13 (B).
4. Replace the Fan Cover Bracket by sliding it into the slits in
the same direction as the arrow on the Fan Cover Bracket.
Make sure the fan blades are visible through the top open-
ings in the oven before proceeding.
5. Attach the Fan Cover Bracket to unit with the 2 screws from
back edge and 3 screws from the top center of the Fan
Cover Bracket, which were removed in Step 1 above. See
Figure 14. The Hood Fan Unit is now rotated for vertical
exhaust operation.
6. Attach the Exhaust Damper Assembly (_ to the fan cover on
the top of the outercase cabinet by sliding it into the slits in
the same direction as the arrow. Use 1 Tapping Screw 4 X12
mm (_ from the INSTALLATION HARDWARE and tighten
into place. See Figure 15.
Figure 11
(B)
(A) Rotate190° c__
V
Figure 13
Figure 12
Figure 14
ExhaustDamperAssembly
9 OVEN iNSTALLATiON
THiS OVEN CANNOT BE PROPERLY iNSTALLED WITHOUT
REFERRING TO THE MOUNTING iNSTRUCTiONS FOUND
ON WALL AND TOP CABINET TEMPLATES.
THE NEXT STEP iS TO READ AND FOLLOW MOUNTING
iNFORMATiON ON WALL AND TOP CABINET TEMPLATES.
THiS OVEN MUST BE ATTACHED TO AT LEAST ONE WALL
STUD. SEE WALL CONSTRUCTION ON PAGE 6.
WHEN DONE WiTH TEMPLATES, PROCEED TO MOUNTING
SCALE PLATE SECTION.
MOUNTING SCALE PLATE
Attach 2 Scale Plates @ with tape (not included)_ See Figure 16
and WALL TEMPLATE for locations.
Figure 15
ScalePlates
I_°'°°° MountingPlate
Figure 16
mnsta ation
9 OVEN iNSTALLATiON cont.
MOUNTING PLATE

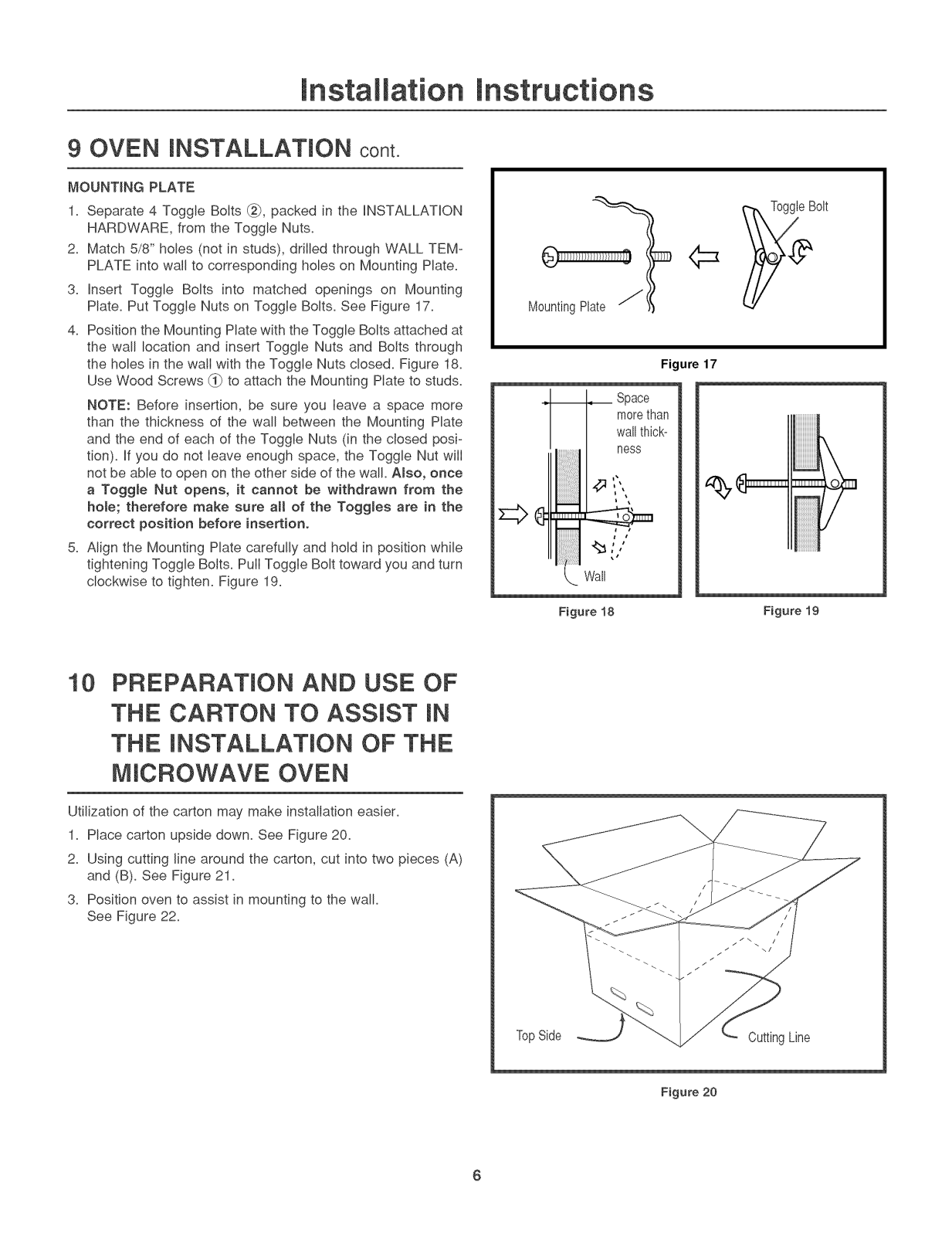

1_ Separate 4 Toggle BoIts _, packed in the INSTALLATION
HARDWARE, from the Toggle Nuts.
2_ Match 5/8" holes (not in studs), drilled through WALL TEM-
PLATE into wail to corresponding holes on Mounting Plate.
3_ Insert Toggle Bolts into matched openings on Mounting
Plate. Put ToggIe Nuts on ToggIe Bolts. See Figure 17_
4_ Position the Mounting Plate with the Toggle Bolts attached at
the wall location and insert Toggle Nuts and Bolts through
the holes in the wall with the Toggle Nuts closed. Figure l&
Use Wood Screws (_ to attach the Mounting Plate to studs.
NOTE: Before insertion, be sure you Ieave a space more
than the thickness of the wall between the Mounting Plate
and the end of each of the Toggle Nuts (in the closed posF
tion). If you do not leave enough space, the Toggle Nut will
not be able to open on the other side of the wall ABso, once
a Toggle Nut opens, it cannot be withdrawn from the
ho{e; therefore make sure aH of the Toggles are in the
correct position before insertion°
5_ Align the Mounting Plate carefully and hold in position while
tightening Toggle Bolts_ PulI Toggle Bolt toward you and turn
clockwise to tighten. Figure 19.
¢=
olt
Figure 17
morethan
wallthick-
heSS
z::>(_
Wall
10 PREPARATION AND USE OF
THE CARTON TO ASSIST IN
THE INSTALLATION OF THE
MICROWAVE OVEN
Utilization of the carton may make installation easier.
1. Place carton upside down. See Figure 20.
2. Using cutting line around the carton, cut into two pieces (A)
and (B). See Figure 21.
3. Position oven to assist in mounting to the wall.
See Figure 22.
Figure 18 Figure 19
TopSide CuttingLine
Figure 20
(A)
mnsta ation
(B)
(B)
Figure 21

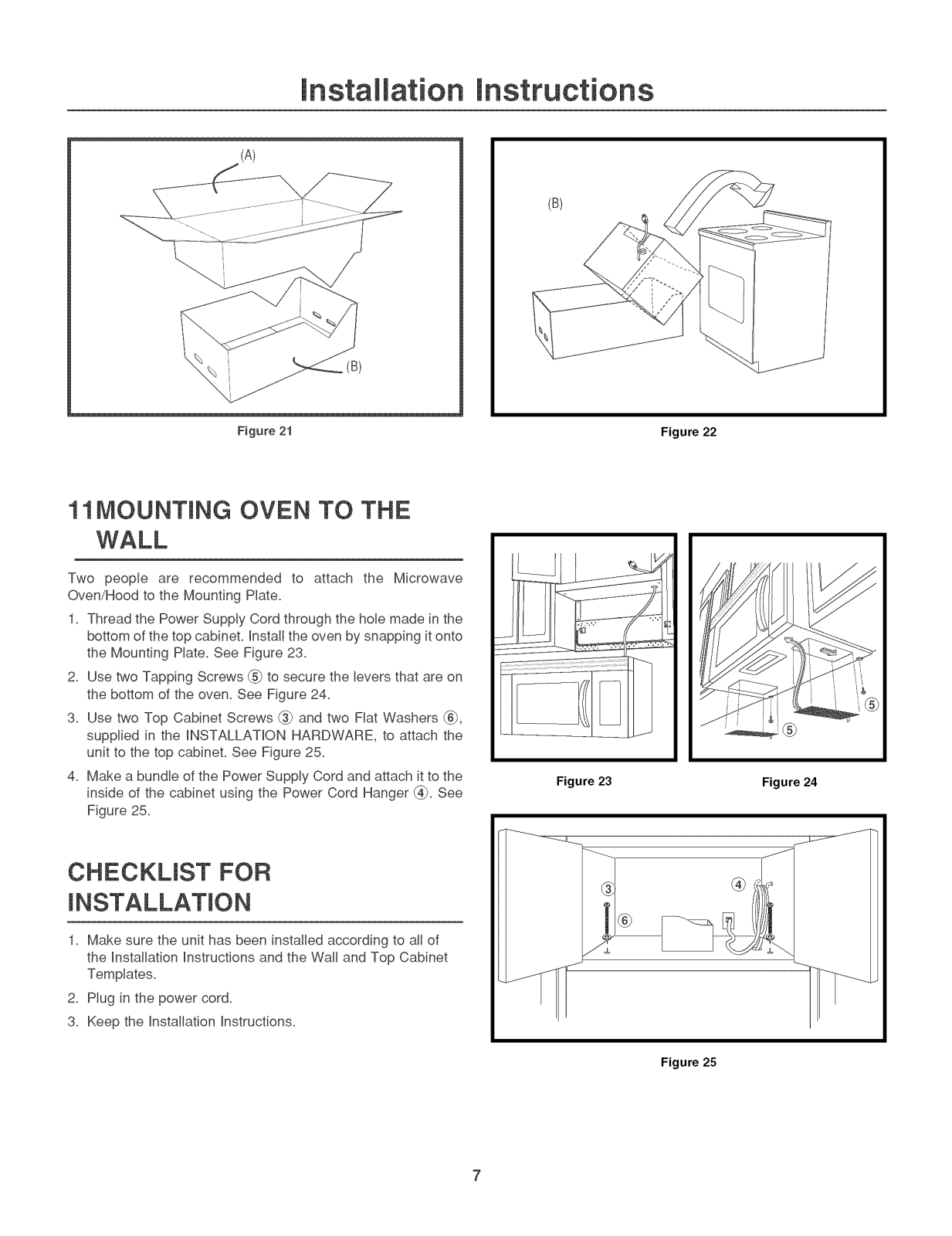

11MOUNTING OVEN TO THE
Two people are recommended to attach the Microwave
Oven/Hood to the Mounting Plate.
1. Thread the Power Supply Cord through the hole made in the
bottom of the top cabinet. InstalI the oven by snapping it onto
the Mounting Plate. See Figure 23=
2. Use two Tapping Screws (9 to secure the levers that are on
the bottom of the oven. See Figure 24.
3. Use two Top Cabinet Screws _ and two Flat Washers (_,
supplied in the INSTALLATION HARDWARE, to attach the
unit to the top cabinet. See Figure 25.
4. Make a bundle of the Power Supply Cord and attach it to the
inside of the cabinet using the Power Cord Hanger _. See
Figure 25=
CHECKLIST FOR
Figure 23
Figure 22
Figure 24
1= Make sure the unit has been installed according to alI of
the Installation Instructions and the Wall and Top Cabinet
Templates.
2. Plug in the power cord.
3. Keep the Installation Instructions.
Figure 25
mnsta_ation
Loading...
