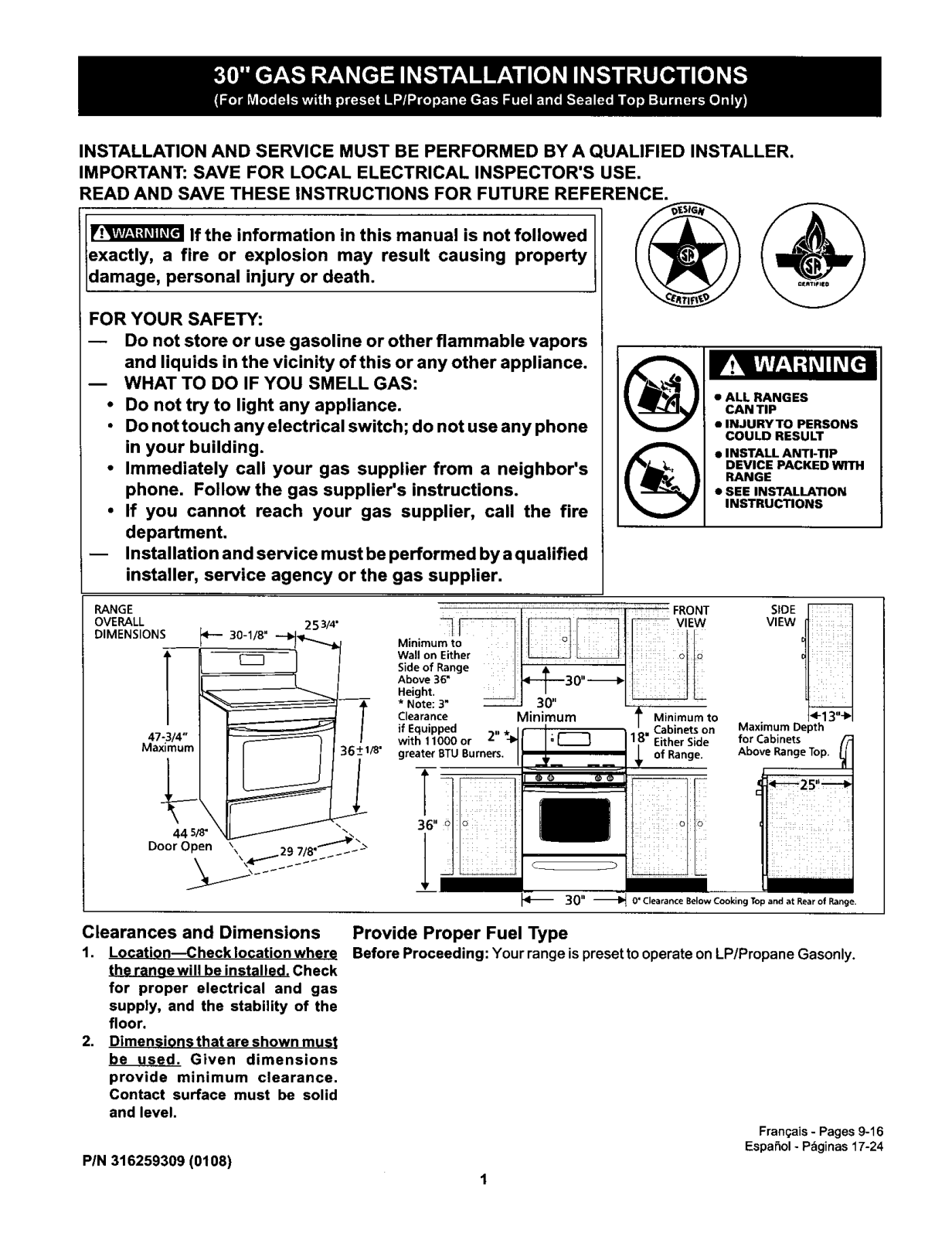

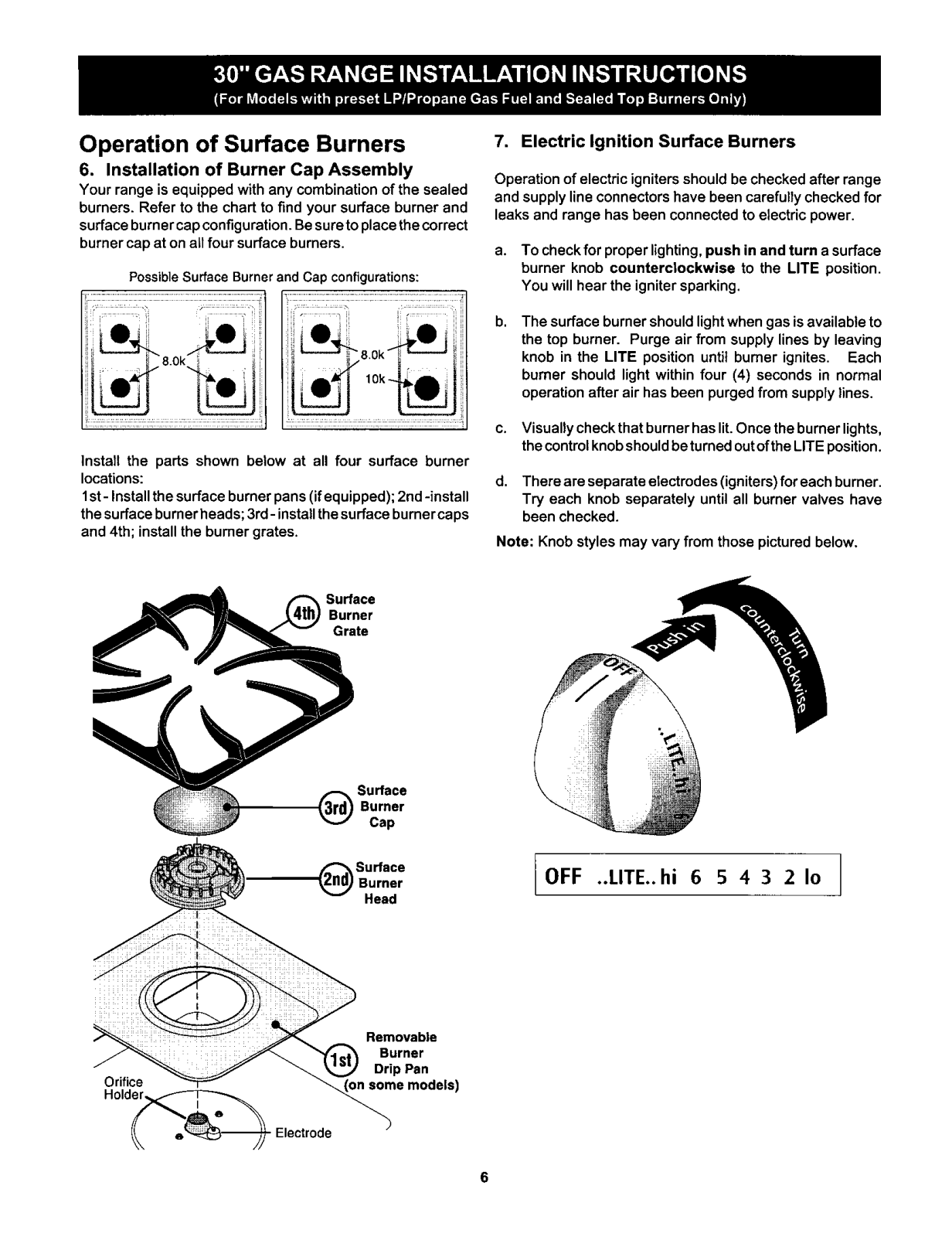

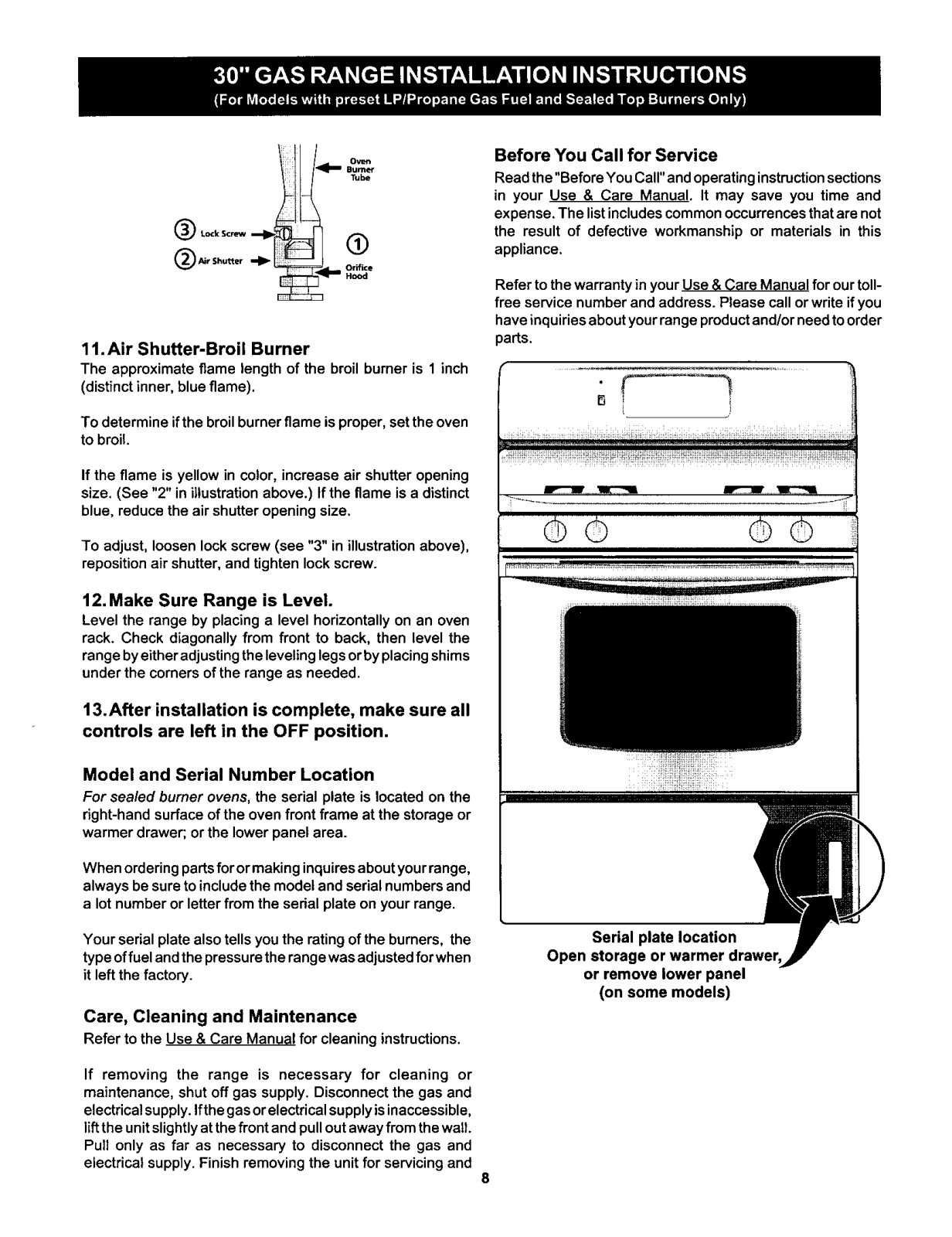

Frigidaire FLF326ASA, FLF337AUA, FLF337AWA Installation Guide

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER. IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
If the information in this manual is not followed
exactly, a fire or explosion may result causing property damage, persona njury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable vapors
-- WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone
in your building.
Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire
®
ALL RANGES CAN TIP
INJURYTO PERSONS COULD RESULT
INSTALL ANTI-TIP DEVICE PACKED WITH
RANGE
SEE INSTALLATION INSTRUCTIONS
department.
-- Installation and service must be performed by aqualified
installer, service agency or the gas supplier.
RANGE OVERALL 253/4"
O,MENS,ONi
DoorOpen,, 29
Clearances and Dimensions
1, Location_hecklocationwhere
the ranoe will be installed. Check for proper electrical and gas
supply, and the stability of the floor.
2. Dimensionsthatare shown must
be used, Given dimensions
provide minimum clearance, Contact surface must be solid and level,
PIN 316259309(0108)
..... [ I _ FRONT
HI ii
Minimum to Wall on Eit 0
Sideof Range
Above 36 ]e 1_---3 0" -_1_
Height, _ I I I i
* Note; 3" _ 30 ....
Clearance with 11000 or 2" *_
greater BTU Burners.
L
Minimum
.....
Minimum to
. Lau.ie_s un Maximum Depth
18 Either Side for Cabinets /-_
of Range. Above Range Top.
_r _25'!_
SIDE
VIEW
o
36" _
I
r
4_ 30" _ O'ClearanceBelowCookingTopandatRearofRange.
Provide Proper Fuel Type
Before Proceeding: Your range is preset to operate on LP/Propane Gasonly.
1
c _ ..........
H ........ i
!!
Fran;ais - Pages 9-16
Espafiol - Paginas 17-24
Important Notes to the Installer
1. Readallinstructionscontainedin theseinstallation instructionsbeforeinstallingrange.
2. Removeallpackingmaterialfromtheovencompartments beforeconnectingthegasandelectricalsupply to the
range.
3. Observe allgoverning codes and ordinances.
4. Be sureto leave these instructionswith the consumer.
Important Note to the Consumer
1. Keep these instructions with your owner's guide for
futurereference.

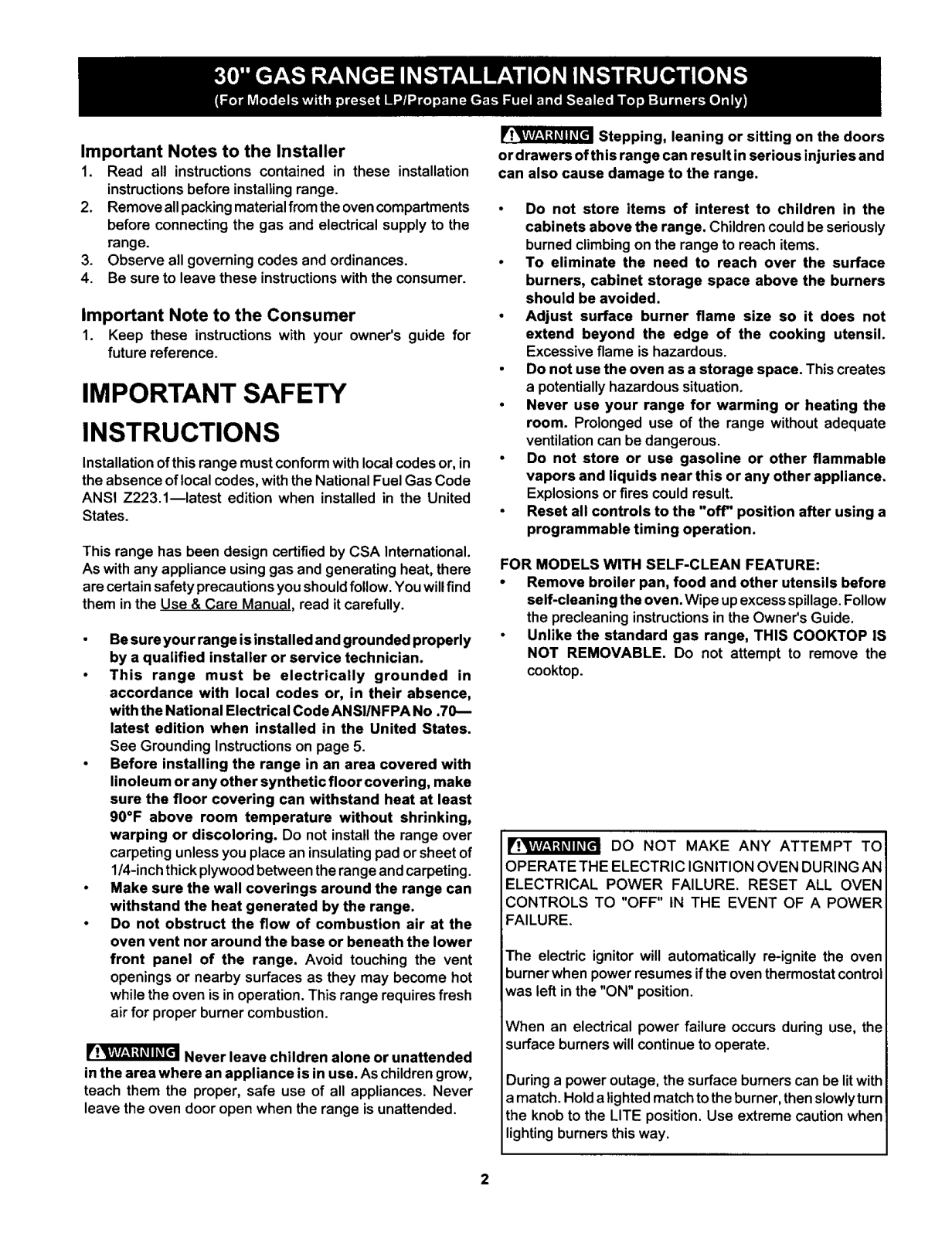

IMPORTANT SAFETY INSTRUCTIONS
Installation ofthisrange mustconformwithlocal codesor,in the absence of local codes, with the National Fuel Gas Code
ANSI Z223.1--1atest edition when installed in the United States.
This range has been design certifiedby CSA International. As with any appliance using gas and generating heat, there are certain safety precautions you should follow. You will find them in the Use & Care Manual. read it carefully.
Besureyour rangeisinstalled andgrounded properly
by a qualified installer or service technician. This range must be electrically grounded in accordance with local codes or, in their absence, with the National Electrical CodeANSI/NFPA No .70.--
latest edition when installed in the United States.
See GroundingInstructionson page 5.
Before installing the range in an area covered with
linoleum or any other synthetic floor covering, make
sure the floor covering can withstand heat at least
90°F above room temperature without shrinking,
warping or discoloring. Do not installthe range over
carpetingunless you placean insulatingpad or sheet of
1/4-inchthickplywoodbetweentherangeandcarpeting.
Make sure the wall coverings around the range can
withstand the heat generated by the range.
Do not obstruct the flow of combustion air at the
oven vent nor around the base or beneath the lower
front panel of the range. Avoid touching the vent
openings or nearby surfacesas they may become hot
whiletheoven is inoperation.Thisrange requiresfresh
air for properburnercombustion.
Never leave children alone or unattended
inthe area where an appliance is inuse. Aschildrengrow,
teach them the proper, safe use of all appliances. Never
leavethe oven dooropen when the range isunattended.
Stepping, leaning or sitting on the doors
or drawers of this range can result in serious injuries and can also cause damage to the range.
Do not store items of interest to children in the cabinets above the range. Children could be seriously
burned climbing on the range to reach items. To eliminate the need to reach over the surface
burners, cabinet storage space above the burners should be avoided.
Adjust surface burner flame size so it does not extend beyond the edge of the cooking utensil.
Excessive flame is hazardous. Do not use the oven as a storage space. This creates
a potentially hazardous situation.
Never use your range for warming or heating the room. Prolonged use of the range without adequate
ventilation can be dangerous.
Do not store or use gasoline or other flammable
vapors and liquids near this or any other appliance.
Explosions or fires could result. Reset all controls to the "off" position after using a
programmable timing operation.
FOR MODELS WITH SELF-CLEAN FEATURE:
Remove broiler pan, food and other utensils before self-cleaning the oven. Wipe upexcessspillage.Follow
the precleeninginstructionsin the Owner'sGuide. Unlike the standard gas range, THIS COOKTOP IS NOT REMOVABLE, Do not attempt to remove the cooktop.
DO NOT MAKE ANY ATTEMPT TO
OPERATE THE ELECTRIC IGNITION OVEN DURING AN
ELECTRICAL POWER FAILURE. RESET ALL OVEN CONTROLS TO "OFF" IN THE EVENT OF A POWER
FAILURE.
The electric ignitor will automatically re-ignite the oven
burner when power resumes ifthe oven thermostat control was left in the "ON" position.
When an electrical power failure occurs during use, the surface burners will continue to operate.
Duringa power outage, the surface burners can be litwith a match. Hold alighted match to the burner, then slowly turn the knob to the LITE position. Use extreme caution when
lighting burners this way.

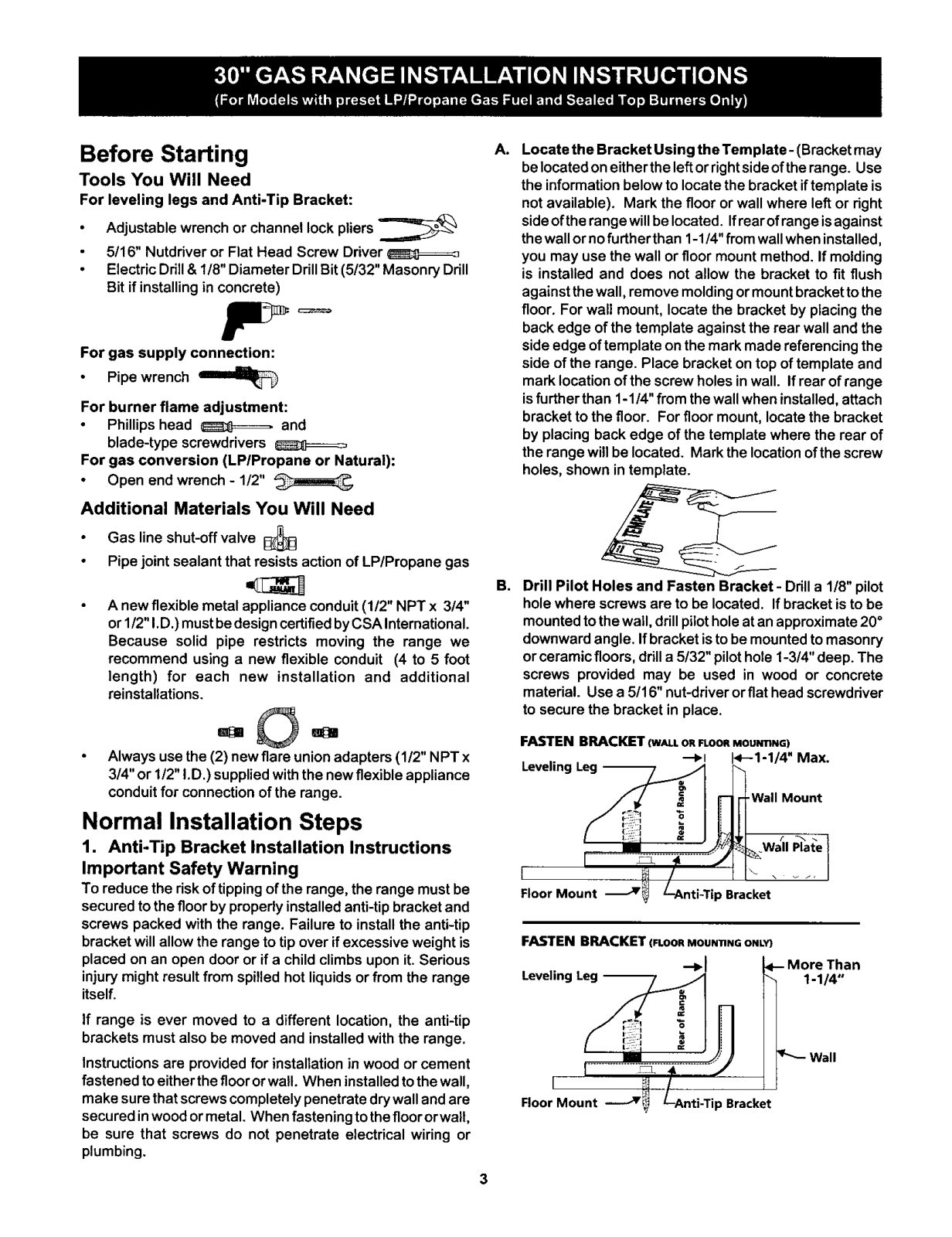

Before Starting
Tools You Will Need
For leveling legs and Anti-Tip Bracket:
Adjustablewrench or channel lock pliers
5/16" Nutdriveror FlatHead Screw Driver ElectricDrill&1/8"Diameter DrillBit(5/32"MasonryDrill
Bit if installingin concrete)
For gas supply connection:
Pipe wrench _

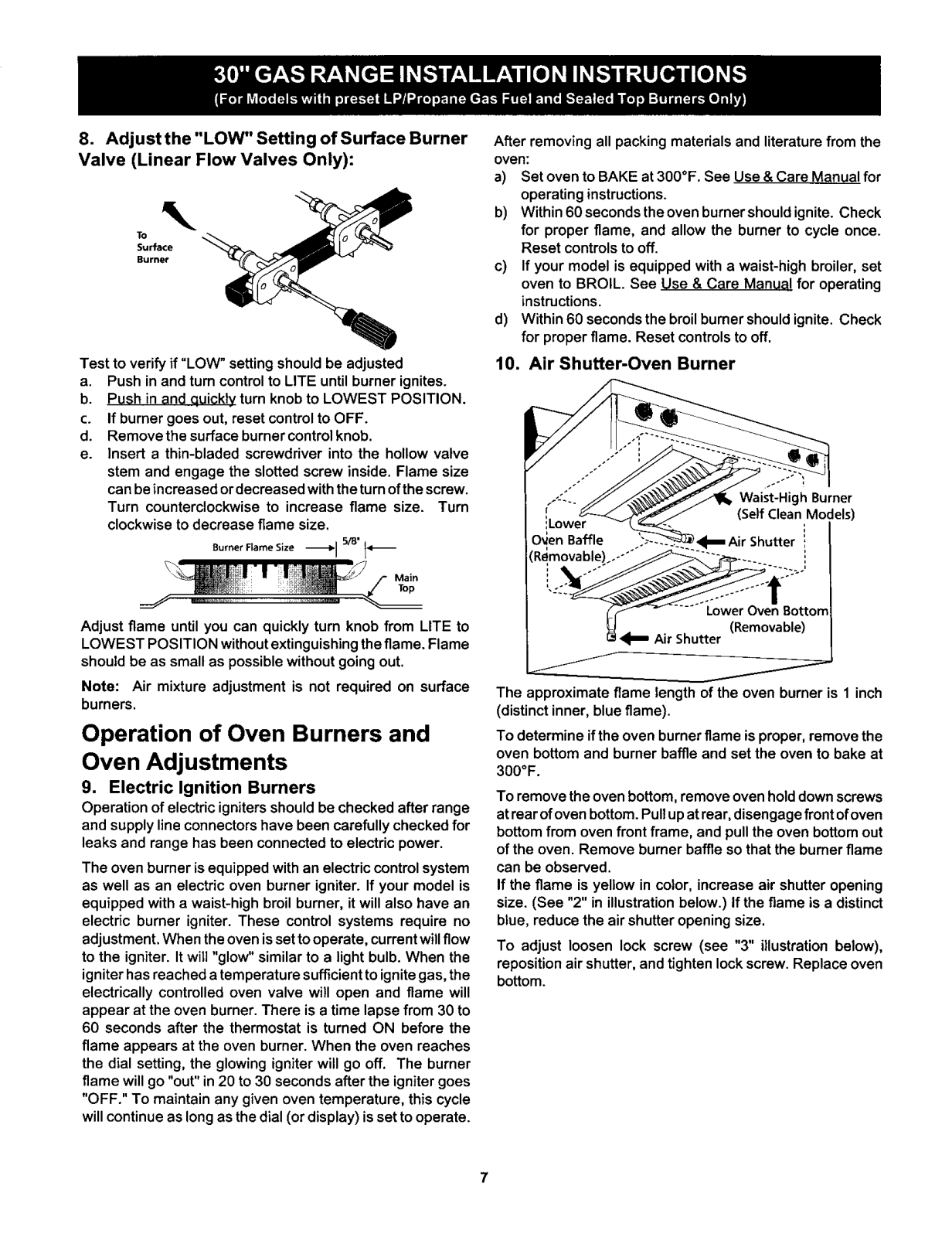

For burner flame adjustment:
Phillipshead _ and blade-type screwdrivers
For gas conversion (LP/Propane or Natural):
Open endwrench - 1/2"
Additional Materials You Will Need
Gas line shut-offvalve I_
Pipe joint sealant that resists action of LP/Propane gas
A new flexiblemetal appliance conduit(1/2" NPTx 3/4"
or1/2"I.D.) mustbedesign certifiedbyCSAInternational. Because solid pipe restricts moving the range we
recommend usinga new flexible conduit (4 to 5 foot length) for each new installation and additional
reinstallations.
Locate the Bracket Using the Template- (Bracketmay belocatedoneithertheleftorrightsideoftherange. Use
the informationbelowtolocatethe bracketiftemplate is
notavailable). Mark the flooror wall where leftor right
sideof therangewillbelocated. Ifrearof rangeisagainst thewallornofurther than 1-1/4"from wallwheninstalled,
you may use thewall orfloor mountmethod. If molding
is installed and does not allow the bracket to fit flush againstthe wall, removemoldingormountbrackettothe
floor. For wall mount, locate the bracketby placingthe
backedge ofthe template against the rearwalland the sideedge oftemplate onthe markmadereferencingthe
side of the range. Place bracketontop of template and marklocationof the screw holes inwall. Ifrear of range isfurtherthan 1-1/4"from the wallwhen installed,attach bracketto thefloor. Forfloor mount,locatethe bracket
by placing back edge of the templatewhere the rearof therangewillbe located. Mark the locationofthescrew
holes, shown intemplate.
B,
Drill Pilot Holes and Fasten Bracket- Ddll a 1/8" pilot hole where screws are to be located. If bracket is to be
mounted to the wall, drill pilot hole at an approximate 20 °
downward angle. If bracket is to be mounted to masonry or ceramic floors, drill a 5/32" pilot hole 1-3/4" deep. The
screws provided may be used in wood or concrete material. Use a 5/16" nut-driver or flat head screwdriver
to secure the bracket in place.

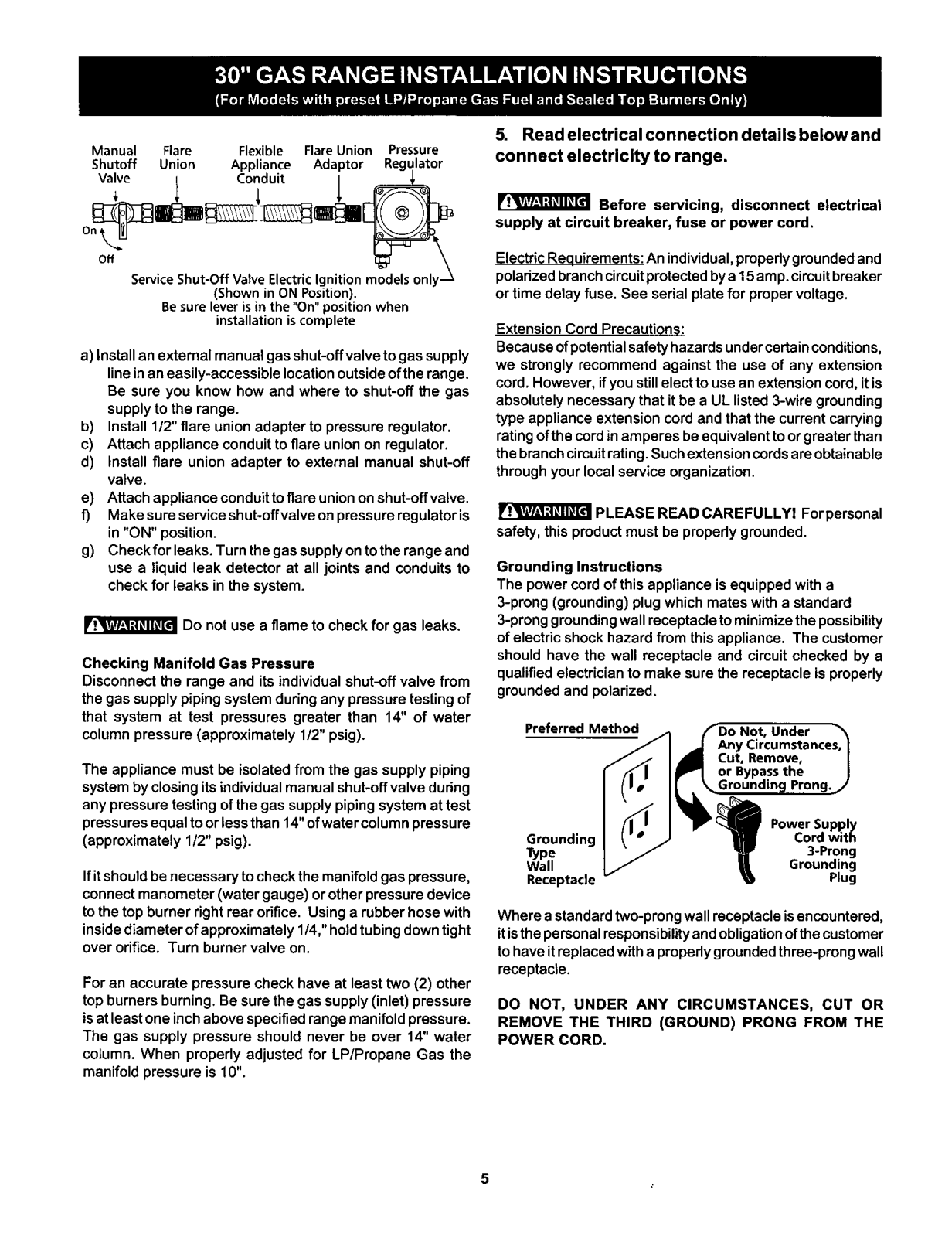

Always use the(2) newflare unionadapters (1/2" NPT x
3/4"or 1/2"I.D.) suppliedwiththenewflexibleappliance conduitfor connectionofthe range.
Normal Installation Steps
1, Anti-Tip Bracket installation Instructions Important Safety Warning
To reducethe riskof tippingofthe range,the range mustbe
securedto the floorby properlyinstalledanti-tipbracketand screwspacked withthe range. Failure to installthe anti-tip
bracketwillallowthe rangeto tip over if excessive weight is placedon an open dooror if a childclimbs upon it.Serious injurymight result from spilled hotliquidsorfromthe range
itself. If range is ever moved to a different location, the anti-tip
brackets must also be moved and installed with the range.
Instructionsare provided for installation in wood or cement fastenedtoeitherthefloororwall. When installedtothe wall,
make surethatscrewscompletelypenetratedrywallandare securedinwoodor metal. When fasteningto thefloororwall, be sure that screws do not penetrate electrical wiring or plumbing.
FASTENBRACKET(WALLORFLOORMOUN'nNG)
--_1 1<--'1"1/4"Max.

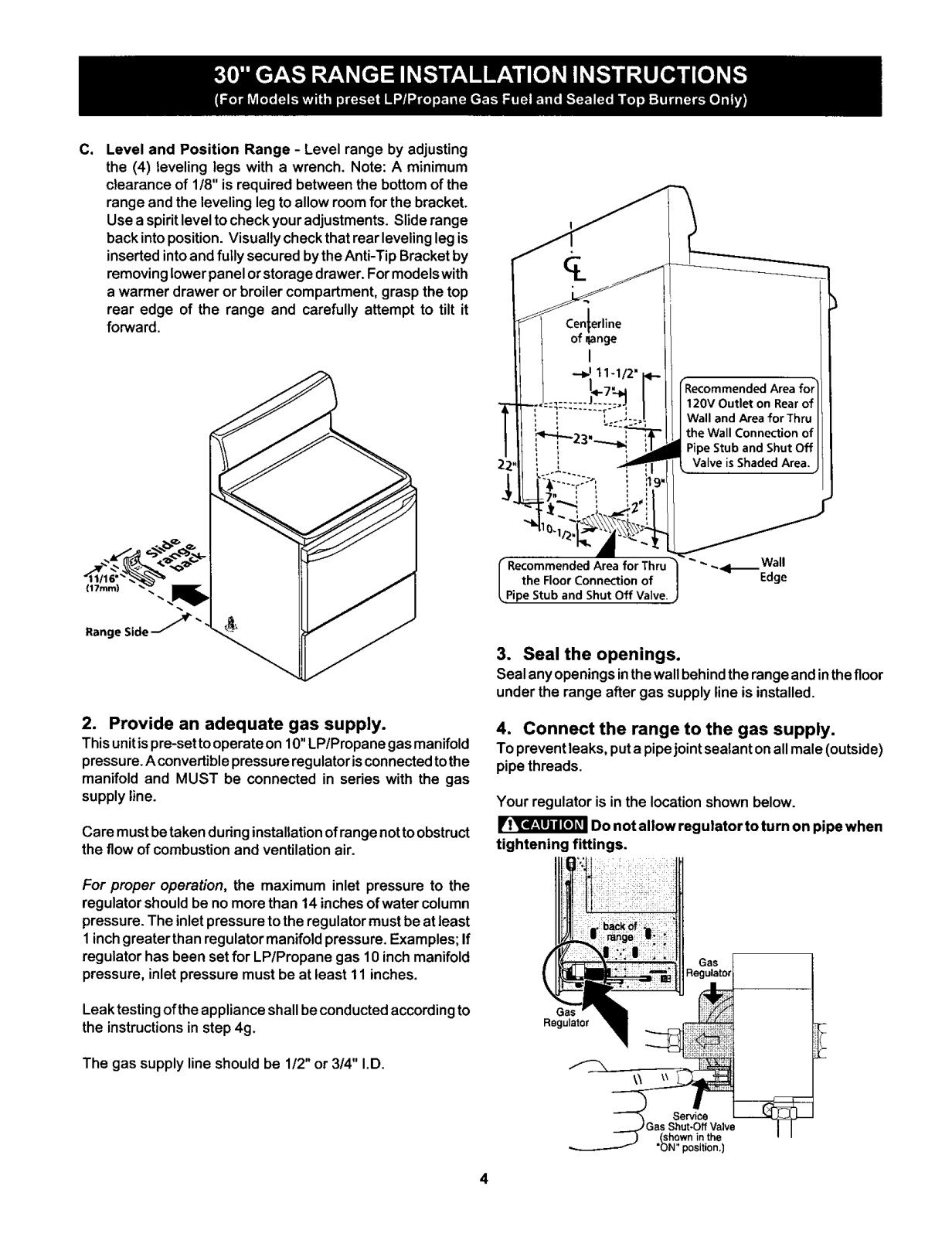

Leveling Leg _._ _
I wa''°°u°t
[ ...........! I i
L_._ _t / I1"- , _. i
Floor Mount -_'_'_ L-Anti-Tip Bracket
FASTEN BRACKET(FLOORMOUNTINGONLY)
--,I
Leveling Leg --
Floor Mount =Bracket
