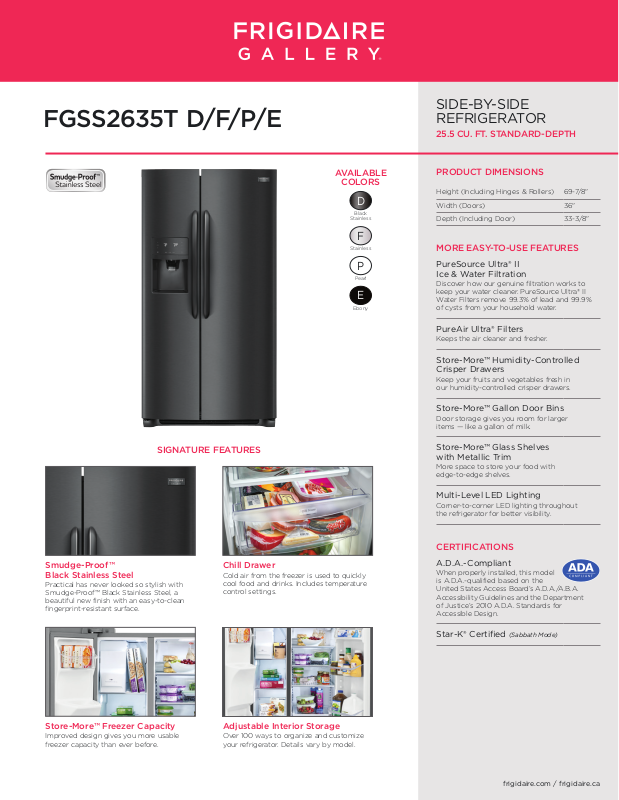

Page 1
FGSS2635T D/F/P/E
D
F
P
E
SIDE-BY-SIDE
REFRIGERATOR
25.5 CU. FT. STANDARD-DEPTH
SIGNATURE FEATURES
AVAILABLE
COLORS
Black
Stainless
Stainless
Pearl
Ebony
PRODUCT DIMENSIONS
Height (Including Hinges & Rollers) 69-7/8"
Width (Doors) 36"
Depth (Including Door) 33-3/8"
MORE EASY-TO-USE FEATURES
PureSource Ultra® II
Ice & Water Filtration
Discover how our genuine filtration works to
keep your water cleaner. PureSource Ultra® II
Water Filters remove 99.3% of lead and 99.9%
of cysts from your household water.
PureAir Ultra® Filters
Keeps the air cleaner and fresher.
Store-More™ Humidity-Controlled
Crisper Drawers
Keep your fruits and vegetables fresh in
our humidity-controlled crisper drawers.
Store-More™ Gallon Door Bins
Door storage gives you room for larger
items — like a gallon of milk.
Store-More™ Glass Shelves
with Metallic Trim
More space to store your food with
edge-to-edge shelves.
Smudge-Proof™
Black Stainless Steel
Practical has never looked so stylish with
Smudge-Proof™ Black Stainless Steel, a
beautiful new finish with an easy-to-clean
fingerprint-resistant surface.
Store-More™ Freezer Capacity
Improved design gives you more usable
freezer capacity than ever before.
Chill Drawer
Cold air from the freezer is used to quickly
cool food and drinks. Includes temperature
control settings.
Adjustable Interior Storage
Over 100 ways to organize and customize
your refrigerator. Details vary by model.
Multi-Level LED Lighting
Corner-to-corner LED lighting throughout
the refrigerator for better visibility.
CERTIFICATIONS
A.D.A.- Compliant
When properly installed, this model
is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A.
Accessibility Guidelines and the Department
of Justice’s 2010 A.D.A. Standards for
Accessible Design.
Star-K® Certified (Sabbath Mode)
frigidaire.com / frigidaire.ca
Page 2
FGSS2635T D/F/P/E
SIDE-BY-SIDE REFRIGERATOR
25.5 CU. FT. STANDARD-DEPTH
FEATURES
Door Design Tall Curved
Door Handle Design
Cabinet Finish
Door Stops / Door Closers Yes / Yes
Door Hinge Covers Hidden
Rollers – Front / Rear Adjustable / Yes
Energy Saver Plus Technology
Water Filter Location Top Right Rear
Sound Package
Black Stainless (D),
Stainless Steel (F),
C-Coordinated (P / E)
Black (D), Grey (F),
C-Coordinated (P / E)
DISPENSER
Controls Express-Select®
Dispenser Design Flush, Single-Paddle
Number of Dispenser Buttons 11
Crushed Ice / Cube Ice / Water Yes / Yes / Yes
Ice Option / Freeze Option
Display On / O Option Yes
Control Lock / Light Yes / Yes
Temp / Door Ajar / Power Failure Alerts Yes / No / Yes
Water Filter Change Indicator Light Yes
Air Filter Change Indicator Light Yes
REFRIGERATOR FEATURES
Interior Lighting Designer LED
Water Filter Type PureSource Ultra® II
Air Filter Type PureAir Ultra®
Fixed Shelves 3 Store-More™ Glass
Sliding Shelves
Chill Drawer 1 Stacked
Wine / Can Rack
Upper Crisper / Lower Crisper 1 Clear / 1 Clear
Humidity Controls 2
Dairy Compartment 1 Clear
Door Bins
Non-Slip Bin Liner / Bottle Retainers
Condiment Bin
2 Two-Liter Clear &
2 One-Gallon Clear
FREEZER FEATURES
Door Bins / Tilt-Out Wire Door Bins 4 Clear / No
Fixed Shelves 2 Wire
Full Extension Baskets
Full Freezer Baskets 1 Plastic / 1 Wire
Half Freezer Baskets
Ice Cream Shelf / Pizza Shelf Yes / Yes
SpaceSaver™ Shelf
Lighting LED
CERTIFICATIONS
A.D.A. Compliant
Star-K® Certified (Sabbath Mode) Yes
1
Yes
SPECIFICATIONS
Total Capacity (Cu. Ft.) 25.5
Refrigerator Capacity (Cu. Ft.) 16.5
Freezer Capacity (Cu. Ft.) 9.0
Power Supply Connection Location Right Bottom Rear
Water Inlet Connection Location Left Bottom Rear
Voltage Rating 120V / 60Hz
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts 8.5
Minimum Circuit Required (Amps) 15
Shipping Weight (Approx.) 293 Lbs.
1
When properly installed, this model is A.D.A.-qualified based on the United States
Access Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s
2010 A.D.A. Standards for Accessible Design.
2
For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
2
1.02
PRODUCT DIMENSIONS
A - Height (Including Hinges & Rollers) 69-7/8"
B - Cabinet Width / Door Width 35-7/8" / 36"
C - Depth (Including Door) 33-3/8"
Depth with Door Open 90° 50"
C
A
B
•
10200 David Taylor Drive
USA
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com / frigidaire.ca.
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca
© 2018 Electrolux Home Products, Inc.
FGSS2635T 04/18
Page 3
FGSS2635T D/F/P/E
SIDE-BY-SIDE REFRIGERATOR
25.5 CU. FT. STANDARD-DEPTH
A
C
B
Standard
Refrigerator Depth
vs. Counter Depth
Counter Depth
7
23
/8"
36"
Doors
33
3/8"
5"
7/8"
35
Cabinet
69
with
3
/8"
7/8"
rollers
Water
5/8"
68
with
rollers
line inlet
3
location
/8"
(left
bottom
rear)
“Built-In Look”
Cutout Dimensions
(A) 701/4" (B) 36" (C) 28
Top View
Recessed
water line
7/8"
Recessed
electrical outlet
28
Standard Depth
Allow 1" min. clearance at rear
for proper air circulation and
/
electrical connections
24"
Cabinet
water
7/8" Side Panels, 1/2" min. width
28
Countertop
INSTALLATION SPECIFICATIONS
•
Product Shipping Weight (approx.) – 293 Lbs.
•
Voltage Rating – 120V / 60 Hz
•
Connected Load (kW Rating) @ 120 Volts = 1.02 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.)
•
Amps @ 120 Volts = 8.5 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting fully
loaded refrigerator.
•
When installing refrigerator adjacent to wall, cabinet or other appliance that
extends beyond front edge of unit, 20" minimum clearance recommended
to allow for optimum 120° to 180° door swing, providing complete
drawer / crisper access and removal. (Absolute 4-1/2" minimum clearance will
ONLY allow for 90° door swing which will provide drawer / crisper access with
restricted removal.)
•
To ensure optimum performance, avoid installing in direct sunlight or close
proximity to range, dishwasher or other heat source.
3/4"
25"
Power
cord
location
(right
bottom
rear)
3
/4"
28
35
7/8"
min.
Allow 50"
(with doors 90° open)
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100 pounds
per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line with
length equal to distance from rear of unit to household water supply line
plus 7 additional feet. Optional Water Supply Installation Kits available.
•
Adjustable front rollers to assist with door alignment.
“BUILT-IN LOOK” SPECIFICATIONS
•
Minimum opening of 70-1/4" H x 36" W x 28-7/8" D required to allow for ease
of installation, proper air circulation, and plumbing / electrical connections.
•
Remove all wall / floor molding prior to installation.
•
10200 David Taylor Drive
USA
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com / frigidaire.ca.
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca
© 2018 Electrolux Home Products, Inc.
FGSS2635T 04/18
