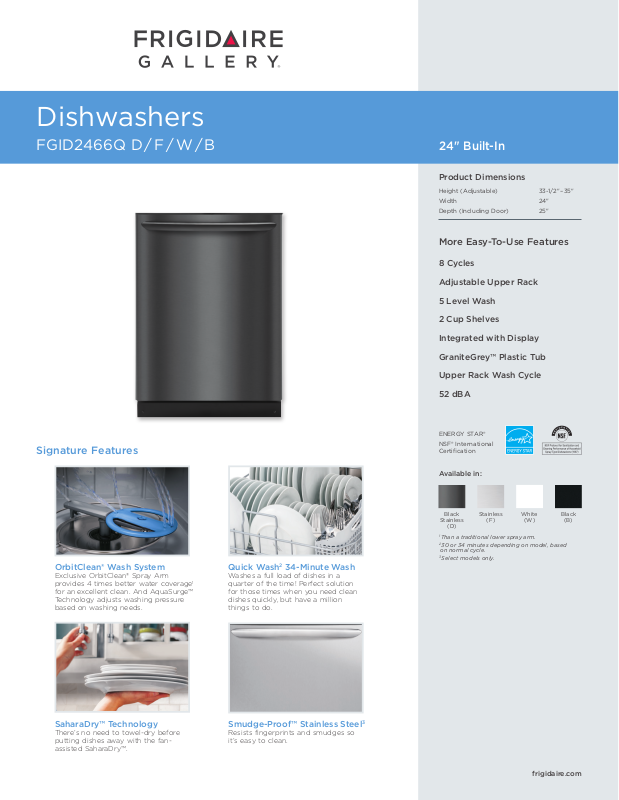

Page 1
Dishwashers
FGID2466Q D / F / W / B
Signature Features
24" Built-In
Product Dimensions
Height (Adjustable) 33-1/2"– 35"
Width 24"
Depth (Including Door) 25"
More Easy-To-Use Features
8 Cycles
Adjustable Upper Rack
5 Level Wash
2 Cup Shelves
Integrated with Display
GraniteGrey™ Plastic Tub
Upper Rack Wash Cycle
52 dBA
ENERGY STAR®
NSF® International
Certification
OrbitClean® Wash System
Exclusive OrbitClean® Spray Arm
provides 4times better water coverage
for an excellent clean. And AquaSurge™
Technology adjusts washing pressure
based on washing needs.
SaharaDry™ Technology
There’s no need to towel-dry before
putting dishes away with the fanassisted SaharaDry™.
Available in:
Black
Stainless
(D)
1
Than a traditional lower spray arm.
2
30 or 34 minutes depending on model, based
on normal cycle.
3
Select models only.
Stainless
(F)
White
(W)
Black
(B)
Quick Wash2 34-Minute Wash
1
Washes a full load of dishes in a
quarter of the time! Perfect solution
for those times when you need clean
dishes quickly, but have a million
things to do.
Smudge-Proof™ Stainless Steel
Resists fingerprints and smudges so
it’s easy to clean.
3
frigidaire.com
Page 2
Features
B
A
D
C
Control Design
Digital Display
Door Latch / Stay-Put Door Hinge Design
Low Rinse-Aid Indicator Light
Interior Color / Interior Design
Wash System
Wash Arm
Wash Levels / Wash Speeds
DishSense™ Technology
AquaSurge™ Technology
Sound Package
Filter / Filter Trap
Soft Food Disposer
dB Level
Drying System
Fully-Integrated
Express-Select®
Yes
Yes / Yes
Yes
Greystone / Tall Tub
Direct Feed
OrbitClean®
5 / 3
Yes
Yes
SilentDesign™ 1
S. Steel / Removable
Yes
52
SaharaDry™
Cycles
Number of Cycles
PowerPlus® (Heavy)
Normal
Light
Quick Wash (34-Min.)
Favorite
China Crystal
Rinse Only
Energy Saver Plus
Upper Rack Wash Only
Cycle Indicator Light / Control Lock
Cycle Complete Floor Beam Indicator
8
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No / Yes
Options
Heat / No Heat Dry
Hi-Temp Wash
NSF® Certified Sanitize Rinse
Delay Start
Yes / Yes
Yes
Yes
1–24 Hour
Rack System
Rack Design
Rack Coating
Upper Rack –
Rack Handles
Stemware / Champagne Glass Holders
Fold-Down Tines
Cup Shelves / Stemware Grips
Versa-Tray™
Adjustable Rack
Lower Rack –
SpaceWise® Silverware Basket
Fold-Down Tines
Small Items Cover
Supreme
Nylon TufRacks™
Yes
Yes
Yes
2 / No
Yes
3-Piece Split
2 Full Rows
2
Certifications
ENERGY STAR®
NSF® International Certification
Yes
Yes
Specifications
Water Inlet Location
Water Usage (Gallons)
Water Pressure (PSI)
Integral Air Gap on Supply
Leveling Legs
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
Left Bottom Front
4.9 – 8.5
20 – 120
Yes
4
Right Bottom Front
120V / 60 Hz
1
1.20
10
83 Lbs.
Dishwashers
FGID2466Q D / F / W / B 24" Built-In
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Adjustable)
B - Width
C - Depth (Including Door)
D - Depth (To Tub Flange)
Depth with Door Open 90°
33-1/2" – 35"
24"
25"
22-1/2"
49-1/4"
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Depth (Min.)
Meets requirements
of ASSE 1006
34-1/4"
35-3/4"
24"
24"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FGID2466Q 02/17 © 2017 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Page 3
Dishwashers

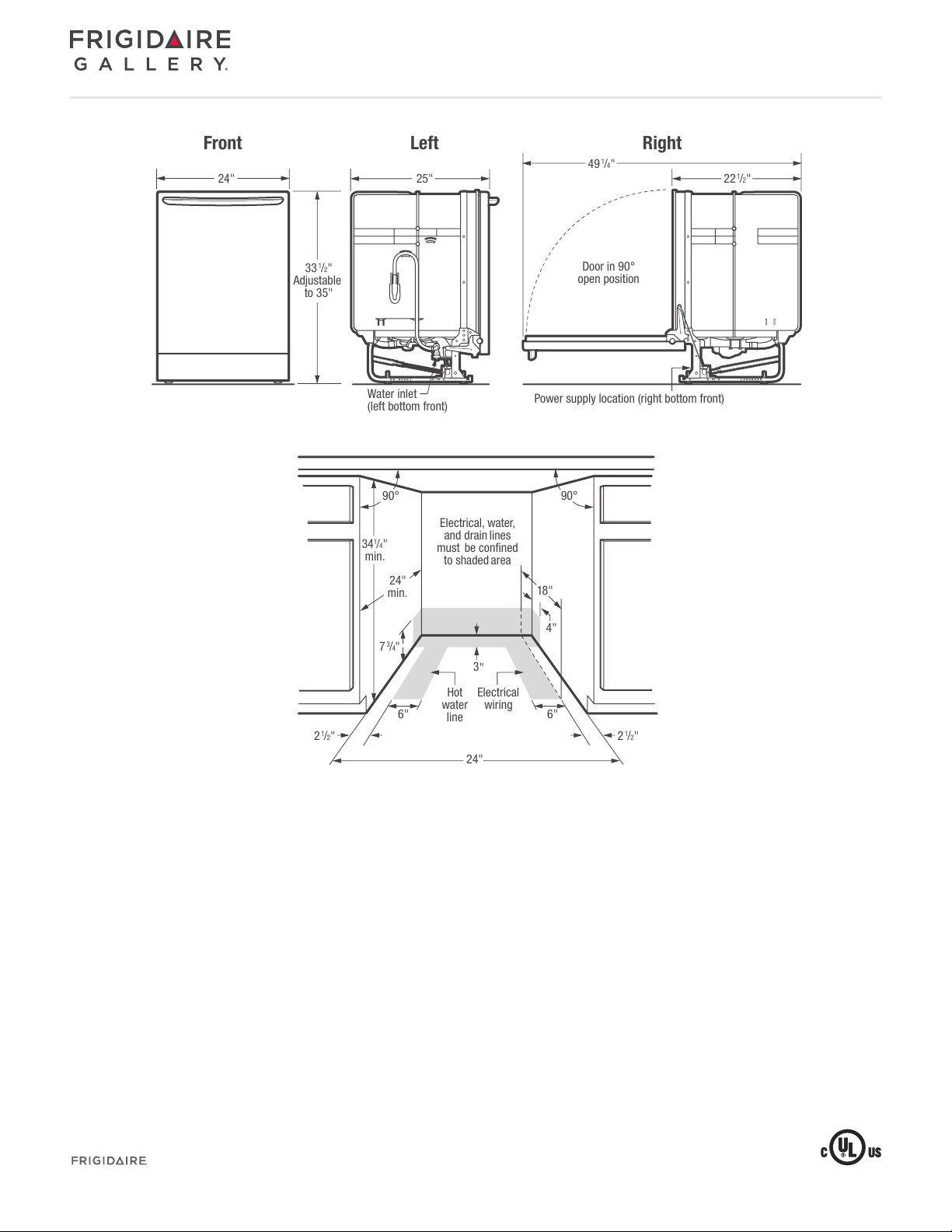

6"
2
1/2
"2
1/2"
4"
18"
24"
min.
Electrical, water,
and drain
lines
must be confined
to shaded
area
6"
24"
7
3/4"
90° 90°
3
"
34
1
/4"
min.
Hot
water
line
Electrical
wiring
Front
33
1
/2"
Adjustable
to 35"
24"
Power supply location (right bottom front)
49
1/4"
22
1
/2"
RightLeft
25"
Water inlet
(left bottom front)
Door in 90°
open position
FGID2466Q D / F / W / B 24" Built-In
Dishwasher Specifications
•
Product Shipping Weight (approx.) – 83 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if
connected with disposer)
•
Connected Load (kW Rating) @ 120 Volts = 1.44 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120V = 10 Amps
•
Always consult local and national electric & plumbing codes.
Meets requirements of ASSE 1006 — integral air gap on supply.
•
Water Pressure – Hot water line to dishwasher must provide
between 20 and 120 pounds per square inch (psi) with at least 120° F
hot water temperature.
•
Make sure location has correct drain, water and electrical outlets
to make connections.
•
Electrical and water supplies should enter cabinet opening on floor,
or through back or side walls, as shown in shaded areas.
•
Keep back free of drain, water & electrical supply.
•
USA
10200 David Taylor Drive
•
CANADA
FGID2466Q 02/17 © 2017 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
•
Charlotte, NC 28262
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
•
Connections preferably located toward left side of dishwasher.
Do not cross drain, water or electrical lines in front of motor, blower
or frame.
•
If connecting drain hose to sink trap, local code may require
installation of Air Gap Kit (not included).
•
Leveling legs supplied to adjust height.
•
When installing adjacent to wall, cabinet or other obstruction that
extends beyond front edge of unit, allow 2" minimum clearance
between opened door and obstruction.
•
Floor should be flat and free of obstructions.
•
When installing at end of cabinet line, sides and back must be
fully enclosed.
•
Do not install unit under a cooktop, damage will occur.
•
Recommended to seal cabinets, enclosing all sides of dishwasher,
including underside of countertop, with oil-based paint or moistureproof polyurethane to prevent possible steam/moisture damage.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Meets
Meets
requirements of
requirements of
ASSE 1006
ASSE 1006
Specifications
subject to change.
