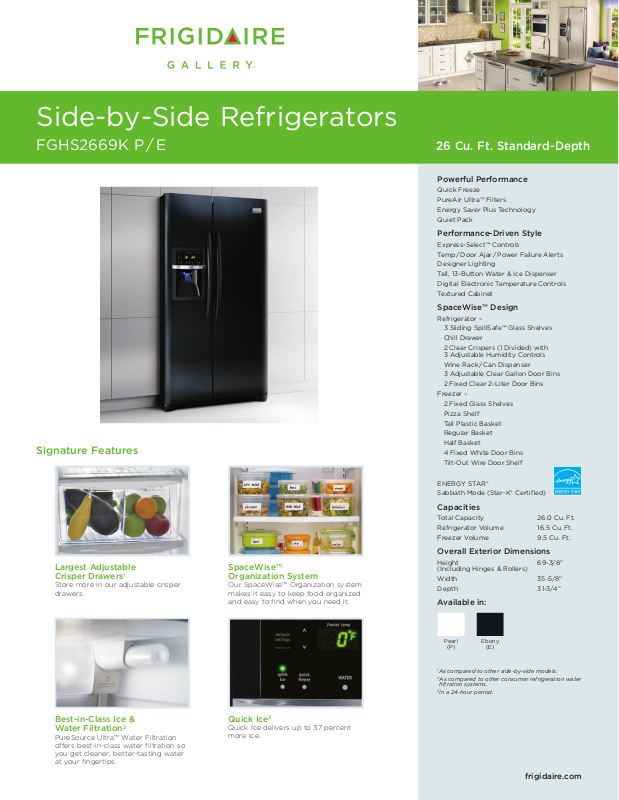

Frigidaire FGHS2669KE Specification Sheet
Side-by-Side Refrigerators
FGHS2669K P / E
Signature Features
26 Cu. Ft. Standard-Depth
Powerful Performance
Quick Freeze
PureAir Ultra™ Filters
Energy Saver Plus Technology
Quiet Pack
Performance-Driven Style
Express-Select™ Controls
Temp / Door Ajar / Power Failure Alerts
Designer Lighting
Tall, 13-Button Water & Ice Dispenser
Digital Electronic Temperature Controls
Textured Cabinet
SpaceWise™ Design
Refrigerator –
3 Sliding SpillSafe™ Glass Shelves
Chill Drawer
2 Clear Crispers (1 Divided) with
3 Adjustable Humidity Controls
Wine Rack / Can Dispenser
3 Adjustable Clear Gallon Door Bins
2 Fixed Clear 2-Liter Door Bins
Freezer –
2 Fixed Glass Shelves
Pizza Shelf
Tall Plastic Basket
Regular Basket
Half Basket
4 Fixed White Door Bins
Tilt-Out Wire Door Shelf
Largest Adjustable
Crisper Drawers
Store more in our adjustable crisper
drawers.
Best-in-Class Ice &
Water Filtration
PureSource Ultra™ Water Filtration
offers best-in-class water filtration so
you get cleaner, better-tasting water
at your fingertips.
1
2
SpaceWise™
Organization System
Our SpaceWise™ Organization system
makes it easy to keep food organized
and easy to find when you need it.
Quick Ice
Quick Ice delivers up to 37 percent
more ice.
3
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Capacities
Total Capacity 26.0 Cu. Ft.
Refrigerator Volume 16.5 Cu. Ft.
Freezer Volume 9.5 Cu. Ft.
Overall Exterior Dimensions
Height 69-3/8"
(Including Hinges & Rollers)
Width 35-5/8"
Depth 31-3/4"
Available in:
Pearl
(P)
1
As compared to other side-by-side models.
2
As compared to other consumer refrigeration water
filtration systems.
3
In a 24-hour period.
Ebony
(E)
frigidaire.com
Side-by-Side Refrigerators
FGHS2669K P / E 26 Cu. Ft. Standard-Depth
Side-by-Side Refrigerator Specifications
•
Product Shipping Weight (approx.) – 300 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
•
Connected Load (kW Rating) @ 120 Volts = 1.02 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 8.5 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
•
When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer / crisper access and removal. (Absolute 4-1/2"
minimum clearance will ONLY allow for 90° door swing which will
provide drawer / crisper access with restricted removal.)
•
To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•
Adjustable front rollers to assist with door alignment.
“Built-In Look” Specifications
•
Minimum opening of 70-1/4" H x 36" W x 28-7/8" D required to allow
for ease of installation, proper air circulation, and plumbing / electrical
connections.
•
Remove all wall / floor molding prior to installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
FRIGIDAIRE®
•
USA
10200 David Taylor Drive
•
CANADA
FGHS2669K 07/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
