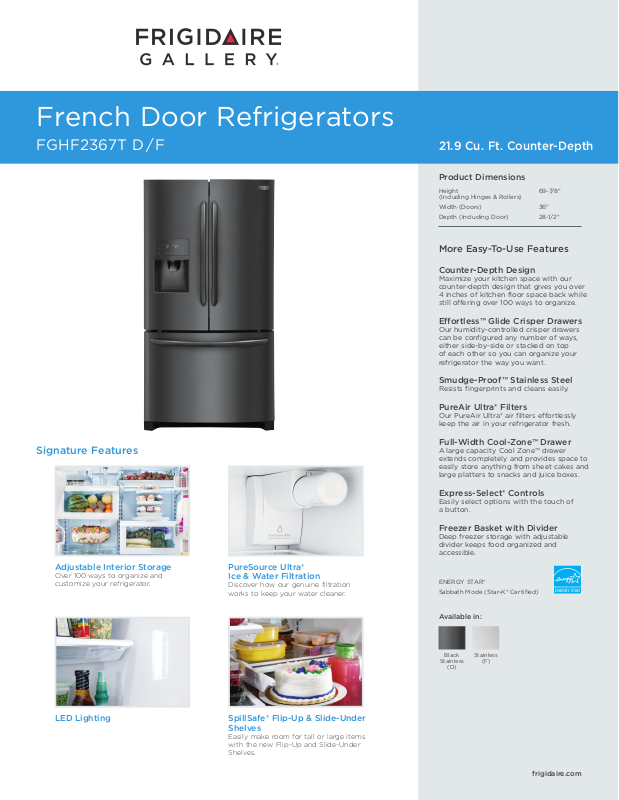

French Door Refrigerators
FGHF2367T D / F
21.9 Cu. Ft. Counter-Depth
Product Dimensions
Height 69-7/8"
(Including Hinges & Rollers)
Width (Doors) 36"
Depth (Including Door) 28-1/2"
More Easy-To-Use Features
Counter-Depth Design
Maximize your kitchen space with our
counter-depth design that gives you over
4 inches of kitchen floor space back while
still offering over 100 ways to organize.
Eortless™ Glide Crisper Drawers
Our humidity-controlled crisper drawers
can be configured any number of ways,
either side-by-side or stacked on top
of each other so you can organize your
refrigerator the way you want.
Smudge-Proof™ Stainless Steel
Resists fingerprints and cleans easily.
PureAir Ultra® Filters
Our PureAir Ultra® air filters effortlessly
keep the air in your refrigerator fresh.
Signature Features
Adjustable Interior Storage
Over 100 ways to organize and
customize your refrigerator.
LED Lighting
PureSource Ultra®
Ice & Water Filtration
Discover how our genuine filtration
works to keep your water cleaner.
SpillSafe® Flip-Up & Slide-Under
Shelves
Easily make room for tall or large items
with the new Flip-Up and Slide-Under
Shelves.
Full-Width Cool-Zone™ Drawer
A large capacity Cool Zone™ drawer
extends completely and provides space to
easily store anything from sheet cakes and
large platters to snacks and juice boxes.
Express-Select® Controls
Easily select options with the touch of
a button.
Freezer Basket with Divider
Deep freezer storage with adjustable
divider keeps food organized and
accessible.
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
Black
Stainless
(D)
(F)
frigidaire.com
Features
A
B
C
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
Energy Saver Plus Technology
Water Filter Location
Sound Package
Dispenser
Controls
Dispenser Design
Number of Dispenser Buttons
Crushed Ice / Cube Ice / Water
Ice Option / Freeze Option
Display On / O Option
Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
Refrigerator Features
Lighting
Water Filter Type
Air Filter Type
Quarter-Width Fixed Shelves
Half-Width Fixed Shelves
Quarter-Width Sliding Shelves
Half-Width Sliding Shelves
Cantilever Shelves
Store-More™ Full-Width Drawer
Hanging Wine Rack/Can Dispenser
Crisper Drawer / Humidity Controls
Dairy Compartment
Store-More™ Fixed Door Bins
2-Liter Fixed Door Bins
Gallon Adjustable Door Bins
2-Liter Adjustable Door Bins
Dispenser Bin
Non-Slip Bin Liner / Bottle Retainers
Freezer Features
Self-Closing Pull-Out Drawer
Sliding Full-Width Freezer Baskets
Basket Dividers
Lighting
Automatic Ice Maker (2nd Ice Maker)
Certifications
Sabbath Mode (Star-K® Certified)
ENERGY STAR®
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW rating)
@ 120 Volts
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
Soft-Arc Doors
Black Stainless (D),
Stainless Steel (F)
Black (D), Grey (F)
Yes / Yes
Hidden
Adjustable / Yes
Yes
Top-Right Fresh
Food Section
Express-Select®
Flush, Single-Paddle
11
Yes / Yes / Yes
No/ Quick Freeze
Yes
Yes / Yes
Yes
Yes
Multi-Level LED
PureSource Ultra®
PureAir Ultra®
1 SpillSafe® Flip-Up
1 SpillSafe® Slide-Under
2 SpillSafe®
Yes
1 Cool Zone™
No / 1 White
2 Clear / 2
1 Clear
2 White (1 per door)
1 Clear
1 Clear
1 Clear
Yes
2 Eortless™ Glide
1 (Bottom Basket)
LED
Optional (PN # IMK0023A)
Yes
Yes
21.9
15.1
6.8
Right Bottom Rear
Left Bottom Rear
120V / 60Hz
1.02
8.5
15
345 Lbs.
French Door Refrigerators
FGHF2367T D / F 21.9 Cu. Ft. Counter-Depth
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Cabinet Width / Door Width
C - Depth (Incl. Door)
Depth with Door Open 90°
Depth with Drawer Fully
Extended (Incl. Handle)
1
For use on adequately wired 120V, dedicated circuit
having 2-wire service with a separate ground wire.
Appliance must be grounded for safe operation.
69-7/8"
35-7/8" / 36"
28-1/2"
42-1/2"
45-1/2"
"Built-In Look" Cutout Dimensions
Height (Incl. Hinges and Rollers)
Width
Depth
Accessories information available
on the web at frigidaire.com
70-1/4"
36"
25"
•
USA
10200 David Taylor Drive
•
CANADA
FGHF2367T 05/17 © 2017 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Top View
24"
Cabinet
25" Side Panels,
1
/2" min. width
25"
Countertop
Allow 1" min. clearance at rear
for proper air circulation and
water
/
electrical connections
Recessed
water line
Recessed
electrical outlet
“Built-In Look”
Cutout Dimensions
(A) 701/4" (B) 36" (C) 25"
5"
31"
68 5/8"
with
3
/8"
rollers
28 1/2"
23
7
/8"
69
7
/8"
with
3
/8"
rollers
Power
cord
location
(right
bottom
rear)
Water
line inlet
location
(left
bottom
rear)
35
7
/8"
Cabinet
36"
Doors
45
1
/2"
(with drawer
fully extended
including handle)
42
1
/2" (with doors
90°
open)
Standard
Refrigerator Depth
vs. Counter Depth
23
7/8"
Counter Depth
28
3/4"
Standard Depth
B
C
A
French Door Refrigerators
FGHF2367T D / F 21.9 Cu. Ft. Counter-Depth
French Door Refrigerator Specifications
•
Product Shipping Weight (approx.) – 345 Lbs.
•
An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•
Voltage Rating – 120V / 60 Hz
•
Connected Load (kW Rating) @ 120 Volts = 1.02 kW
•
Amps @ 120 Volts = 8.5 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
•
When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer / crisper access and removal. (Absolute 4-1/2"
minimum clearance will ONLY allow for 90° door swing which will
provide drawer / crisper access with restricted removal.)
•
To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•
Adjustable front rollers to assist with door alignment.
“Built-In Look” Specifications
•
Minimum opening of 70-1/4" H x 36" W x 25" D required to allow for
ease of installation, proper air circulation, and plumbing / electrical
connections.
•
Remove all wall / floor molding prior to installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Second Ice Maker Kit – (PN # IMK0023A)
•
USA
10200 David Taylor Drive
•
CANADA
FGHF2367T 05/17 © 2017 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
