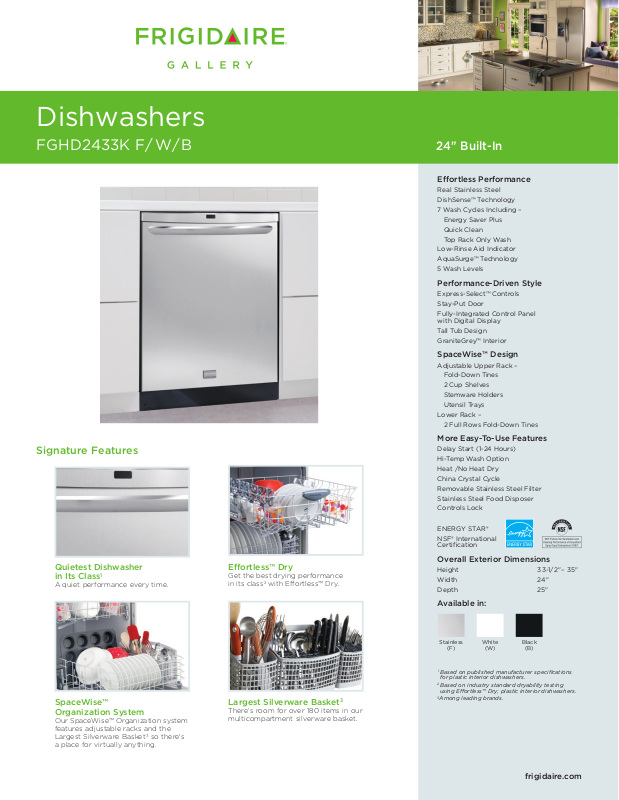

Frigidaire FGHD2433K F-W-B User Manual
Dishwashers
FGHD2433K F/W/B
Signature Features
24" Built-In
Eortless Performance
Real Stainless Steel
DishSense™ Technology
7 Wash Cycles Including –
Energy Saver Plus
Quick Clean
Top Rack Only Wash
Low-Rinse Aid Indicator
AquaSurge™ Technology
5 Wash Levels
Performance-Driven Style
Express-Select™ Controls
Stay-Put Door
Fully-Integrated Control Panel
with Digital Display
Tall Tub Design
GraniteGrey™ Interior
SpaceWise™ Design
Adjustable Upper Rack –
Fold-Down Tines
2 Cup Shelves
Stemware Holders
Utensil Trays
Lower Rack –
2 Full Rows Fold-Down Tines
More Easy-To-Use Features
Delay Start (1-24 Hours)
Hi-Temp Wash Option
Heat /No Heat Dry
China Crystal Cycle
Removable Stainless Steel Filter
Stainless Steel Food Disposer
Controls Lock
Quietest Dishwasher
in Its Class
A quiet performance every time.
1
SpaceWise™
Organization System
Our SpaceWise™ Organization system
features adjustable racks and the
Largest Silverware Basket
a place for virtually anything.
3
so there's
Eortless™ Dry
Get the best drying performance
in its class
Largest Silverware Basket
There’s room for over 180 items in our
multicompartment silverware basket.
2
with Effortless™ Dry.
3
ENERGY STAR®
NSF® International
Certification
Overall Exterior Dimensions
Height 33-1/2" – 35"
Width 24"
Depth 25"
Available in:
Stainless
(F)
1
Based on published manufacturer specifications
for plastic interior dishwashers.
2
Based on industry standard dryability testing
using Eortless™ Dry; plastic interior dishwashers.
3
Among leading brands.
White
(W)
Black
(B)
frigidaire.com
24" Built-In Dishwasher w/Integrated Controls (IC)
Gallery
FGHD2433K F/W/B 24" Built-In
Dishwashers
Dishwasher Specifications
•
Product Shipping Weight (approx.) – 83 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if
connected with disposer)
•
Connected Load (kW Rating) @ 120 Volts = 1.44 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120V = 10 Amps
•
Always consult local and national electric & plumbing codes.
•
Water Pressure – Hot water line to dishwasher must provide
between 20 and 120 pounds per square inch (psi).
•
Make sure location has right drain, water and electrical outlets
to make connections.
•
Keep back free of drain, water & electrical supply.
•
Electrical and water supplies should enter cabinet opening on floor,
or through back or side walls, as shown in shaded areas.
•
Connections preferably located toward left side of dishwasher. Do not
cross drain, water or electrical lines in front of motor, blower or frame.
•
When installing adjacent to wall, cabinet or other obstruction that
extends beyond front edge of unit, allow 2" minimum clearance
between opened door and obstruction.
•
When installing at end of cabinet line, sides must be fully enclosed.
•
Do not install unit under a cooktop, damage will occur.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
FRIGIDAIRE®
USA • 250 Bobby Jones Expressway • Martinez, GA 30907 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FGHD2433K 06/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
Specifications
subject to change.
