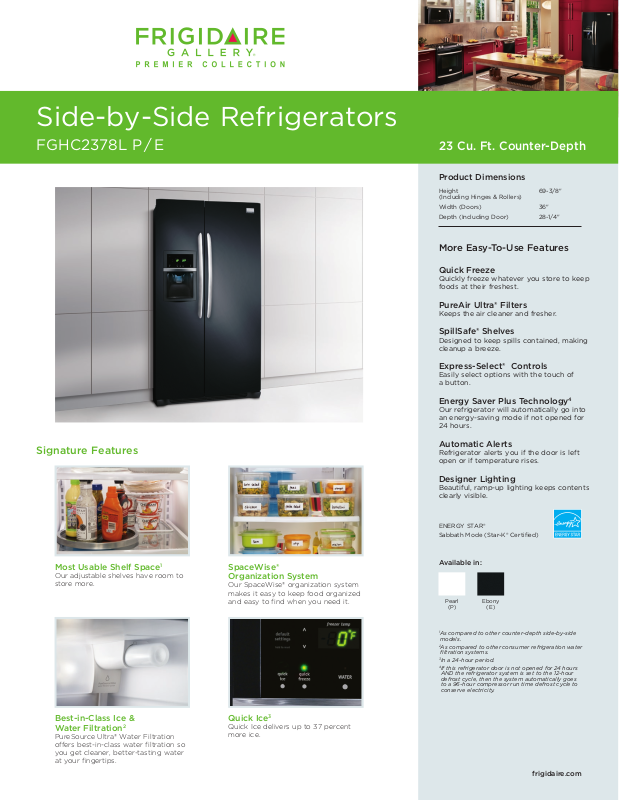

Frigidaire FGHC2378LP Specification Sheet
Side-by-Side Refrigerators
FGHC2378L P / E
23 Cu. Ft. Counter-Depth
23 Cu. Ft. Counter-Depth
Product Dimensions
Height 69-3/8"
(Including Hinges & Rollers)
Width (Doors) 36"
Depth (Including Door) 28-1/4"
More Easy-To-Use Features
Quick Freeze
Quickly freeze whatever you store to keep
foods at their freshest.
PureAir Ultra® Filters
Keeps the air cleaner and fresher.
SpillSafe® Shelves
Designed to keep spills contained, making
cleanup a breeze.
Express-Select® Controls
Easily select options with the touch of
a button.
Energy Saver Plus Technology
Our refrigerator will automatically go into
an energy-saving mode if not opened for
24 hours.
4
Signature Features
Most Usable Shelf Space
Our adjustable shelves have room to
store more.
Best-in-Class Ice &
Water Filtration
PureSource Ultra® Water Filtration
offers best-in-class water filtration so
you get cleaner, better-tasting water
at your fingertips.
2
Automatic Alerts
Refrigerator alerts you if the door is left
open or if temperature rises.
Designer Lighting
Beautiful, ramp-up lighting keeps contents
clearly visible.
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
1
SpaceWise®
Organization System
Our SpaceWise® organization system
makes it easy to keep food organized
and easy to find when you need it.
Quick Ice
Quick Ice delivers up to 37 percent
more ice.
3
Available in:
Pearl
(P)
1
As compared to other counter-depth side-by-side
models.
2
As compared to other consumer refrigeration water
filtration systems.
3
In a 24-hour period.
4
If this refrigerator door is not opened for 24 hours
AND the refrigerator system is set to the 12-hour
defrost cycle, then the system automatically goes
to a 96-hour compressor run time defrost cycle to
conserve electricity.
Ebony
(E)
frigidaire.com
Features
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
Energy Saver Plus Technology
Water Filter Location
Sound Package
Soft-Arc
Stainless Steel
Color-Coordinated
Yes / Yes
Hidden
Adjustable / Yes
Yes
Top Right Rear-Side
Quiet Pack
Dispenser
Controls
Dispenser Design
Number of Dispenser Buttons
Crushed Ice / Cube Ice / Chilled Water
Ice Option
Freeze Option
Display On / O Option
Control Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
Express-Select®
Tall, Single Paddle
13
Yes / Yes / Yes
Quick Ice
Quick Freeze
Yes
Yes / Yes
Yes / Yes / Yes
Yes
Yes
Refrigerator Features
Interior Lighting
Water Filter Type
Air Filter Type
Fixed Shelves
Sliding Shelves
Cool Zone™ Drawer
Wine / Can Rack
Upper Crisper / Lower Crisper
Humidity Controls
Dairy Compartment
Fixed Door Bins
Adjustable Door Bins
Non-Slip Bin Liner / Bottle Retainers
Condiment Bin
Designer
PureSource Ultra®
PureAir Ultra®
3 SpillSafe®
1 Stacked
No / 1 Clear
1 Clear / 1 Clear
2
1 Clear
1 One-Gallon Clear
2 Two-Liter Clear
Yes / 1 Clear
1 Clear
Freezer Features
Door Bins / Tilt-Out Wire Door Bins
Fixed Shelves
Full Extension Baskets
Full Freezer Baskets
Half Freezer Baskets
Ice Cream Shelf / Pizza Shelf
SpaceSaver™ Shelf
Lighting
2 White / 2
1 Flip-Out / 1 Wire
2 Wire
1 Wire
Yes
Yes
Certifications
Sabbath Mode (Star-K® Certified)
ENERGY STAR®
Yes
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.
22.6
14.1
8.5
Right Bottom Rear
Left Bottom Rear
120V / 60Hz / 15 or 20A
1.02
8.5
15
310 Lbs.
Side-by-Side Refrigerators
FGHC2378L P /E 23 Cu. Ft. Counter-Depth
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Cabinet Width / Door Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
69-3/8"
35-5/8" / 36"
28-1/4"
45"

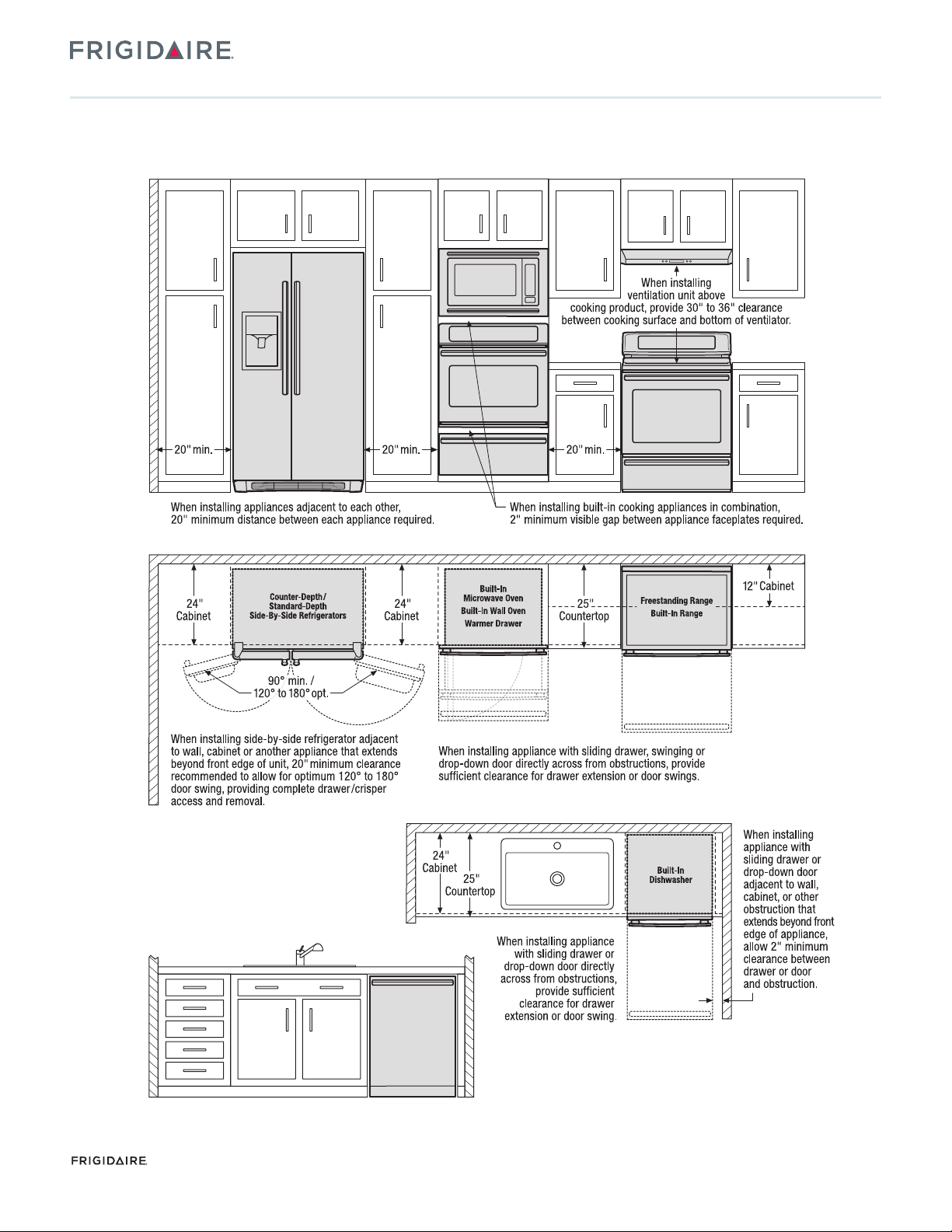

"Built-In Look" Cutout Dimensions
Height (Incl. Hinges and Rollers)
Width
Depth
Accessories information available
on the web at frigidaire.com
70-1/4"
36"
25"
•
USA
10200 David Taylor Drive
•
CANADA
FGHC2378L 12/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
