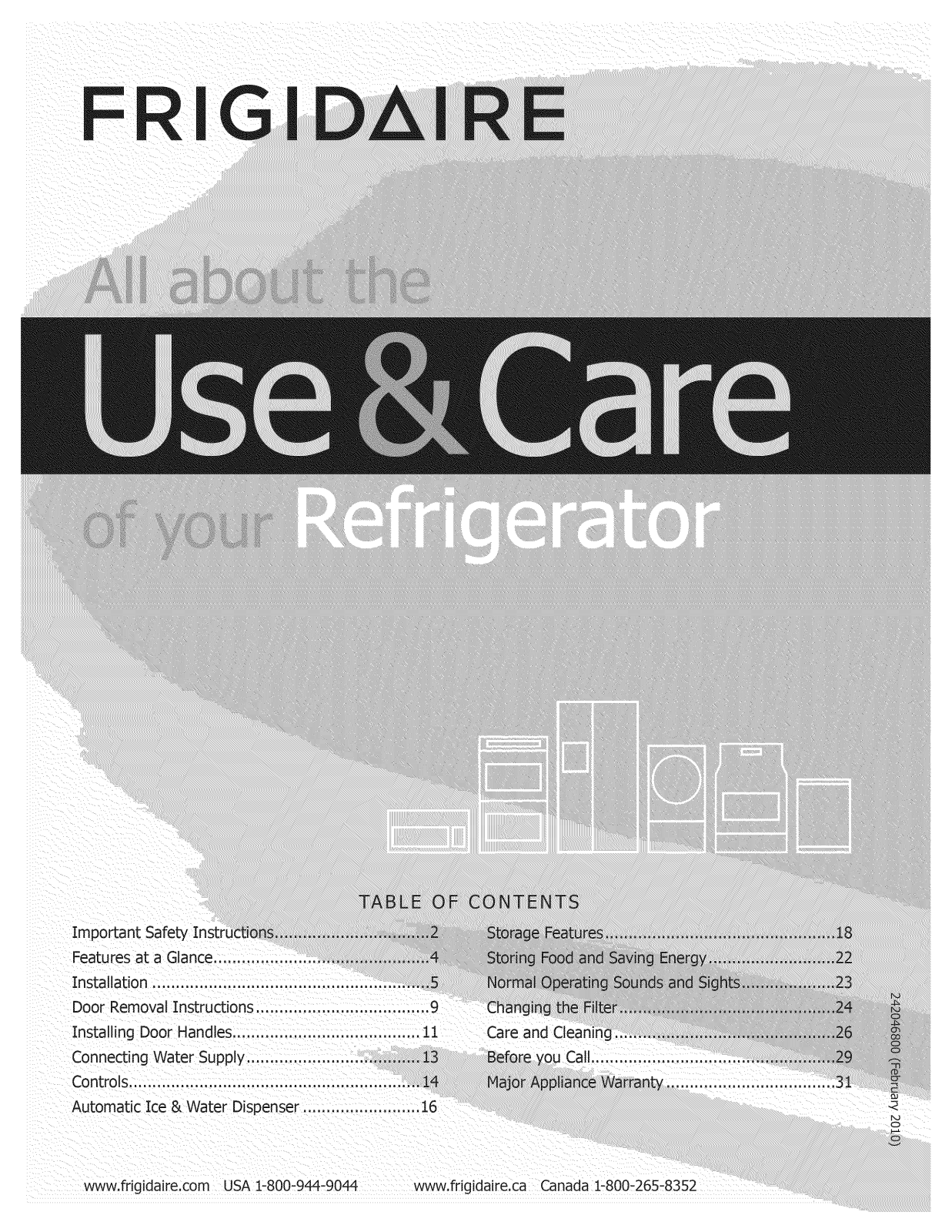

Frigidaire FPHB2899LF3, FPHB2899LF2, FPHB2899LF1, FGUB2642LP1, FGUB2642LP0 Owner’s Manual

...

TABLE OF CONTENTS

_m_o_o_e__o_o_,oo_.........................,.:.._._.__, o_o_ore_............................................,0

FeaturesataG,ance.......................................:i::.:_ ;_ _@_@_ En_gy......................22

Insta,at_on...........................................................S _N_ii_@__,_ _._,.,........23

Door Removal Instructions ..................................... 9 Chani Jngt_e ::._ :;_ _

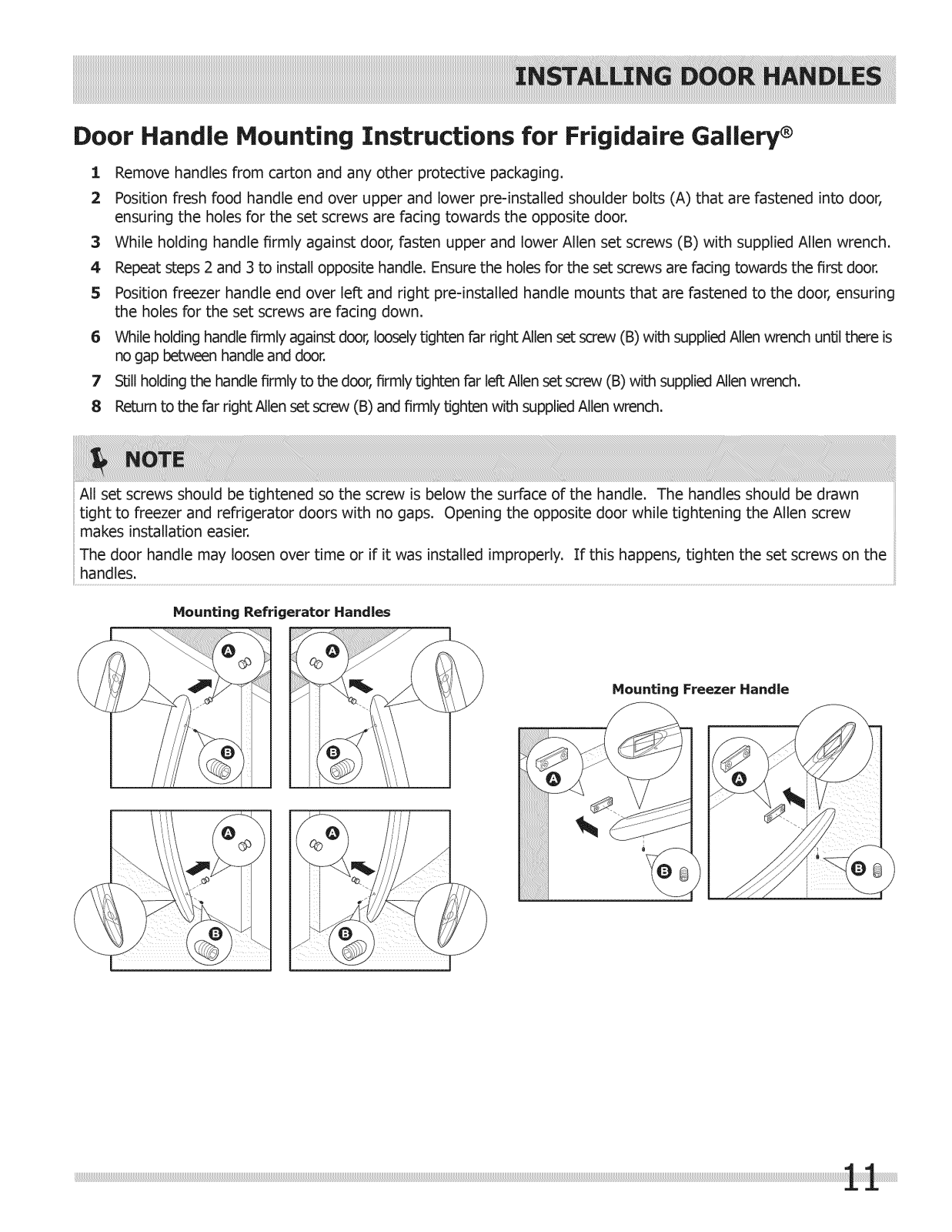

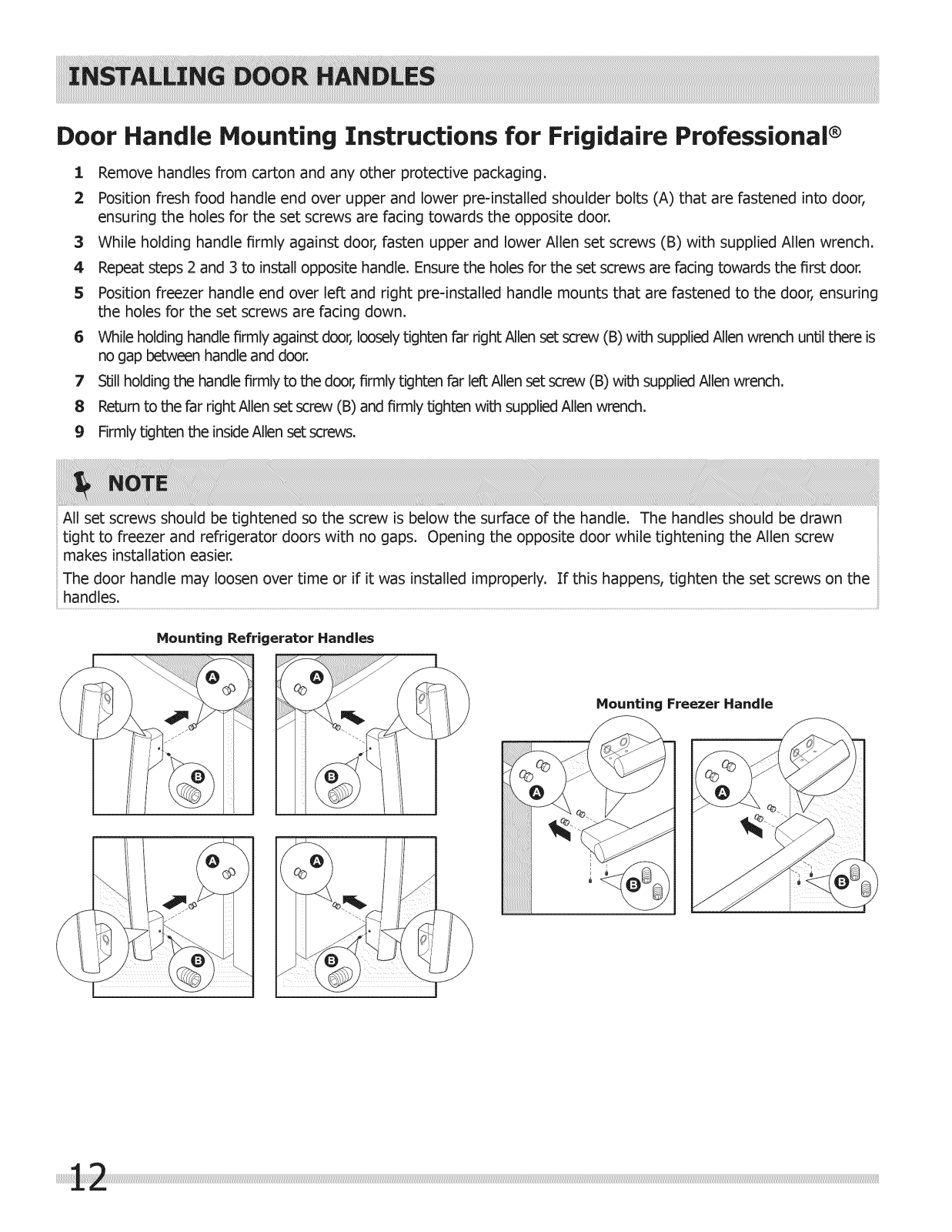

Installing Door Handles ........................................ 11 Care and Cleaning ............ i: ,_:_; :.[: _i_i::i _[,: :_

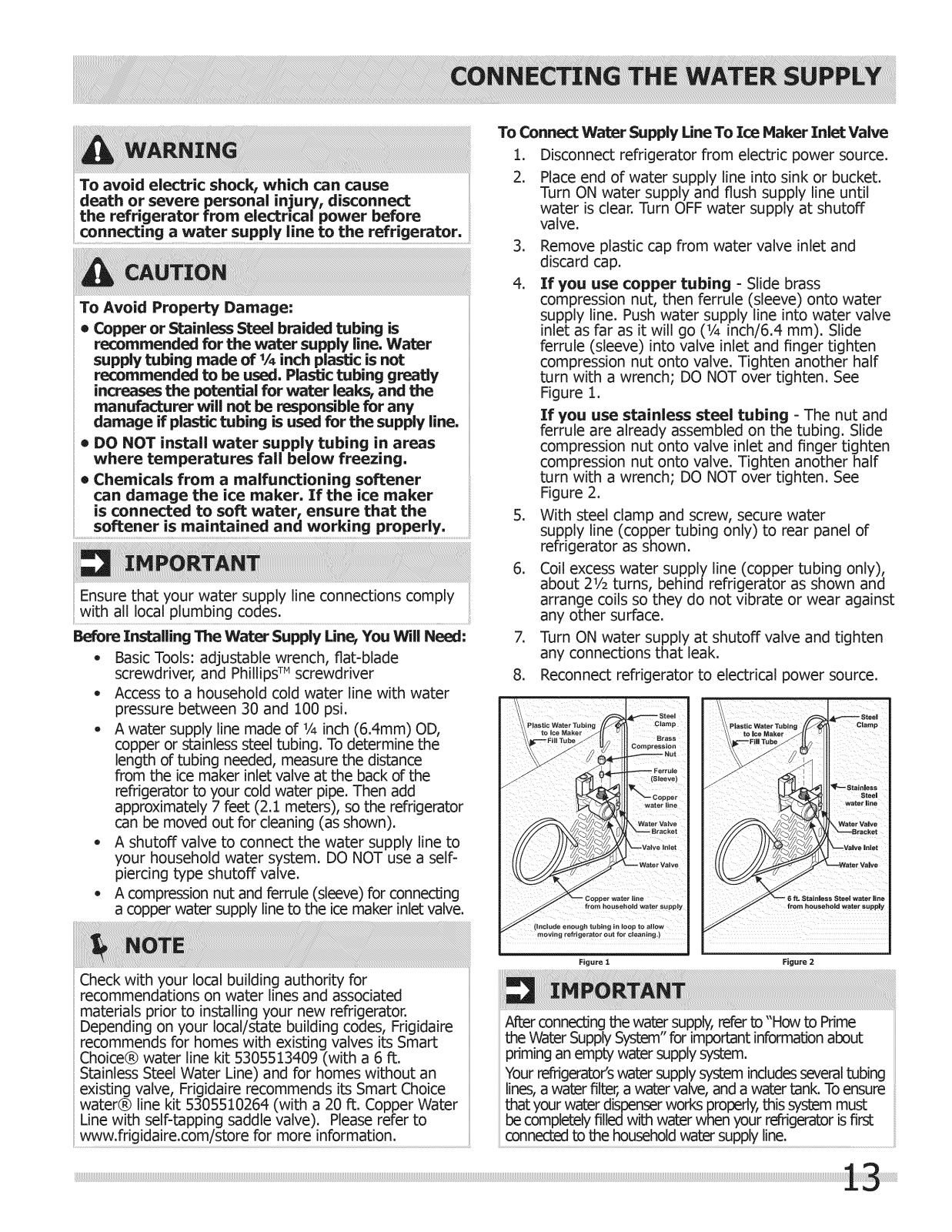

Connecting Water Supply ..................................... 13 Before you Call...................................... i_ ::::.: _

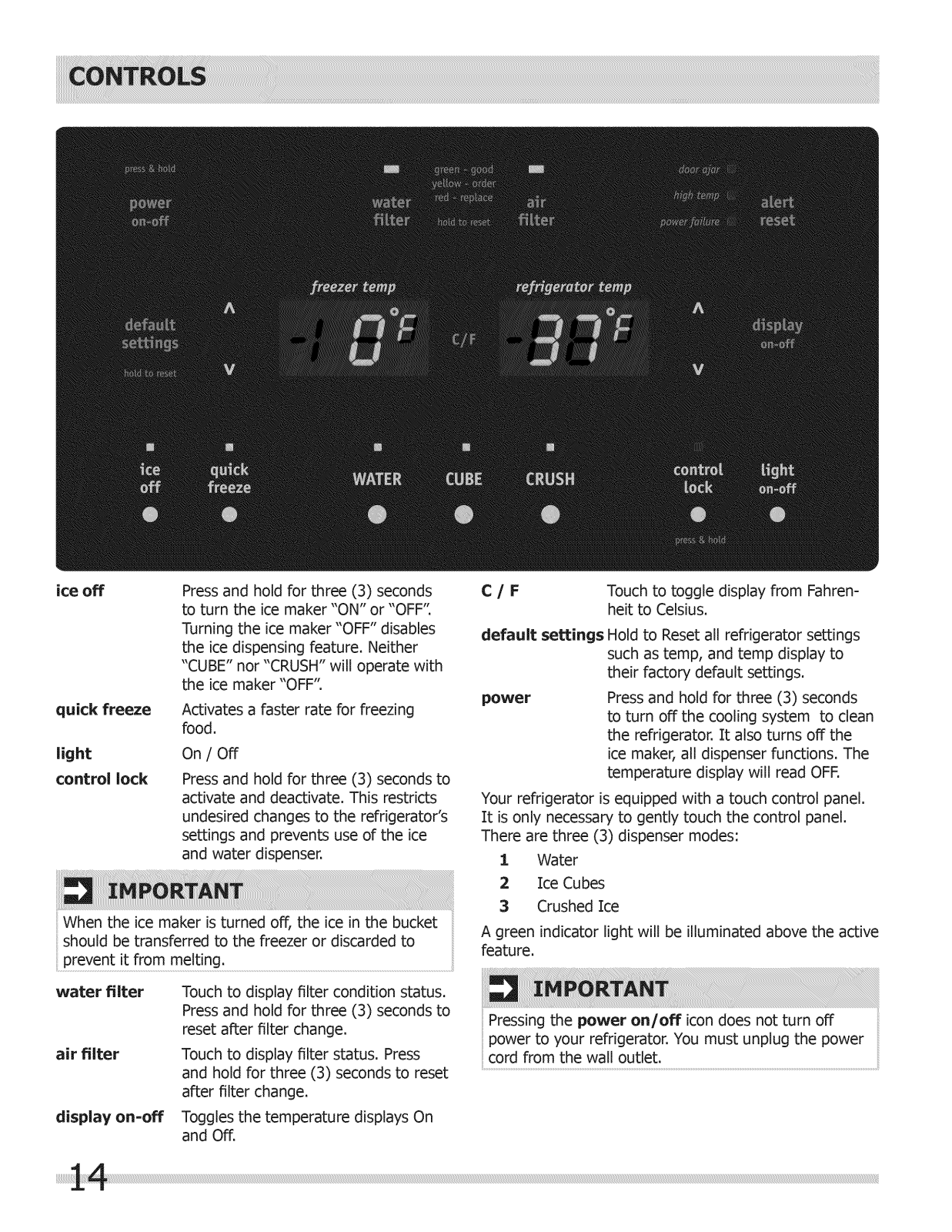

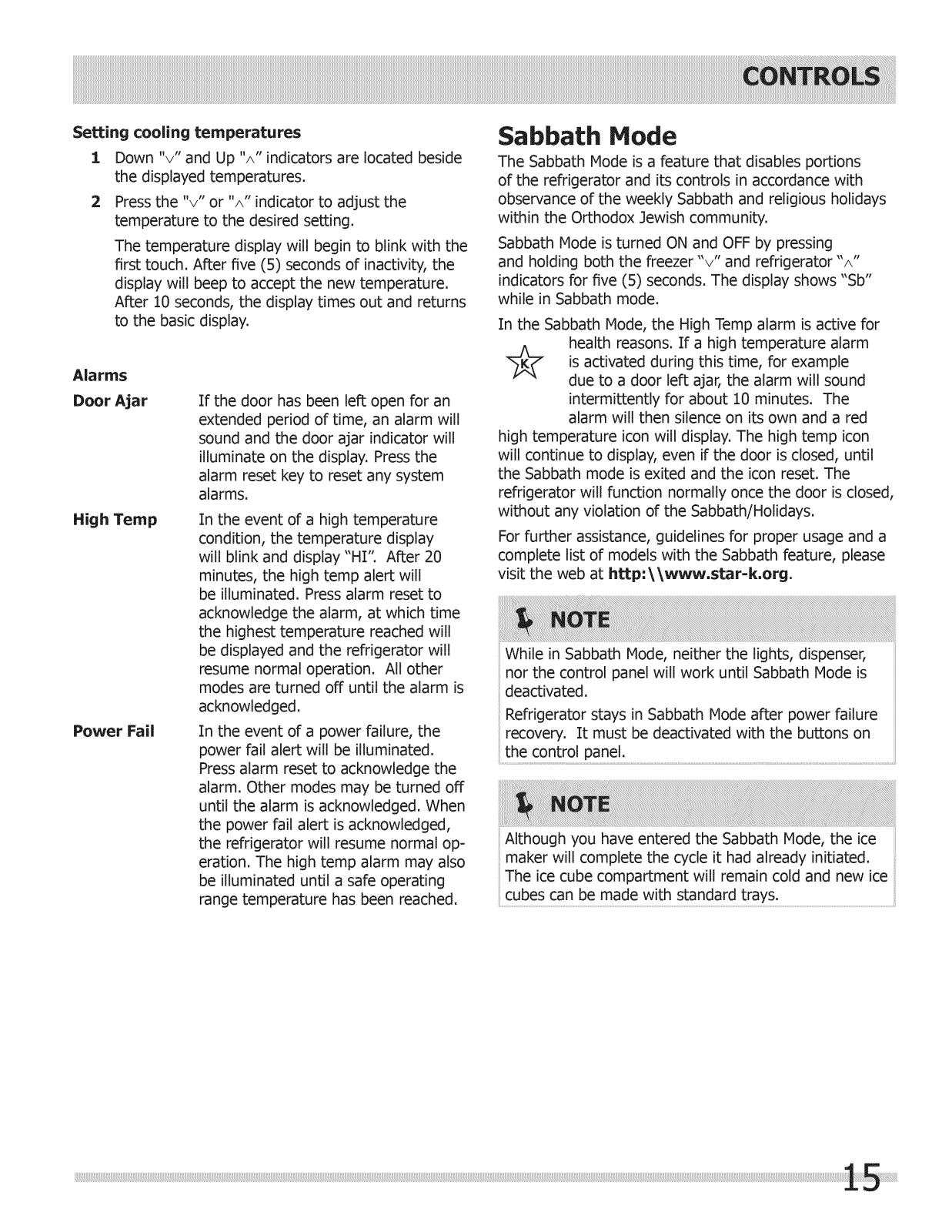

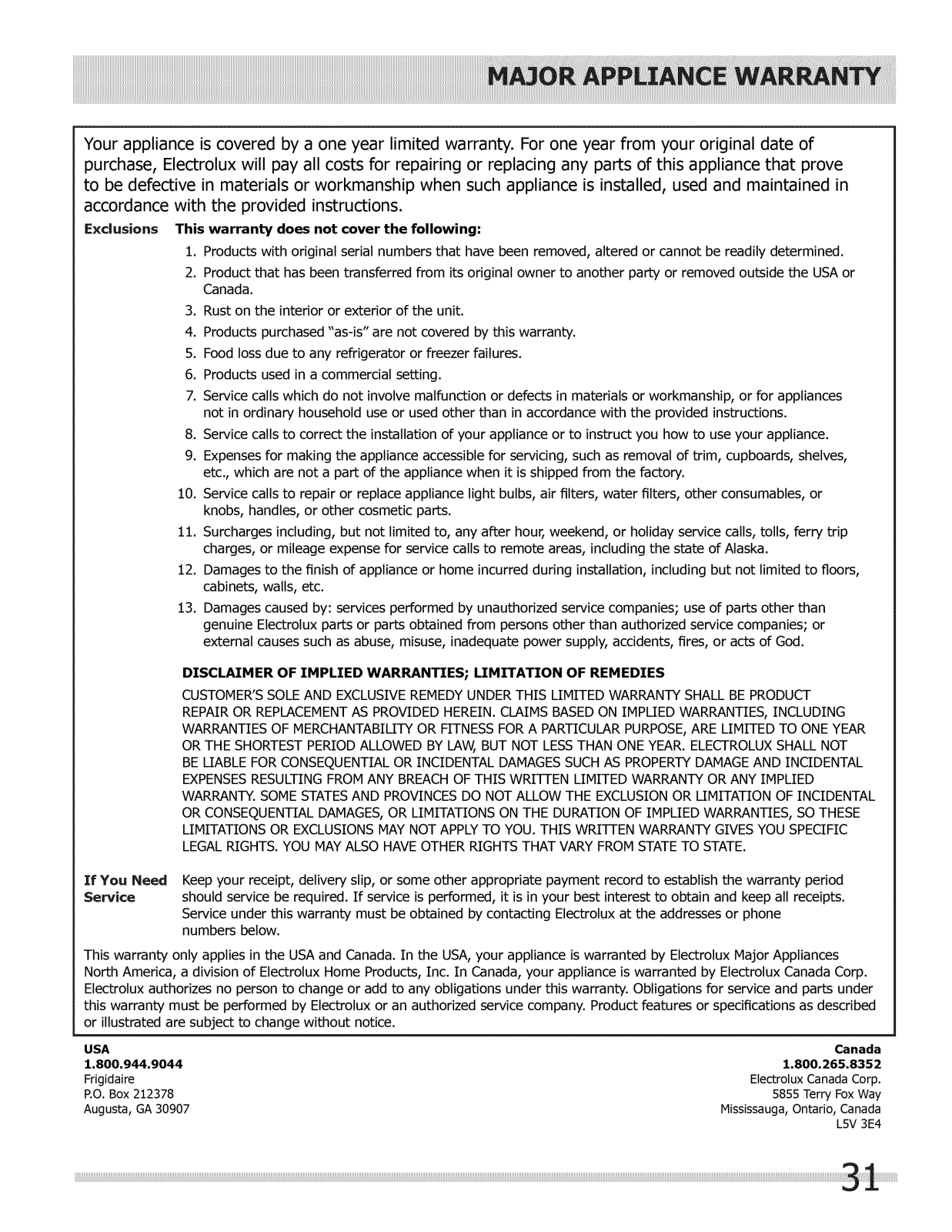

Controls .............................................................. 14 Major ApplianCe Warranty .................................... 31

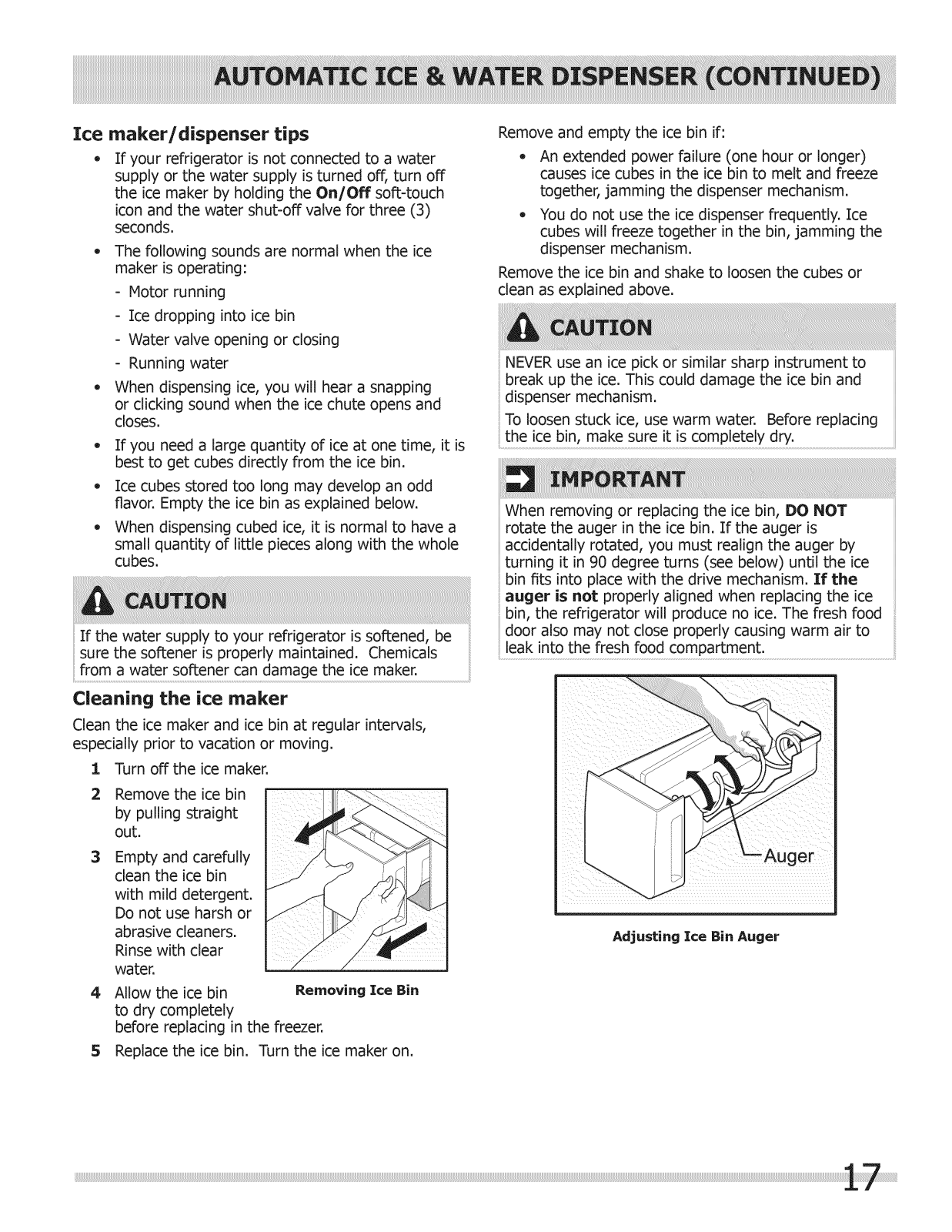

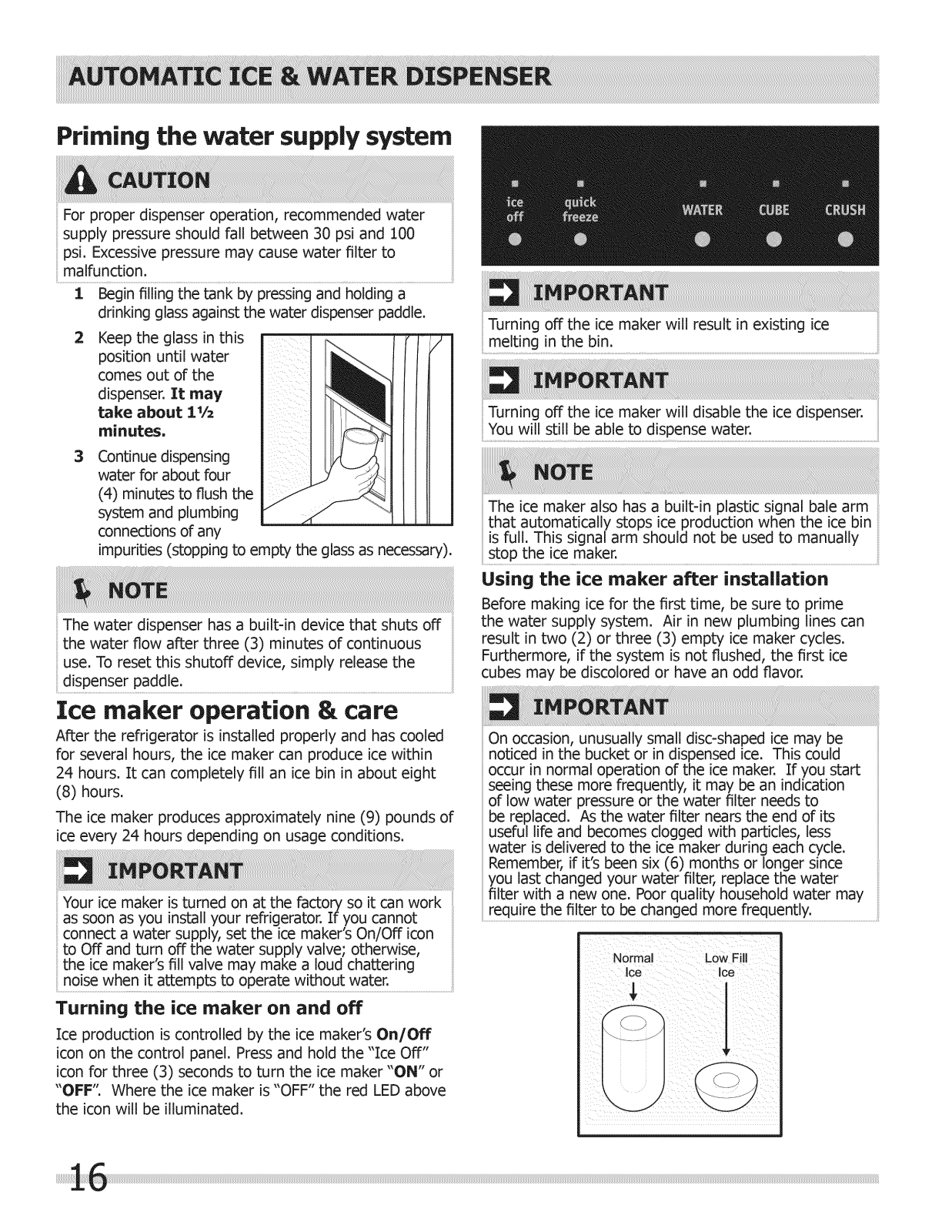

Automatic Ice & Water Dispenser ......................... 16

www,fricjidaire.com USA1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352

Pleasereadallinstructionsbeforeusingthis refrigerator,

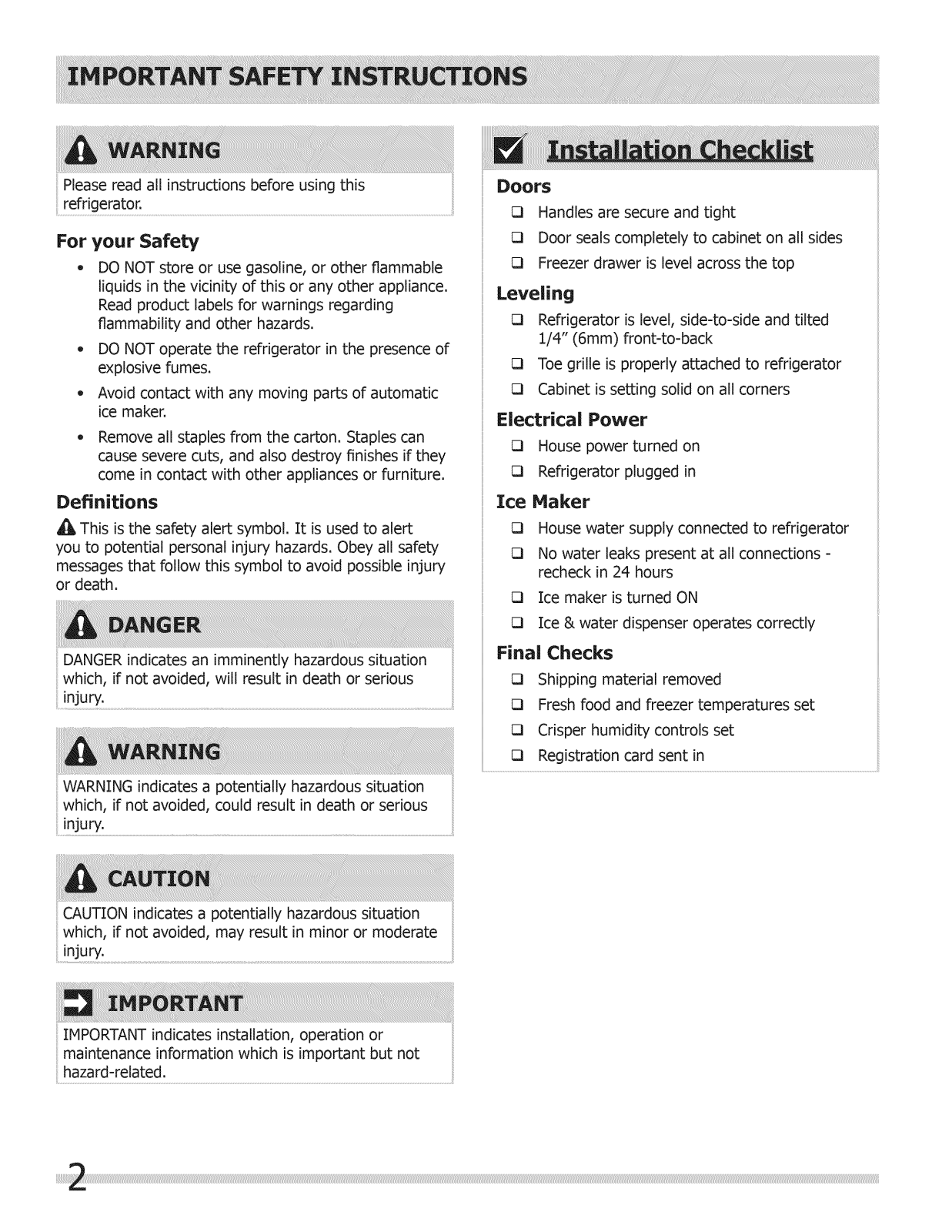

For your Safety

o DO NOT store or use gasoline, or other flammable

liquids in the vicinity of this or any other appliance. Read product labels for warnings regarding flammability and other hazards.

DO NOT operate the refrigerator in the presence of explosive fumes.

Avoid contact with any moving parts of automatic ice maker.

Remove all staples from the carton. Staples can cause severe cuts, and also destroy finishes if they come in contact with other appliances or furniture.

Definitions

Doors

Handles are secure and tight Door seals completely to cabinet on all sides

13 Freezer drawer is level across the top

Leveling

Refrigerator is level, side-to-side and tilted

1/4" (6mm) front-to-back

13 Toe grille is properly attached to refrigerator 13 Cabinet is setting solid on all corners

Electrical Power

13 House power turned on 13 Refrigerator plugged in

Ice Maker

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury

or death.

DANGER indicates an imminently hazardous situation

which, if not avoided, will result in death or serious

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate

13 House water supply connected to refrigerator 13 No water leaks present at all connections -

recheck in 24 hours

13 Ice maker is turned ON 13 Ice & water dispenser operates correctly

Final Checks

t:3 Shipping material removed I::3 Fresh food and freezer temperatures set

CI Crisper humidity controls set I:3 Registration card sent in

IMPORTANT indicates installation, operation or maintenance information which is important but not

hazard-related.

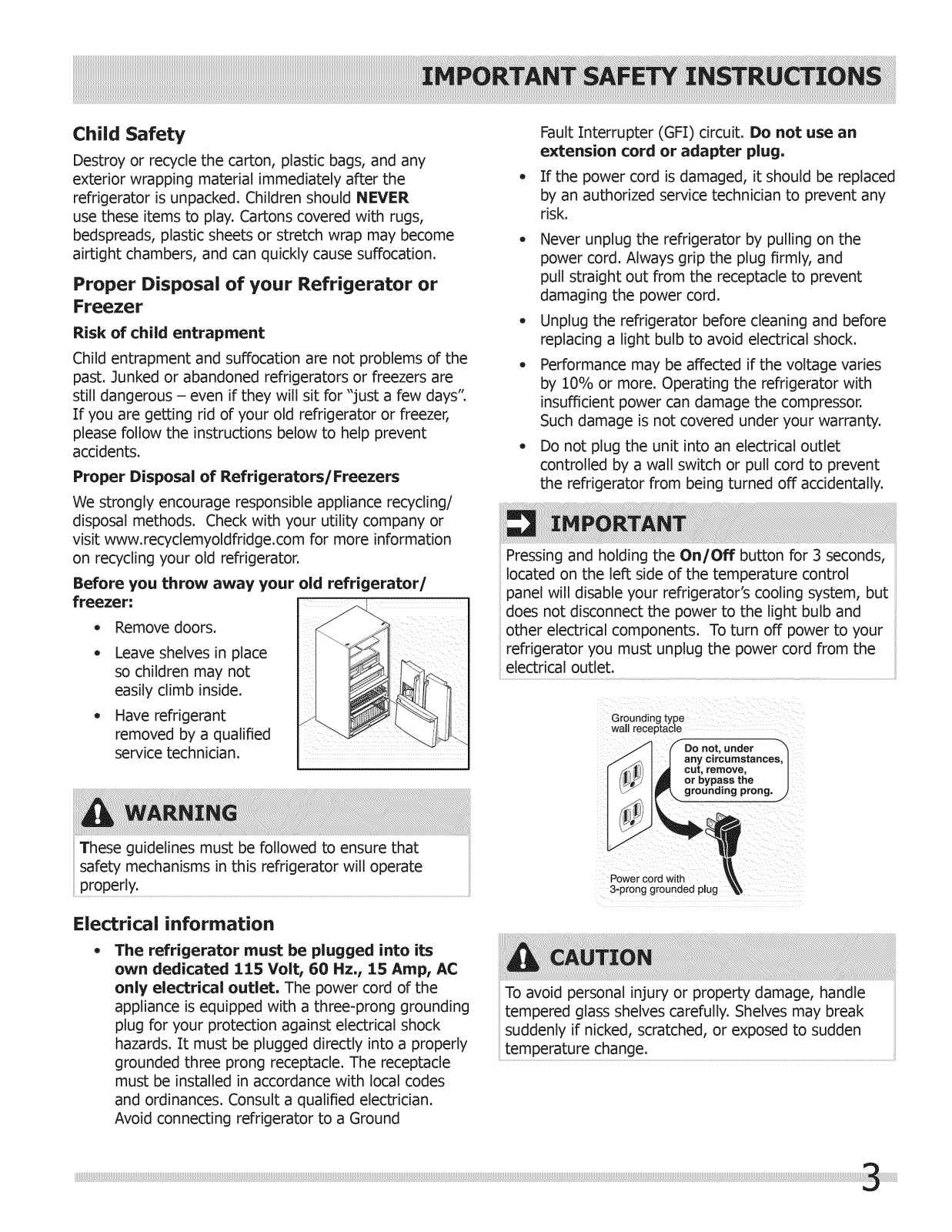

Child Safety

Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the refrigerator is unpacked. Children should NEVER use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation.

Proper Disposal of your Refrigerator or Freezer

Risk of child entrapment

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators or freezers are still dangerous - even if they will sit for "just a few days". If you are getting rid of your old refrigerator or freezer, please follow the instructions below to help prevent

accidents.

Proper Disposal of Refrigerators/Freezers

We strongly encourage responsible appliance recycling/ disposal methods. Check with your utility company or

visit www.recyclemyoldfridge.com for more information

on recycling your old refrigerator. Before you throw away your old refrigerator/

freezer: E

* Remove doors. o Leave shelves in place

so children may not easily climb inside.

Have refrigerant

removed by a qualified ..........

service technician.

Fault Interrupter (GFI) circuit. Do not use an

extension cord or adapter plug.

If the power cord is damaged, it should be replaced by an authorized service technician to prevent any

risk. Never unplug the refrigerator by pulling on the

power cord. Always grip the plug firmly, and pull straight out from the receptacle to prevent

damaging the power cord.

Unplug the refrigerator before cleaning and before replacing a light bulb to avoid electrical shock.

Performance may be affected if the voltage varies by 10% or more. Operating the refrigerator with insufficient power can damage the compressor.

Such damage is not covered under your warranty.

Do not plug the unit into an electrical outlet controlled by a wall switch or pull cord to prevent the refrigerator from being turned off accidentally.

Pressing and holding the On/Off button for 3 seconds, located on the left side of the temperature control

panel will disable your refrigerator's cooling system, but does not disconnect the power to the light bulb and

other electrical components. To turn off power to your refrigerator you must unplug the power cord from the

electricaloutlet................

Grounding type wall receptacle

fDo not, under -'_

any circumstances, cut, remove, / or bypass the /

These guidelines must be followed to ensure that safety mechanisms in this refrigerator will operate

Electrical information

The refrigerator must be plugged into its

own dedicated 115 Volt, 60 Hz., 15 Amp, AC only electrical outlet. The power cord of the

appliance is equipped with a three-prong grounding plug for your protection against electrical shock hazards. It must be plugged directly into a properly grounded three prong receptacle. The receptacle

must be installed in accordance with local codes and ordinances. Consult a qualified electrician.

Avoid connecting refrigerator to a Ground

Power cord with 3-prong grounded plug

To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break

suddenly if nicked, scratched, or exposed to sudden

temperature change.

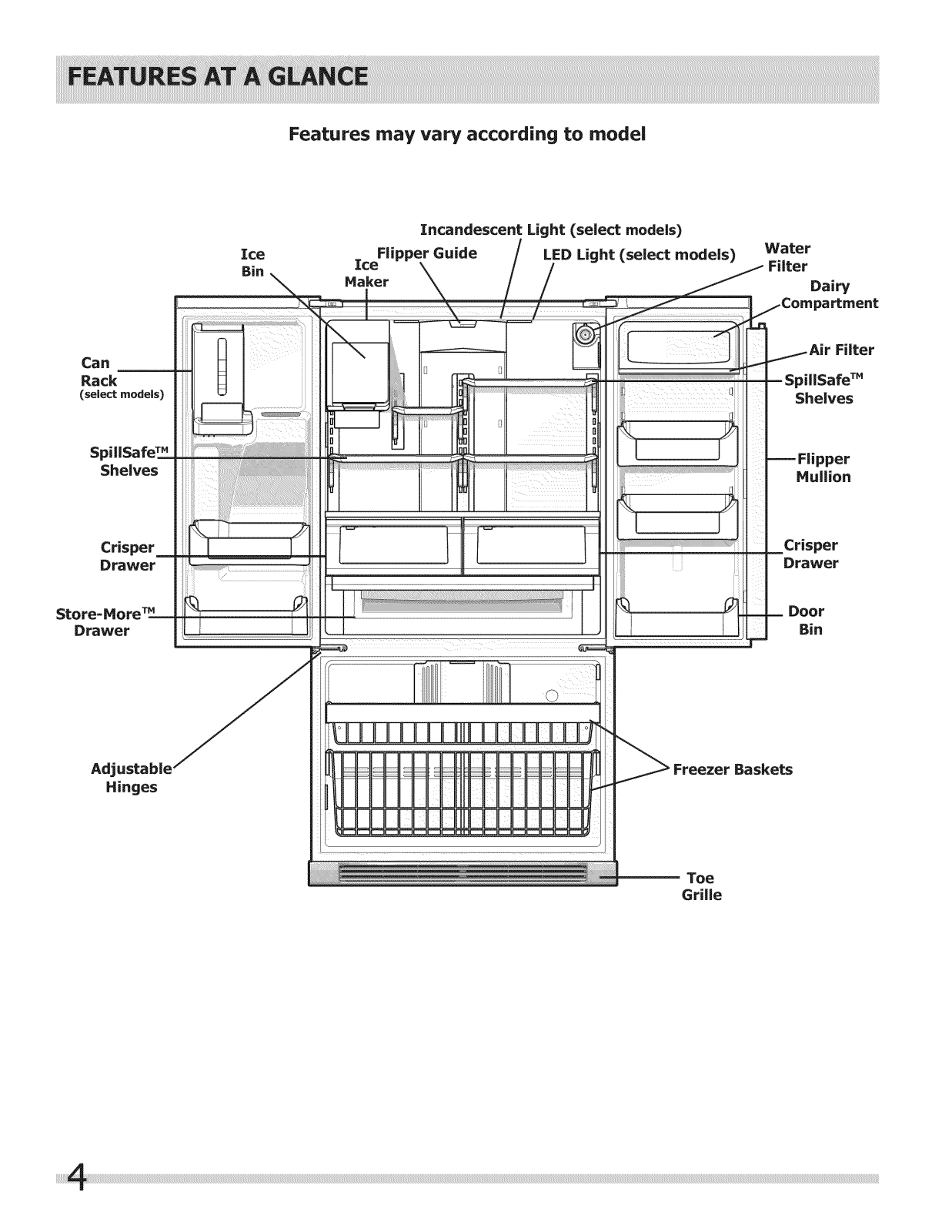

Features may vary according to model

_ncandescent Light (select models)

Can

Rack

(select models)

Shelves

Crisper

Drawer

_ceFlipper Guide LED Light (select models) Water

Filter

Haker Dairy

_iAir Filter

-- SpillSafe TM Shelves

mFlipper

Hullion

Crisper

Drawer

m Door

Bin

Adjustable

Hinges

Baskets

Toe

Grille

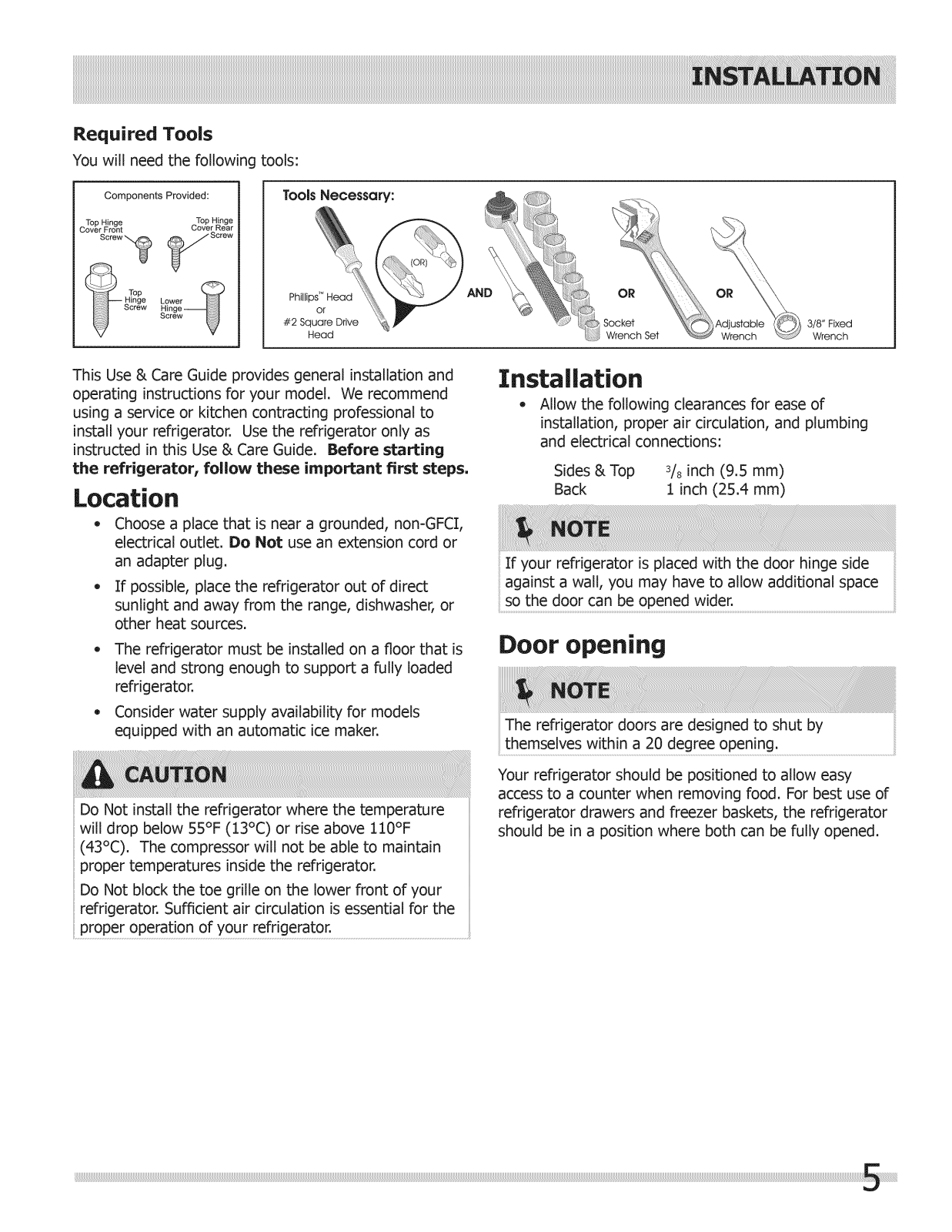

Required Tools

You will need the following tools:

Components Provided:

Top Hinge Top Hinge

Cover Front Cover Rear

Screw_ _Screw

Tools Necessary:

_,_ L....

sHi%

Head

This Use & Care Guide provides general installation and

operating instructionsfor your model. We recommend using a service or kitchen contracting professional to

install your refrigerator. Use the refrigerator only as instructed in this Use & Care Guide. Before starting

the refrigerator, follow these important first steps,

Location

- Choose a place that is near a grounded, non-GFCI, electrical outlet. Do Not use an extension cord or

an adapter plug.

- If possible, place the refrigerator out of direct sunlight and away from the range, dishwasher, or

other heat sources.

- The refrigerator must be installed on a floor that is level and strong enough to support a fully loaded refrigerator.

• Consider water supply availability for models equipped with an automatic ice maker.

3/8" Fixed

Wrench

Installation

- Allow the following clearances for ease of installation, proper air circulation, and plumbing

and electrica! connections:

Sides & Top 3/8 inch (9.5 mm)

Back 1 inch (25.4 ram)

If your refrigerator is placed with the door hinge side against a wall, you may have to allow additional space so the door can be opened wider.

Door opening

The refrigerator doors are designed to shut by themselves within a 20 degree opening.

Do Not install the refrigerator where the temperature

will drop below 55°F (13°C) or rise above 110°F (43°C). The compressor will not be able to maintain

proper temperatures inside the refrigerator.

Do Not block the toe grille on the lower front of your refrigerator. Sufficient air circulation is essential for the proper operation of your refrigerator.

Your refrigerator should be positioned to allow easy access to a counter when removing food. For best use of refrigerator drawers and freezer baskets, the refrigerator should be in a position where both can be fully opened.

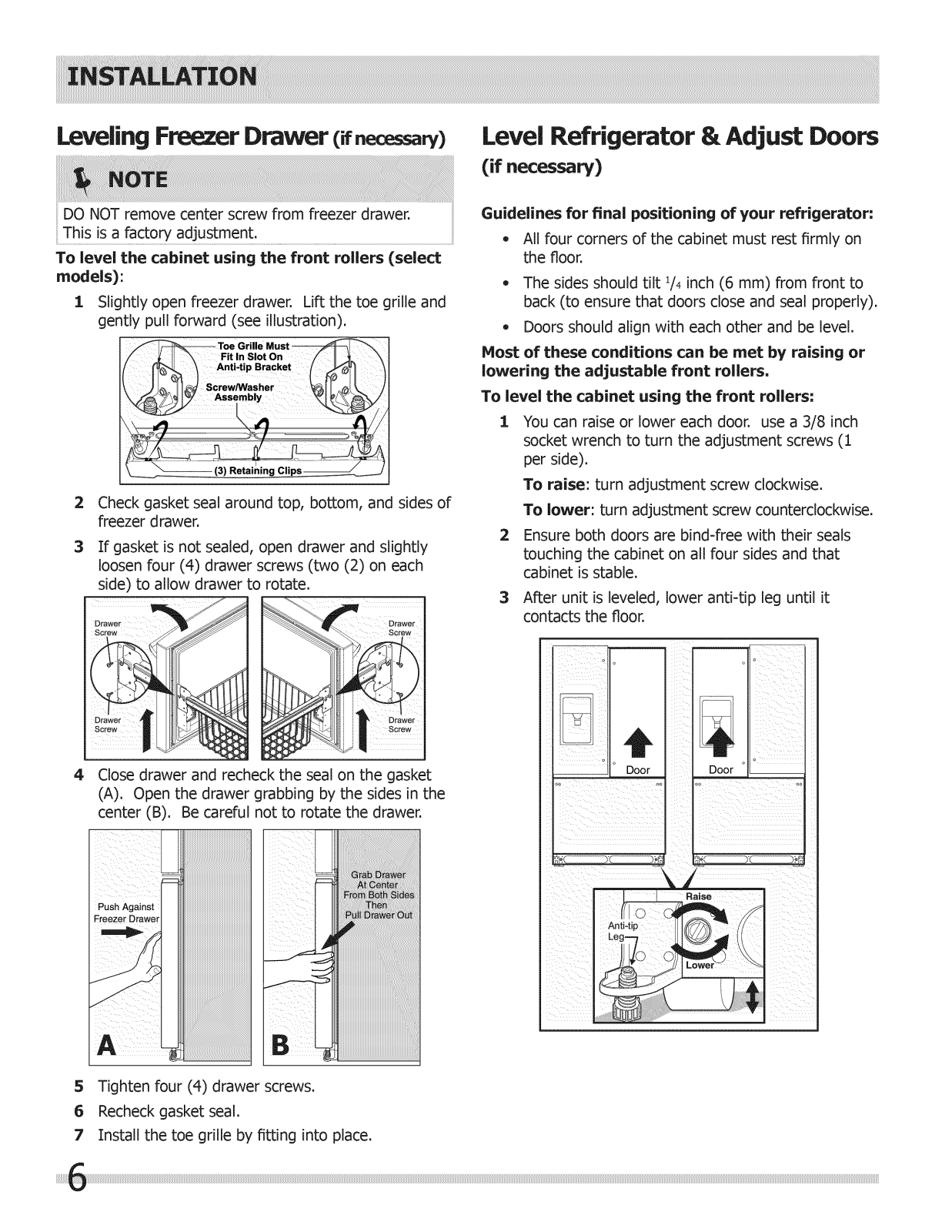

LevelingFreezer Drawer (ifnecessary) Level Refrigerator & Adjust Doors

(if necessary)

DO NOT remove center screw from freezer drawer.

Th!s is a factory adjustment: ........................................................................................................................................................................

To level the cabinet using the front rollers (select models):

1 Slightly open freezer drawer. Lift the toe grille and

gently pull forward (see illustration).

__ Toe Grille Must __

/ _ I _ Fit In Slot On / II J}_

' An..t,pBrao.e,( il

]:_ _1_ / Screw/Washer _[F=_]L

Guidelines for final positioning of your refrigerator:

* All four corners of the cabinet must rest firmly on

the floor.

* The sides should tilt _/4inch (6 mm) from front to

back (to ensure that doors close and seal properly). Doors should align with each other and be level.

Most of these conditions can be met by raising or lowering the adjustable front rollers,

To level the cabinet using the front rollers:

1 You can raise or lower each door. use a 3/8 inch

socket wrench to turn the adjustment screws (1

per side).

To raise: turn adjustment screw clockwise.

Check gasket sea! around top, bottom, and sides of freezer drawer.

To lower: turn adjustment screw counterclockwise.

2 Ensure both doors are bind-free with their seals

If gasket is not sealed, open drawer and slightly loosen four (4) drawer screws (two (2) on each

touching the cabinet on all four sides and that cabinet is stable.

side) to allow drawer to rotate.

3 After unit is leveled, lower anti-tip leg until it

Drawer

contacts the floor.

o o

Close drawer and recheck the seal on the gasket (A). Open the drawer grabbing by the sides in the

center (B).

Be careful not to rotate the drawer.

' iili

Push

Freezer Drawer

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii"i',

5 Tighten four (4) drawer screws. 6 Recheck gasket sea!.

7 Install the toe grille by fitting into place.

i i i

Door

o o

Door

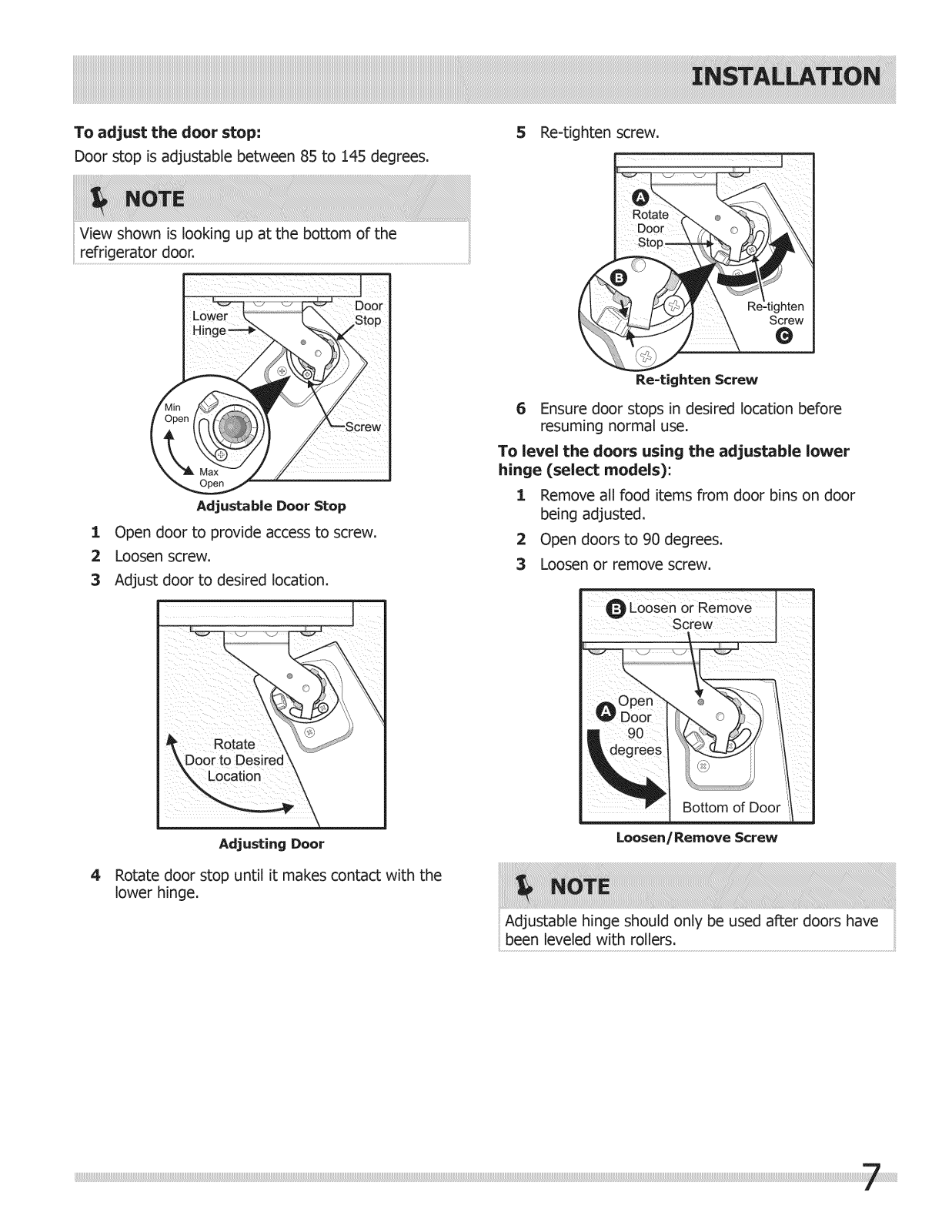

To adjust the door stop:

Door stop is adjustable between 85 to 145 degrees,

View shown is looking up at the bottom of the refrigerator door.

Adjustable Door Stop

I Open door to provide access to screw.

2 Loosen screw.

3 Adjust door to desired location.

5 Re-tighten screw.

Re-tighten Screw

6 Ensure door stops in desired location before

resuming normal use.

To level the doors using the adjustable lower

hinge (select models):

1 Remove all food items from door bins on door

being adjusted.

2 Open doors to 90 degrees. 3 Loosen or remove screw.

Adjusting Door

Rotate door stop until it makes contact with the lower hinge.

O Loosen or Remove

Screw

Bottom of Door

Loosen/Remove Screw

Adjustable hinge should only be used after doors have

been leveled with rollers.

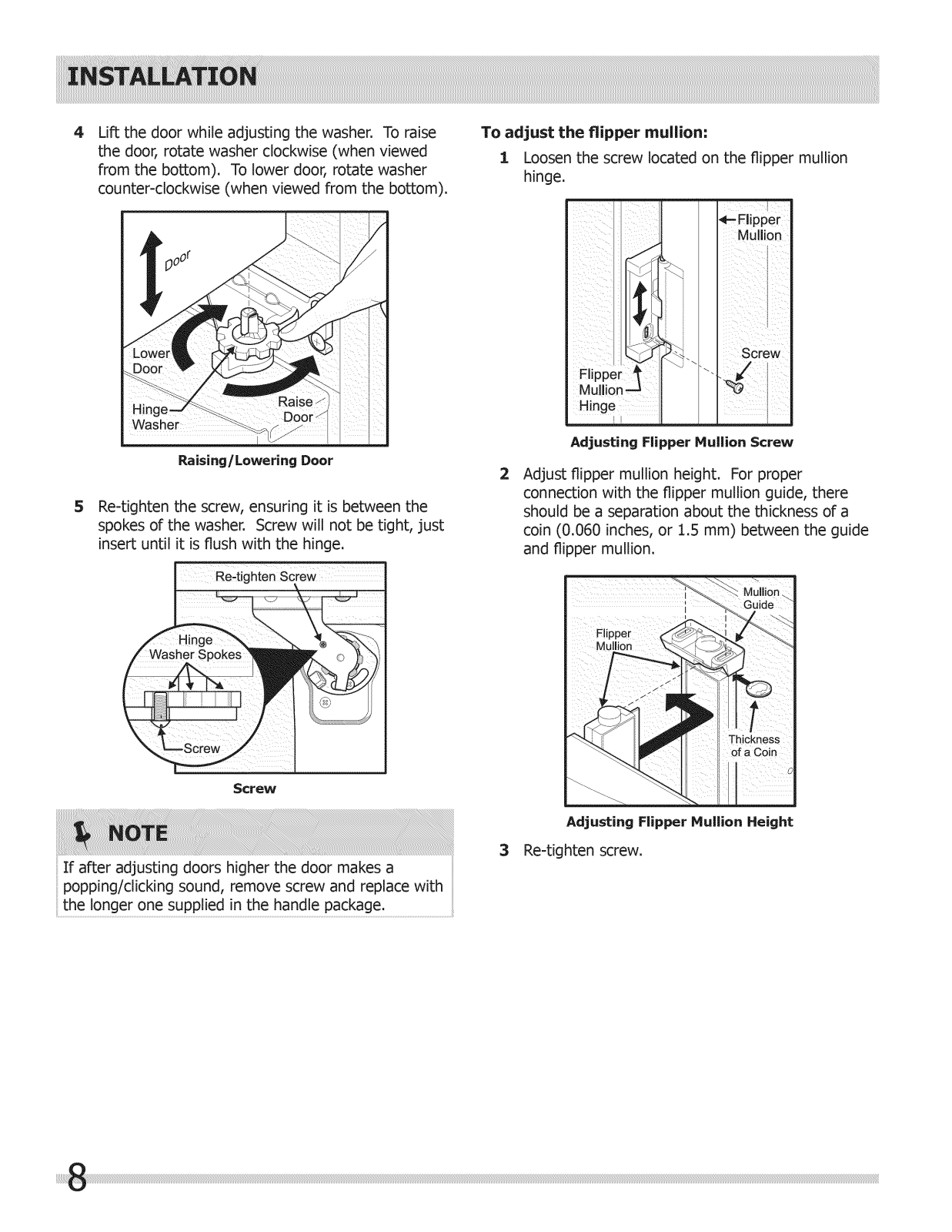

Lift the door while adjusting the washer. To raise the door, rotate washer clockwise (when viewed from the bottom). To lower door, rotate washer counter-clockwise when viewed from the bottom).

Raising/Lowering Door

Re-tighten the screw, ensuring it is between the spokes of the washer. Screw will not be tight, just insert until it is flush with the hinge.

To adjust the flipper mullion:

1 Loosen the screw located on the flipper mu!lion

hinge.

Adjusting Flipper Mullion Screw

Adjust flipper mullion height. For proper connection with the flipper mullion guide, there should be a separation about the thickness of a coin (0.060 inches, or 1.5 mm) between the guide and flipper mullion.

Screw

If after adjusting doors higher the door makes a popping/clicking sound, remove screw and replace with

the longer one supplied in the handle package.

Adjusting Flipper Mullion Height

3 Re-tighten screw.

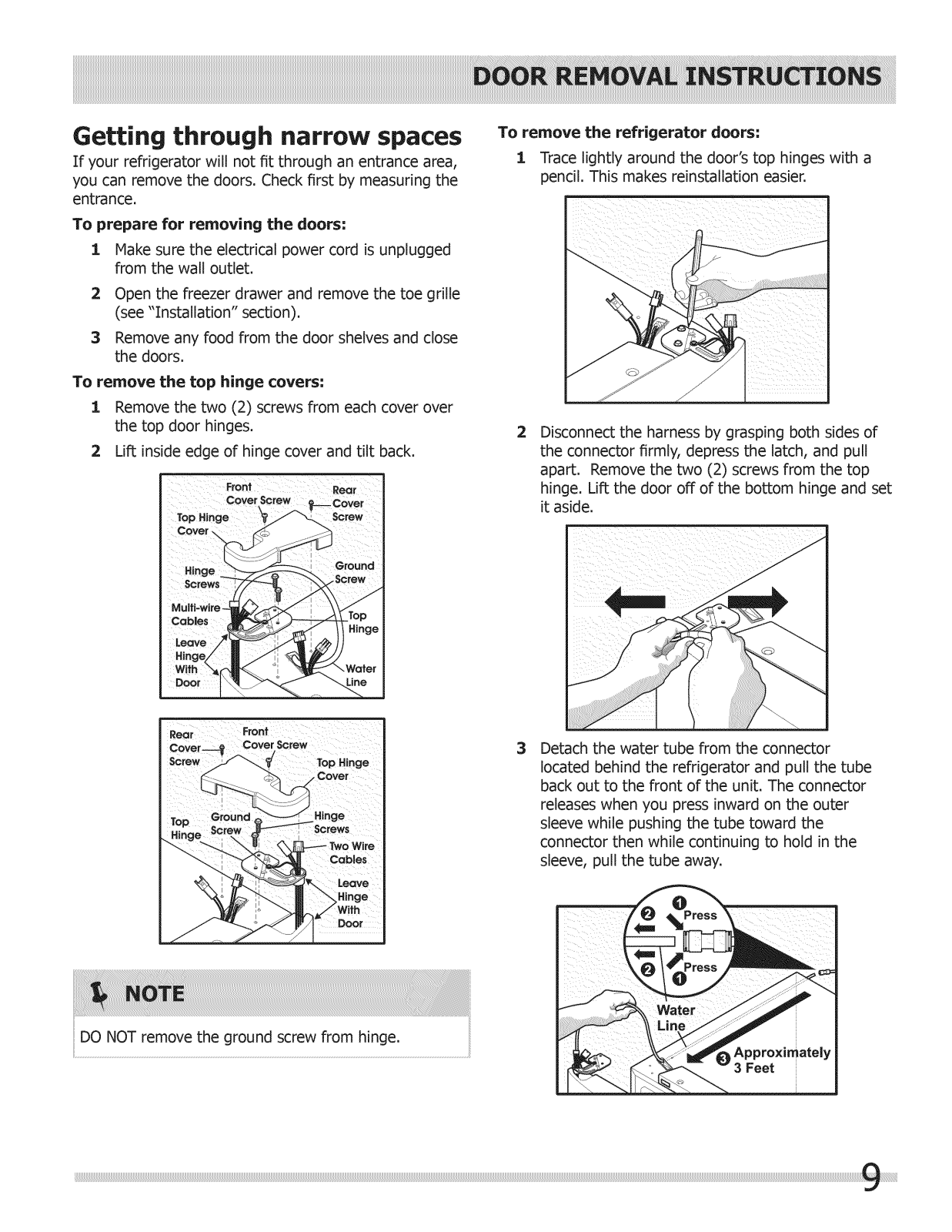

Getting through narrow spaces

If your refrigerator will not fit through an entrance area,

you can remove the doors. Check first by measuring the

entrance.

To prepare for removing the doors:

1 Make sure the electrica! power cord is unplugged

from the wall outlet.

2 Open the freezer drawer and remove the toe grille

(see "[nstallation" section).

3 Remove any food from the door shelves and close

the doors.

To remove the top hinge covers:

1 Remove the two (2) screws from each cover over

the top door hinges.

2 Lift inside edge of hinge cover and tilt back.

co,o, = w c0vo,

Top.!,ge _//_---:.\. sorow

To remove the refrigerator doors:

1 Trace lightly around the door's top hinges with a

pencil. This makes reinstallation easier.

Disconnect the harness by grasping both sides of the connector firmly, depress the latch, and pull apart. Remove the two (2) screws from the top

hinge. Lift the door off of the bottom hinge and set

it aside.

Hinge/ II / "

DO NOT remove the ground screw from hinge.

3 Detach the water tube from the connector

located behind the refrigerator and pull the tube

back out to the front of the unit. The connector

releases when you press inward on the outer sleeve while pushing the tube toward the connector then while continuing to hold in the sleeve, pull the tube away.

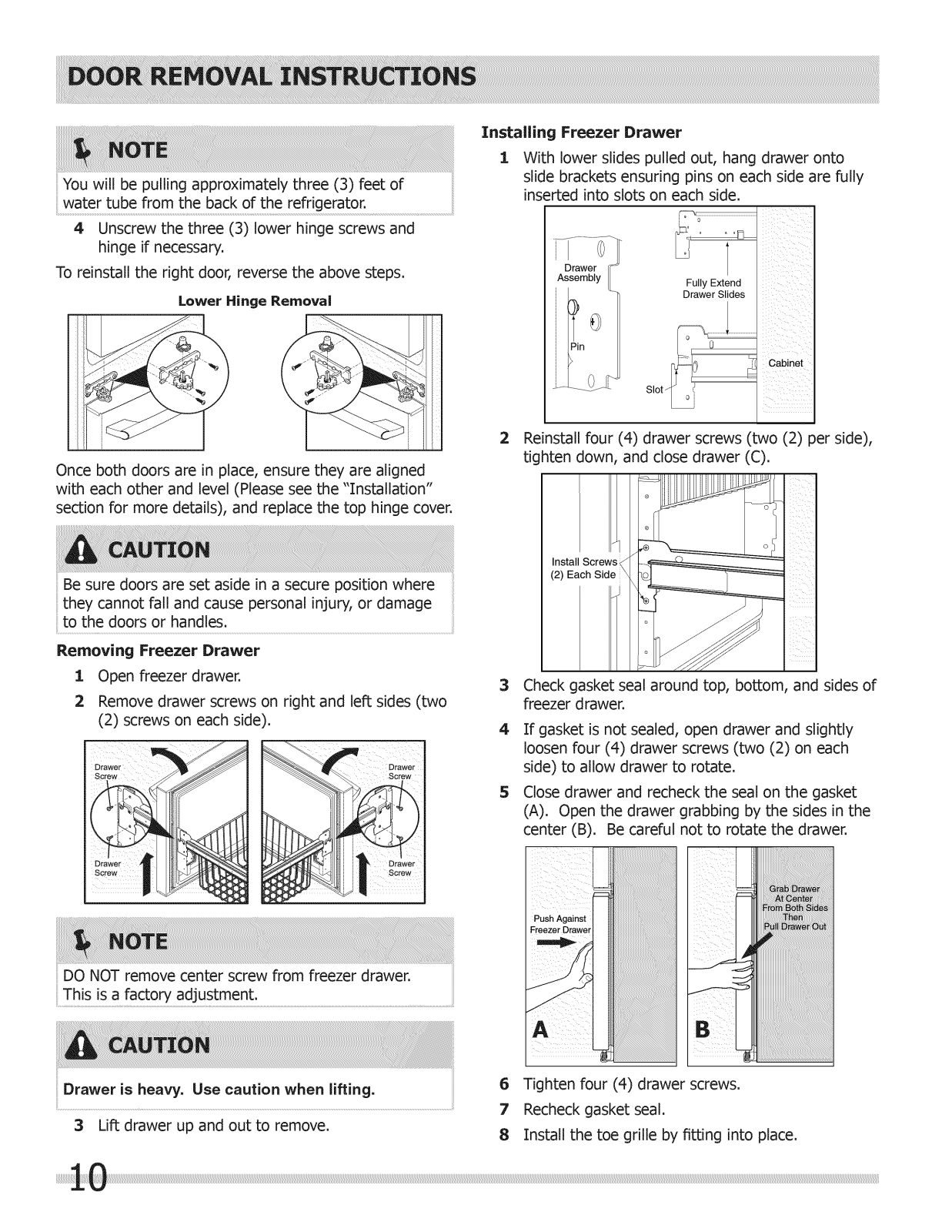

Youwillbepullingapproximatelythree(3)feetof watertubefromthebackoftherefrigerator.

4 Unscrewthethree(3)lowerhingescrewsand

hingeif necessary.

To reinstall the right door, reverse the above steps.

Lower Hinge Removal

Installing Freezer Drawer

1 With lower slides pulled out, hang drawer onto

slide brackets ensuring pins on each side are fully

inserted into slots on each side.

il0

Drawer

Assembly

Fully Extend

Drawer Slides

Once both doors are in place, ensure they are aligned with each other and level (Please see the "Installation" section for more details), and replace the top hinge cover.

Be sure doors are set aside in a secure position where

they cannot fall and cause personal injury, or damage to the doors or handles.

Removing Freezer Drawer

1 Open freezer drawer. 2 Remove drawer screws on right and left sides (two

(2) screws on each side).

Drawer _J Drawer Screw

iIo )

Slot_

ii!!iiiiii!iii

Cabinet

2 Reinstall four (4) drawer screws (two (2) per side),

tighten down, and close drawer (C).

Install Screws

(2) Each

ii_i i

Check gasket sea! around top, bottom, and sides of freezer drawer.

If gasket is not sealed, open drawer and slightly loosen four (4) drawer screws (two (2) on each

side) to allow drawer to rotate.

Close drawer and recheck the seal on the gasket

(A). Open the drawer grabbing by the sides in the

center (B). Be careful not to rotate the drawer.

DO NOT remove center screw from freezer drawer.

Drawer is heavy. Use caution when lifting.

3 Lift drawer up and out to remove.

Push Against

Freezer Drawer

6 Tighten four (4) drawer screws.

7 Recheck gasket sea!. 8 Install the toe grille by fitting into place.

+ 21 hidden pages
