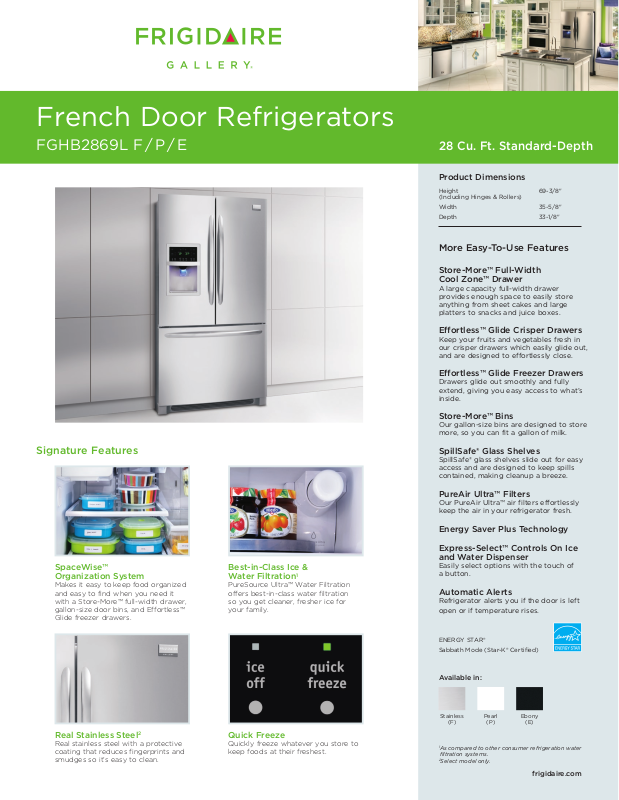

Frigidaire FGHB2869L DATASHEET
French Door Refrigerators
FGHB2869L F / P / E
28 Cu. Ft. Standard-Depth
Product Dimensions
Height 69-3/8"
(Including Hinges & Rollers)
Width 35-5/8"
Depth 33-1/8"
More Easy-To-Use Features
Store-More™ Full-Width
Cool Zone™ Drawer
A large capacity full-width drawer
provides enough space to easily store
anything from sheet cakes and large
platters to snacks and juice boxes.
Eortless™ Glide Crisper Drawers
Keep your fruits and vegetables fresh in
our crisper drawers which easily glide out,
and are designed to effortlessly close.
Eortless™ Glide Freezer Drawers
Drawers glide out smoothly and fully
extend, giving you easy access to what’s
inside.
Store-More™ Bins
Our gallon-size bins are designed to store
more, so you can fit a gallon of milk.
Signature Features
SpaceWise™
Organization System
Makes it easy to keep food organized
and easy to find when you need it
with a Store-More™ full-width drawer,
gallon-size door bins, and Effortless™
Glide freezer drawers.
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it’s easy to clean.
2
Best-in-Class Ice &
Water Filtration
PureSource Ultra™ Water Filtration
offers best-in-class water filtration
so you get cleaner, fresher ice for
your family.
1
Quick Freeze
Quickly freeze whatever you store to
keep foods at their freshest.
SpillSafe® Glass Shelves
SpillSafe® glass shelves slide out for easy
access and are designed to keep spills
contained, making cleanup a breeze.
PureAir Ultra™ Filters
Our PureAir Ultra™ air filters effortlessly
keep the air in your refrigerator fresh.
Energy Saver Plus Technology
Express-Select™ Controls On Ice
and Water Dispenser
Easily select options with the touch of
a button.
Automatic Alerts
Refrigerator alerts you if the door is left
open or if temperature rises.
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
1
As compared to other consumer refrigeration water
filtration systems.
2
Select model only.
Pearl
(P)
Ebony
(E)
frigidaire.com
Features
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
EnergySaver™ Plus Technology
Water Filter Location
Sound Package
Soft-Arc Doors
Stainless Steel (F),
Color-Coordinated (P / E)
Grey (F),
Color-Coordinated (P / E)
Yes / Yes
Hidden
Adjustable / Yes
Yes
Top-Right Fresh
Food Section
Quiet Pack
Dispenser
Controls
Dispenser Design
Number of Dispenser Buttons
Crushed Ice / Cube Ice / Chilled Water
Ice Option / Freeze Option
Display On / O Option
Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
Express-Select™
Tall, Single-Paddle
13
Yes / Yes / Yes
No / Quick Freeze
Yes
Yes / Yes
Yes / Yes / Yes
Yes
Yes
Refrigerator Features
Lighting
Water Filter Type
Air Filter Type
Fixed Shelves
Quarter-Width Sliding Shelves
Half-Width Sliding Shelves
Cantilever Shelves
Store-More™ Full-Width Drawer
Hanging Wine Rack
Hanging Can Dispenser
Full-Width Crisper
Humidity Controls
Dairy Compartment
Store-More™ Fixed Door Bins
Fixed Door Bins
Adjustable Door Bins / Dispenser Bin
Non-Slip Bin Liner / Bottle Retainers
Designer LED
PureSource Ultra™
PureAir Ultra™
1 SpillSafe®
3 SpillSafe®
Yes
1 Cool Zone™
1 Clear
1 White
2 Clear
2
1 Clear
2 White
1 Half-Gallon / 2-Liter Clear
2 Two-Gallon Clear / No
Freezer Features
Self-Closing Pull-Out Drawer
Sliding Full-Width Freezer Baskets
Basket Dividers
Lighting
Yes
2 Eortless™ Glide
1 (Bottom Basket)
Yes
Certifications
Sabbath Mode (Star-K® Certified)
ENERGY STAR®
Yes
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW rating)
@ 120 Volts
1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.
27.8
19.04
8.76
Right Bottom Rear
Left Bottom Rear
120V / 60Hz / 15 or 20A
1.02
8.5
15
365 Lbs.
French Door Refrigerators
FGHB2869L F / P / E 28 Cu. Ft. Standard-Depth
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Incl. hinges and rollers)
B - Width
C - Depth
Depth with Door Open 90˚
69-3/8"
35-5/8"
33-1/8"
47-1/2"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FGHB2869L 08/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
