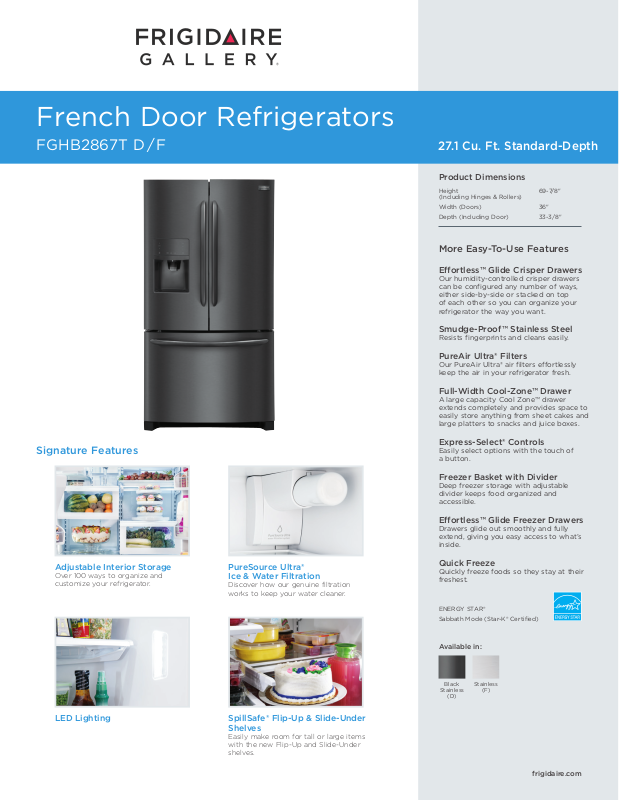

Page 1
French Door Refrigerators
FGHB2867T D / F
27.1 Cu. Ft. Standard-Depth
Product Dimensions
Height 69-7/8"
(Including Hinges & Rollers)
Width (Doors) 36"
Depth (Including Door) 33-3/8"
More Easy-To-Use Features
Eortless™ Glide Crisper Drawers
Our humidity-controlled crisper drawers
can be configured any number of ways,
either side-by-side or stacked on top
of each other so you can organize your
refrigerator the way you want.
Smudge-Proof™ Stainless Steel
Resists fingerprints and cleans easily.
PureAir Ultra® Filters
Our PureAir Ultra® air filters effortlessly
keep the air in your refrigerator fresh.
Full-Width Cool-Zone™ Drawer
A large capacity Cool Zone™ drawer
extends completely and provides space to
easily store anything from sheet cakes and
large platters to snacks and juice boxes.
Signature Features
Adjustable Interior Storage
Over 100 ways to organize and
customize your refrigerator.
LED Lighting SpillSafe® Flip-Up & Slide-Under
PureSource Ultra®
Ice & Water Filtration
Discover how our genuine filtration
works to keep your water cleaner.
Shelves
Easily make room for tall or large items
with the new Flip-Up and Slide-Under
shelves.
Express-Select® Controls
Easily select options with the touch of
a button.
Freezer Basket with Divider
Deep freezer storage with adjustable
divider keeps food organized and
accessible.
Eortless™ Glide Freezer Drawers
Drawers glide out smoothly and fully
extend, giving you easy access to what’s
inside.
Quick Freeze
Quickly freeze foods so they stay at their
freshest.
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Available in:
Black
(D)
Stainless
(F)
Stainless
frigidaire.com
Page 2
Features
A
B
C
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
Energy Saver Plus Technology
Water Filter Location
Sound Package
Dispenser
Controls
Dispenser Design
Number of Dispenser Buttons
Crushed Ice / Cube Ice / Water
Ice Option / Freeze Option
Display On / O Option
Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
Refrigerator Features
Lighting
Water Filter Type
Air Filter Type
Quarter-Width Fixed Shelves
Half-Width Fixed Shelves
Quarter-Width Sliding Shelves
Half-Width Sliding Shelves
Cantilever Shelves
Store-More™ Full-Width Drawer
Hanging Wine Rack / Can Dispenser
Crisper Drawer / Humidity Controls
Dairy Compartment
Store-More™ Fixed Door Bins
2-Liter Fixed Door Bins
Gallon Adjustable Door Bins
2-Liter Adjustable Door Bins
Dispenser Bin
Non-Slip Bin Liner / Bottle Retainers
Freezer Features
Self-Closing Pull-Out Drawer
Sliding Full-Width Freezer Baskets
Basket Dividers
Lighting
Automatic Ice Maker (2nd Ice Maker)
Certifications
Sabbath Mode (Star-K® Certified)
ENERGY STAR®
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW rating)
@ 120 Volts
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
Soft-Arc Doors
Black Stainless (D),
Stainless Steel (F)
Grey
Yes / Yes
Hidden
Adjustable / Yes
Yes
Top-Right Fresh
Food Section
Express-Select®
Flush, Single-Paddle
11
Yes / Yes / Yes
No / Quick Freeze
Yes
Yes / Yes
Yes
Yes
Multi-Level LED
PureSource Ultra®
PureAir Ultra®
1 SpillSafe® Flip-Up
1 SpillSafe® Slide-Under
2 SpillSafe®
Yes
1 Cool Zone™
No / 1 White
2 Clear / 2
1 Clear
2 White (1 per door)
1 Clear
2 Clear
1
Yes
2 Eortless™ Glide
1 (Bottom Basket)
LED
Optional (PN # IMK0028A)
Yes
Yes
27. 1
18.4
8.7
Right Bottom Rear
Left Bottom Rear
120V / 60Hz
1.02
8.5
15
365 Lbs.
French Door Refrigerators
FGHB2867T D / F 27.1 Cu. Ft. Standard-Depth
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Cabinet Width / Door Width
C - Depth (Incl. Door)
Depth with Door Open 90°
Depth with Drawer Fully Extended (Incl. Handle)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
69-7/8"
35-7/8" / 36"
33-3/8"
47-3/8"
55"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FGHB2867T 03/17 © 2017 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Page 3

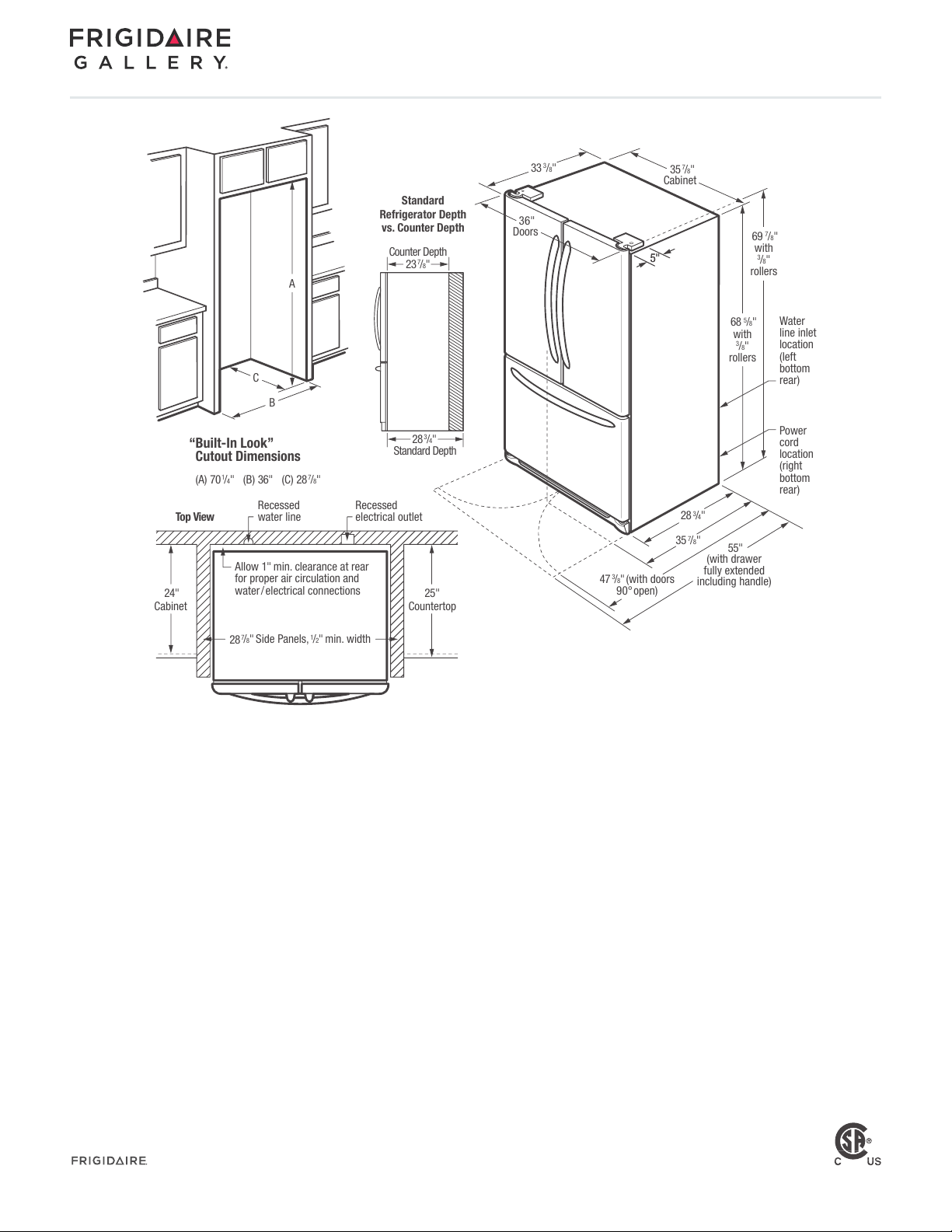

“Built-In Look”
Cutout Dimensions
(A) 70
1/4" (B) 36" (C) 28
7/8"
5"
Top View
24"
Cabinet
28
7/8" Side Panels, 1/2" min. width
25"
Countertop
Allow 1" min. clearance at rear
for proper air circulation and
water
/
electrical connections
Recessed
water line
Recessed
electrical outlet
33 3/8"
68
5
/8"
with
3
/8"
rollers
35
7
/8"
28 3/4"
69
7
/8"
with
3
/8"
rollers
Power
cord
location
(right
bottom
rear)
Water
line inlet
location
(left
bottom
rear)
47 3/8" (with doors
90°
open)
55"
(with drawer
fully extended
including handle)
35
7/8"
Cabinet
36"
Doors
5"
Standard
Refrigerator Depth
vs. Counter Depth
23
7/8"
Counter Depth
28
3/4"
Standard Depth
B
C
A
French Door Refrigerators
FGHB2867T D / F 27.1 Cu. Ft. Standard-Depth
French Door Refrigerator Specifications
•
Product Shipping Weight (approx.) – 365 Lbs.
•
An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•
Voltage Rating – 120V / 60 Hz
•
Connected Load (kW Rating) @ 120 Volts = 1.02 kW
•
Amps @ 120 Volts = 8.5 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
•
When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer / crisper access and removal. (Absolute 4-1/2"
minimum clearance will ONLY allow for 90° door swing which will
provide drawer / crisper access with restricted removal.)
•
To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•
Adjustable front rollers to assist with door alignment.
“Built-In Look” Specifications
•
Minimum opening of 70-1/4" H x 36" W x 28-7/8" D required to allow
for ease of installation, proper air circulation, and plumbing / electrical
connections.
•
Remove all wall / floor molding prior to installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Second Ice Maker Kit – (PN # IMK0028A)
•
USA
10200 David Taylor Drive
•
CANADA
FGHB2867T 03/17 © 2017 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
