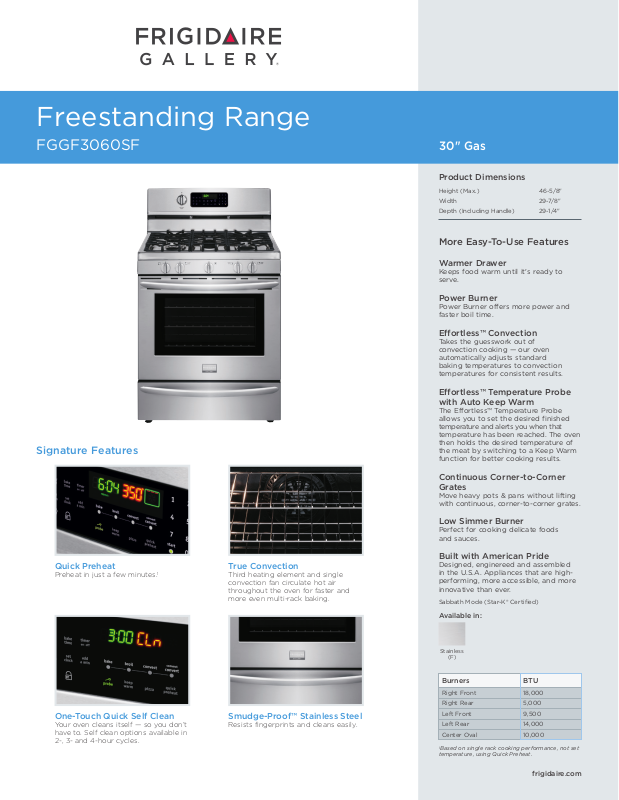

Page 1
Freestanding Range
FGGF3060SF
Signature Features
30" Gas
Product Dimensions
Height (Max.) 46-5/8"
Width 29-7/8"
Depth (Including Handle) 29-1/4"
More Easy-To-Use Features
Warmer Drawer
Keeps food warm until it's ready to
serve.
Power Burner
Power Burner offers more power and
faster boil time.
Eortless™ Convection
Takes the guesswork out of
convection cooking — our oven
automatically adjusts standard
baking temperatures to convection
temperatures for consistent results.
Eortless™ Temperature Probe
with Auto Keep Warm
The Effortless™ Temperature Probe
allows you to set the desired finished
temperature and alerts you when that
temperature has been reached. The oven
then holds the desired temperature of
the meat by switching to a Keep Warm
function for better cooking results.
Quick Preheat
Preheat in just a few minutes.
1
One-Touch Quick Self Clean
Your oven cleans itself — so you don’t
have to. Self clean options available in
2-, 3- and 4-hour cycles.
True Convection
Third heating element and single
convection fan circulate hot air
throughout the oven for faster and
more even multi-rack baking.
Smudge-Proof™ Stainless Steel
Resists fingerprints and cleans easily.
Continuous Corner-to-Corner
Grates
Move heavy pots & pans without lifting
with continuous, corner-to-corner grates.
Low Simmer Burner
Perfect for cooking delicate foods
and sauces.
Built with American Pride
Designed, enginereed and assembled
in the U.S.A. Appliances that are highperforming, more accessible, and more
innovative than ever.
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
Burners
Right Front
Right Rear
Left Front
Left Rear
Center Oval
1
Based on single rack cooking performance, not set
temperature, using Quick Preheat.
BTU
18,000
5,000
9,500
14,000
10,000
frigidaire.com
Page 2
Features
Oven Control / Timing System
Surface Type
Sealed Gas Burners
Grates
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake / Broil
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
Quick Bake Convection
Quick Preheat
My Favorite
Eortless™ Temperature Probe
Pizza Button
Keep Warm
Add-a-Minute
Delay Start
Self Clean
Quick Clean Option
Delay Clean
Kitchen Timer / Timed Cook Option
Auto Oven Shut-O
Oven Lockout
Lower Drawer Control
Cooktop Features
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Center Extra Zone Burner (BTU)
Oven Features
Capacity (Cu. Ft.)
Oven Light
Rack Configuration
Baking System
Broiling System
Bake Burner / Broil Burner (BTU)
Drawer Racks
Optional Accessories
LP Gas Conversion Kit
Griddle
Certifications
Sabbath Mode (Star-K® Cert.)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
Voltage Rating
Amps @ 120 Volts
Shipping Weight (Approx.)
Express-Select® Controls
Stainless Steel
Yes
Continuous Cast Iron
w/ Black Matte Finish
Extra-Large
Smudge-Proof™
Stainless Steel
Stainless Steel
Black
True Convection
Self Clean
Warmer
Yes / Variable (400-550°F)
Yes
Yes / No / Yes
Yes
Yes
Yes
Yes
Yes
Yes
2, 3, 4 Hours
Yes
Yes
Yes
Yes
Yes
18,000
5,000
9,500
14,000
10,000
5.0
1
3 Heavy-Duty Racks
Even Baking Technology
Vari-Broil™ Hi/Lo
18,000 / 13,500
PN # GRLP4
Included
Yes
18-5/8" x 24-3/8" x 19-1/8"
Left Bottom Rear
Right Bottom Rear
120V / 60Hz / 12A
12
200 Lbs.
Freestanding Range
FGGF3060SF 30" Gas
36"
(Adjustable)
C
B
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
46-5/8"
29-7/8"
29-1/4"
46-9/16"
Cabinet Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
A
36"
30"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FGGF3060S 05/16 © 2016 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Page 3
Freestanding Range
FGGF3060SF 30" Gas
30" min.
C
L
30"
11
1/2"
23"
10 1/2"
Recommended area for 120V outlet on rear of
wall and area for through-the-wall connection
of pipe stub and shutoff valve
Recommended area for through-the-floor
connection of pipe stub and shutoff valve
25"
13"
max.
18"
min.
15"
24"
* Min. distance from cooking surface
to underside of overhead cabinetry
Clearance (A)
Based on Largest Minimum
Burner Output Rating Clearance
on Cooking Surface Required
9,500 BTU or less 2"
10,000
-
16,999 BTU 3"
17,000 BTU or greater 5"
Minimum
clearance (A)
required to
nearest
combustible
29
Side
1/4"
25
3/4"
wall on
either side
of range
30"
18"
min.*
min.
8"
above 36"
height
36"
stand.
Wall
46
5/8"
Gas inlet location
(right bottom rear*)
Power cord location
(left bottom rear*)
*when viewed from front
2"
Front
Note: Overall
product dimensions
are model specific
and may vary slightly
from illustration. Refer
to model’s product
specifications for
actual dimensions.
48
1/2"
max.
36"
(Adjustable
1
±
/8")
to
Freestanding Range Specifications
•
Product Shipping Weight (approx.) – 200 Lbs.
•
Voltage Rating – 120V / 60 Hz / 12 Amps
•
Amps @ 120 Volts = 12 Amps
•
Always consult local and national electric and gas codes.
•
Make sure wall coverings around range can withstand heat generated
by range.
•
Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90° F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4"-thick plywood required between range and a carpeted floor.
•
Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of range. Range requires fresh air for
proper burner combustion.
•
Do not install range beneath any downward-blowing, overhead vent
hood or air curtain.
•
Range ships with 3/4" factory regulator.
•
Range is LP Gas convertible. (Optional LP Gas conversion
kit available.)
•
Floor beneath range MUST be solid and level.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
USA
10200 David Taylor Drive
•
CANADA
FGGF3060S 05/16 © 2016 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Range can be installed flush to wall with 0" minimum rear clearance.
•
Minimum clearance required (from edge of rangetop to nearest
combustible wall on either side of range above 36" height) is based
on largest burner output rating on cooking surface.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•
Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
LP Gas Conversion Kit – (PN # GRLP4).
•
Griddle – Included
29
7/8"
Specifications
subject to change.
