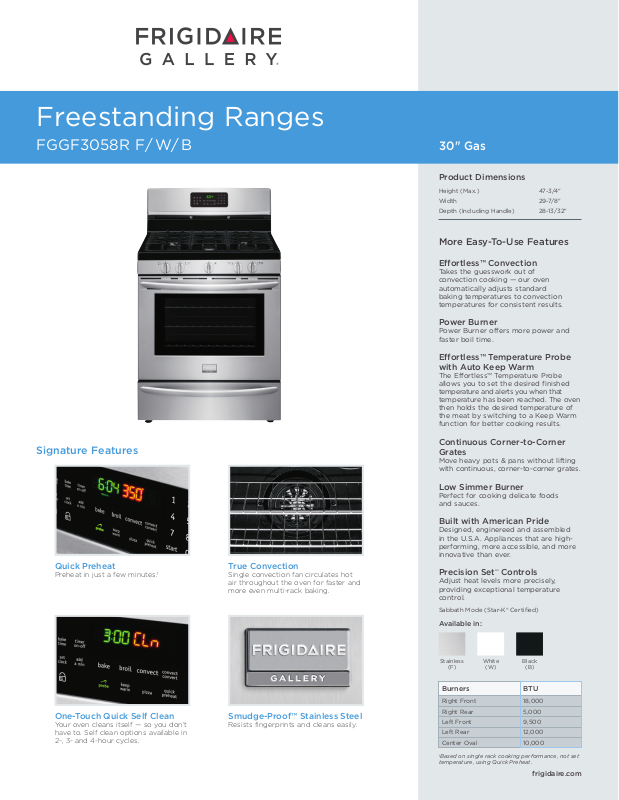

Frigidaire FGGF3058RW, FGGF3058RF Specification Sheet
Freestanding Ranges
FGGF3058R F/ W/ B
30" Gas
Product Dimensions
Height (Max.) 47-3/4"
Width 29-7/8"
Depth (Including Handle) 28-13/32"
More Easy-To-Use Features
Eortless™ Convection
Takes the guesswork out of
convection cooking — our oven
automatically adjusts standard
baking temperatures to convection
temperatures for consistent results.
Power Burner
Power Burner offers more power and
faster boil time.
Eortless™ Temperature Probe
with Auto Keep Warm
The Effortless™ Temperature Probe
allows you to set the desired finished
temperature and alerts you when that
temperature has been reached. The oven
then holds the desired temperature of
the meat by switching to a Keep Warm
function for better cooking results.
Signature Features
Quick Preheat
Preheat in just a few minutes.
One-Touch Quick Self Clean
Your oven cleans itself — so you don’t
have to. Self clean options available in
2-, 3- and 4-hour cycles.
Continuous Corner-to-Corner
Grates
Move heavy pots & pans without lifting
with continuous, corner-to-corner grates.
Low Simmer Burner
Perfect for cooking delicate foods
and sauces.
Built with American Pride
Designed, enginereed and assembled
in the U.S.A. Appliances that are highperforming, more accessible, and more
innovative than ever.
1
True Convection
Single convection fan circulates hot
air throughout the oven for faster and
more even multi-rack baking.
Smudge-Proof™ Stainless Steel
Resists fingerprints and cleans easily.
Precision Set™ Controls
Adjust heat levels more precisely,
providing exceptional temperature
control.
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
Burners
Right Front
Right Rear
Left Front
Left Rear
Center Oval
1
Based on single rack cooking performance, not set
temperature, using Quick Preheat.
White
(W)
Black
(B)
BTU
18,000
5,000
9,500
12,000
10,000
frigidaire.com
Features
Oven Control / Timing System
Surface Type
Sealed Gas Burners
Grates
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake / Broil
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
Quick Bake Convection
Quick Preheat
My Favorite
Eortless™ Temperature Probe
Pizza Button
Keep Warm
Add-a-Minute
Delay Start
Self Clean
Quick Clean Option
Delay Clean
Kitchen Timer / Timed Cook Option
Auto Oven Shut-O
Oven Lockout
Lower Drawer Control
Cooktop Features
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Center Extra Zone Burner (BTU)
Oven Features
Capacity (Cu. Ft.)
Oven Light
Rack Configuration
Baking System
Broiling System
Bake Burner / Broil Burner (BTU)
Drawer Racks
Optional Accessories
LP Gas Conversion Kit
Griddle
Certifications
Sabbath Mode (Star-K® Cert.)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
Voltage Rating
Amps @ 120 Volts
Shipping Weight (Approx.)
Express-Select® Controls
Black Porcelain (F),
Color-Coord. Porcelain (W/B)
Yes
Continuous Cast Iron
w/ Black Matte Finish
Extra-Large
Smudge-Proof™ Stainless
Steel (F), Color-Coord. (W/B)
Stainless Steel (F),
Color-Coordinated (W/B)
Black (F), Color-C. (W/B)
True Convection
Self Clean
Storage
Yes / Variable (400-550°F)
Yes
Yes / No / Yes
Yes
Yes
Yes
2, 3, 4 Hours
Yes
2, 3, 4 Hours
Yes / No
Yes
18,000
5,000
9,500
12,000
10,000
5.0
1
3 Standard
Even Baking Technology
Vari-Broil™ Hi/Lo
18,000 / 13,500
PN # GRLP4
Included
Yes
18-5/8" x 24-3/8" x 19-1/8"
Left Bottom Rear
Right Bottom Rear
120V / 60Hz / 15A
15
215 Lbs.
Freestanding Ranges
FGGF3058R F/ W/ B 30" Gas
36"
(Adjustable)
C
B
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
47-3/4"
29-7/8"
28-13/32"
46-5/8"
Cabinet Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
A
36"
30"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FGGF3058R 07/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
