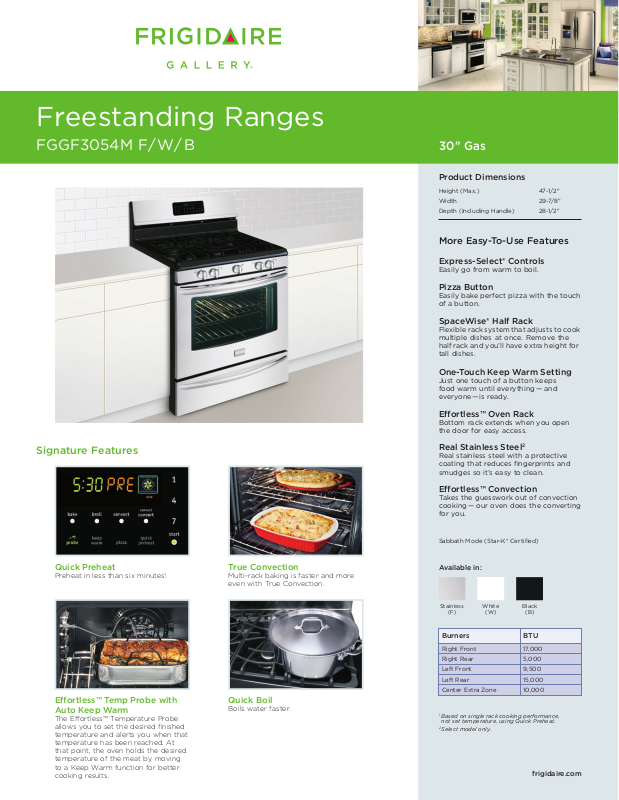

Page 1
Freestanding Ranges
FGGF3054M F/ W/ B
Signature Features
30" Gas
Product Dimensions
Height (Max.) 47-1/2"
Width 29-7/8"
Depth (Including Handle) 28-1/2"
More Easy-To-Use Features
Express-Select® Controls
Easily go from warm to boil.
Pizza Button
Easily bake perfect pizza with the touch
of a button.
SpaceWise® Half Rack
Flexible rack system that adjusts to cook
multiple dishes at once. Remove the
half rack and you’ll have extra height for
tall dishes.
One-Touch Keep Warm Setting
Just one touch of a button keeps
food warm until everything — and
everyone — is ready.
Eortless™ Oven Rack
Bottom rack extends when you open
the door for easy access.
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it’s easy to clean.
2
Quick Preheat
Preheat in less than six minutes.
1
Eortless™ Temp Probe with
Auto Keep Warm
The Effortless™ Temperature Probe
allows you to set the desired finished
temperature and alerts you when that
temperature has been reached. At
that point, the oven holds the desired
temperature of the meat by moving
to a Keep Warm function for better
cooking results.
True Convection
Multi-rack baking is faster and more
even with True Convection.
Quick Boil
Boils water faster.
Eortless™ Convection
Takes the guesswork out of convection
cooking — our oven does the converting
for you.
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
Burners
Right Front
Right Rear
Left Front
Left Rear
Center Extra Zone
1
Based on single rack cooking performance,
not set temperature, using Quick Preheat.
2
Select model only.
White
(W)
Black
(B)
BTU
17,000
5,000
9,500
15,000
10,000
frigidaire.com
Page 2
Freestanding Ranges
C
A
36"
(Adjustable)
B
FGGF3054M F/ W/ B 30" Gas
Features
Oven Control / Timing System
Surface Type
Sealed Gas Burners
Grates
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake / Broil
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
Quick Bake Convection
Quick Preheat
My Favorite
Eortless™ Temp Probe
Pizza Button
Keep Warm
Add-a-Minute
Delay Start
Self Clean
Quick Clean Option
Delay Clean
Kitchen Timer / Timed Cook Option
Auto Oven Shut-O
Lower Drawer Control
Cooktop Features
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Center Extra Zone Burner (BTU)
Oven Features
Capacity (Cu. Ft.)
Oven Light
Rack Configuration
Baking System
Broiling System
Bake Burner / Broil Burner (BTU)
Drawer Racks
Optional Accessories
LP Gas Conversion Kit
Certifications
Sabbath Mode (Star-K® Cert.)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
Voltage Rating
Conn. Load (kW Rating) @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
•
USA
10200 David Taylor Drive
•
CANADA
FGGF3054M 06/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
•
Express-Select® Controls
Black Porcelain (F),
Color-C. Porc. (W/B)
Yes
Continuous Cast Iron
w/ Black Matte Finish
Extra-Large
Real Stainless Steel (F),
Color-Coordinated (W/B)
Stainless Steel (F),
Color-Coordinated (W/B)
Black (F),
Color-Coordinated (W/B)
True Convection
Self Clean
Storage
Yes / Variable
(400 – 500 °F)
Yes
Yes / Yes / Yes
Yes
Yes
Yes
Yes
Yes
Yes
2, 3, 4 Hours
Yes
Yes / Yes
6 Hours
17,000
5,000
9,500
15,000
Oval 10,000
5.0
1
1 Heavy Duty, 1 SpaceWise®
Half Rack, 1 Eortless™
Even Baking Technology
Even Broil
18,000 / 13,500
PN # GRLP3
Yes
17-5/8" x 24-3/8" x 19-3/4"
Left Bottom Rear
Right Bottom Rear
120V / 60Hz / 15A
1
1.8
15
220 Lbs.
Charlotte, NC 28262
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
•
frigidaire.com
•
frigidaire.ca
47-1/2"
29-7/8"
28-1/2"
46-5/8"
Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
Accessories information available
on the web at frigidaire.com
36"
30"
24"
Specifications
subject to change.
Page 3
Freestanding Ranges
FGGF3054M F/ W/ B 30" Gas

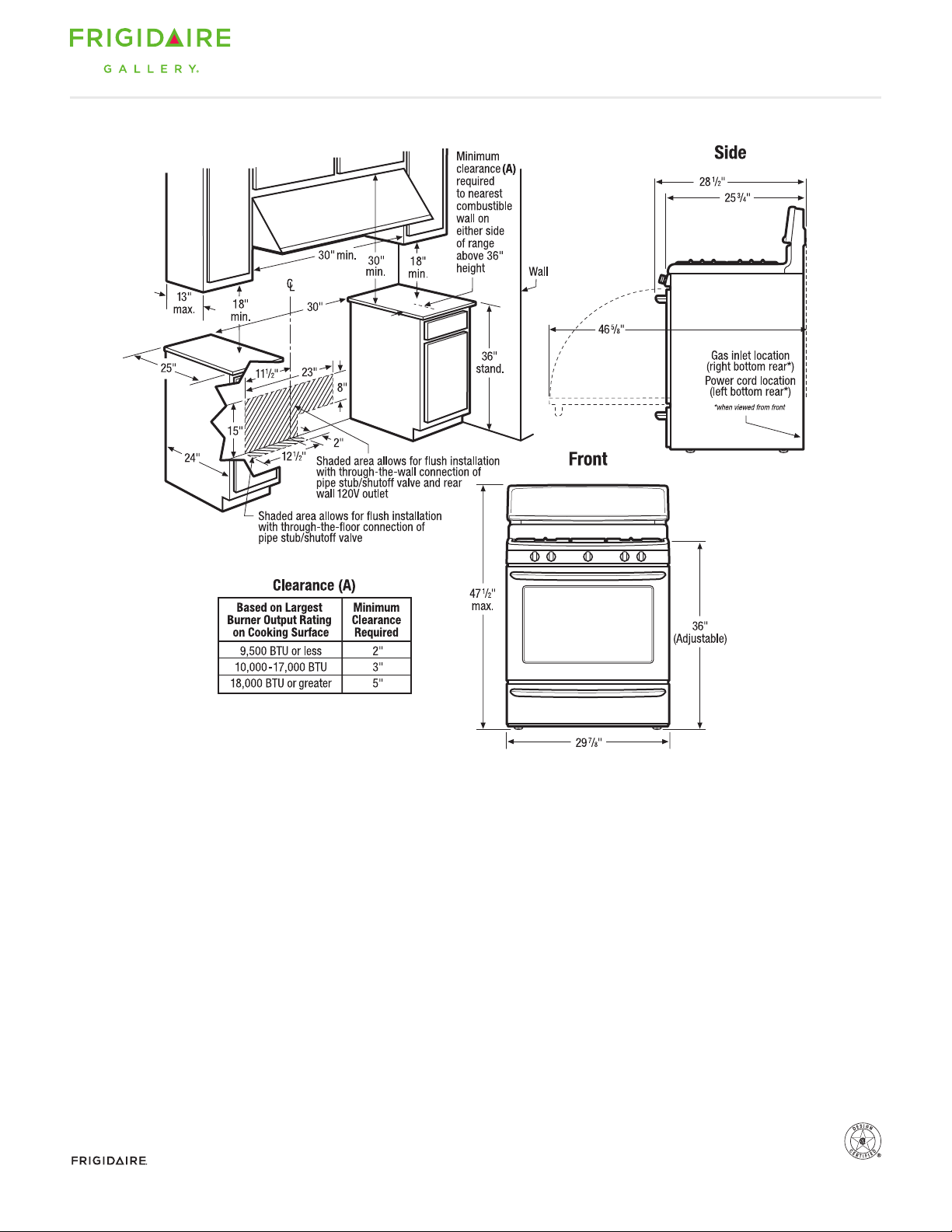

Freestanding Range Specifications
•
Product Shipping Weight (approx.) – 220 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = 1.8 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 15
•
Always consult local and national electric and gas codes.
•
Make sure wall coverings around range can withstand heat generated
by range.
•
Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90° F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4"-thick plywood required between range and a carpeted floor.
•
Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of range. Range requires fresh air for
proper burner combustion.
•
Do not install range beneath any downward-blowing, overhead vent
hood or air curtain.
•
Range ships with 3/4" factory regulator.
•
Range is LP Gas convertible. (Optional LP Gas conversion
•
Floor beneath range MUST be solid and level.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Range can be installed flush to wall with 0" minimum rear clearance.
•
Minimum clearance required (from edge of rangetop to nearest
combustible wall on either side of range above 36" height) is based
on largest burner output rating on cooking surface.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•
Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
LP Gas Conversion Kit – (PN # GRLP3)
kit available.)
•
USA
10200 David Taylor Drive
•
CANADA
FGGF3054M 06/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Page 4
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front

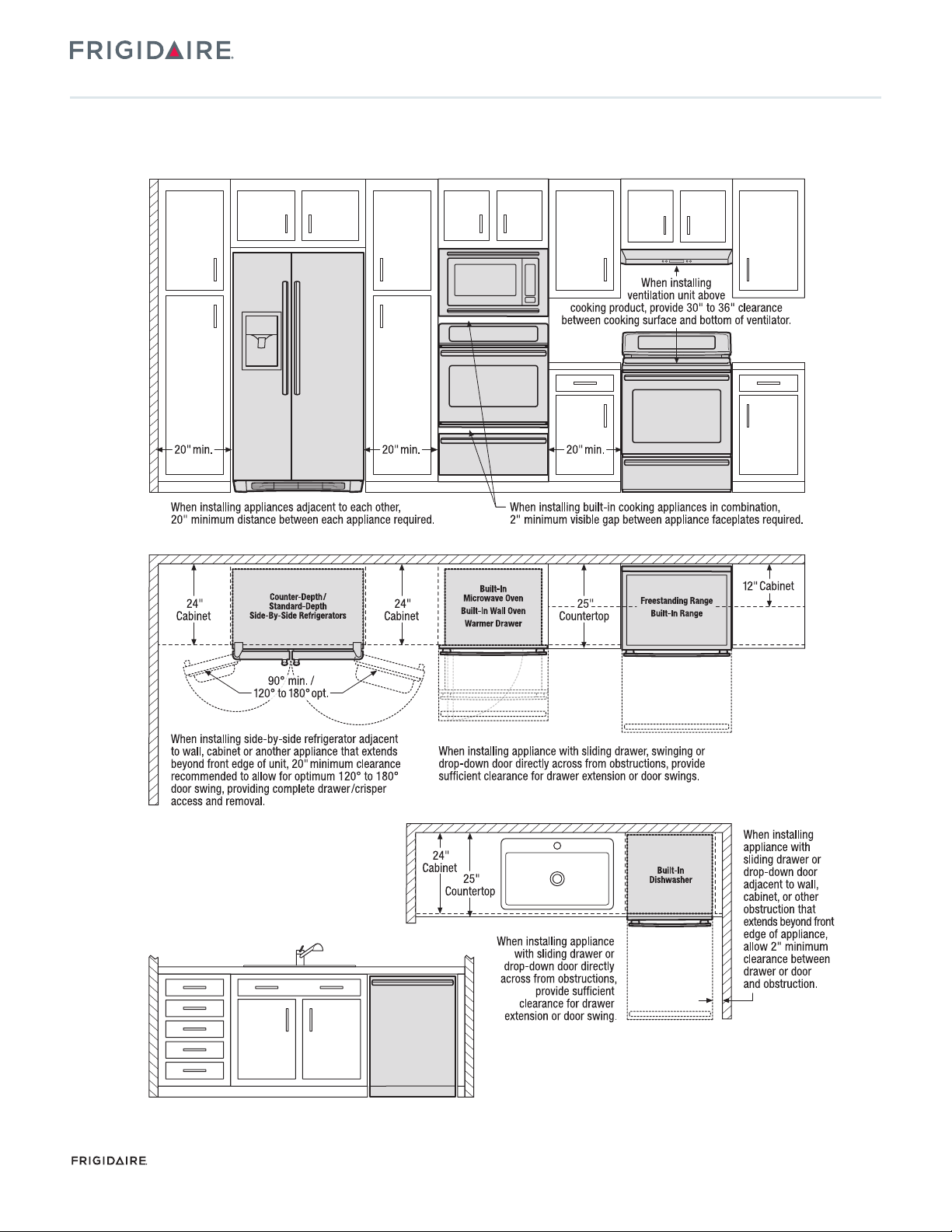

General Installation Guidelines
with Side-by-Side Refrigerator
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_SSR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Page 5
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top

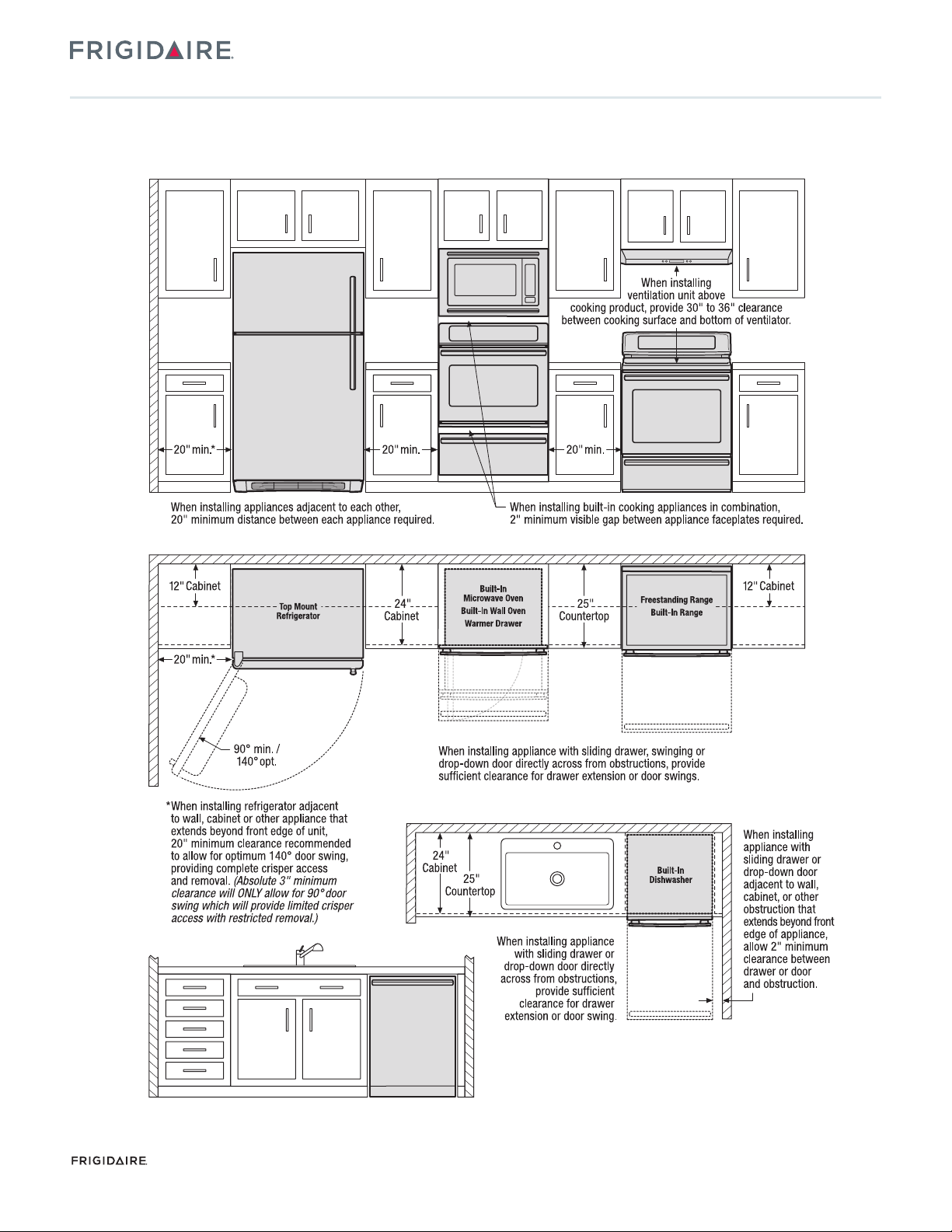

General Installation Guidelines
with Top Mount Refrigerator
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_TMR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
