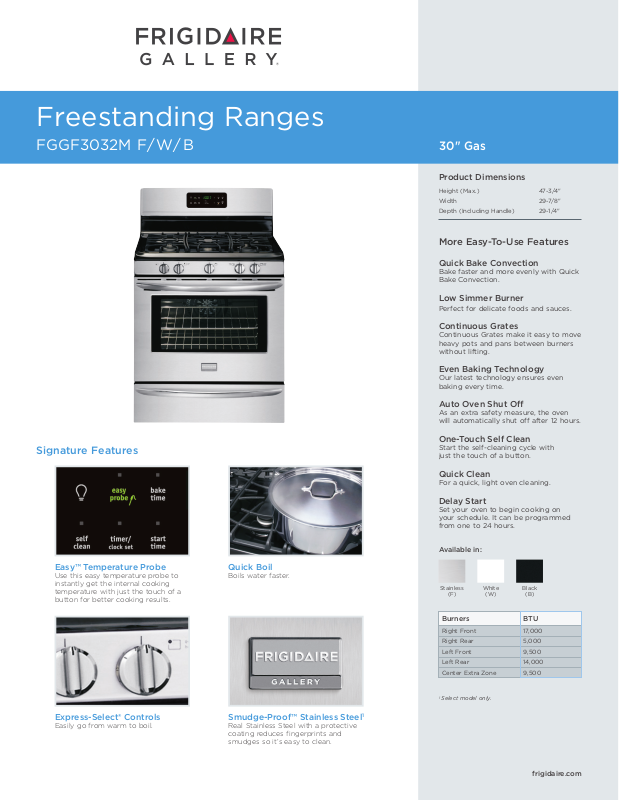

Page 1
Freestanding Ranges
FGGF3032M F/ W/ B
Signature Features
30" Gas
Product Dimensions
Height (Max.) 47-3/4"
Width 29-7/8"
Depth (Including Handle) 29-1/4"
More Easy-To-Use Features
Quick Bake Convection
Bake faster and more evenly with Quick
Bake Convection.
Low Simmer Burner
Perfect for delicate foods and sauces.
Continuous Grates
Continuous Grates make it easy to move
heavy pots and pans between burners
without lifting.
Even Baking Technology
Our latest technology ensures even
baking every time.
Auto Oven Shut O
As an extra safety measure, the oven
will automatically shut off after 12 hours.
One-Touch Self Clean
Start the self-cleaning cycle with
just the touch of a button.
Easy™ Temperature Probe
Use this easy temperature probe to
instantly get the internal cooking
temperature with just the touch of a
button for better cooking results.
Express-Select® Controls
Easily go from warm to boil.
Quick Boil
Boils water faster.
Smudge-Proof™ Stainless Steel
Real Stainless Steel with a protective
coating reduces fingerprints and
smudges so it’s easy to clean.
Quick Clean
For a quick, light oven cleaning.
Delay Start
Set your oven to begin cooking on
your schedule. It can be programmed
from one to 24 hours.
Available in:
Stainless
(F)
Burners
Right Front
Right Rear
Left Front
Left Rear
Center Extra Zone
1
Select model only.
1
White
(W)
Black
(B)
BTU
17,000
5,000
9,500
14,000
9,500
frigidaire.com
Page 2
Features
Oven Control / Timing System
Surface Type
Sealed Gas Burners
Grates
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Express-Select® Controls
Black Porcelain (F),
Color-Coordinated (W/B)
Yes
Continuous Cast Iron
w/ Black Matte Finish
Extra-Large
Smudge-Proof™ Stainless
Steel (F), Color-Coord. (W/B)
Stainless Steel (F),
Color-Coordinated (W/B)
Black (F), Color-C. (W/B)
Quick Bake Convection
Self Clean
Storage
Oven Controls
Bake / Broil
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
Quick Bake Convection
Quick Preheat
My Favorite
Easy™ Temperature Probe
Pizza Button
Keep Warm
Add-a-Minute
Delay Start
Self Clean
Quick Clean Option
Delay Clean
Kitchen Timer / Timed Cook Option
Auto Oven Shut-O
Oven Lockout
Lower Drawer Control
Yes / Low and High
Yes
Yes
Yes
Yes
Yes
2, 3 Hours
Yes / Yes
12 Hours
Yes
Cooktop Features
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Center Extra Zone Burner (BTU)
17,000
5,000
9,500
14,000
9,500
Oven Features
Capacity (Cu. Ft.)
Oven Light
Rack Configuration
Baking System
Broiling System
Bake Burner / Broil Burner (BTU)
Drawer Racks
5.0
1
1 Flat, 1 Oset
Even Baking Technology
Vari-Broil™ Hi/Lo
18,000 / 13,500
Optional Accessories
LP Gas Conversion Kit
PN # GRLP3
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
Voltage Rating
Conn. Load (kW Rating) @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
17-5/8" x 24-3/8" x 19-3/4"
Left Bottom Rear
Right Bottom Rear
120V / 60Hz / 15A
1
1.8
15
215 Lbs.
Freestanding Ranges
FGGF3032M F/ W/ B 30" Gas
36"
(Adjustable)
C
B
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
47-3/4"
29-7/8"
29-1/4"
46-5/8"
Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
A
36"
30"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FGGF3032M 12/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Page 3

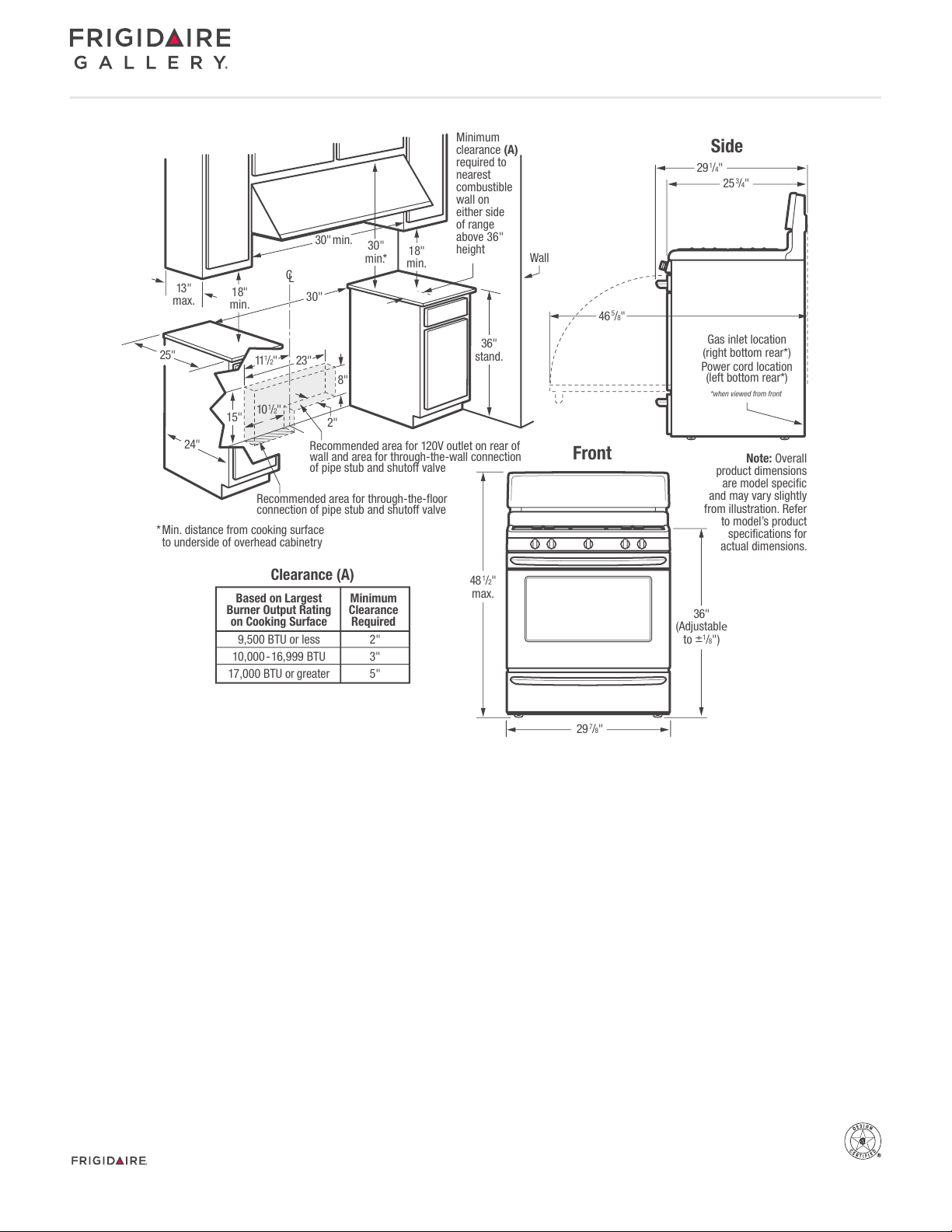

Freestanding Ranges
30" min.
13"
max.
25"
Minimum
clearance (A)
required to
nearest
combustible
wall on
either side
of range
above 36"
height
30"
C
L
36"
stand.
Wall
15"
11
1/2"
Recommended area for through-the-floor
connection of pipe stub and shutoff valve
8"
Recommended area for 120V outlet on rear of
wall and area for through-the-wall connection
of pipe stub and shutoff valve
23"
18"
min.
24"
10 1/2"
2"
18"
min.
Front
29
7/8"
48
1/2"
max.
46
5/8"
Gas inlet location
(right bottom rear*)
Power cord location
(left bottom rear*)
*when viewed from front
Side
25
3/4"
29
1/4"
30"
min.*
Clearance (A)
Based on Largest Minimum
Burner Output Rating Clearance
on Cooking Surface Required
9,500 BTU or less 2"
10,000
-
16,999 BTU 3"
17,000 BTU or greater 5"
* Min. distance from cooking surface
to underside of overhead cabinetry
36"
(Adjustable
to
±
1
/8")
Note:
Overall
product dimensions
are model specific
and may var
y slightly
from illustration.
Refer
to model’
s product
specifications for
actual dimensions.
FGGF3032M F/ W/ B 30" Gas
Freestanding Range Specifications
•
Product Shipping Weight (approx.) – 215 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = 1.8 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 15 Amps
•
Always consult local and national electric and gas codes.
•
Make sure wall coverings around range can withstand heat generated
by range.
•
Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90° F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4"-thick plywood required between range and a carpeted floor.
•
Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of range. Range requires fresh air for
proper burner combustion.
•
Do not install range beneath any downward-blowing, overhead vent
hood or air curtain.
•
Range ships with 3/4" factory regulator.
•
Range is LP Gas convertible. (Optional LP Gas Conversion
Kit available.)
•
Floor beneath range MUST be solid and level.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Range can be installed flush to wall with 0" minimum rear clearance.
•
Minimum clearance required (from edge of rangetop to nearest
combustible wall on either side of range above 36" height) is based
on largest burner output rating on cooking surface.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•
Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
LP Gas Conversion Kit – (PN # GRLP3)
•
USA
10200 David Taylor Drive
•
CANADA
FGGF3032M 12/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
