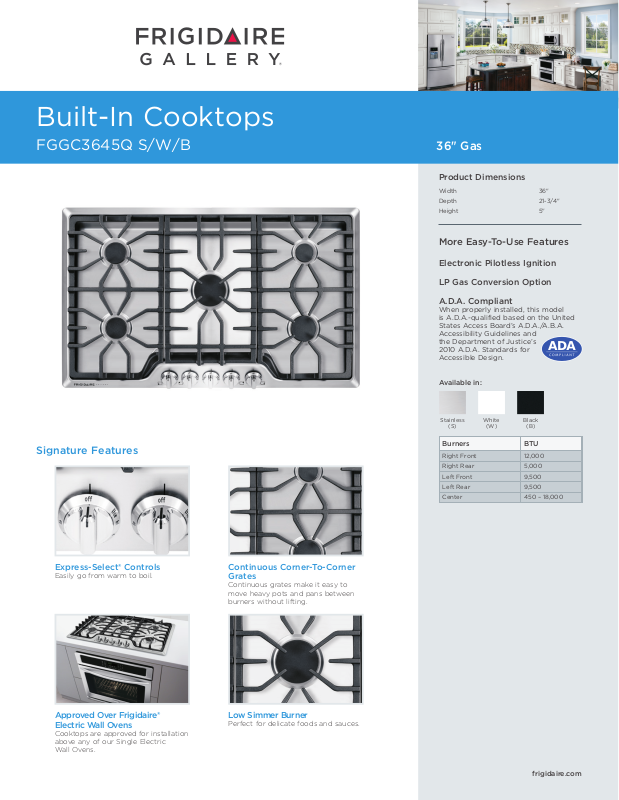

Frigidaire FGGC3645QB, FGGC3645QS, FGGC3645QW Specification
Built-In Cooktops
FGGC3645Q S/W/B
36" Gas
Product Dimensions
Width 36"
Depth 21-3/4"
Height 5"
More Easy-To-Use Features
Electronic Pilotless Ignition
LP Gas Conversion Option
A.D.A. Compliant
When properly installed, this model
is A.D.A.-qualified based on the United
States Access Board’s A.D.A./A.B.A.
Accessibility Guidelines and
the Department of Justice’s
2010 A.D.A. Standards for
Accessible Design.
Available in:
Stainless
(S)
White
(W)
Black
(B)
Signature Features
Express-Select® Controls
Easily go from warm to boil.
Approved Over Frigidaire®
Electric Wall Ovens
Cooktops are approved for installation
above any of our Single Electric
Wall Ovens.
Continuous Corner-To-Corner
Grates
Continuous grates make it easy to
move heavy pots and pans between
burners without lifting.
Low Simmer Burner
Perfect for delicate foods and sauces.
Burners
Right Front
Right Rear
Left Front
Left Rear
Center
BTU
12,000
5,000
9,500
9,500
450 – 18,000
frigidaire.com
Features
A
B
C
Controls
Surface Type
Sealed Gas Burners
Grates
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Center Burner (BTU)
Control Location
Knob Color
Knob Type
Express-Select®
Stainless Steel Recessed
(S), Color-Coordinated
Recessed (W/B)
Yes
Continuous Corner-ToCorner Cast Iron
w/Black Matte Finish
12,000
5,000
9,500
9,500
450 – 18,000
Front
Stainless (S),
Color-Coordinated (W/B)
Cast Metal (S),
Plastic (W/B)
Certifications
A.D.A. Compliant
1
Yes
Specifications
Power Supply Connection Location
Gas Supply Connection Location
LP Gas Conversion Kit
Voltage Rating
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Approved for Electric Single
Wall Oven Combination Installation
Shipping Weight (Approx.)
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2
Cooktops are approved for installation above any of our
Electric Single Wall Ovens.
Right Rear
Right Rear
Included
120V / 60 Hz / 15A
1.0
15
Yes
2
60 Lbs.
Built-In Cooktops
FGGC3645Q S/W/B 36" Gas
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web
at frigidaire.com.
Product Dimensions
A - Width
B - Depth
C - Height
36"
21-3/4"
5"
Cutout Dimensions
Width (Min.) / (Max.)
Depth (Min.) / (Max.)
Height
33-7/8" / 34-1/4"
19-3/8" / 19-3/4"
8"
Granite Countertop
Installation Kit available.
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FGGC3645Q 03/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
