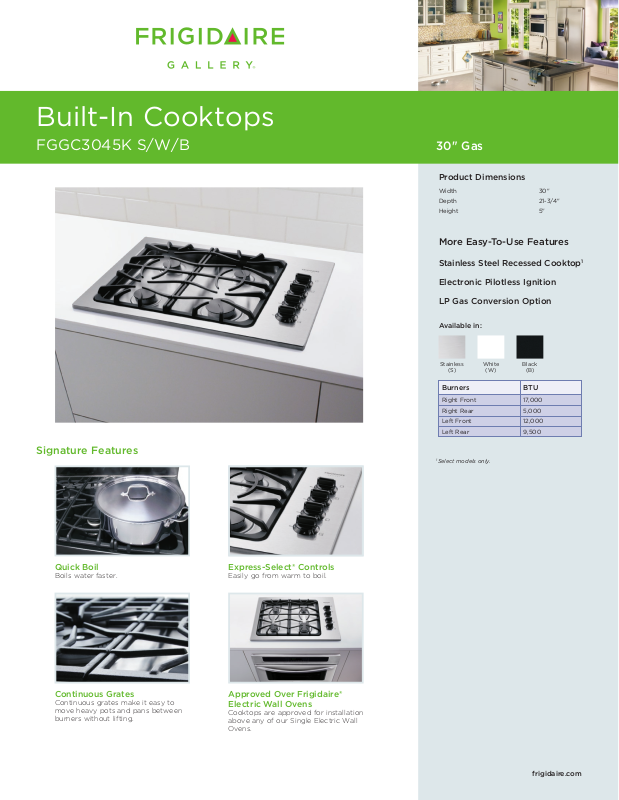

Frigidaire FGGC3045KS, FGGC3045KW Specification Sheet
Built-In Cooktops
FGGC3045K S/W/B
30" Gas
Product Dimensions
Width 30"
Depth 21-3/4"
Height 5"
More Easy-To-Use Features
Stainless Steel Recessed Cooktop
Electronic Pilotless Ignition
LP Gas Conversion Option
Available in:
Stainless
(S)
Burners
Right Front
Right Rear
Left Front
Left Rear
White
(W)
Black
(B)
BTU
17,000
5,000
12,000
9,500
1
Signature Features
Quick Boil
Boils water faster.
Continuous Grates
Continuous grates make it easy to
move heavy pots and pans between
burners without lifting.
Express-Select® Controls
Easily go from warm to boil.
Approved Over Frigidaire®
Electric Wall Ovens
Cooktops are approved for installation
above any of our Single Electric Wall
Ovens.
1
Select models only.
frigidaire.com
Features
A
B
C
Controls
Surface Type
Sealed Gas Burners
Grates
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Control Location
Knob Color
Knob Type
Express-Select®
Stainless Steel Recessed
(S), Color-Coordinated
Recessed (W/B)
Yes
Continuous Cast Iron
w/Black Matte Finish
17,000
5,000
12,000
9,500
Right Side
Stainless (S)
Color-Coordinated (W/B)
Plastic
Specifications
Power Supply Connection Location
Gas Supply Connection Location
LP Gas Conversion Kit
Voltage Rating
Amps @ 120 Volts
1
Minimum Circuit Required (Amps)
Approved for Electric Single
Wall Oven Combination Installation
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.
2
Cooktops are approved for installation above any of our Electric Single
Wall Ovens.
Right Rear
Right Rear
Included
120V / 60 Hz / 15A
1.0
15
Yes
2
55 Lbs.
Built-In Cooktops
FGGC3045K S/W/B 30" Gas

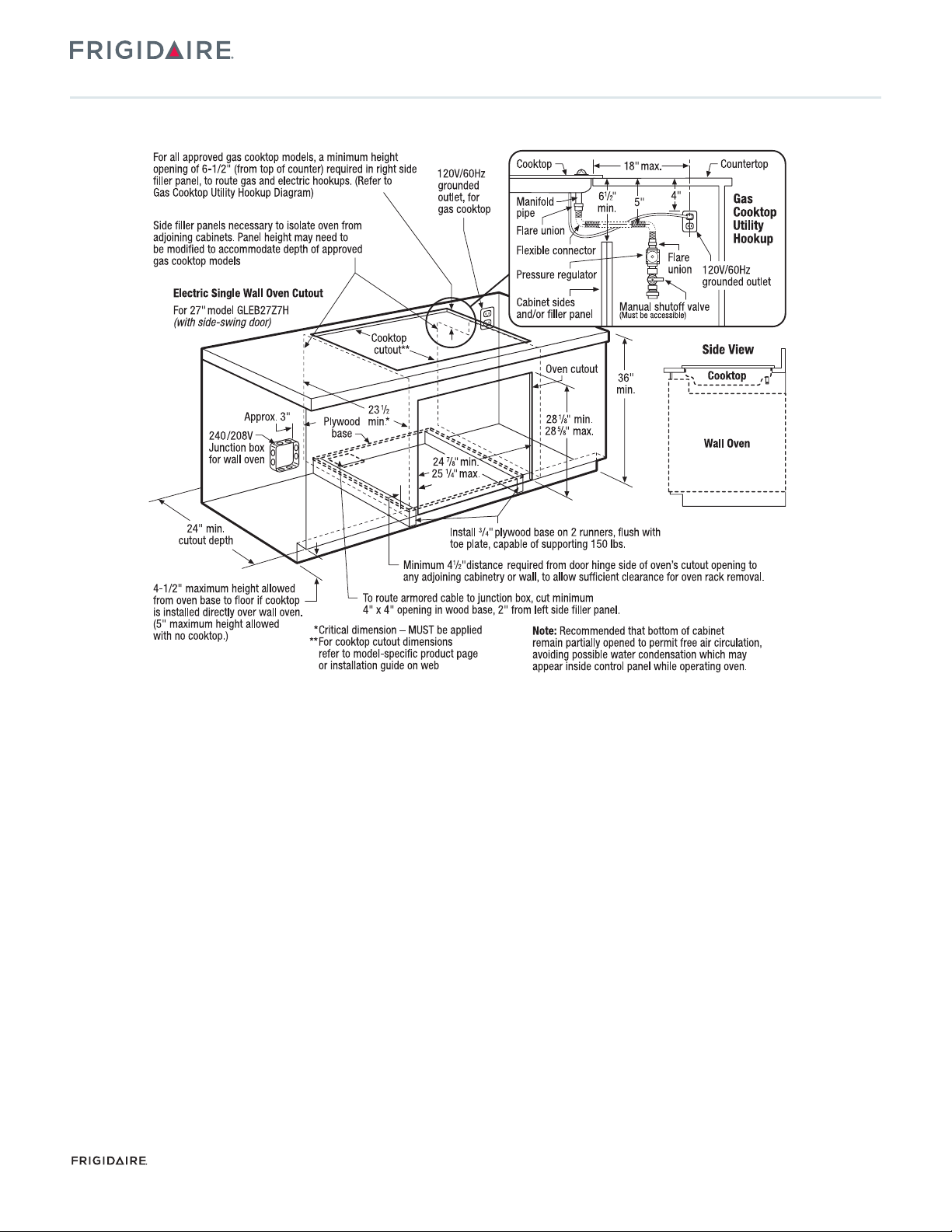

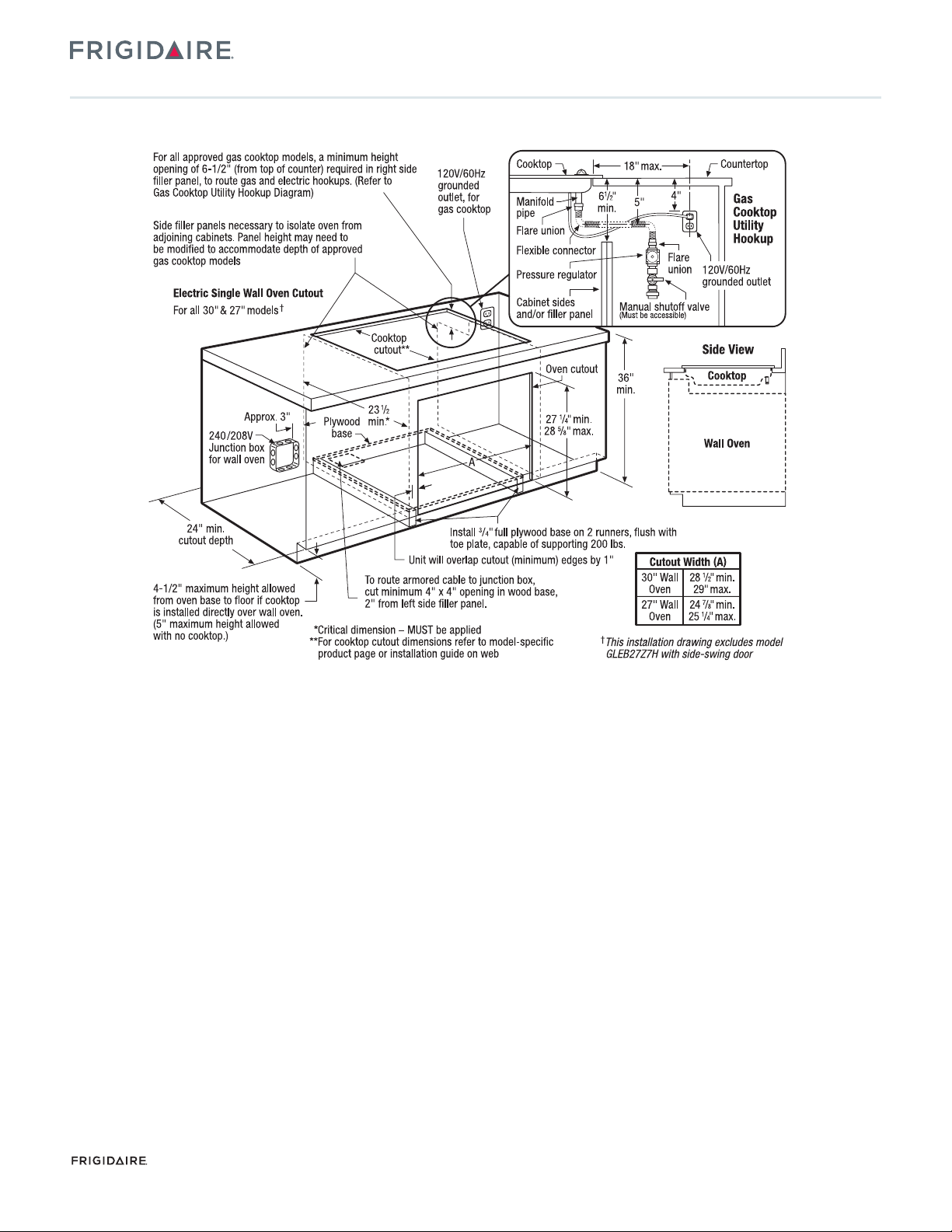

NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web
at frigidaire.com.
Product Dimensions
A - Width
B - Depth
C - Height
30"
21-3/4"
5"
Cutout Dimensions
Width (Min.) / (Max.)
Depth (Min.) / (Max.)
Height
27-1/4" / 28-1/2"
19-1/8" / 19-3/4"
8"
Granite Countertop
Installation Kit available.
•
USA
10200 David Taylor Drive
•
CANADA
FGGC3045K 01/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
