Frigidaire FGF366CCC Installation Guide

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER. IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE. READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

If the information in this manual is not

followed exactly, a fire or explosion may result causing property damage, personal injury or death.

FORYOUR SAFETY:

-- Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other appliance.

-- WHATTO DO IFYOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call yourgas supplier from a neighbor's

phone. Follow the gas supplier's instructions.

• ALL RANGES

CAN TIP

• INJURYTO PERSONS

COULD RESULT

• INSTALL ANTI-T1P

DEVICE PACKED wn14

RANGE

• SEE INSTALLAllON

INSTRUCTIONS

• If you cannot reach your gas supplier, call the fire

department.

-- Installation and service must be performed by a

Note: For appliances installed in the state of Massachusetts see page 2.

qualified installer, service agency or the gas supplier.

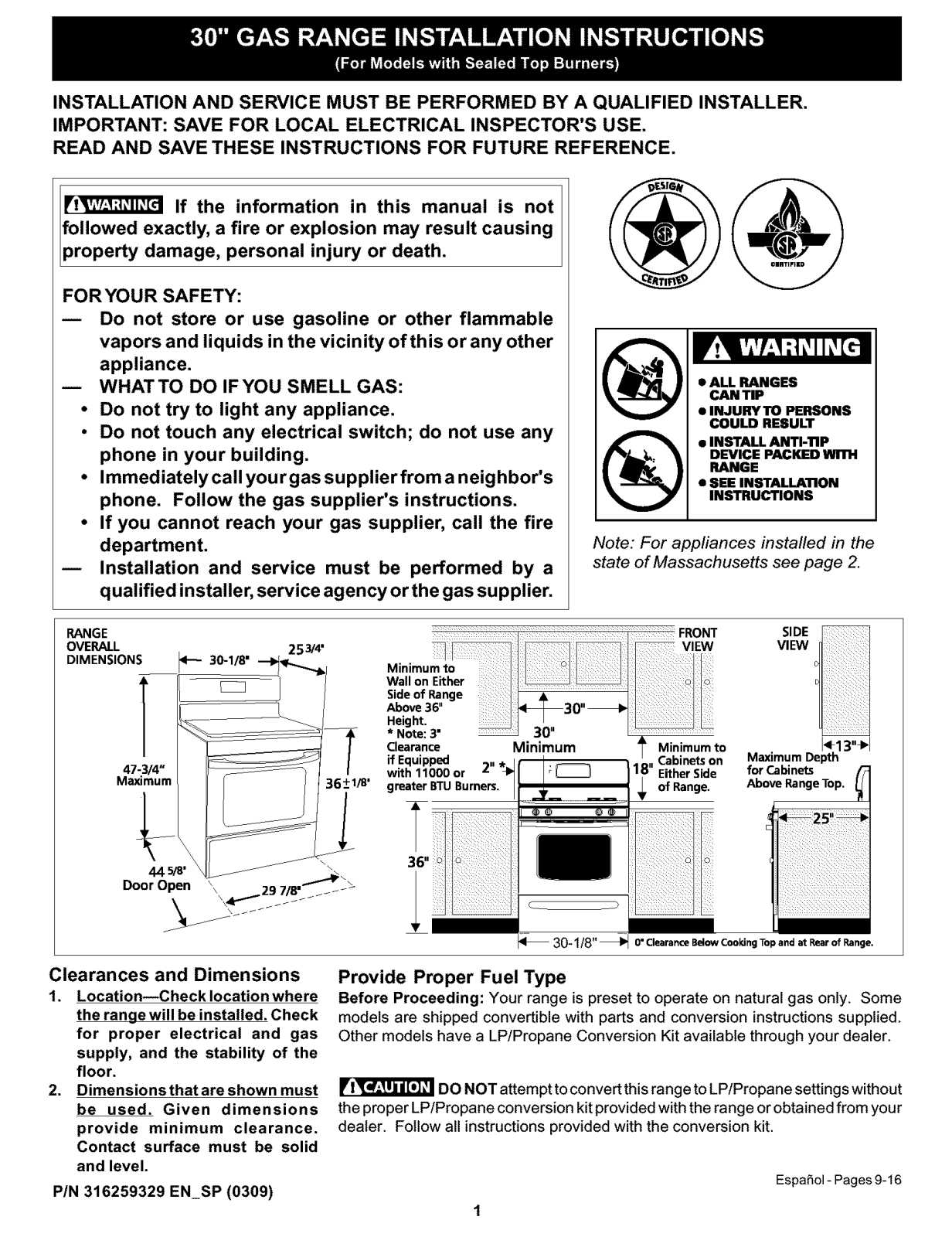

RANGE

OVERALL

DIMENSIONS

44 5/8'

Door Open

253/4 •

Clearances and Dimensions

1. Location--Check location where the range will be installed. Check

for proper electrical and gas

supply, and the stability of the

floor.

2. Dimensions that are shown must be used. Given dimensions

provide minimum clearance. Contact surface must be solid

and level.

PIN 316259329 EN_SP (0309)

MaximumDepth

AboveRangeTop.

forCabinets

_25!!_

0" ClearanceBelowCookingTopand at Rearof Range.

Provide Proper Fuel Type Before Proceeding: Your range is preset to operate on natural gas only. Some

models are shipped convertible with parts and conversion instructions supplied. Other models have a LP/Propane Conversion Kit available through your dealer.

DO NOT attempt to convert this range to LP/Propane settings without

the proper LP/Propane conversion kit provided with the range or obtained from your dealer. Follow all instructions provided with the conversion kit.

EspaSol- Pages 9-16

Important Notes to the Installer

1. Read all instructions contained in these installation

instructions before installing range.

2. Remove all packingmaterial from the oven compartments before connecting the gas and electrical supply to the

range.

3. Observe all governing codes and ordinances.

4. Be sure to leave these instructions with the consumer.

Important Note to the Consumer

1. Keep these instructions with your owner's guide for

future reference.

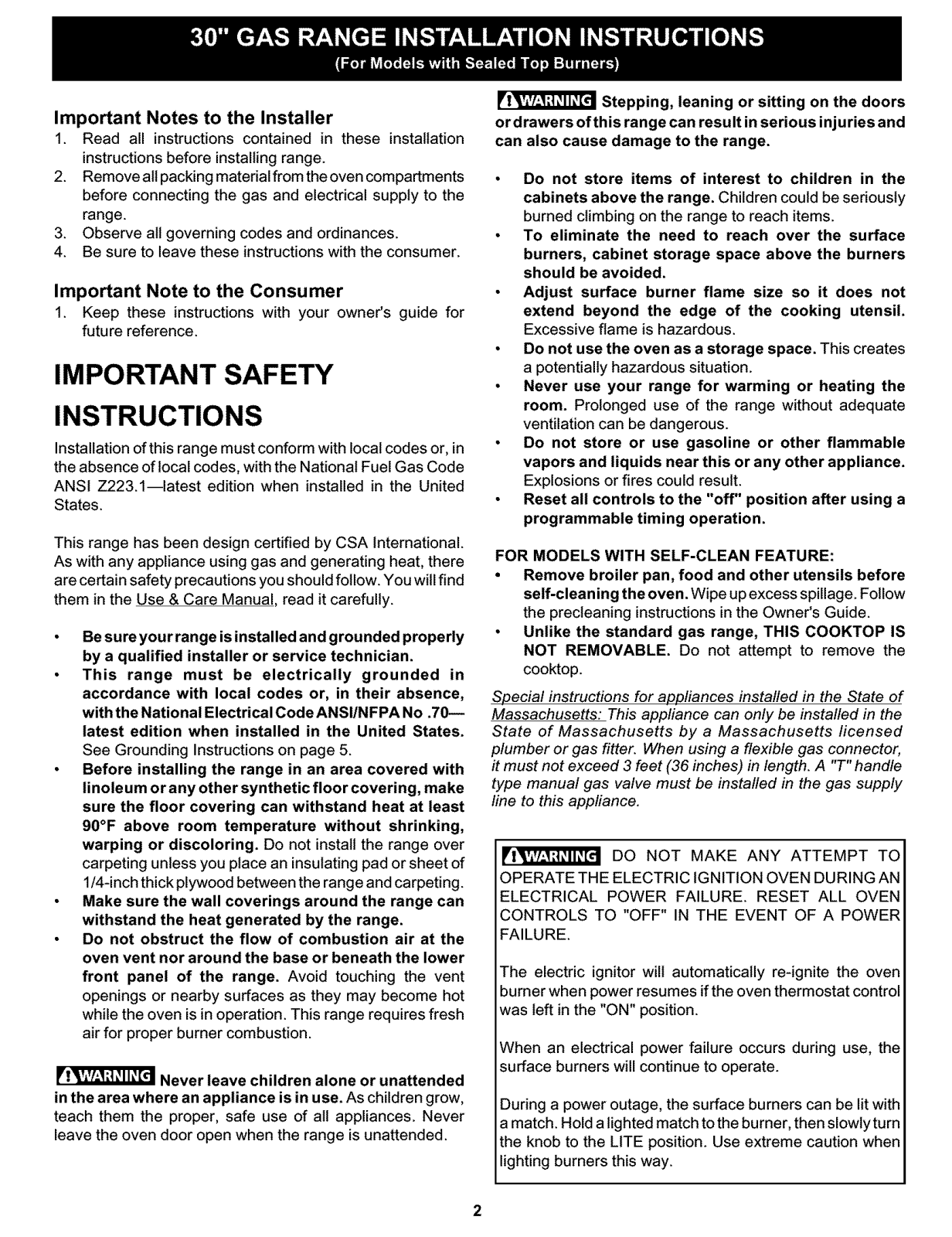

IMPORTANT SAFETY INSTRUCTIONS

Installation of this range must conform with local codes or, in

the absence of local codes, with the National Fuel Gas Code ANSI Z223.1--1atest edition when installed in the United States.

This range has been design certified by CSA International. As with any appliance using gas and generating heat, there are certain safety precautions you should follow. You will find them in the Use & Care Manual read it carefully.

Be sure your range is instal led and grounded properly by a qualified installer or service technician. This range must be electrically grounded in

accordance with local codes or, in their absence, with the National Electrical Code ANSI/NFPA No .70-- latest edition when installed in the United States.

See Grounding Instructions on page 5. Before installing the range in an area covered with linoleum or any other synthetic floor covering, make sure the floor covering can withstand heat at least 90°F above room temperature without shrinking, warping or discoloring. Do not install the range over carpeting unless you place an insulating pad or sheet of

1/4-inch thick plywood between the range and carpeting.

Make sure the wall coverings around the range can withstand the heat generated by the range.

Do not obstruct the flow of combustion air at the oven vent nor around the base or beneath the lower

front panel of the range. Avoid touching the vent

openings or nearby surfaces as they may become hot while the oven is in operation. This range requires fresh air for proper burner combustion.

!_WL':IJ_II_[t'll

- ' Never leave children alone or unattended

in the area where an appliance is in use. As children grow, teach them the proper, safe use of all appliances. Never

leave the oven door open when the range is unattended.

lrl'_lw'-IttPIl_[ 'PIIStepping, leaning or sitting on the doors

ordrawers of this range can result in serious injuries and can also cause damage to the range.

Do not store items of interest to children in the cabinets above the range. Children could be seriously

burned climbing on the range to reach items. To eliminate the need to reach over the surface

burners, cabinet storage space above the burners should be avoided.

Adjust surface burner flame size so it does not extend beyond the edge of the cooking utensil.

Excessive flame is hazardous. Do not use the oven as a storage space. This creates

a potentially hazardous situation. Never use your range for warming or heating the room. Prolonged use of the range without adequate ventilation can be dangerous. Do not store or use gasoline or other flammable vapors and liquids near this or any other appliance. Explosions or fires could result. Reset all controls to the "off" position after using a programmable timing operation.

FOR MODELS WITH SELF-CLEAN FEATURE:

Remove broiler pan, food and other utensils before self-cleaning the oven. Wipe upexcess spillage. Follow the precteaning instructions in the Owner's Guide. Unlike the standard gas range, THIS COOKTOP IS NOT REMOVABLE. Do not attempt to remove the

cooktop.

Special instructions for appliances installed in the State of

Massachusetts: This appliance can only be installed in the

State of Massachusetts by a Massachusetts licensed plumber or gas fitter. When using a flexible gas connector, it must not exceed 3 feet (36 inches) in length. A "T" handle type manual gas valve must be installed in the gas supply

line to this appliance.

DO NOT MAKE ANY ATTEMPT TO

OPERATE THE ELECTRIC IGNITION OVEN DURING AN

ELECTRICAL POWER FAILURE. RESET ALL OVEN CONTROLS TO "OFF" IN THE EVENT OF A POWER FAILURE.

The electric ignitor will automatically re-ignite the oven

burner when power resumes if the oven thermostat control

was left in the "ON" position.

When an electrical power failure occurs during use, the surface burners will continue to operate.

During a power outage, the surface burners can be litwith a match. Hold alighted match to the burner, then slowly turn the knob to the LITE position. Use extreme caution when

lighting burners this way.

Before Starting

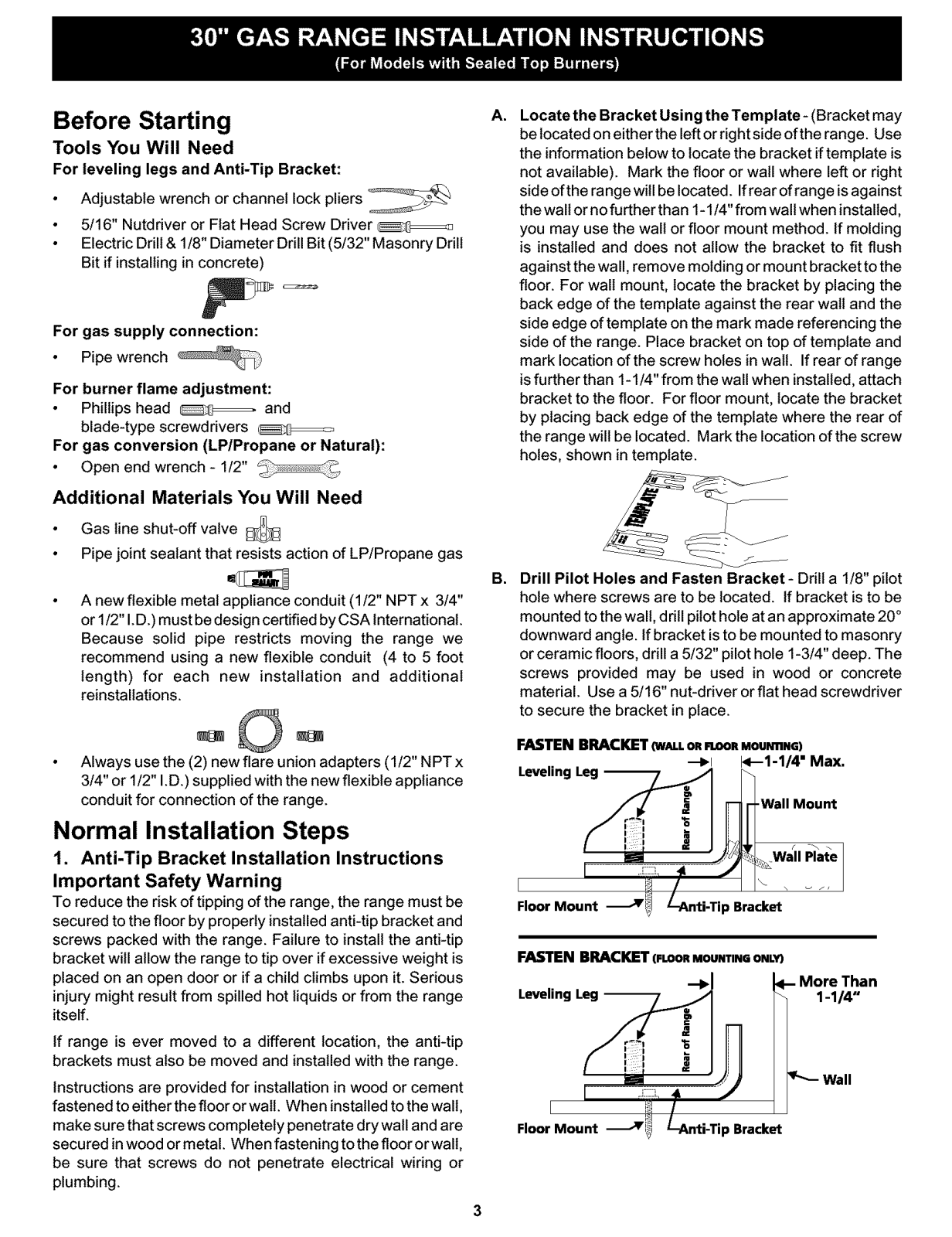

Tools You Will Need

For leveling legs and Anti-Tip Bracket:

Adjustable wrench or channel lock pliers 5/16" Nutdriver or Flat Head Screw Driver

Electric Drill & 1/8" Diameter Drill Bit (5/32" Masonry Drill Bit if installing in concrete)

For gas supply connection:

Pipe wrench

For burner flame adjustment:

Phillips head _ and

blade-type screwdrivers

For gas conversion (LP/Propane or Natural):

Open end wrench - 1/2"

Additional Materials You Will Need

Gas line shut-off valve

Pipe joint sealant that resists action of LP/Propane gas

A new flexible metal appliance conduit (1/2" NPT x 3/4" or 1/2" I.D.) must be design certified by CSA International.

Because solid pipe restricts moving the range we recommend using a new flexible conduit (4 to 5 foot length) for each new installation and additional

reinstallations.

Locate the Bracket Using the Template -(Bracket may

be located on either the left or right side of the range. Use the information below to locate the bracket if template is

not available). Mark the floor or wall where left or right side of the range will be located. If rear of range is against

the wall or no further than 1-1/4" from wall when installed, you may use the wall or floor mount method. If molding

is installed and does not allow the bracket to fit flush against the wall, remove molding or mount bracket to the

floor. For wall mount, locate the bracket by placing the back edge of the template against the rear walt and the

side edge of template on the mark made referencing the side of the range. Place bracket on top of template and

mark location of the screw holes in walt. If rear of range is further than 1-1/4" from the wall when installed, attach bracket to the floor. For floor mount, locate the bracket by placing back edge of the template where the rear of

the range will be located. Mark the location of the screw holes, shown in template.

Drill Pilot Holes and Fasten Bracket - Drill a 1/8" pilot

hole where screws are to be located. If bracket isto be mounted to the wall, drill pilot hole at an approximate 20°

downward angle. If bracket isto be mounted to masonry or ceramic floors, drill a 5/32" pilot hole 1-3/4" deep. The screws provided may be used in wood or concrete

material. Use a 5/16" nut-driver orflat head screwdriver to secure the bracket in place.

Always use the (2) new flare union adapters (1/2" NPT x 3/4" or 1/2" I.D.) supplied with the new flexible appliance conduit for connection of the range.

Normal Installation Steps

1. Anti-Tip Bracket Installation Instructions Important Safety Warning

To red uce the risk of tipping of the range, the range must be secured to the floor by properly installed anti-tip bracket and screws packed with the range. Failure to install the anti-tip bracket will allow the range to tip over if excessive weight is placed on an open door or if a child climbs upon it. Serious injury might result from spilled hot liquids or from the range

itself.

If range is ever moved to a different location, the anti-tip

brackets must also be moved and installed with the range.

Instructions are provided for installation in wood or cement

fastened to either the floor or walt. When installed to the wall, make sure that screws completely penetrate dry wall and are

secured in wood ormetal. When fastening to the floor or wall, be sure that screws do not penetrate electrical wiring or plumbing.

FASTEN BRACKET (WXLLORFLOORMOUNI1NG)

--_l 14--1-1/4" Max.

LevelingLeg _._] _

/7,,,-Ii

FloorMount J_ /--Anti-TipBracket

FASTEN BRACKET (FLOORMOUNTINGONLY)

--I_ - More Than

LevelingLeg-- 1-1/4"

Floor Mount p Bracket
